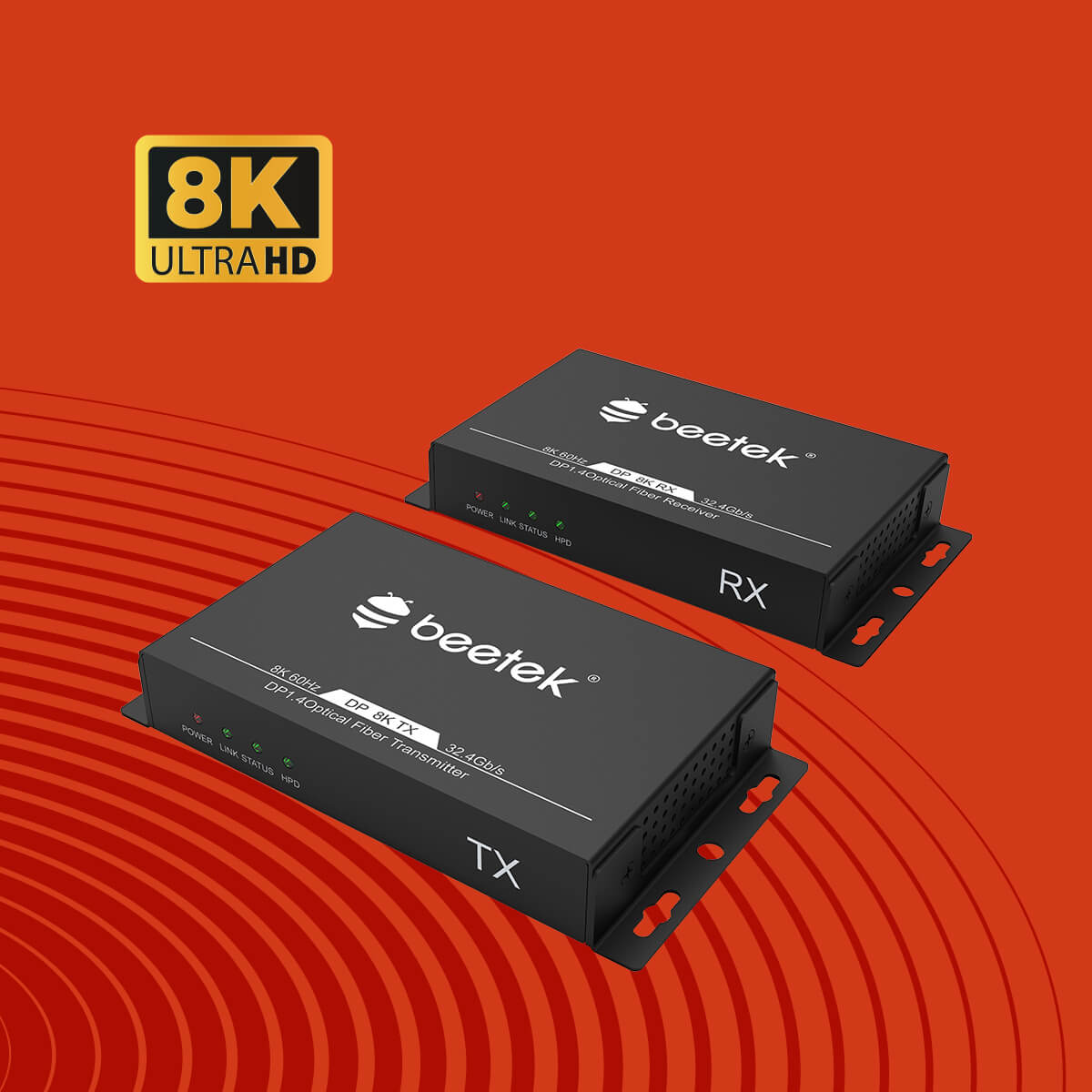

M1-DP14Rr
DP 1.4 support Fibre Extenders
- Support resolution upto 8K@60 at 48Gbps transmission rate

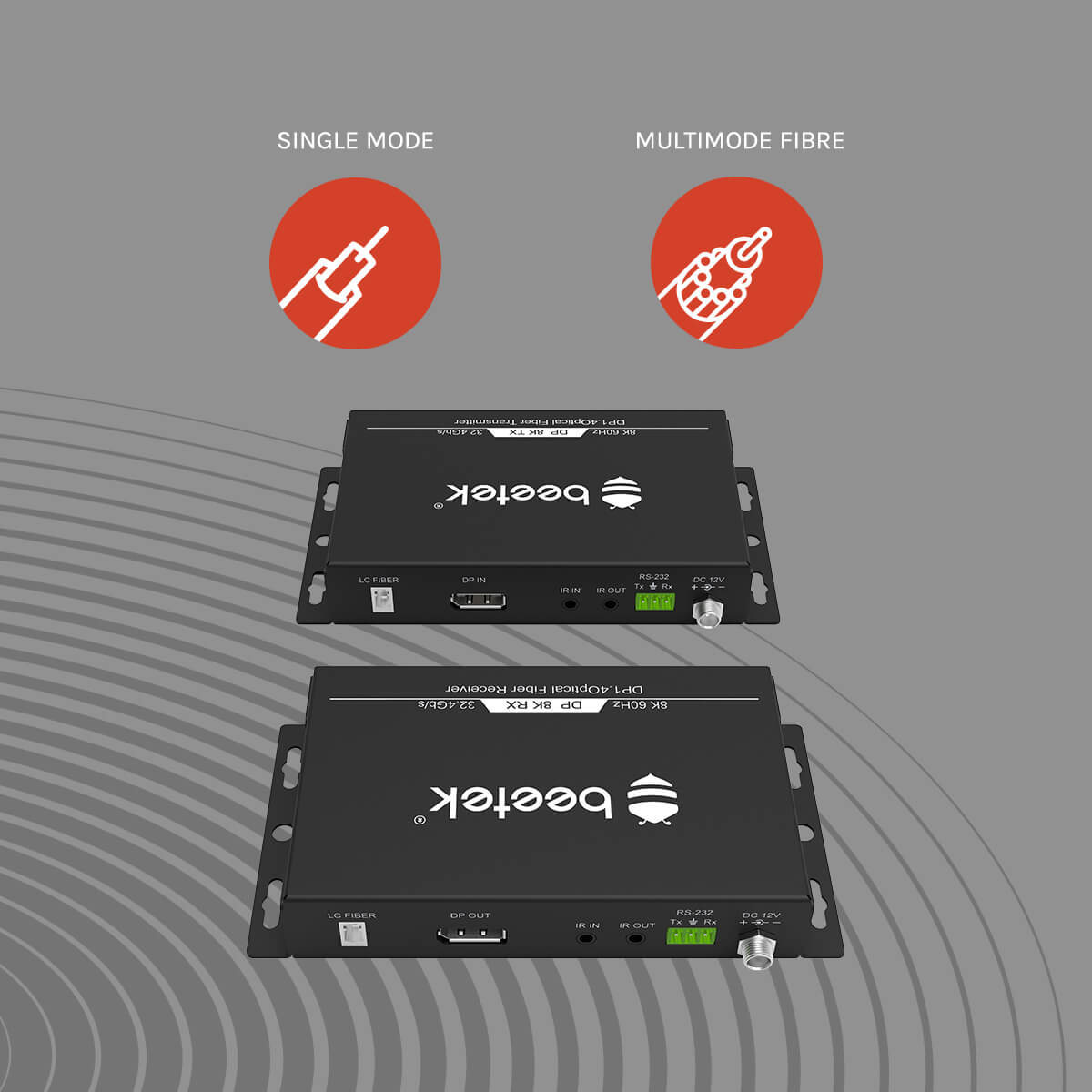

- Single Mode fibre
- Support HDCP 2.2 and transparent EDID Pass through

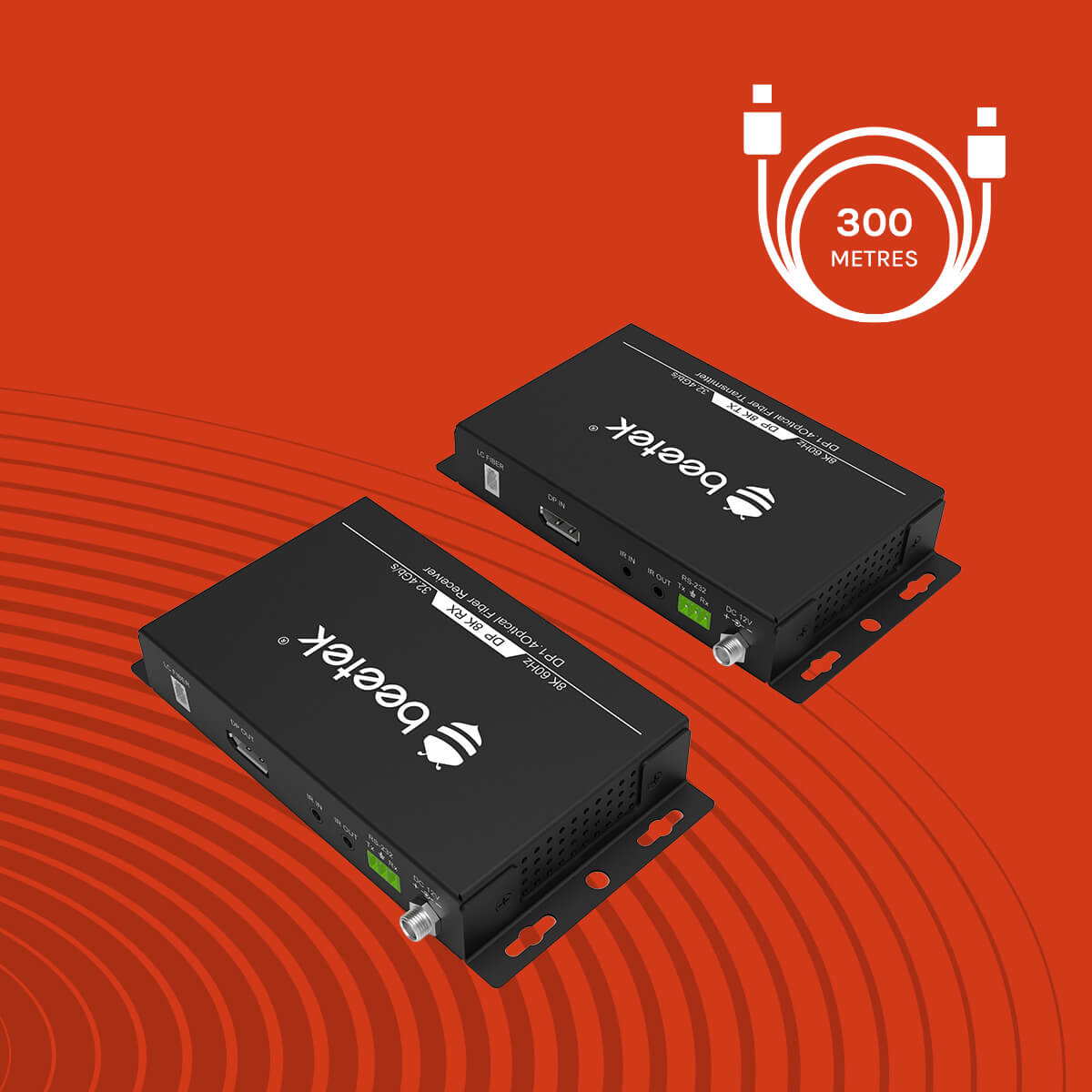

- Support distance upto 300 metres with single LC cable
Beetek DP 1.4 Fibre extender support resolutions upto 8K@60 4:4:4 at 32.4 Gbps. Supports DP 1.4 formats with true uncompressed video transmission. Single mode fibre uses CWDM Technology, Multiplexing and single optical fire transmission. The transmission distance is upto 300 metres with No Delay and No Compression. The device supports bi-directional RS232 and IR Transmission for third party device control. The product is suitable for Rental, Live Events and video processor, high end work station video extension applications.
| Name | Specification | |
| Product Name | One core single mode DP 1.4 Fiber Extender +IR+232 | |
| Model | M1-DP14Rr | |
| Signal | DP1.4 | |

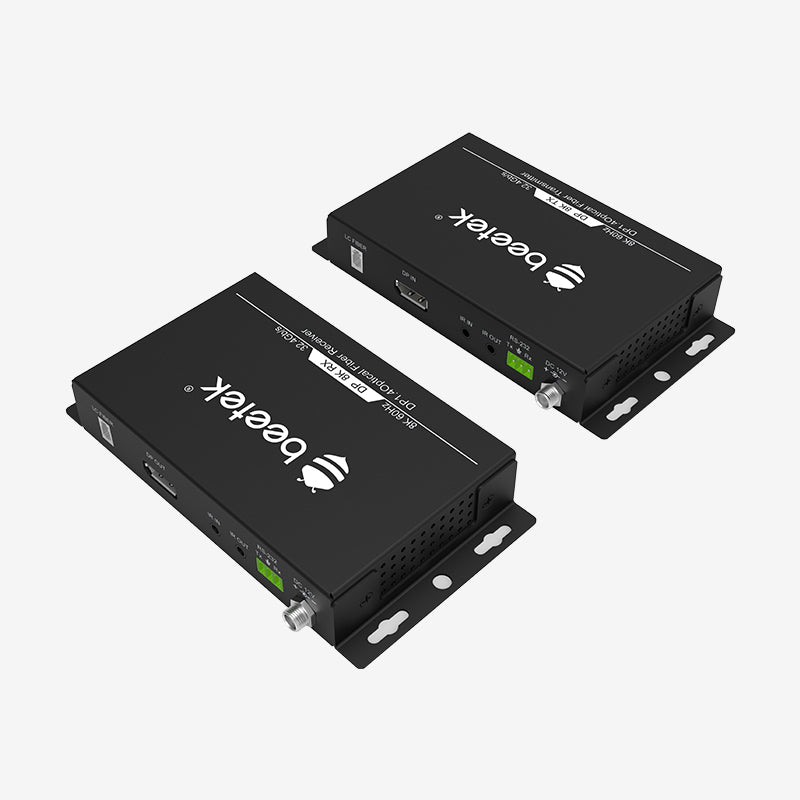

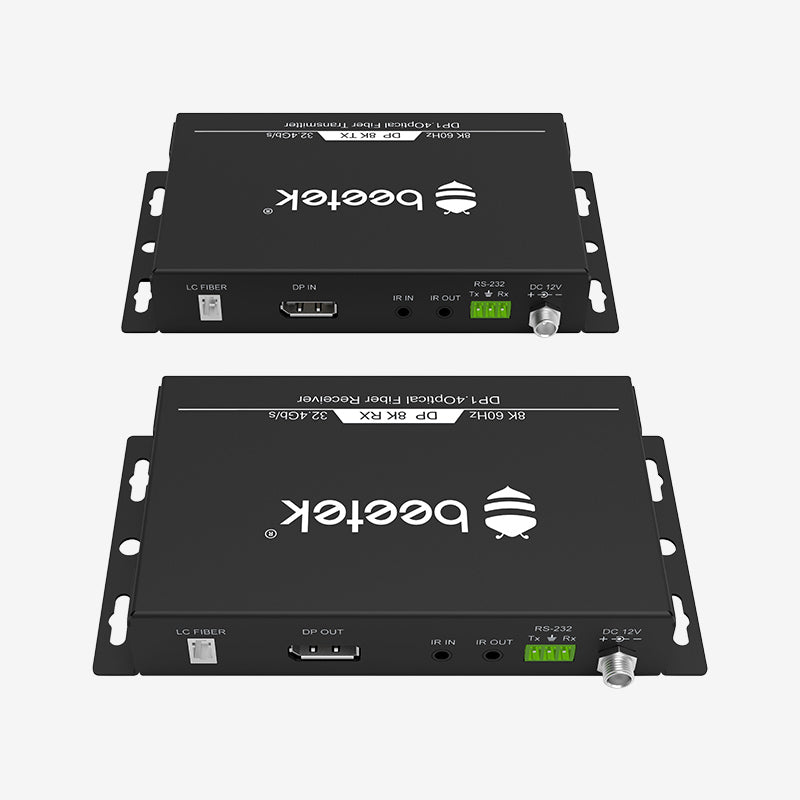

| Input Connector | TX： DP female, IR, RS-232; RX：Single-core LC |
|
| Output Connector | TX：Single-core LC ; RX：DP female, IR, RS-232 |
|
| Fiber type | Single-mode G657.A1 | |

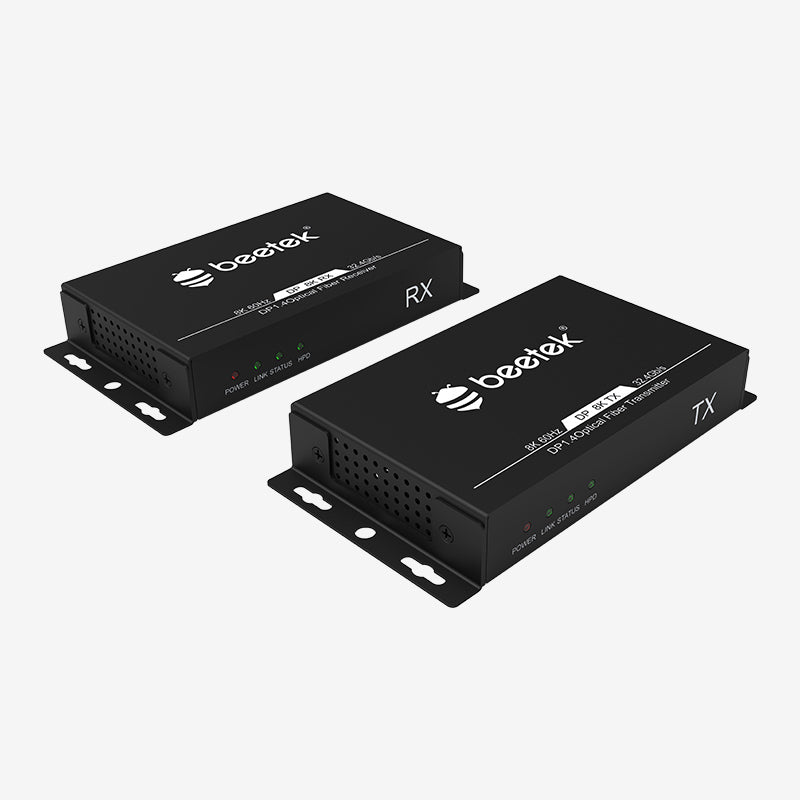

| Indicator LED | Signal, Power, Mode, Hot-plug detect | |
| Locking power connector | Yes | |
| Power Consumption | DC 12V 2A | |
| Ambient Temp | -20°C ~ 70°C | |
| Material | Metal mold | |
| Dimensions | TX:160 *85 *26mm; RX:160 *85 *26mm; | |
| Weight | TX 0.45kg; RX0.45 | |
| Package Dimensions | 226 *160 *121mm | |
| Package Weight | 1.3kg | |
| AUX Channel | Yes | |
| IR | 2-way IR | |
| RS-232 | 2-way RS-232 | |
| High-speed Ethernet | Supports expanded high-speed Ethernet | |
| Extended USB | Supports extended USB2.0/USB3.1 | |
| Extended Audio | Supports 32 extended audio channels | |
| 3D | Yes | |
| CEC | Yes | |
| ARC | Yes | |
| HDCP | HDCP2.2 | |
| HDR | Yes | |
| BT.2020 Color space | Yes | |
| Optical Module | 4*12G＋2*2.5G 6-channel Single-mode Optical Module | |
| Technical Characteristics | 6-wave CWDM Technology | |
| Optical Module Life | 100,000 Hours | |
| Resolution | 7680X4320@30Hz | |
| Transmission Distance | Single-mode 300M | |
| Clock Bandwidth | 810MHz * 4 | |
| Transmission Speed | 32.4Gbps | |
| Balancing Chip | Automatic equalization | |
| ESD Protection | Yes | |
| Hot Plug | Yes | |
| Delay | Zero-frame | |
| Compression | None | |
| Sampling Rate | Bandwidth Range: 8~16bit | |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4+B4:D44, YUV 4:2:0, YUV 4:2:0 |
Key Features
Support resolution upto 8K@60 at 48Gbps transmission rate
Support Single Mode fibre
Support distance upto 300 metres with single LC cable
