G202 Series - 4 Core

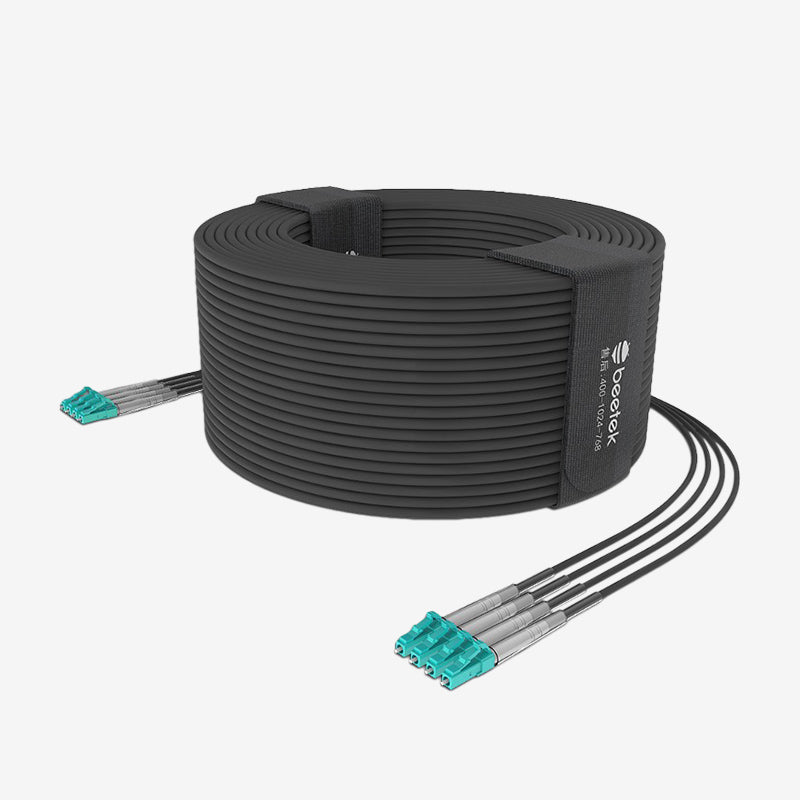

4 Core TPU soft sheath armoured fibre cable

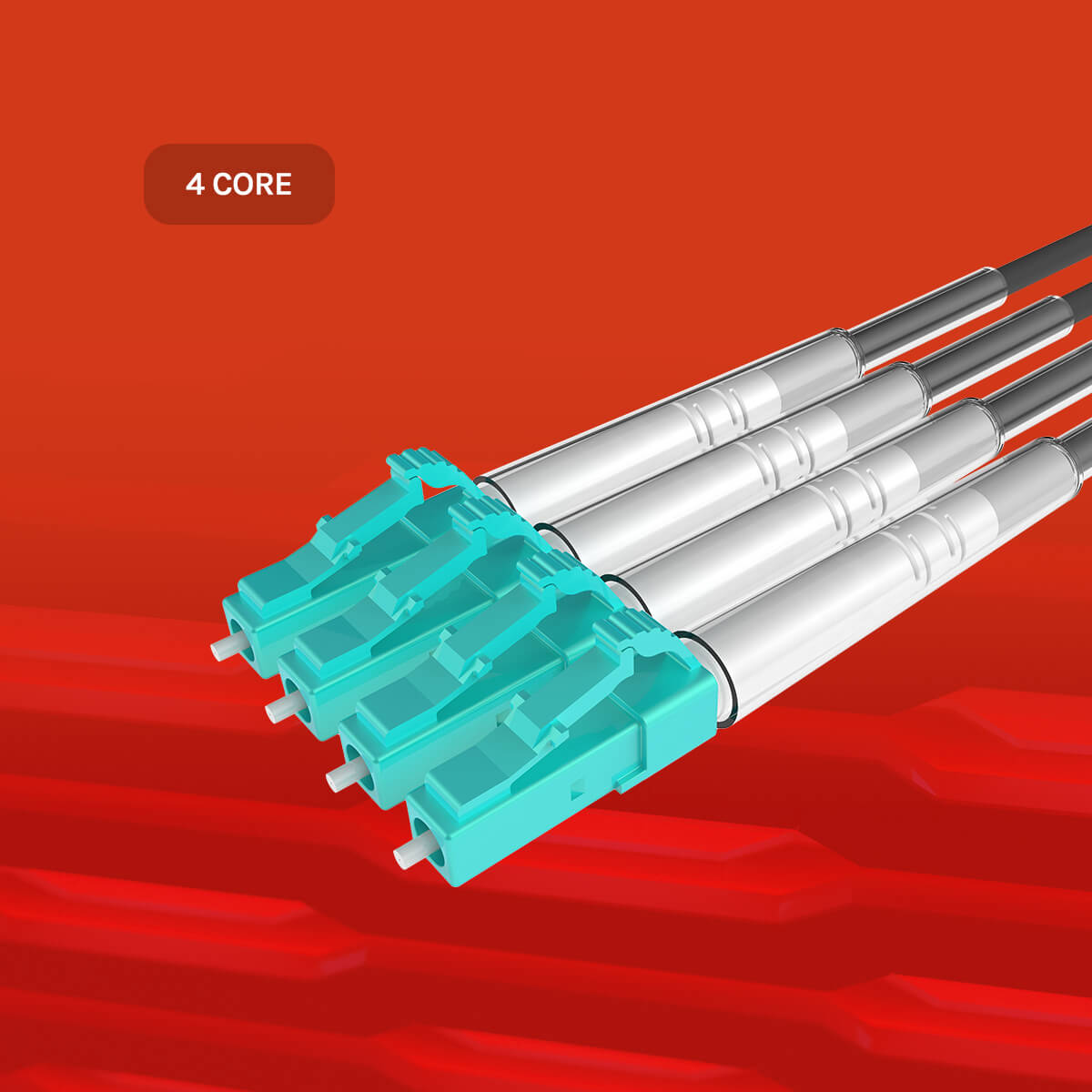

- 4 Core outdoor fibre optic cable

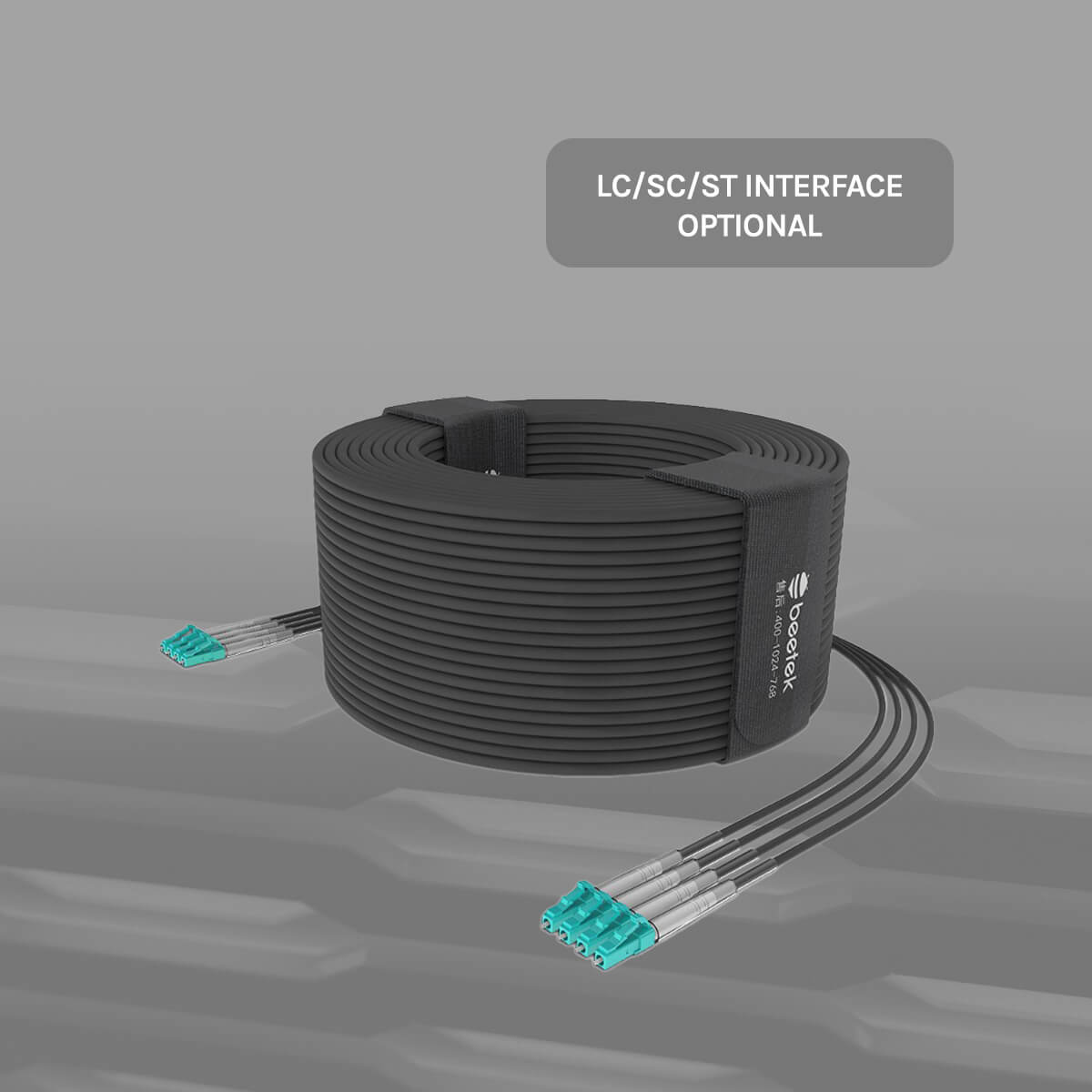

- LC/SC/ST interface optional

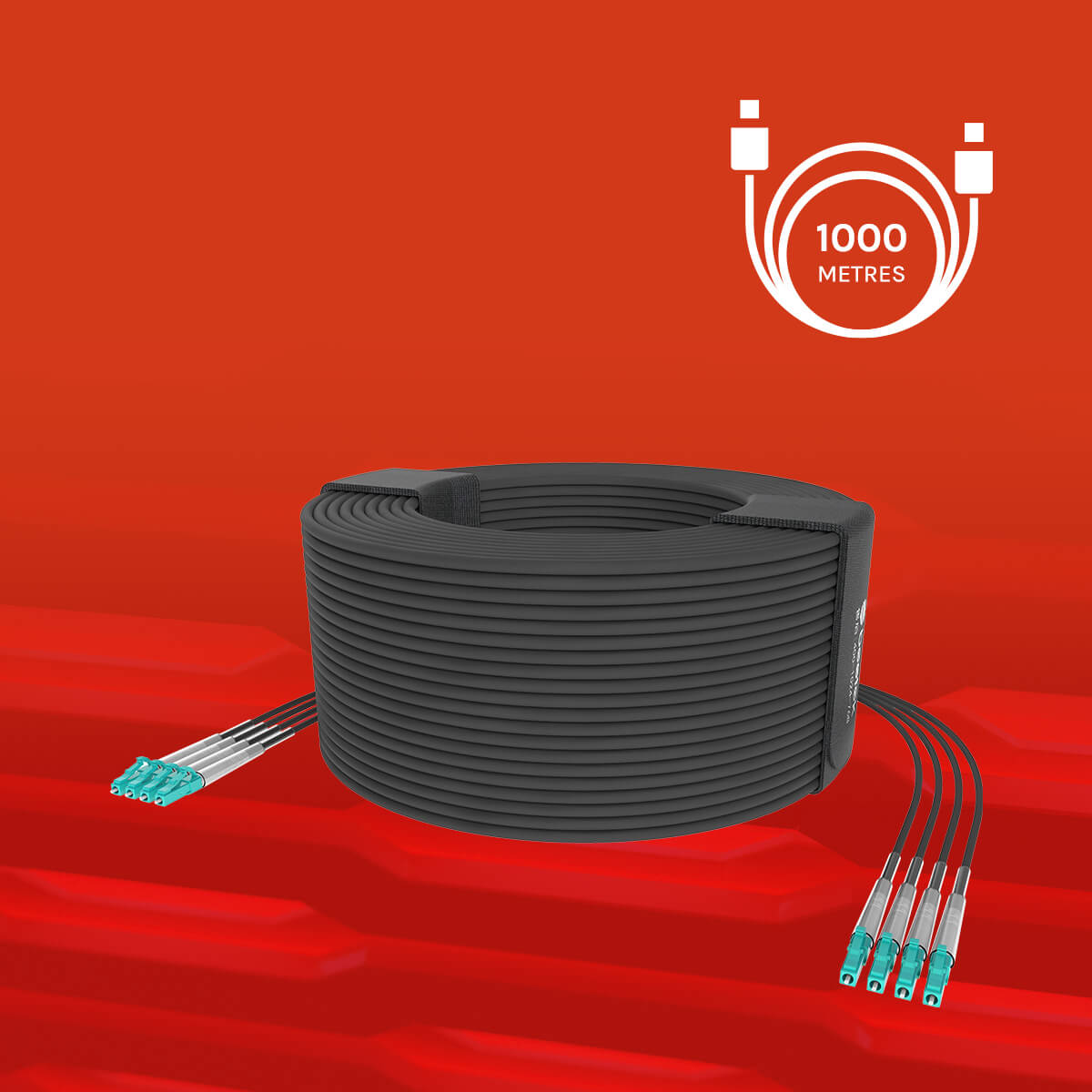

- 1000 MM Branch, 5 Layers of armored steel ring, braided and aramid fiber
- Multimode 50/125 OM3 corelle core
- TPU Soft sheath, anti mouse bite, tensile and compression resistance
Beetek Multimode fibre optic armored cables are designed with industry leading technolgy with 5 layers of armored steel ring, braided and aramid fibre and it can withstand any harsh environments specially designed for rental & staging industry.
| Name | Specification | |
| Product Name | TPU Multi-mode OM3 Armored Fiber Cable, 4-core, LC connectors | |
| Model | G202-xxU-4LC | |
| Brand | Beetek | |

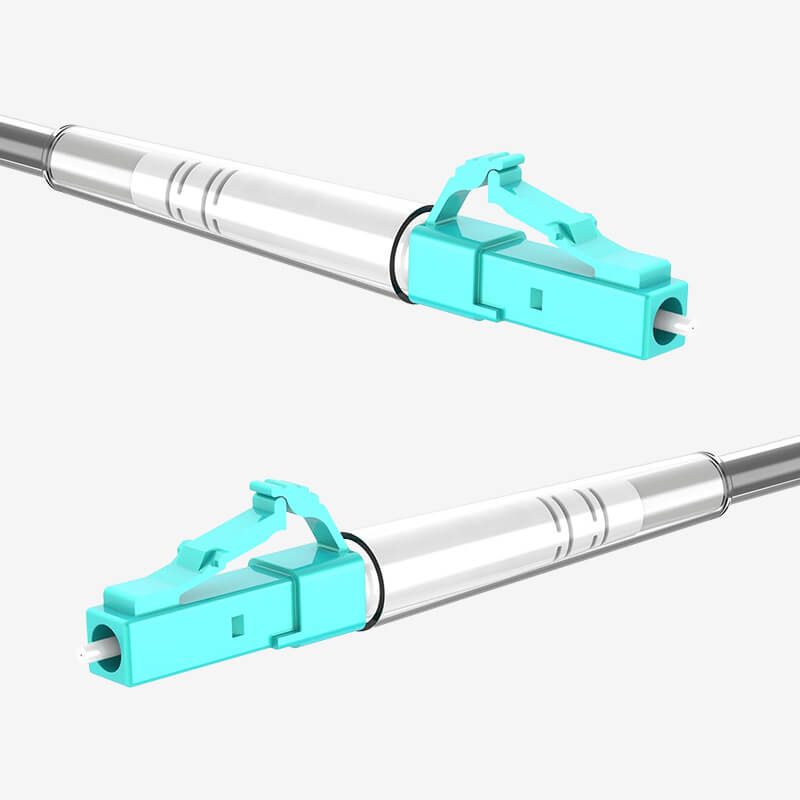

| Connector Type | LC | |
| Connector Color | Light blue | |
| Fiber Type | Multi-mode OM3-300 (50/125μm) | |
| Fiber Wavelength | 850 - 1300nm | |
| Fiber Core Brand | YOFC | |
| Number of cores | 4 | |
| Branch Length | 1M | |
| Reinforcement Structure | Dupont Kevlar with metal weave | |

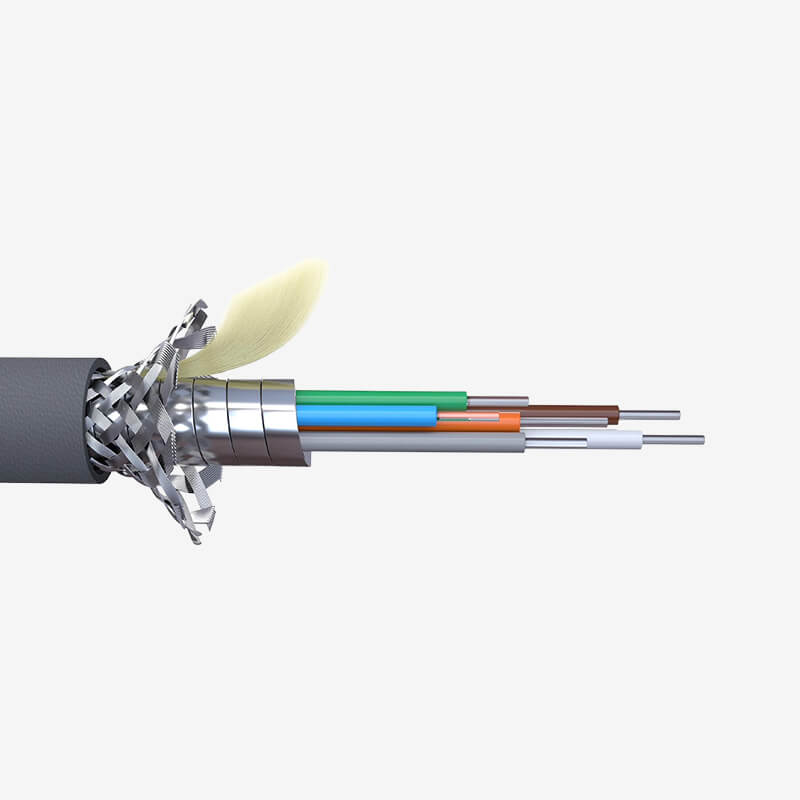

| Structural Layers | Tightly wrapped optical fiber + spiral-armored tube + Kevlar + metal braid + outer jacket | |
| Jacket Outer Diameter | 5mm ± 0.1mm | |
| Jacket Color | Matte Gray | |
| Jacket Material | Matt Frosted TPU | |
| Spiral Tube Diameter | 2.8mm ± 0.1mm | |
| Spiral Tube Color | Silver | |
| Spiral Tube Material | SUS 201 Stainless steel | |
| Core Cladding Diameter | 0.6mm ± 0.05mm * 4 | |
| Core Cladding Material | PVC | |
| Core Cladding Color | Blue, Orange, Green, Brown | |
| Core Diameter | 50μm ± 2.5μm | |
| Cladding Diameter | 124.8μm ±1.0μm | |
| Cladding out of roundness | ≤1.0 % | |
| Core/cladding Concentricity Error | ≤1.5 μm | |
| Coating Diameter | 245±7 μm | |
| Coating layer out of roundness | ≤6.0 % | |
| Cladding/coating Concentricity Error | ≤12.0 μm | |
| Full Bandwidth | 850nm≥1500MHz · km；1300nm≥500MHz · km | |
| Effective Bandwidth | 850nm≥2000MHz · km；1300nm≥500MHz · km | |
| Attenuation Coefficient | 850nm≤3.5 dB / km；1300nm≤1.5 dB / km | |
| Tensile (LC connector) | Long-term 50N; short-term 60N | |
| Tensile (optical cable) | Long-term 400N; short-term 800N | |
| Compressive Strength | Long-term 2000N /10cm; short-term 3000N /10cm | |
| Linear Rolling | 300N/cm armor layer deformation <0.3mm, additional attenuation <0.2dB | |
| Minimum Bending Radius | Dynamic > 10D; Static > 20D (*D is the outer diameter of the cable) | |
| Transmission Rate | 10Gb/s within 300 meters | |
| Operating Temperature | -20~+85°C |
Key Features
4 Core outdoor fibre optic cable
LC/SC/ST interface optional
1000 MM Branch, 5 Layers of armored steel ring, braided and aramid fiber
