M1-DP&HDMI-Pro
DP 1.2 and HDMI 2.0 Fibre Extender

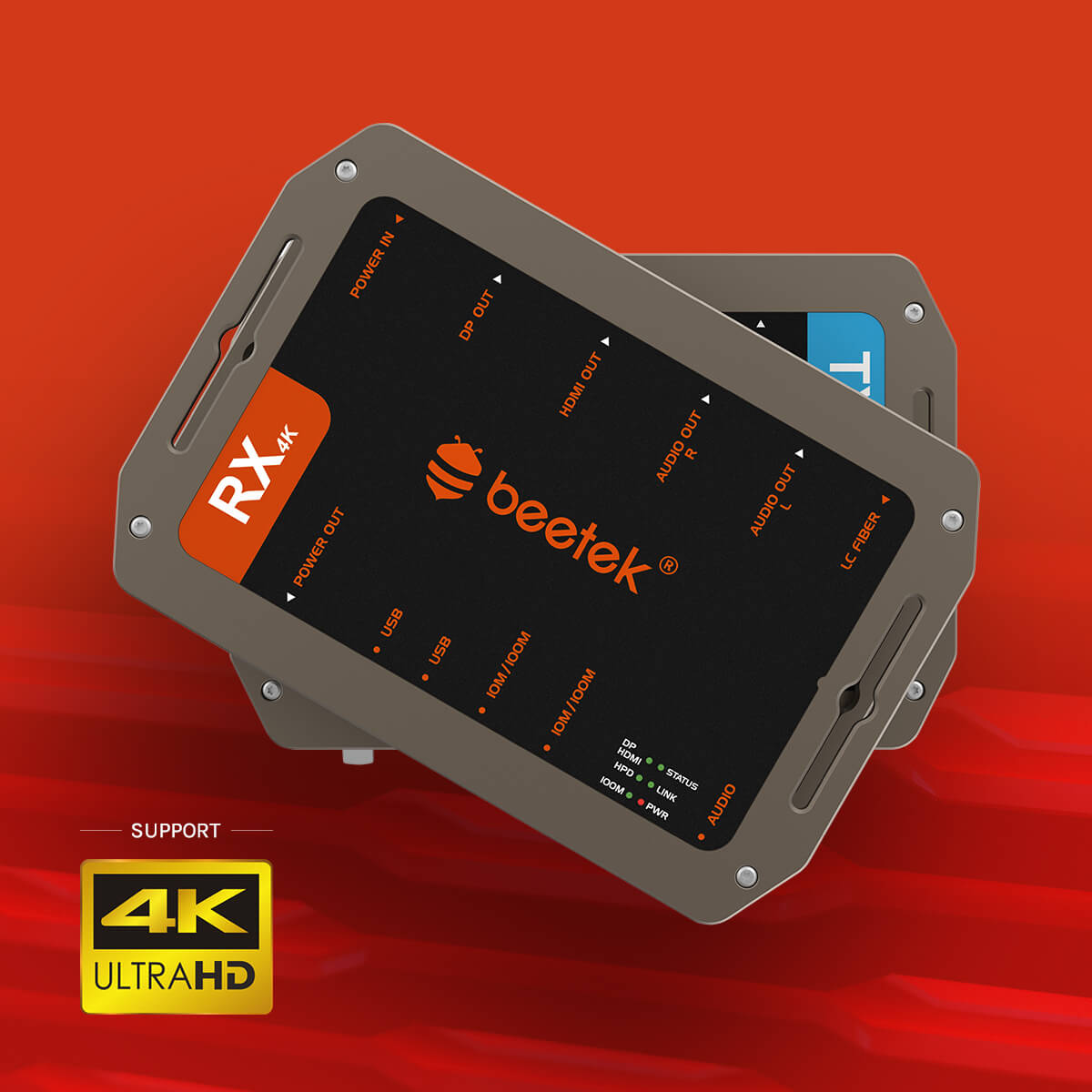

- Supports resolutions up to 4K@60 4:4:4 at 32.4 Gbps transmission rate
- Select between HDMI & Display Port over single-mode fiber cable
- Power loop for easy powering of multiple transmitters and receivers

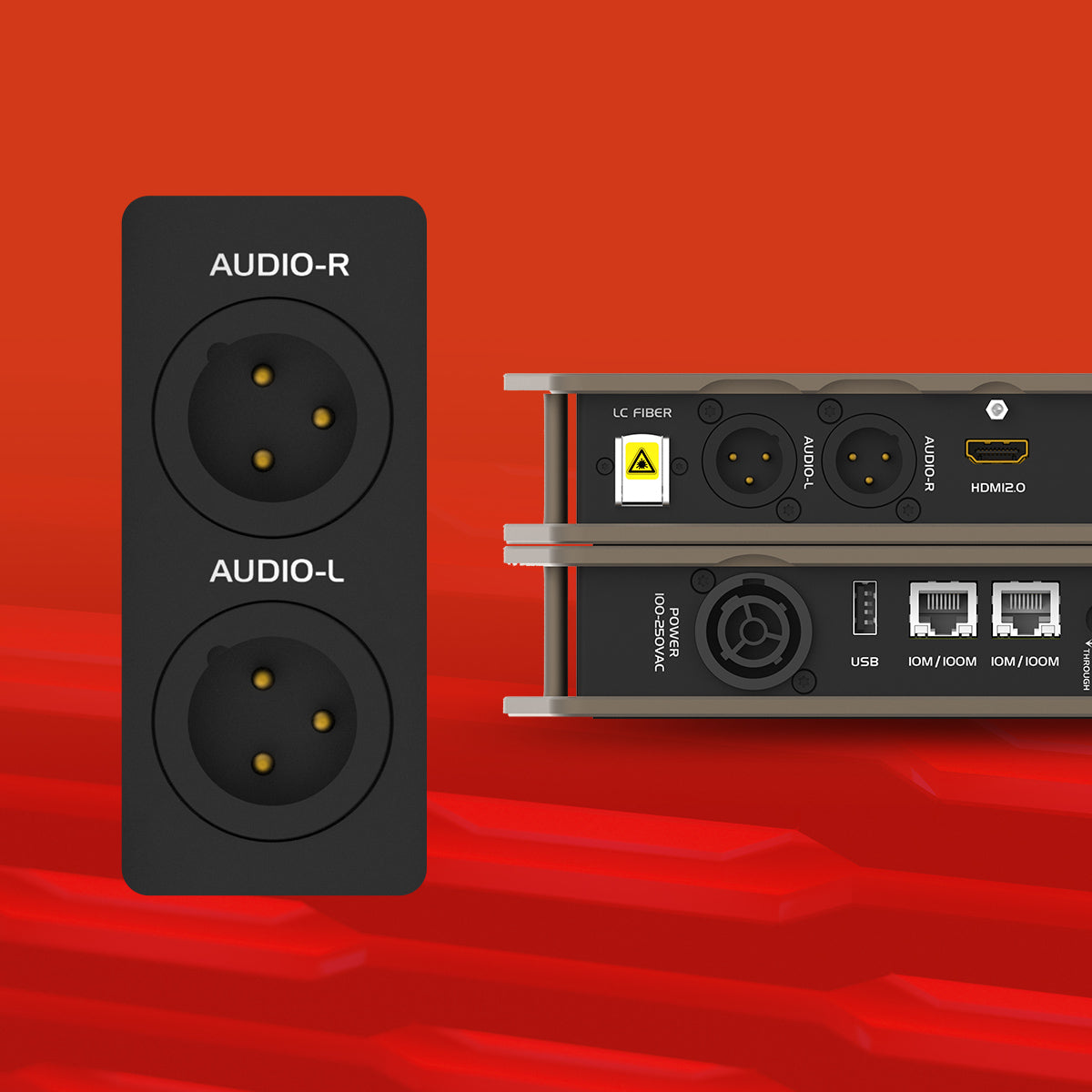

- Independent Audio In and Audio Out transmission from Transmitter to Receiver

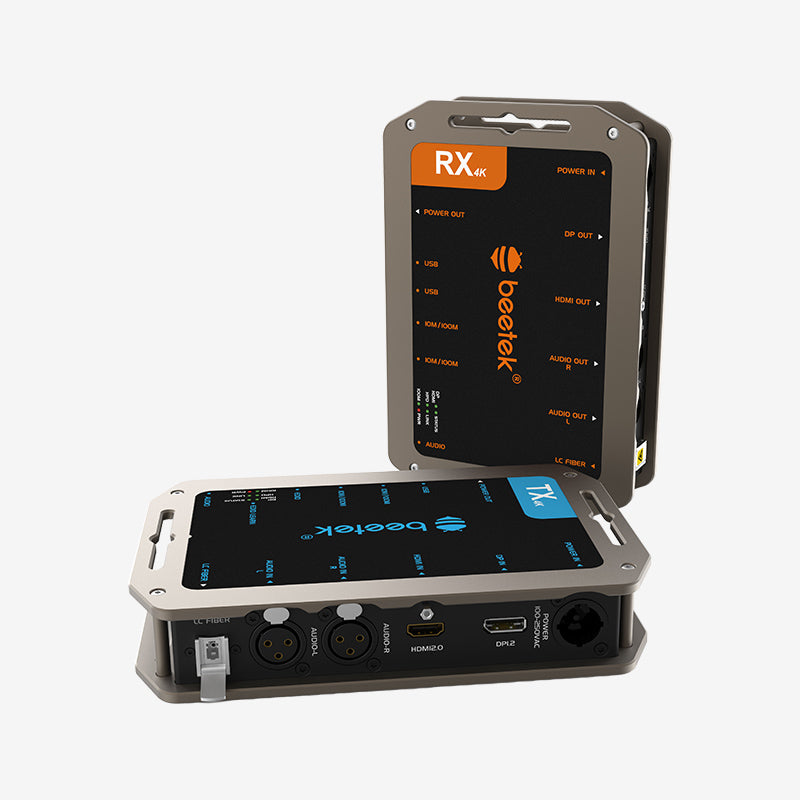

Beetek DP 1.2 and HDMI 2.0 Fibre extenders are industry leading fibre extension solution with resolution support upto 4K@60 4:4:4 at 32.4 Gbps transmission rate. The extenders are capable of extending USB 1.1, Ethernet and audio in/out along with dual video input from HDMI and Display Port. Single LC optical fibre cable transmission support distance upto 300 metres. Built in EDID management and simplified EDID learning from the connected monitors enables the best video output to the displays connected.
The device can be mounted in the rack side by side on 1U and power loop in/out helps for easy installation. The product is suitable for Rental, Live Events and video processor, high end work station video extension applications.
| Name | Specification | |
| Product Name | One core single mode DP1.2 / HDMI2.0 fiber extender | |
| Model | M1-DP&HDMI-Pro | |
| Brand | Beetek | |
| Signal | DP1.2, HDMI2.0 | |

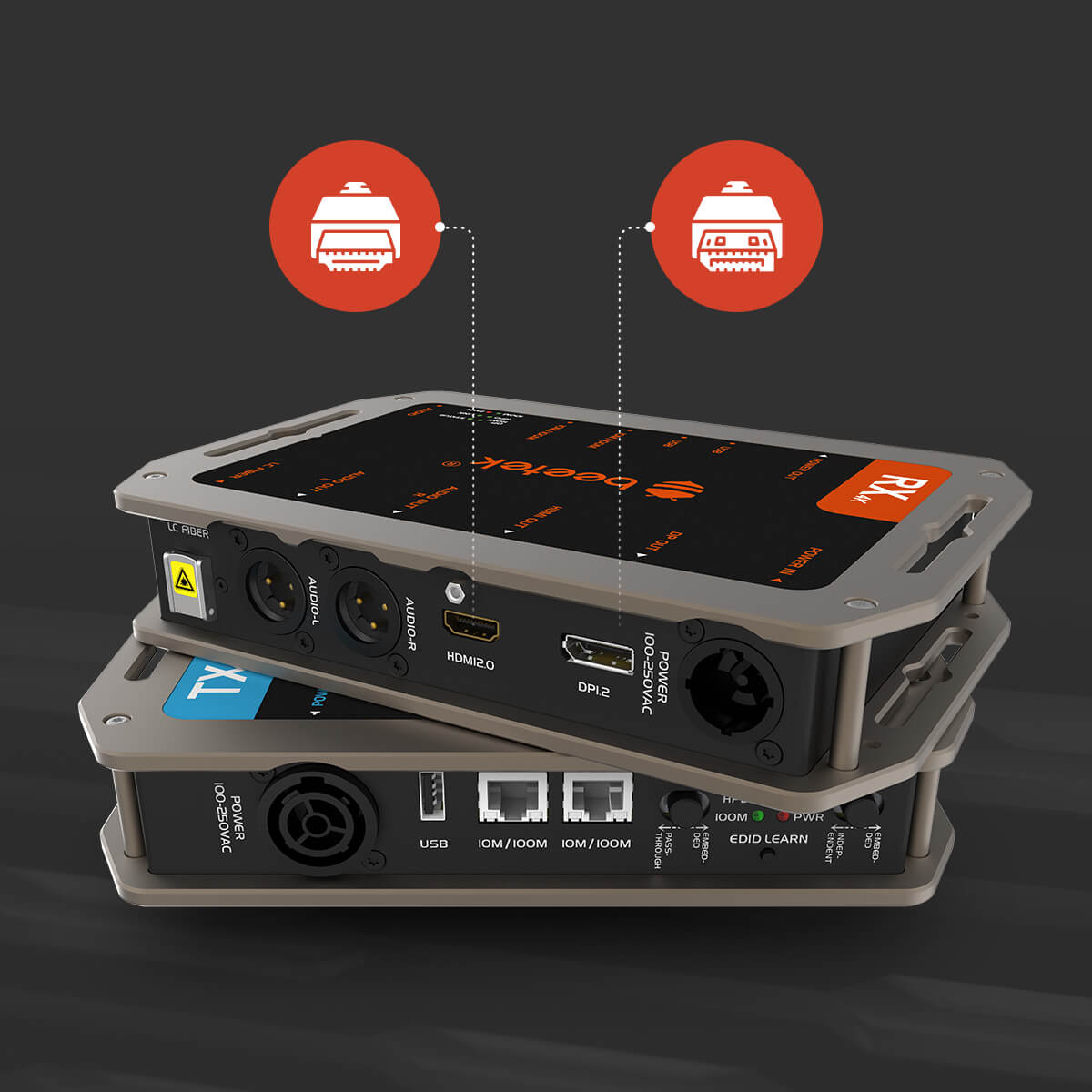

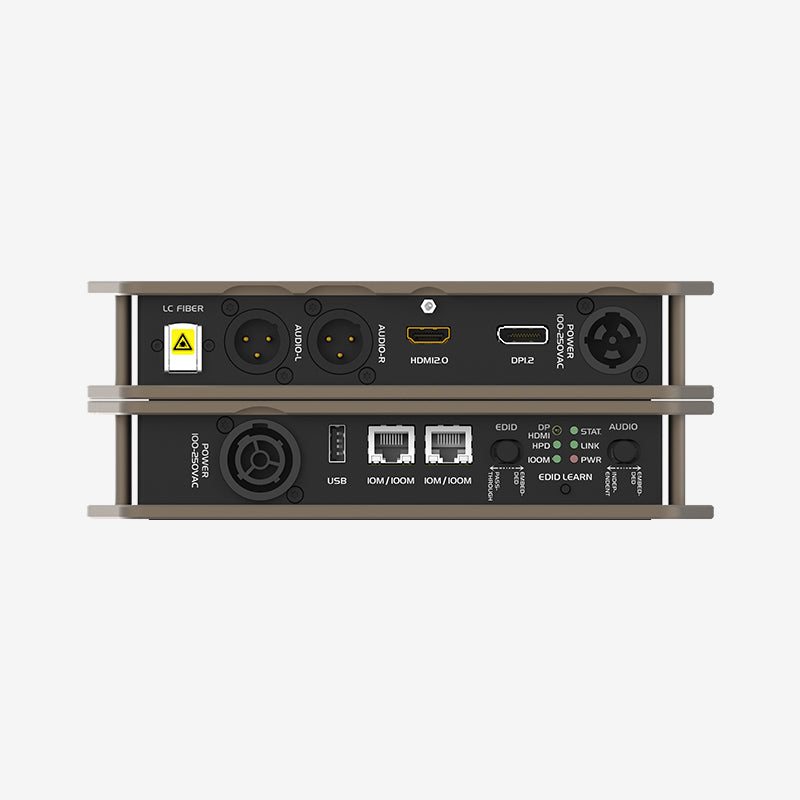

| Input Connector | TX: HDMI Type A Female, DP Female, UBS Type A Female, RJ45 *2, XLR Female *2 ; RX: Single-core LC |
|
| Output Connector | TX : Single-core LC RX: HDMI Type A Female, DP Female, UBS Type A Female *2, RJ45*2, XLR *2 |
|
| Locking Connector | Yes | |
| Fiber Interface Dust Prevention | Yes | |
| Fiber Type | Single-mode G657.A1 | |
| Indicator LED | Signal, Power, Network port, EDID, Status and Hot-plug 6 way Indicator | |
| Rack Mountable | Yes (standard 1U rack mount) | |
| Anti-slip pad | Yes | |
| Locking power connector | Yes | |
| Waterproof power connector | Yes (NEUTRIK waterproof power connector) | |
| Daisy-chainable power | Yes | |
| Power Consumption | AC 100-250V | |
| Ambient Temp | -20°C ~ 70°C | |
| Material | Aluminum alloy mold | |
| Dimensions | TX: 220 *150 *41mm； RX: 220 *150 *41mm | |
| Weight | TX: 1.20kg; RX: 1.25kg | |
| Package Dimensions | 274 *252 *212mm | |
| Package Weight | 3.65kg | |
| EDID Switch (TX) | Learn button and mode dial | |
| EDID Modes | Pass-through, learn and Internal | |
| DDC | Yes | |
| AUX | Yes | |
| De-embedding (RX) | Audio de-embedding toggle switch | |
| Independent USB | Supports independent USB1.1 transmission | |
| Audio De-embedding | Yes | |
| Independent audio | Supports independent stereo audio transmission | |
| Independent Ethernet | Supports bidirectional 100M Ethernet | |
| DP transmission | Supports independent DP signal transmission | |
| HDMI transmission | Supports HDMI signal transmission | |
| HDMI to DP | Supports TX HDMI input to RX DP output | |
| DP to HDMI | Supports TX DP input RX HDMI output | |
| HDMI Audio | Supports extended HDMI audio | |
| 3D | Yes | |
| CEC | Supports in EDID pass-through mode | |
| ARC | Supports in EDID pass-through mode | |
| HDCP | Supports HDCP2.2 in EDID pass-through mode | |
| XvYCC Color Space | Yes | |
| HDR | Yes | |
| BT.2020 Color Space | Yes | |
| Optical Module | 4*10G ，2*2.5G 6-channel single-mode optical module | |
| Technical Characteristics | 6-wave CWDM Technology | |
| Optical module life | 100,000 Hours | |
| Resolution | 3840x2160@60Hz | |
| Transmission Distance | Single-mode 300M | |
| Clock Bandwidth | 600MHz *3 / 540MHz *4 | |
| Transmission Speed | 21.6Gbps | |
| Balancing Chip | Automatic equalization | |
| Reclocking | Yes | |
| ESD Protection | Yes | |
| Hot Plug | Yes | |
| Delay | Zero-frame | |
| Compression | None | |
| Sampling Rate | Bandwidth Range: 8~16bit | |
| Sampling Ratio | RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Key Features
Support resolution upto 4K@60 4:4:4
Signal Type: HDMI 2.0 and DP 1.2
Independent Audio In/Out Transmission
