W400 Series
CAT6a S/FTP Cable

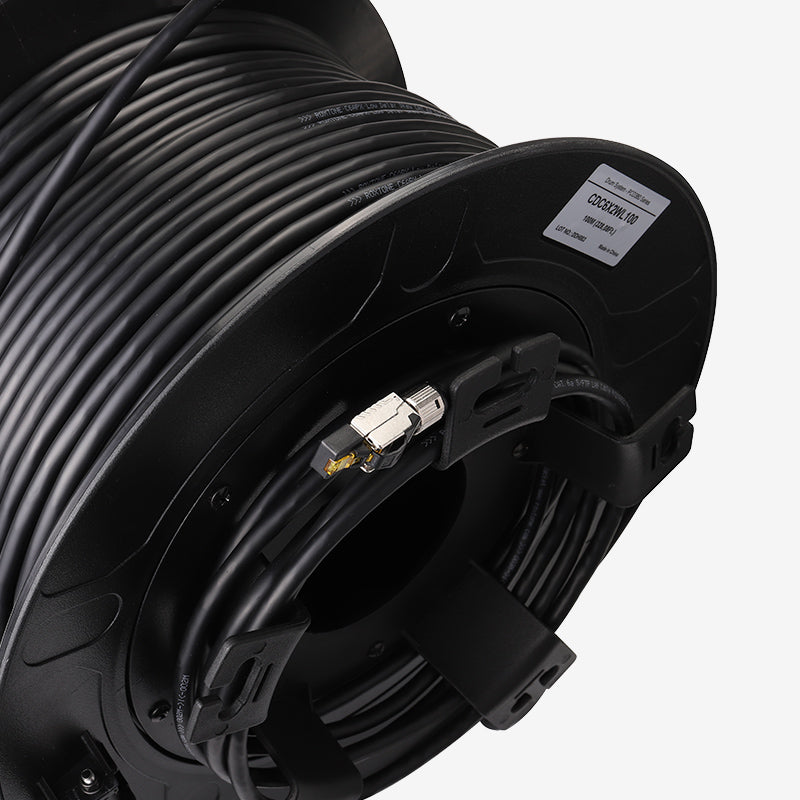

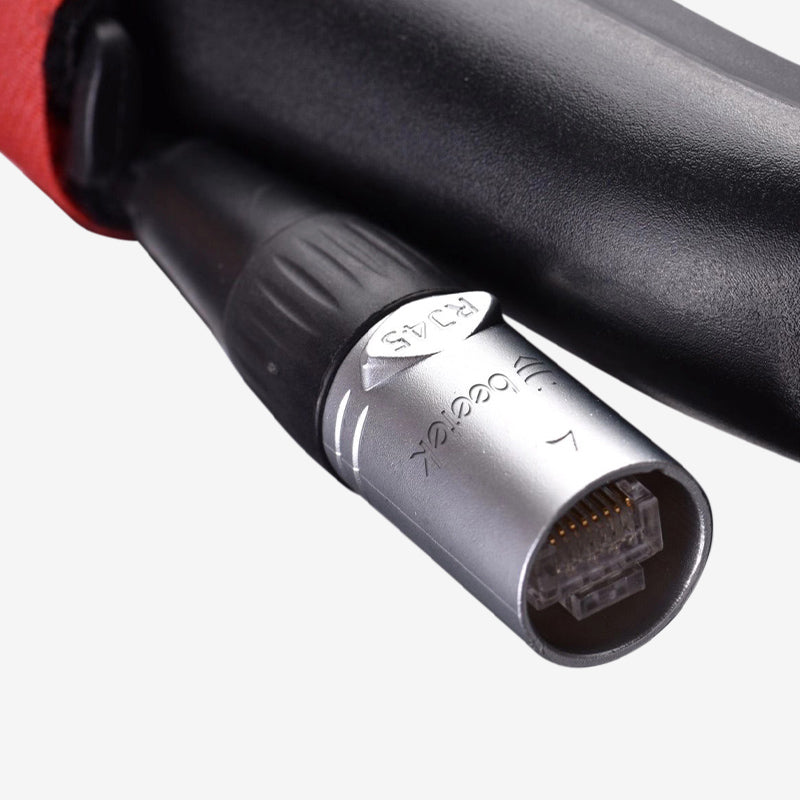

Specially designed for digital mixer and DMX lighting applications。The unique TPE material is used to increase the flexibility of the thread body, tensile and wear resistance, stability and durability, and stable data.The wire body is double-layer shielded to improve the interference of the outside world to the signal transmission inside the wire body,The use of cat 6A German standard zinc alloy shell, anti-falling, to ensure higher protection.Each line contains a large rool(PCD 380).Two kinds of interfaces can choose the network port type at will.
| Name | Specification |
| Product Name | CAT6a S/FTP Network Cable (Low-latency crystal head) |
| Model | W400-xxM-A |
| Brand | Beetek |
| Connector Type | RJ45 S/FTP |
| Cable Type | CAT6a SFTP |
| Environmental Information | RoHS 2.0 Compliant |
| Size | 56.4 * 17.4 * 13.8 mm |

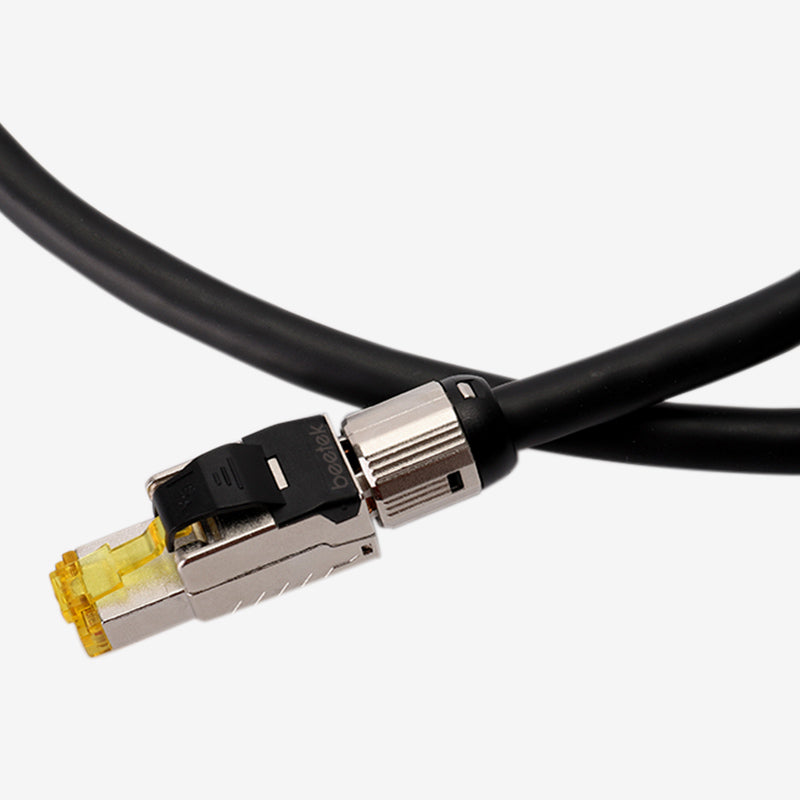

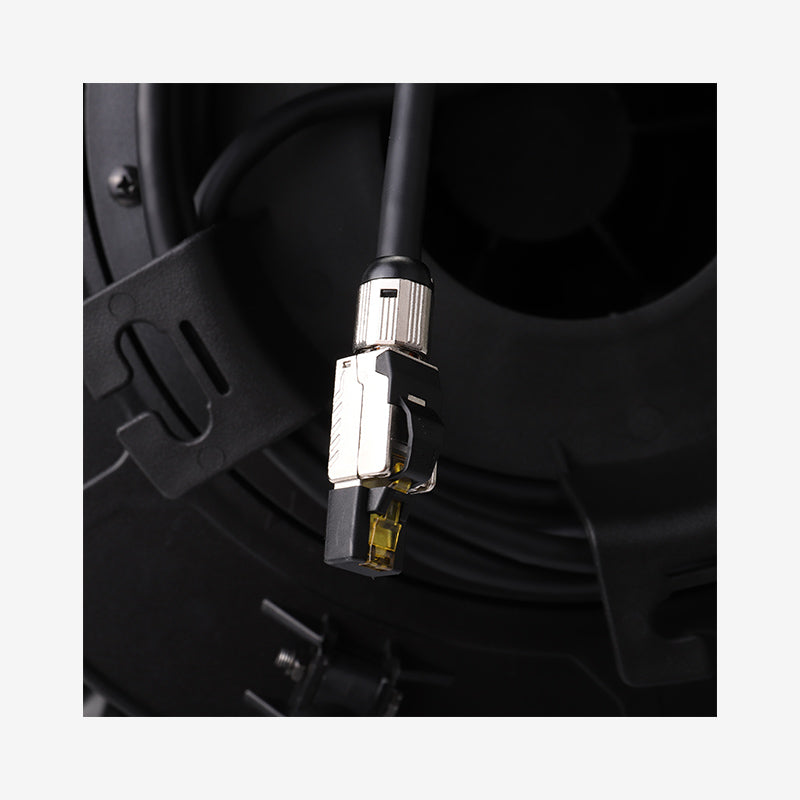

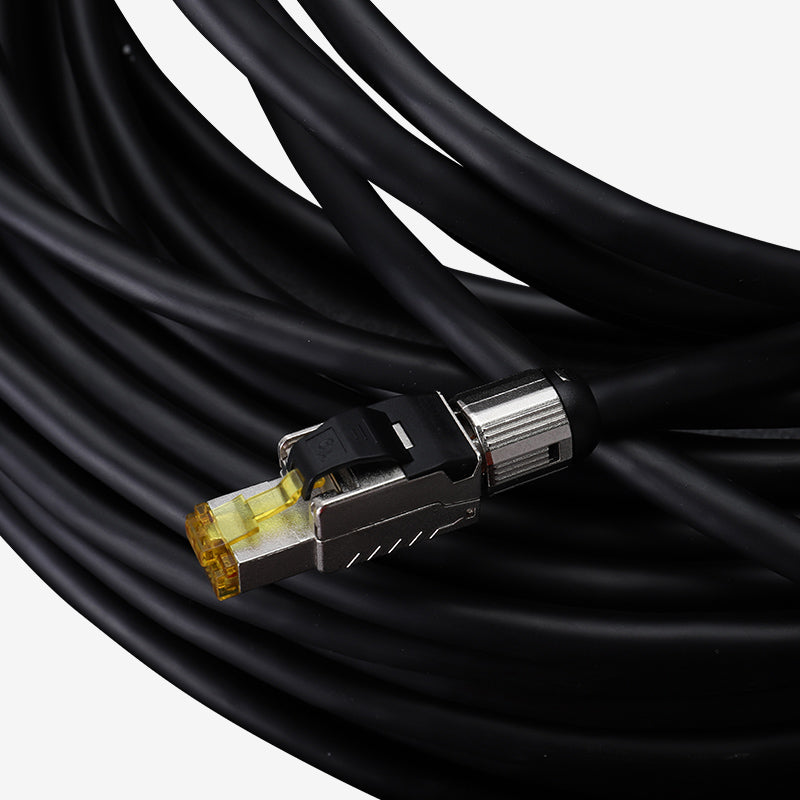

| RJ45 Connector | Low-latency crystal head (with built-in quick-connect circuit board) |
| Gold Plate Thickness | 50U |
| Latch Tab | Integrated break-resistant tab |

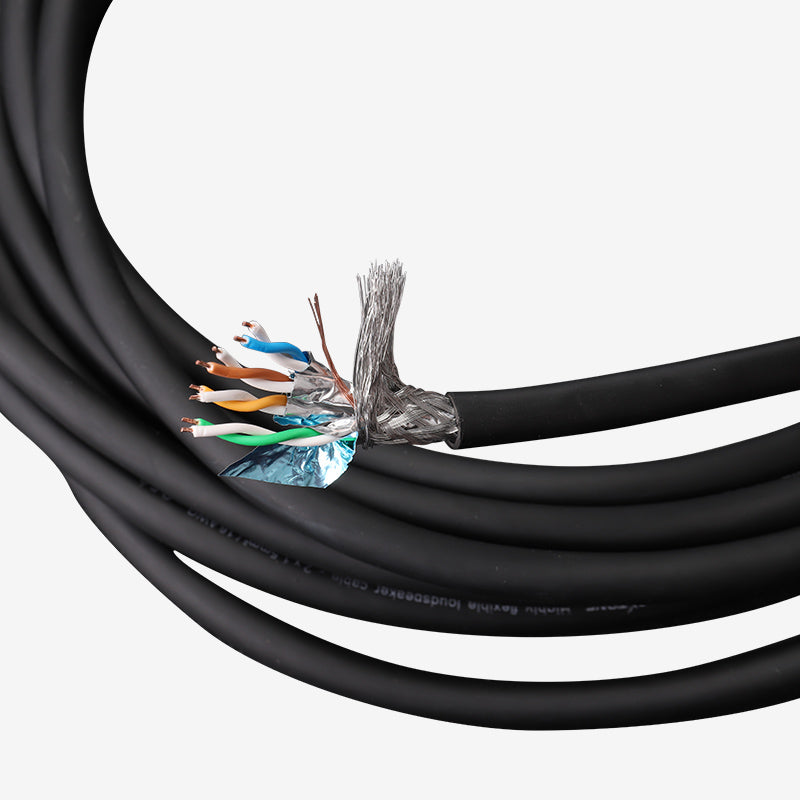

| Structure | Conductor + Insulation + Aluminum Foil + Ground Wire + Braid + Jacket |
| Conductor Gauge | 23AWG |
| Conductor Size | 0.26±0.008mm*8 |
| Conductor Material | Single strand oxygen free copper |
| Insulation Material | Foam-skin PE |
| Insulation Color Code | 1P: Bule & White/Blue; 2P: Orange & White/Orange; 3P: Green & White/Green; 4P: Brown & White/Brown |
| Core Wire Direction | s |
| Core Wire Lay Length | <30mm |
| Cable Direction | s |
| Cable Lay Length | ≦120mm |
| Aluminum Foil | Aluminum foil pair shielded |
| Ground Wire | 7 x 0.16mm Multi-strand oxygen free copper（26AWG） |

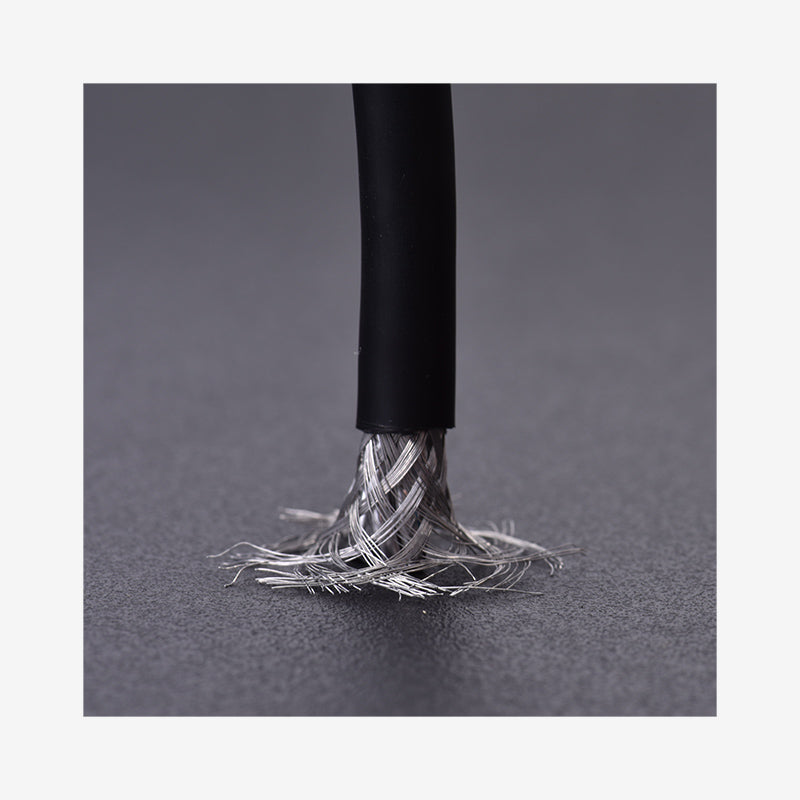

| Braid Material | 128 x 0.12mm tinned copper braid shield |
| Shielding Rate | 100% |
| Jacket Material | TPE |
| Jacket Outer Diameter | 8.0±0.20mm |
| Jacket Color | Black |
| Conductor Resistance | ＜68.4Ω/km at 20℃ |
| Insulation Resistance | ＞5000MΩ at 20℃ |
| Impedance | 100Ω±15Ω |
| Withstand Voltage | 1000V DC/1min;No Breakdown |
| Delay Difference | ≤30ns/100m（1-125MHz） |
| Frequency | 500Mhz |
| Testing | PASS FLUKE |
| Insulation Elongation | ≥300% |
| Insulation Tensile | ≥16 Mpa |
| Jacket Elongation | ≥100% |
| Jacket Tensile | ≥12.5 Mpa |
| Maximum Relative Mutual Coupling Capacitance | 5.6 nF/100m |
| Maximum Capacitance Unbalance | 330pF/100m |
| Allowable Bending Radius | 10D (*D is cable outer diameter) |
| Operating Temperature | -20~80℃ |
| Operating Voltage | 60V |
