BHH 4K SERIES

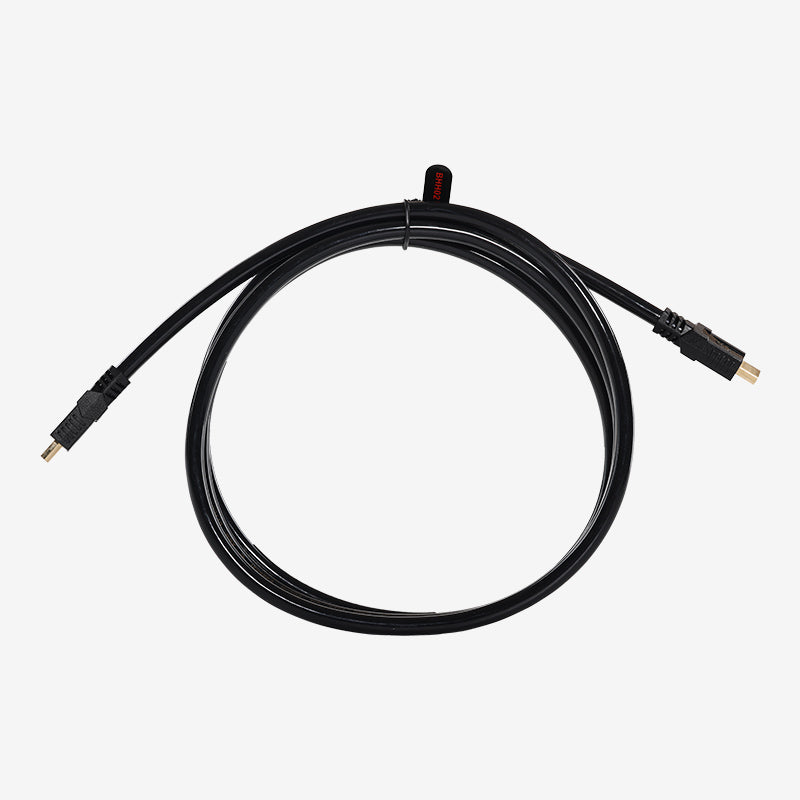

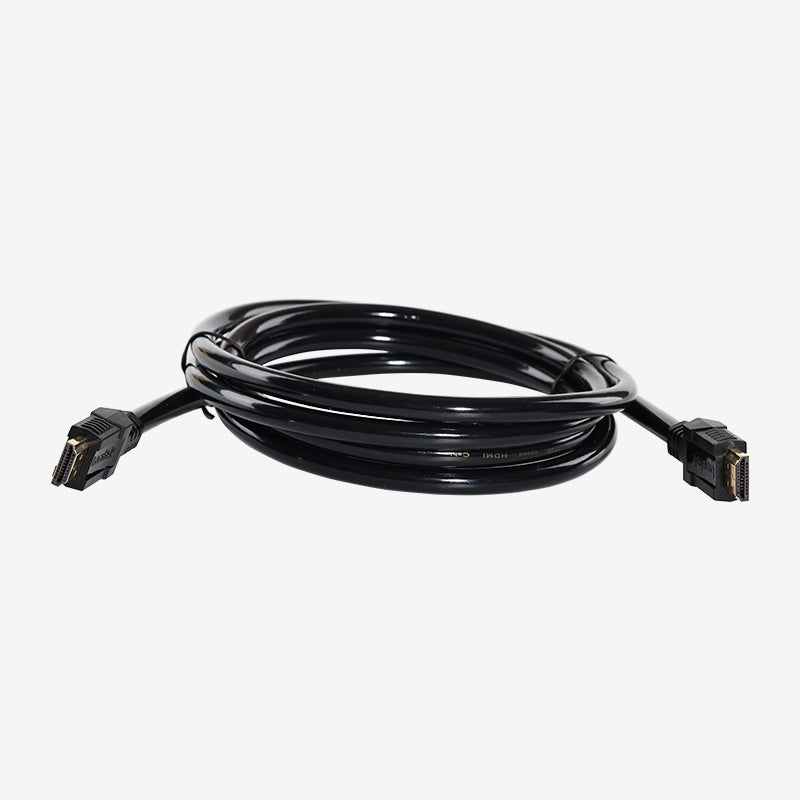

4K HDMI 2.0 High-speed Copper Cables

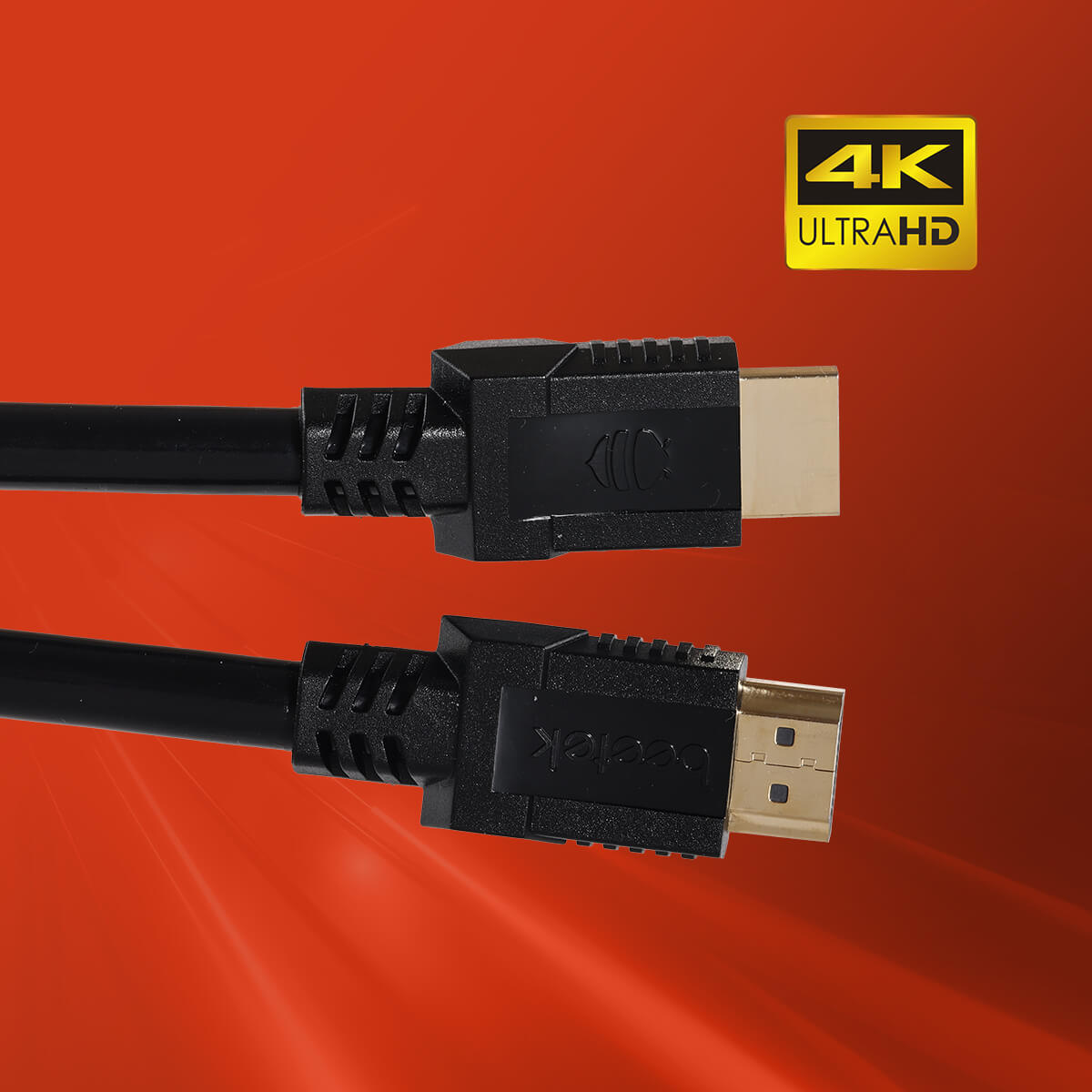

- Supports resolution up to 4K@60 4:4:4

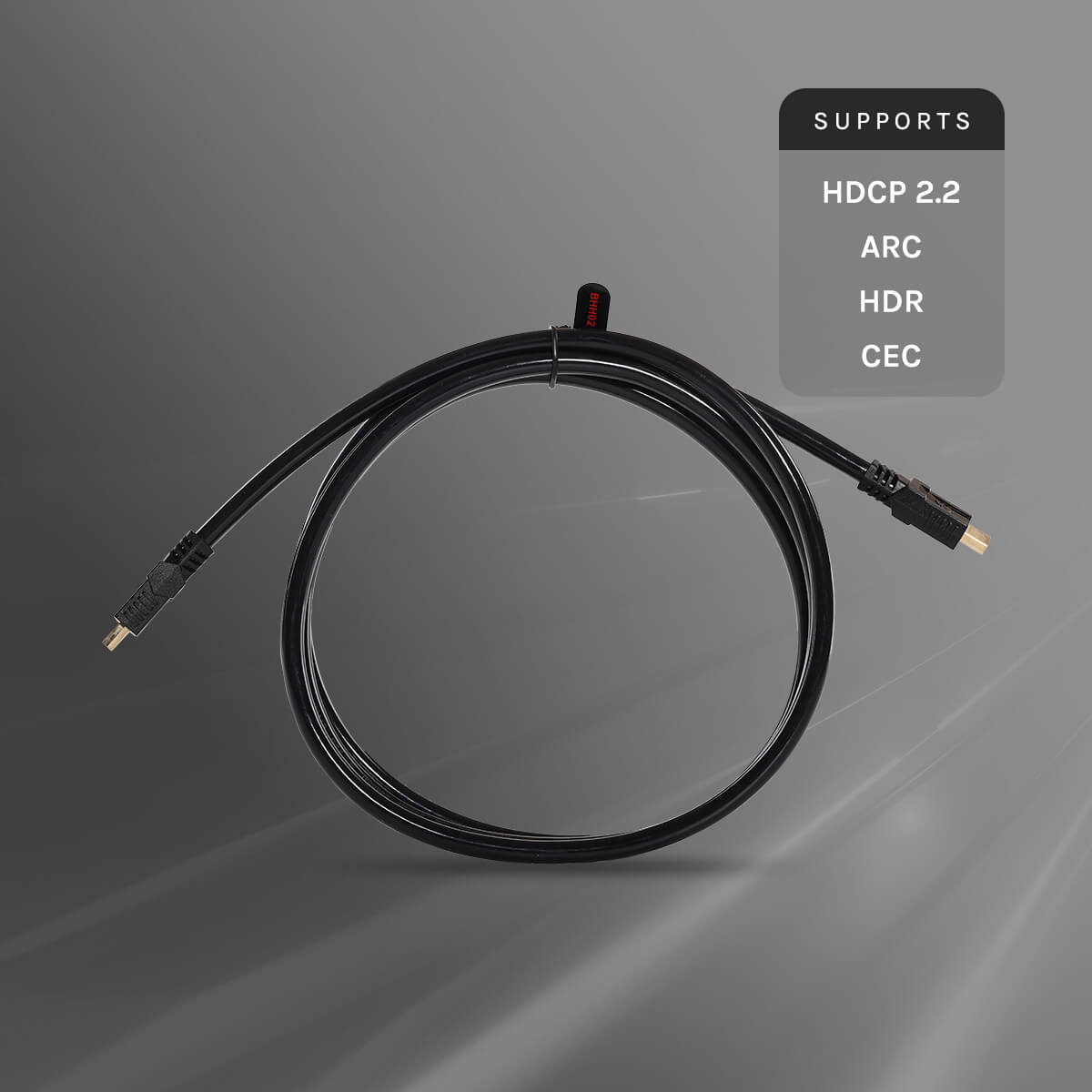

- Supports HDCP 2.2, ARC, HDR AND CEC

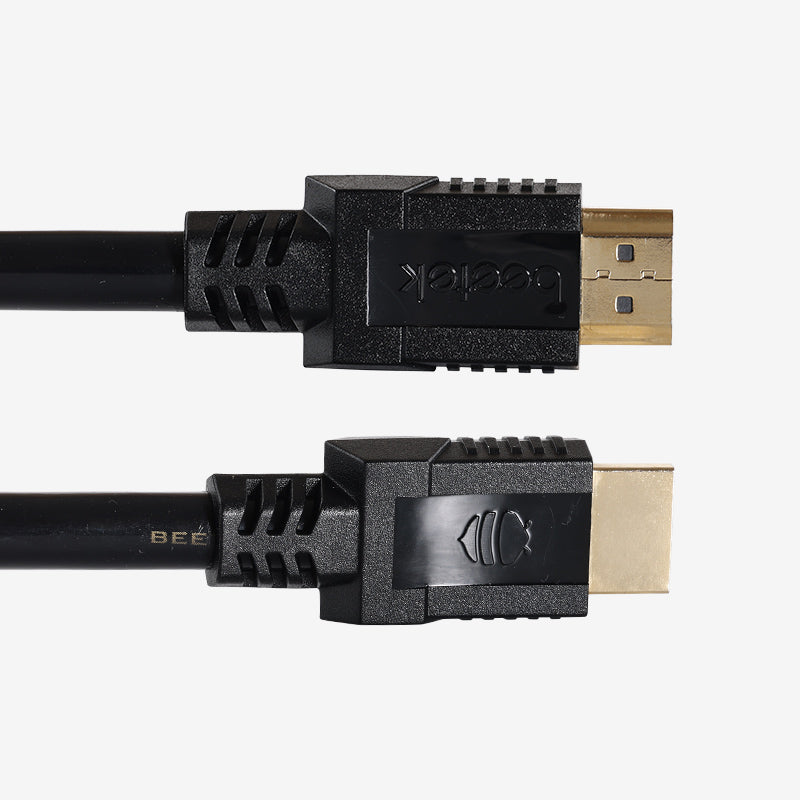

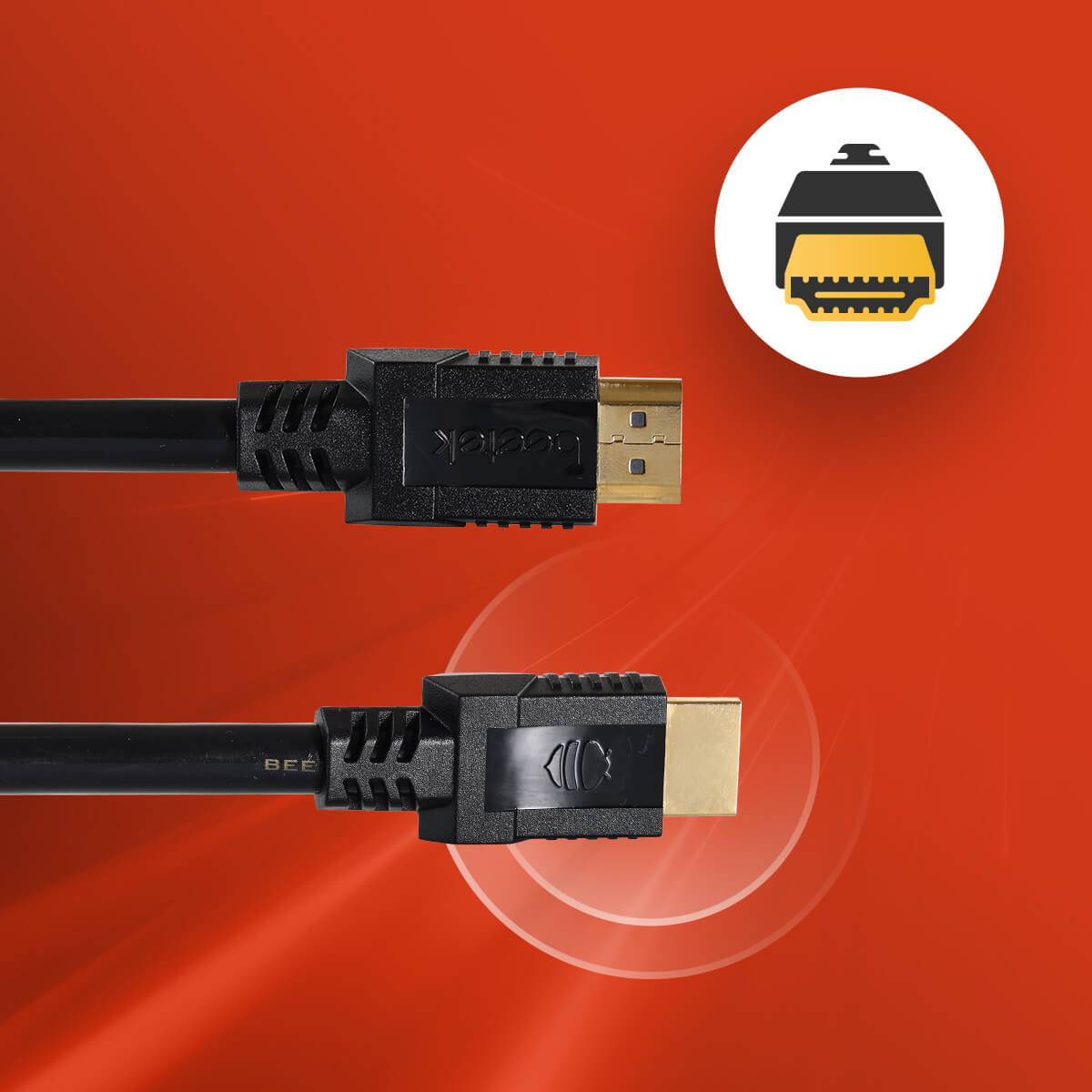

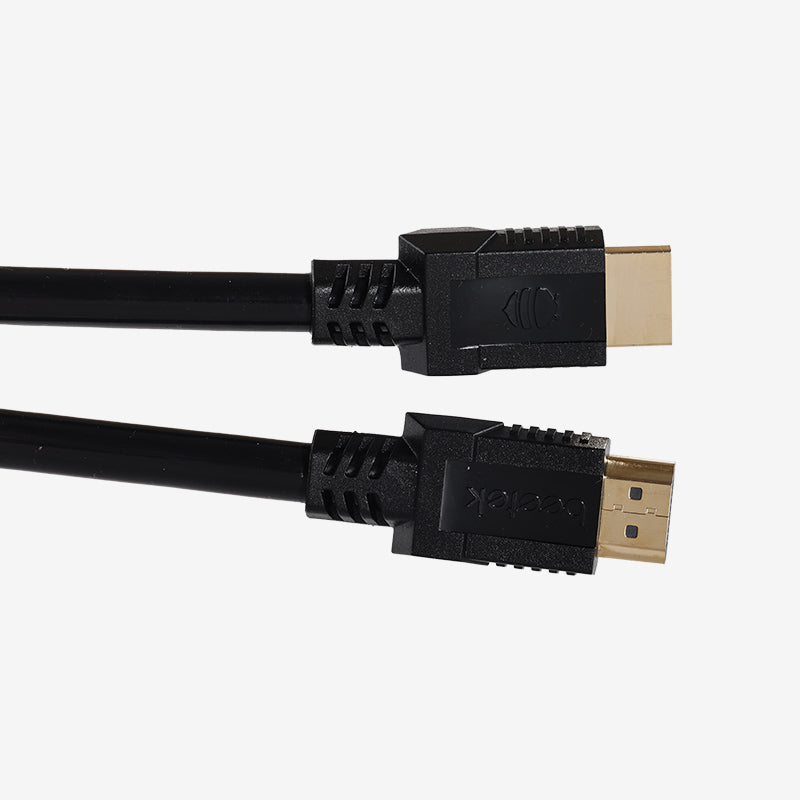

- Gold-plated copper connectors provides long-lasting and firm connection. Dual layer jacketing with 95% weaving shielding rate
Beetek HDMI 2.0 copper shaft cable support 4K@60 4:4:4 at 18 Gbps. The BHH 4K series products supports transparent EDID transmission and high speed ethernet, arc cec and 3D. The product is suitable for Rental, Live Events, Residential and surveillance applications
| Name | Specification |
| Product Name | HDMI 2.0 Installation Cable |
| Model | BHH-xxM |
| Brand | Beetek |
| Signal Type | HDMI 2.0 |
| Input Connector Type | HDMI Type A Male - HDMI Type A Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | 1μm |
| Connector Dimensions | 49.4*20*12mm |
| Connector Structure | Plug plate + Inner mold + Copper foil + Shell |
| Inner Mold | PE material filled inner mold |
| Copper Foil | Double-sided conductive copper foil |
| Shell | 45P PVC injection molded shell (UL, RoHS) |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Single core tinned copper |
| Conductor Diameter | 1 - 3M: 30AWG; 5M: 28AWG; 8 - 10M: 26AWG |
| Braid Material | 144 aluminum-magnesium braids |
| Shielding Rate | 95% shielding rate |
| Jacket Material | Black PVC + transparent PVC dual-layered outer jacket (UL, RoHS) |
| Cable Diameter | 1,2,3,5M: 8mm; 8, 10M: 8.5mm |
| Cable Color | Gloss black |
| Cable Meter Marking | Waterproof Yellow Text |
| EDID | Yes |
| DDC channel | Yes |
| HDMI audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Compatibility | Backward compatible with HDMI and DVI-SL |
| Supported Resolutions | 3840x2160@60Hz |
| Clock Bandwidth | 600MHz * 3 |
| Transmission Rate | 18Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Deep Color | Yes |
| Sampling Rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Compression | None |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤400N |
| Bending Angle | 90° |
| Operating Temperature | -20℃~75℃ |
Key Features
Supports resolution upto 4K@60 4:4:4
Supports HDCP 2.2, ARC, HDR AND CEC
Gold plating process of copper shell provides long-lasting and firm connection.
