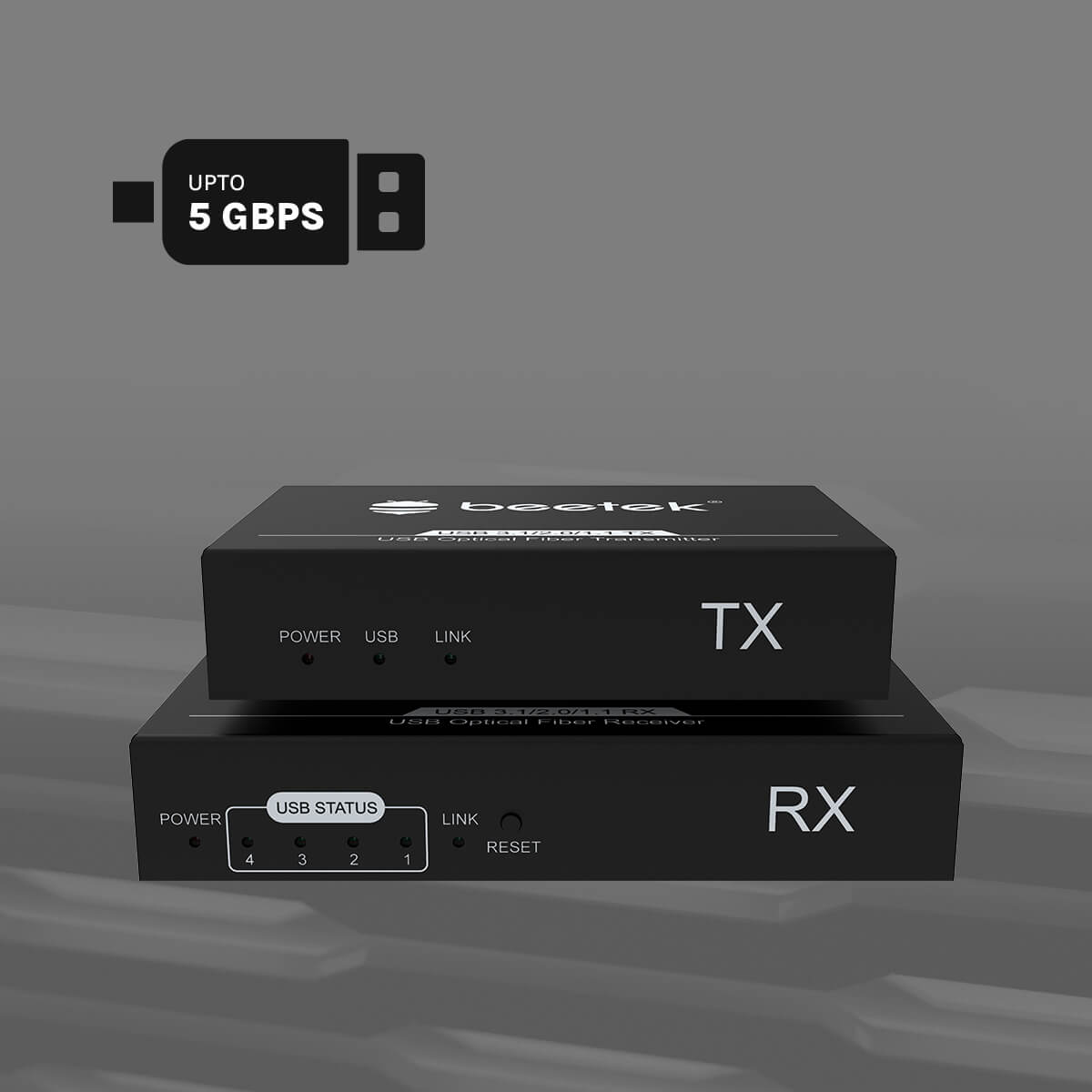

M1-USB321
USB 3.0 Fibre Extender

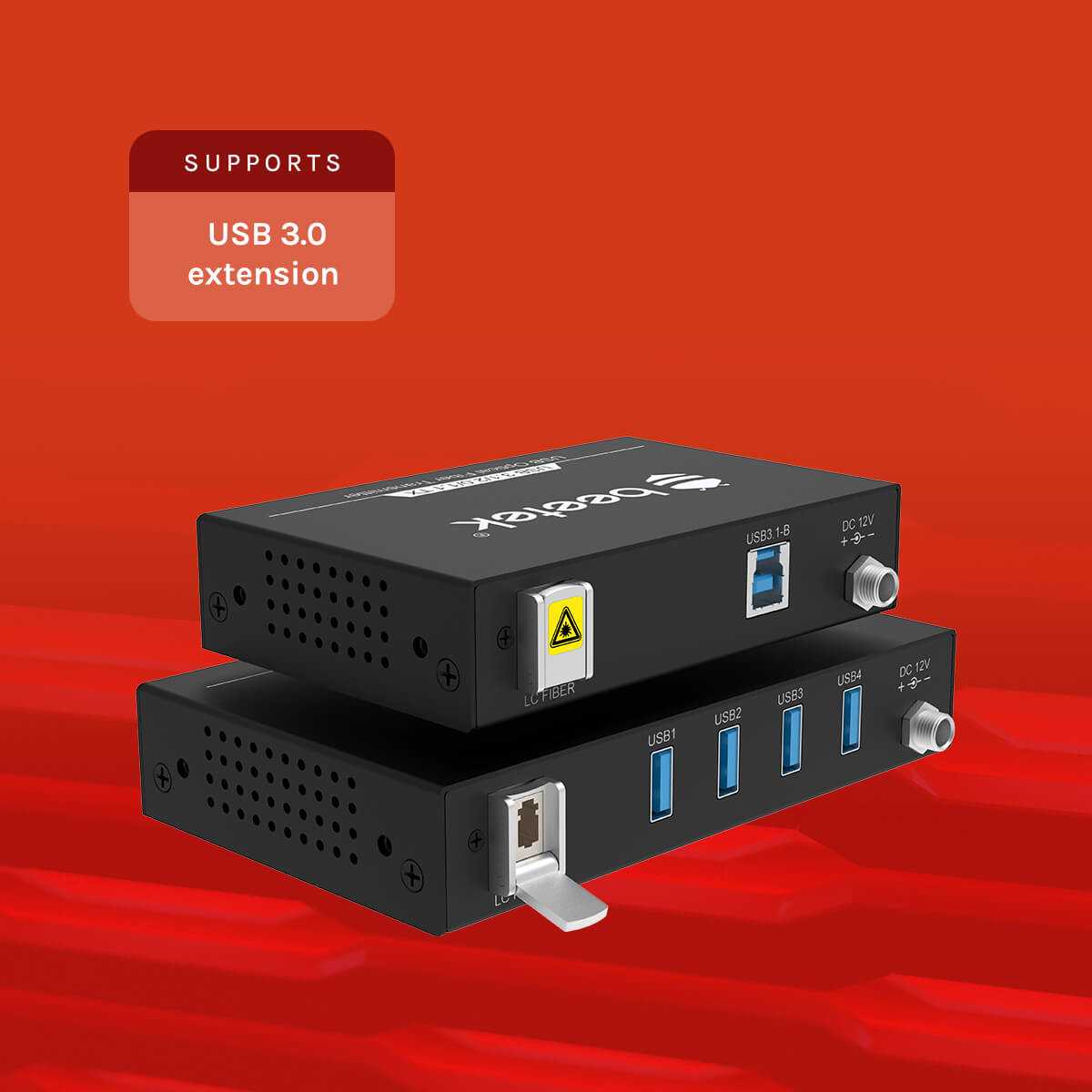

- Supports USB 3.0 extension over fibre technology
- Data rate support upto 5 Gbps
- Backward compatbile with USB 2.0 and USB 1.1

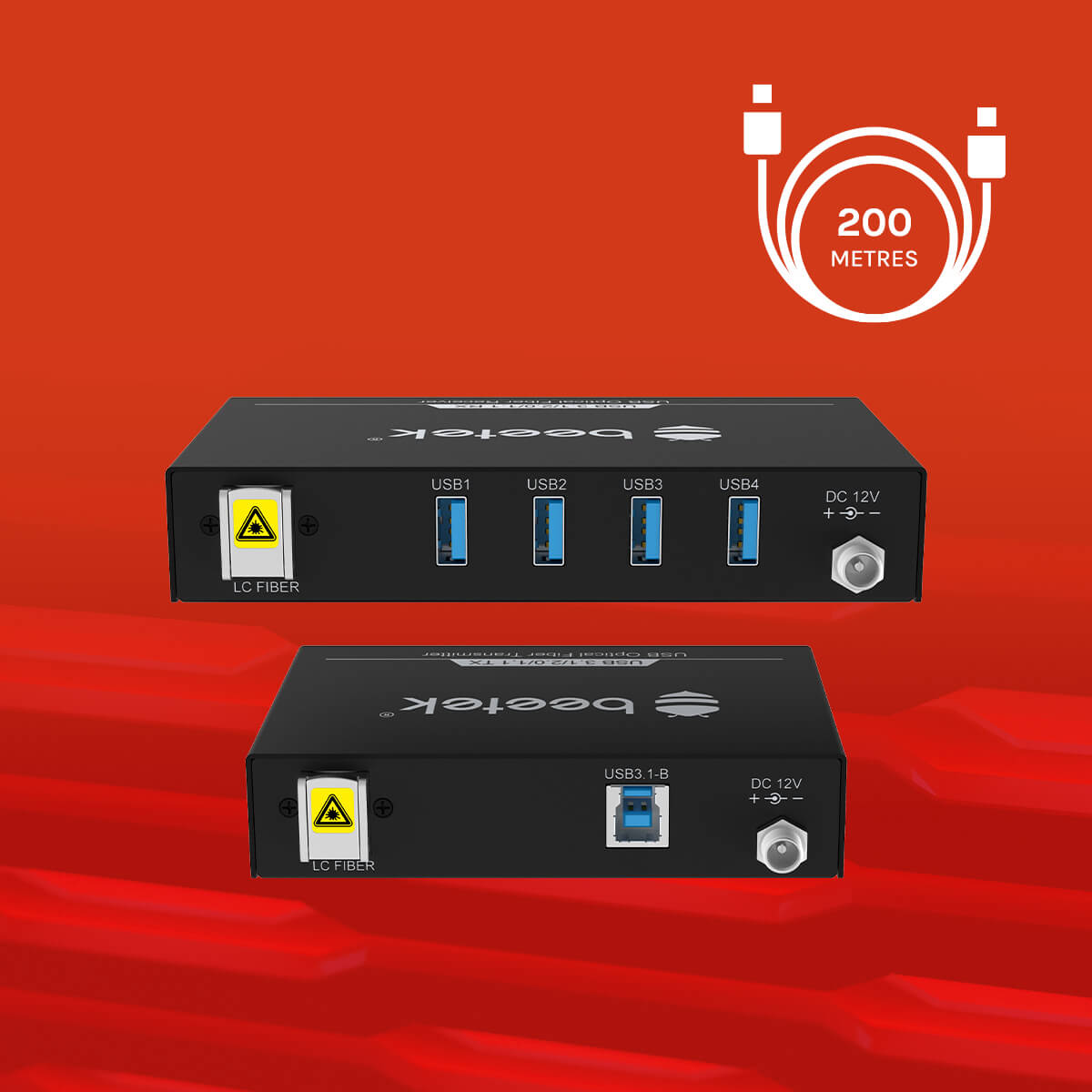

- Distance support upto 200 metres over single LC Cable
Beetek USB 3.0 Fibre Extenders supports data rate upto 5 Gbps for USB 3.0 signals and it is backward compatible with USB 2.0 and USB 1.1 with 480 Mbps and 12 Mbps data transmission support respectively. The device can support multimode or single mode fibre technology extending the distance upto 200 metres over single LC Cable. The reciver has a built in HUB with 4 Ports to connect multiple peripherals such as USB Camera, DSP, keyboard, Mouse. The device has strong anti interferance ability due to fibre transmission and there will be delay or latency in usb signal transmission. Transmitter adapts compact design and it is a PLUG & PLAY extender with no drivers requried to be installed. The product is suitable for Live Events, Rental & Staging, Corporate, Home Office Residential singal extension application.
| Name | Specification | |
| Product Name | USB3.1gen1 Fiber Extender (compatible with USB2.0 and 1.1) | |
| Model | M1-USB321 | |
| Brand | Beetek | |
| Signal | USB3.1gen1 (backwards compatible) | |

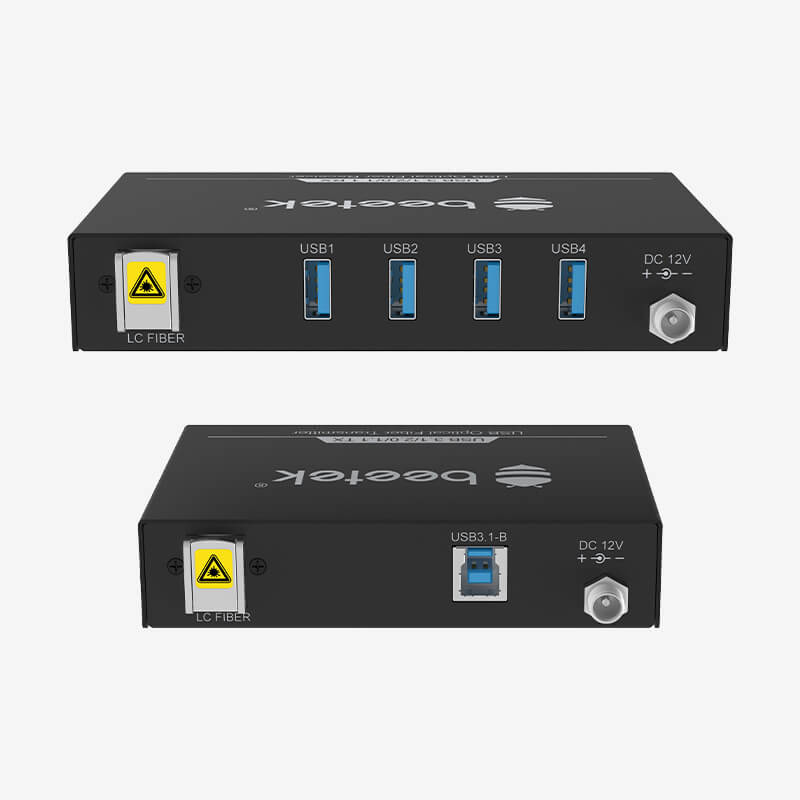

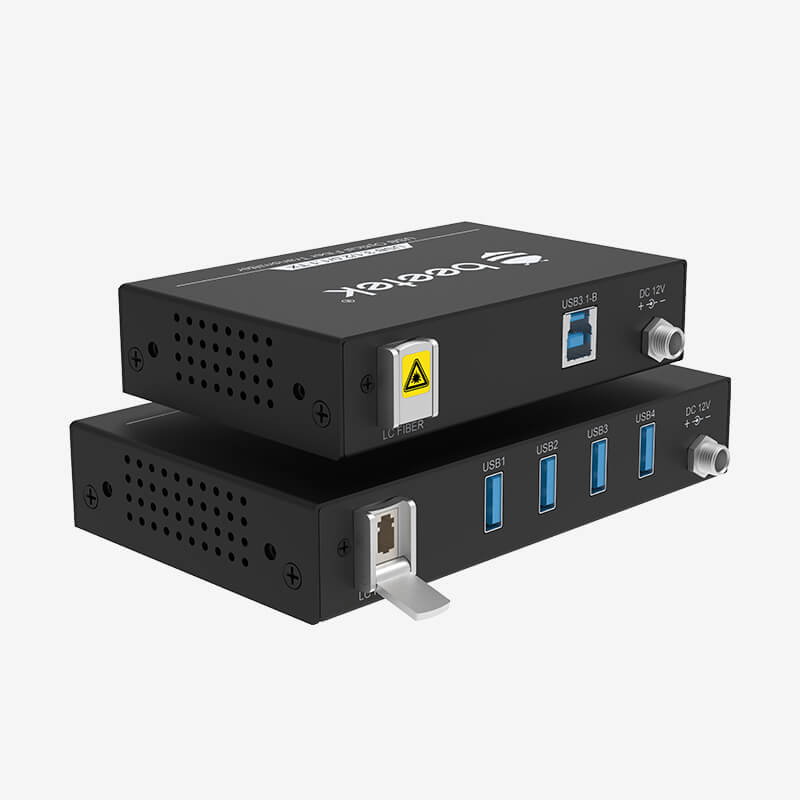

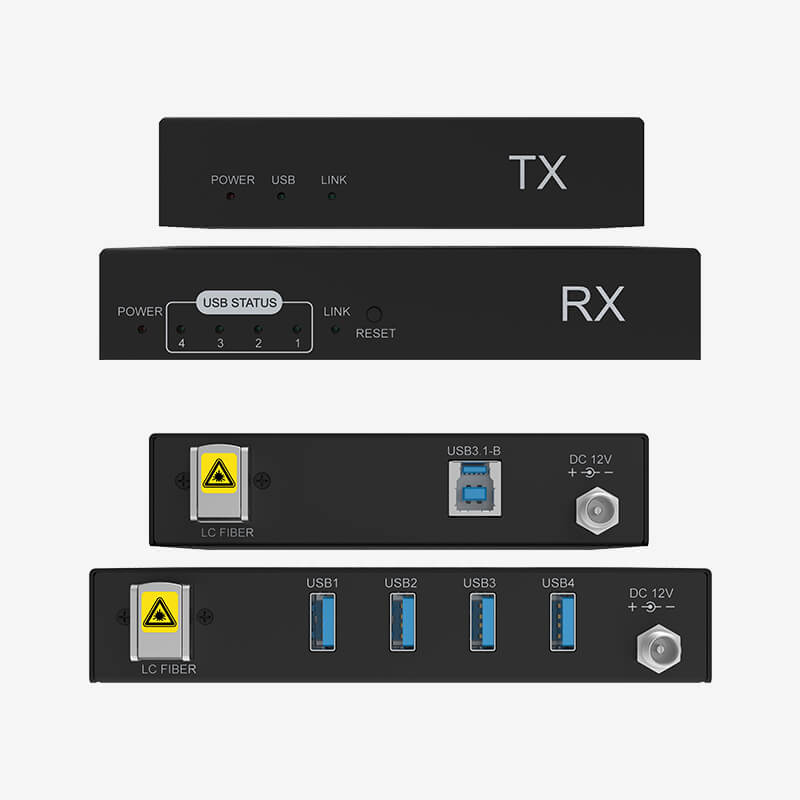

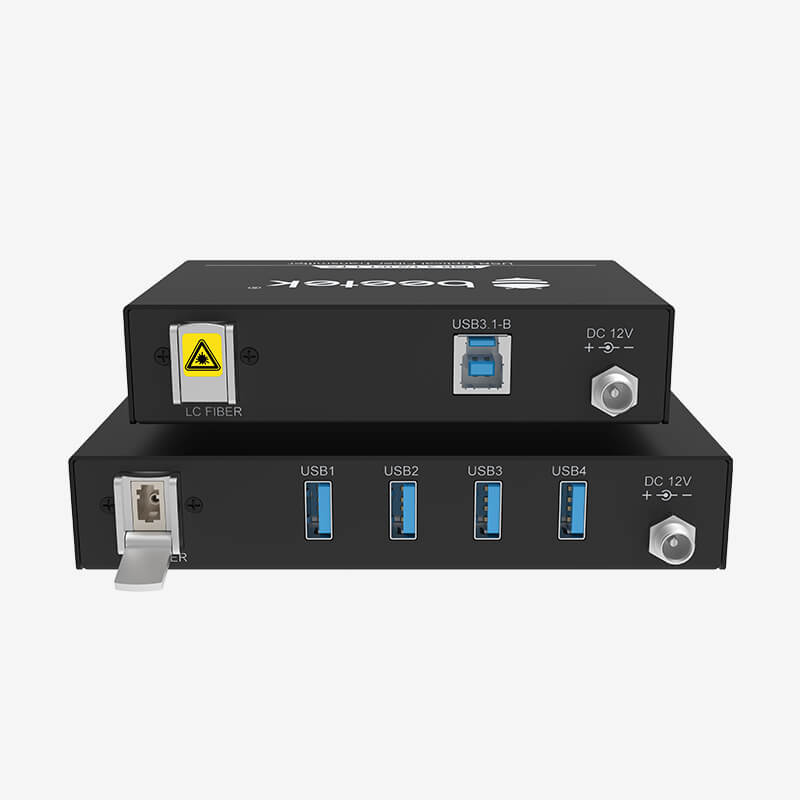

| Input Connector | TX ：USB Type-B female; RX：Single-core LC |
|
| Output Connector | TX ：Single-core LC; RX： USB Type-A female x 4 |
|
| Fiber Interface Dust Prevention | Yes | |
| Fiber Type | Single-mode G657.A1 | |

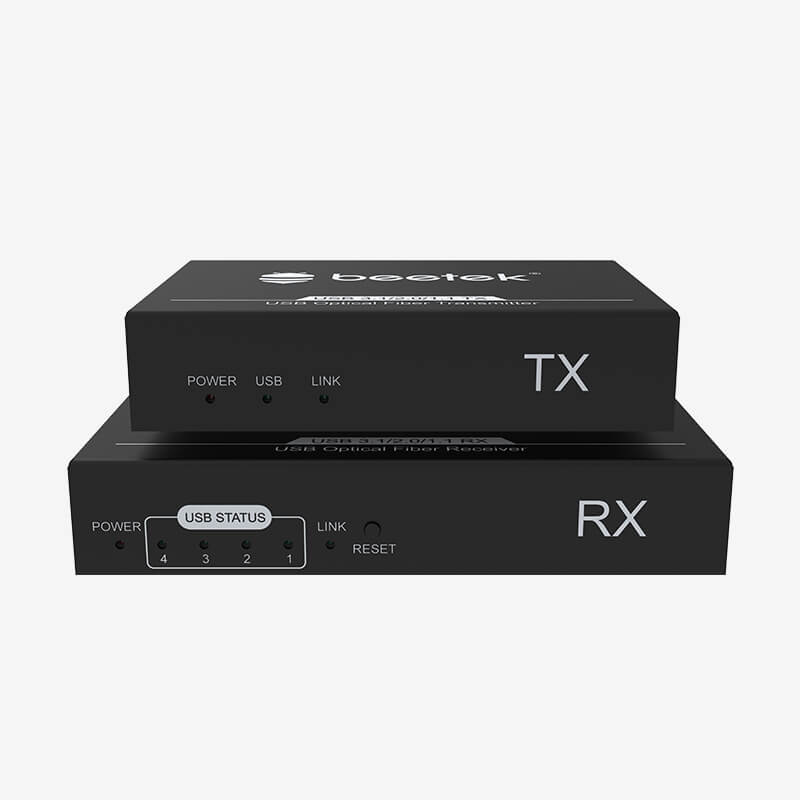

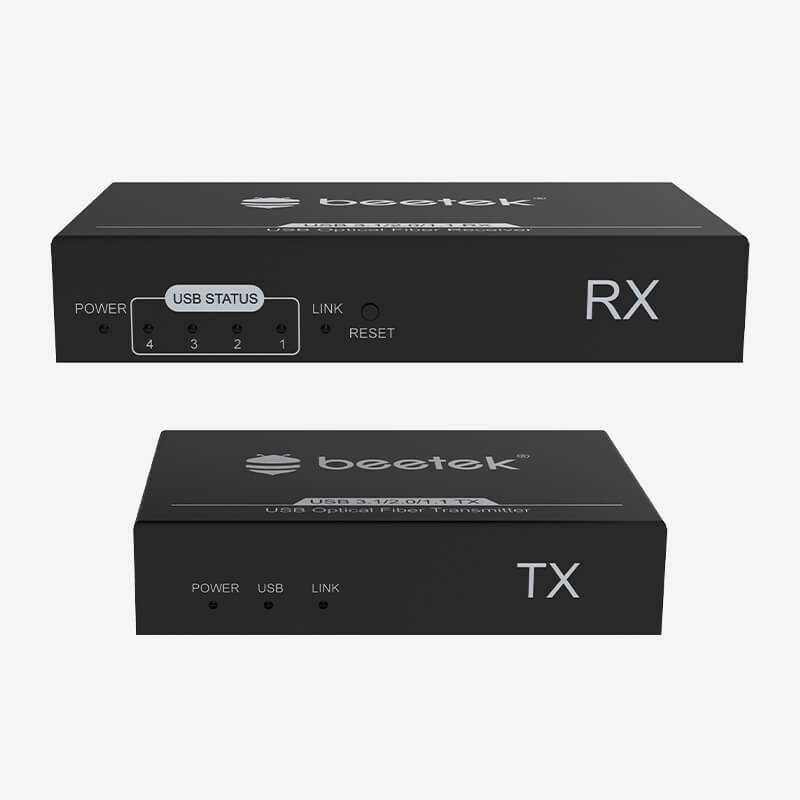

| Indicator LED | Signal, Power, Status | |
| Locking power connector | Yes | |
| Power Consumption | DC 12V 2A | |
| Ambient Temp | -20°C ~ 70°C | |
| Material | Metal mold | |

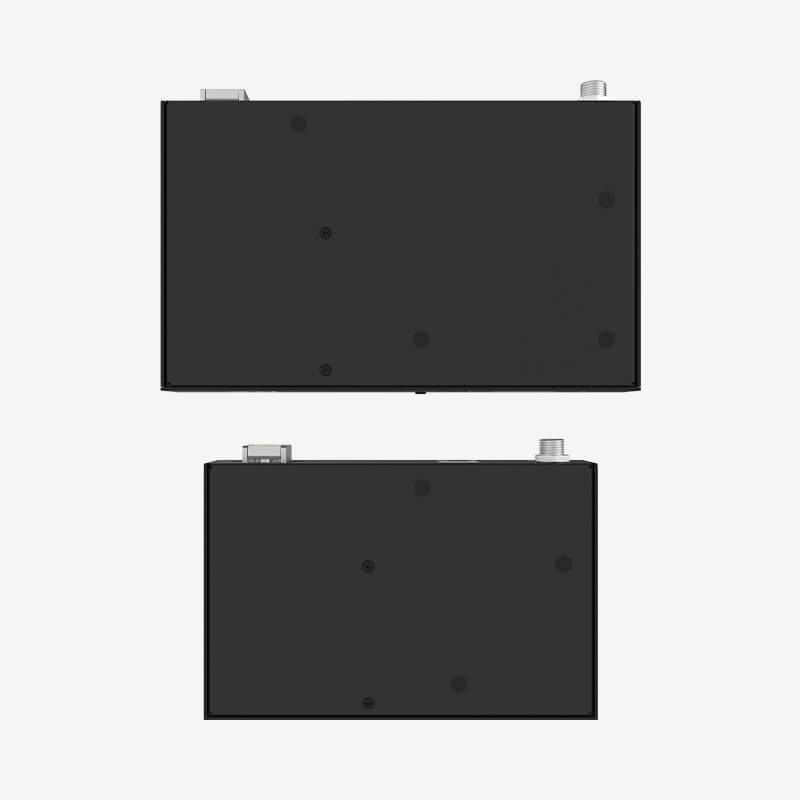

| Dimensions | TX：115 *75 *26mm； RX：140 *85 *26mm | |
| Weight | TX : 0.35kg ; RX: 0.45kg | |
| Package Dimensions | 226 *160 *121mm | |
| Packaging Weight | 1.25kg | |
| HUB | 4-Port USB3.0 | |
| Compatibility | USB3.1、USB2.0、USB1.1 | |
| Drive | Free Drive | |
| Data Transmission | Yes | |
| Image Transmission | Yes | |
| Kinect | Yes | |
| Optical Module | 2*10G 2-channel single-mode optical module | |
| Technical Characteristics | 2-wave CWDM Technology | |
| Optical module life | 100,000 Hours | |
| Transmission Distance | Single-mode 200M | |
| Transmission Speed | 5Gbps | |
| Balancing Chip | Automatic equalization | |
| ESD Protection | Yes | |
| Hot Plug | Yes | |
| Delay | Zero-frame | |
| Compression | None | |
| Anti-interference | Yes |
Key Features
Supports USB 3.0 extension over fibre technology
Data rate support upto 5 Gbps
Distance support upto 200 metres over single LC Cable
