P902
DisplayPort 1.2 E2 Special Line Series

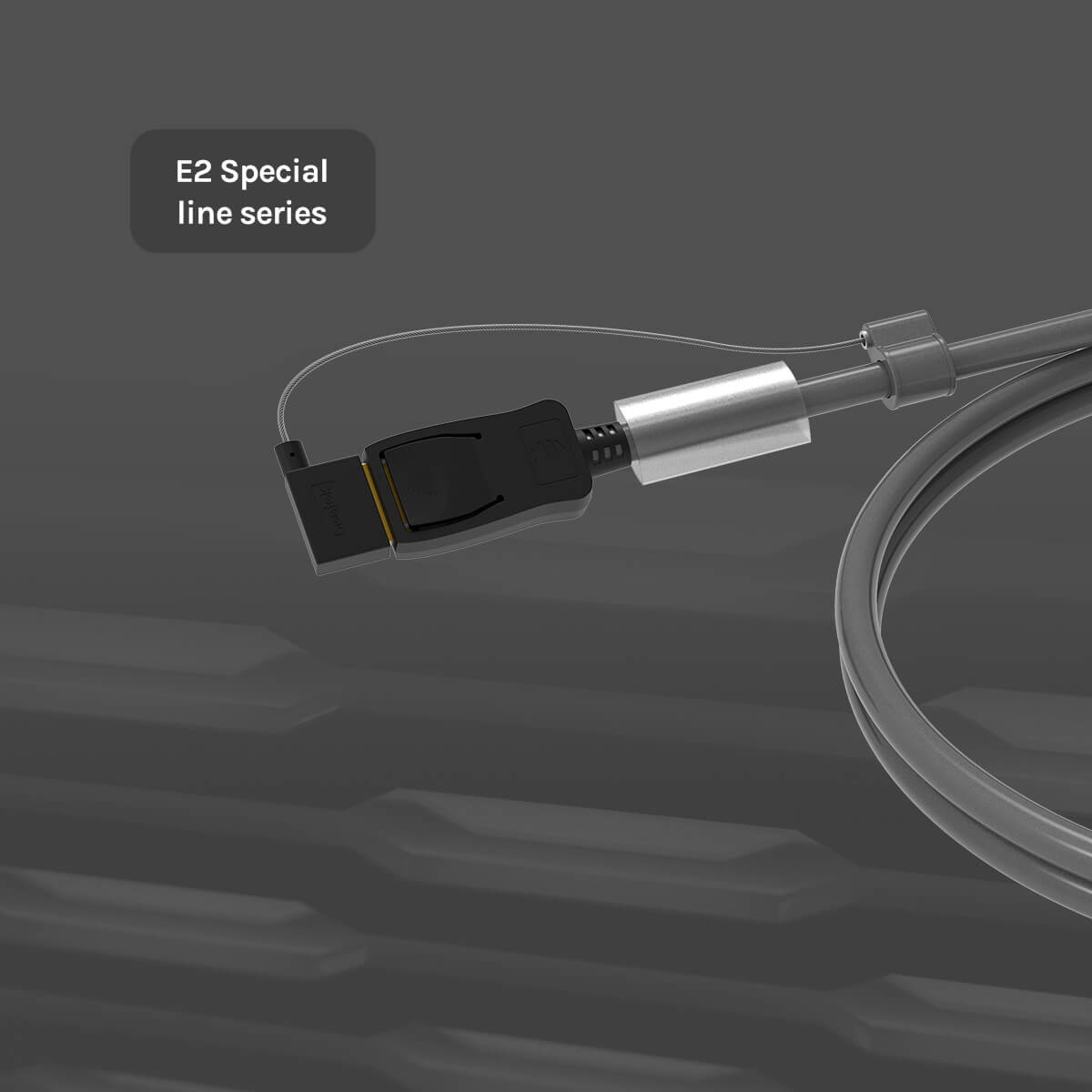

- E2 Special line series

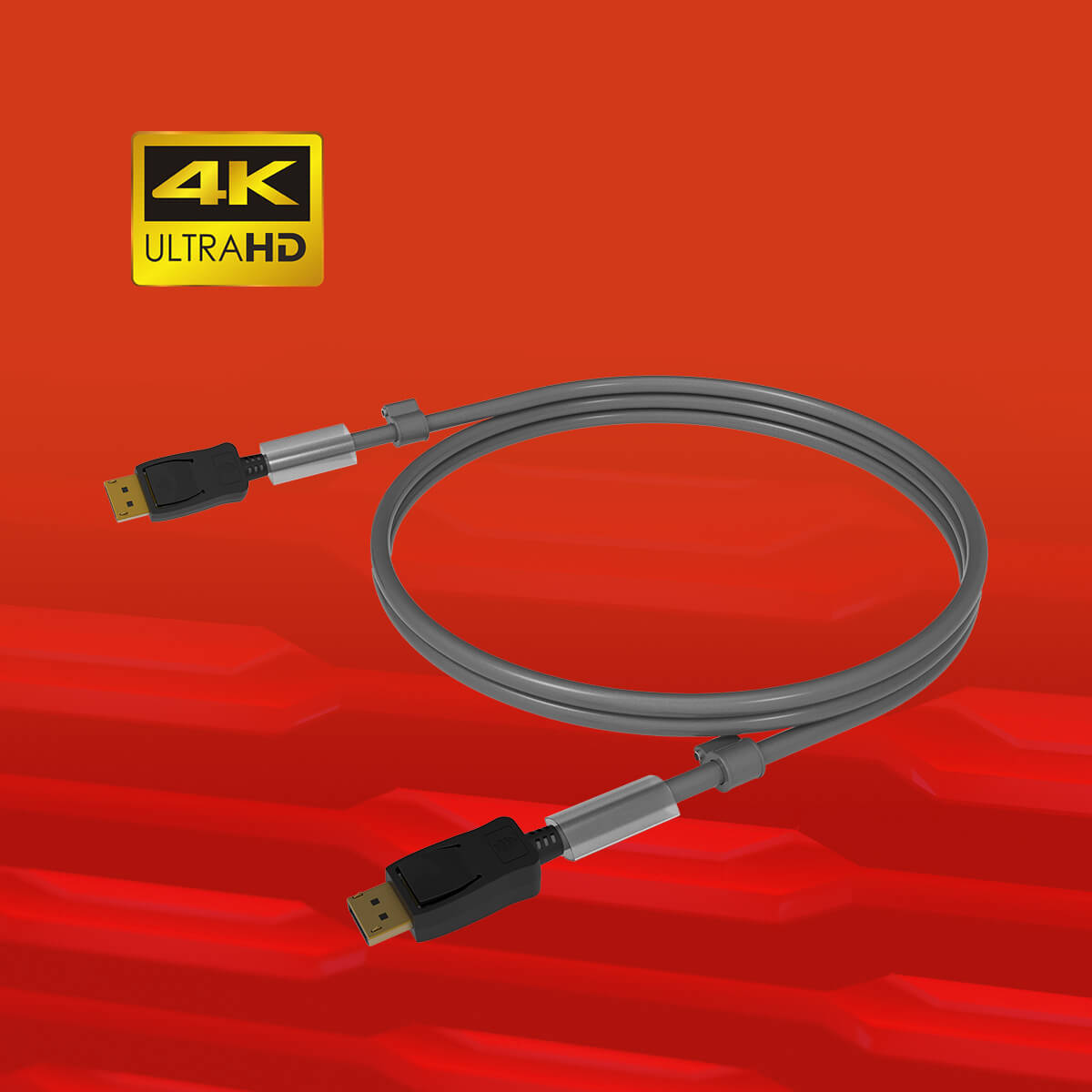

- Supports resolutions upto 4K@60 4:4:4 at 21.6 Gbps transmission rate
- The Display port cable has 15 μm gold platted connector support 1000+ plug in and out and it has stainless steel knurling joint screw with unique detachable belt chain dust proof cap.
- Available in 2.5m and 5m lengths
- Add your company info label using the provided transparent heat-shrink tubes
- Comes with Velcro wraps for easy cable management
Beetek DP 1.2 E2 cables are specially designed for the rental & staging industry. It supports resolution upto 4K@60 at 21.6 Gpbs transmission rate. It has 5 Layers of interference shielding structure, more than 85% of the copper weaving rate. The cable is manufactured with 99.995% purity tin-dipped oxygen-free copper. The DisplayPort connector, shell and pins are all improved with an added level of stiffness. The product is designed specifically to support E2 product line.
| Name | Specification |
| Product Name | DP 1.2 Cable |
| Model | P902-xxM |
| Brand | Beetek |
| Signal Type | DP 1.2 |
| Input Connector Type | DP Male - DP Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | 59*22*13.5mm |
| Connector Structure | Plug plate + Inner mold + Shielding shell + Copper foil + SR outer mold + Shell + Protective cap |
| Inner mold | Transparent PE material |
| Shielding Shell | Upper and lower assembled metal case |
| Copper Foil | Double-sided conductive copper foil |
| SR Outer Mold | 45P black PVC injection mold (UL, RoHS) |
| Shell | ABS upper and lower assembled shell |
| Locking Connector | Standard DP press-style locking mechanism |
| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor material | Stranded tinned copper |
| Conductor diameter | 28AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | 90P PVC (UL, RoHS) |
| Cable Diameter | 7.3mm |
| Cable Color | Fluorescent gray |
| Cable Meter Marking | Waterproof Yellow Text |
| Velcro | P-shaped Velcro Strap: 20*200mm |
| Custom Label | Heat-shrink transparent tubing on both ends for custom labels |
| EDID | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| AUX Channel | Yes |
| High-speed Ethernet | Supports extended high-speed ethernet |
| Extended USB | Supports extended USB 2.0 / USB 3.1 |
| Extended Audio | Supports extended 32 channels of audio |
| BT.2020 Color Space | Yes |
| Compatibility | Backward compatible with DP 1.1a / 1.1 version |
| Supported resolutions | 3840 x 2160@60Hz |
| Clock Bandwidth | 540MHz * 3 |
| Transmission Rate | 21.6 Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Compression | None |
| Deep Color | Yes |
| Color Sampling Rate | RBG 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤400N |
| Bending angle | 120° |
| Operating Temperature | -20℃~80℃ |
Key Features
E2 Special line series
Supports resolutions upto 4K@60 4:4:4 at 21.6 Gbps transmission rate
