PH904
DP to HDMI 4K UHD Adapter Cable
- DP1.2 to HDMI adapter cable available in lengths of 2.5m and 5m.
- Active conversion technology with built-in 15kV anti-static protection.
- Transmission rate of 21.6Gbps and fully DP1.2 compliant.
- Supports resolutions up to 3840*2160@60Hz 4:4:4.
- PVC outer jacket and 28AWG multi-strand tinned copper wire guarantee stable connections.
- Three-layer shielding structure and 85% copper shielding rate.

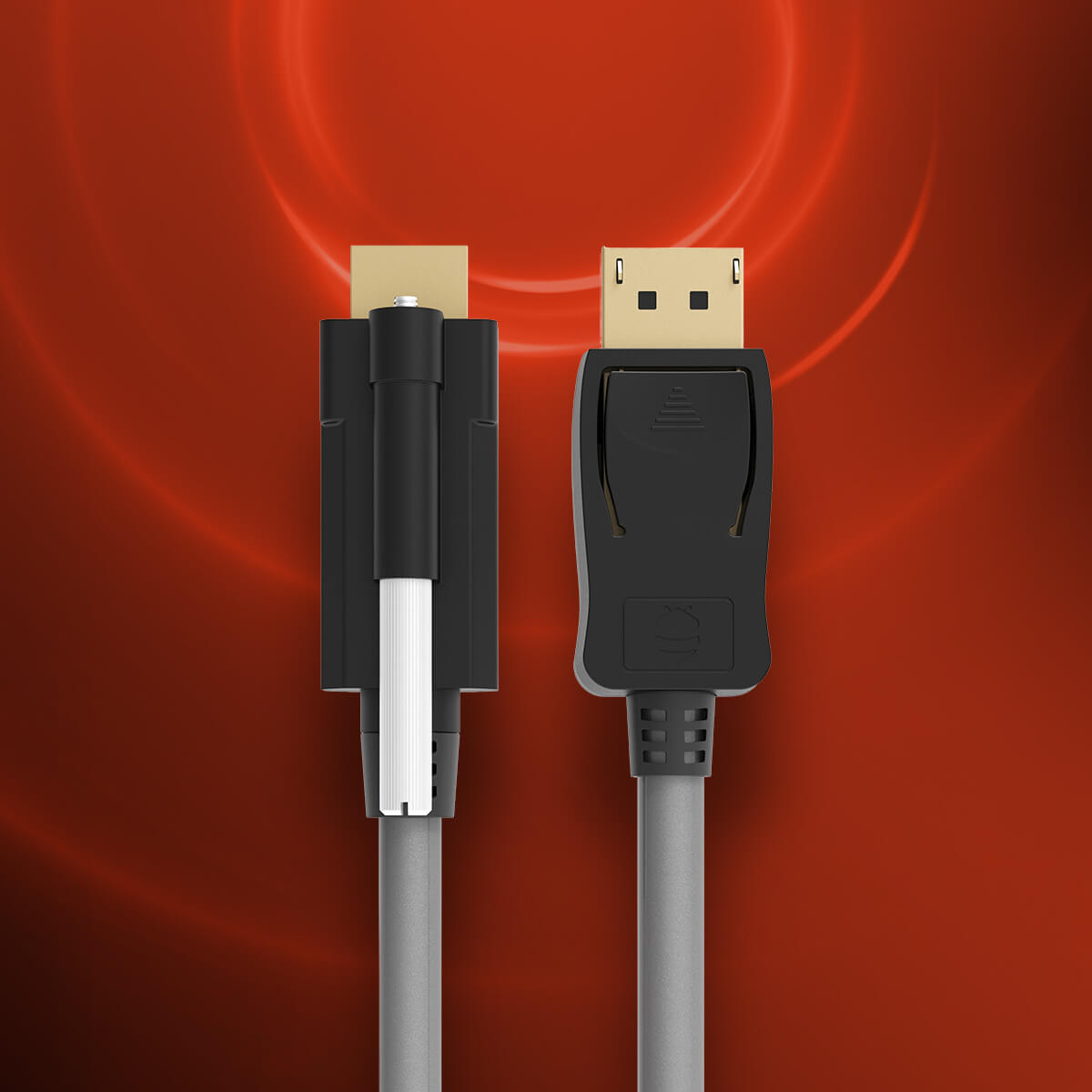

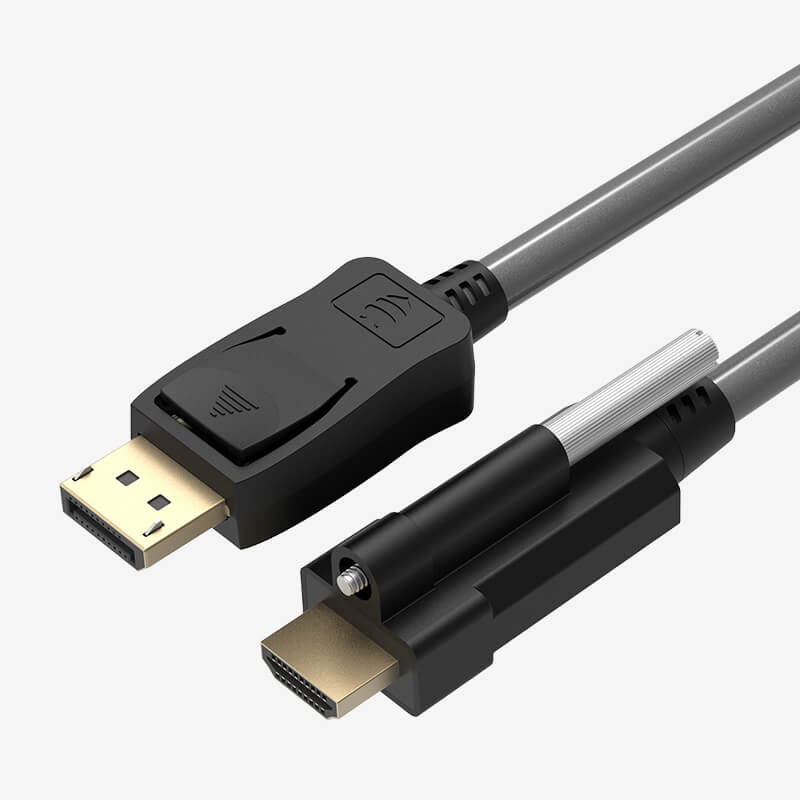

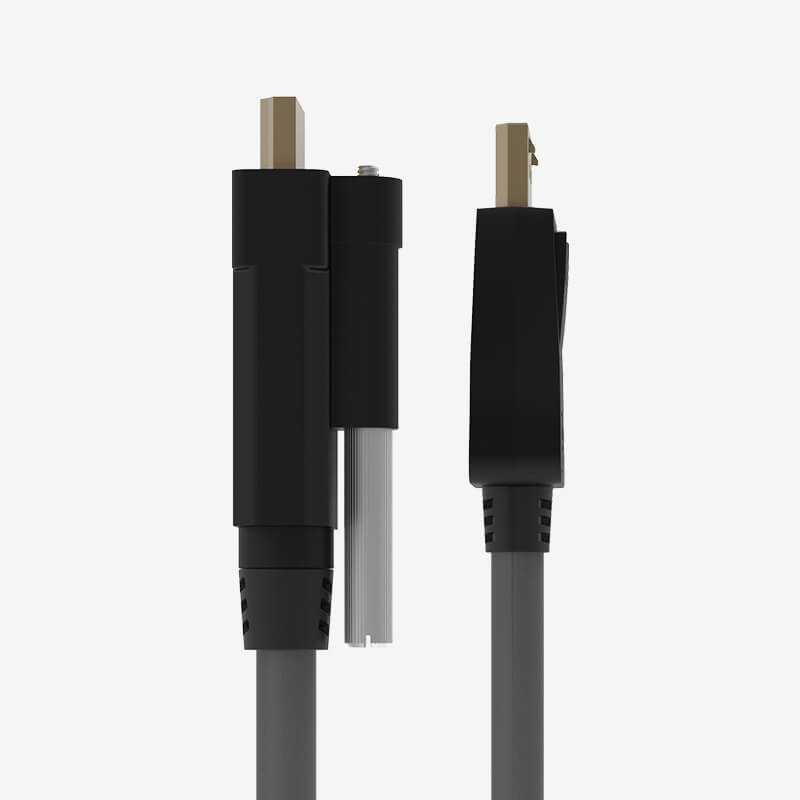

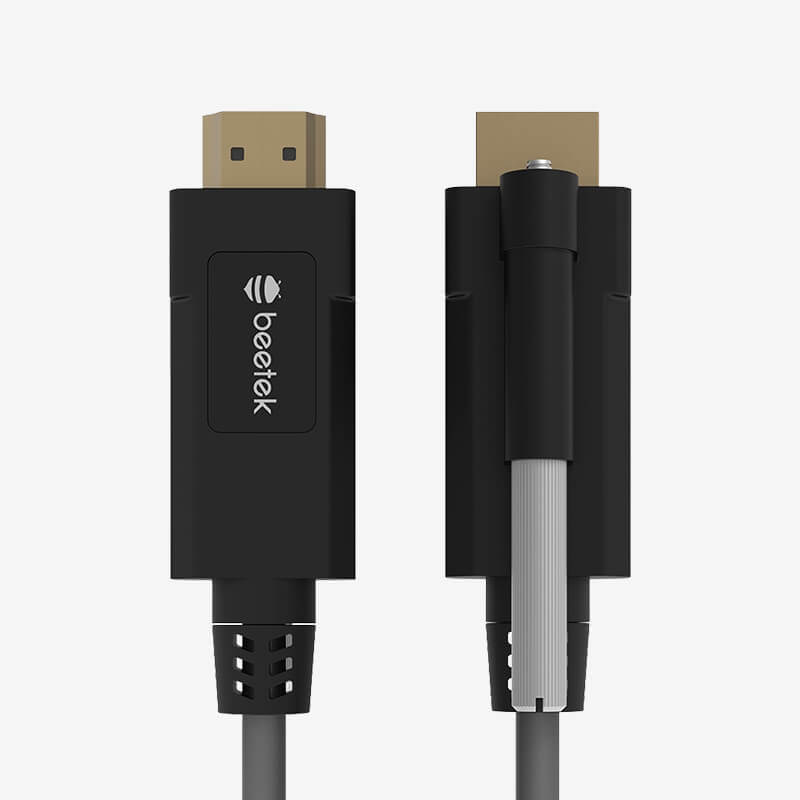

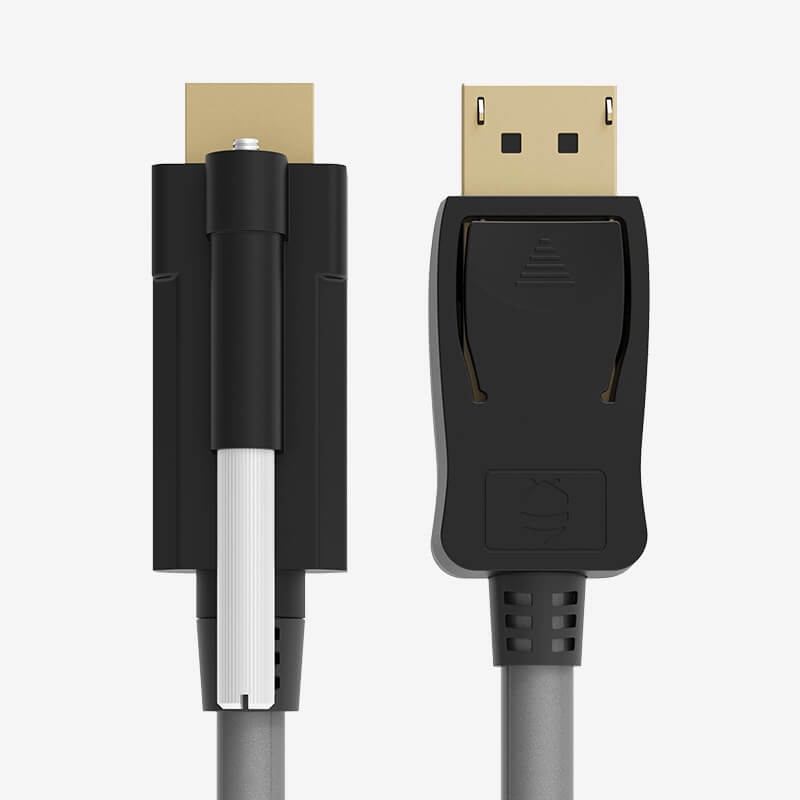

- Zinc alloy housing with locking HDMI screws for reliable connections.
- 15 m gold-plated pins built to withstand more than 1,000 plug cycles.

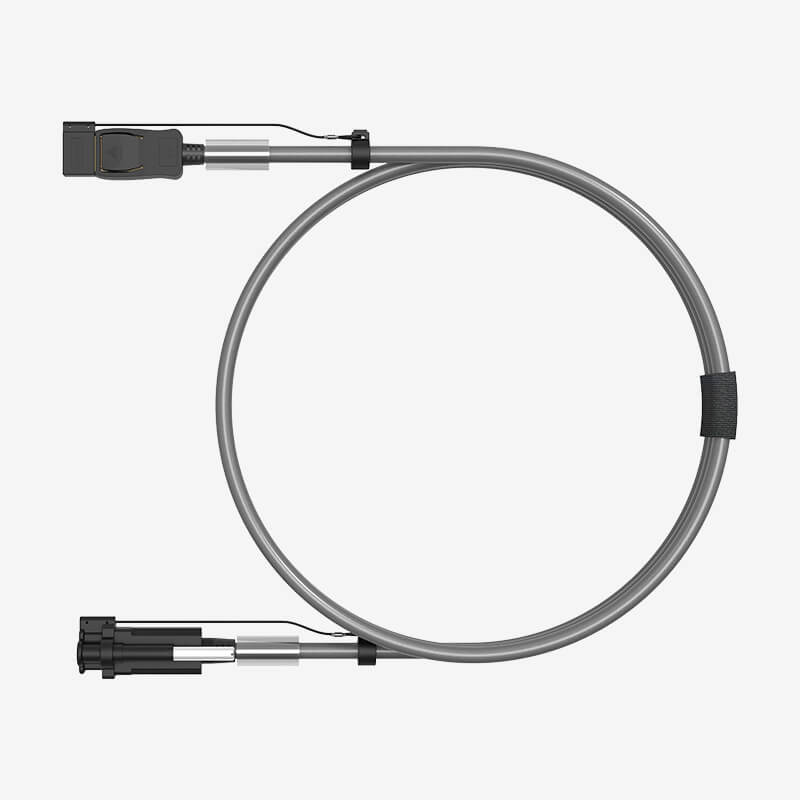

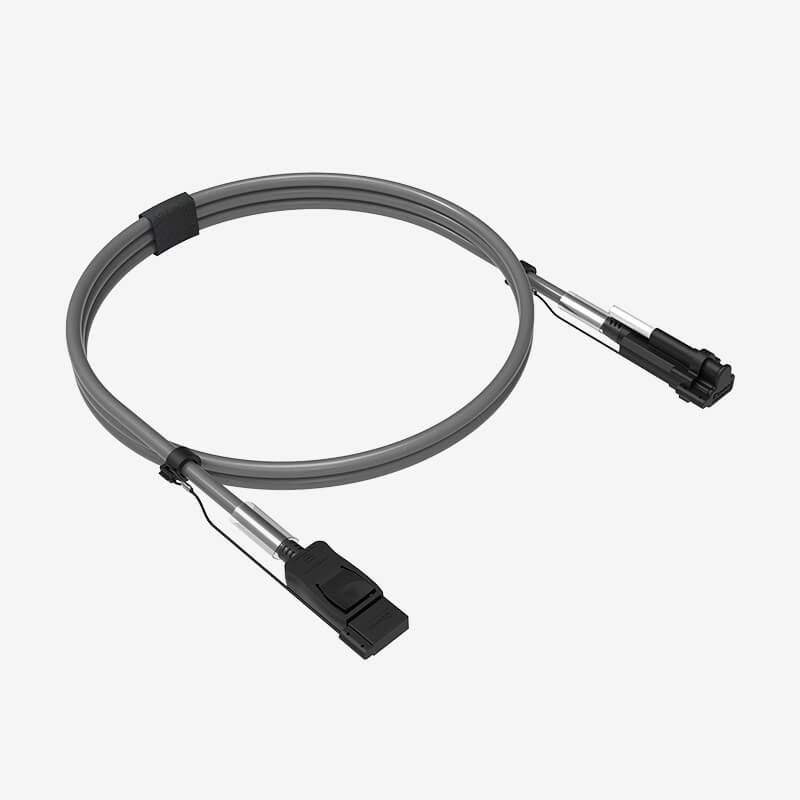

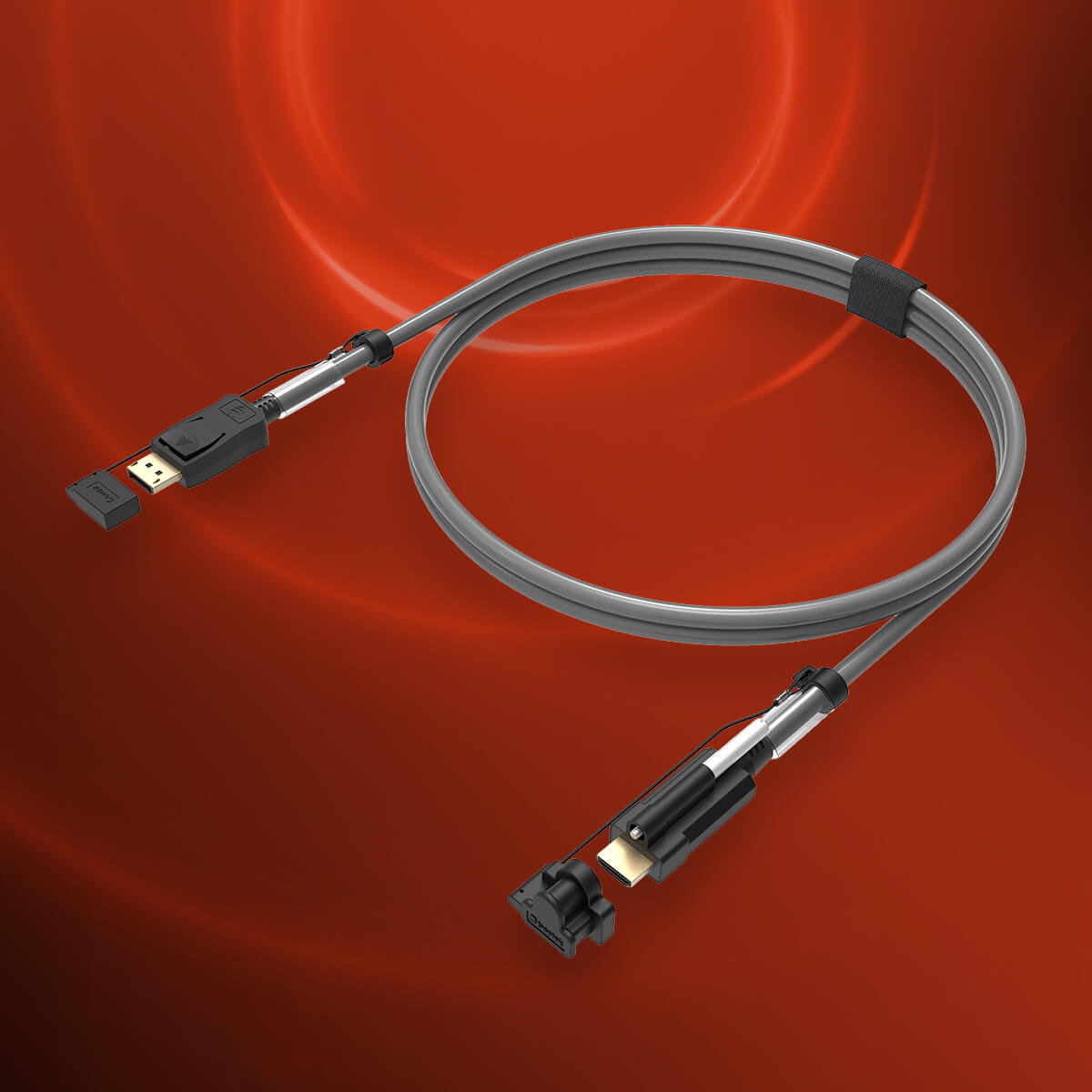

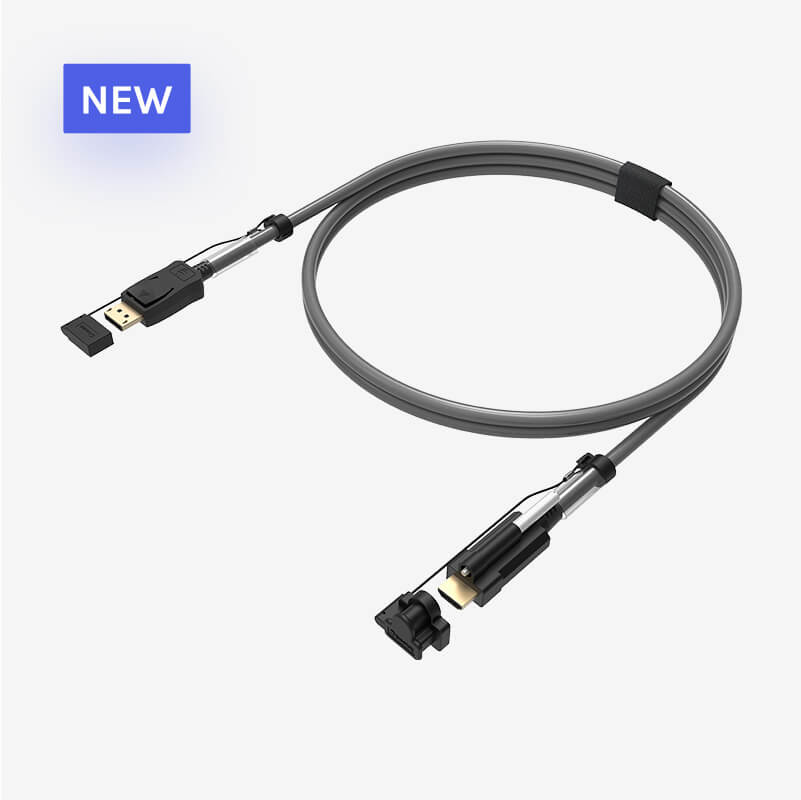

- Detachable cap with cord leash and Velcro strap for easy storage.
- Suitable for repeated deployment in the rental and staging market.

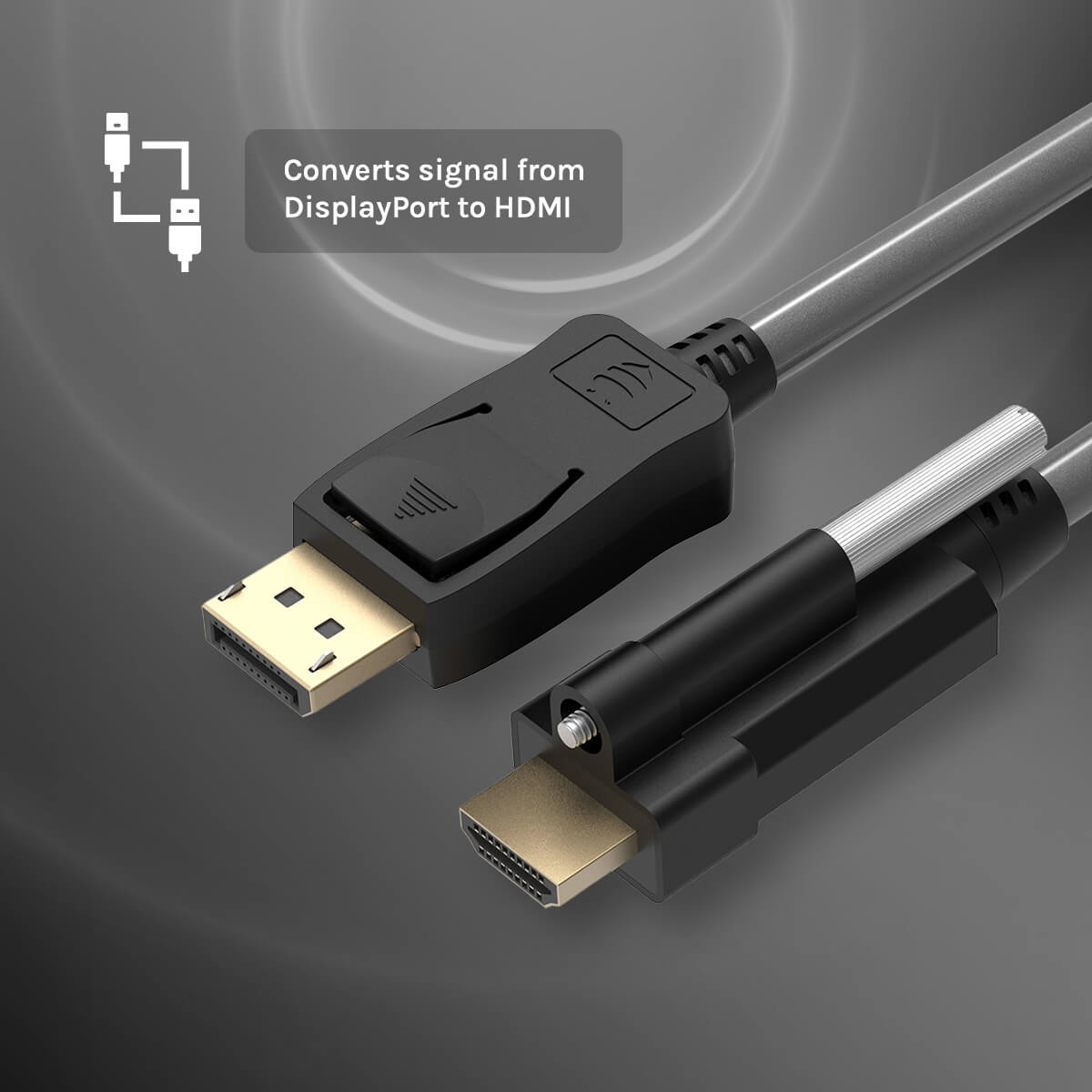

PH904-XXM is a DP-HDMl adapter cable designed for video processors with a transmission rate of 21.6Gbps, supporting resolutions up to 3840 *2160@60Hz.The 28AWG cable is made with multi-strand tinned copper wire with three-layer shielding, a thick PVC outer jacket, metal tinplate connectors, 15μ gold-plated pins and locking HDMl screws, which make connections stable and reliable. Comes with transparent heat shrink tubing for labelling, protective connector cap and Velcro straps for easystorage. With its high durability and ease of storage, this product meets and exceeds the demands of repeated use in rental and staging applications. Available in 2.5 meter and 5 meter lengths.
| Name | Specification |
| Signal Type | DP 1.2a to HDMI 2.0 |
| Conversion Method | Active |
| Input Connector Type | DP |
| Output Connector Type | HDMI Type A |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3 m; Pins: 15 m |
| Connector Dimensions | DP: 59.2*22.06*13.51mm / HDMI: 67.4*20.8*20.3mm |
| Connector Structure (DP) | Plug plate + Inner mold + Shielding case + Copper foil + SR outer mold + Shell + Protective cap |
| Connector Structure (HDMI) | Active PCB board + SR outer mold + Shell + Screw + Protective cap |
| Internal Mold (DP) | Transparent PE material |
| Shielding Case (DP) | Upper and lower assembled metal case |
| Copper Foil (DP) | Double-sided conductive copper foil |
| SR Outer Mold | 45P black PVC injected mold |
| Shell | DP: 45P PVC injection molded shell (UL, RoHS); HDMI: Zinc alloy upper and lower assembled shell |
| Locking Connector (DP) | Standard DP press-style locking mechanism |
| Locking Connector (HDMI) | Stainless steel screw |
| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Diameter | 28AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | 90P PVC (UL,RoHS) |
| Cable Diameter | 7.4mm |
| Cable Color | Fluorescent gray |
| Cable Meter Marking | Waterproof text |
| EDID | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| ESD | Yes |
| Supported Resolutions | 3840*2160@60Hz |
| Clock Bandwidth | 540MHz*4 |
| Transmission Rate | 21.6Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Compression | None |
| Deep Color | Yes |
| Color Sampling Rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤400N |
| Bending Angle | 120° |
| Operating Temperature | -40℃~80℃ |
Key Features
PVC outer jacket and 28AWG multi-strand tinned copper wire guarantee stable connections.
DP1.2 to HDMI adapter cable available in lengths of 2.5m and 5m.
Detachable cap with cord leash and Velcro strap for easy storage.
