PH903
MiniDP-HDMI4K UHD Adapter Cable
- Supports 3840*2160@60HZ or 4096*2160@60HZ，RGB4:4:4

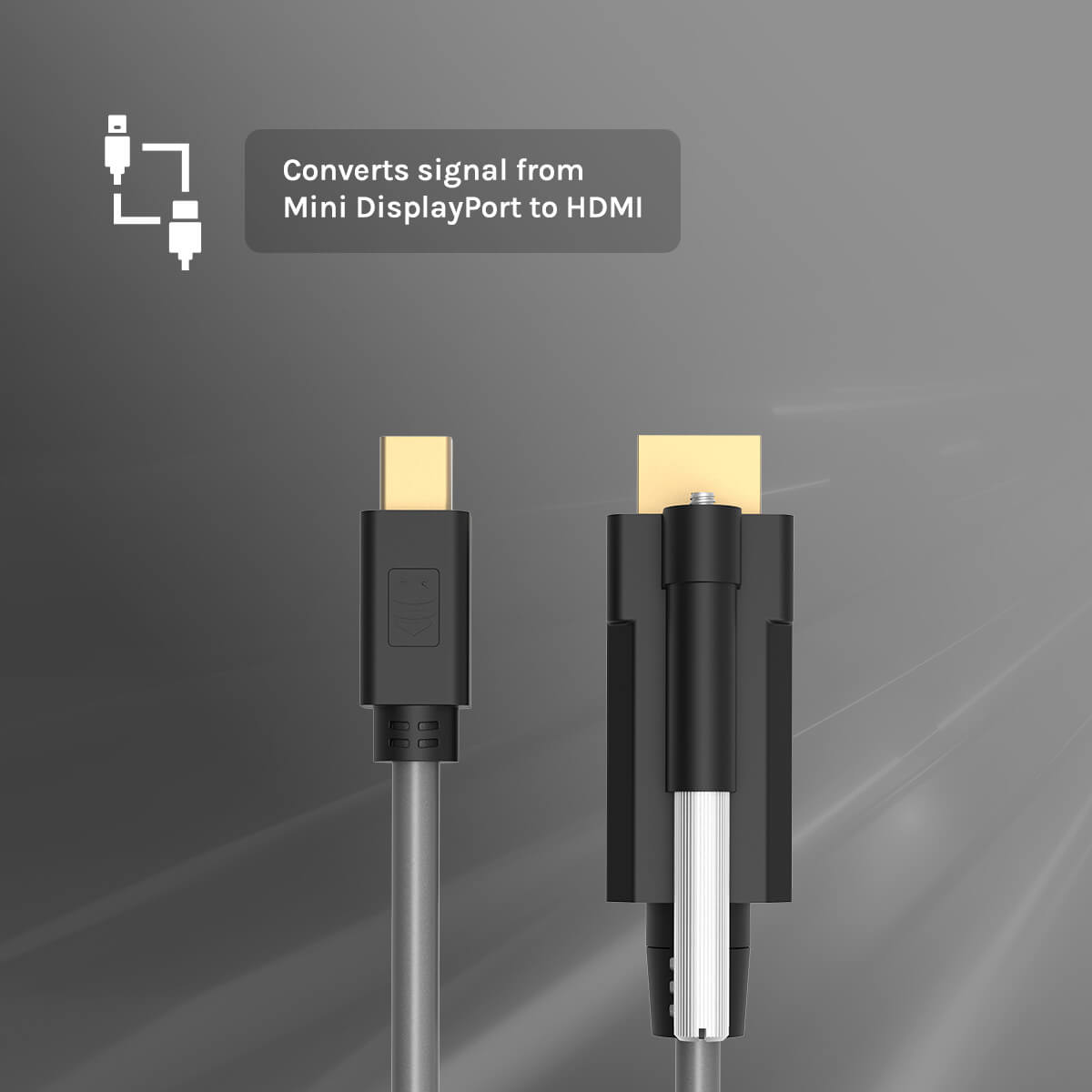

- Converts signal from Mini DisplayPort to HDMI; Supports EDID pass-through.; Supports CEC；Supports audio output

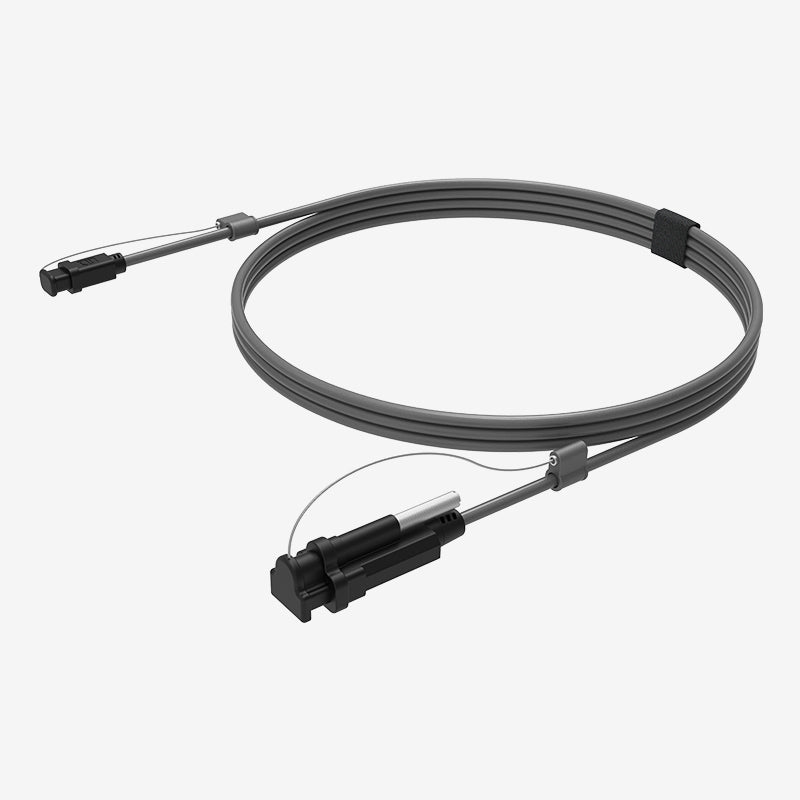

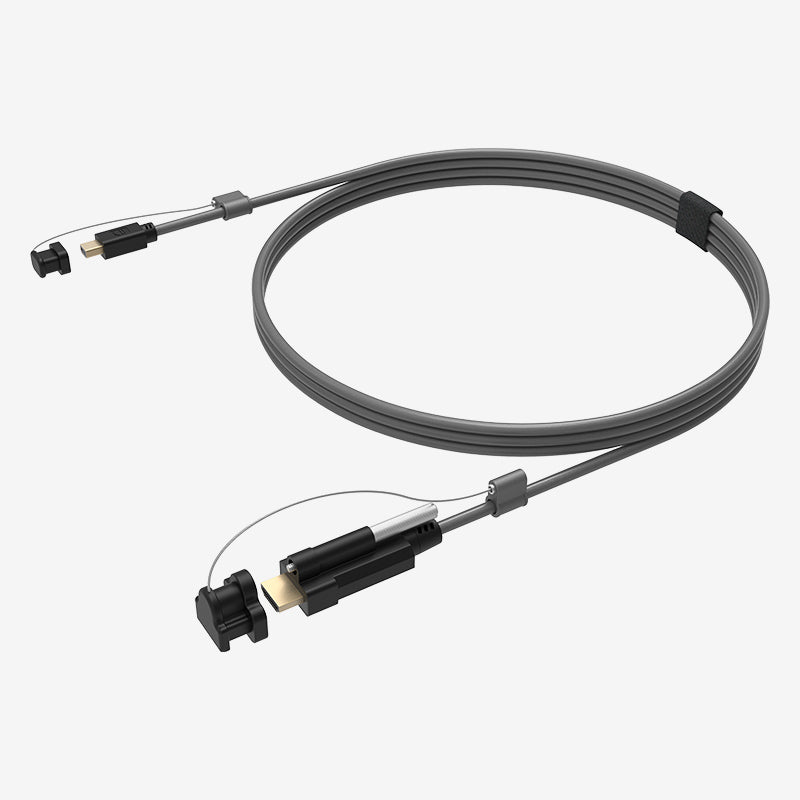

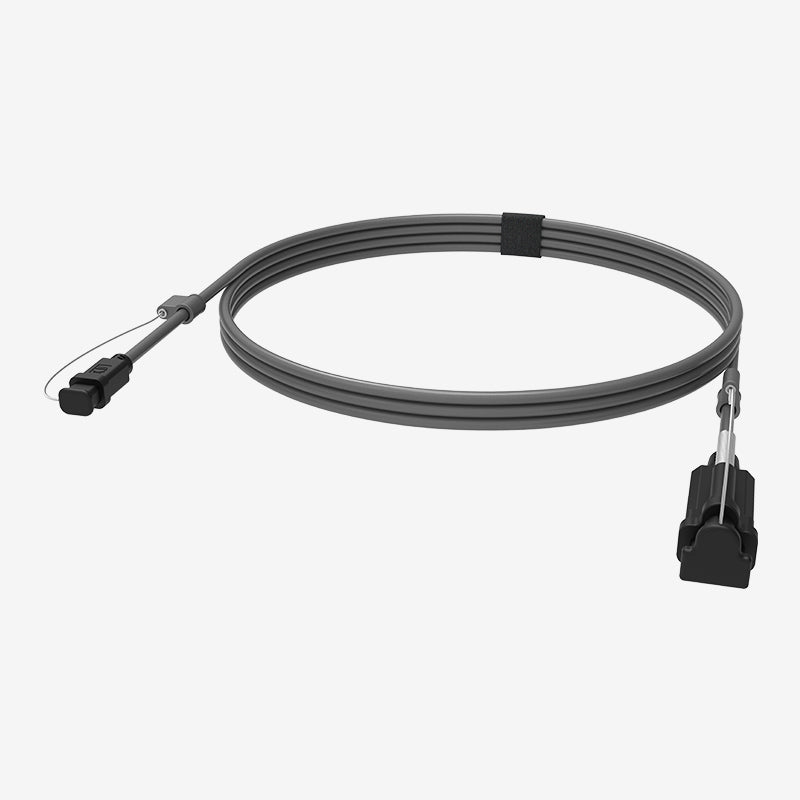

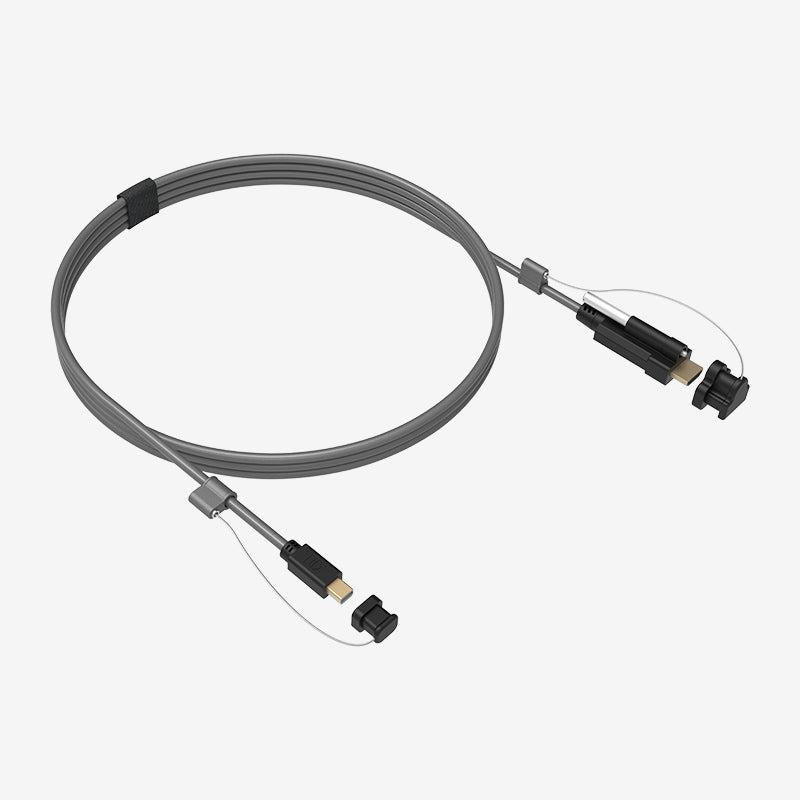

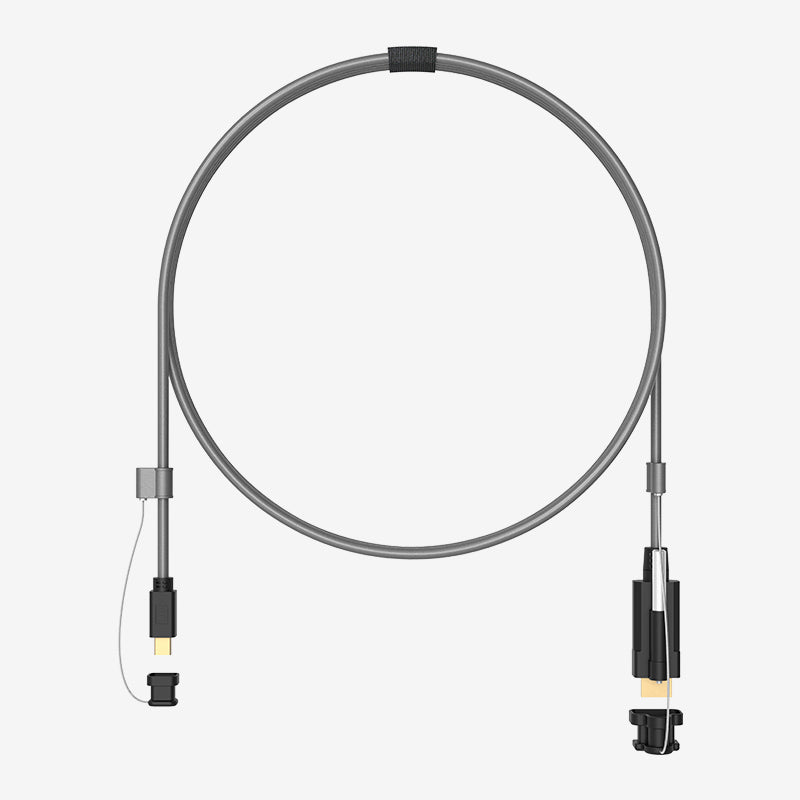

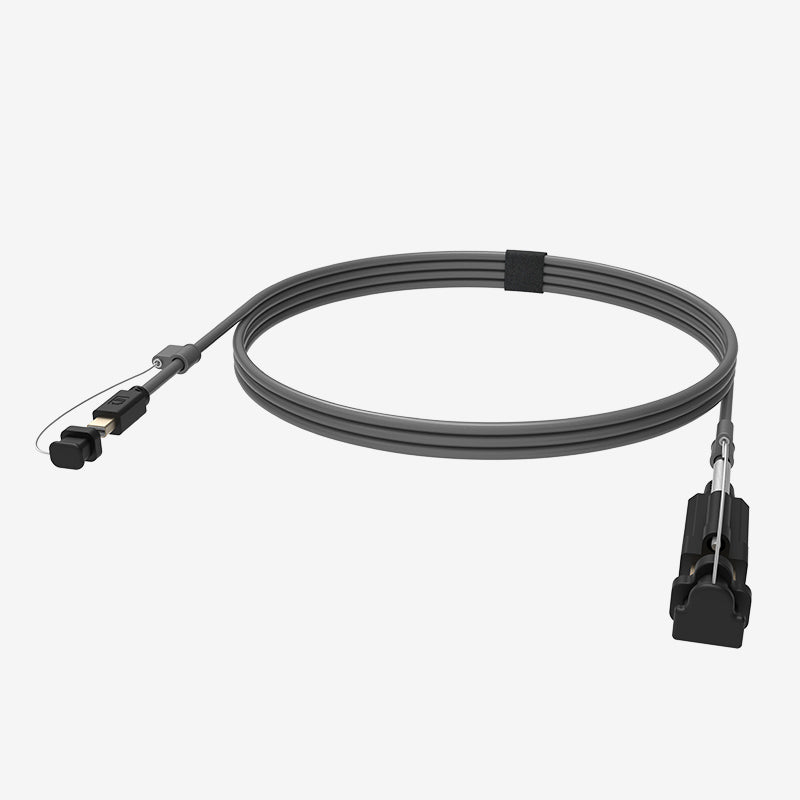

- Cable jacket is made of wear-resistant PVC composite. Both ends come with detachable belt chain dust-proof caps

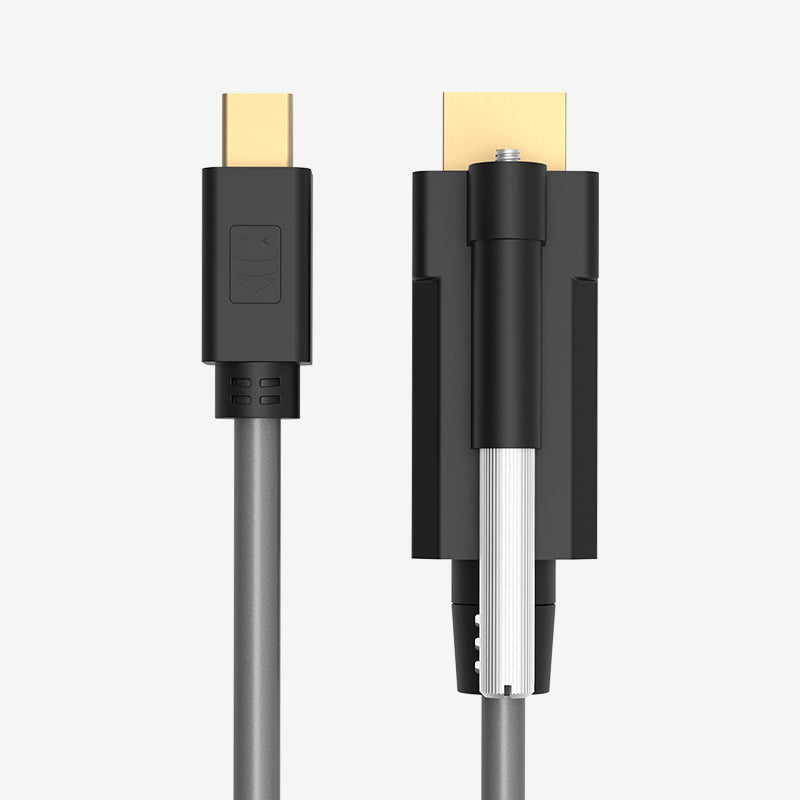

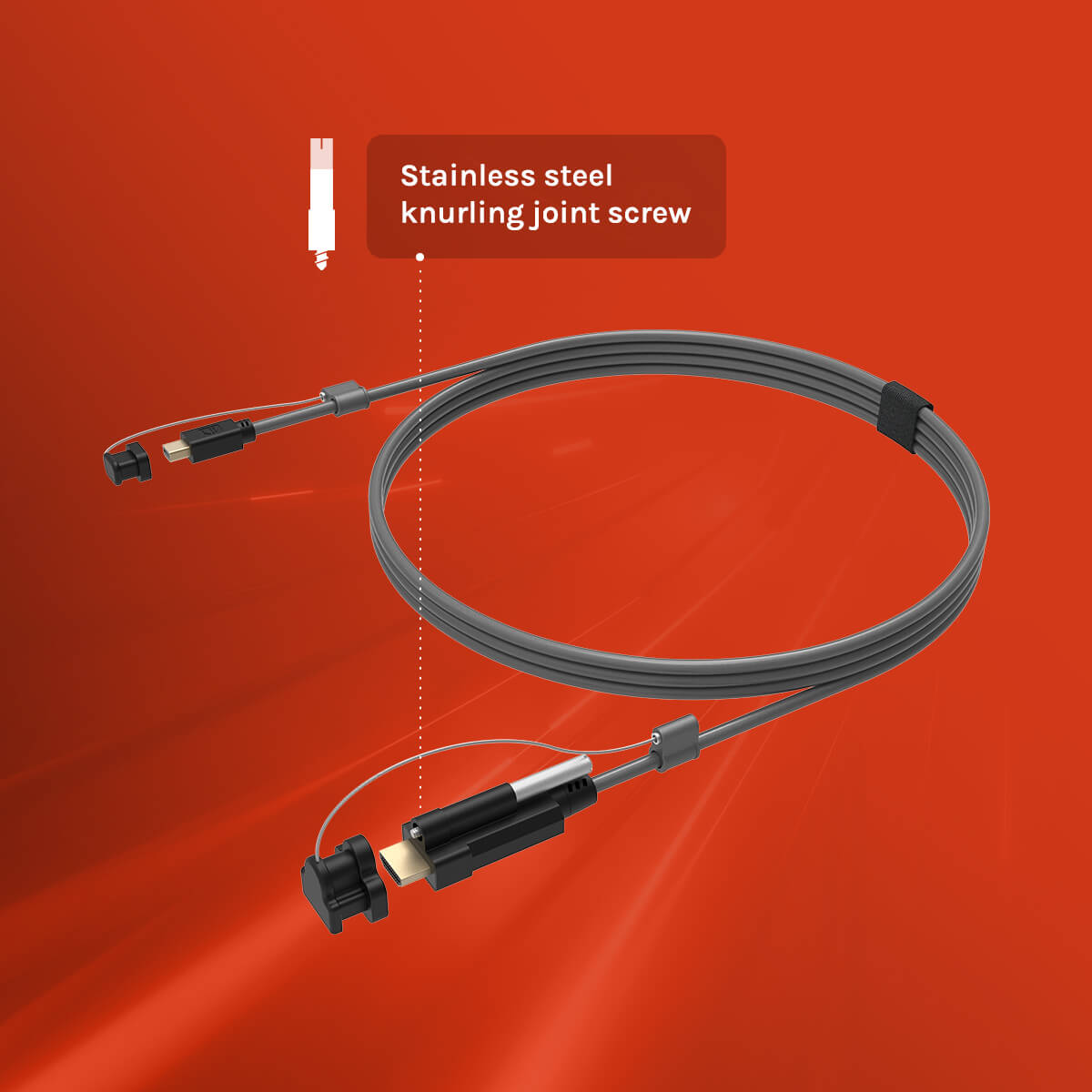

- HDMI connector is lockable with stainless steel knurling joint screw to make the connection system more stable.

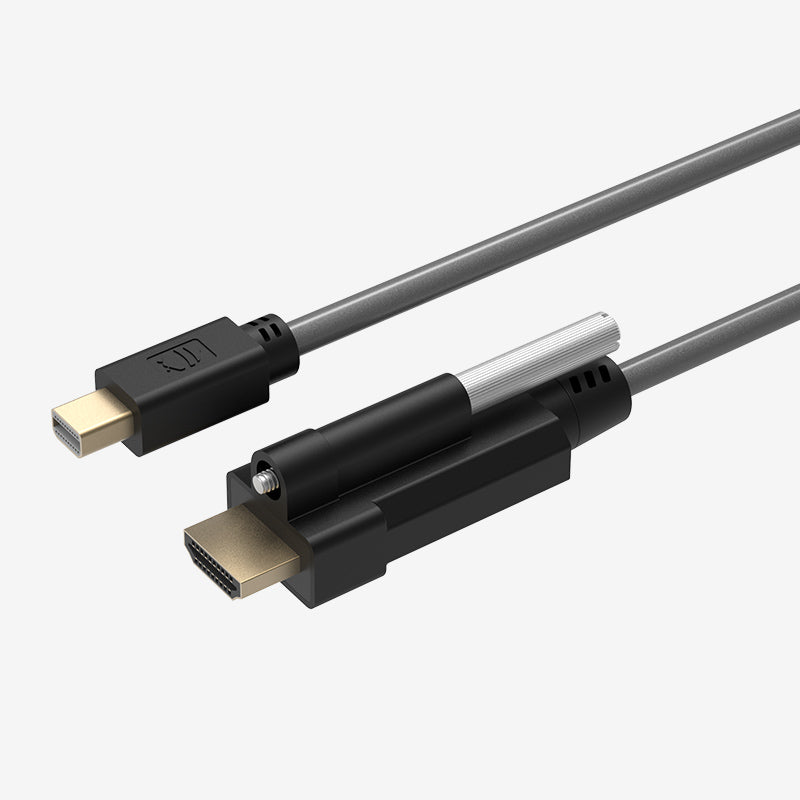

Beetek MiniDP to HDMI adapter cable converts signal from Mini Display port to HDMI and supports resolution upto UHD. The adapter cable supports EDID pass through, CEC and support audio as well. The Mini DP Connector supports DP 1.2 a technology and zinc alloy HDMI-A connector with built-in active converting chip and 15kv anti-static chip. It has OD: 5.8mm±0.2mm; Conductor gauge: 30-32AWG; Braided shield coverage rate: ≥85%；Available in two lengths 2.5 and 5 metres.The product is suitable for Rental, Live Events and corporate application.
| Name | Specification |
| Product Name | MiniDP 1.2a - HDMI 2.0 Adapter Cable |
| Model | PH903-xxM |
| Brand | Beetek |
| Signal Type | DP 1.2a, HDMI 2.0 |
| Conversion Method | Active |
| Input Connector Type | miniDP Male |
| Output Connector Type | HDMI Type A Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | HDMI: 67.4*20.8*20.3mm; mini-DP: 34*11.4*9.4mm |
| Connector Structure (miniDP) | Plug plate + Inner mold + Copper foil + Shell + Protective cap |
| Connector Structure (HDMI) | Active PCB board + SR outer mold + Shell + Screw + Protective cap |
| Internal Mold (miniDP) | Transparent PE material |
| SR Outer Mold (HDMI) | 45P black PVC injected mold |
| Copper Foil (miniDP) | Double-sided conductive copper foil |
| Shell | miniDP: 45P PVC injection molded shell (UL, RoHS); HDMI: Zinc alloy upper and lower assembled shell |
| Locking Connector (HDMI) | Stainless steel screw |
| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Diameter | 30AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | 90P PVC (UL, RoHS) |
| Cable Diameter | 5.8mm |
| Cable Color | Fluorescent gray |
| Cable Meter Marking | Waterproof Yellow Text |
| Velcro | P-shaped Velcro Strap: 20*200mm |
| EDID | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| ESD | Yes |
| Compatibility | Backward compatible with DP 1.1 / 1.0 |
| Supported Resolutions | 3840 x 2160@60Hz / 2560 x 1600@120Hz |
| Clock Bandwidth | 600MHz * 3 |
| Transmission Rate | 18 Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Compression | None |
| Deep Color | Yes |
| Color Sampling Rate | RBG 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤400N |
| Bending Angle | 120° |
| Operating Temperature | -30℃~75℃ |
Key Features
Supports 3840*2160@60HZ or 4096*2160@60HZ，RGB4:4:4
Converts signal from Mini DisplayPort to HDMI; Supports EDID pass-through.; Supports CEC；Supports audio output
HDMI connector is lockable with stainless steel knurling joint screw to make the connection system more stable.
