HDMI EQ

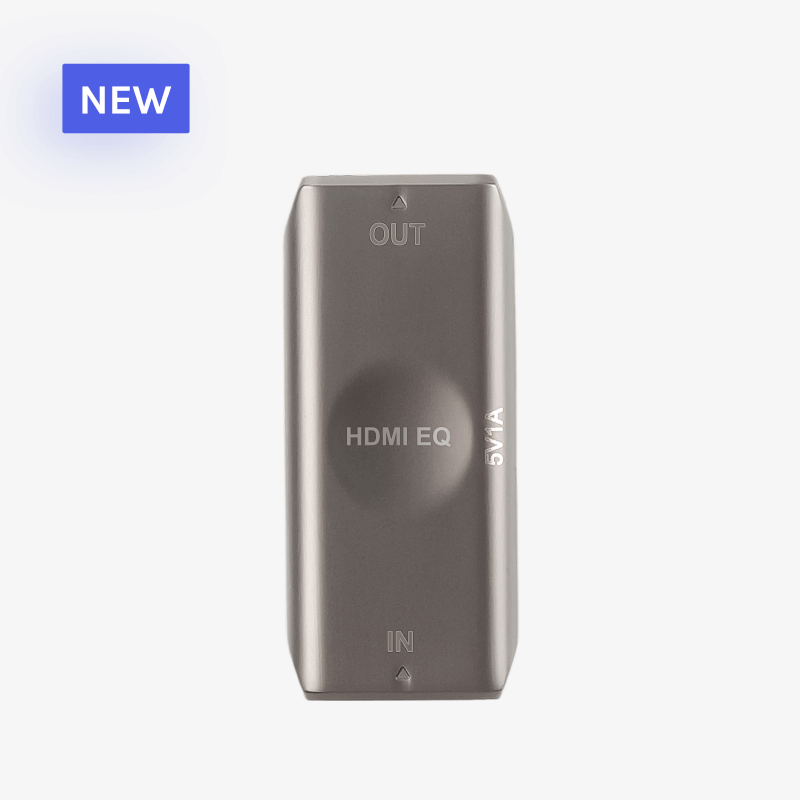

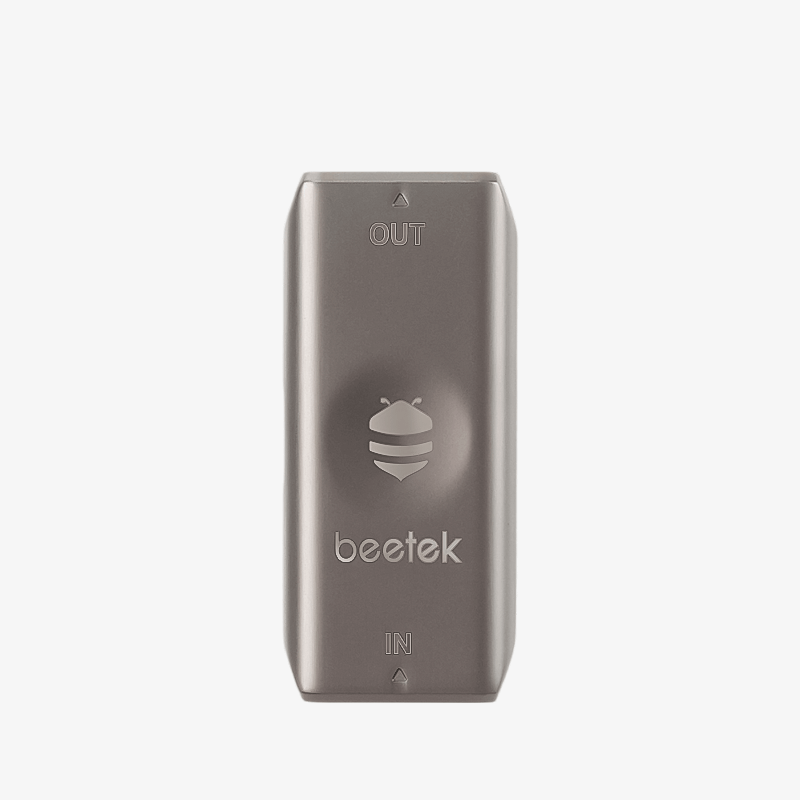

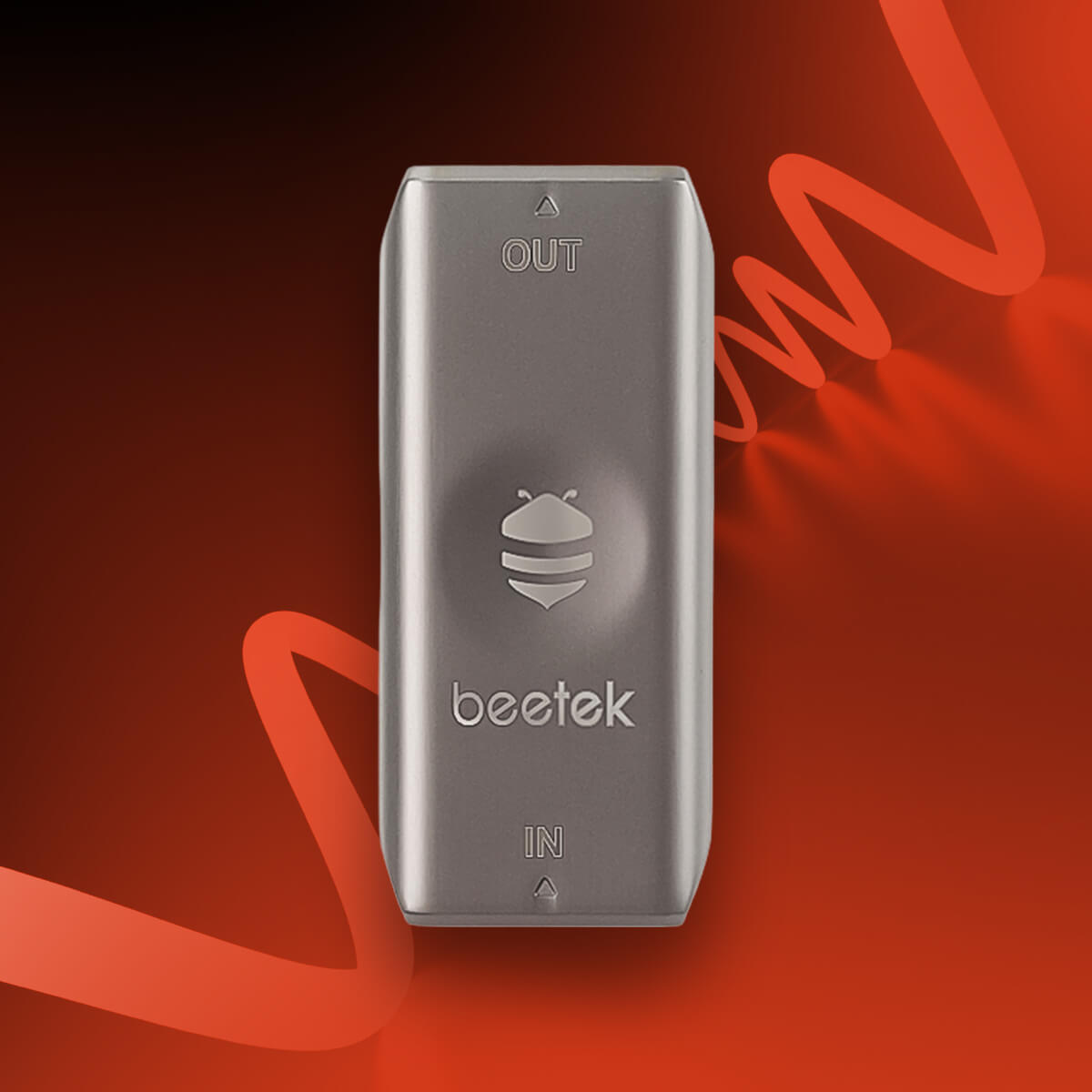

HDMI 2.0 EQ Female-to-Female Equalizer
- Designed specifically to address signal attenuation in long-distance transmissions.
- Automatically adjusts signal compensation based on cable length.
- When no signal is detected, the EQ enters an auto low-power mode to reduce energy consumption.
- Complies with HDMI 2.0 standards for seamless compatibility with various transmission devices.
- Ideal for diverse scenarios, effectively solve the problem of signal attenuation.

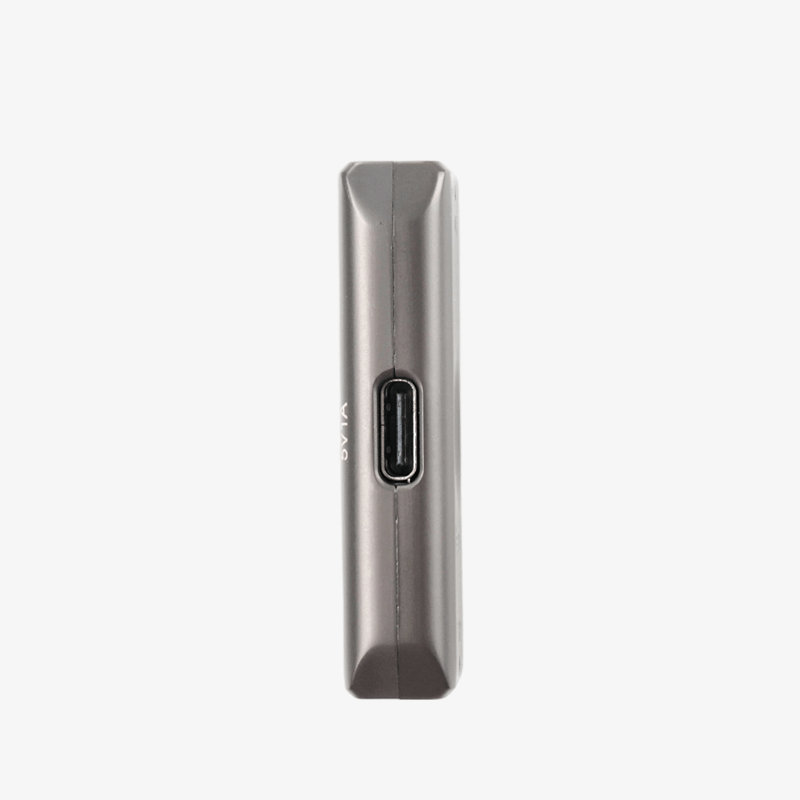

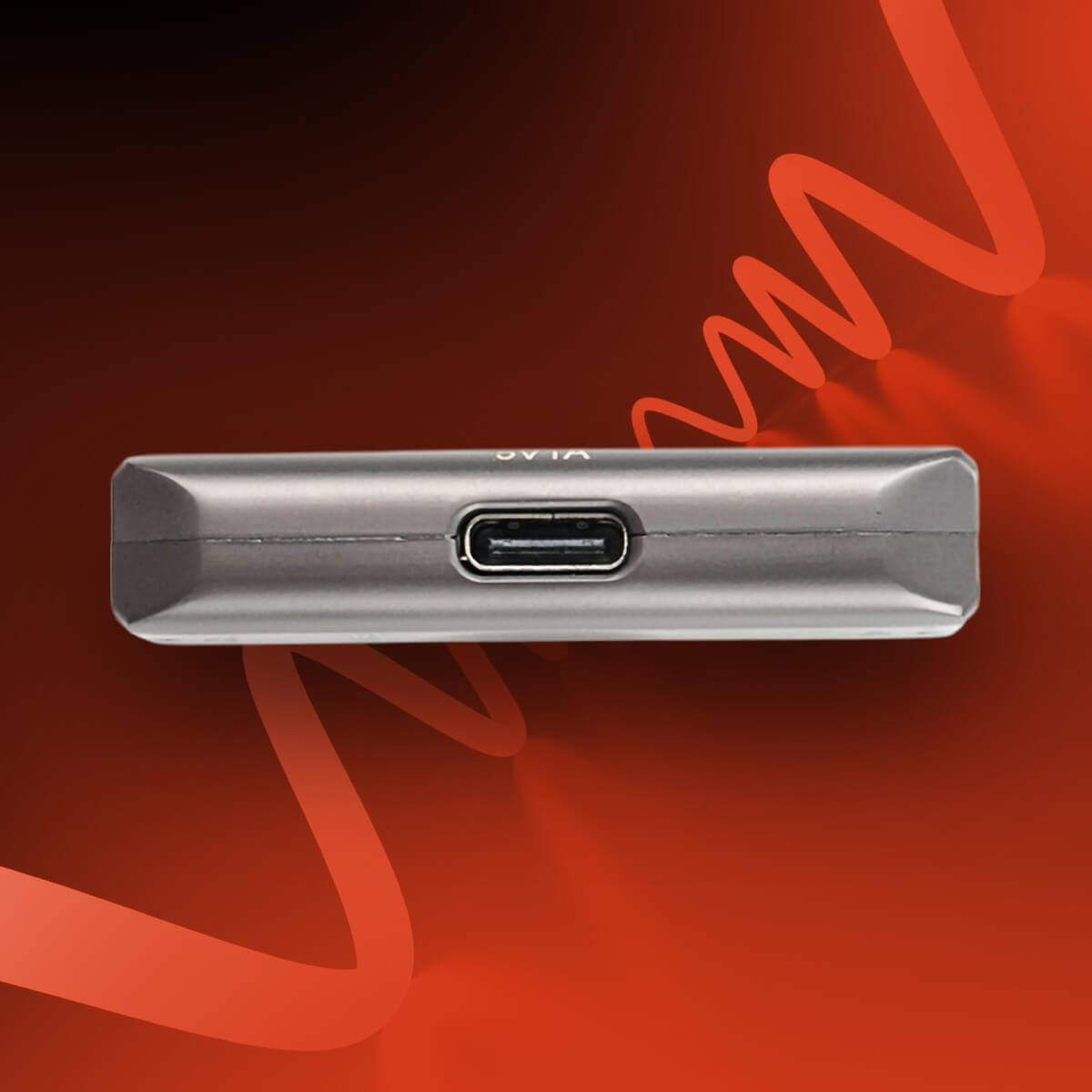

- Equipped with a Type-C 5V external power port for optional external power supply.
- Zinc alloy housing with dimensions: 46.8mm*20.6mm*10mm.
The HDMI EQ is an HDMI 2.0 equalizer specifically designed to solve the problem of signal attenuation in long-distance transmission. It adopts a dual female HDMI connector design, making it suitable for various transmission scenarios. It can effectively enhance signal quality and ensure stable transmission, extending the original transmission distance of coaxial cables by at least 7-8 meters. Compliant with the HDMI 2.0 standard, it offers backward compatibility. And it can automatically compensate for signals according to the cable length. When there is no signal transmission, it will automatically switch to a low-energy consumption state. In addition, it optimizes the transmission path, compensates for frame drops or loss caused by insufficient power during long-distance transmission via AOC (Active Optical Cable) or coaxial cables, and strengthens signal intensity.
| Name | Specification |
| Product Name | HDMI 2.0 EQ Female-to-Female Equalizer |

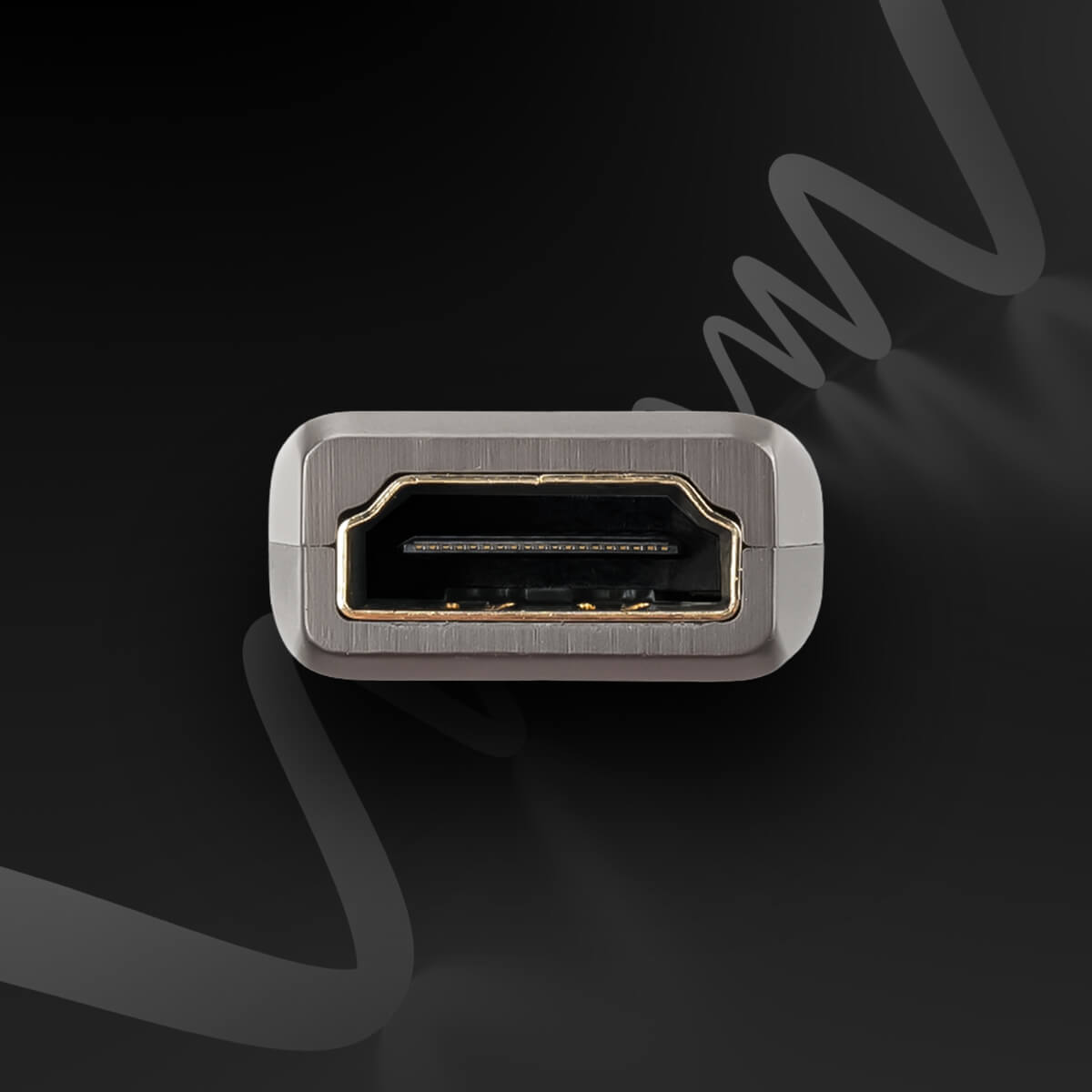

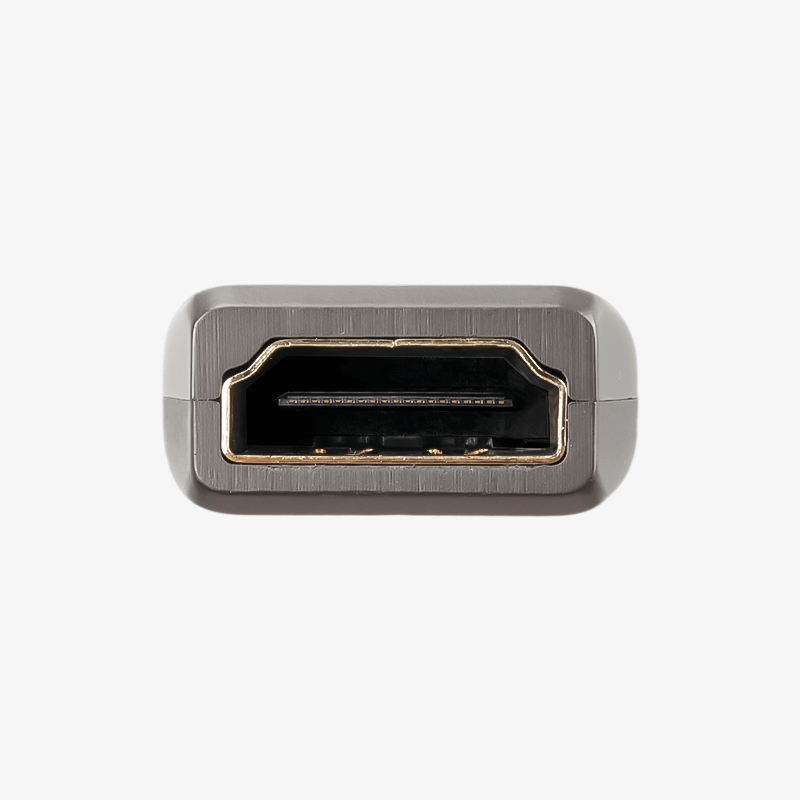

| Connector Type | HDMI Female |
| Signal Type | HDMI 2.0 |
| Housing Material | Zinc Alloy |
| Connector Size | 46.8mm*20.6mm*10mm |
| Environmental Info | RoHS 2.0 Compliant |
| Resolution | 3840*2160@60Hz |
| HDR | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| HDCP | Yes |
| EDID | Yes |
| VRR | Yes |
| BT.2020 Color Space | Yes |
| Plug and Play | Yes |
| ESD Protection | Yes |
| Hot Plug | Yes |
| Equalizer Chip | Yes |
| Transmission Rate | 18Gbps |
| Delay | Zero |
| Compression | None |
| Deep Color | Yes |
| Sampling Rate | Bandwidth Range: 8~12bit |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Key Features
Designed specifically to address signal attenuation in long-distance transmissions.
Zinc alloy housing with dimensions: 46.8mm*20.6mm*10mm.
Equipped with a Type-C 5V external power port for optional external power supply.
