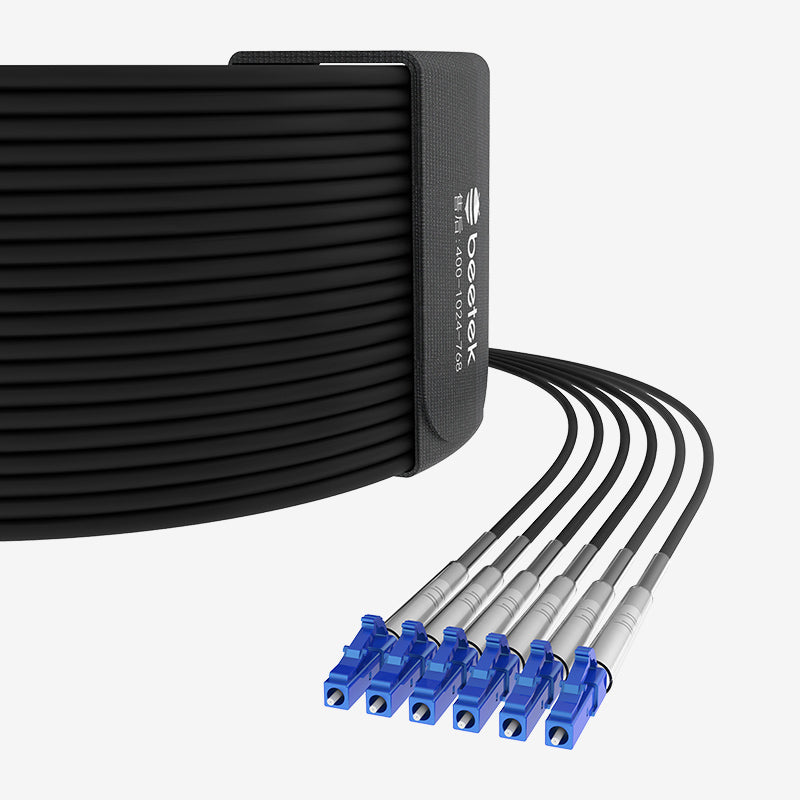

G202 USM LC
Single Mode armored Fibre Cable

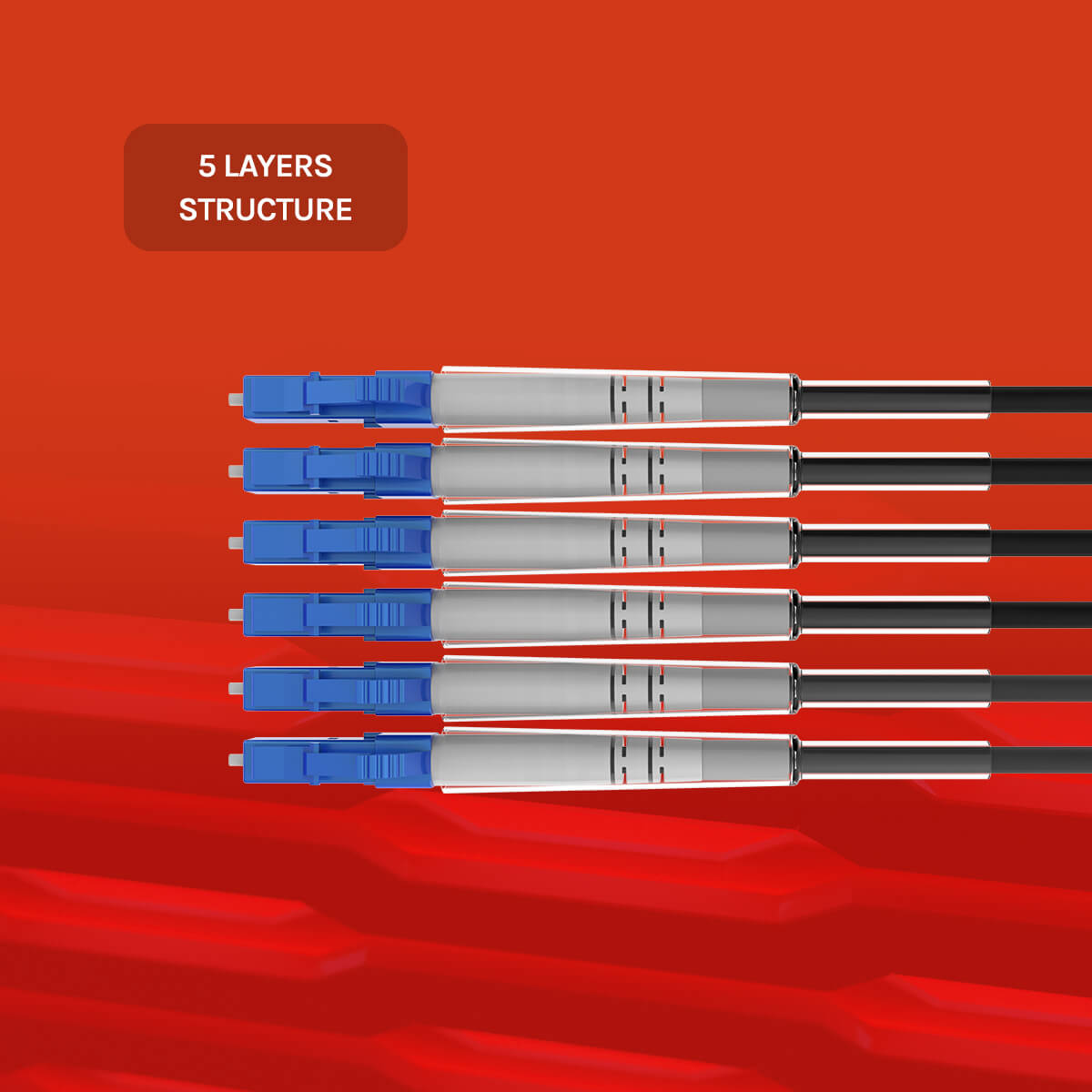

- Armored steel ring, braided, aramid has a total of 5 layers of structure.

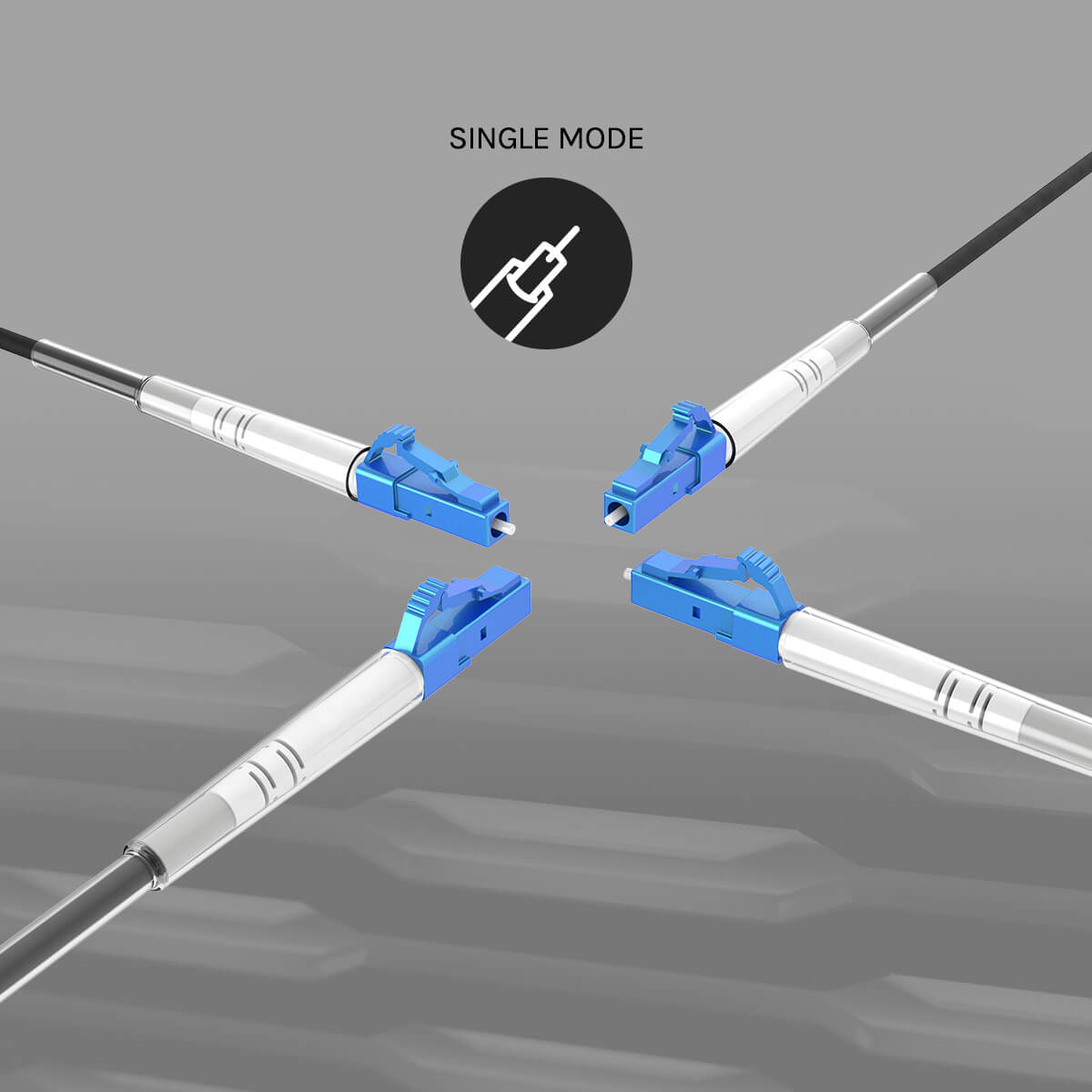

- Single mode 9/125 core.

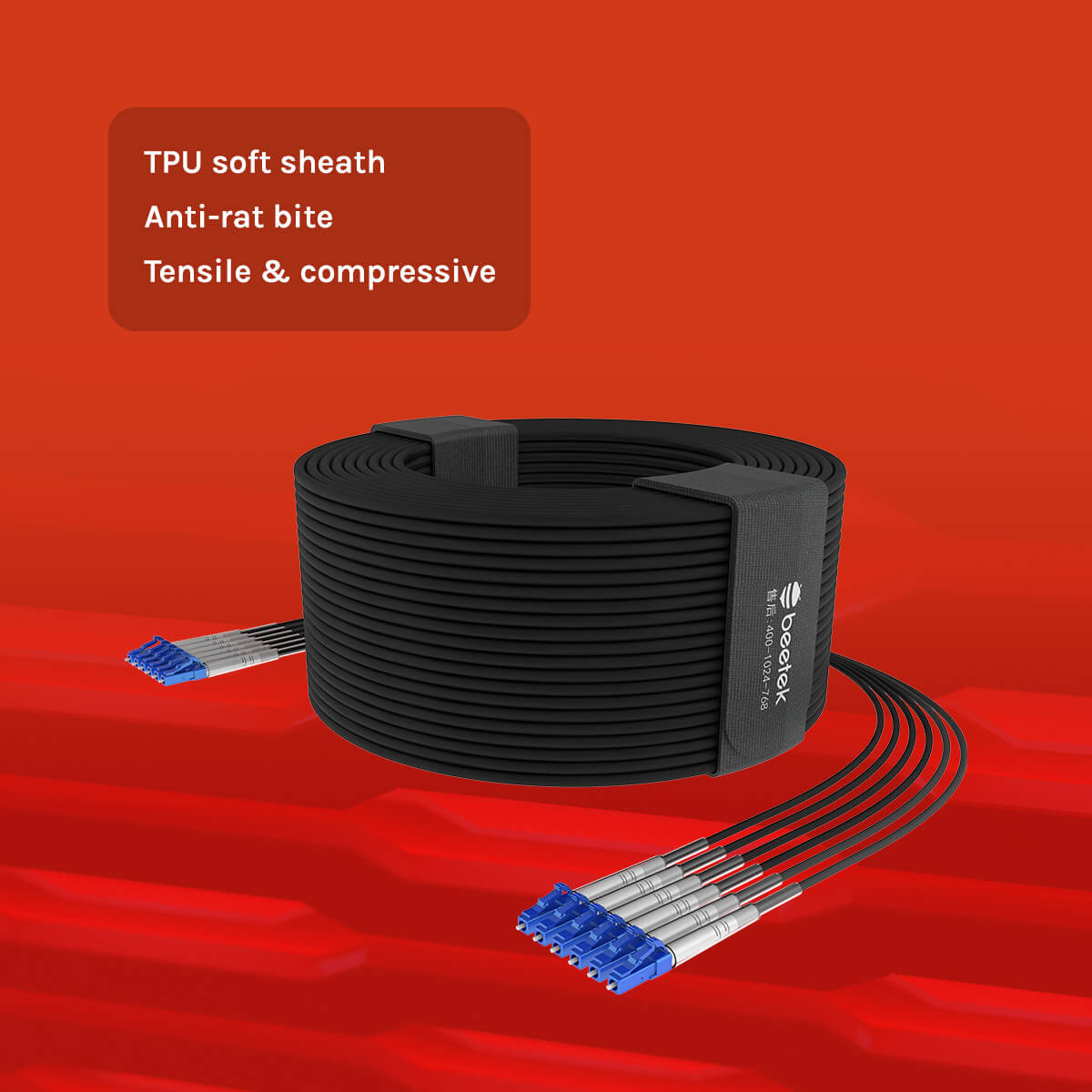

- TPU soft sheath, anti-rat bite, tensile and compressive.
- Custom cable length and cable core.
The cable is made of TPU single mode armored optic cable with any number of core with SC, ST, FC, connectors. The cable is custom developed for outdoor and harsh environments with fast wiring and repeated retractable cables. The core of the cable can be customosed based on the requirement and the length is also customisable. LC/SC/ST/FC interfaces are optional with Branch 1000 mm. The cable is suitable for rental , live events staging and networking applications.
| Name | Specification |

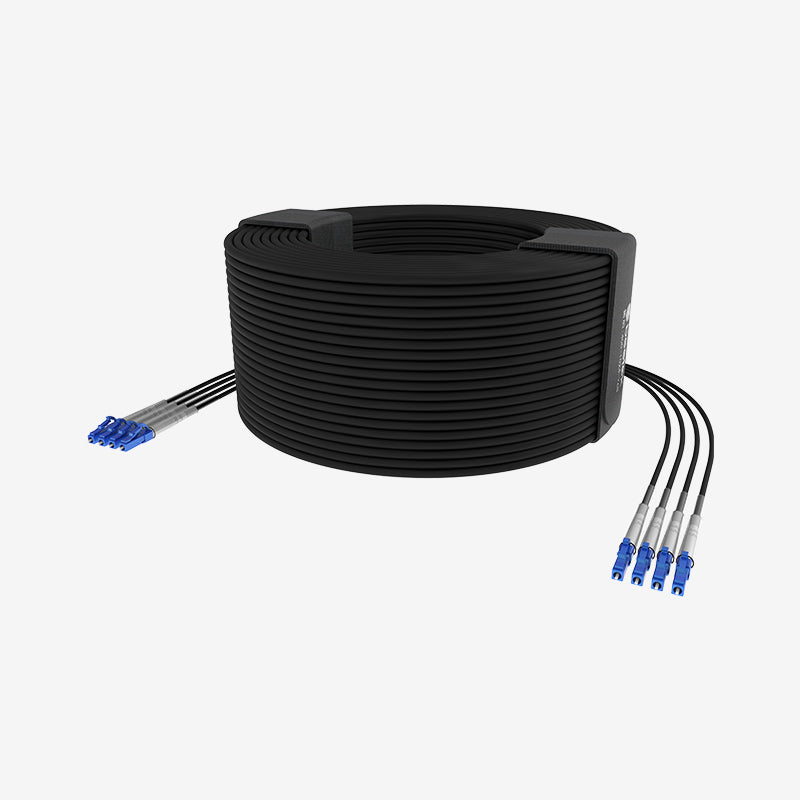

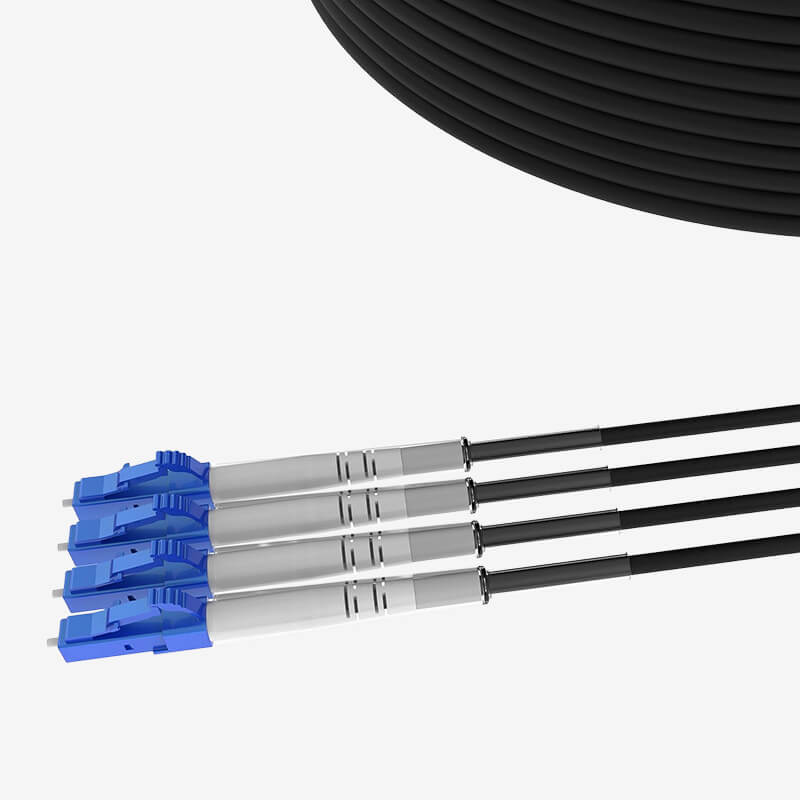

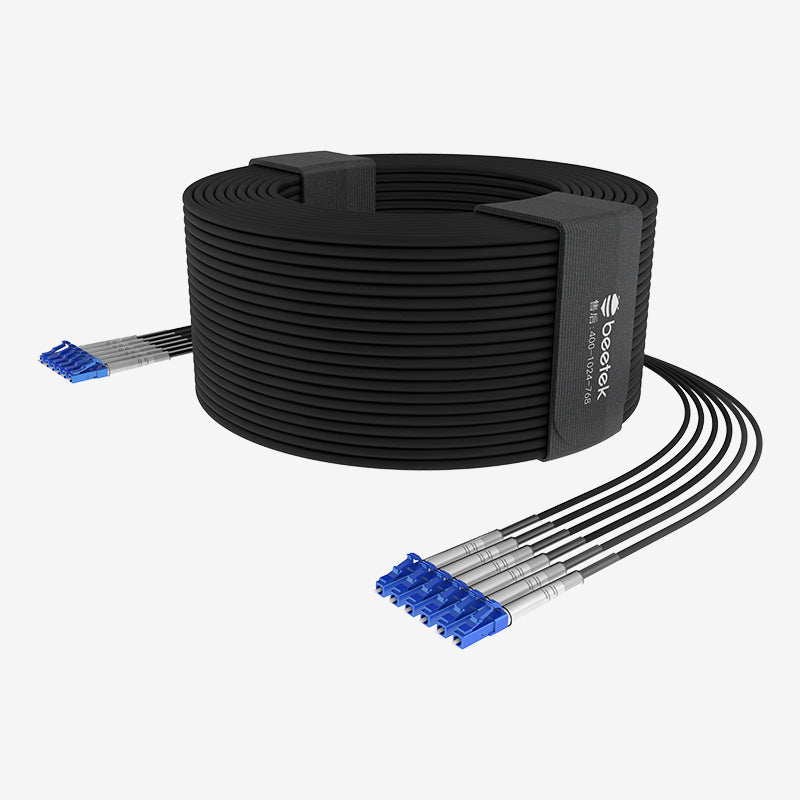

| Product Name | TPU Single-mode Armored Fiber Optical Cable, 4-core, LC connectors |
| Model | G202-xxUSM-4LC |
| Brand | Beetek |

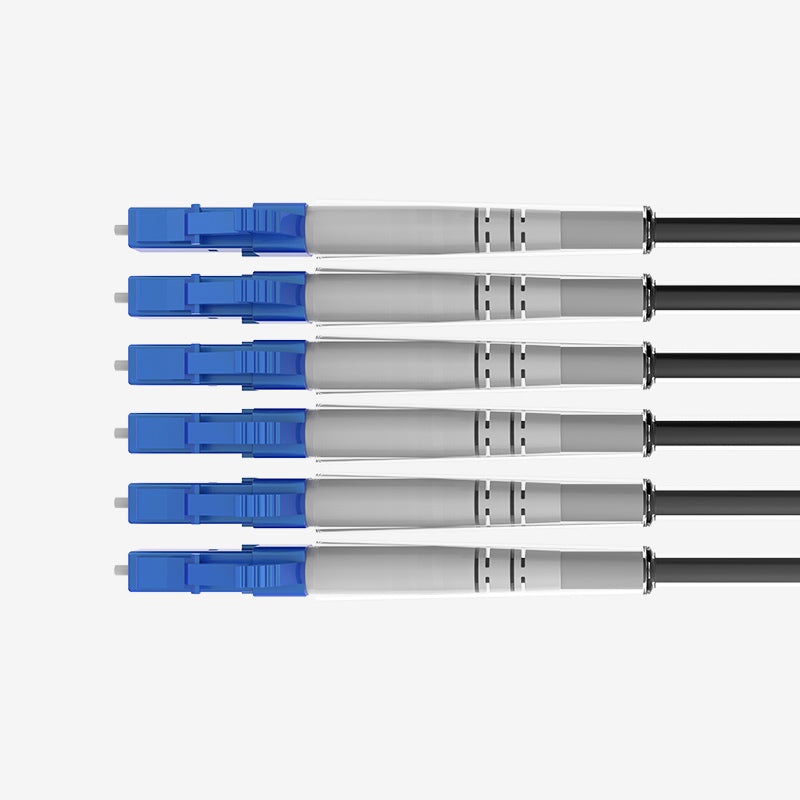

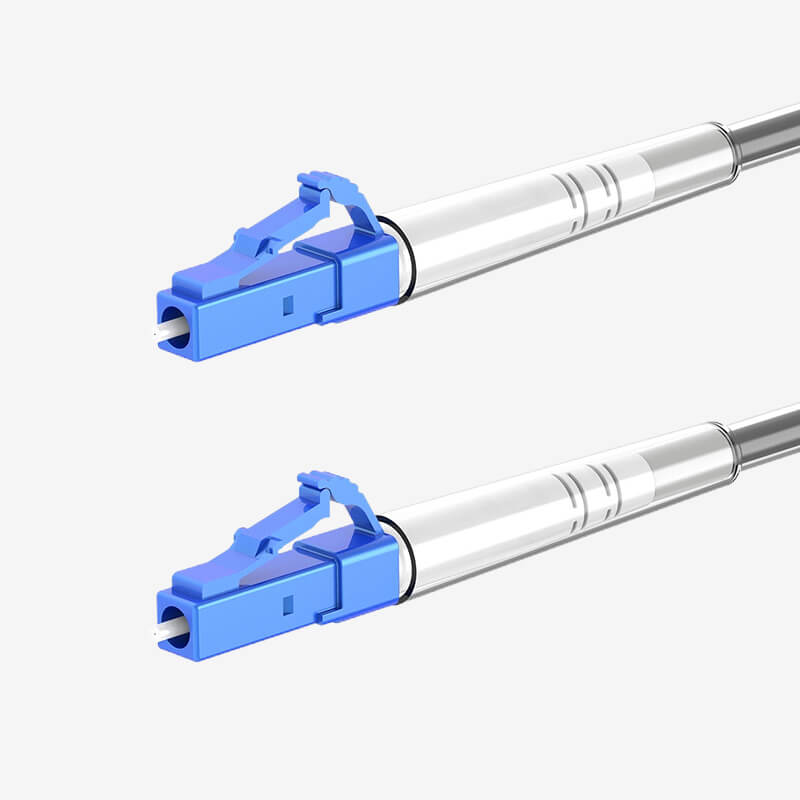

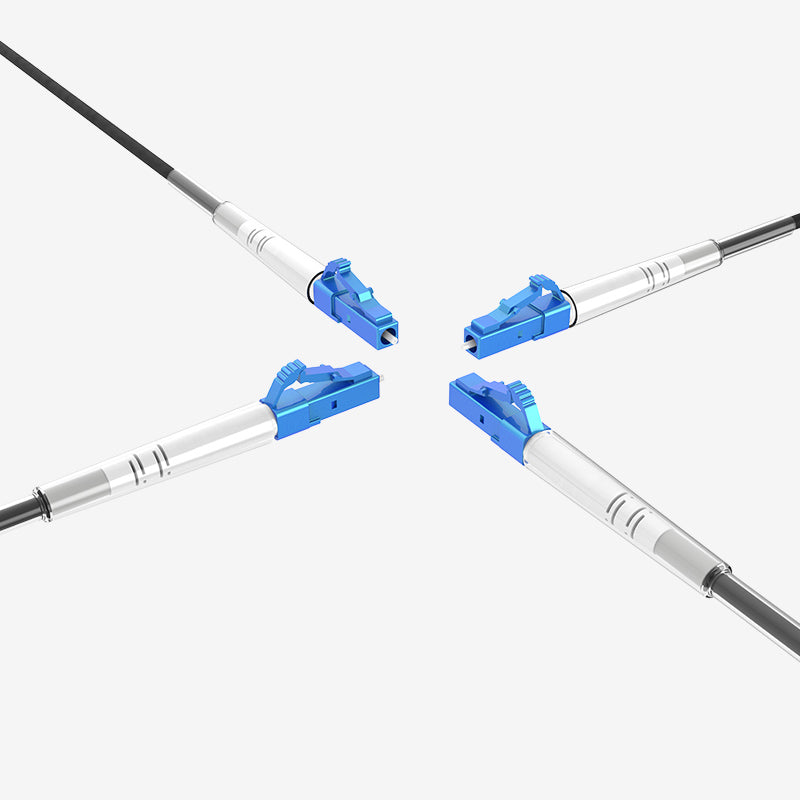

| Connector Type | LC |
| Connector Color | Dark blue |
| Fiber Type | Single-mode（9/125 μm） |
| Fiber Wavelength | 1310nm ~ 1550nm |
| Fiber Core Brand | YOFC |
| Number of cores | 4 |
| Branch Length | 1 meter |
| Reinforcement Structure | Dupont Kevlar with metal weave |

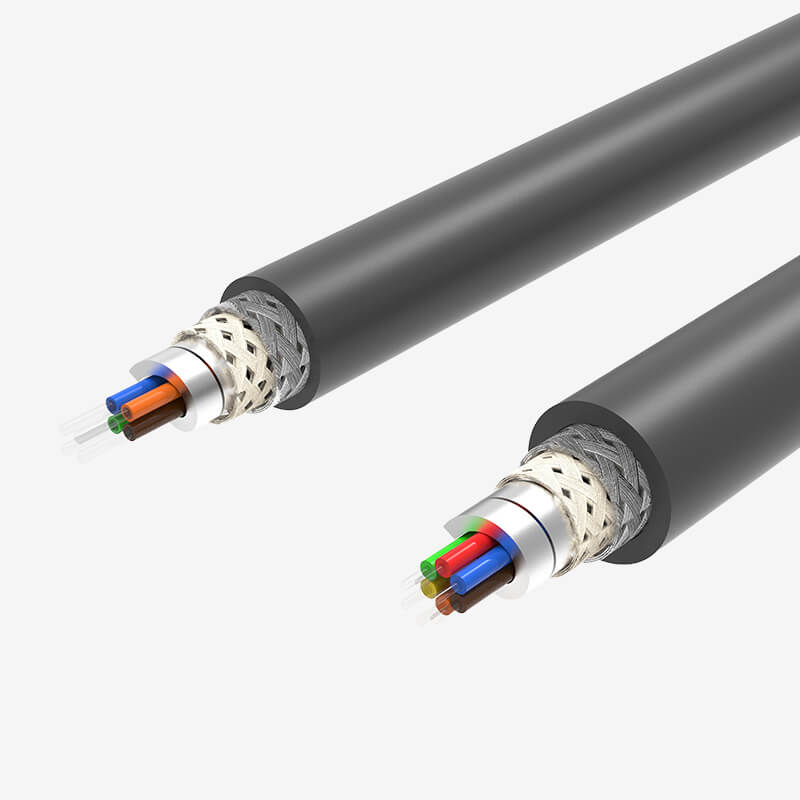

| Structural Layers | Tightly wrapped optical fiber + spiral-armored tube + Kevlar + metal braid + outer jacket |
| Jacket Outer Diameter | 5.0mm ± 0.1mm |
| Jacket Material | Matt frosted TPU |
| Jacket Color | Matt Black |
| Spiral Tube Diameter | 2. 8mm ± 0. 1mm |
| Spiral Tube Material | SUS 201 Stainless steel |
| Spiral Tube Color | Silver |
| Core Cladding Diameter | 0. 6mm ± 0. 05mm * 4 |
| Core Cladding Material | PVC |
| Core Cladding Color | Blue, Orange, Green, Brown |
| Core Diameter | 9.0 μm ±0.4 μm |
| Cladding Diameter | 124.8 μm ±0.7 μm |
| Cladding out of roundness | ≤0.7 % |
| Core/cladding Concentricity Error | ≤0.5 μm |
| Coating Diameter | 245±5 μm |
| Coating layer out of roundness | ≤6.0 % |
| Cladding/coating Concentricity Error | ≤12.0 μm |
| Attenuation Coefficient | 1310nm≤0.4 dB / km；1550nm≤0.3 dB / km |
| Tensile (LC connector) | Long-term 50N; short-term 60N |
| Tensile (optical cable) | Long-term 400N; short-term 800N |
| Compressive Strength | Long-term 2000N /10cm; short-term 3000N /10cm |
| Linear Rolling | 300N/cm armor layer deformation <0.3mm, additional attenuation <0.2dB |
| Minimum Bending Radius | Dynamic > 10D; Static > 20D (*D is the outer diameter of the cable) |
| Transmission Rate | 10Gb /s within 2000 meters |
| Operating Temperature | -20~+85°C |
Key Features
Armored steel ring, braided, aramid has a total of 5 layers of structure.
Single mode 9/125 core.
TPU soft sheath, anti-rat bite, tensile and compressive.
