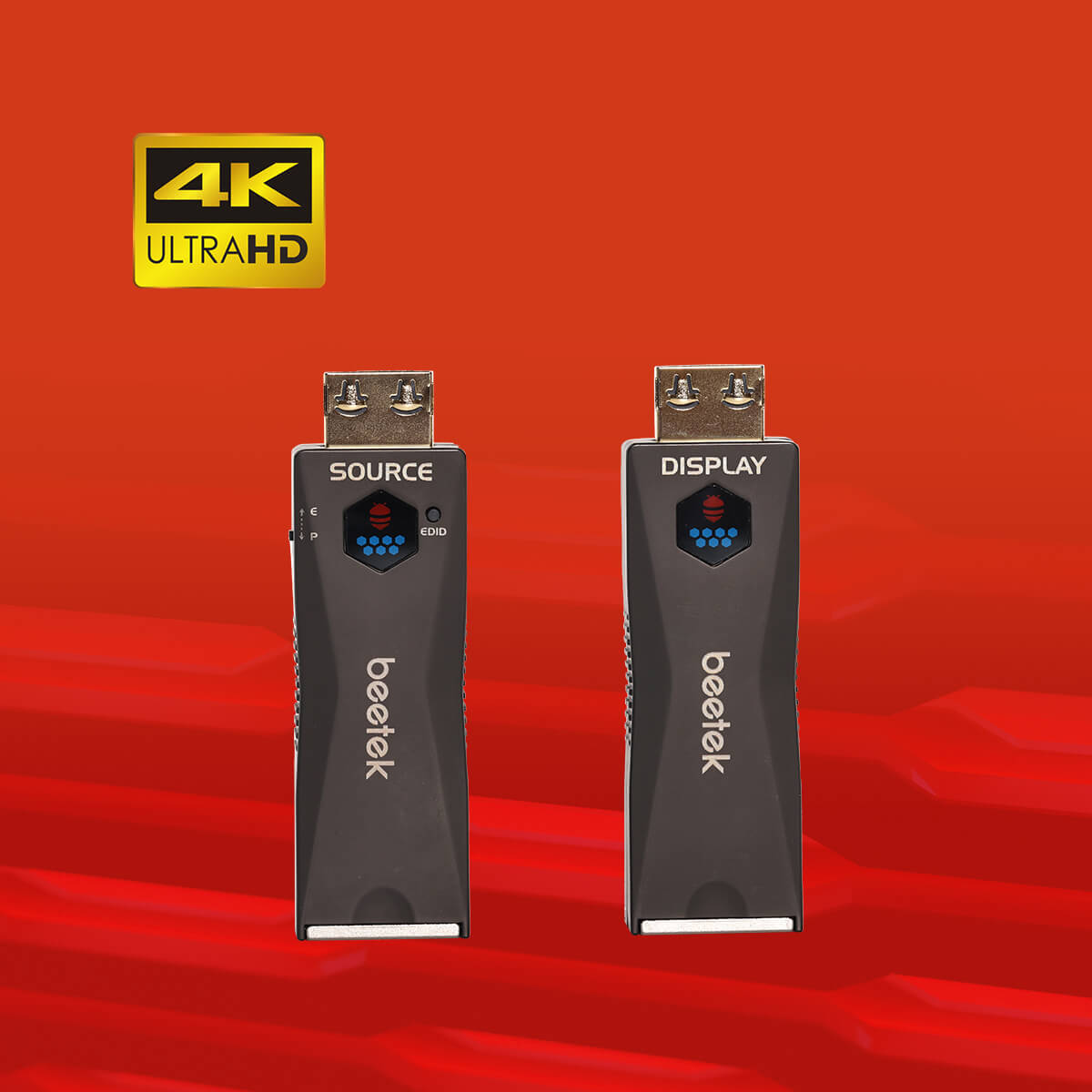

M1-100GH
Single-core HDMI 1.4 Single-mode fiber extender
- Support resolution upto 4k@30 at 10.2 Gbps.

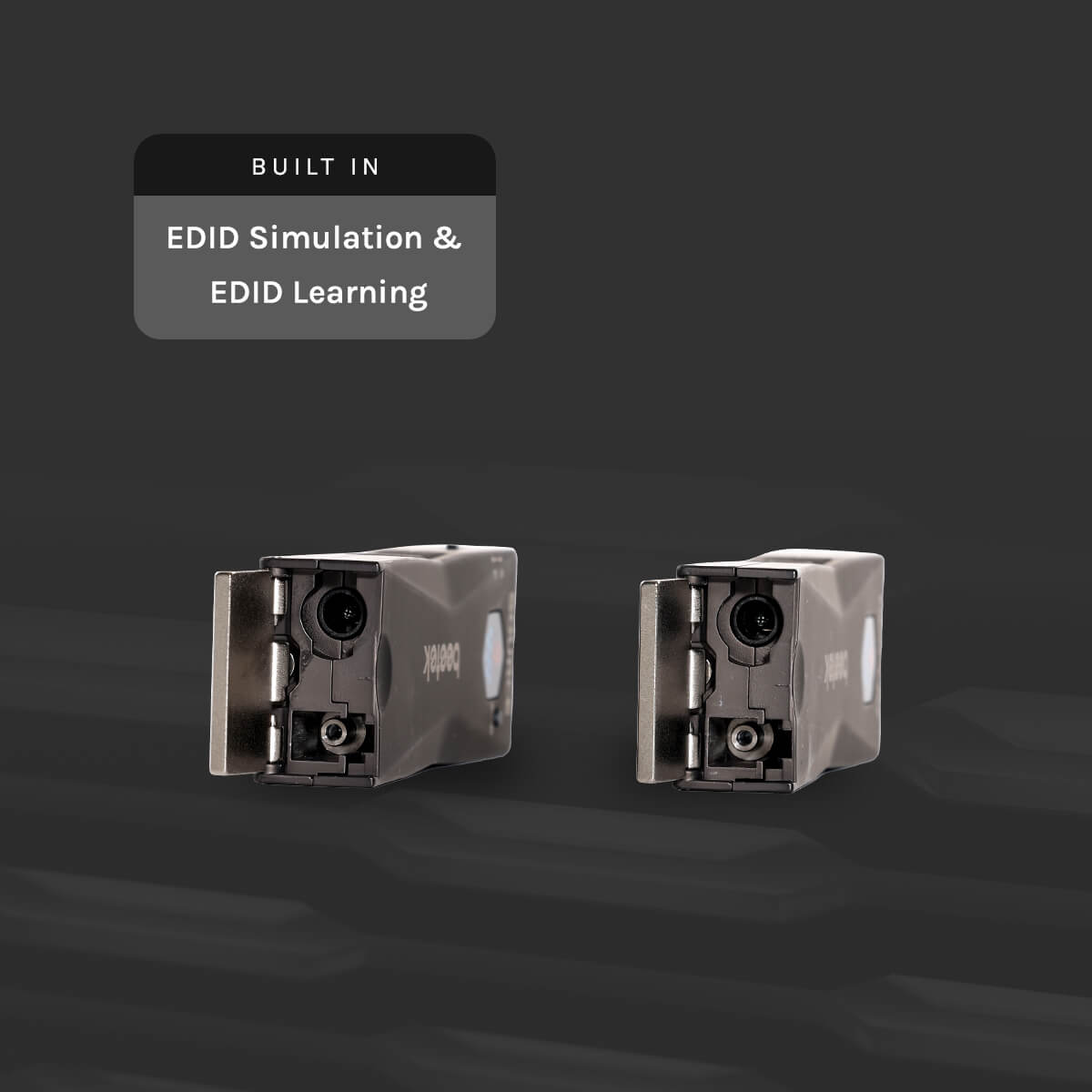

- Built in EDID Simulation and EDID Learning

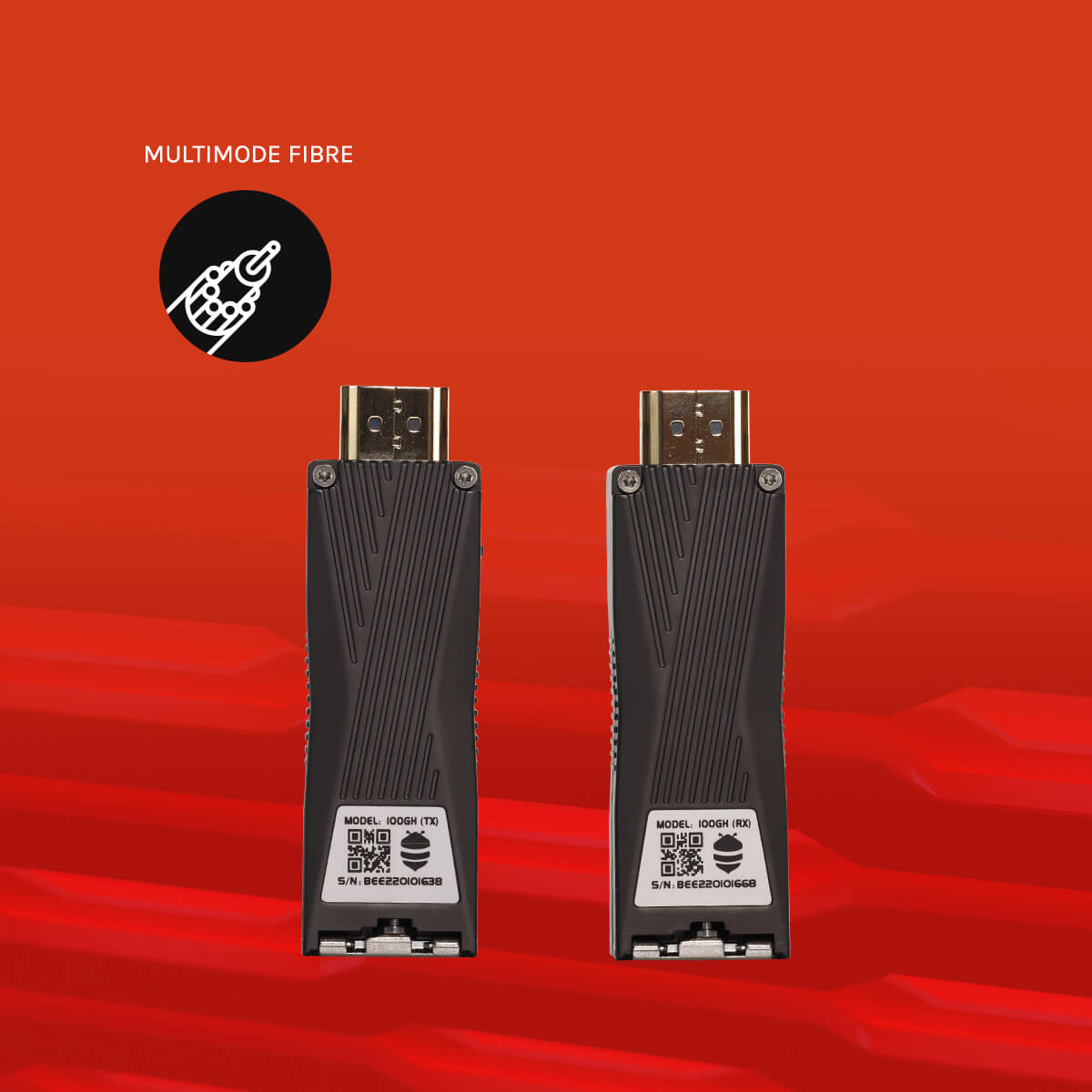

- Single-mode Fibre Technology and uses single core with distance upto 2000 metres
- Dust Proof Mechanism over Fibre Interface"
Beetek HDMI Fiibre Extender is designed particulary for the rental & staging industry considering various parameters. The device can support resolution upto 4K@30 4:4:4 at 10.2 Gbps transmission rate. It uses single core Single-mode OM3 fibre technology and support distance upto 300 metres. The device supports 40 dB input balancing at the TX to compensate for the loss generated by cable from the source to the tx. Built in EDID simulation and EDID learning support. The HDMI Extender support accurate pixel time reconstruction and provides no delay and no compression during the transmission.

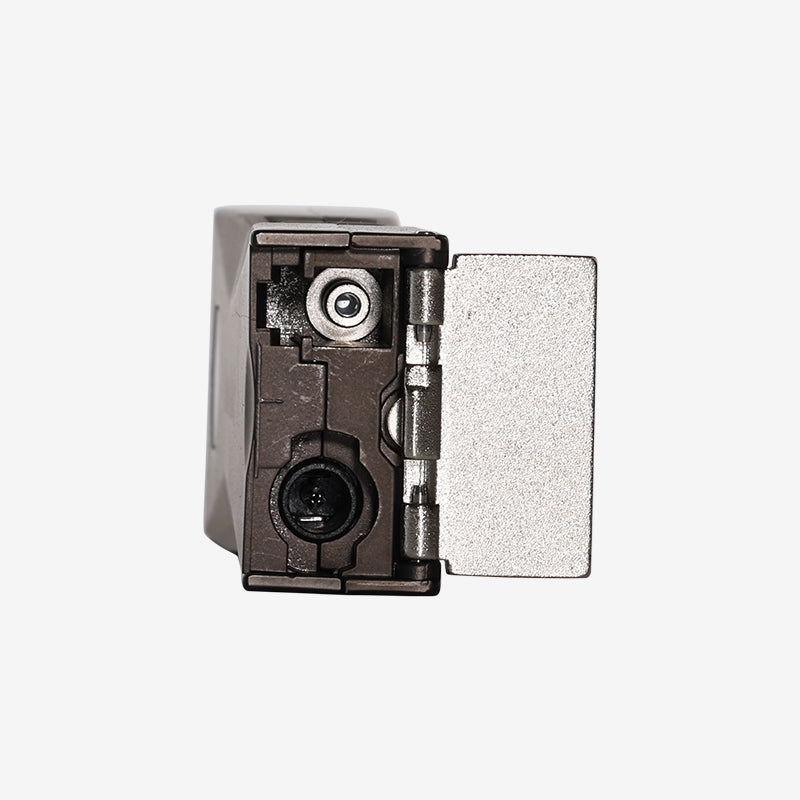

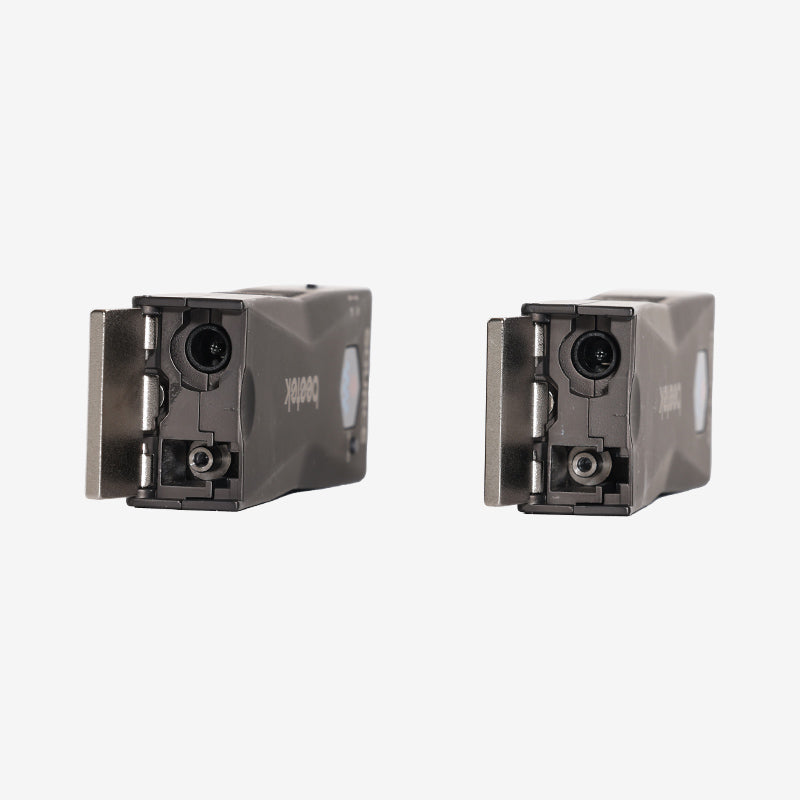

The device is carefully designed with protective enclosure for fibre interface and it is dust proof. It has rear long screws to support portable installation, locking power supplies and improved electrostatic protection. The product is suitable for Rental and Live Events application.
The device is carefully designed with protective enclosure for fibre interface and it is dust proof. It has rear long screws to support portable installation, locking power supplies and improved electrostatic protection. The product is suitable for Rental and Live Events application.

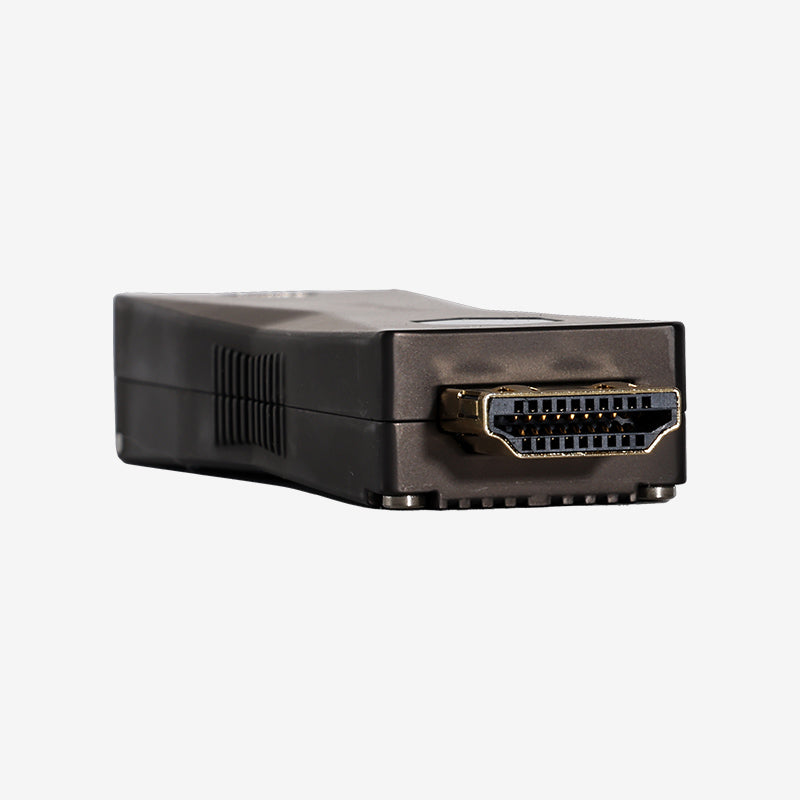

| Name | Specification | |
| Product Name | One core single mode HDMI 1.4 fiber expander | |
| Model | M1-100GH | |
| Brand | Beetek | |
| Signal | HDMI 1.4 | |
| Input Connector | TX：Male HDMI Type A connector with fastener protrusions RX：Single-core LC |
|
| Output Connector | TX：Single-core LC; RX：Male HDMI Type A connector with fastener protrusions |
|
| Fiber Interface Dust Prevention | Yes | |
| Fiber Type | Single-mode G657.A1 | |
| Indicator LED | Signal, Power and EDID 3-way indicator | |
| USB Power | Yes | |
| Power from connector (TX) | Yes | |
| Locking power connector | Yes | |
| Power Consumption | DC 5V 1.0A | |
| Ambient Temp | -20°C ~ 70°C | |
| Material | Aluminum alloy mold | |
| Dimensions | TX\RX：90 *36 *15mm | |
| Weight | TX：120g； RX：118g | |
| Package Dimensions | 212 *201* 62mm | |
| Packaging Weight | 0.54kg | |
| EDID Switch (TX) | Learn button and Mode button | |
| EDID Modes | Transparent, Learning and Internal | |
| DDC | Yes | |
| HDMI Audio | Yes | |
| 3D | Yes | |
| CEC | Supports in EDID pass-through mode | |
| ARC | Supports in EDID pass-through mode | |
| HDCP | Supports in EDID pass-through mode | |
| XvYCC Color Space | Yes | |
| Optical Module | 1 * 12G Single-mode Optical Module | |
| Technical Characteristics | Circuit-Multiplexing SerDes Technology | |
| Fiber module life | 100,000 Hours | |
| Frequency | 3840x2160@30Hz | |
| Transmission Distance | Pass-through mode: 300M; Learning mode: 2000M | |
| Clock Bandwidth | 340MHz * 3 | |
| Transmission Speed | 10.2Gbps | |
| Balancing Chip | Automatic equalization | |
| Reclocking | Yes | |
| ESD Protection | Yes | |
| Hot Plug | Yes | |
| Delay | Zero-frame | |
| Compression | None | |
| Sampling Rate | Bandwidth Range: 8~16bit | |
| Sampling Ratio | RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Key Features
Support resolution upto 4k@30 at 10.2 Gbps.
Built in EDID Simulation and EDID Learning
Single-mode Fibre Technology and uses single core with distance upto 300 metres
