STH905
USB Type-C to HDMI Silicone Adapter Cable

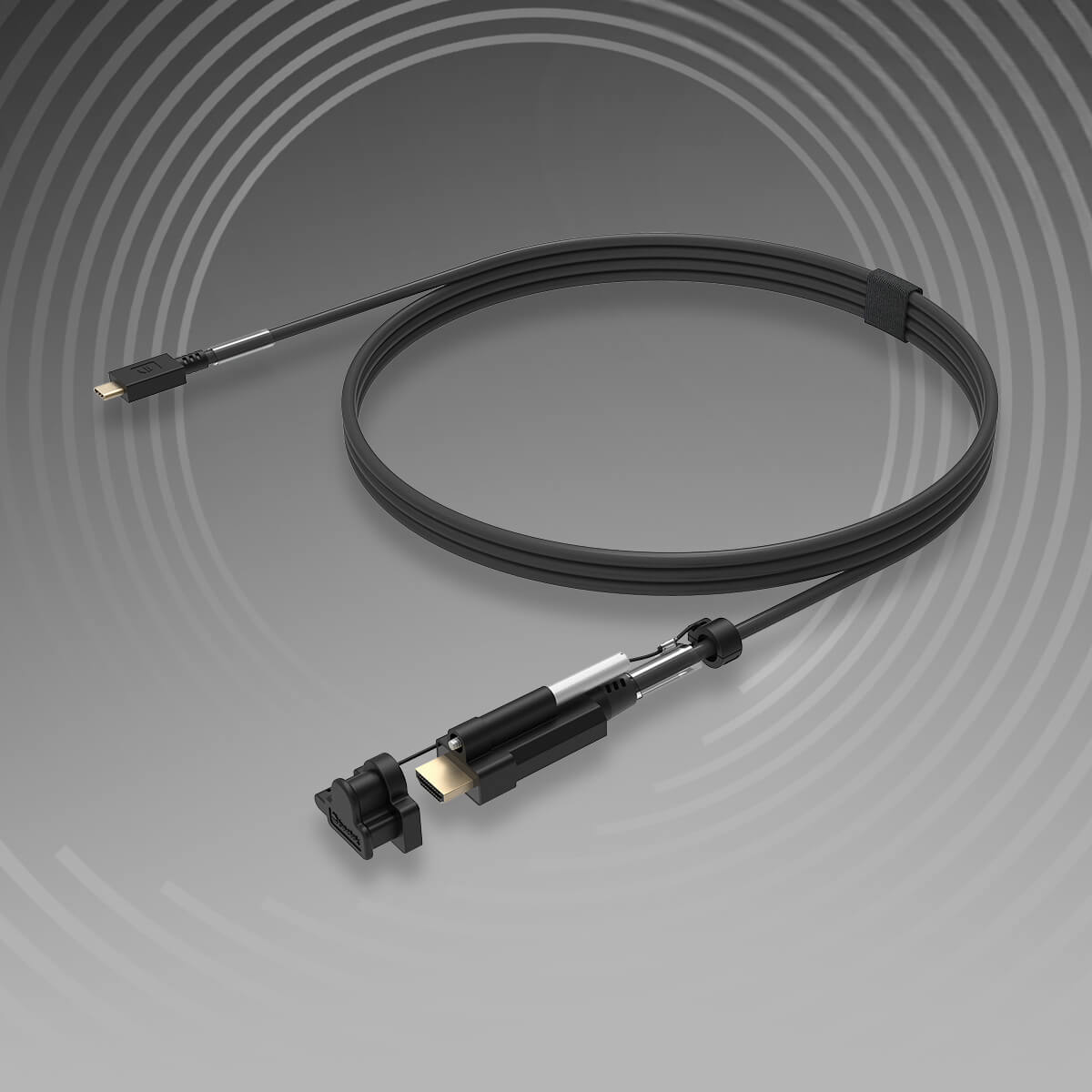

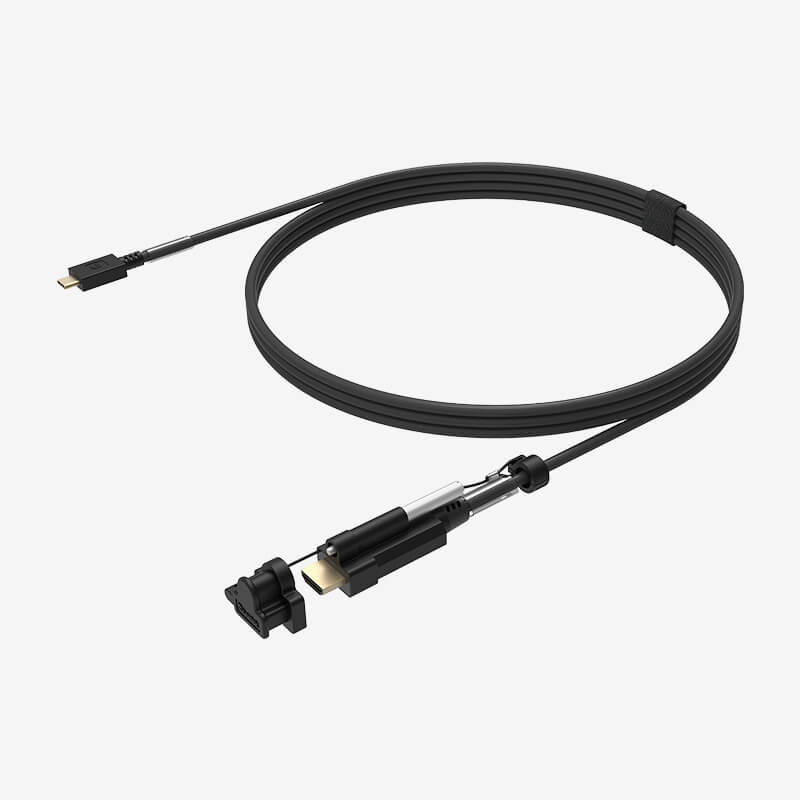

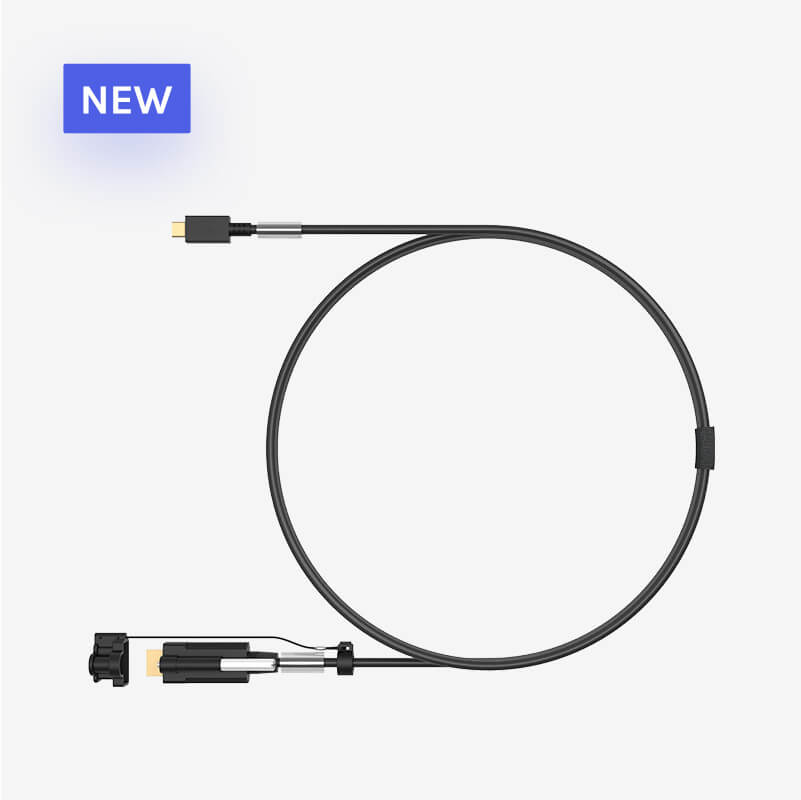

- USB Type-C to HDMI adapter cable with a length of 2.5 meters.
- USB 3.1 compliant with active conversion technology and built-in 15kV anti-static protection.
- Delivers transmission rate of 18Gbps and fully HDMI 2.0 compliant.
- Supports resolutions up to 3840*2160@60Hz 4:4:4.
- Premium Silicone outer jacket, upgraded flame retardant grade, and the cable body is still flexible in extreme cold weather.
- 30AWG multi-strand tinned copper wire, three-layer shielding structure and 85% copper shielding rate guarantee stable connections.

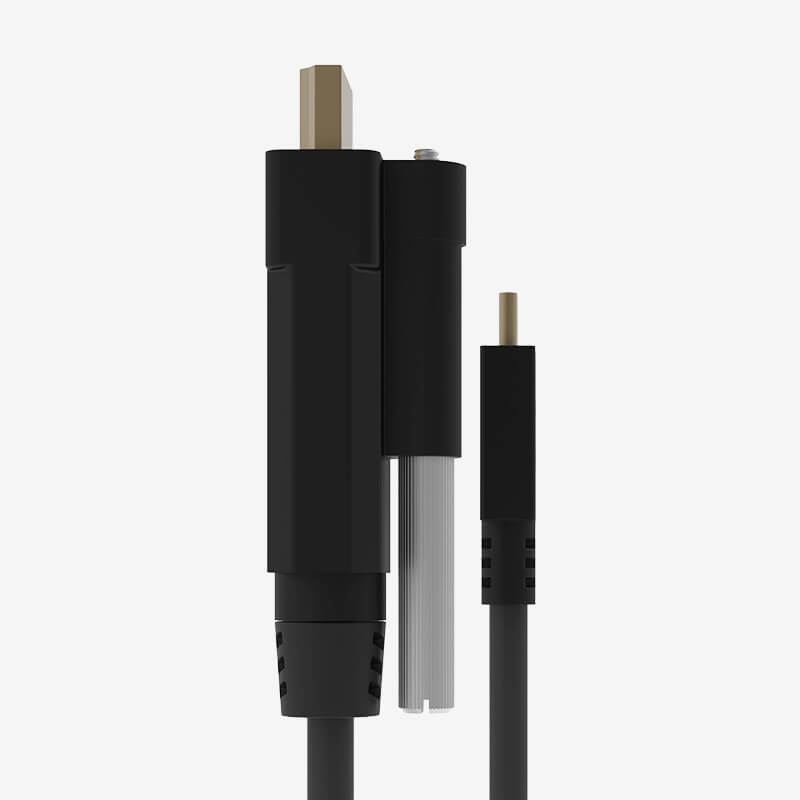

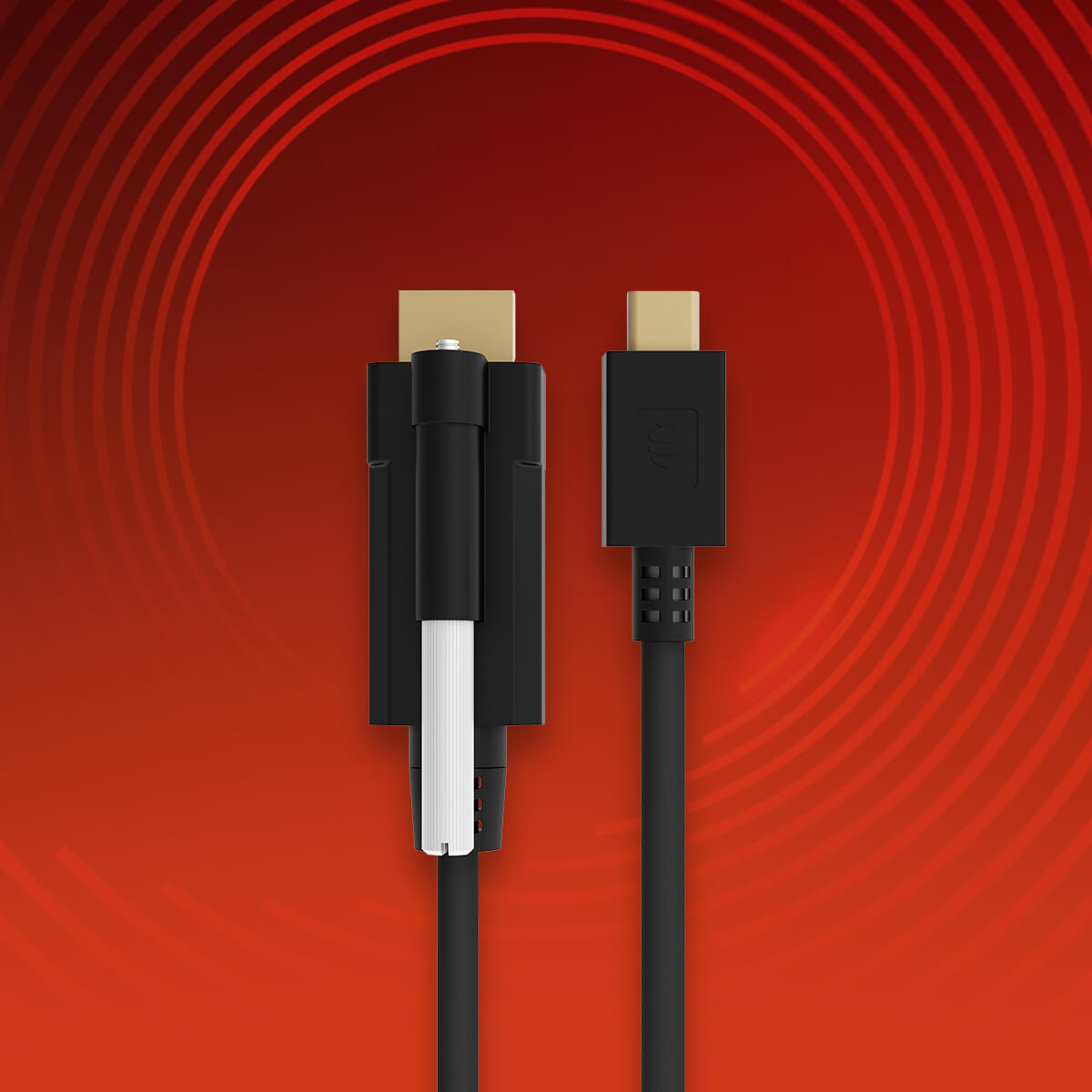

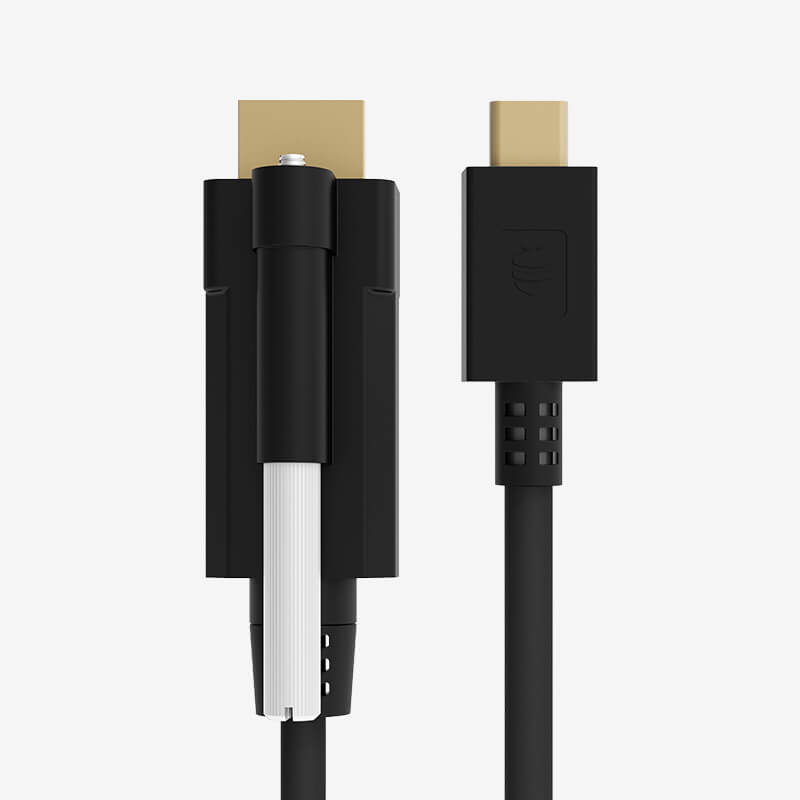

- Zinc alloy housing with locking HDMI screws for reliable connections.
- 15μm gold-plated pins built to withstand more than 1,000 plug cycles.

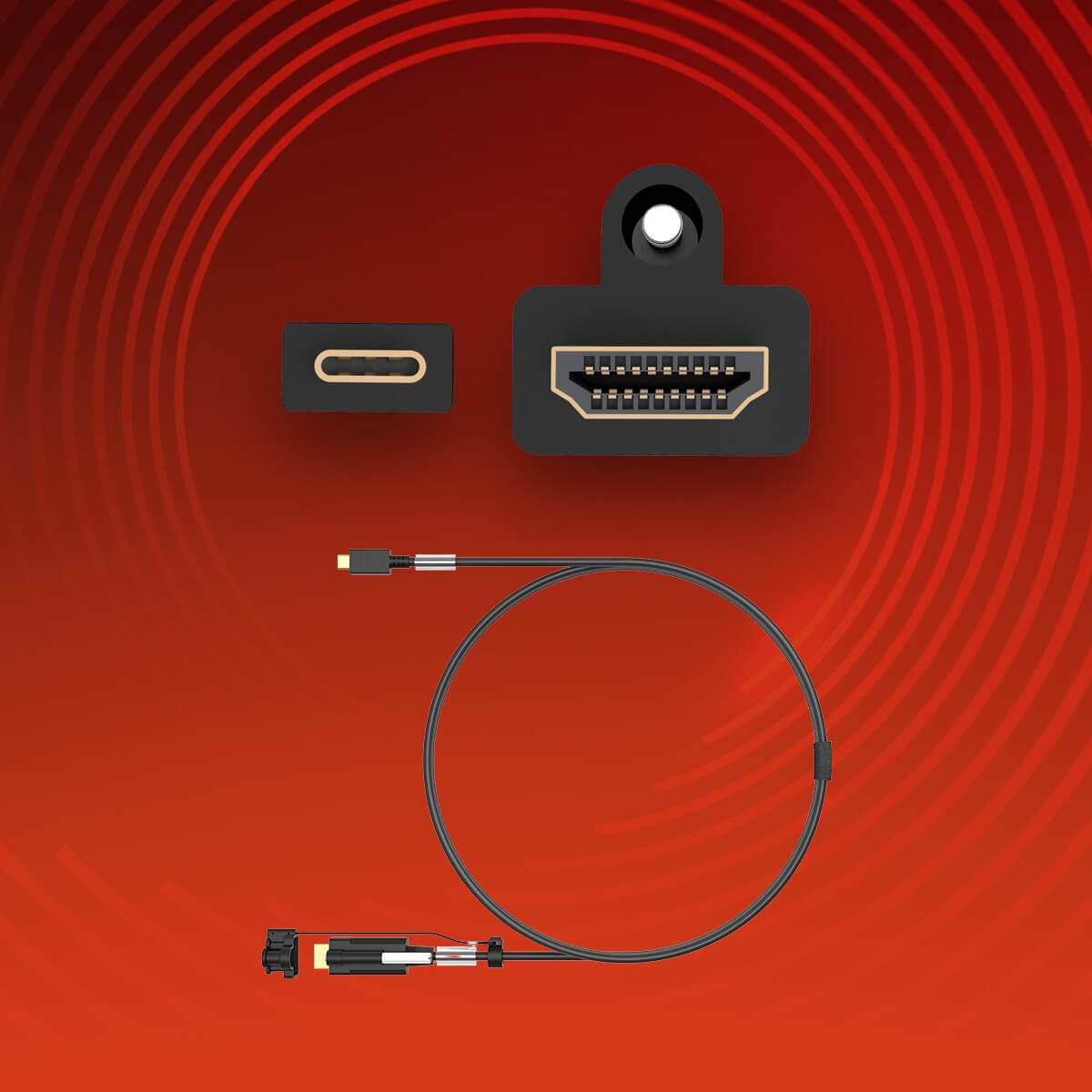

- Detachable cap with cord leash and Velcro strap for easy storage.
- Suitable for repeated deployment in the rental and staging market.
STH905-xxM is a 2.5-meter Type-C 3.1 adapter cable designed for Pro-AV industry. This USB Type-C to HDMI cable with the active conversion chip delivers transmission rate of 18Gbps, supporting resolutions up to 3840*2160@60Hz. The 30AWG cable is made with multi-strand tinned copper wire with three-layer shielding, a premium Silicone outer jacket which is highly flame resistant and extremely soft and Zinc alloy housing, 15μm gold-plated pins and locking HDMI screws, which make connections stable and reliable. Comes with protective connector caps and Velcro straps for easy storage. With its high durability and ease of storage, this product meets and exceeds the demands of repeated use in fixed installation, rental and staging applications.
| Name | Specification |
| Signal Type | USB 3.1 to HDMI 2.0 |
| Conversion Method | Active |
| Input Connector Type | USB Type C |
| Output Connector Type | HDMI Type A |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | HDMI: 67.4*20.8*20.3mm; Type C: 39.7*13.5*7mm |
| Connector Structure (Type C) | Plug plate + Inner mold + Copper foil + Shell |
| Connector Structure (HDMI) | Active PCB board + SR outer mold + Shell + Screw + Protective cap |
| Internal Mold (Type C) | Transparent PE material |
| Copper Foil (Type C) | Double-sided conductive copper foil |
| SR Outer Mold (HDMI) | Black injection mold |
| Locking Connector (HDMI) | Stainless steel screw |
| Shell | Type C: Injection-molded shell (UL, RoHS); HDMI: Zinc alloy upper and lower assembled shell |
| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Diameter | 30AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | Silicone |
| Cable Diameter | 5.0MM |
| Cable Color | Black |
| Cable Meter Marking | Waterproof text |
| EDID | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| ESD | Yes |
| Supported Resolutions | 3840*2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Compression | None |
| Deep Color | Yes |
| Color Sampling Rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤200N |
| Maximum Bending Angle | 135° |
| Operating Temperature | -40℃~80℃ |
