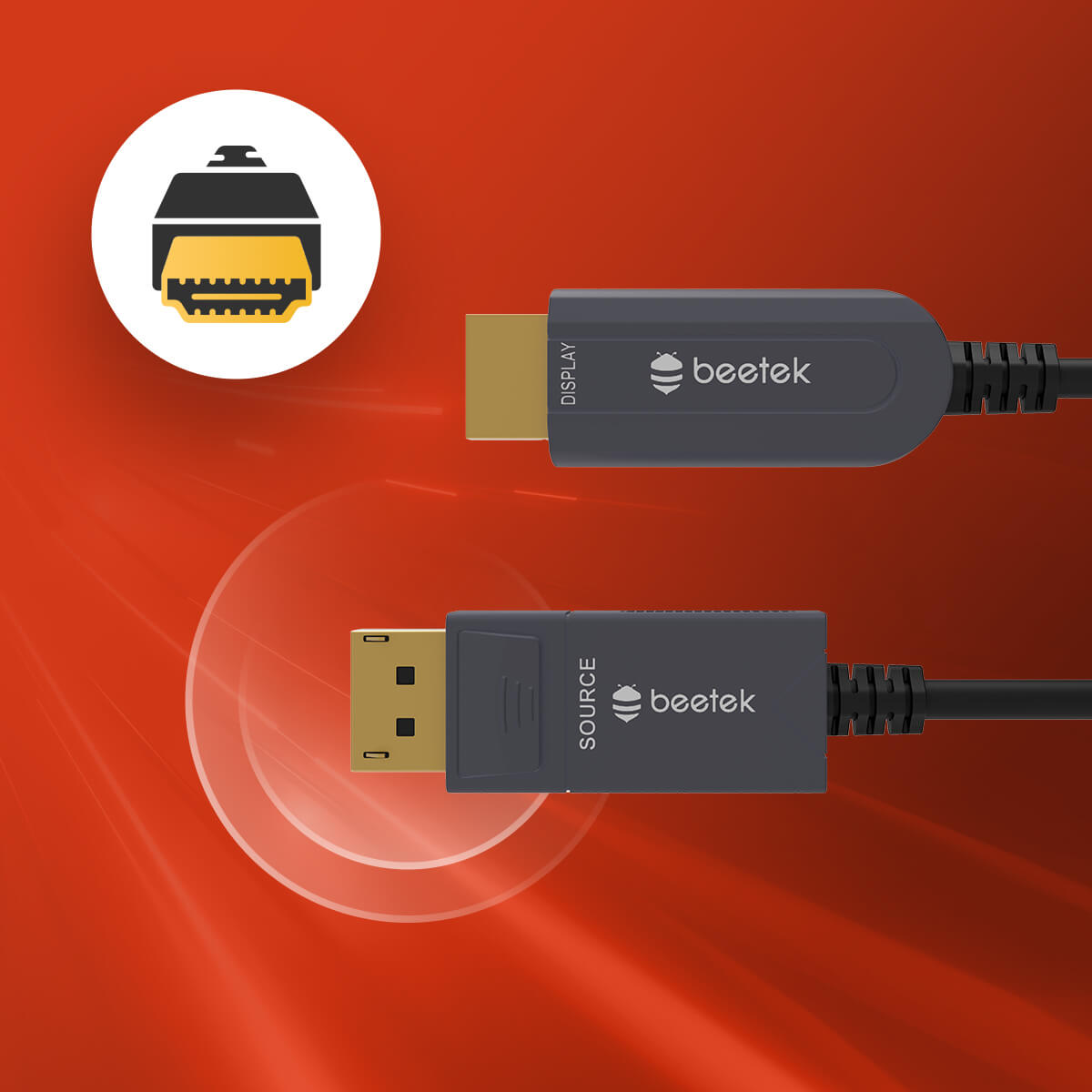

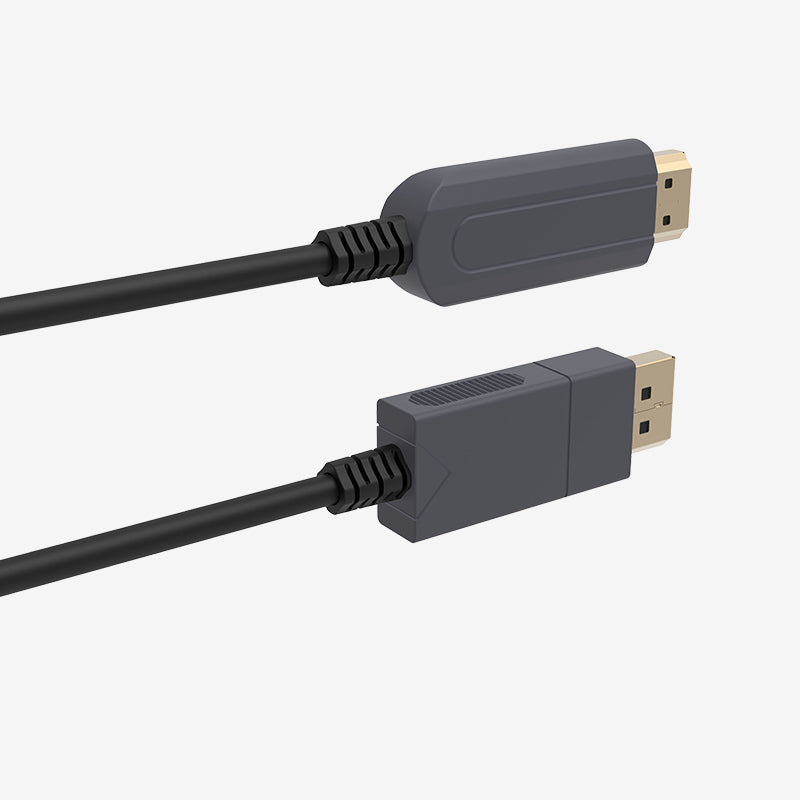

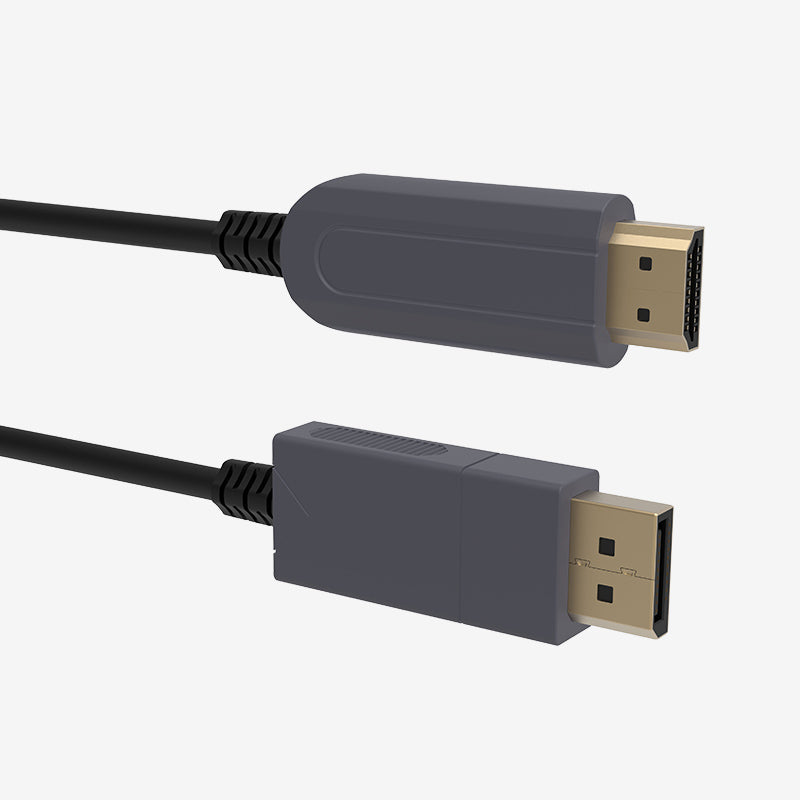

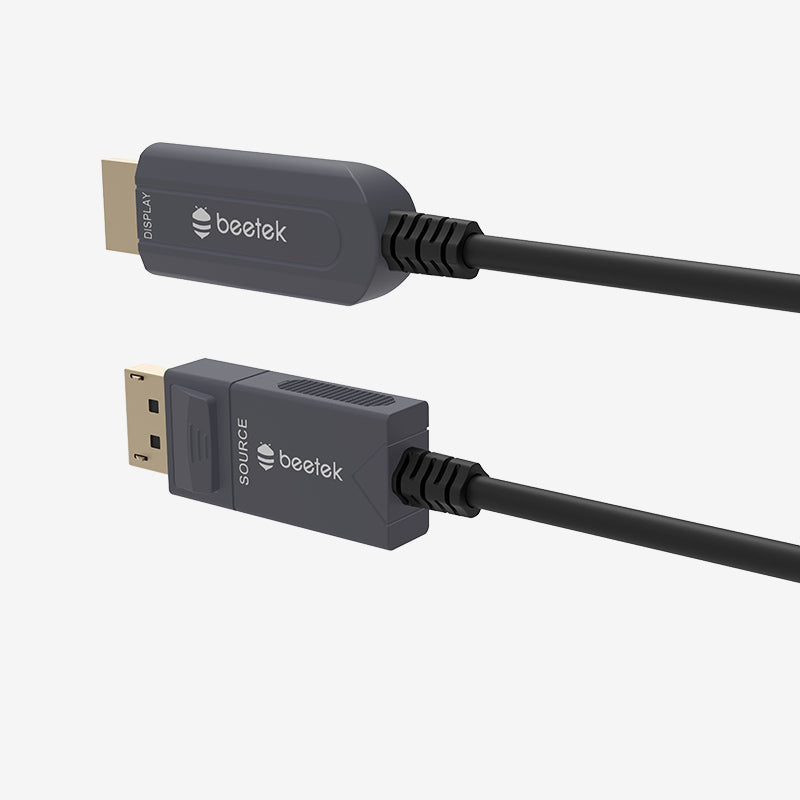

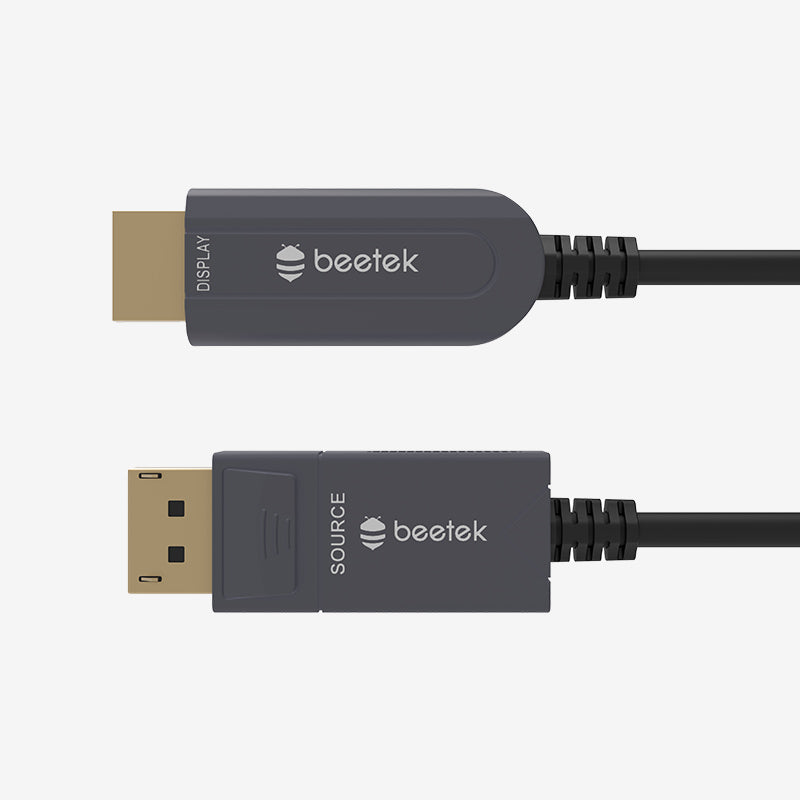

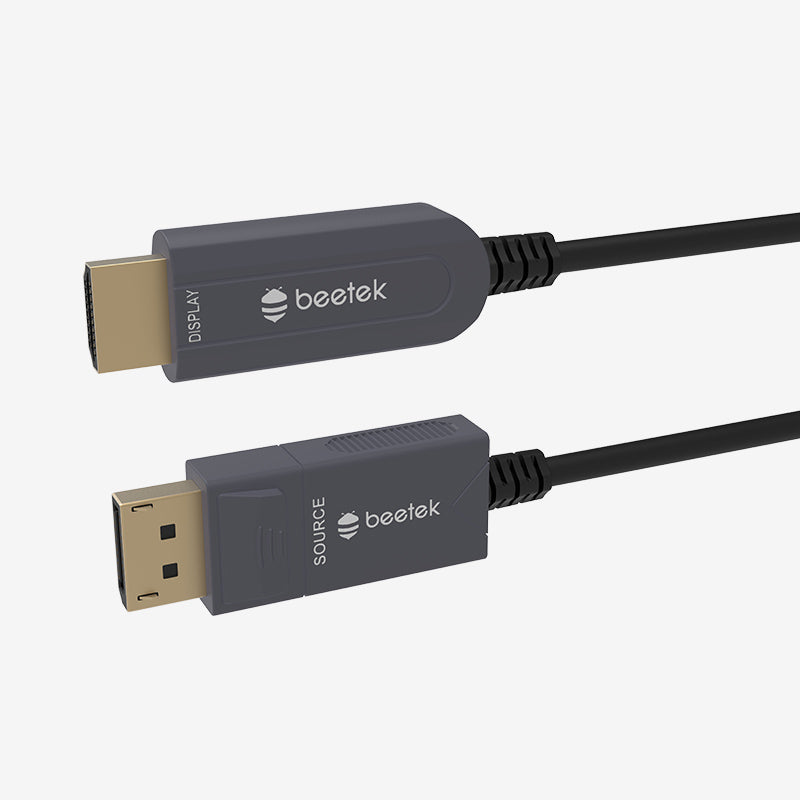

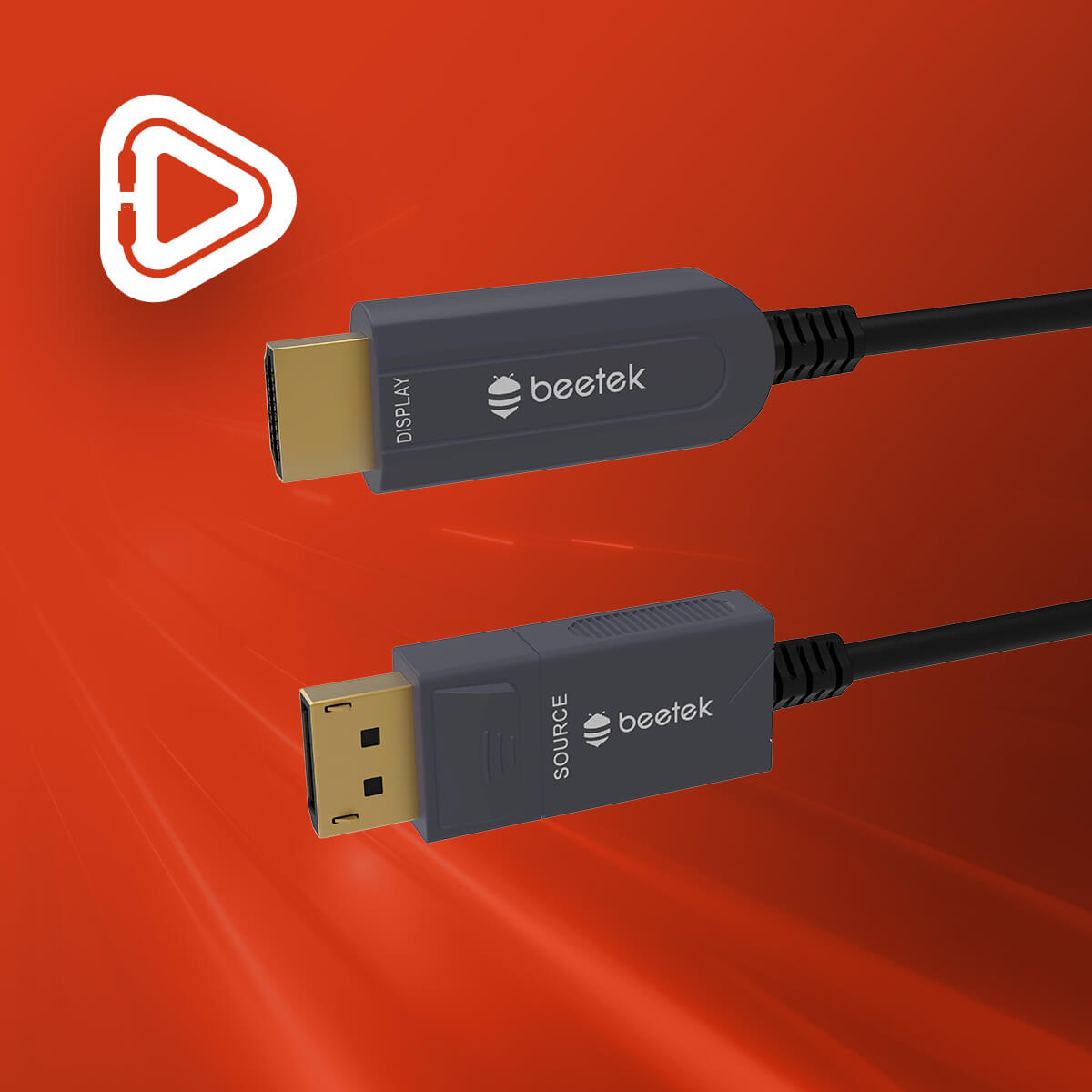

ADPH 4K SERIES
DisplayPort - HDMI Active Optical Cables
- Plug and Play without external Power supply

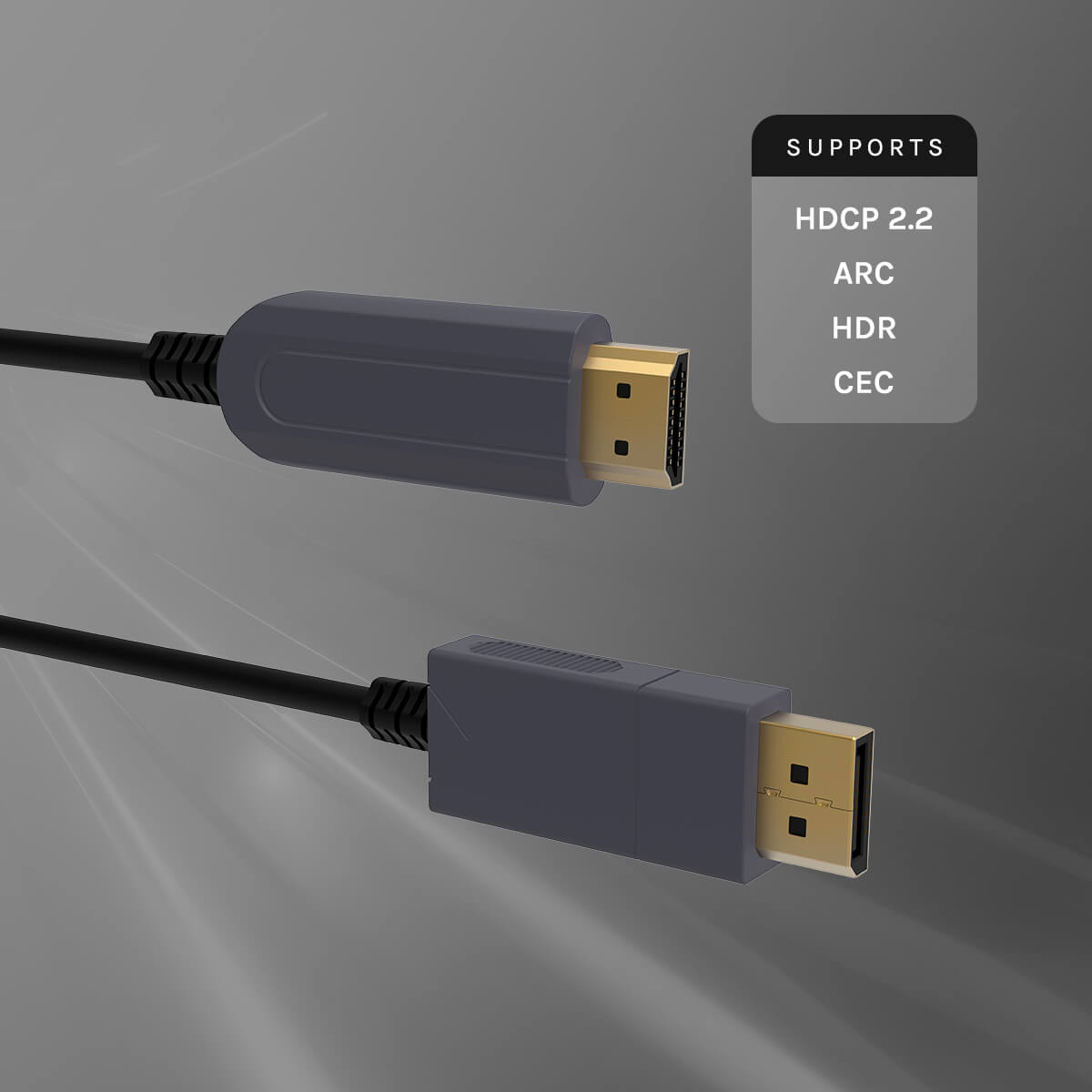

- Supports HDCP 2.2, ARC, HDR AND CEC
- Gold plating process of copper shell provides long-lasting and firm connection
- Supports upto 60 metres and the length can be customized
Beetek DP to HDMI Photo electric Hybrid Single End Threading cable supports signals 4K@60 4:4:4 18 Gbps. The ADHP 4K series products are designed for long distance signal transmission via fibre optic technology, OM3 fibre optic transmission with embedded optic engine technology achieves no delay and no compression. The cable has a removable DP Connector on both end for easy wiring and Transparent EDID passthrough from source to sink and the cable be configured by changing the connector to DP-DP or DP=Mini DP . The product is suitable for Rental, Live Events, Residential and surveillance applications
| Name | Specification |
| Product Name | DP - HDMI Active Optical Cable |
| Model | ADPHxx |
| Brand | Beetek |
| Signal Type | HDMI2.0 |
| Input Connector Type | DP Male |
| Output Connector Type | HDMI Type A Male |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | DP Male: 64.2*20*11.7mm; HDMI Type A Male :65.9*20*10mm |
| In-wall Installation | Not supported |
| Power from connector (TX) | Yes |
| Cable power supply (RX) | Yes |
| Power | 250mw |
| Plug-n-Play | Yes |
| Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + outer jacket |
| Fiber Type | Multi-mode OM3 * 4 |
| Fiber Wavelength | 850~1300nm |
| Copper Wire Material | 7 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1, 26WAG*1, 28AWG*3, 30AWG*2 |
| Cable Diameter | 4.5 mm |
| Jacket Material | 80P PVC |
| Jacket Color | Black |
| Packing Dimensions | Short-length 10 - 40M：240*230*75mm |
| Medium-length 50 - 60M：290*280*75mm | |
| Long-length 70 - 100M：340*330*75mm | |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP2.3 |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 3840x2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N /10cm |
| Minimum Bending Radius | ≥10D (*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |
Key Features
Plug and Play without external Power supply
Supports HDCP 2.2, ARC, HDR AND CEC
Gold plating process of copper shell provides long-lasting and firm connection
