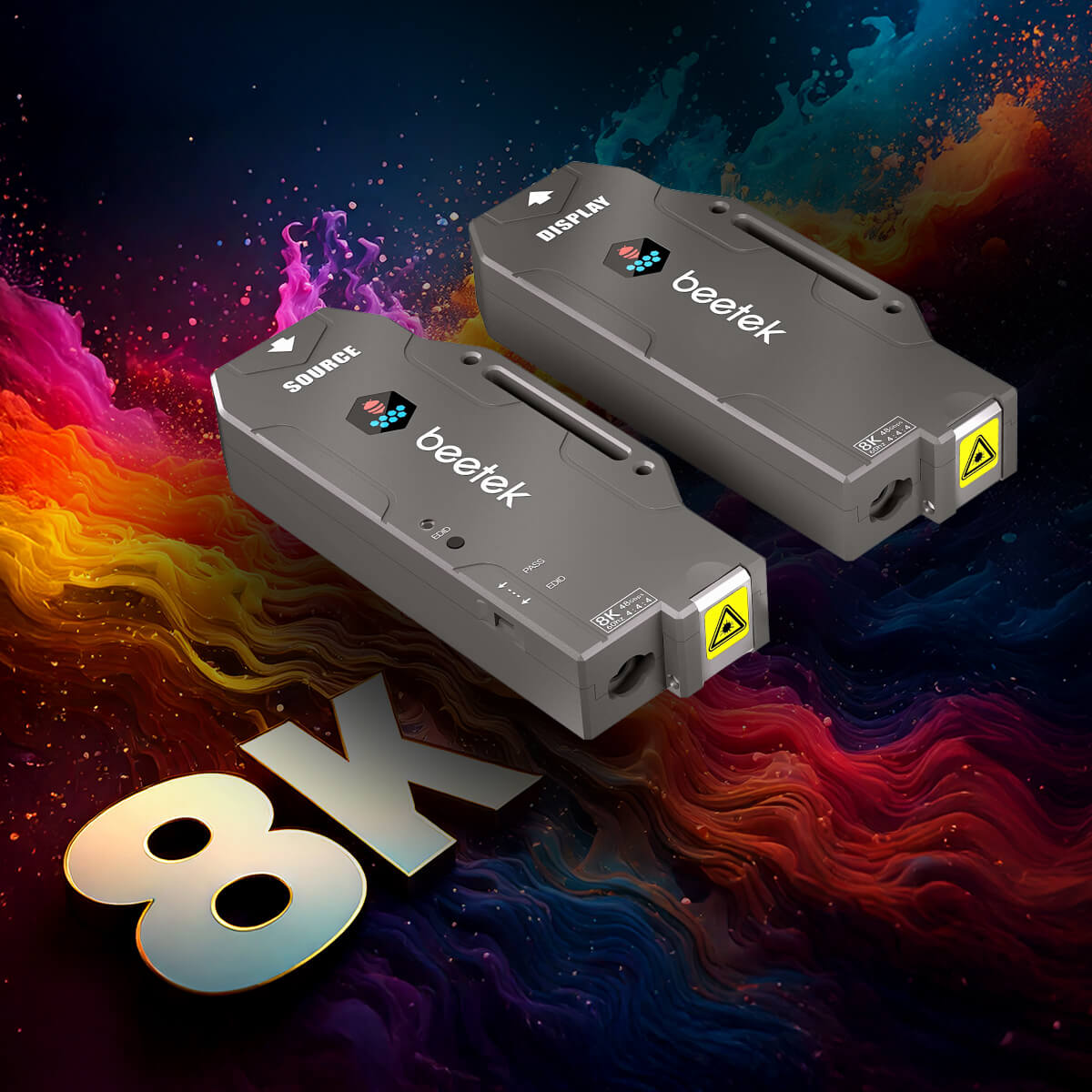

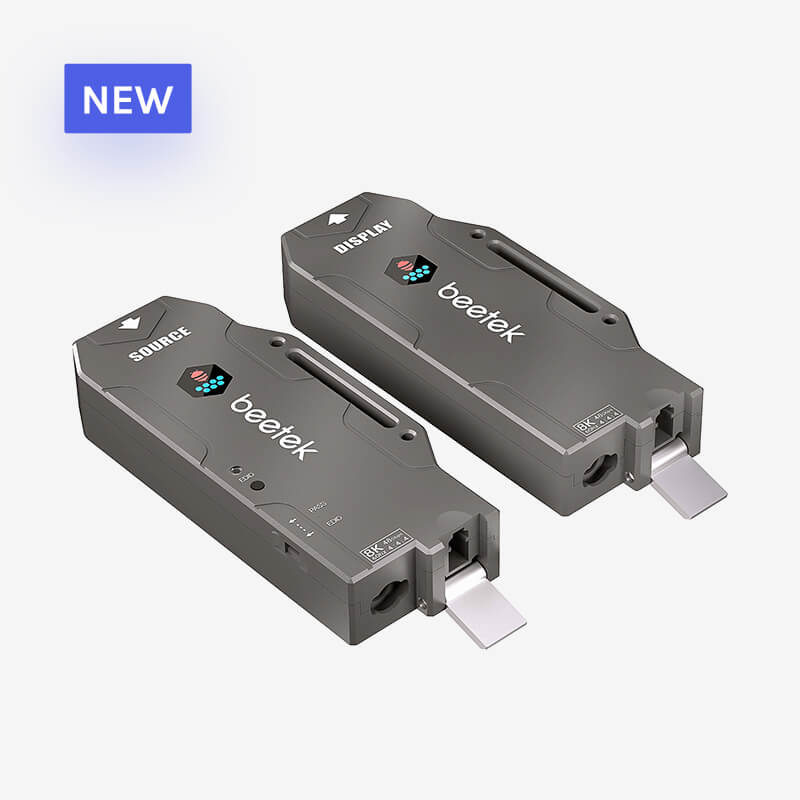

M1-110GH-8K
One-Core Multi-mode HDMl 2.1 Fiber Optic Extender
- Mini-style one-core multi-mode HDMI2.1 optical fiber extender
- No compression and zero frame delay, 100% restore the original source signal
- Resolution up to 7680*4320@60Hz, transmission rate 48Gbps
- Support one LC multi-mode optical fiber up to 300 meters on OM3
- Optional accessories of velcro strap and 1U rack tray for easy installion
- Automatic equalization to keep the signal stability

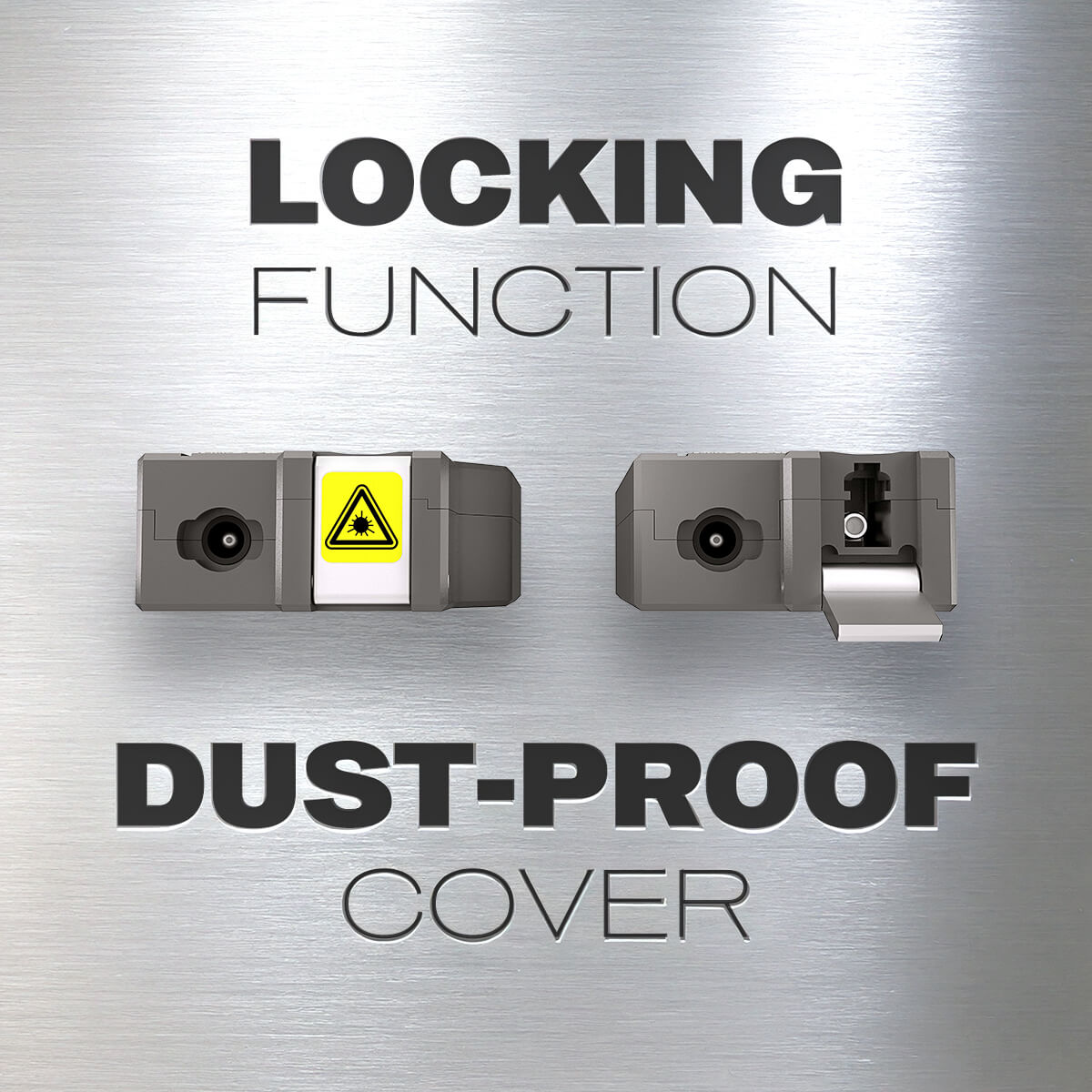

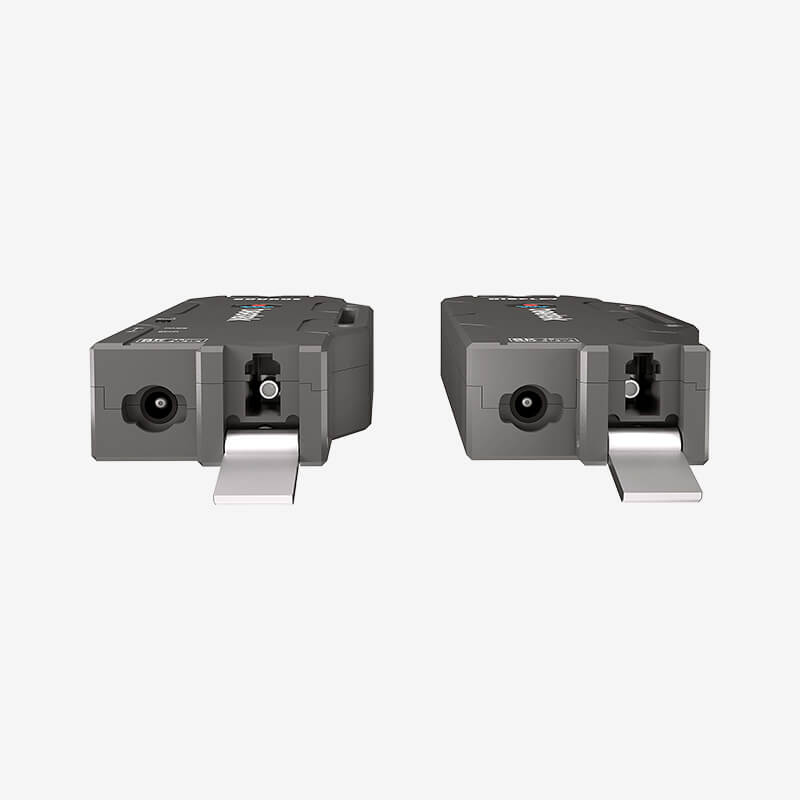

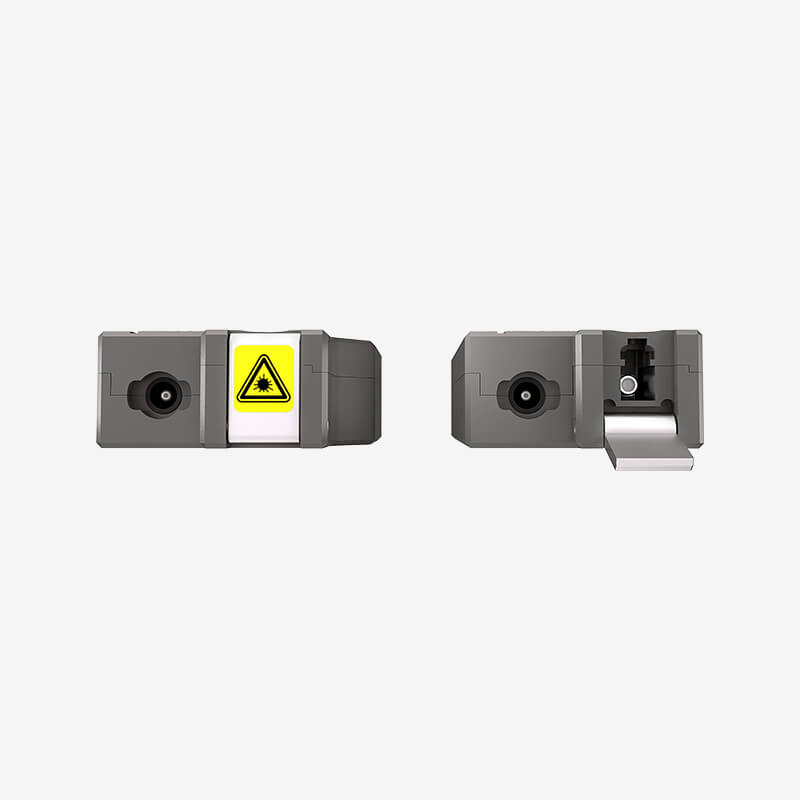

- Power adapter with locking function and dust-proof cover for LC interface keep reliable
- Automatic power acquisition at Transmitter and USB power cord optional for good application
- Multi-mode EDID with internal, learning and pass-through is suitable for various scenarios
- Full-featured HDMI interface supports HDCP, ARC, CEC, 3D

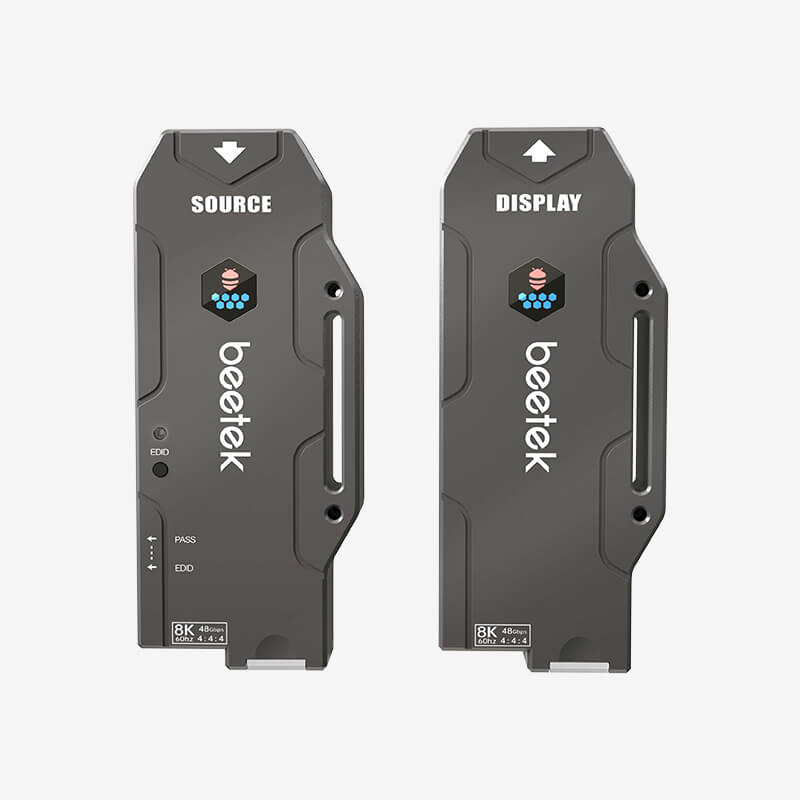

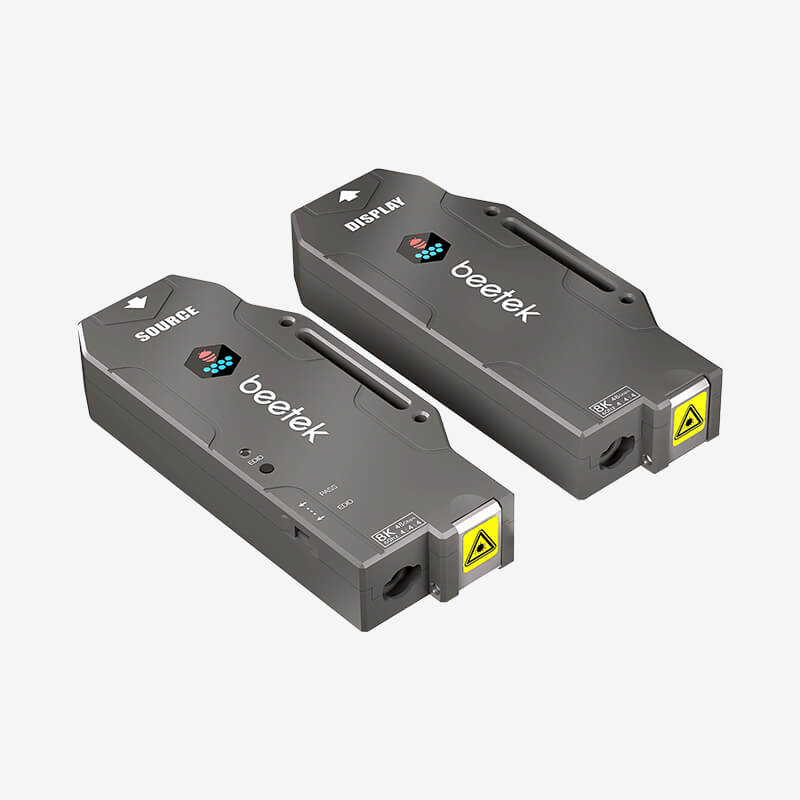

M1-110GH8K is an uncompressed, zero-frame delay compactible HDMI multi-mode fiber extender, supporting a maximum resolution of 7680*4320@60Hz 4:4:4. This extender can transmit a lossless HDMl2.1 signal over one LC multi-mode optical fiber up to 300 meters on OM3. There are three EDID modes, consisting of internal, learning and pass-through. The EDID learning button and the mode switch make it suitable for various scenarios. The full-featured HDMI interface supports HDCP, ARC, CEC, 3D for easy use. The power adapter with locking function and the duct-proof cover for the LC interface make the extender reliable and work suitable in harsh environment. The velcro strap and the rack tray are optional for easy set-up.
| Name | Specification |
| Product Name | One-Core Multi-mode HDMl 2.1 Fiber Optic Extender |
| Model | M1-110GH8K |

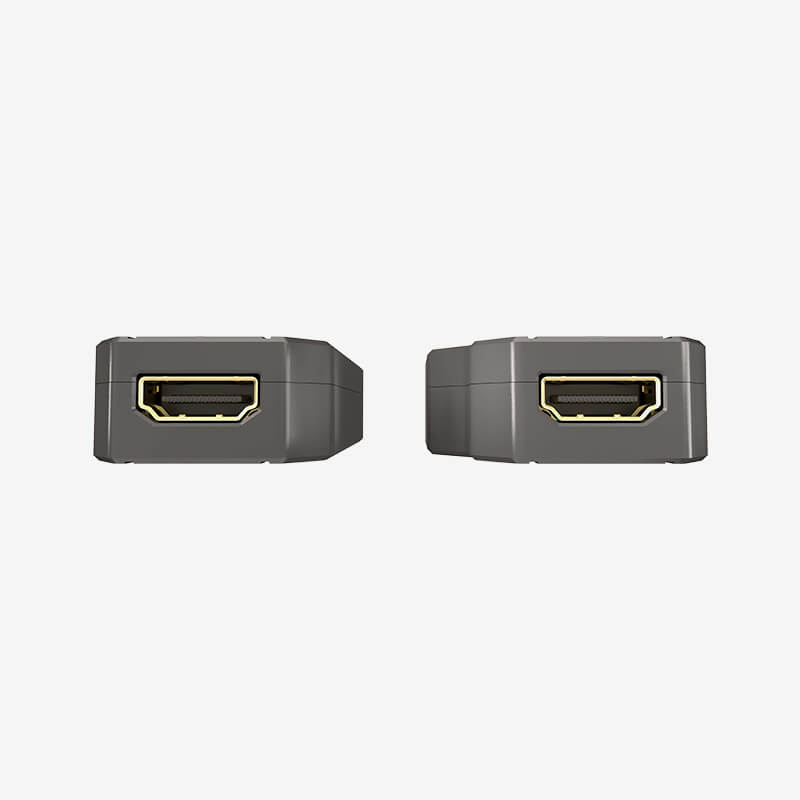

| Input Connector | TX:HDMI Type A Female ; RX: One-core LC |
| Output Connector | TX:One-core LC; RX: HDMI Type A Female |
| Fiber Interface Dust-proof | Yes |
| Fiber Type | Multi-mode OM3 |
| Indicator LED | TX\RX: Signal, power two-in-one indicator TX: EDlD Indicator LED |
| USB Power Cord | Yes |
| Power from connector(TX) | Yes |
| Locking power connector | Yes |
| Power Supply | DC 5V 1.0A |
| Operating Temperature | -20 ℃~70℃ |
| Material | Aluminum alloy CNC machining |
| EDID Switch(TX) | Pass-through mode and Learning mode |
| EDID Button | Yes |
| EDID Modes | Pass-through, Learning and Internal |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Support in EDlD pass-through mode |
| ARC | Support in EDID pass-through mode |
| HDCP | Support in EDlD pass-through mode |
| XvYCC Color Space | Yes |
| HDR | Yes |
| Optical Module | 4*12G , 2*2.5G Multi-mode |
| Technology | 6 wavelength SWDM |
| Resolution | 7680*4320@60Hz |
| Transmission Distance | 0M3 300m |
| Clock Bandwidth | 12Gbps*4 |
| Transmission Speed | 48Gbps |
| Balancing Chip | Automatic equalization |
| Reclocking | Yes |
| ESD Protection | Yes |
| Hot Plug | Yes |
| Delay | Zero-frame |
| Compression | None |
| Sampling Rate | Bandwidth Range: 8~16bit |
| Sampling Ratio | RGB 4:4:4, YUV4:4:4, YUV4:2:2, YUV4:2:0 |
Key Features
Resolution up to 7680*4320@60Hz, transmission rate 48Gbps
Power adapter with locking function and dust-proof cover for LC interface keep reliable
Full-featured HDMI interface supports HDCP, ARC, CEC, 3D
