M1-H20-Lite
Ultra-compact 4K HDMI 2.0 Fiber Optic Extender
- Uncompressed, and delay-free high-speed 4k signal transmission.
- Transmission distance of up to 300m over multi-mode fiber using a single LC core.

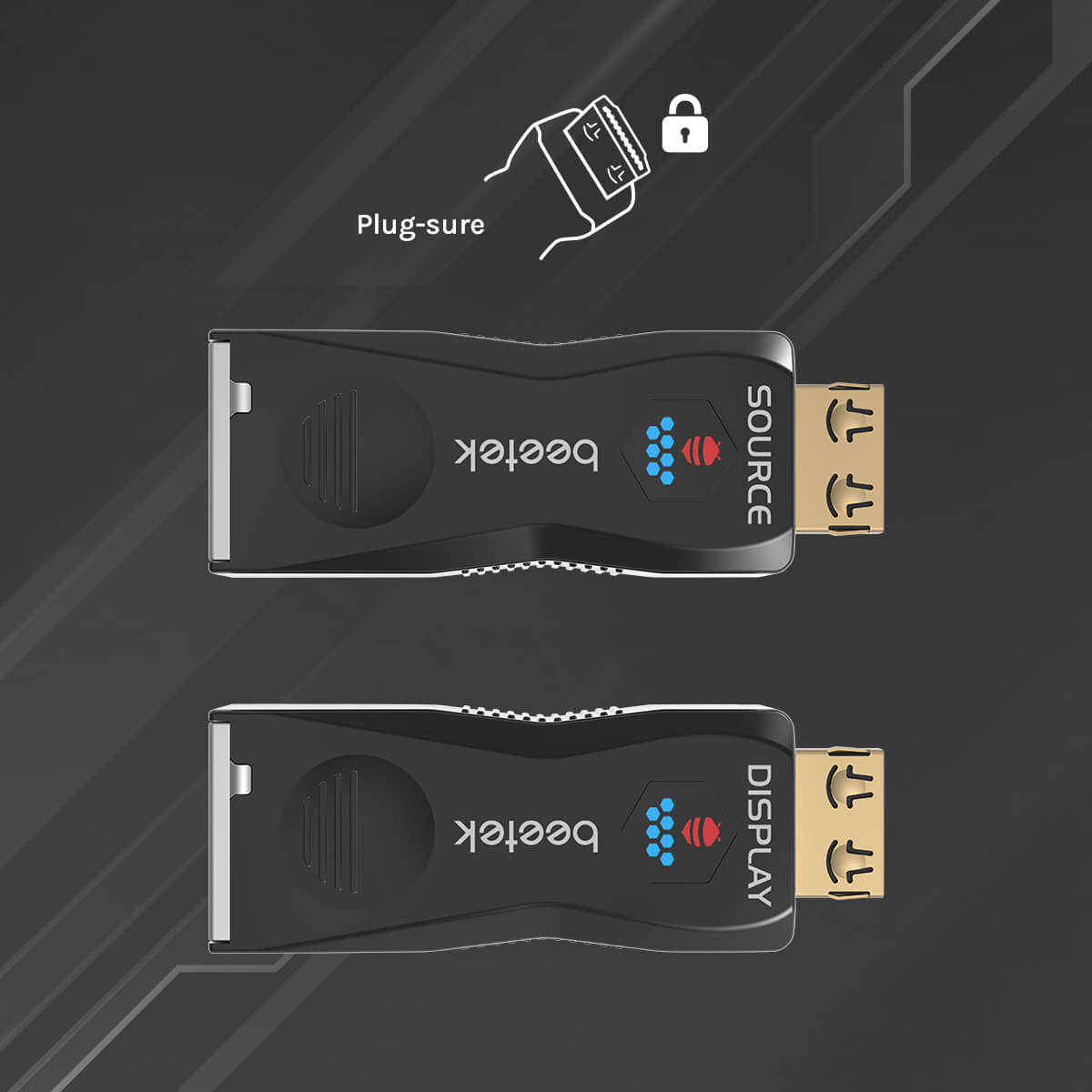

- Slim and compact design with strong gold-plated HDMI Plug-Sure connectors.
- Automatic equalization of input signals improves signal stability.
- Full-featured HDMI 2.0 supports HDCP, HDR, ARC and CEC.

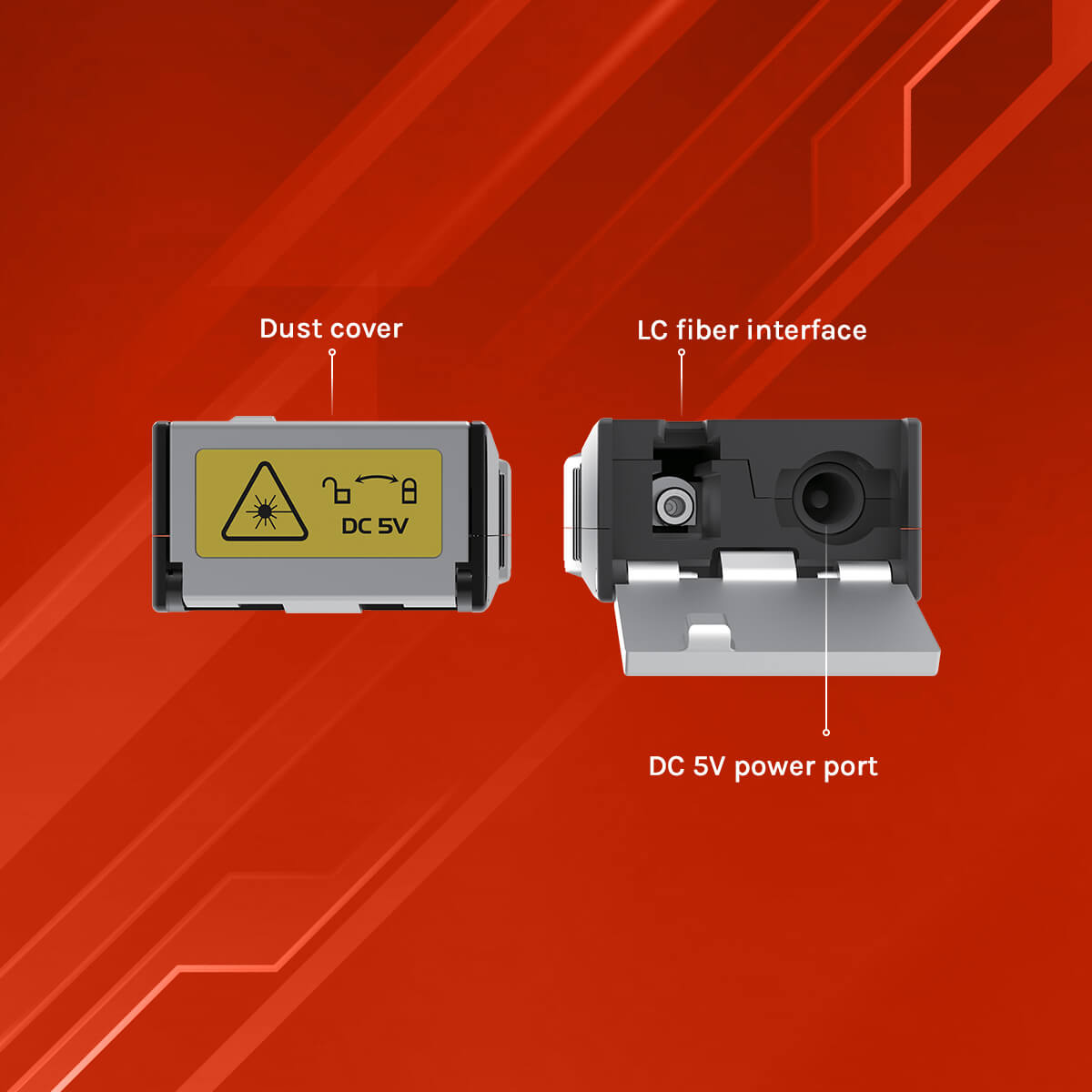

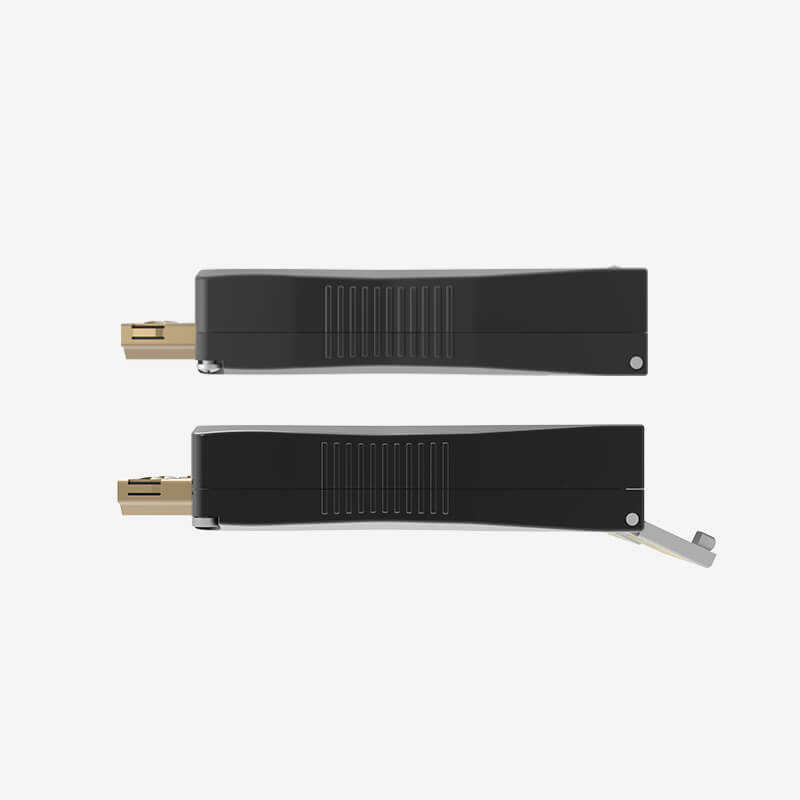

- Locking power supplies and dust-proof fiber interface latches.
- Transmitter can pull power from source or a USB power supply.
The M1-H20-Lite is an extremely compact HDMI 2.0 optical fiber extender that delivers uncompressed, zero-frame latency 4K60 video up to 300m over one multi-mode LC fiber. With beetek’s Plug-Sure HDMI connector giving you a firm grip on connected devices, locking power supplies, and auto-EQ of input signals, all at a very affordable price, it is eager to become your go-to solution for 4K video extension.
| Name | Specification |
| Product Name | Ultra-compact 4K HDMI 2.0 Fiber Optic Extender |
| Model | M1-H20-Lite |
| Input Connector | TX: HDMI ; RX: LC*1 |
| Output Connector | TX: LC-1 ; RX: HDMI |
| Fiber Interface Dust Prevention | Yes |
| Fiber Type | Multi-mode OM3/OM4 |

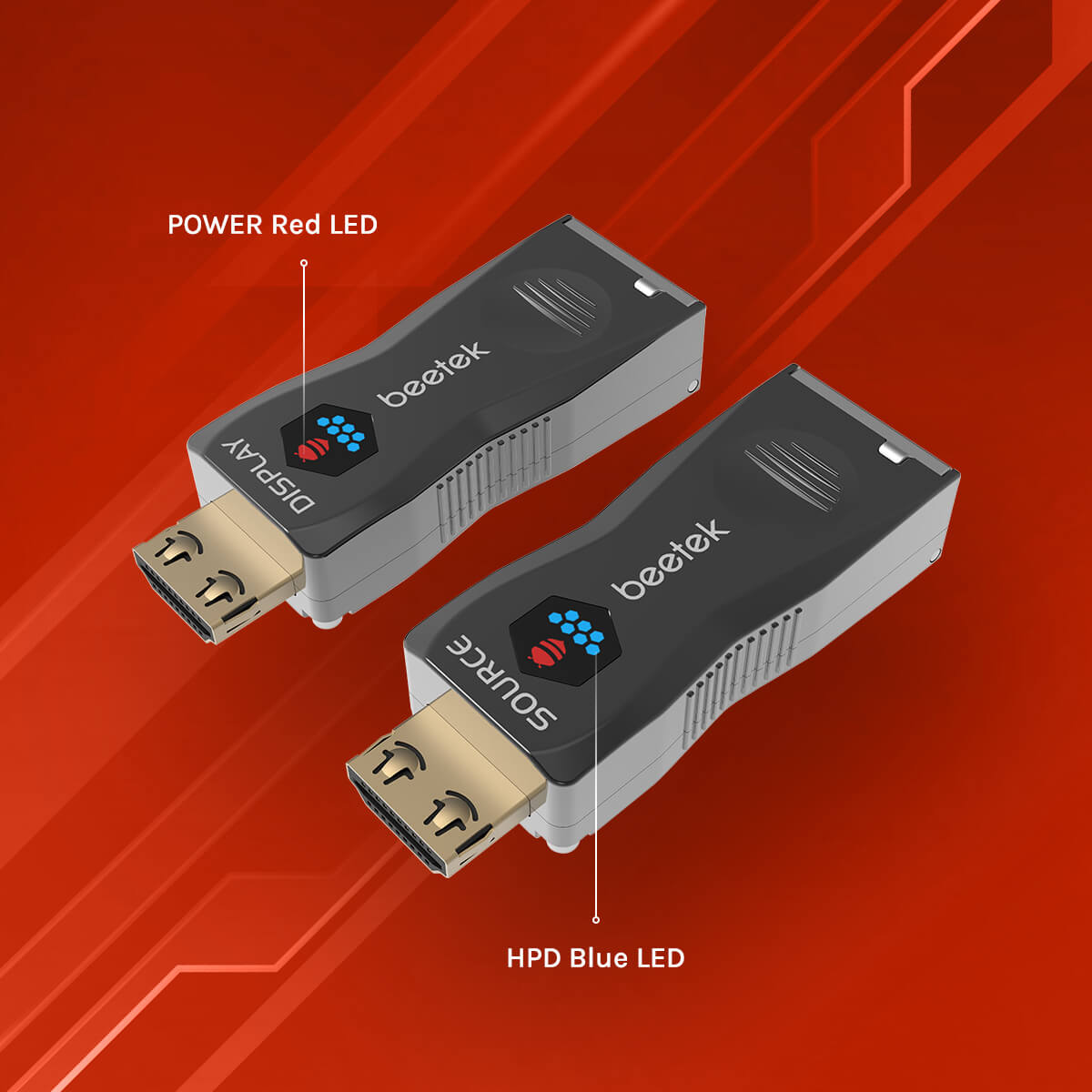

| Indicator LED | Signal, Power 2-in-1 indicator |
| USB Power | Yes |
| Power from connector (TX) | Yes |
| Locking power connector | Yes |
| Power Consumption | DC 5V 1.2A |
| Ambient Temp | -40℃~70℃ |
| Material | Metal mold shell |
| Product size | TX/RX：62 *22 *12.5mm |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| XvYCC Color Space | Yes |
| Resolution | 3840*2160@60Hz |
| Transmission Distance | 300M |
| Clock Bandwidth | 600MHZ*3 |
| Transmission Rate | 18Gbps |
| Balancing Chip | Automatic equalization |
| Reclocking | Yes |
| ESD Protection | Yes |
| Hot Plug | Yes |
| Delay | Zero-frame |
| Compression | None |
| Sampling Rate | Bandwidth Range: 8~12bit |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4 |
