GDH06

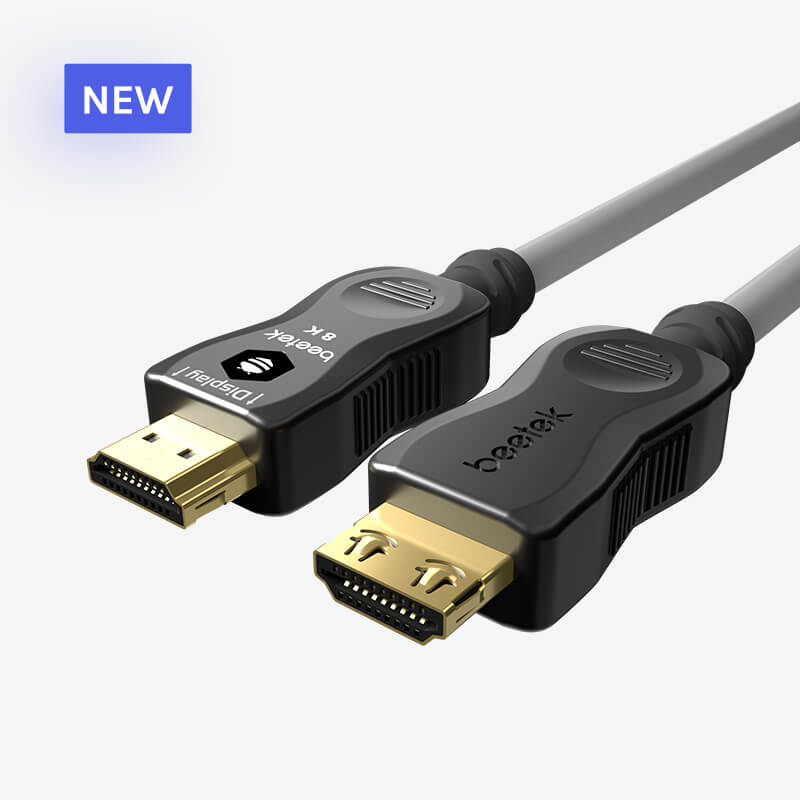

8K Silicone HDMI 2.1 High-speed Active Optical Cables

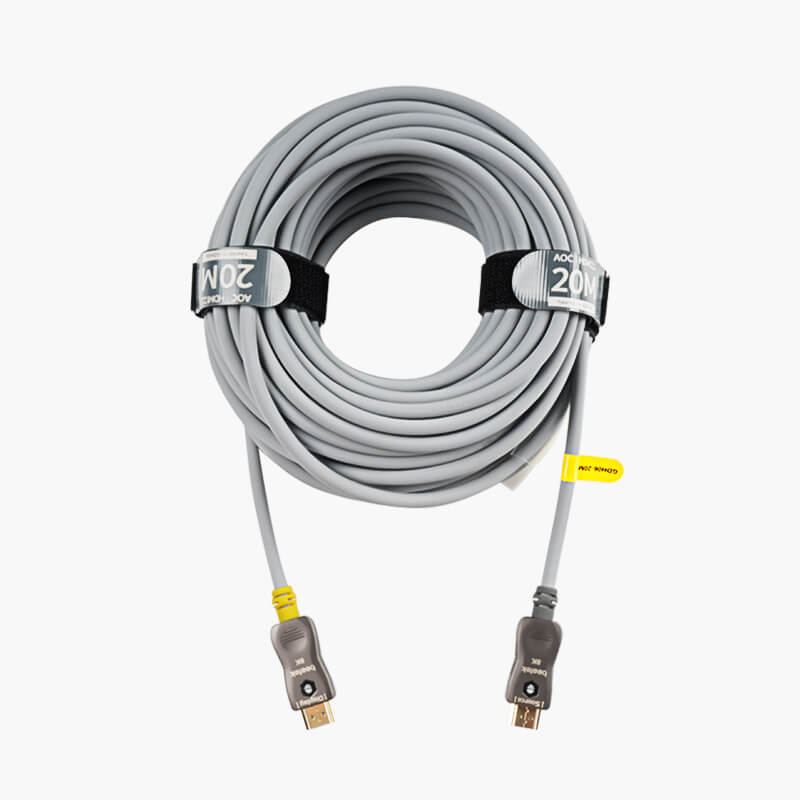

- HDMI 2.1 active optical cable available in lengths up to 100 meters.
- No power supply needed, just plug and play like an ordinary cable.
- 48Gbps transmission rate with maximum resolution of 7680x4320@60Hz.

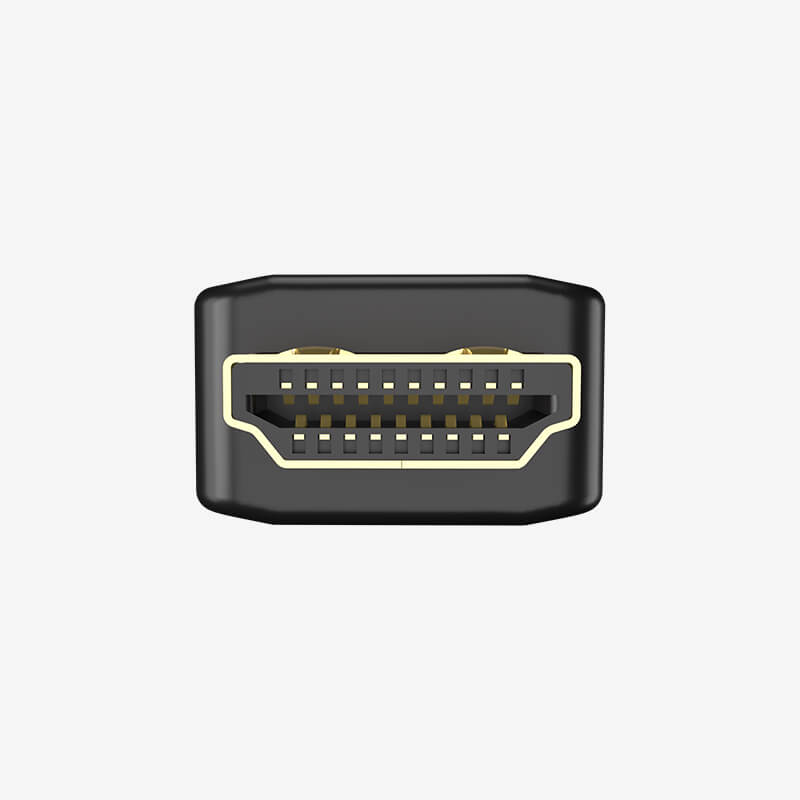

- Plug sure type HDMI connector provides a reliable connection.
- The pliable yet rugged Flow Silicone outer sheath and built-in armored spiral piping make the cable both durable and flexible at the same time.
- Full-featured HDMI 2.1 interface supports HDR, HDCP, ARC, CEC and 3D.
- Pair with Beetek’ s DF and PCD Series cable reels for easy deployment.
GDH06-xxM is an HDMI 2.1 long-distance active optical cable, which does not require external power and is plug and play like ordinary HDMI cable. By combining optical fibers together with copper in the same cable, it can transmit a lossless HDMI 2.1 signal with maximum resolution of 7680x4320@60Hz 4:4:4 up to 100 meters. Beetek designed it using softer Flow Silicone sheathing and SR, and the inside has stainless steel spiral armor piping, which provide superior tensile strength and resistance to compression. There are different lengths up to 100 meters to choose from. Suitable for rental and staging, fixed installation, residential and other applications.
| Name | Specification |
| Signal Type | HDMI2.1 |
| Input Connector Type | HDMI TypeA Male |
| Output Connector Type | HDMI TypeA Male |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | HDMI TypeA Male; 54*19.8*11.9mm |
| In-wall Installation | Not supported |
| Connector Fastening Type | Plug sure type HDMI connector provide |
| Power from connector (TX) | Yes |
| Cable power supply (RX) | Yes |
| Power | 250mW |
| Plug-n-Play | Yes |
| Cable Structure | Optical fiber + inner jacket + Kevlar + Tissue paper+ armored tube + PTFE + outer jacket |
| Fiber Type | Multi-mode OM3 * 4 |
| Fiber Wavelength | 850~1300nm |
| Copper Wire Material | 7 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1、26WAG*1、30AWG*3、32AWG*2, |
| Cable Diameter | 6.5mm |
| Spiral Tube Diameter | 4.5mm ± 0.1mm |
| Jacket Material | Flow Silicone |
| Jacket Color | Gray |
| SR | Flow Silicone |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP2.3 |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 7680x4320@60Hz |
| Clock Bandwidth | 1600MHz*3 |
| Transmission Rate | 48Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RBG 4:4:4、YUV 4:4:4、YUV 4:2:2、YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤700N |
| Compressive Strength | 2000N/10cm |
| Minimum Bending Radius | ≥10D(*D is the outer diameter of the cable) |
| Operating Temperature | -30-80°C |
Key Features
Built-in armored spiral piping make the cable both durable and flexible at the same time.

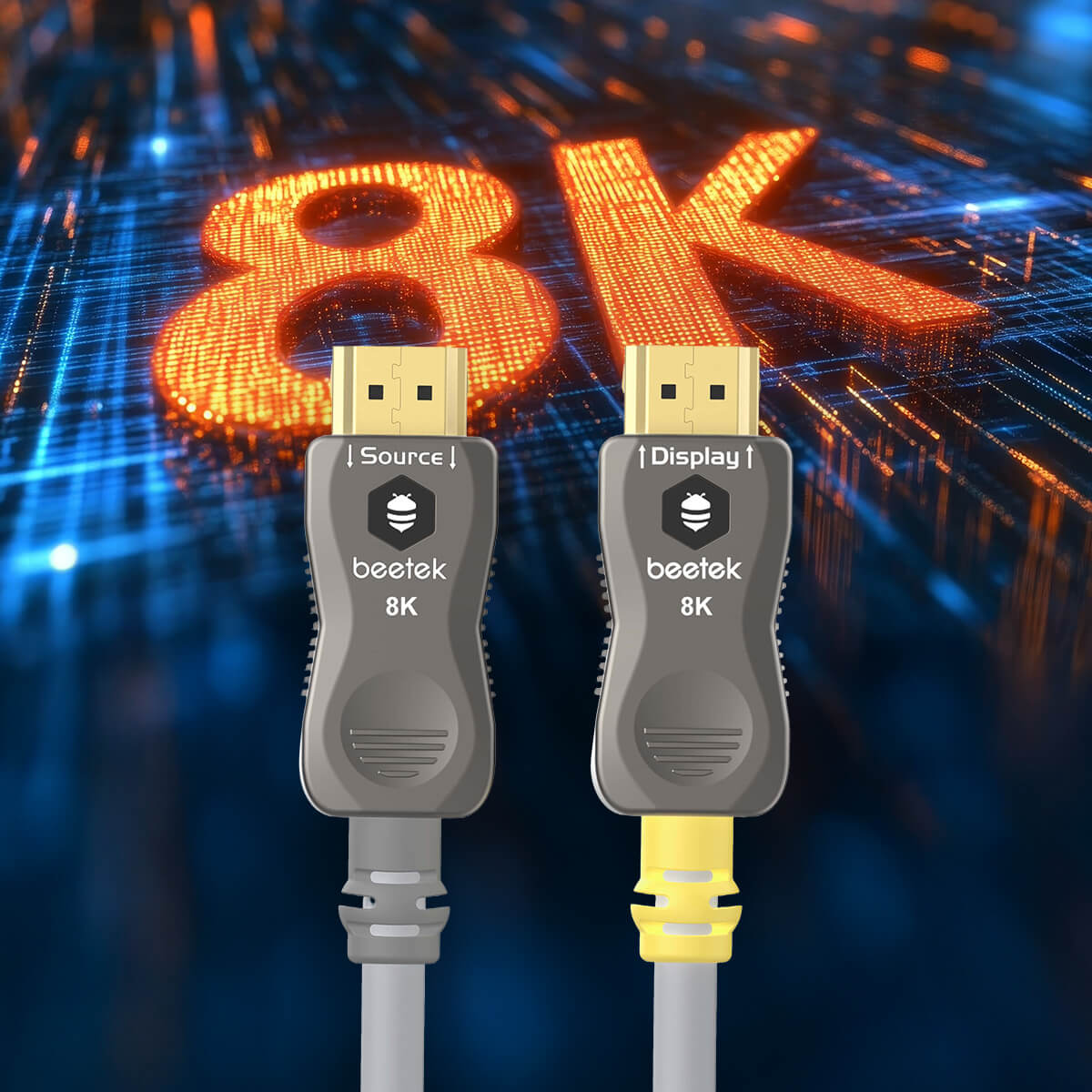

48Gbps transmission rate with maximum resolution of 7680x4320@60Hz.

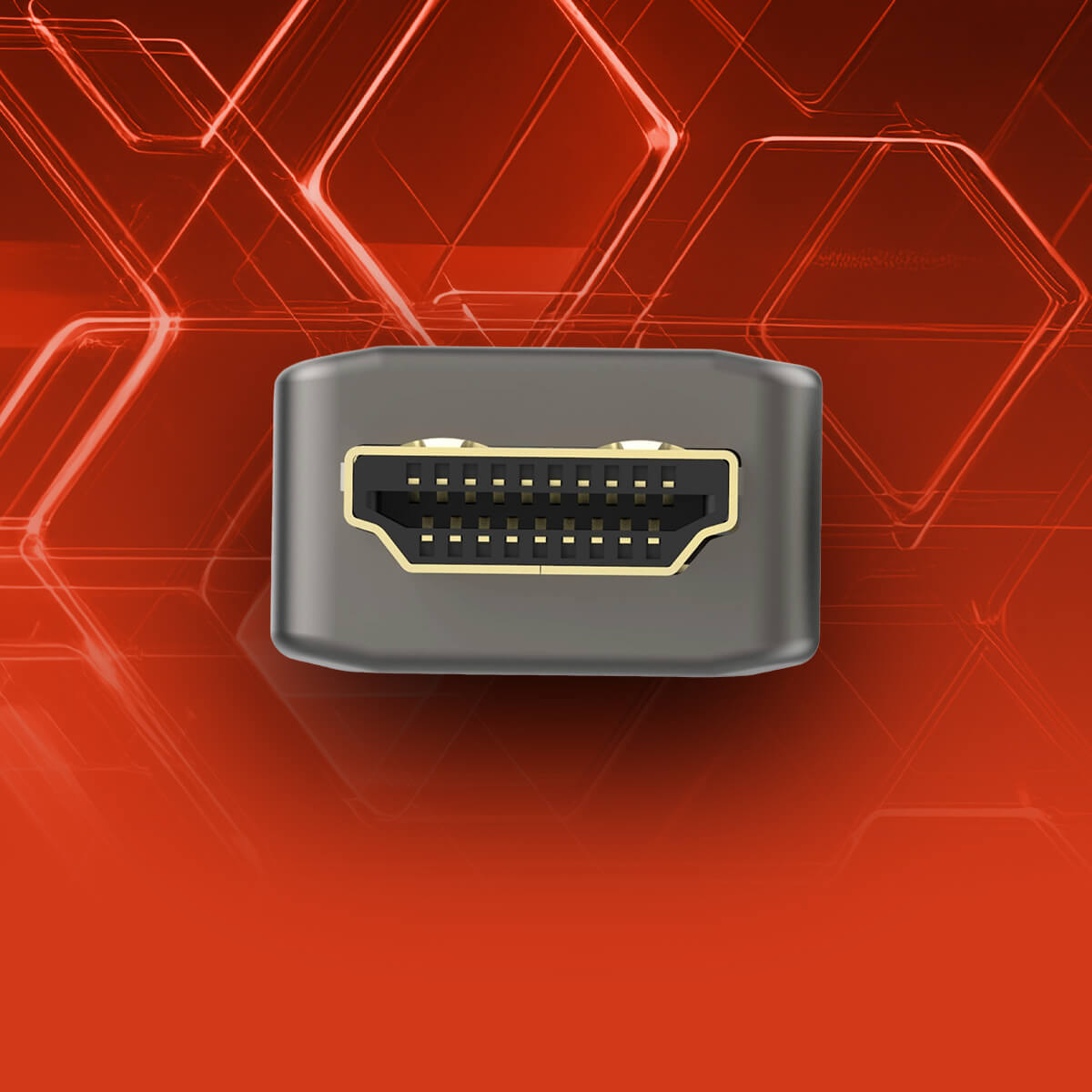

"Plug sure" type HDMI connector provides a reliable connection.
