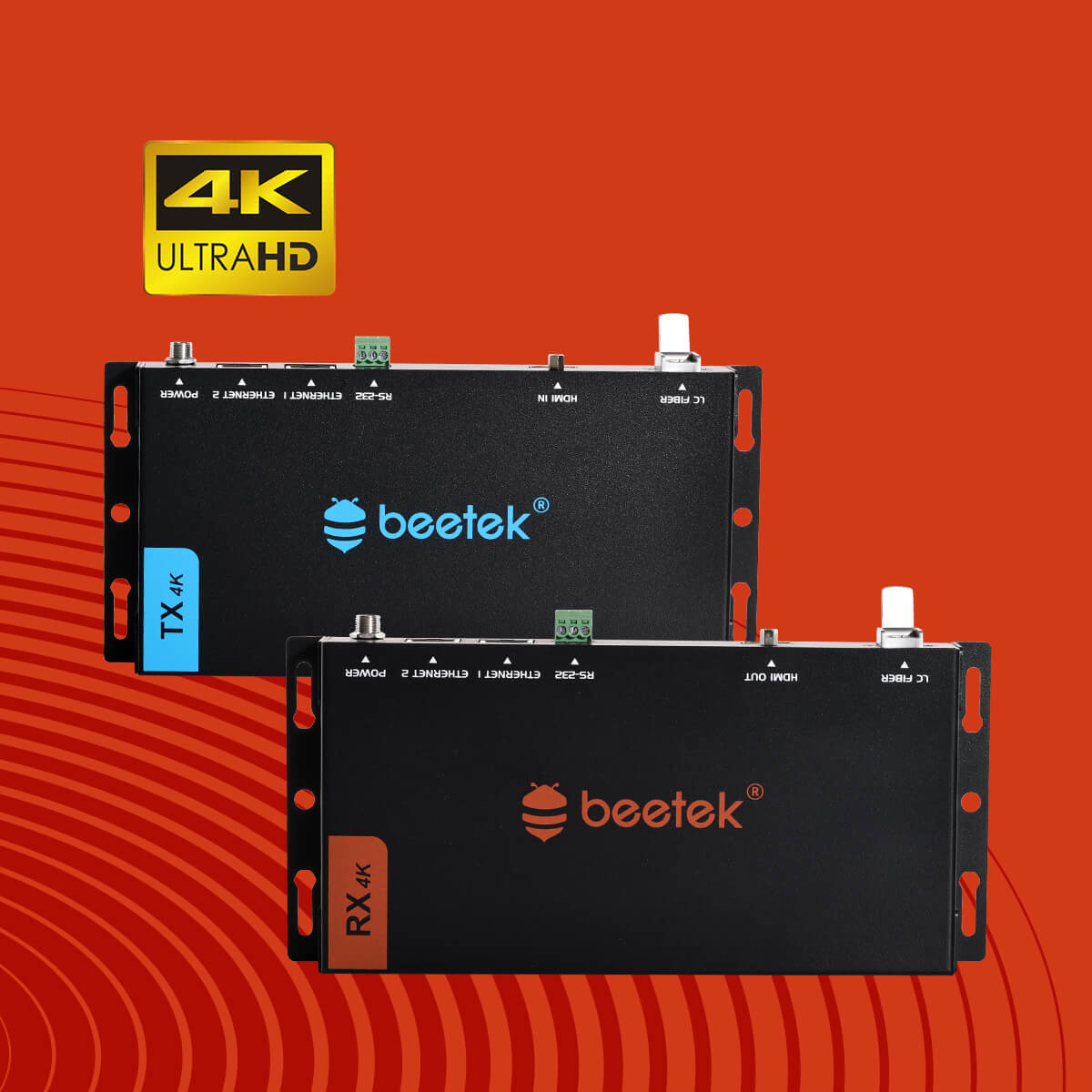

M1-HDMI2.0
One-core Single-mode HDMI 2.0 Fiber Optic Extender+ RJ45+ RS232
- Supports lossless, uncompressed, and delay-free high-speed signal transmission, 100% restoration of the source signal.
- Supports resolutions up to 3840*2160@60Hz and 18Gbps data transmission rate.
- Supports distance up to 700 meters with one core LC cable of single-mode optical fiber.
- Two-way 100M Ethernet RJ45 interfaces and one RS232 interface support two-way data and control signal transmission.

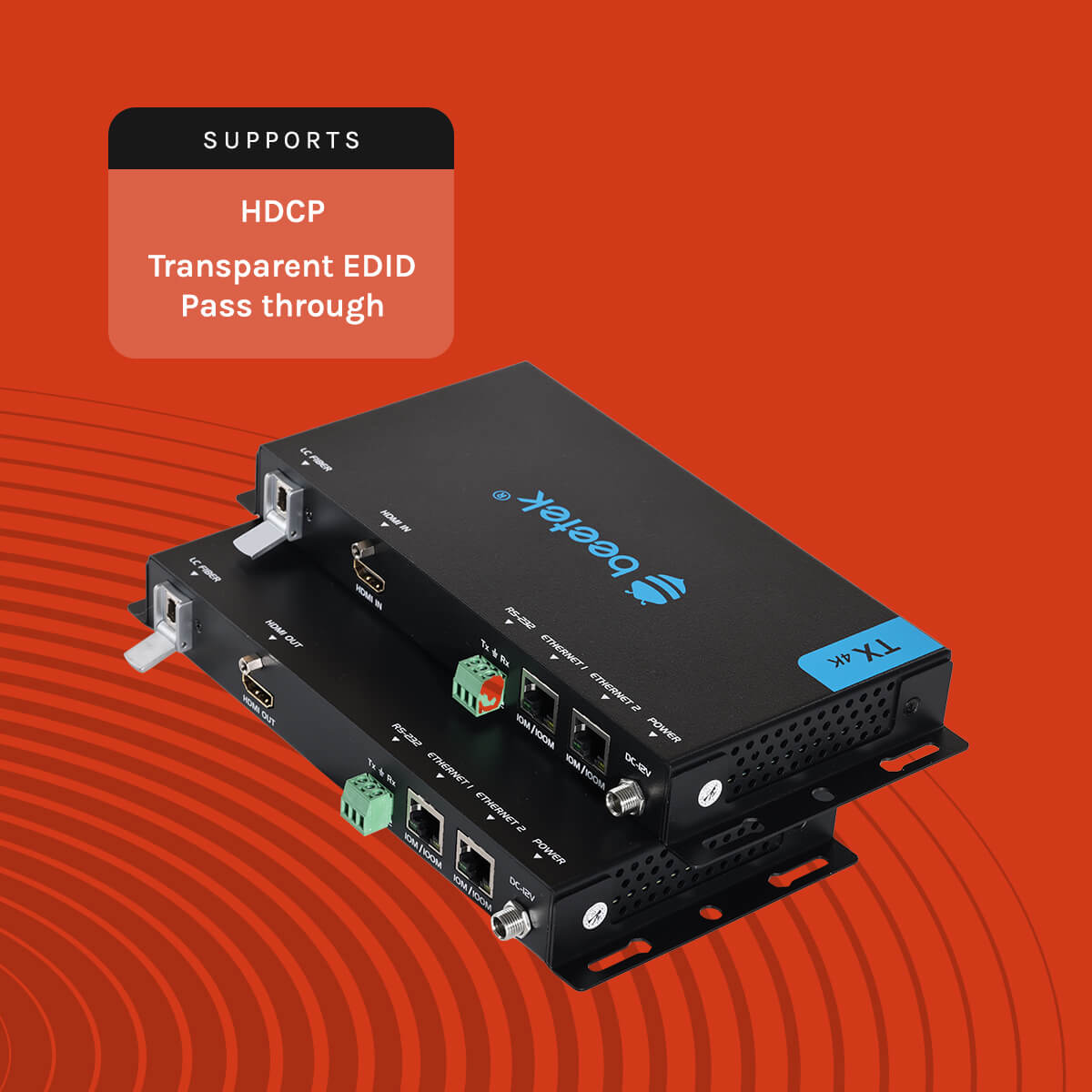

- Supports pass-through EDID transmission for various professional audio and video applications.

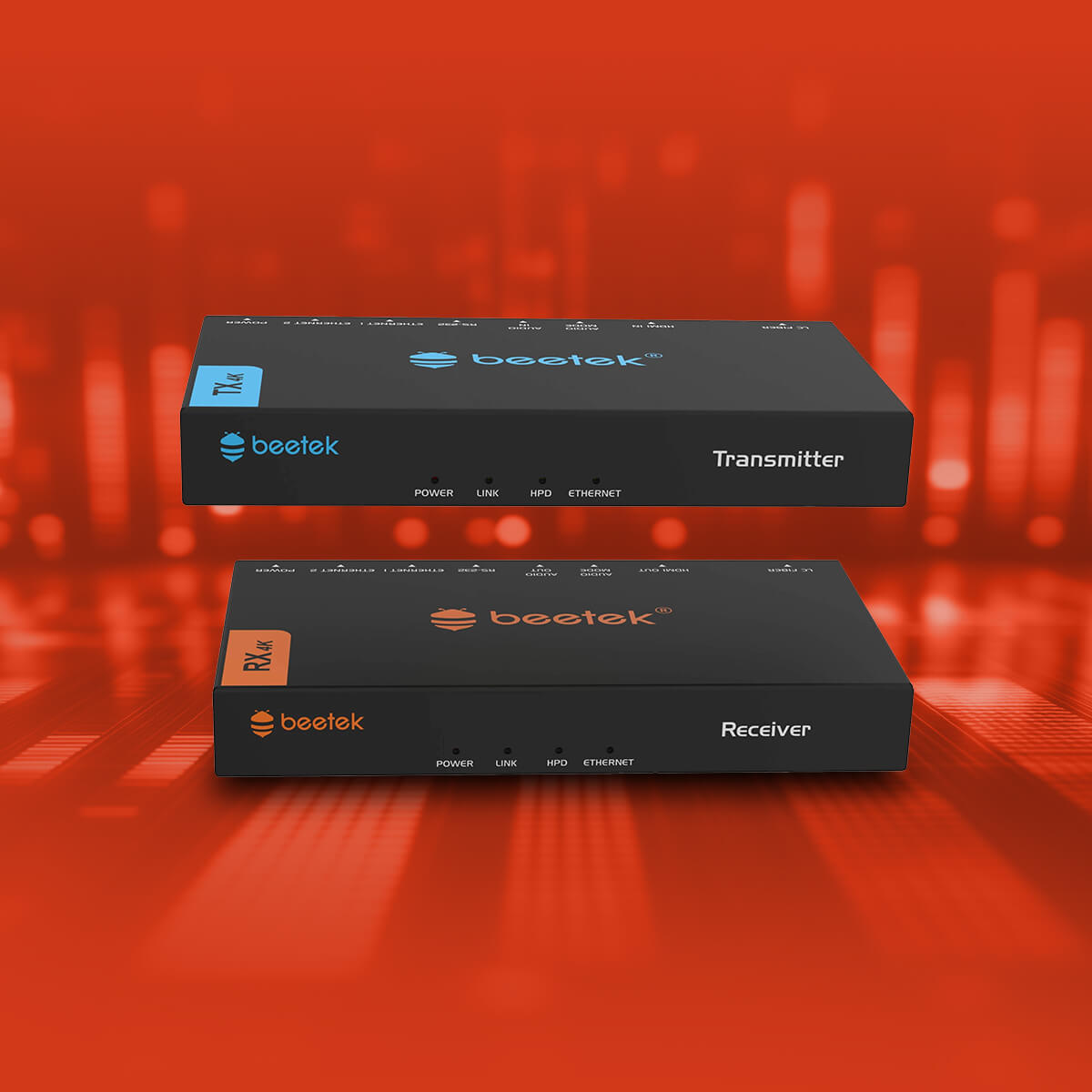

- Four-way indicator lights for signal, power supply, Ethernet RJ45, and hot-plug allow you to quickly troubleshoot.
- Reliable connection is ensured with locking power supplies, locking HDMI interface and dust-proof fiber interface latches.

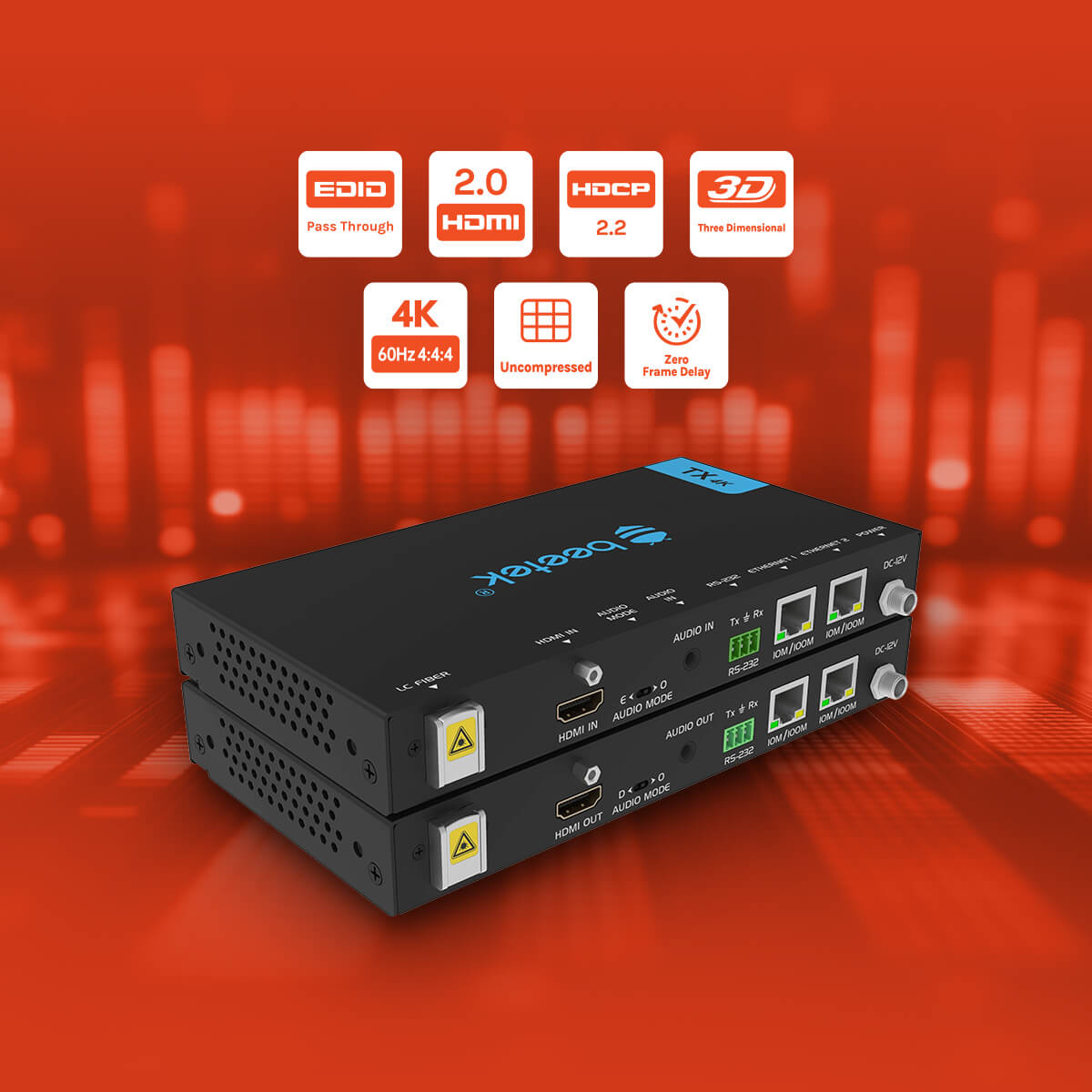

- Full-featured HDMI 2.0 supports HDR, HDCP, ARC, CEC and 3D.
- Optional 1U rack tray available for rack mounting.
- New features include independent audio, emdedding and de-embedded transmission.

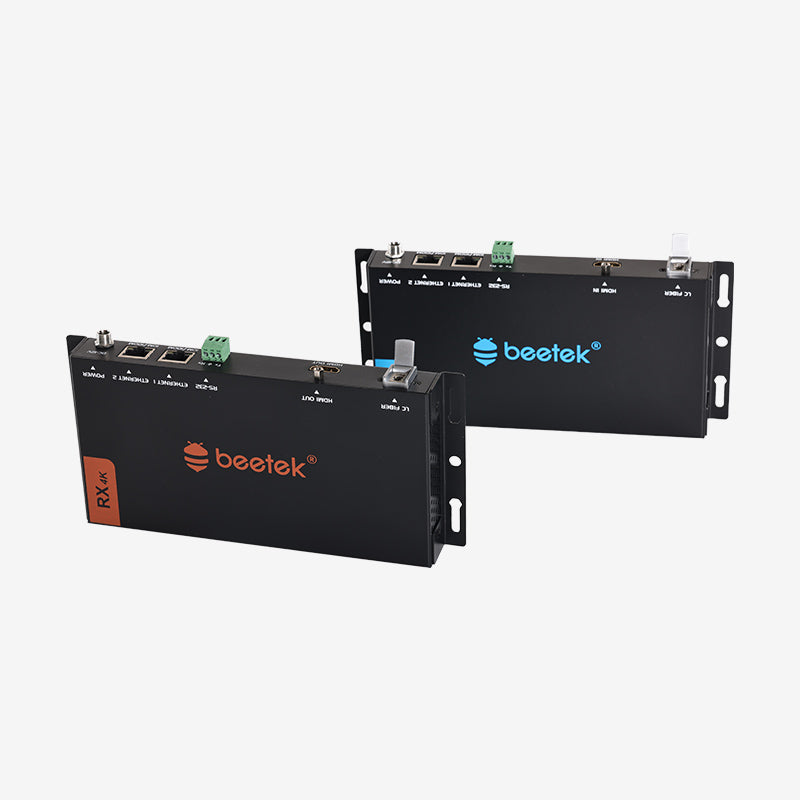

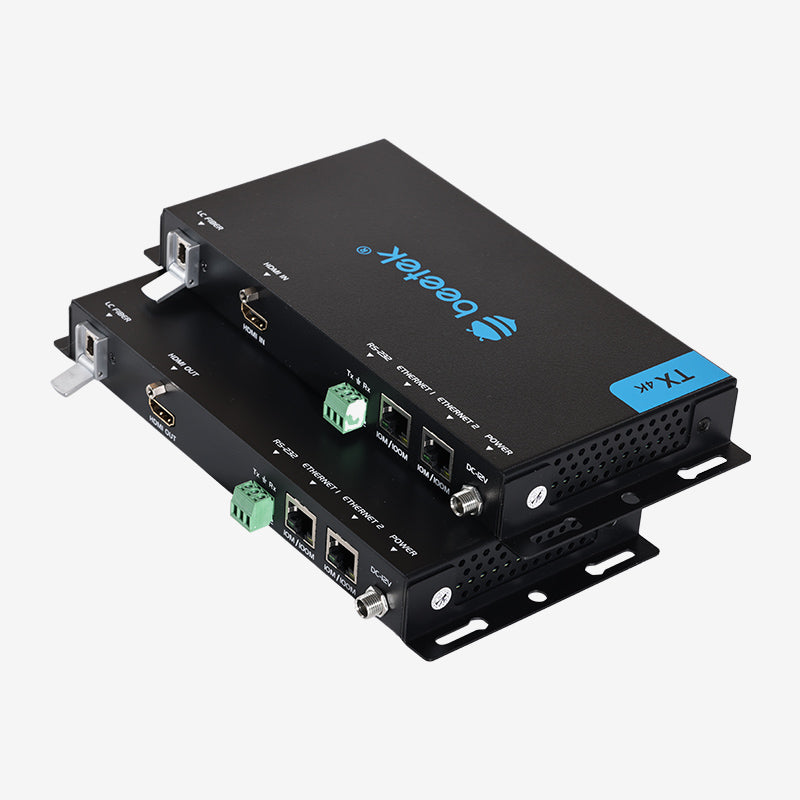

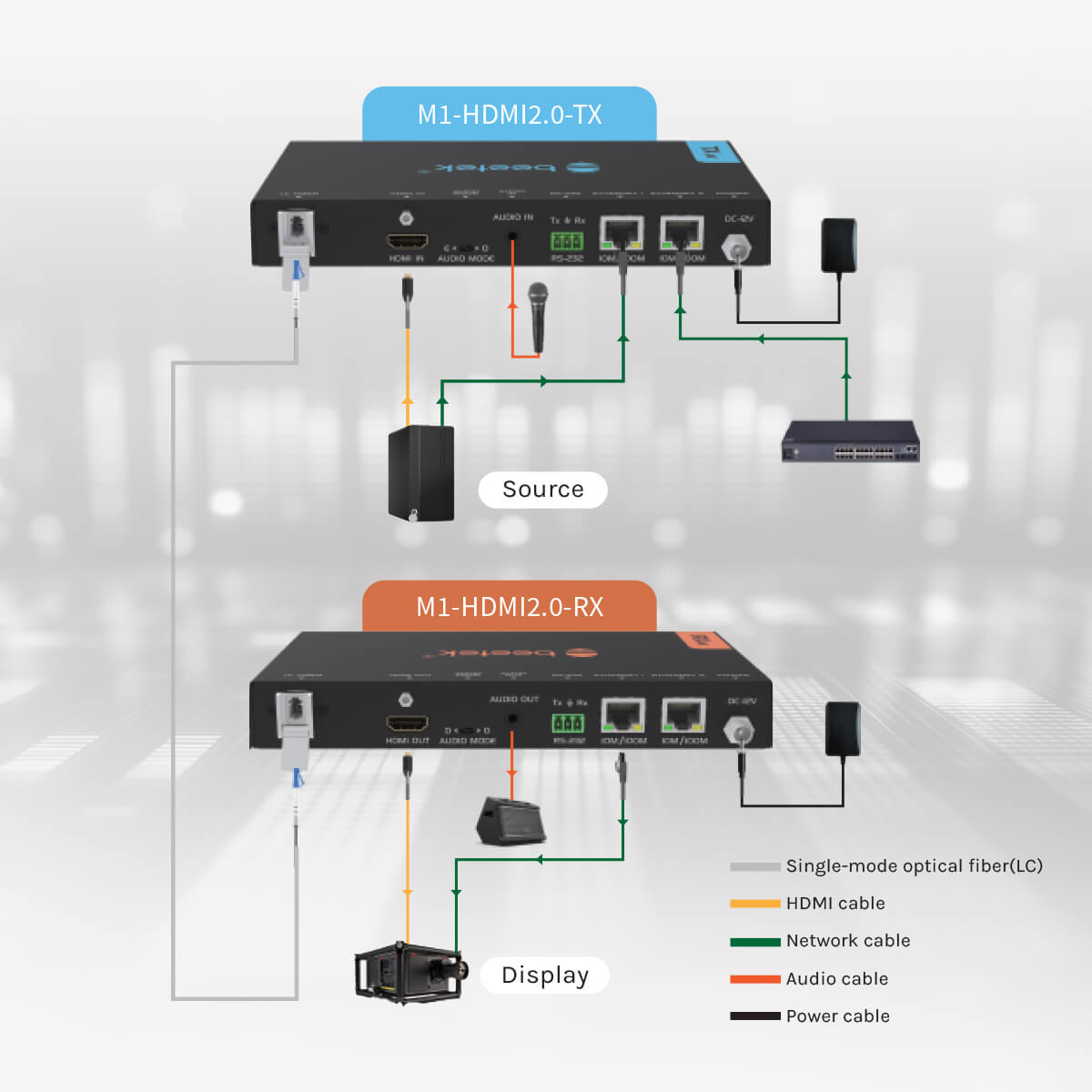

The M1-HDMI2.0 is an uncompressed, zero-frame delay HDMI single-mode fiber extender that transmits an HDMI 2.0 signal losslessly up to 700 meters through a single LC fiber with resolutions up to 3840*2160@60Hz, and it has two-way 100M Ethernet and RS232 interfaces for two-way transmission of data and control signals, and new features include independent audio and embedded/de-embedded transmission. Full-featured HDMI interface supports pass-through EDID transmission, HDR, HDCP, ARC, CEC and 3D, plug and play. This product with locking power supplies and dust-proof fiber interface latches make signal connection more reliable. An optional 1U rack tray is available for mounting, making it suitable for long-distance HDMI signal transmission in a variety of environments.
| Name | Specification |
| Signal Type | HDMI 2.0 |

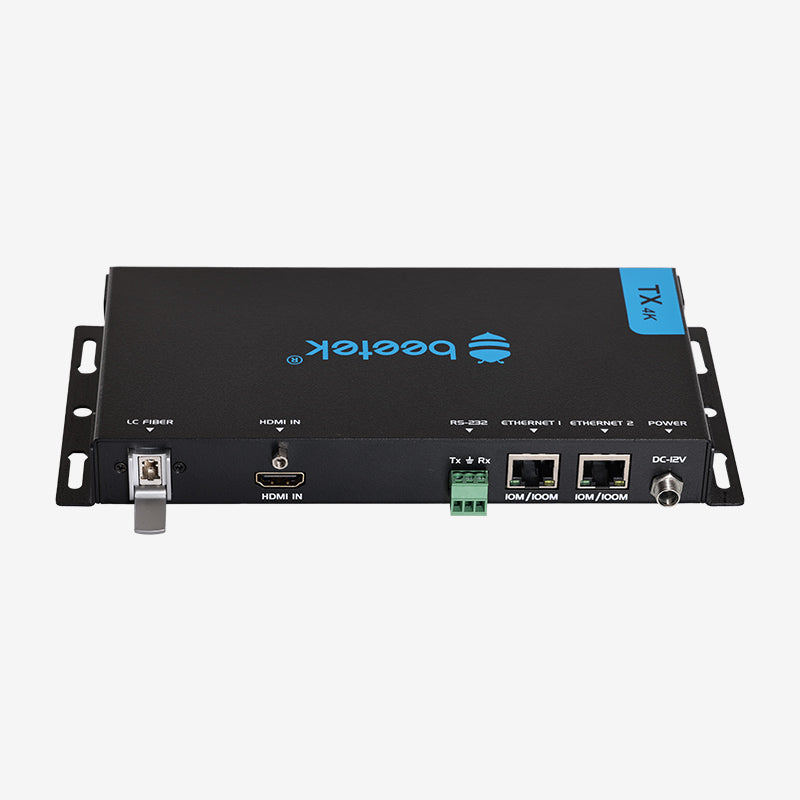

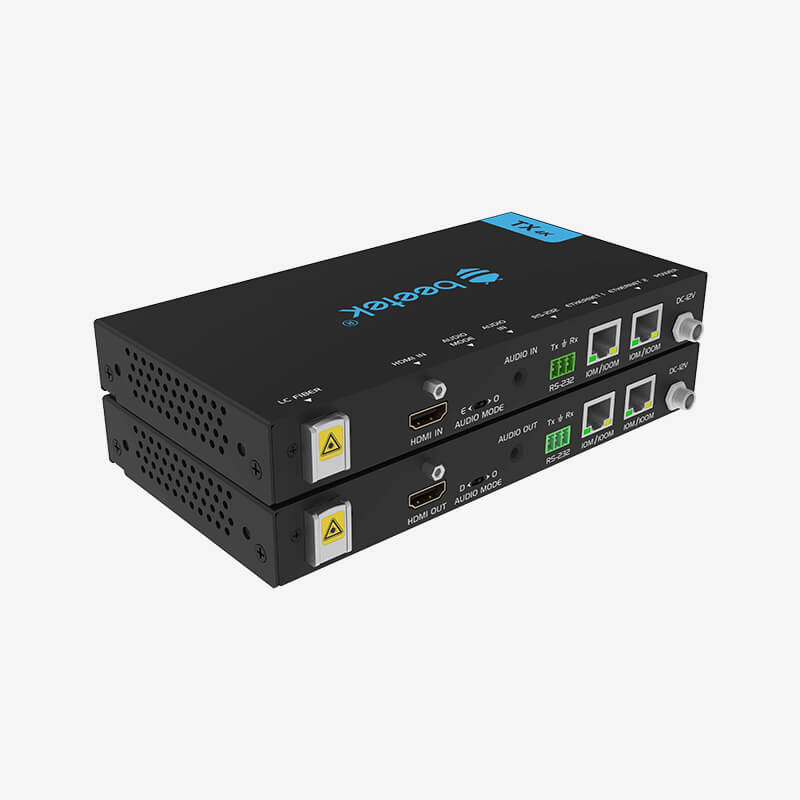

| Input Connector | TX: HDMI Type-A Female, AUDIO IN, RS232, RJ45*2; RX: LC*1 |
| Output Connector | TX: LC*1; RX: HDMI Type-A Female, AUDIO IN, RS232, RJ45*2 |
| Fiber Interface Dust Prevention | Yes |

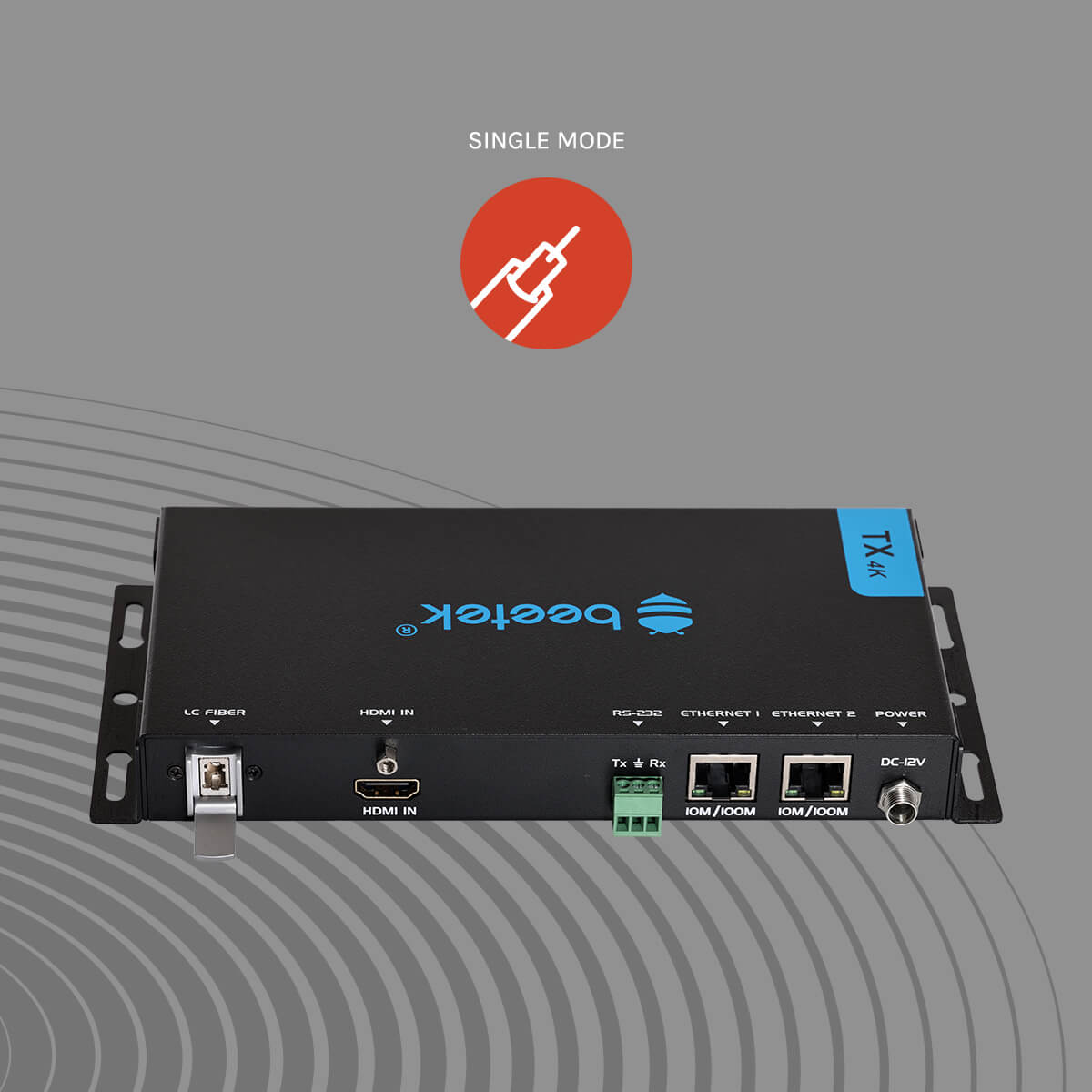

| Fiber Type | Single-mode |
| Indicator LED | Signal, Power, Network port and Hot-plug 4 way indicator |
| Locking Power Connector | Yes |
| Power Consumption | DC 12V 2A |
| Ambient Temp | -20°C ~ 70°C |
| Material | Metal mold |
| Product Dimensions | TX/RX: 215 *100 *26mm |
| Product Weight | TX/RX: 0.6kg |
| Package Dimensions | 270 *157 *136mm |
| Packaging Weight | 1.7kg |
| DDC | Yes |
| Ethernet | Supports bidirectional 100M Ethernet |
| RS232 | Supports bidirectional RS232 |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Audio Embedding | Yes |
| Audio De-embedding | Yes |
| Independent Audio | Yes |
| Optical Module | 4*10G, 2*2.5G 6-channel single-mode optical module |
| Technical Characteristics | 6-wave CWDM Technology |
| Optical module life | 100,000 Hours |
| Resolution | 3840*2160@60Hz |
| Transmission Distance | Single-mode 700M |
| Clock Bandwidth | 600MHz *3 |
| Transmission Rate | 18Gbps |
| Balancing Chip | Automatic equalization |
| Reclocking | Yes |
| ESD Protection | Yes |
| Hot Plug | Yes |
| Delay | Zero-frame |
| Compression | None |
| Sampling Rate | Bandwidth Range: 8~16bit |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Key Features
Full-featured HDMI 2.0 supports HDR, HDCP, ARC, CEC and 3D.
One-core single-mode HDMI 2.0+Ethernet RJ45+RS232 fiber extender.
New features include independent audio, emdedding and de-embedded transmission.
