C10S
USB Type-C Cable
- The silicone jacket ensures excellent flexibility, while providing insulation and tensile resistance.

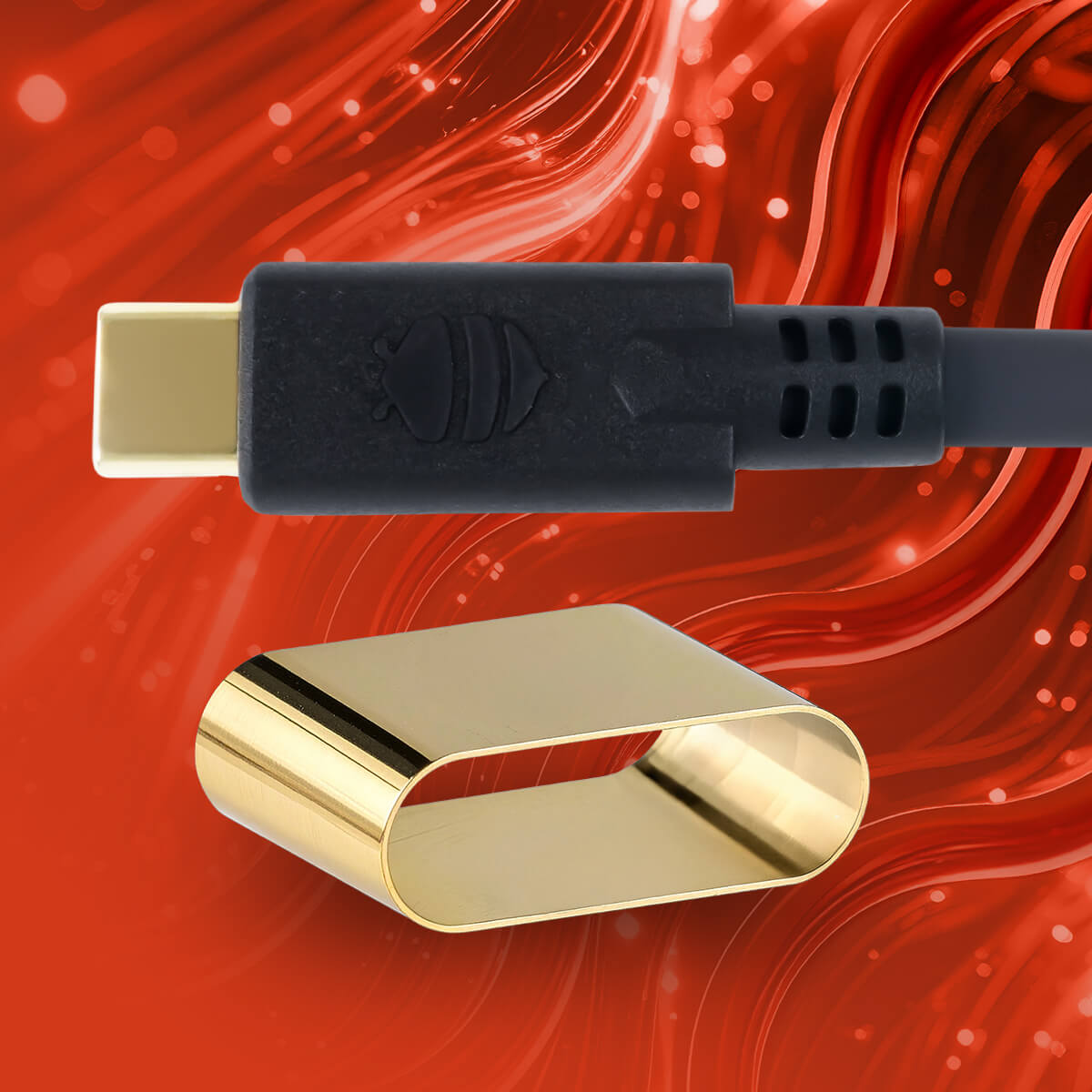

- Equipped with a reversible USB-C connector, the contacts are gold-plated for oxidation and corrosion resistance.

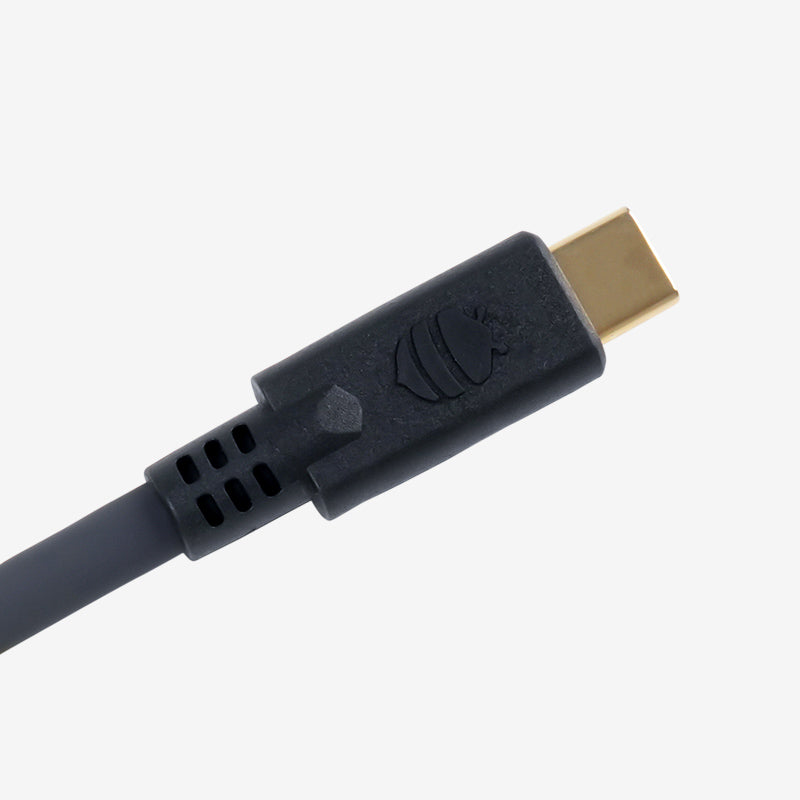

- Compact connectors with rounded edges fits small spaces such as mobile phone case ports.

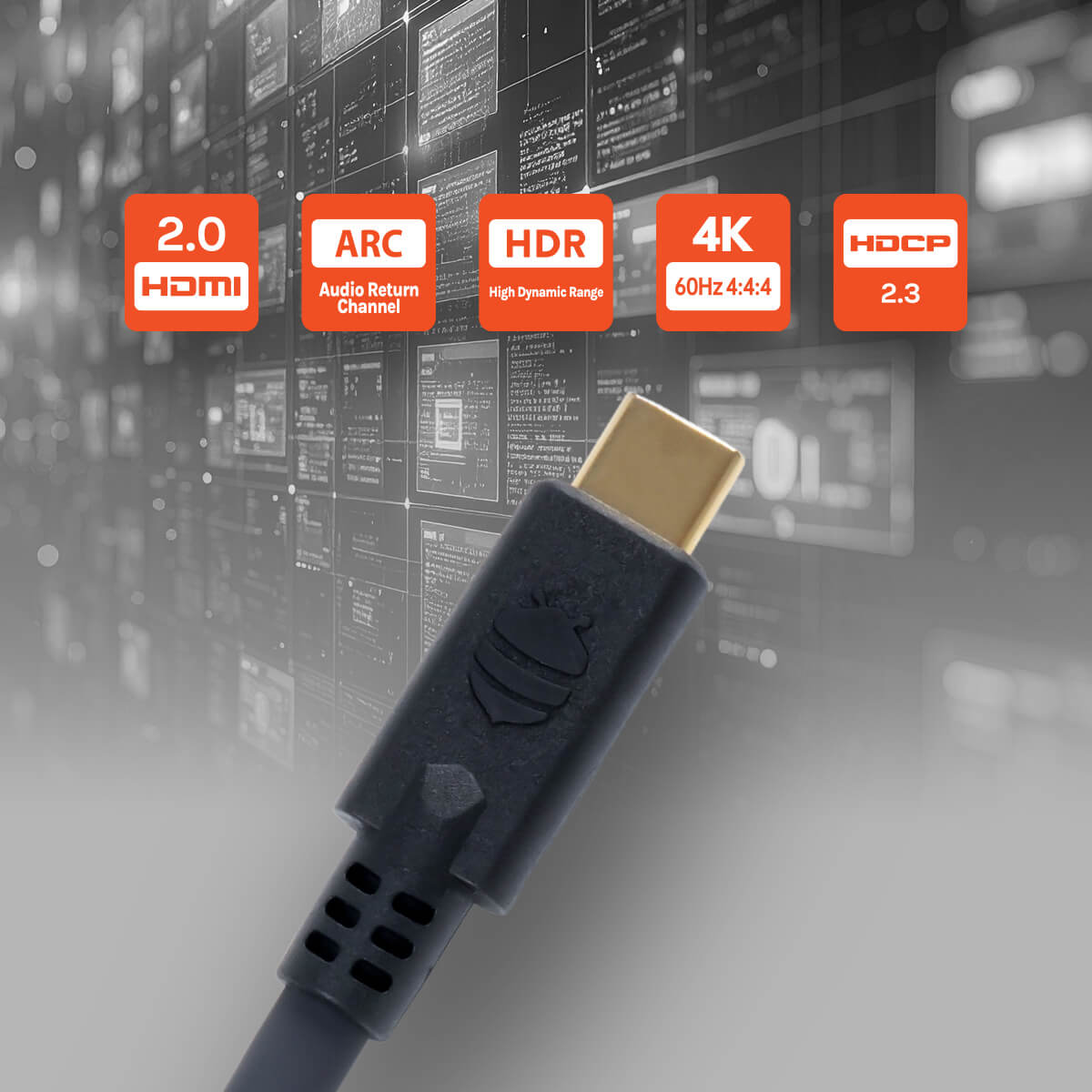

- Supports resolutions up to 3840*2160@60Hz, delivering clear and lifelike visuals.
- Supports USB data transfer rates of up to 20Gbps and DisplayPort Alt Mode (DP Alt Mode) output.
- USB Power Delivery up to 100 watts for 2m and 3m, reducing the charging time.
- Stable operation at 80℃ ambient temperature ensures reliability in various environments.

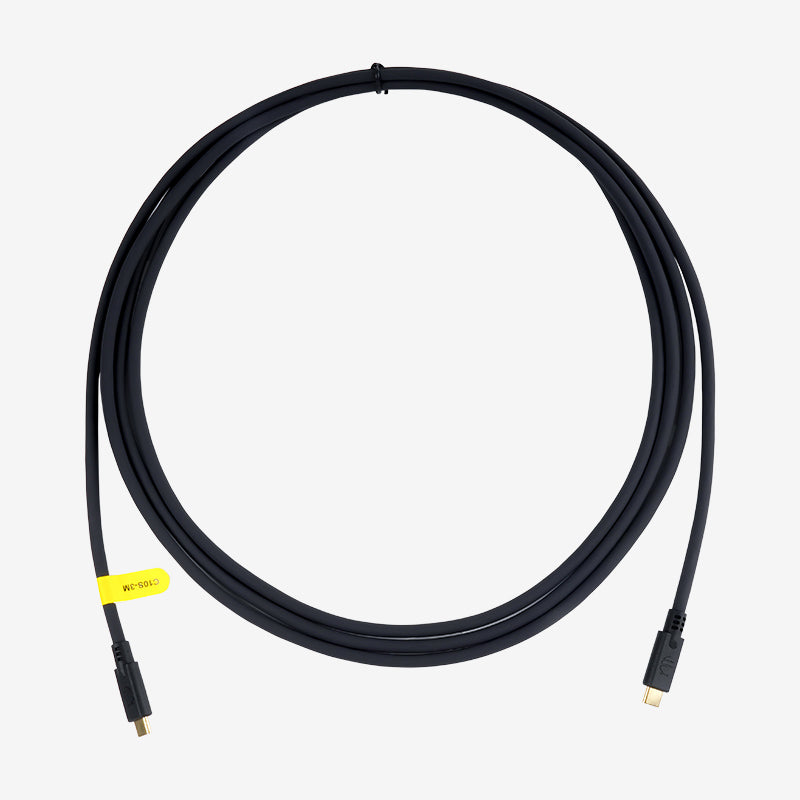

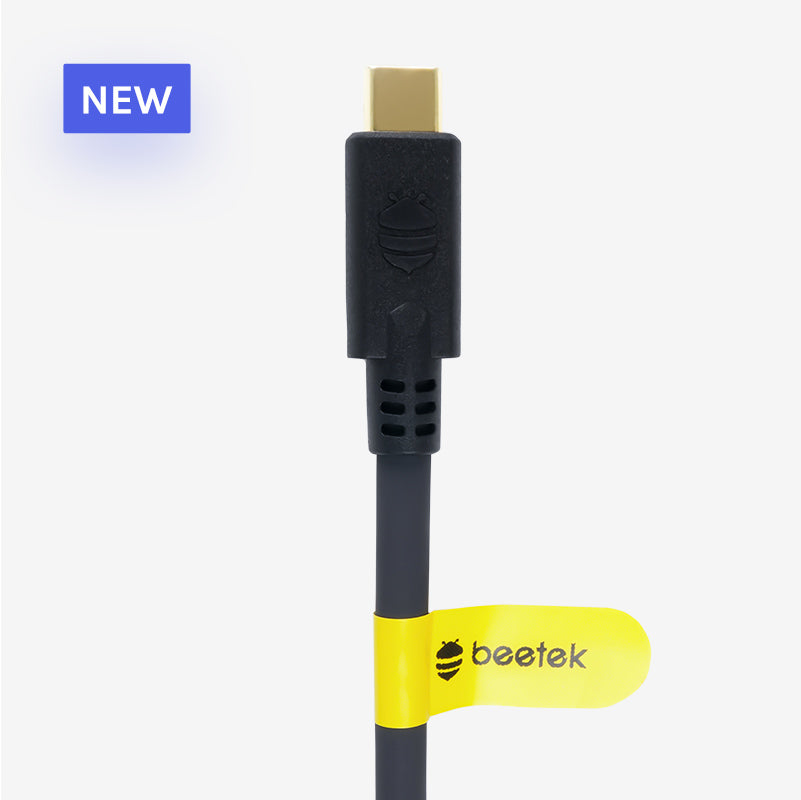

- The cable features a black body with a yellow waterproof text.
- Available in lengths of 2 meters and 3 meters, it caters to different scenarios.
The C10S-xxM is a multi-functional cable engineered to fulfill the connectivity of various USB-C interface devices. Featuring a flexible body and compact, reversible USB-C connectors, it allows you to plug it in either way. It supports a maximum USB data transmission rate of 10Gbps and 100W PD, which can significantly shorten the charging time. Available in lengths of 2 meters and 3 meters, it caters to different scenarios.
| Name | Specification |
| Product Name | USB Type-C Cable |
| Model | C10S-xxM |
| Signal | USB3.2 Gen 2x2 (Compatible with USB 3.1/UBS 3.0/USB 2.0) |
| Connector Type | Type-C to Type-C |
| Environmental Info | REACH, RoHS Compliant |
| Flame Retardant Grade | FT2 |
| Charging Power | 100W PD |
| Connector Size | 40*12.2*6.5mm |
| Connector Structure (Type C) | Plug plate + Inner mold + Copper foil + Shell |
| Internal Mold (Type C) | Transparent PE material |
| Copper Foil (Type C) | Double-sided conductive copper foil |
| Components | Conductor + Insulation + Drain + AL.Mylar + Mylar + Braid + Jacket |
| Conductor Material | Tinned copper |
| Conductor Gauge | 24AWG |
| Braid Material | Tinned copper |
| Braid Sze | 16*11/0.08±0.008 mm |
| Jacket Material | Silicone |
| Cable Diameter | 5.6mm |
| Cable Color | Black |
| E-marker | Yes |
| EDID | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| AUX Channel | Yes |
| High-speed Ethernet | Yes |
| Extended Audio | Yes |
| BT.2020 Color Space | Yes |
| ESD | Yes |
| Resolution | 3840*2160@60Hz |
| Transmission Rate | 20Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Deep Color | Yes |
| Color Sampling Rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Compression | None |
| Impedance | 90±15%Ω |
| Power Supply | 48V/5A |
| Tensile Strength | ≤200N |
| Maximum Bending Angle | 135° |
| Temperature Rating | 80℃ |
| Available Length | 2M, 3M |
Key Features
The silicone jacket ensures excellent flexibility, while providing insulation and tensile resistance.
Supports resolutions up to 3840*2160@60Hz, delivering clear and lifelike visuals.
Equipped with a reversible USB-C connector, the contacts are gold-plated for oxidation and corrosion resistance.
