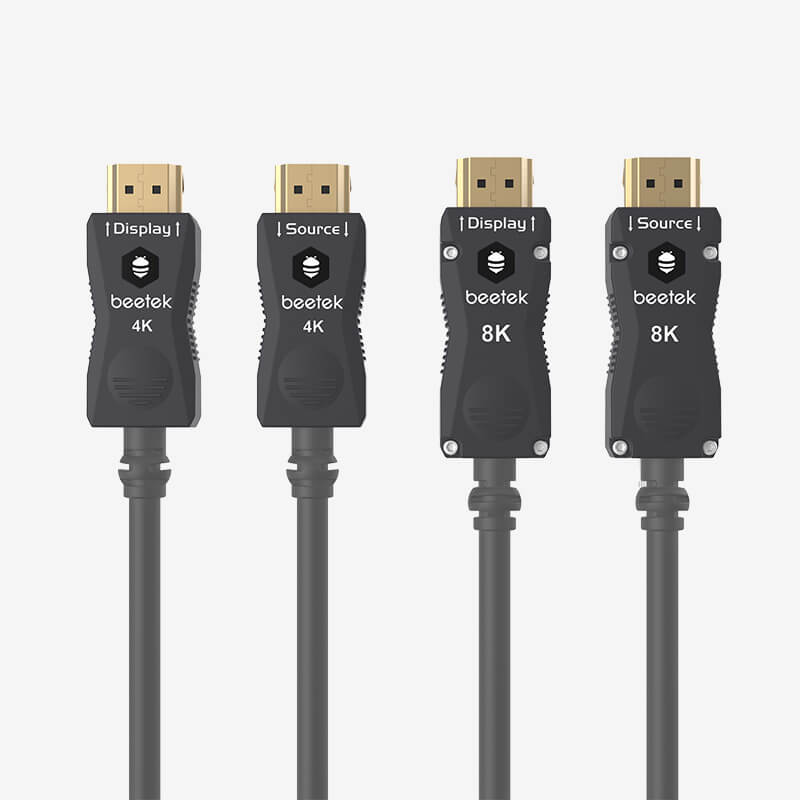

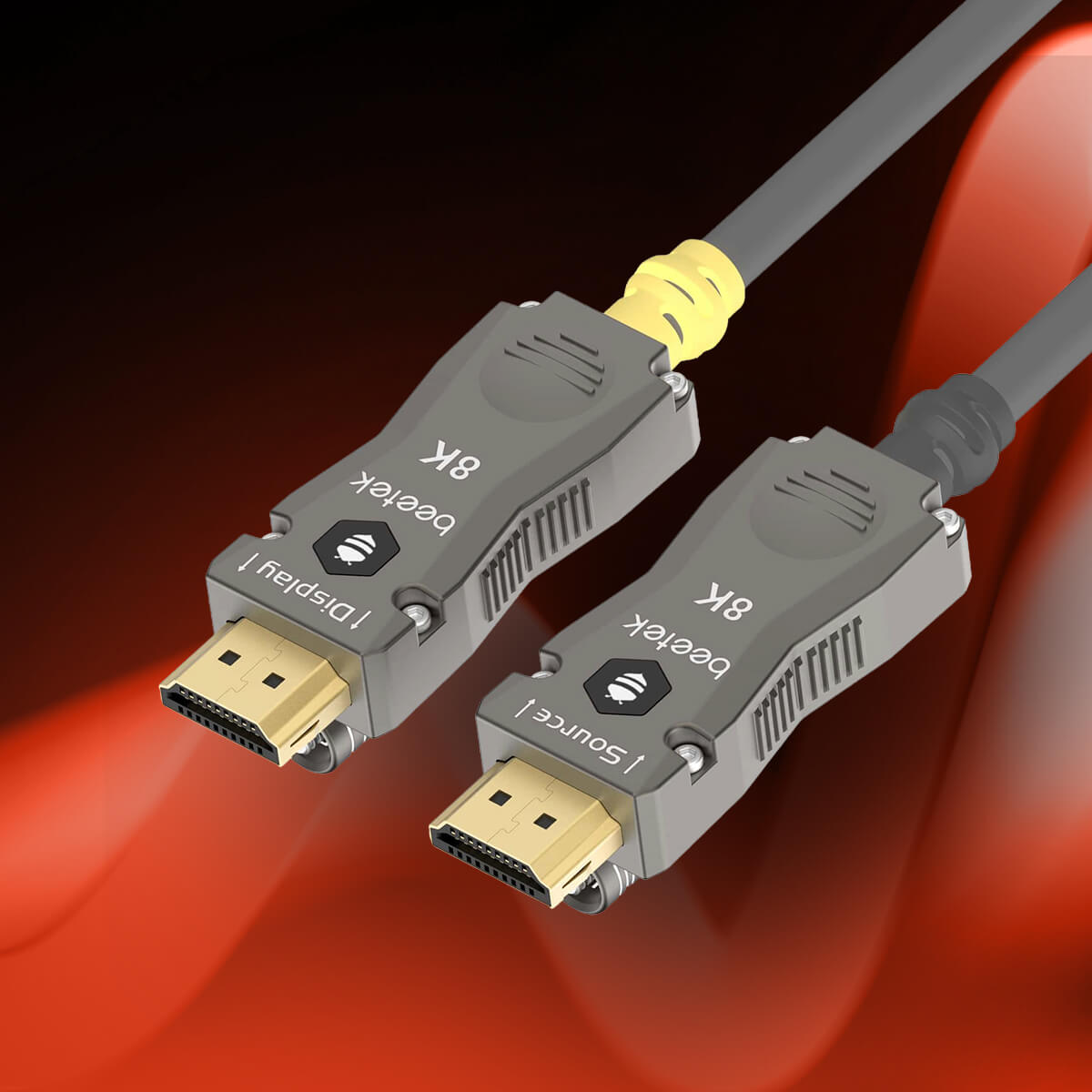

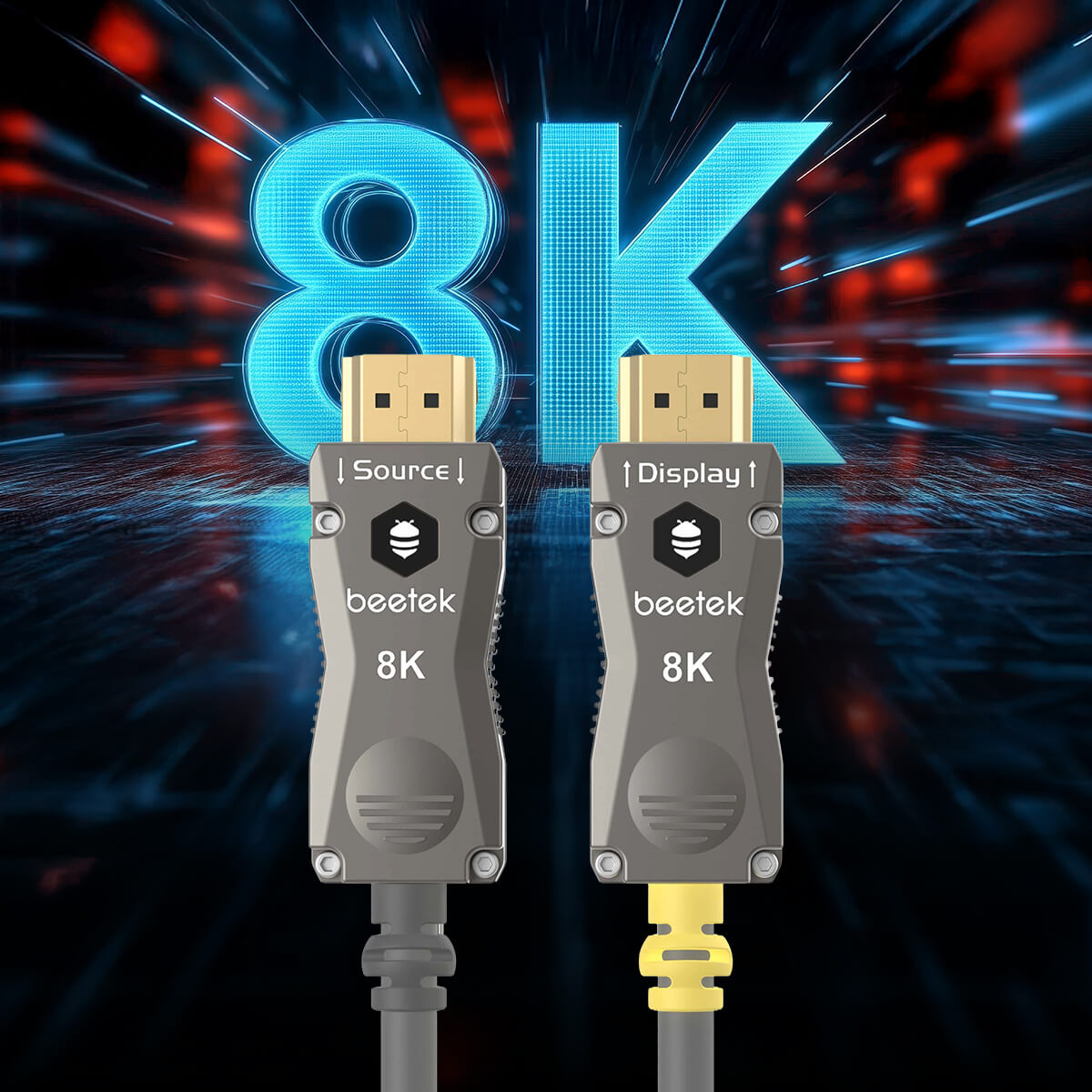

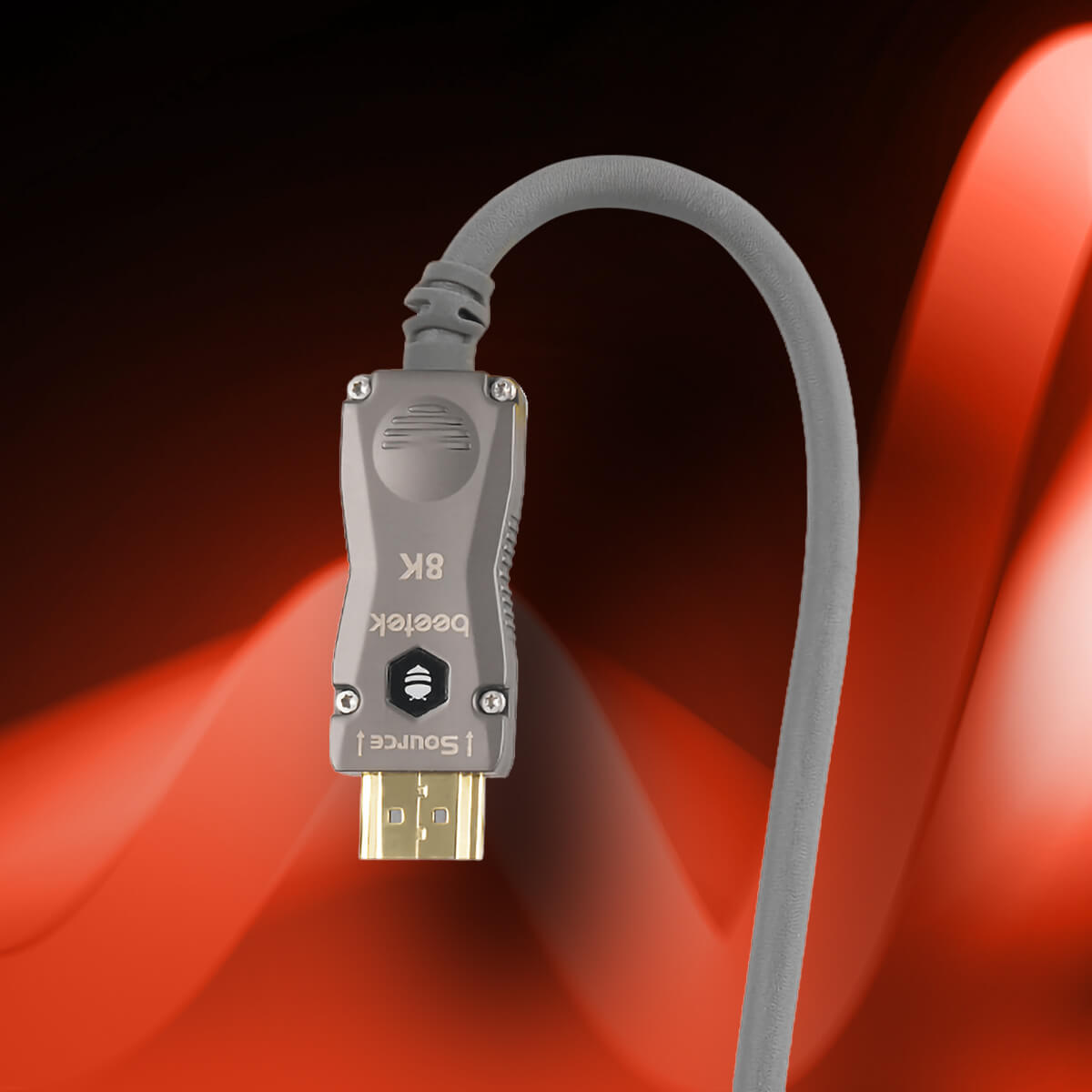

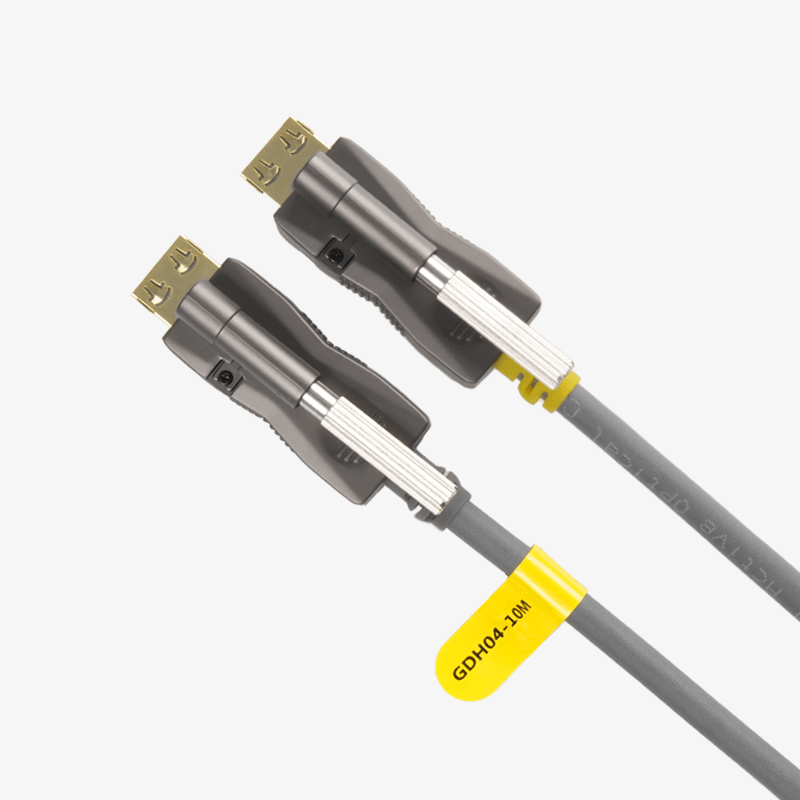

GDH04
8K HDMI 2.1 High-speed Active Optical Cables
- Plug and Play without external Power supply
- Supports resolution upto 8K

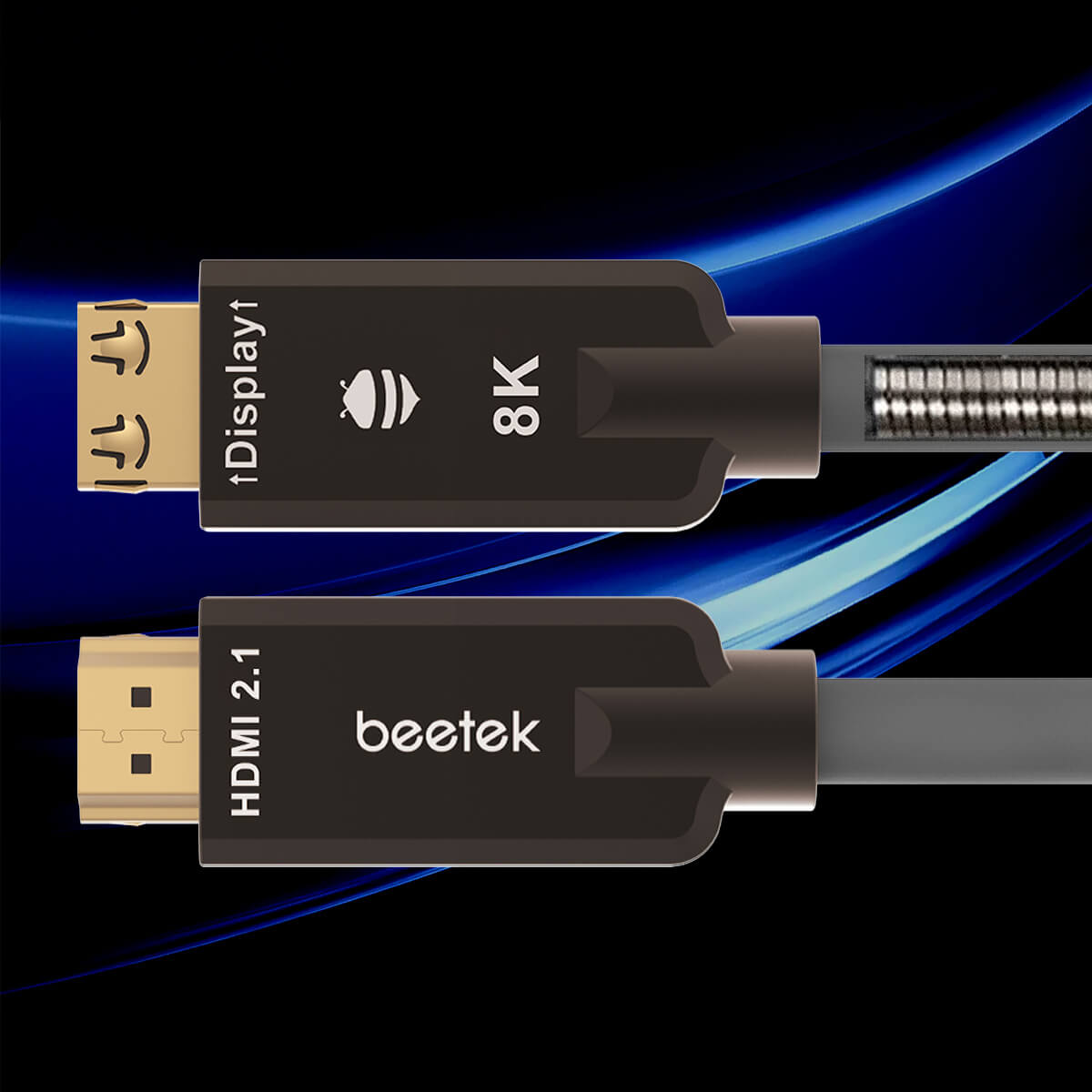

- Flame retardant, tough and wear reasistant TPU Sheating with internal stainless steel spiral armor piping.
- Supports HDCP 2.2, ARC, HDR AND CEC.
- Gold plating process of copper shell provides long-lasting and firm connection.
- Supports upto 100 metres and the length can be customized
The GDH04 Series is a cutting-edge HDMI 2.0 long-distance active optical cable by Beetek, designed to transmit lossless HDMI signals up to 7680×4320@60Hz over distances up to 100 meters without the need for external power. This plug-and-play solution blends optical fibers with copper to ensure maximum performance and signal integrity over long distances. Encased in flame retardant, tough, and wear-resistant TPU sheathing with internal stainless steel spiral armor piping, it offers exceptional tensile strength and compression resistance, making it an ideal choice for a variety of applications including rental and staging, fixed installations, and residential setups.

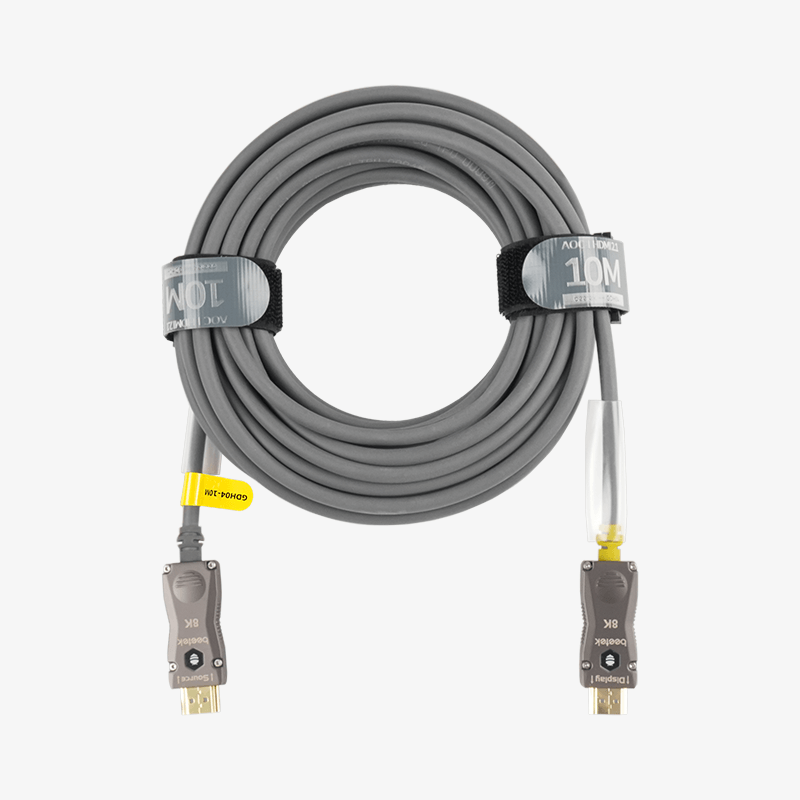

Available in various lengths up to 100 meters, this cable provides flexibility and reliability for your high-resolution HDMI connectivity needs.
Available in various lengths up to 100 meters, this cable provides flexibility and reliability for your high-resolution HDMI connectivity needs.
| Name | Specification |
| Signal Type | HDMI2.1 |
| Input Connector Type | HDMI TypeA Male |
| Output Connector Type | HDMI TypeA Male |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | HDMI TypeA Male；55.2*20*12mm |
| In-wall Installation | Not supported |

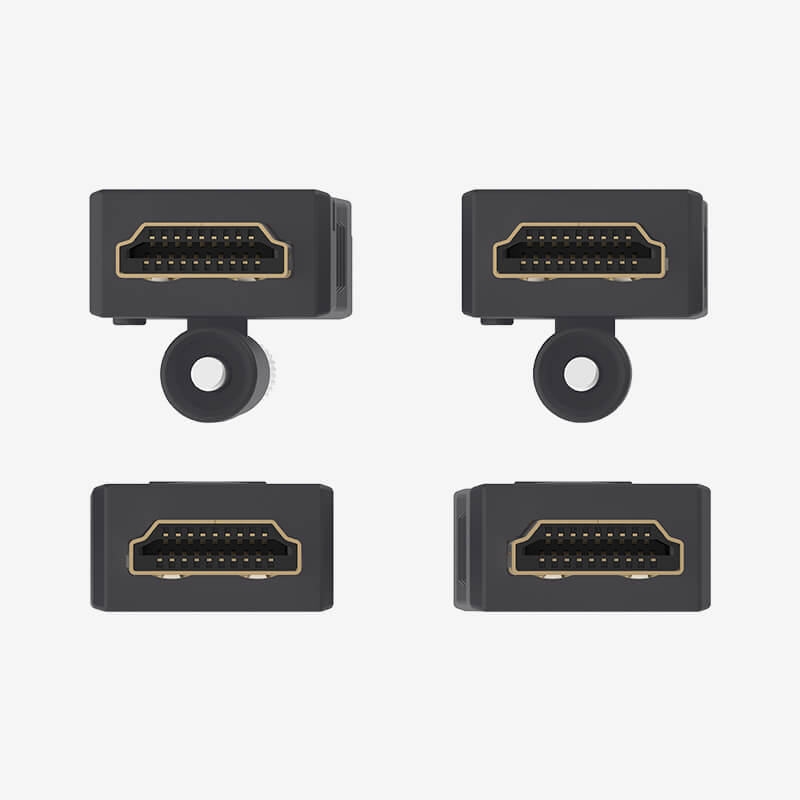

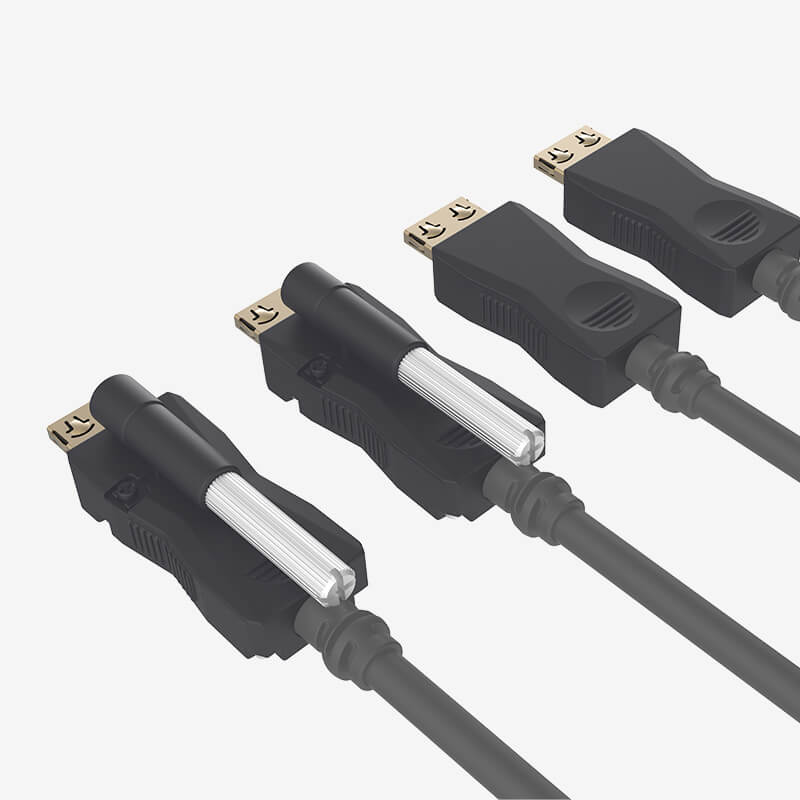

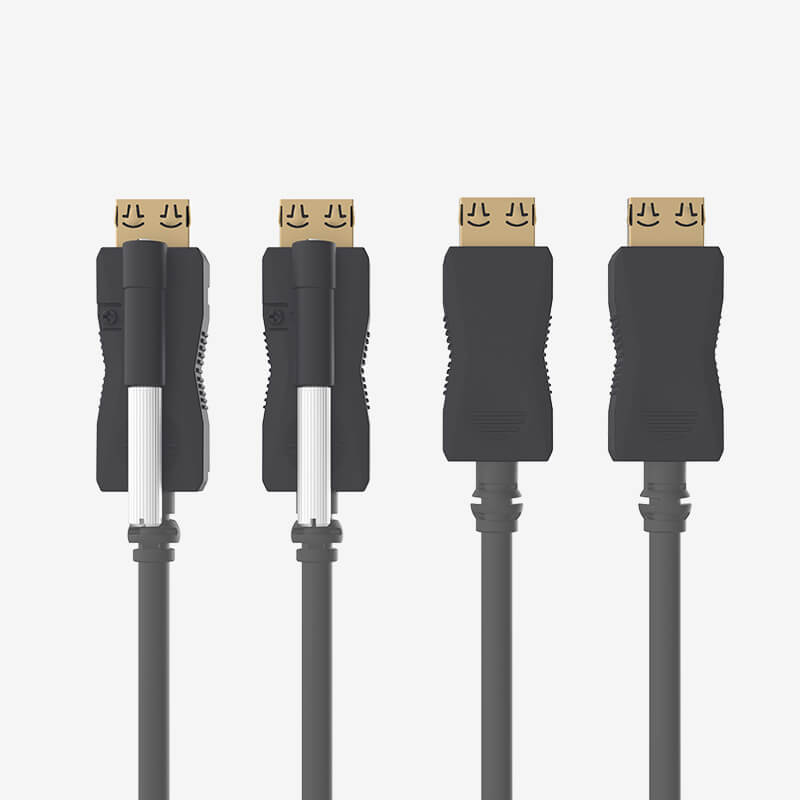

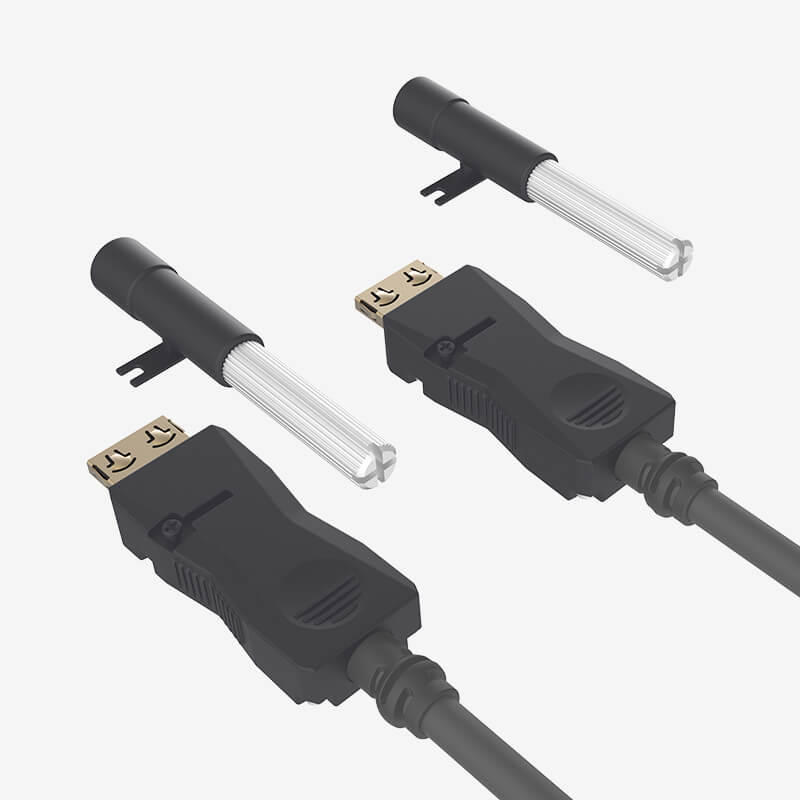

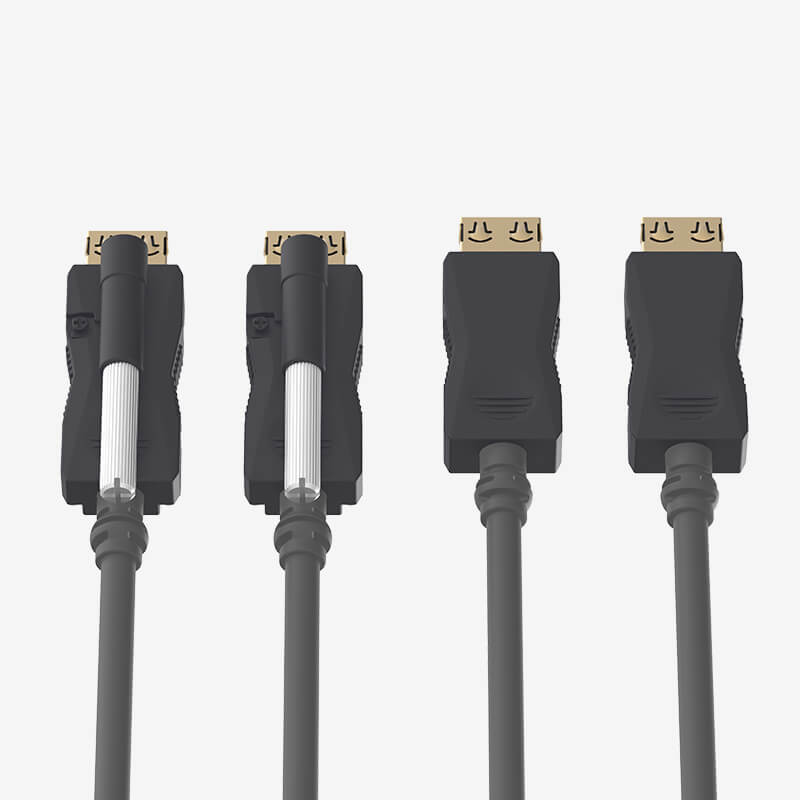

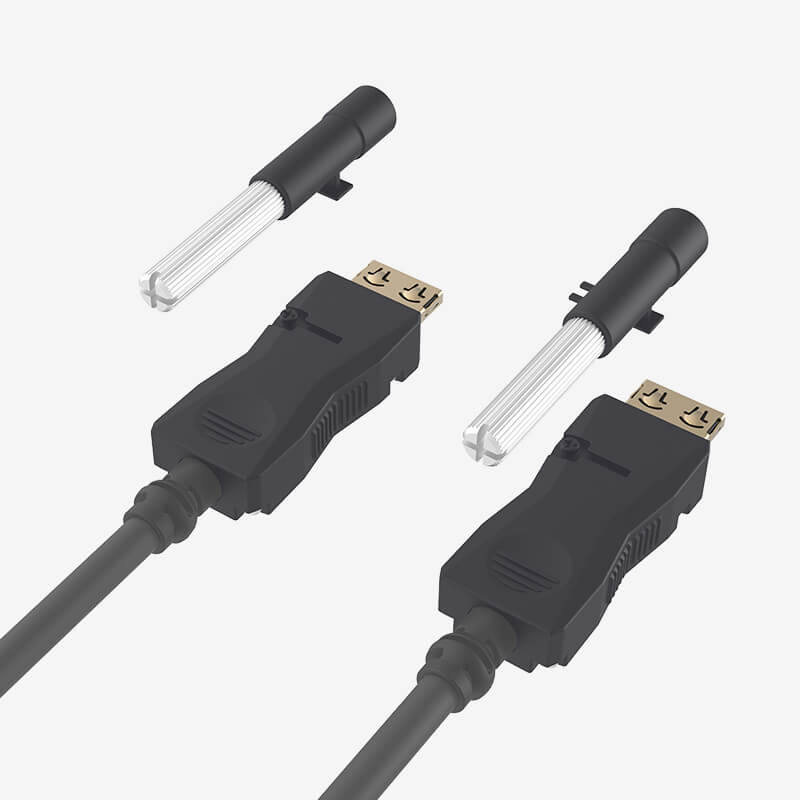

| Connector Fastening Type | Plug sure type HDMI connector provide |
| Plug-n-Play | Yes |

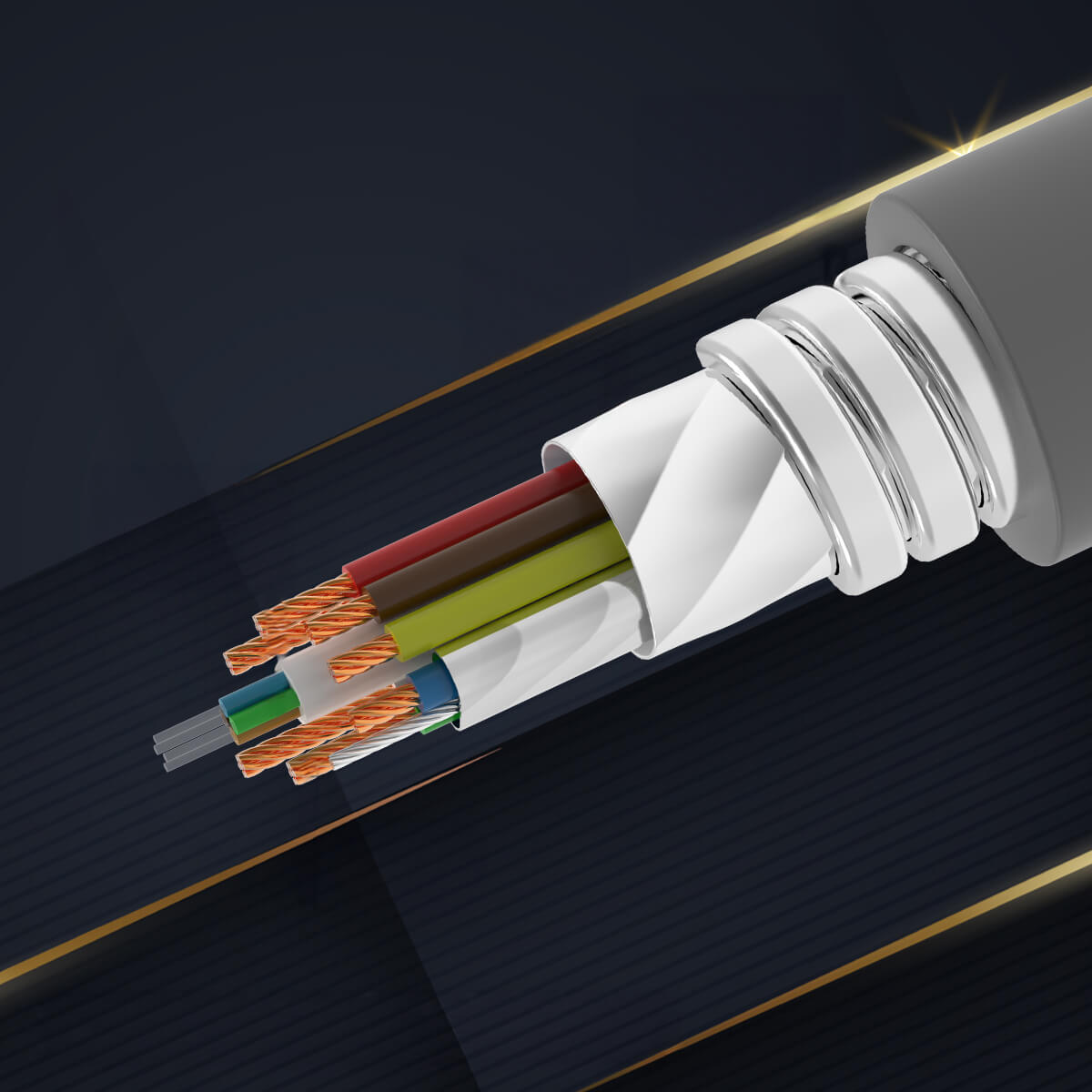

| Cable Structure | copper wire +aluminum foil + armored tube + outer jacket |
| Copper Wire Material | 7 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1 、26WAG*1、28AWG*3、30AWG*2， |
| Cable Diameter | 5.8mm |
| Spiral Tube Diameter | 2. 8mm ± 0. 1mm |
| Jacket Material | Matt Frosted TPU |
| Jacket Color | Dark grey |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP2.3 |
| HDR | Yes |
| Plenum-rated | Yes |
| XvYCC Color Space | Yes |
| Resolution | 7680x4320@30Hz |
| Clock Bandwidth | 1600MHz*3 |
| Transmission Rate | 48Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4 、YUV 4:4:4、YUV 4:2:2、YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N /10cm |
| Minimum Bending Radius | ≥10D(*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |
Key Features
Supports resolution upto 8K
Flame retardant, tough and wear reasistant TPU Sheating with internal stainless steel spiral armor piping.
Gold plating process of copper shell provides long-lasting and firm connection.
