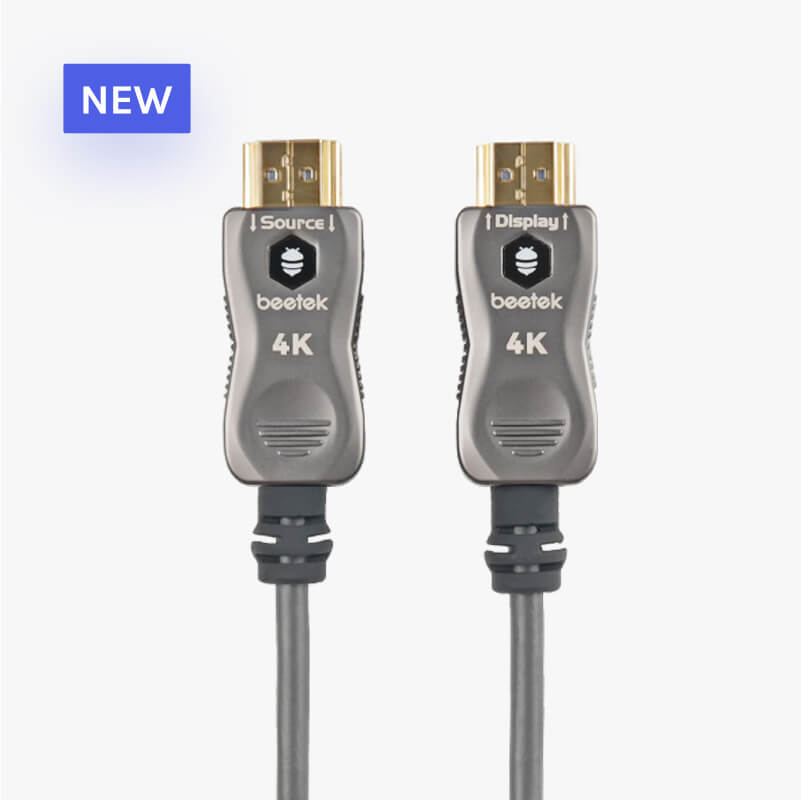

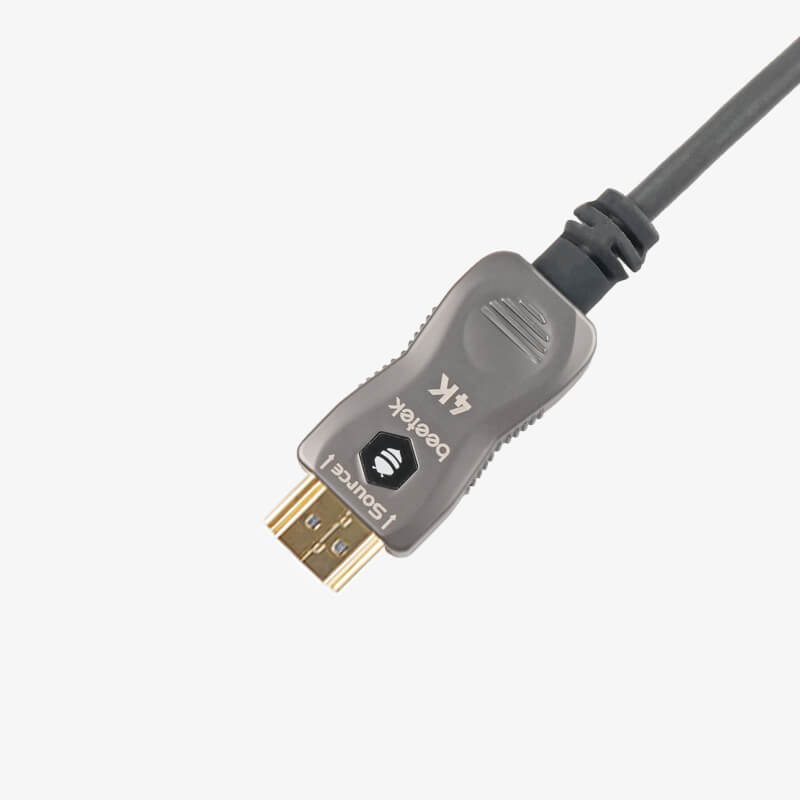

AHH-H20
HDMI 2.0 Active Optical Cable
- Long-Distance Transmission: Supports HDMI 2.0 signal extension up to 100 meters from source to display.

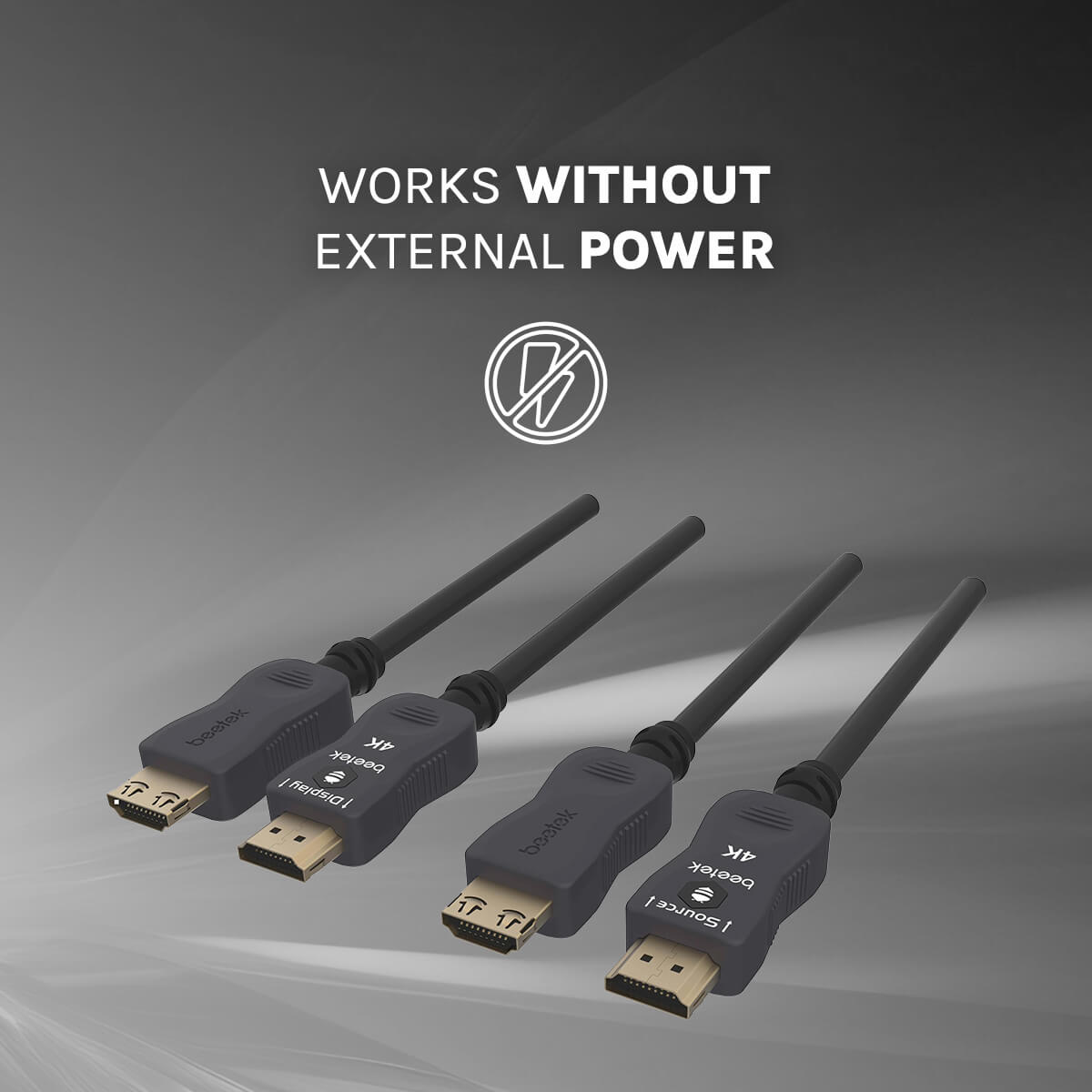

- Plug and Play: Built-in advanced EQ technology eliminates the need for external power.
- Zero Latency: Provides uncompressed video transmission with no delay, even at maximum distance.

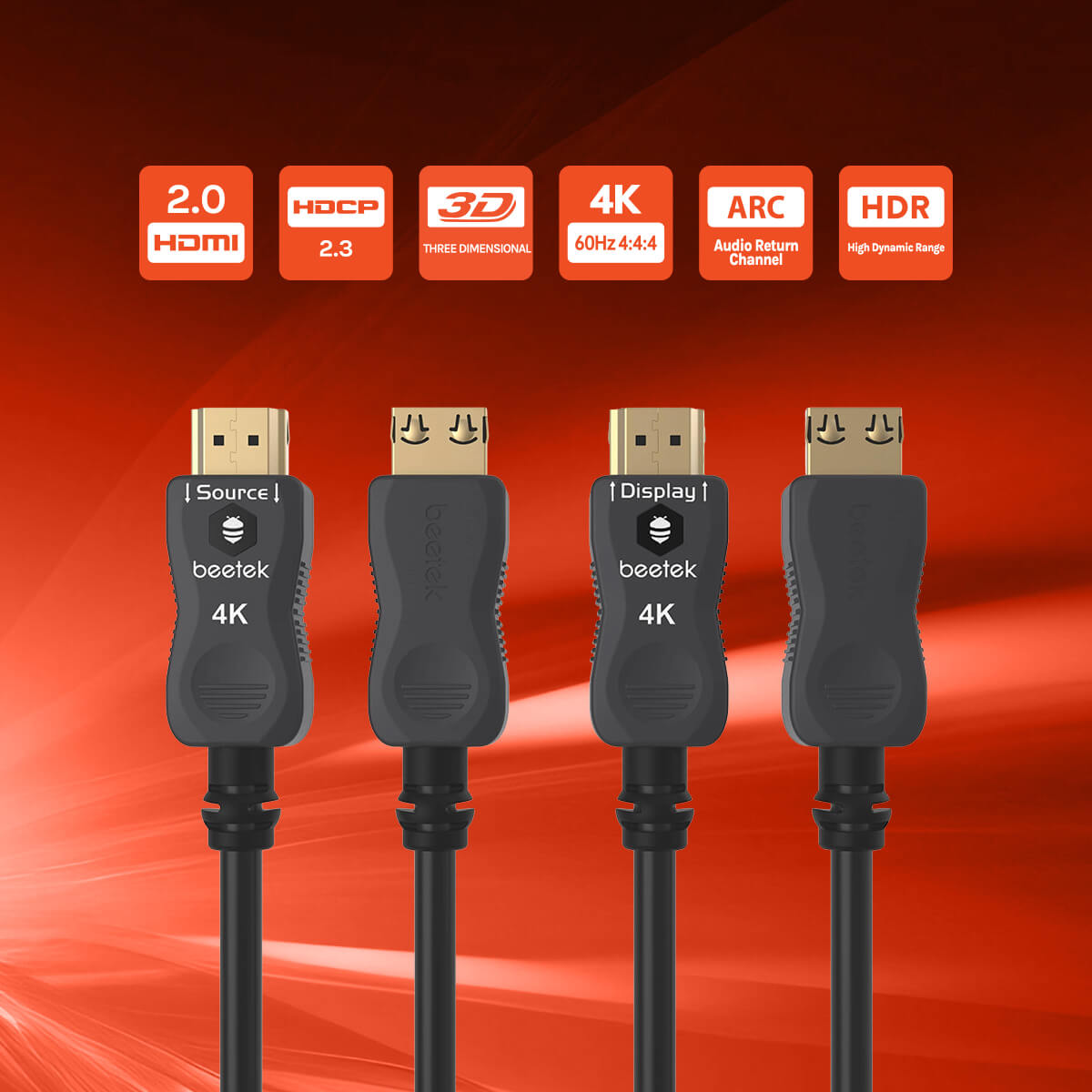

- Full HDMI 2.0 Support: Compatible with HDR, HDCP, ARC, CEC, and 3D features.
- True 4K Resolution: Supports bandwidths up to 18 Gbps for 3840×2160 @ 60Hz (4:4:4) video.
- Versatile Applications: Ideal for fixed installations, residential AV setups, and more.
- "Plug-sure" type HDMI connector provides a reliable connection.
The AHH-H20 Series HDMI 2.0 Active Optical Cable is a high-performance solution for long-distance signal transmission, combining optical fiber and copper within a single cable to deliver uncompressed, delay-free 4K video at resolutions up to 3840×2160@60Hz (4:4:4). Designed to function just like a standard HDMI cable, it is fully plug-and-play and requires no external power. Built with a durable PVC outer sheath, zinc alloy connector housings, and gold-plated copper shell connectors, it ensures long-lasting performance and signal integrity. The cable features multi-mode OM3 optical fiber and multi-strand tinned copper wire for optimal transmission quality. Available in various lengths up to 100 meters, it is ideal for fixed installations, residential AV setups, home theaters, conference rooms, and other demanding applications.
| Name | Specification |
| Signal Type | HDMI2.0 |

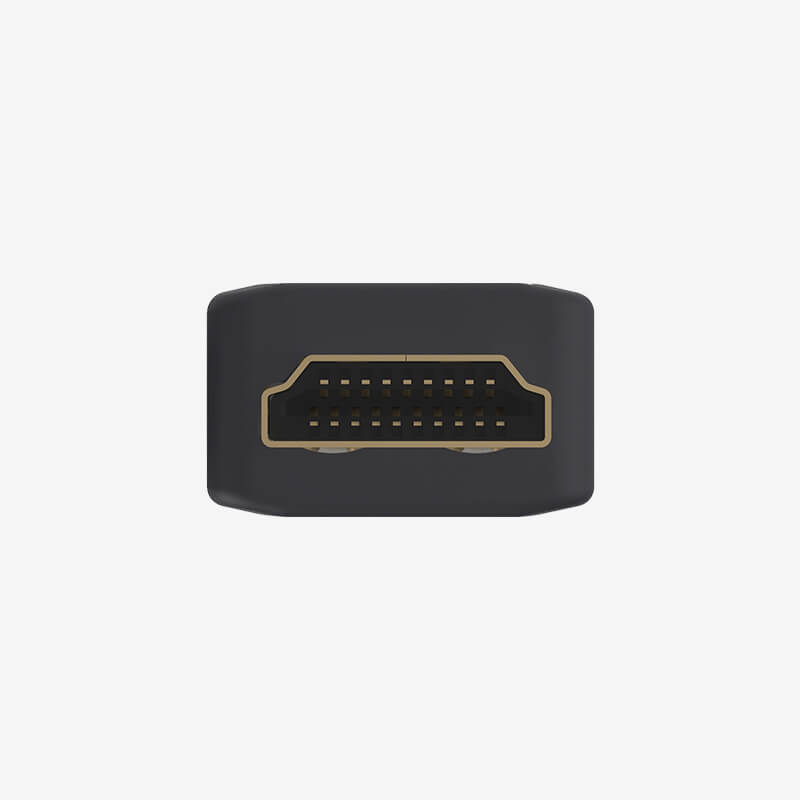

| Input Connector Type | HDMI Type A Male |
| Output Connector Type | HDMI Type A Male |
| Connector Gold Plating | Shell: 3μm; Pins: 15 μm |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | 64.4 * 19.7 * 11mm |
| In-wall Installation | Not supported |
| Power from connector (TX) | Yes |
| Power | 250mW |
| Plug-n-Play | Yes |
| Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + outer jacket |
| Fiber Type | Multi-mode OM3 * 4 |
| Fiber Wavelength | 850~1300nm |
| Copper Wire Material | Multi-strand tinned copper wire |
| Copper Wire Specification | 24AWG*1, 26AWG*1, 28AWG*3, 30AWG*2 |
| Cable Diameter | 4.5mm |
| Jacket Material | 80P PVC |
| Jacket Color | Black |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes(HDCP2.3) |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module | 4*6G Multi-mode optical module |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 3840*2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N /10cm |
| Minimum Bending Radius | ≥10D (*D is the outer diameter of the cable) |
| Operating Temperature | -30℃~80℃ |
Key Features
Full-featured HDMI 2.0 interface, support HDR, HDCP, ARC, CEC and 3D
Plug and play like a normal cable as external power is not necessary.

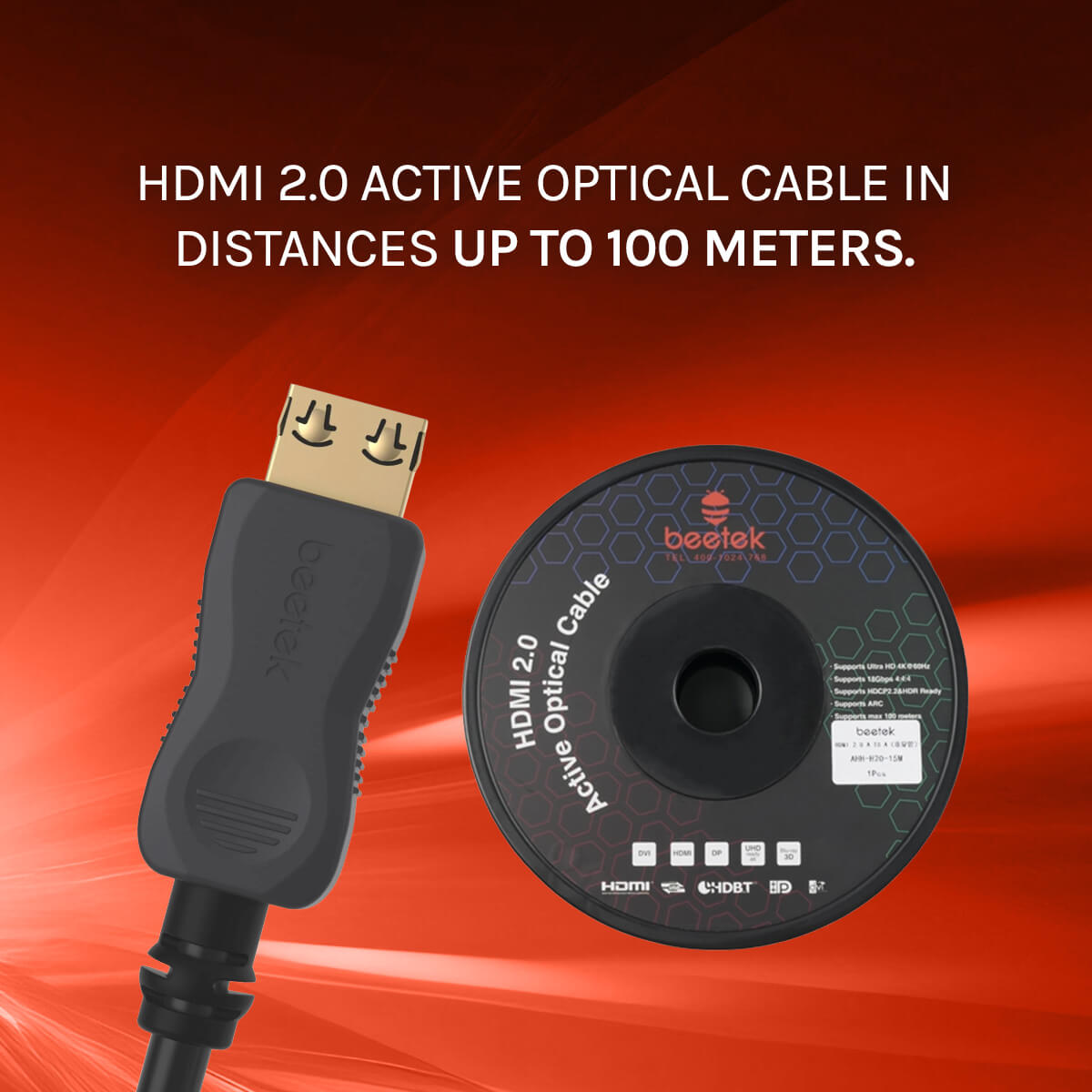

HDMI 2.0 active optical cable in distances up to 100 meters.
