W101 Series

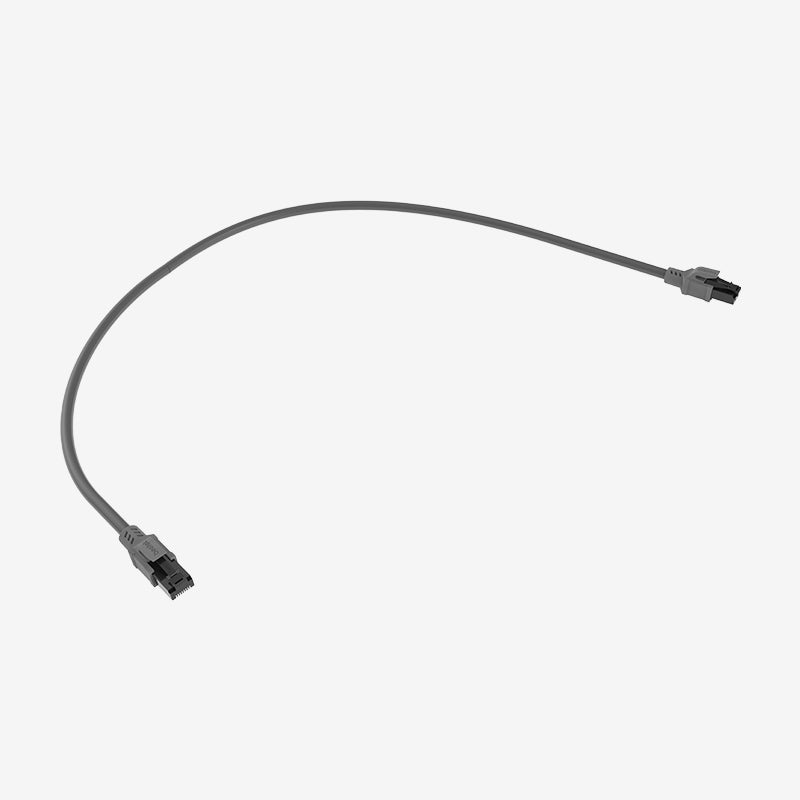

CAT6 UTP Cable
- Various lengths up to 100M make it suitable for connecting LED panels, and LED Sending and Receiving cards
- 50μm gold-plated pins and break-resistant Nylon crystal heads allow prolonged repetitive use
- Patented PVC strain-relief boots increases stability between connector and cable
- Flexible and durable 8*7 multi-strand 24AWG oxygen-free copper wire
- Customize your company info label using the provided transparent heat-shrink tubes
Beetek W101 CAT6 cable is a UTP Cable that supports a physical bandwidth of 550Mhz. Innovative technologies such as 50 gold-plated pins, Nylon crystal heads and PVC strain-relief boots make this one of the most sought-after and trusted CAT cables on market.
The supple yet resilient fluorescent grey double-layer outer jacket resists twisting and breaking due to repeated usage, making it highly suitable for the Rental and Live Events markets.
The supple yet resilient fluorescent grey double-layer outer jacket resists twisting and breaking due to repeated usage, making it highly suitable for the Rental and Live Events markets.
| Name | Specification |
| Product Name | CAT6 UTP Network Cable（Fluorescent gray color） |
| Model | W101-xxM |
| Brand | Beetek |
| Connector Type | RJ45 UTP |
| Cable Type | CAT6 UTP |
| Environmental Information | RoHS 2.0 Compliant |
| Size | 45.7*17.7*13.8mm |
| Components | Cable ＋RJ45 Connector ＋Boot |
| RJ45 Connector | One-piece single-row crystal head (nylon) |
| Gold Plate Thickness | 50U |
| Latch Tab | Unbreakable Latch Tab |
| Boot | 50P Molded PVC |
| Structure | Conductor + Insulation layer + Jacket |
| Conductor Gauge | 24AWG |
| Conductor Size | 7/0.20±0.008mm*8 |
| Conductor Material | Multiple strand oxygen free copper cable |
| Insulation Material | HDPE |
| Insulation Outer Diameter | 0.98±0.05mm |
| Insulation Average Thickness | 0.16mm |
| Insulation Minimum Thickness | 0.14mm |
| Insulation Color Code | 1P: Bule & White/Blue; 2P: Orange & White/Orange; 3P: Green & White/Green; 4P: Brown & White/Brown |
| Core Wire Direction | s |
| Core Wire Lay Length | <30mm |
| Cable Direction | s |
| Cable Lay Length | ≦120mm |
| Outer Jacket Material | Double-layer PVC |
| Jacket Outer Diameter | 6.5±0.20mm |
| Jacket Average Thickness | 0.8mm |
| Jacket Minimum Thickness | 0.7mm |
| Cable Color | Fluorescent gray |
| Cable Meter Mark | Yellow water proof |
| Storage Velcro | P type storage Velcro: 20*200mm for 10m or longer |
| Custom Label | 10m or longer: heat shrinkable tubes at each end for custom labels |
| Conductor Resistance | ≤9.42Ω/100M at 20℃ |
| Insulation Resistance | Min.5000mega ohms-km at 20℃ |
| Withstand Voltage | 1000V DC/1min; No Breakdown |
| Delay Difference | ≤45ns |
| Frequency | 250Mhz |
| Impedance | 100Ω±15 |
| Testing | PASS FLUKE |
| Insulation Elongation | ≥300% |
| Insulation Tensile | ≥16 Mpa |
| Jacket Elongation | ≥100% |
| Jacket Tensile | ≥12.5 Mpa |
| Operating Temperature | ‘-20~60℃ |
| Operating Voltage | 30V |
Key Features

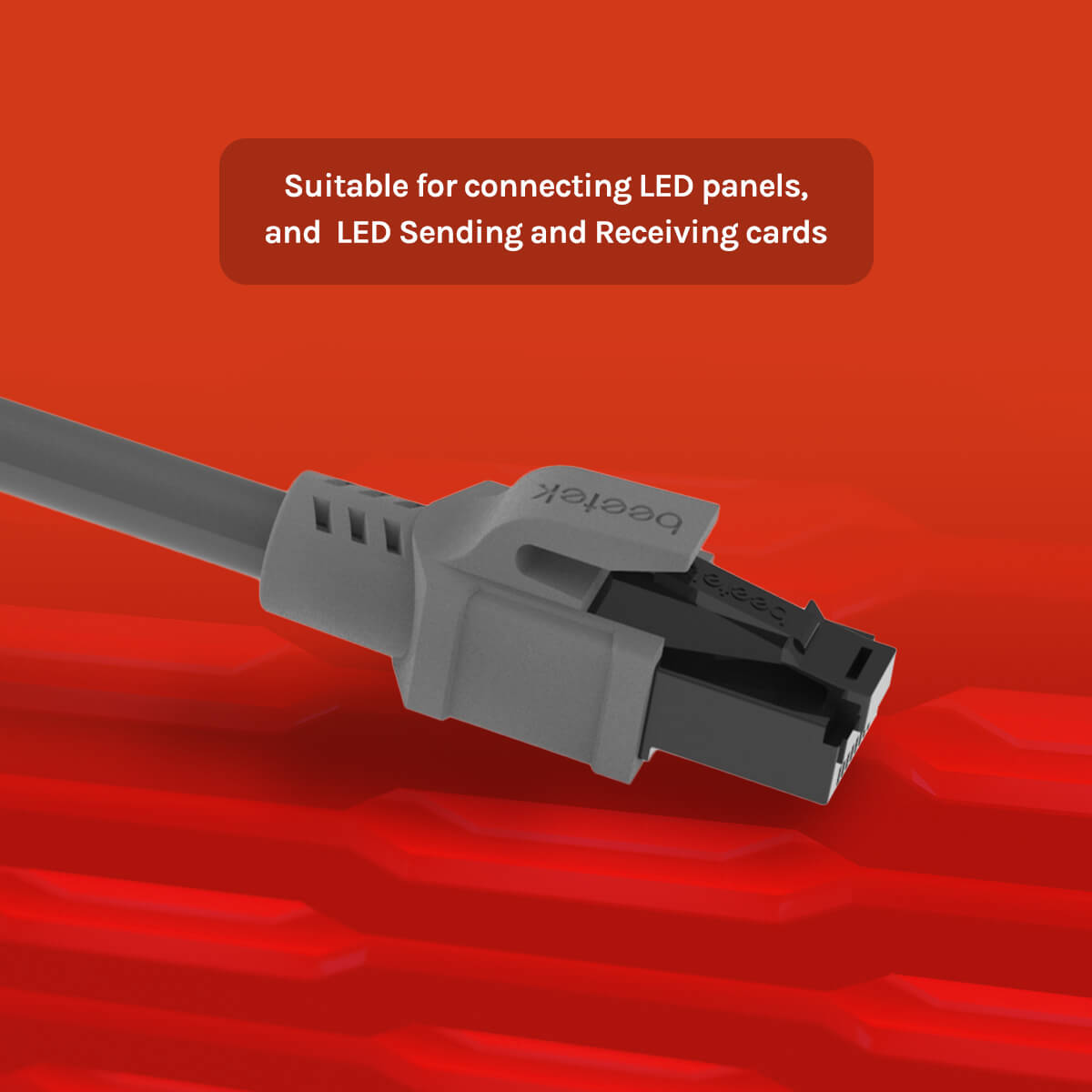

Suitable for connecting LED panels, and LED Sending and Receiving cards

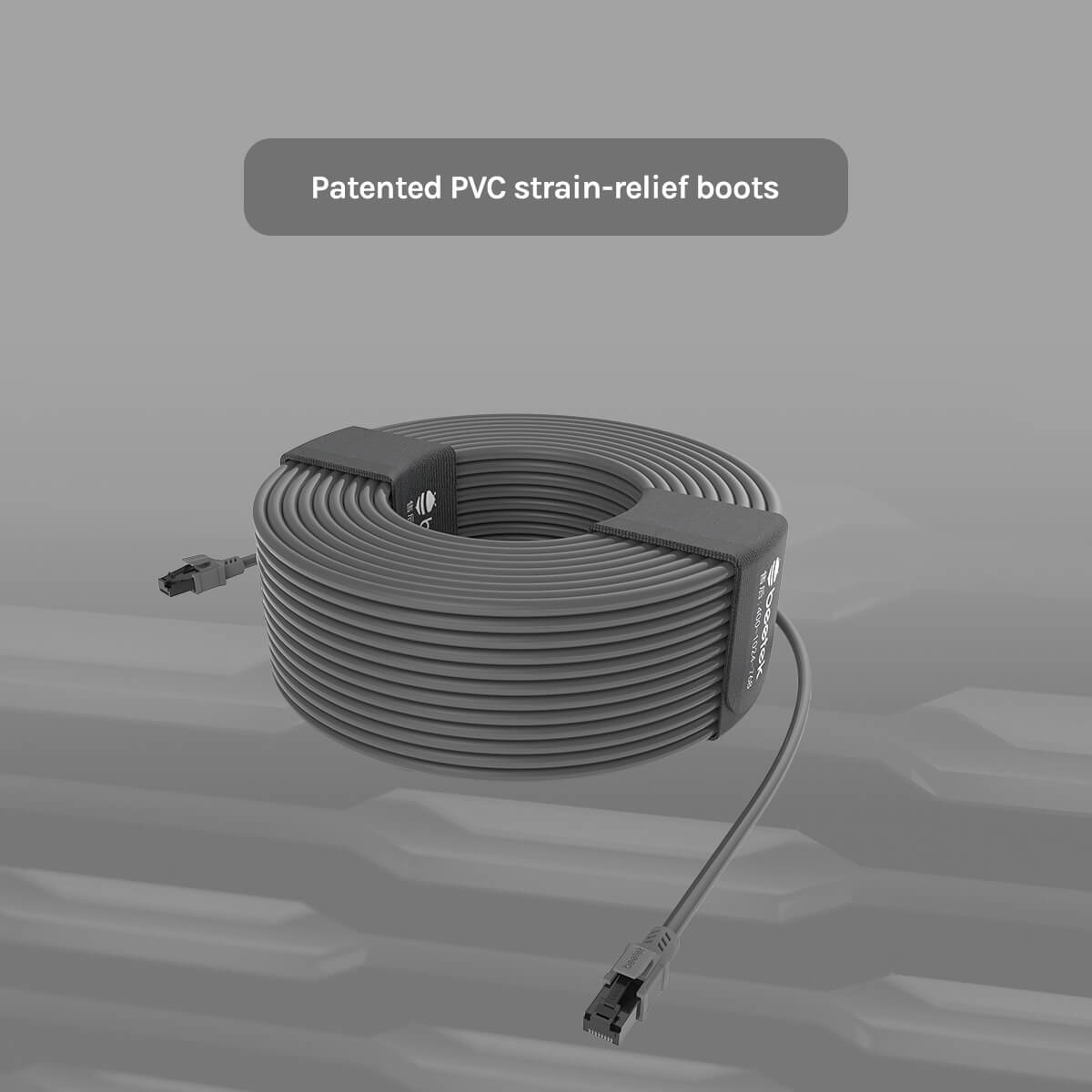

Patented PVC strain-relief boots increases stability between connector and cable

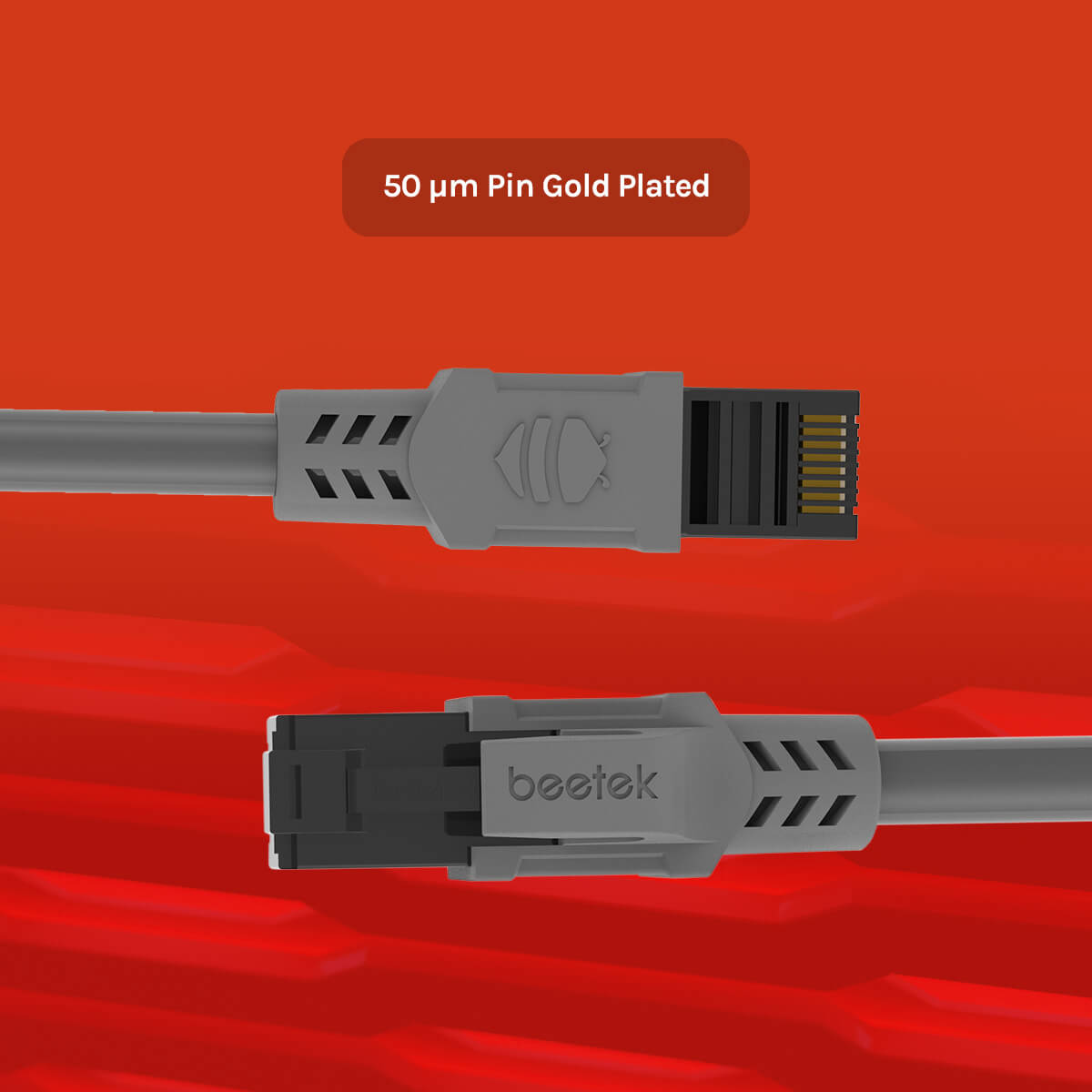

50μm gold-plated pins and break-resistant Nylon crystal heads allow prolonged repetitive use
