GDH03
Armored HDMI 2.0 Active Optical Cable

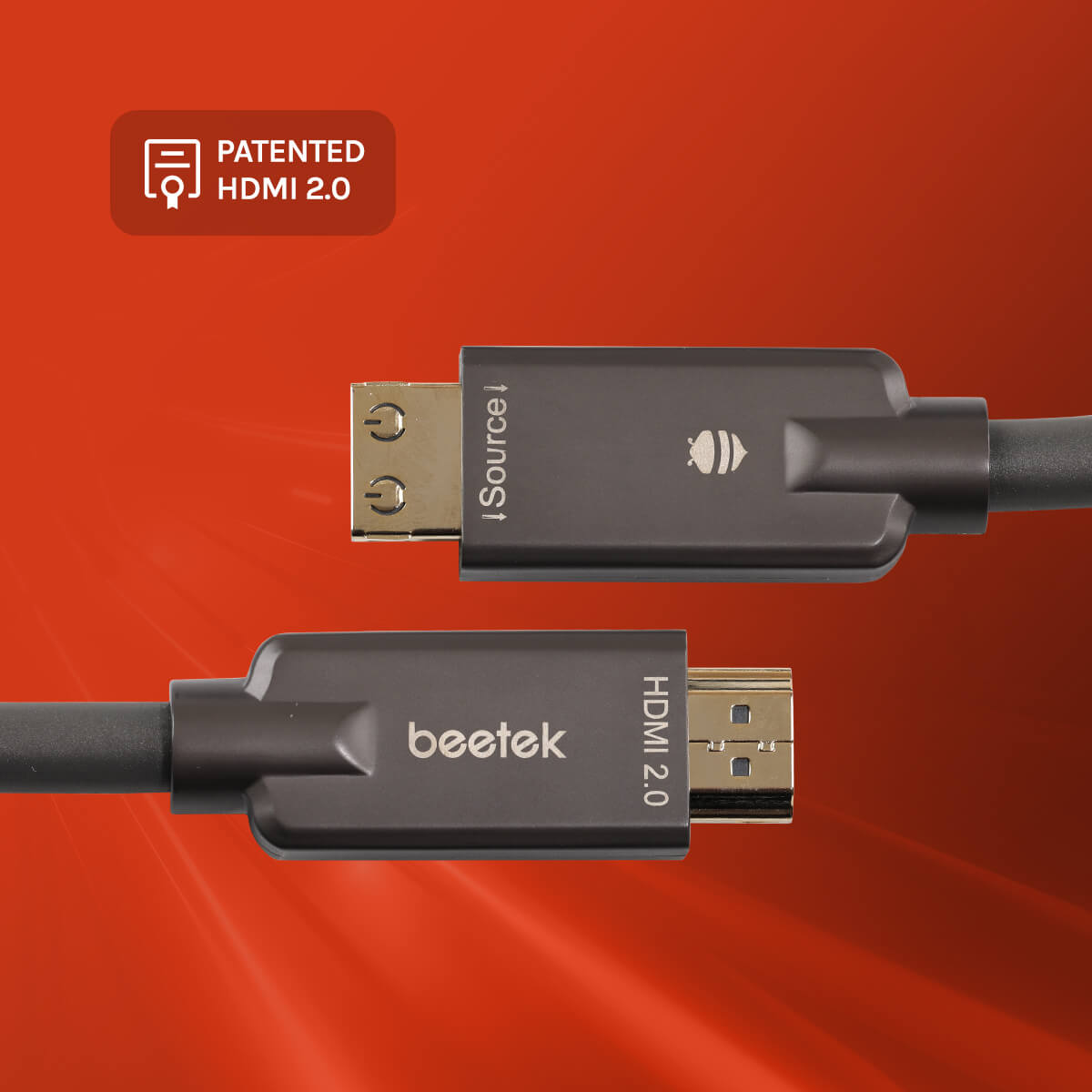

- Patented HDMI 2.0 Connector delivers the signal with no delay and no compression
- Supports resolution upto 4K@60 4:4:4
- The double protection of TPU outer sheath and spiral steel pipe structure doubles the service life of the product
- Add your company info label using the provided transparent heat-shrink tubes

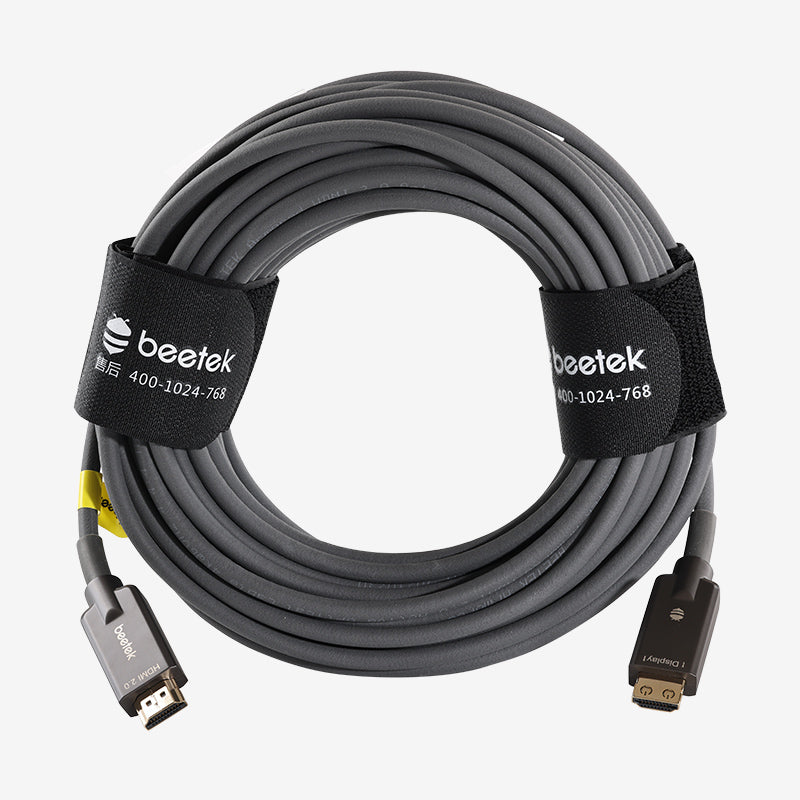

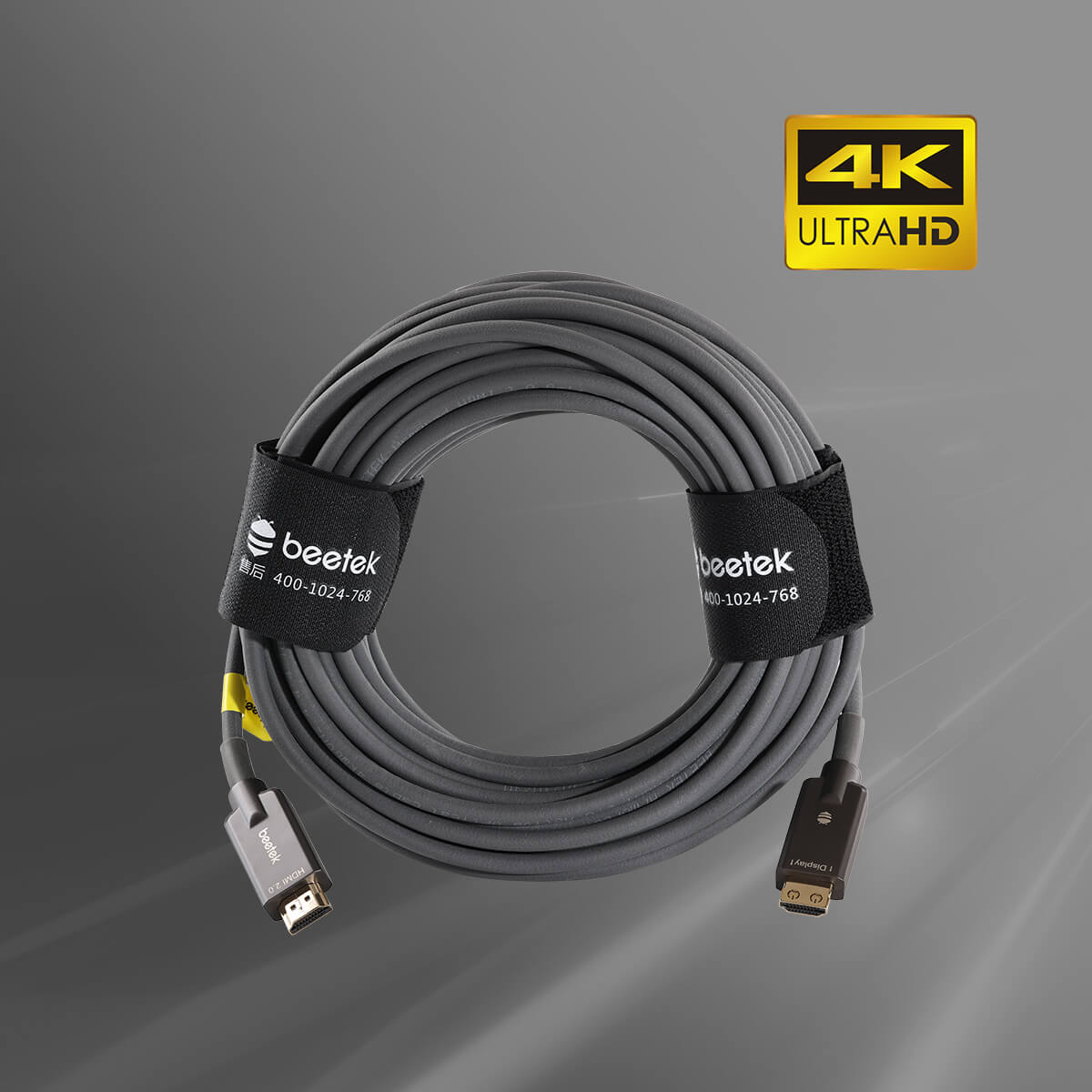

Beetek Armored HDMI 2.0 Active Optical cable are designed for long distance signal transmission of HDMI Video and audio signals. The cable supports resolutions 4K@60 4:4:4 at 18 Gbps. It follows the HDMI 2.0 Protocol and supports HDCP 2.2. The cable is provided with high strength adhsive ties to make the cable storage easier. The cable is suitable for rental & staging, live events, residential and surveillance application
| Name | Specification |
| Product Name | HDMI 2.0 TPU Armored Active Optical Cable |
| Model | GDH03-xxM |
| Brand | Beetek |
| Signal Type | HDMI 2.0 |

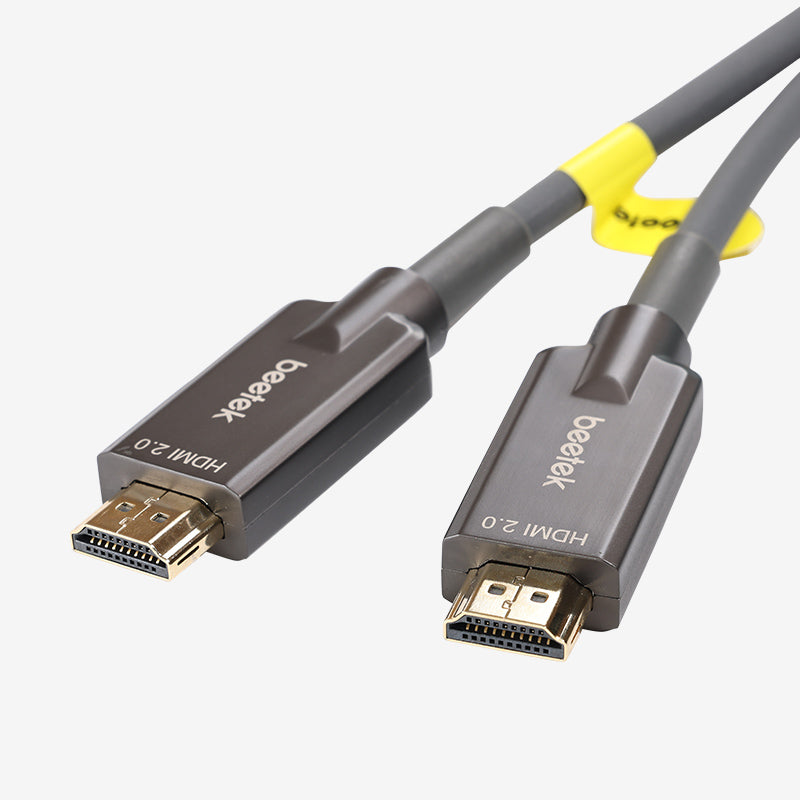

| Input Connector Type | HDMI Type A Male |
| Output Connector Type | HDMI Type A Male |
| Connector Fastening Type | "C-LOCK" type HDMI connector provide |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Power from connector (TX) | Not supported |
| Cable power supply (RX) | Not supported |
| Power | 250mW |
| Connector Dimensions | HDMI Type A Male, 55.2 * 20 * 12mm |
| Plug-n-Play | Yes |
| In-wall Installation | Not supported |
| Fiber Type | Multi-mode OM3-300 * 4 |
| Fiber Wavelength | 850 - 1300nm |
| Copper Wire Material | 7 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1, 26AWG*1, 28AWG*3, 30AWG*2 |
| Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + armored tube + outer jacket |
| Cable Diameter | 5.8mm |
| Jacket Color | Black |
| Jacket Material | Matt Frosted TPU |
| Spiral Tube Diameter | 2.88mm ± 0.1mm |
| Spiral Tube Color | Silver |
| Spiral Tube Material | Stainless steel |
| Packing Dimensions | Short-length 10 - 40M：240*230*75mm |
| Medium-length 50 - 60M：290*280*75mm | |
| Long-length 70 - 100M：340*330*75mm | |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP 2.3 |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Optical Module | 4*10G Multi-mode optical |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 3840x2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤700N |
| Compressive Strength | 2000N /10cm |
| Minimum Bending Radius | Dynamic > 10D; Static > 20D (*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |

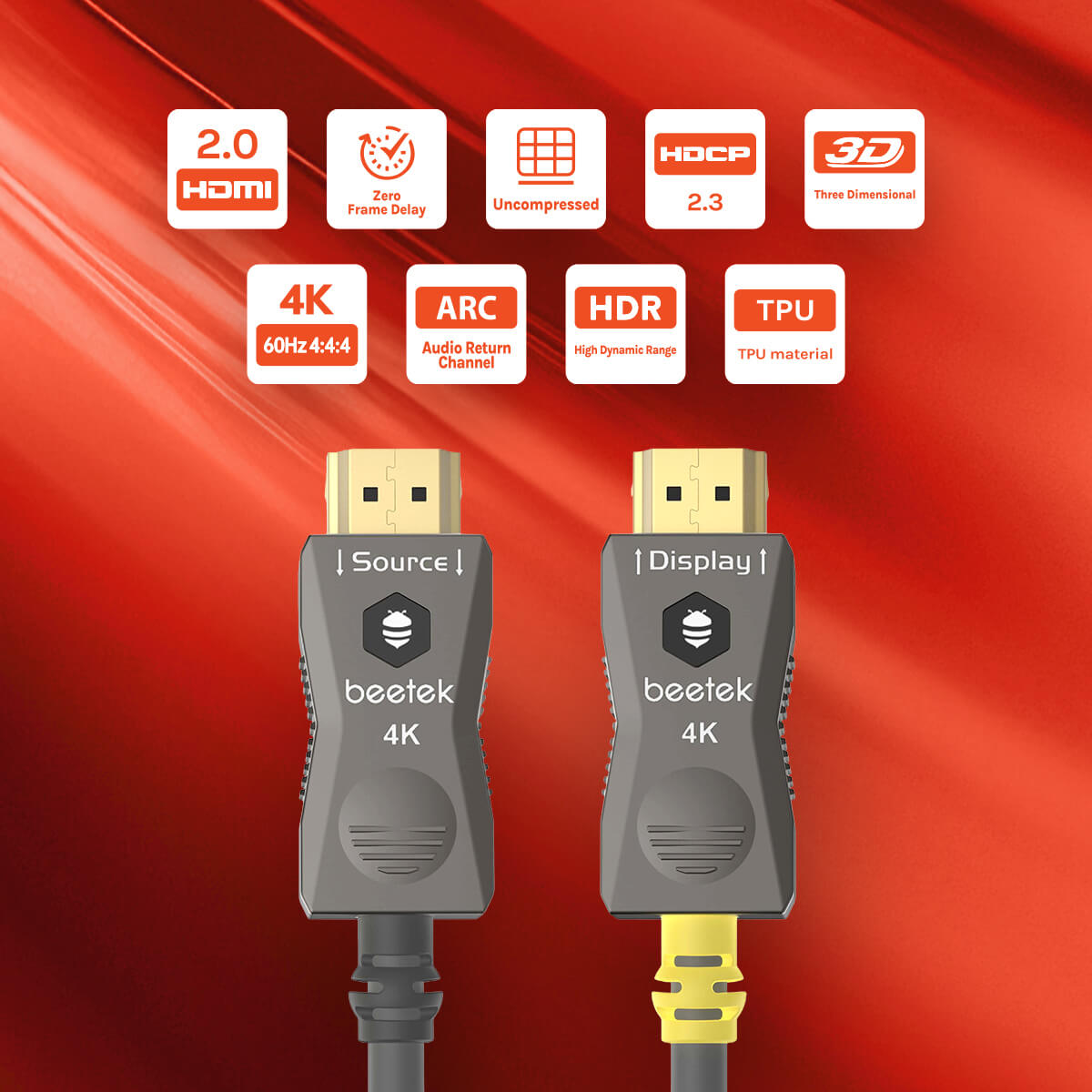

Key Features
Patented HDMI 2.0 Connector delivers the signal with no delay and no compression
Supports resolution upto 4K@60 4:4:4

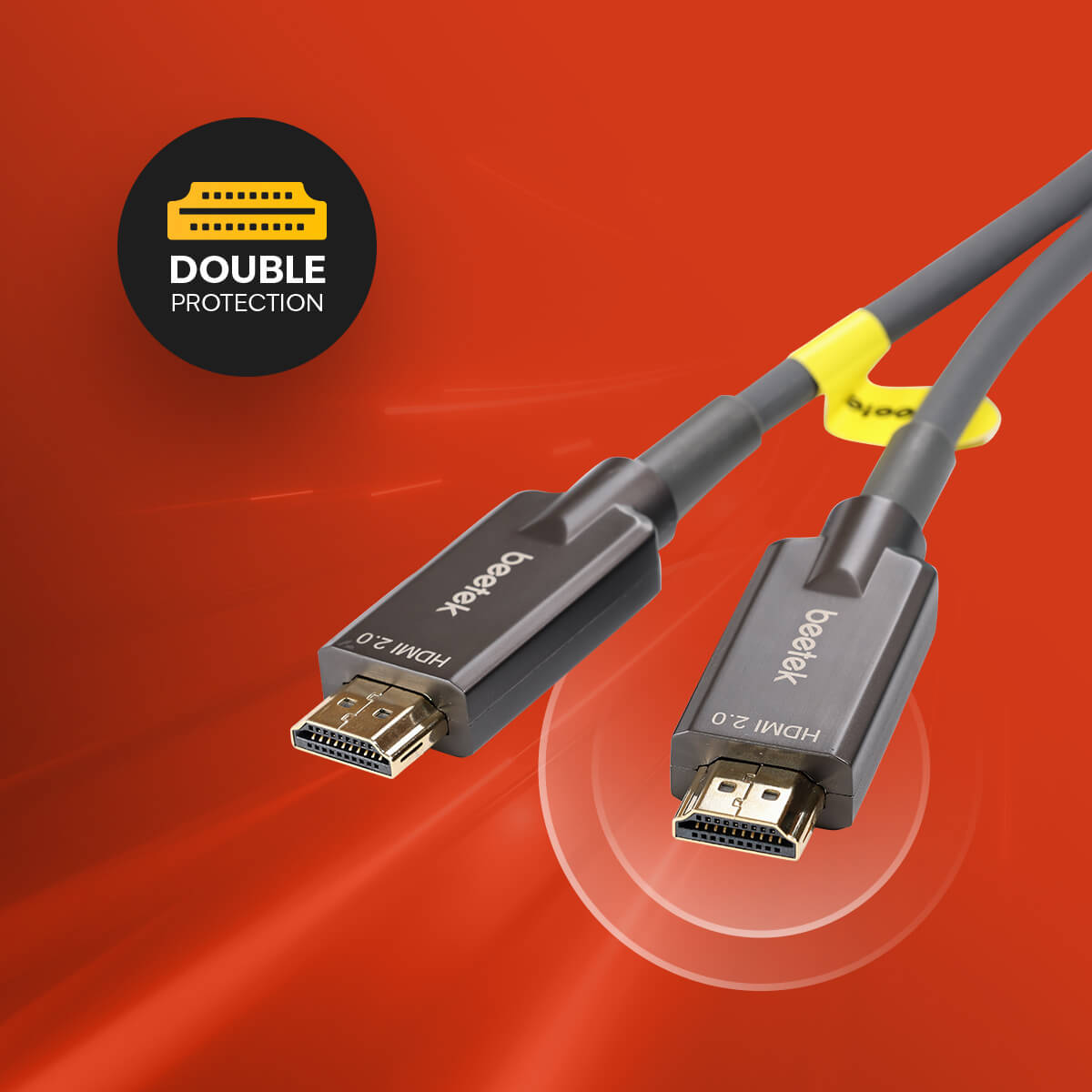

The double protection of TPU outer sheath and spiral steel pipe structure
