AUSBCH 4K SERIES

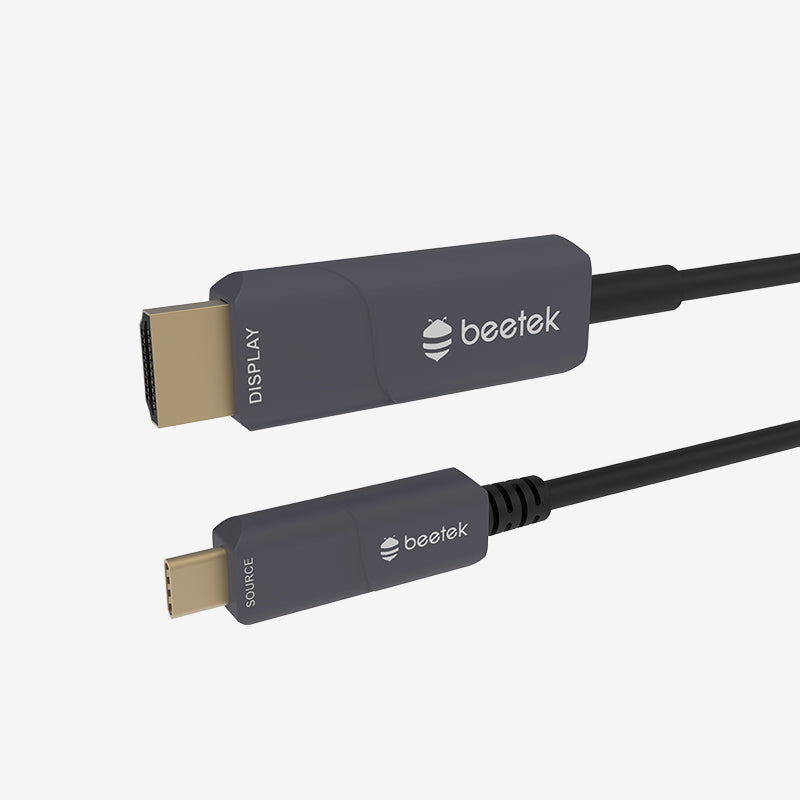

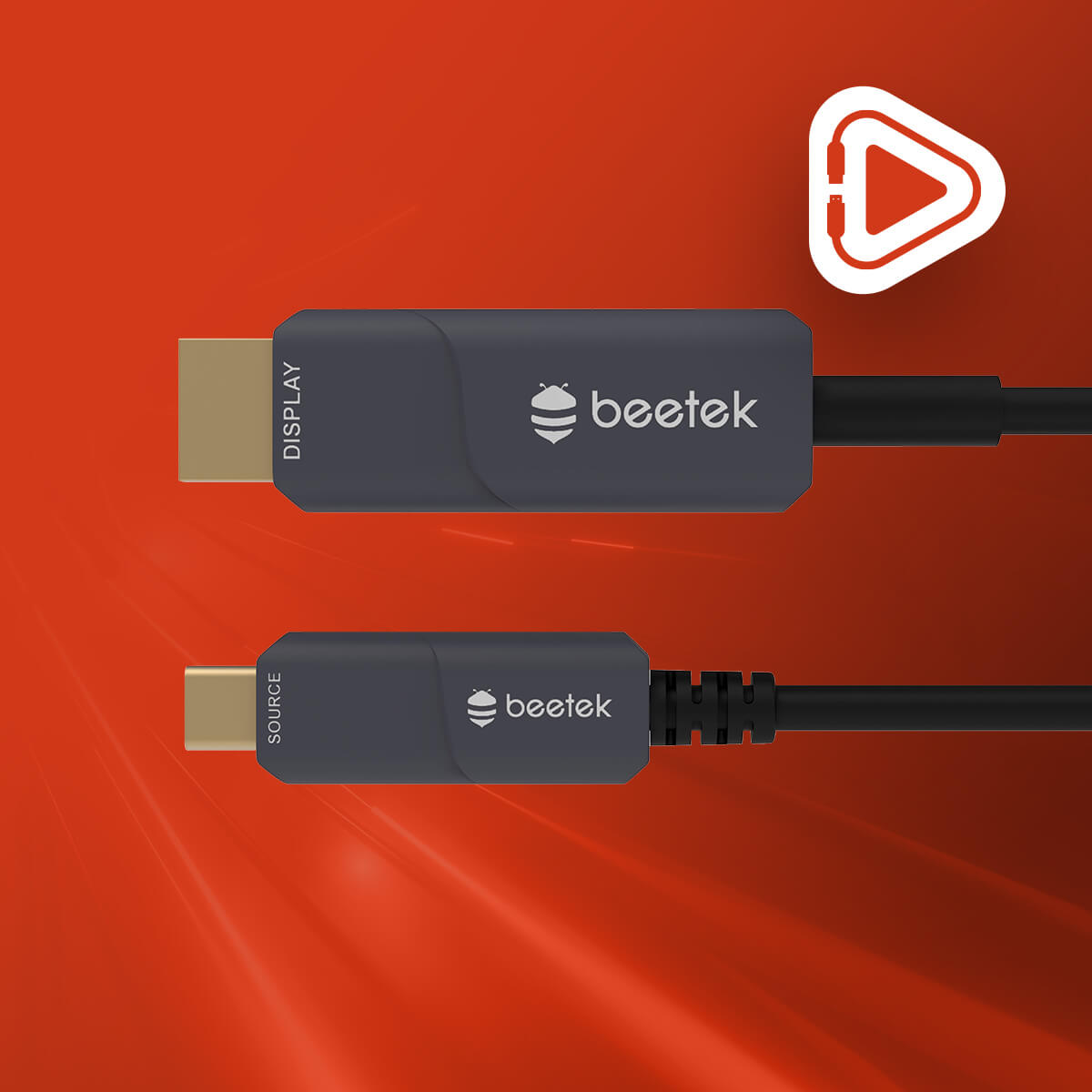

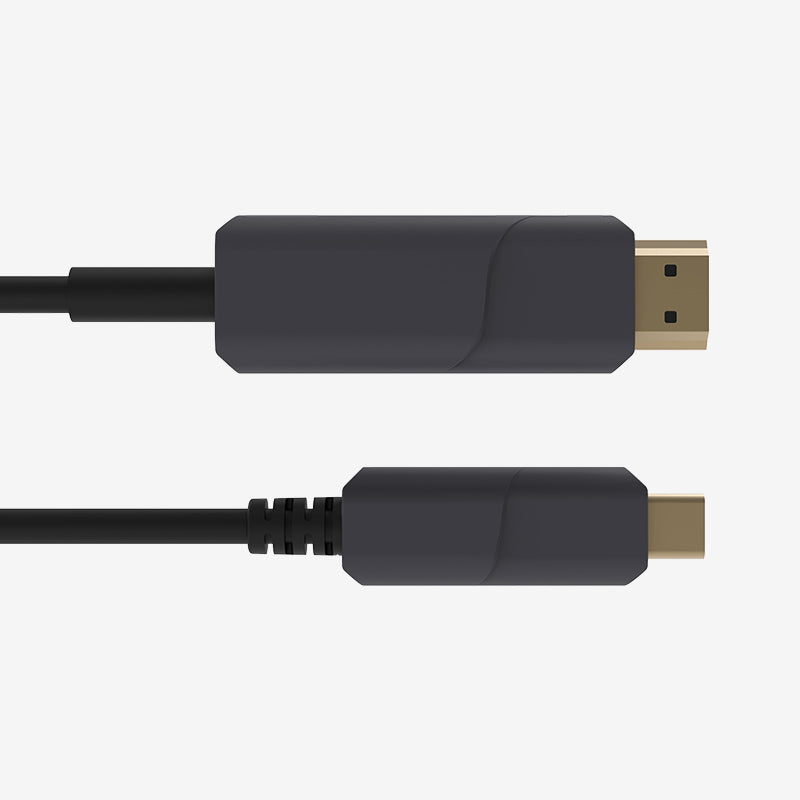

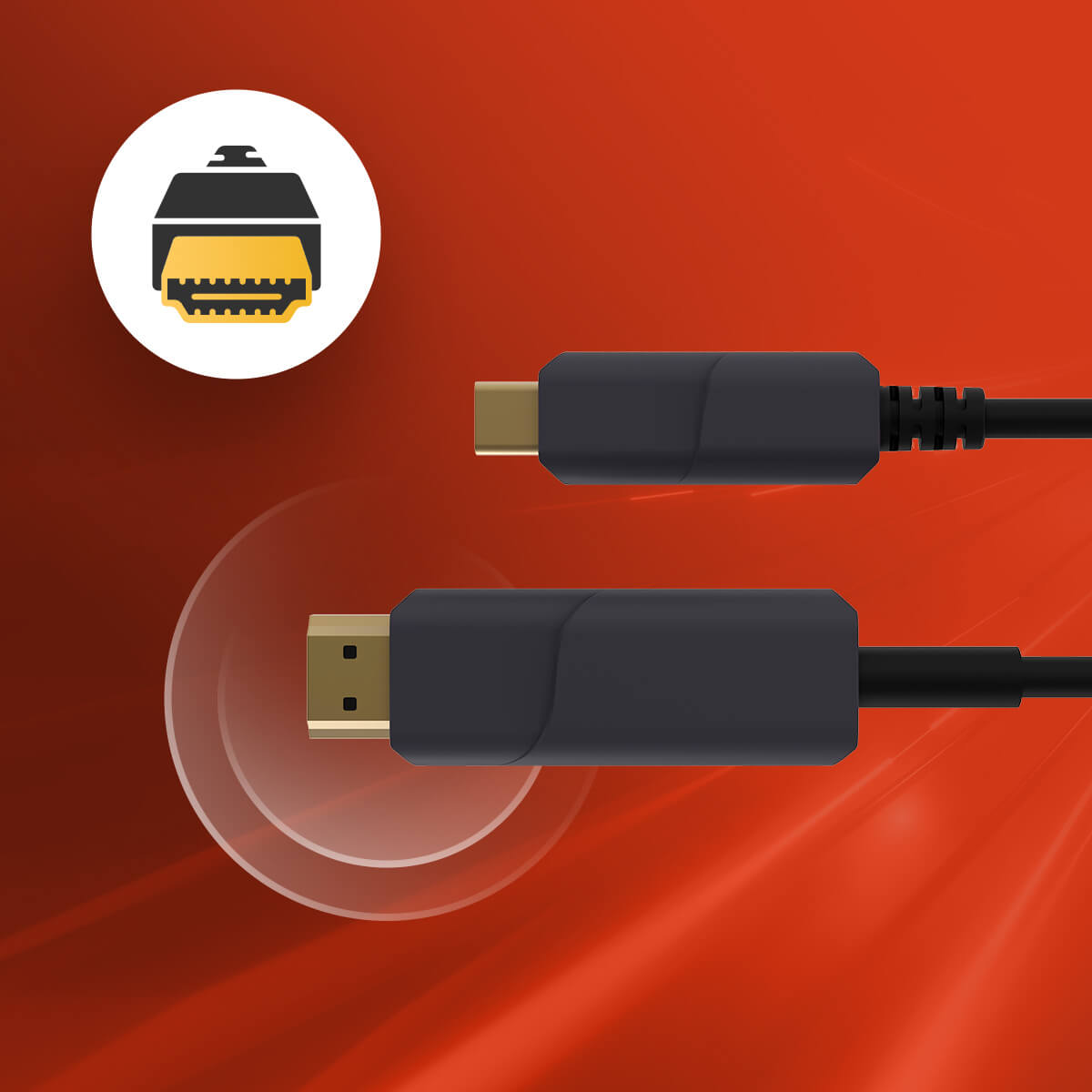

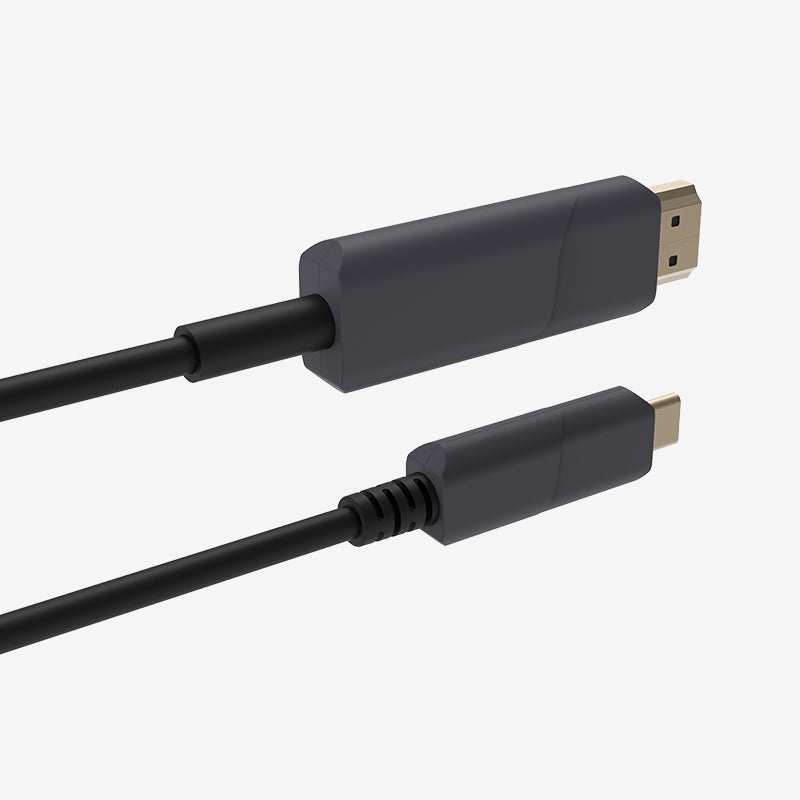

4K USB-C High-speed Active Optical Cables
- Plug and Play without external Power supply

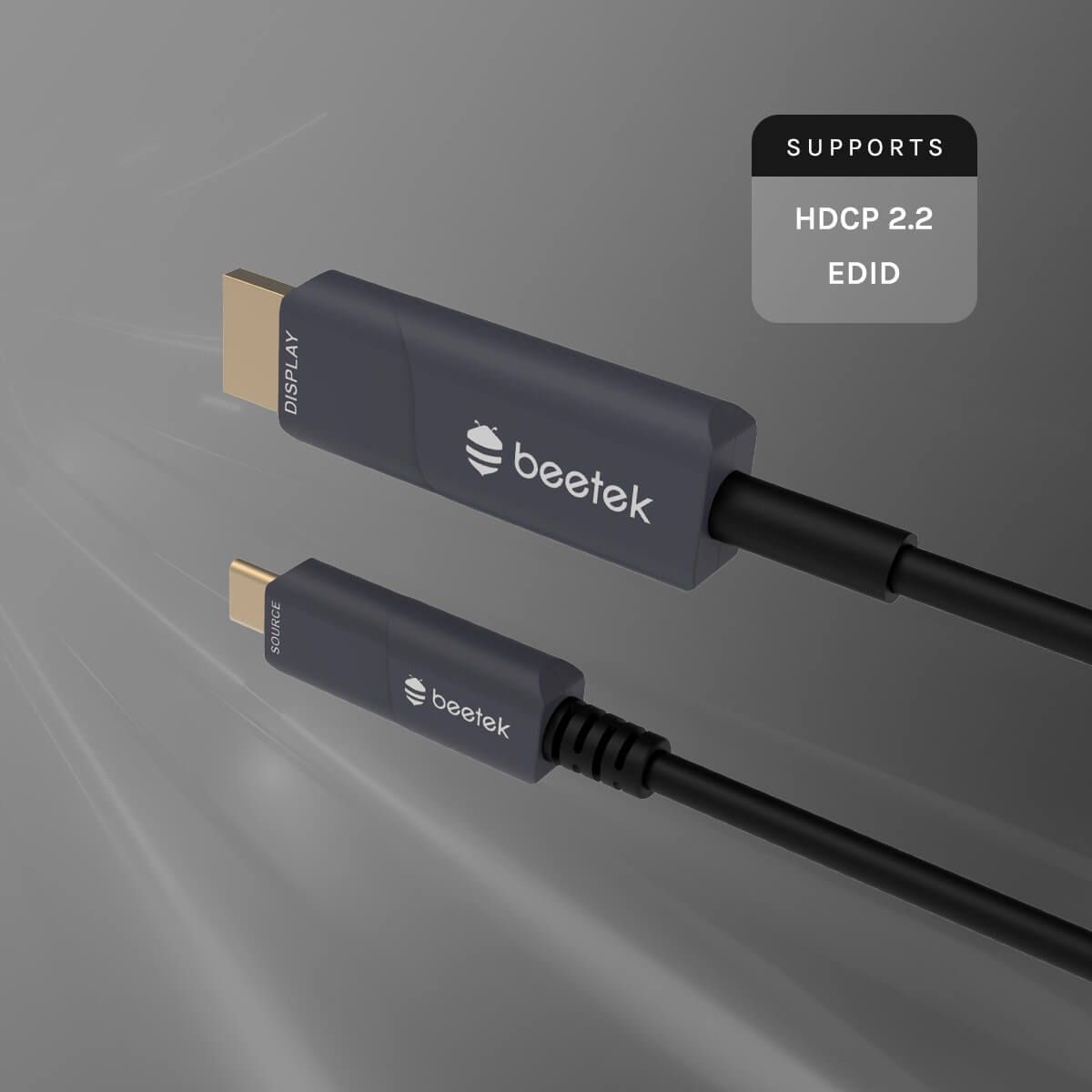

- Supports HDCP 2.2 and transparent EDID Pass through
- Gold plating process of copper shell provides long-lasting and firm connection
- Supports upto 100 metres and the length can be customized
Beetek DVI Photo electric Hybrid Single End Threading cable supports signals 4K@60 4:4:4 18 Gbps. he AUSBCH 4K series products are designed for long distance signal transmission via fibre optic technology, OM3 fibre optic transmission with embedded optic engine technology achieves no delay and no compression. USB-C to HDMI enables USB-C laptop for video sharing communication and and Transparent EDID passthrough from source to sink. The product is suitable for Rental, Live Events, Residential and surveillance applications
| Name | Specification |
| Product Name | USB Type C to HDMI Active Optical Cable |
| Model | AUSBCHxx |
| Brand | Beetek |
| Signal Type | USB3.1 HDMI2.0 |
| Input Connector Type | USB Type C |
| Output Connector Type | HDMI Type A Male |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | USB Type C: 57.8*15*9mm ；HDMI: 80*20*10mm |
| Power from connector (TX) | Yes |
| Cable power supply (RX) | Yes |
| Power | 250mw |
| Plug-n-Play | Yes |
| Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + outer jacket |
| Fiber Type | Multimode OM3*4 |
| Fiber Wavelength | 850~1300nm |
| Copper Wire Material | 7 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1, 26WAG*1, 28AWG*3, 30AWG*2 |
| Cable Diameter | 4.5 mm |
| Jacket Material | 80P PVC |
| Jacket Color | Black |
| Packing Dimensions | Short-length 10 - 40M：240*230*75mm |
| Medium-length 50 - 60M：290*280*75mm | |
| Long-length 70 - 100M：340*330*75mm | |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP2.3 |
| HDR | Yes |
| XvYCC | Yes |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 3840x2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16 bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N /10cm |
| Minimum Bending Radius | ≥10D (*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |
Key Features
Plug and Play without external Power supply
Supports HDCP 2.2 and transparent EDID Pass through
Gold plating process of copper shell provides long-lasting and firm connection
