D702 SERIES
Dual-link DVI Cables

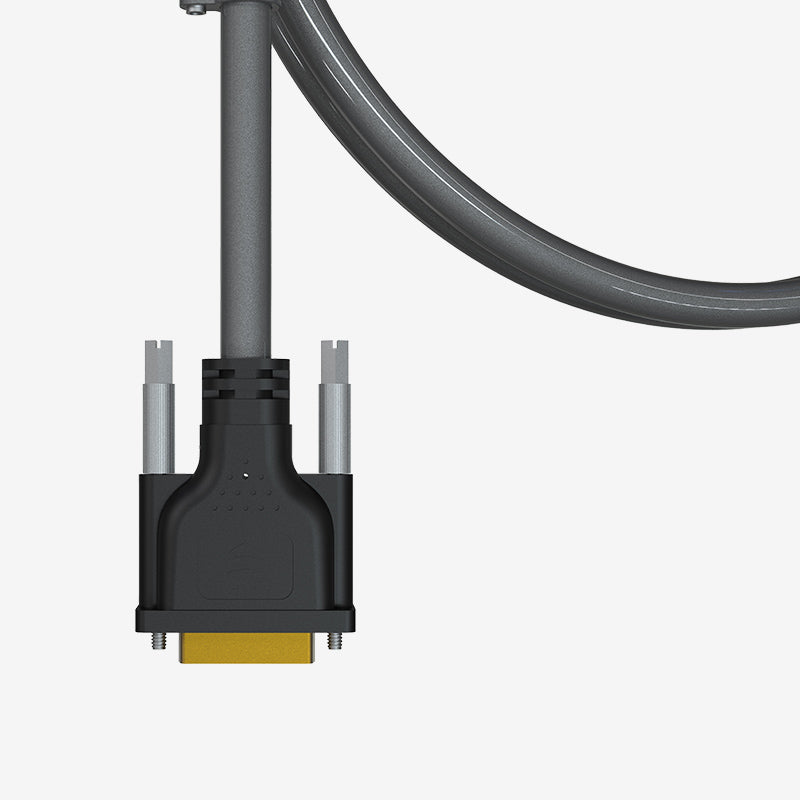

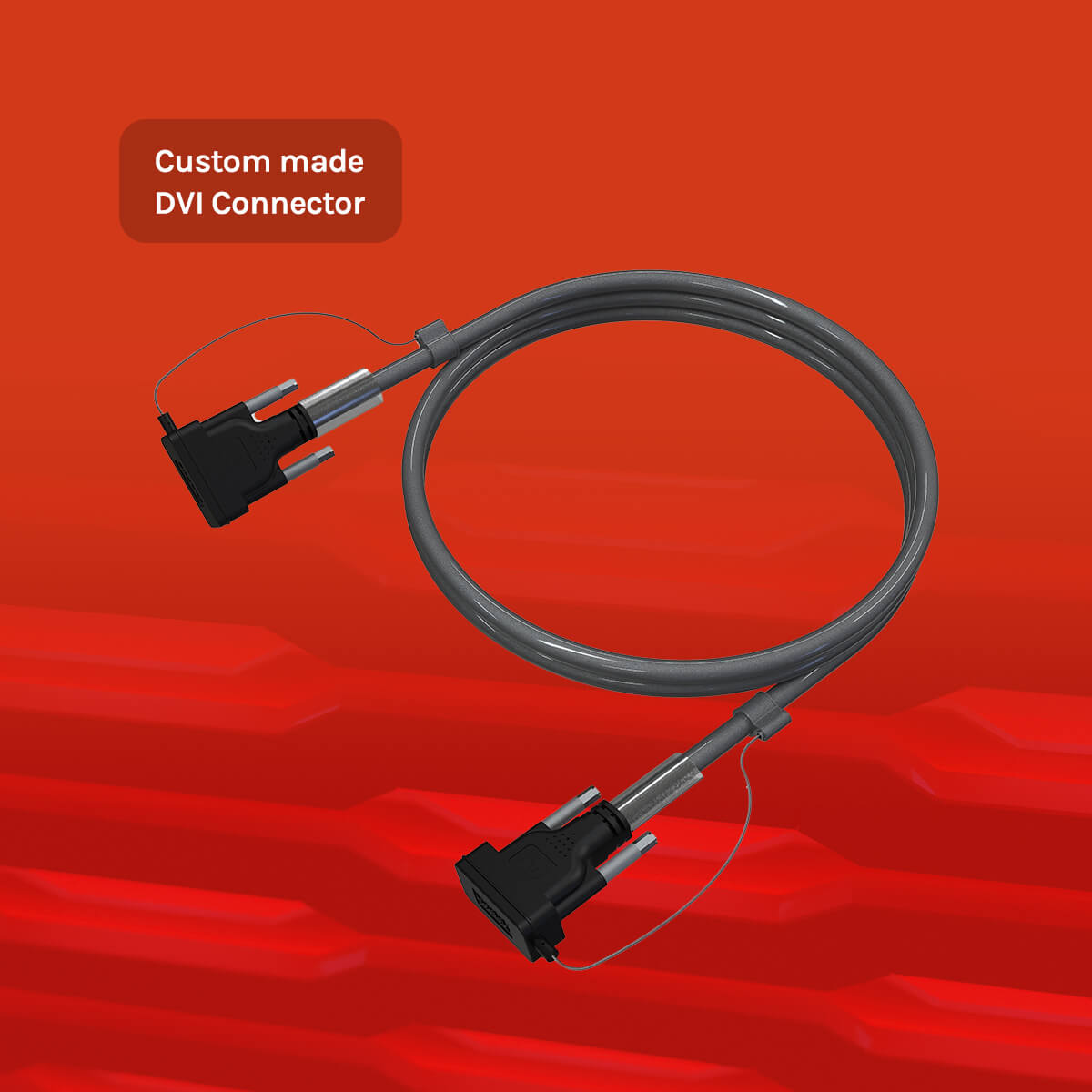

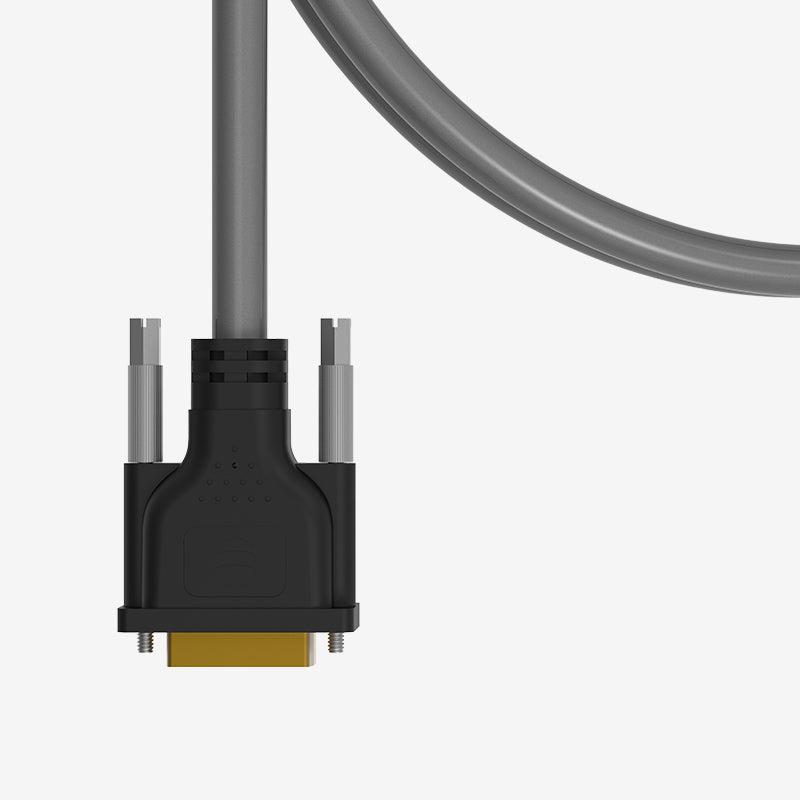

- Custom-made DVI connector with stiffer shell and pins
- Custom stainless steel screws for a firm connection

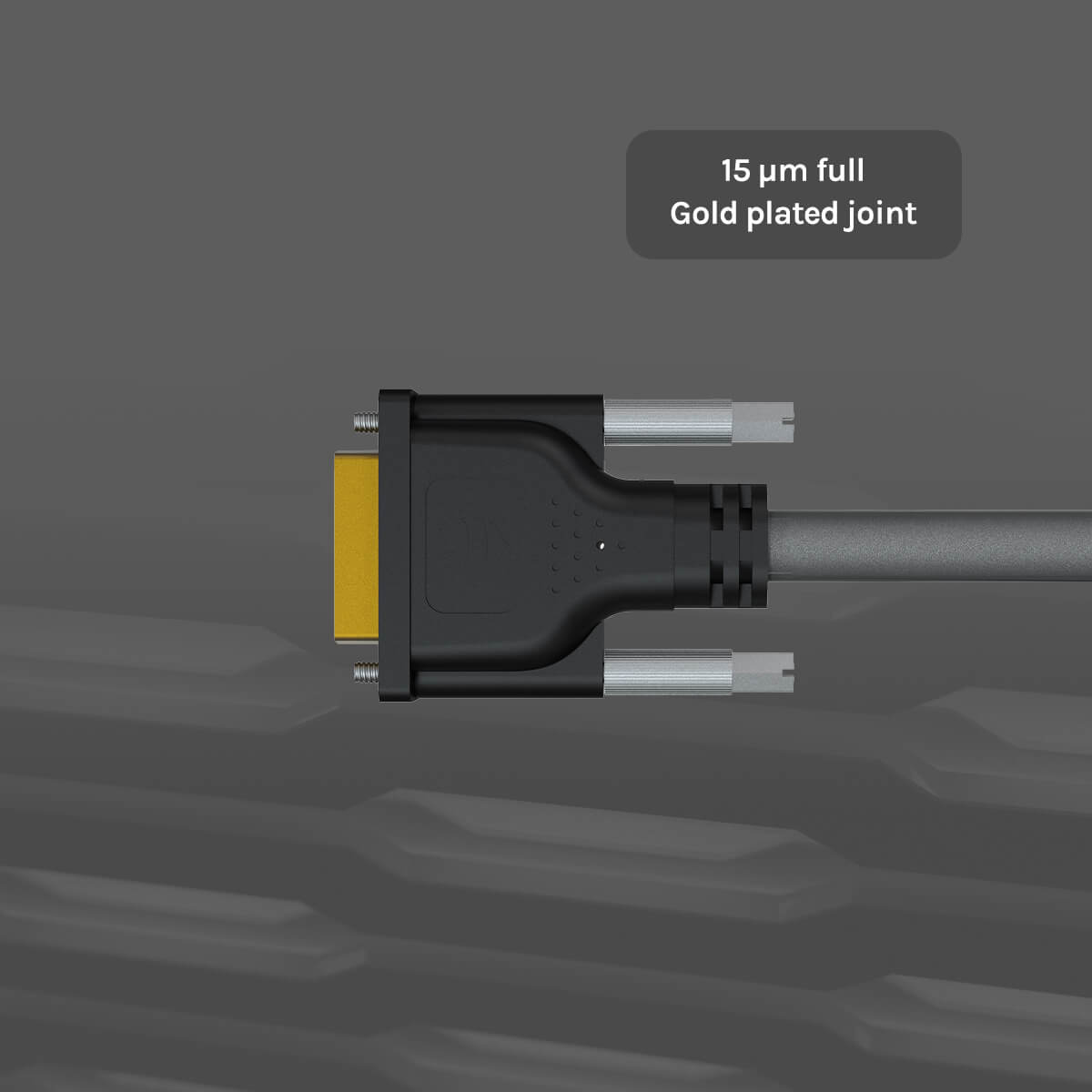

- 15 μm full gold plated connector

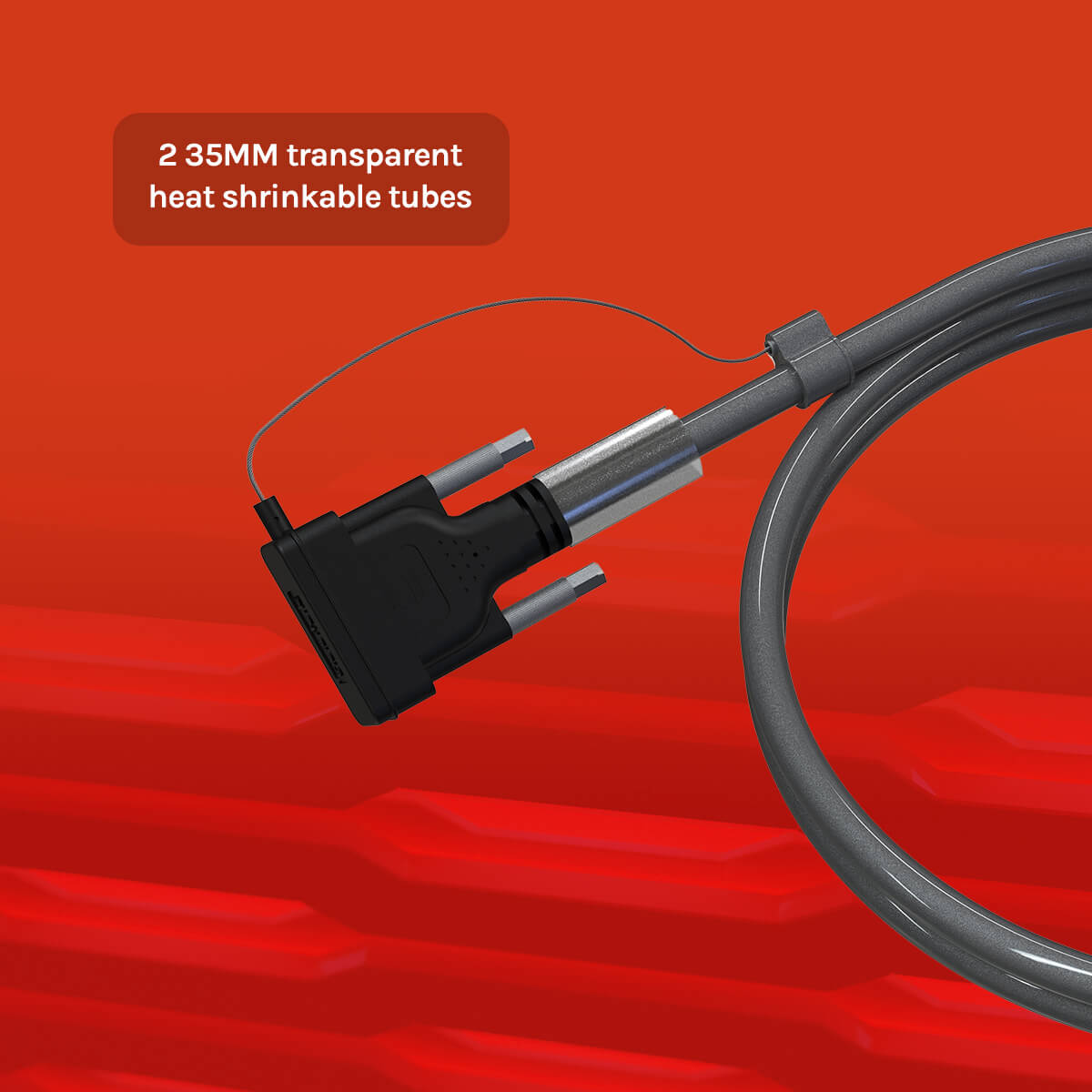

- Two 35mm transparent heat-shrinkable tubes for customizing your company info label

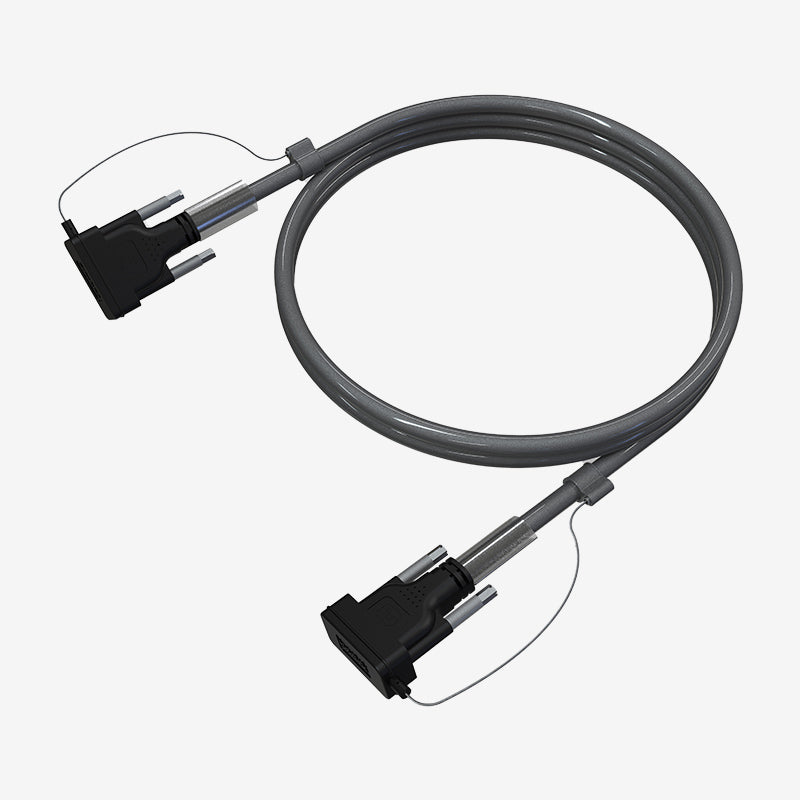

Beetek DVI-D cables are custom designed particularly for rental and staging industry which support resolutions up to 2K@120 4:4:4 at 9.9 Gbps transmission rate. It can support 2000+ plug in/out. A soft and more durable class A multi-strand tinned copper wire, 4-layer shielding structure with tinned copper braid + whole line aluminium foil + Mylar + single aluminium foil. The cable has a soft 110P composite coating and inner embossed processing with pearl grey color special process. Replaceable dust proof cap. The cable is available in various length 1m, 2m, 3m, and 5m.
| Name | Specification |
| Product Name | DVI-DL Cable |
| Model | D702-xxM |
| Brand | Beetek |
| Signal Type | DVI-DL |
| Input Connector Type | DVI 24+1 Male - DVI 24+1 Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | 59.2*40*17mm |
| Connector Structure | Soldered plug + Inner mold + Copper foil + Tinplate + Shell + Screw + Protective cap |
| Soldering | Sleeve soldering process |
| Internal Mold | Transparent PE material |
| Copper Foil | Double-sided conductive copper foil |
| Tinplate | DVI three-piece tinplate |
| Shell | Black PVC injection molded shell (UL, RoHS) |
| Lockable screw | Internal: Stainless steel Phillips screws External: Stainless steel Hex screws |
| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Diameter | 28AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | 90P PVC (UL, RoHS) |
| Cable Diameter | 9.0mm |
| Cable Color | Fluorescent gray |
| Cable Meter Marking | Waterproof Yellow Text |
| Velcro | P-shaped Velcro Strap: 20*200mm |
| Custom Label | Heat-shrink transparent tubing on both ends for custom labels |
| EDID | Yes |
| DDC channel | Yes |
| HDMI audio | Yes |
| 3D | Yes |
| Compatibility | Backward compatible with DVI-SL |
| Supported Resolutions | 1920x1080@120Hz |
| Clock Bandwidth | 165MHz * 6 |
| Transmission Rate | 9.9Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Compression | None |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤400N |
| Bending Angle | 120° |
| Operating Temperature | -20℃~80℃ |
Key Features
Custom-made DVI Connector with stiffer joint, sheath and pins
15 μm full gold plated joint
It has two 35mm transparent heat-shrinkable tubes for customizing your company info label
