TP-H20RrA-TR

Name: TP-H20RrA-TR
Brand: Beetek
Availability: InStock

HDMI 2.0 support twisted pair Extenders

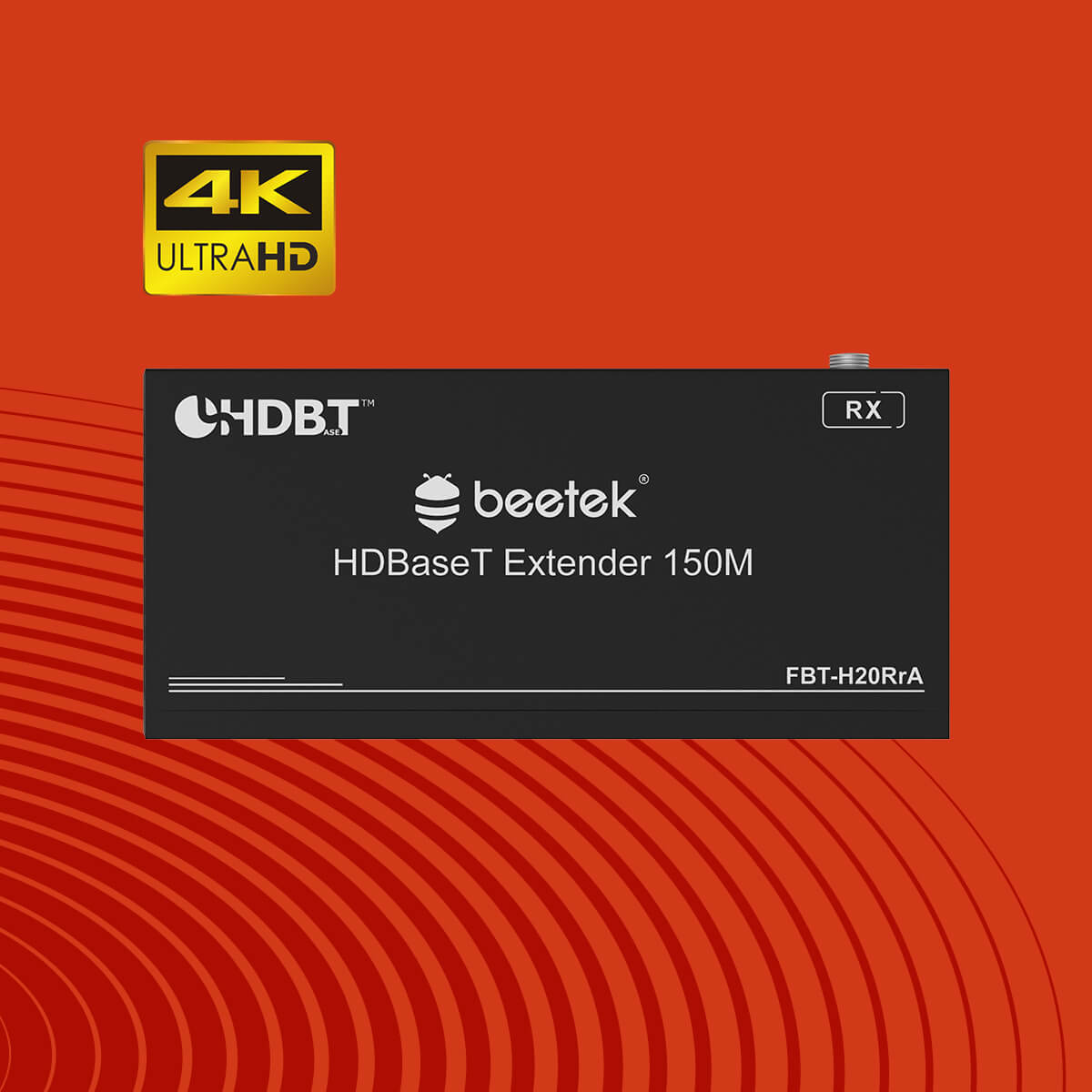

Supports resolution upto 4K@60 4:4:4

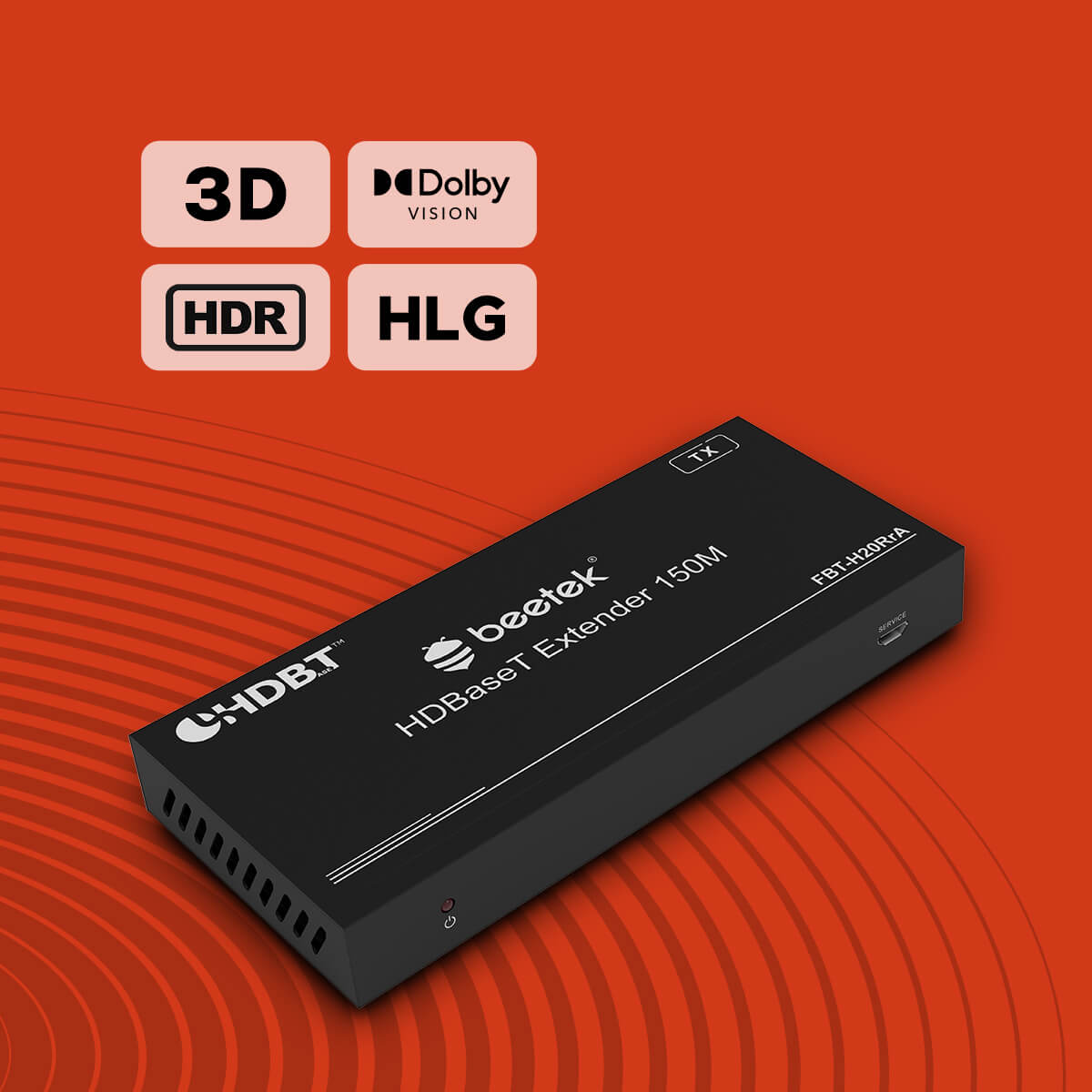

Supports HDR10+, Dolby Vision, HLG and 3D

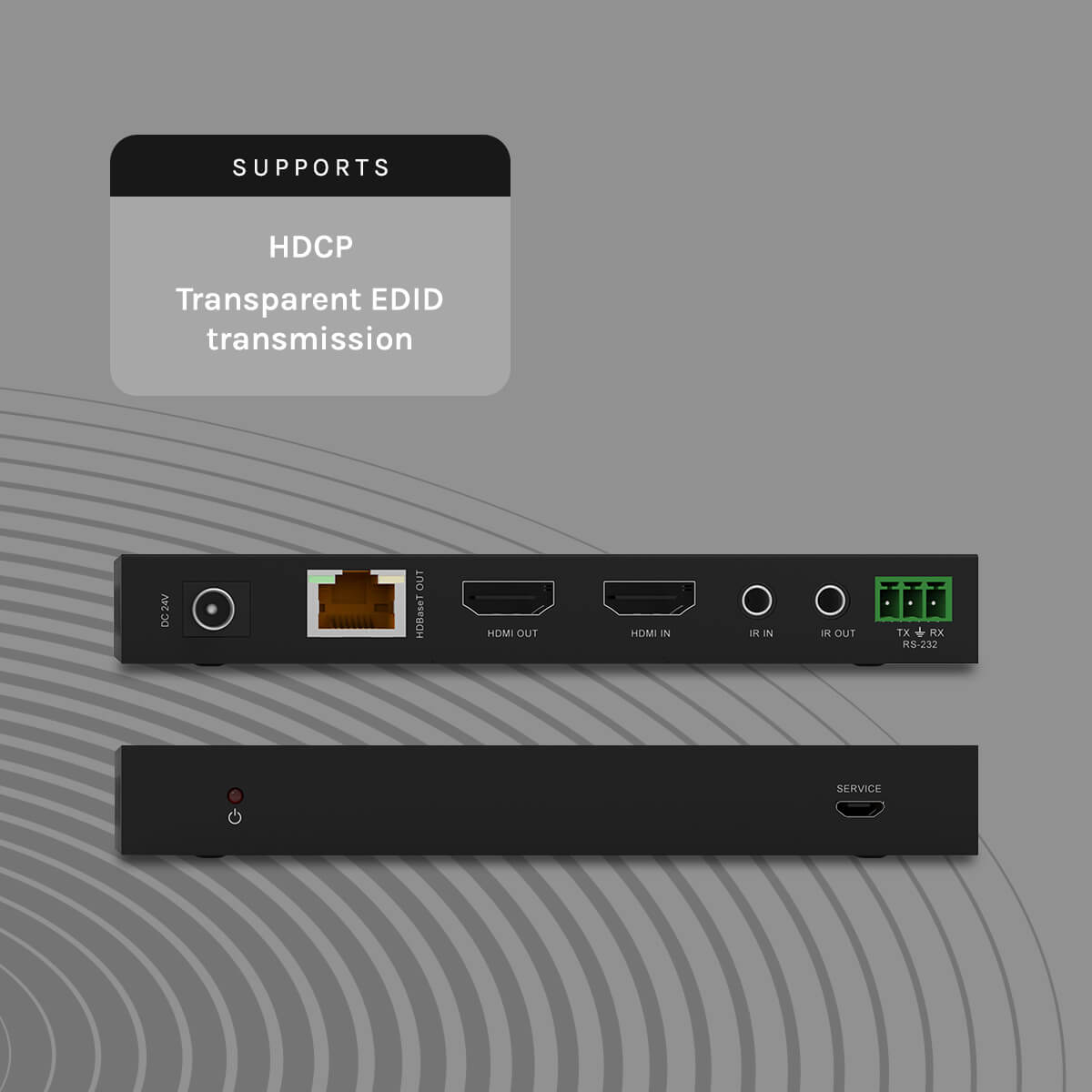

Support HDCP and transparent EDID transmission

Supports 4K60 transmission distance upto 120M and 1080P transmission up to 150M

Beetek HDMI 2.0 twisted pair extender supports HDMI 2.0 protocol with resolution upto 4K at 18 Gbps. High speed signal transmission with no delay and loseless compression.The product is suitable for Rental, Live Events, Corporate, Residential and surveillance applications

Name	Specification
Product Name	HDMI 2.0 HDBeasT Extender
Model	TP-H20RrA-TR
Brand	Beetek
Signal	HDMI 2.0

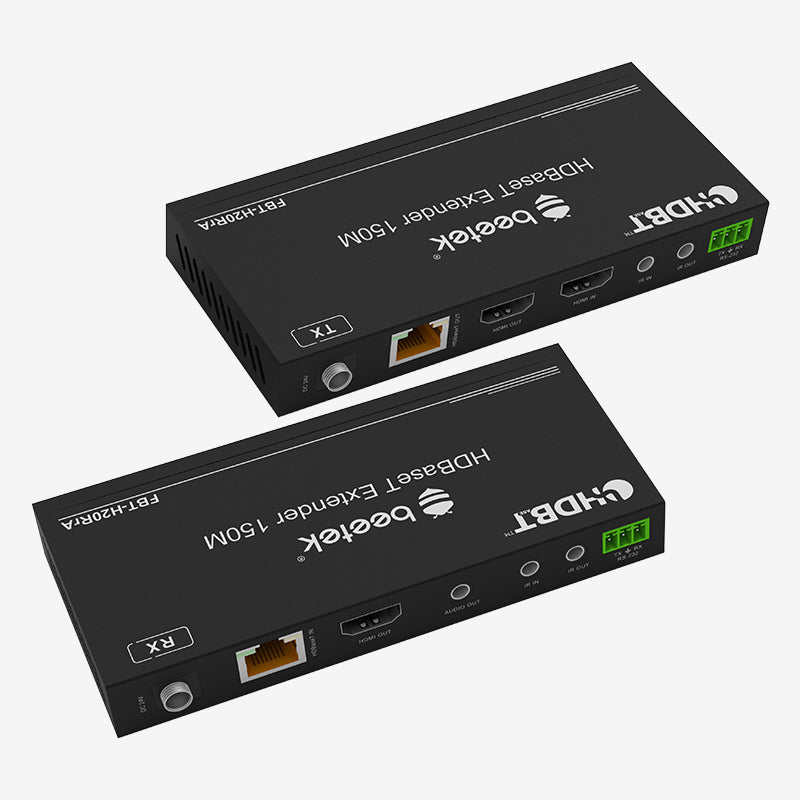

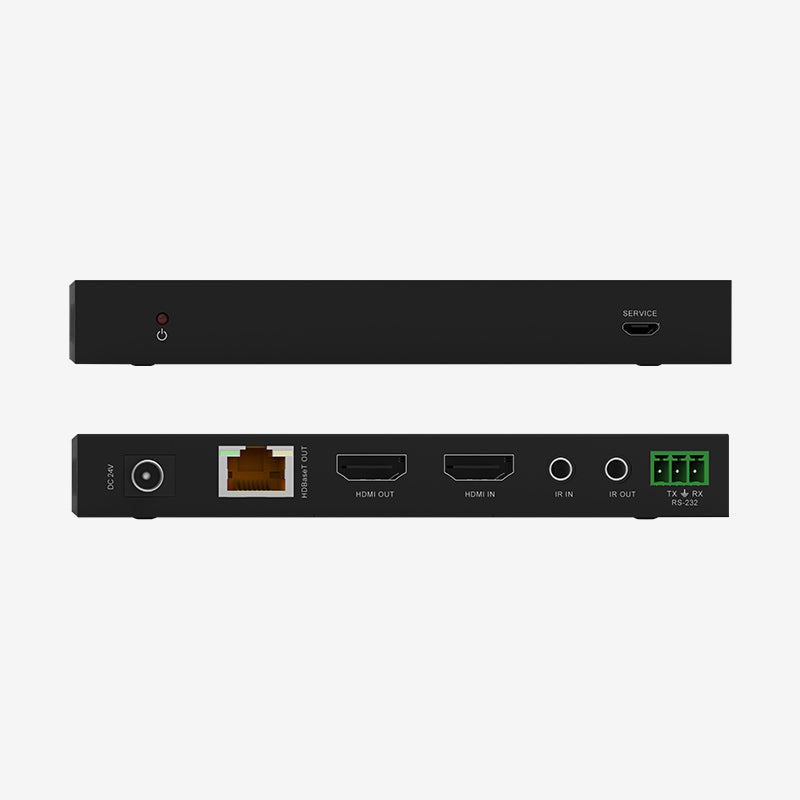

Input Connector	TX : HDMI Type A Female, RS232, IR RX: RJ45, RS232, IR
Output Connector	TX : RJ45, HDMI Type A Female, RS232, IR RX: HDMI Type A Female, RS232, IR, 3.5mm Audio
HDMI Loop-out	Yes
CAT Cable Type	CAT6 and above
Indicator LED	Power, Signal
Locking power connector	Yes
Power Consumption	DC 24V 2A
Working Temp	-20°C ~ 70°C
Material	Metal mold
Dimensions	140.865.418.5mm
Weight	TX: 250g; RX: 250g
Package Dimensions	24818979mm
Packaging Weight	0.9kg
EDID	Pass-through
DDC	Yes
IR	Supports bidirectional IR
RS232	Supports bidirectional RS232
HDMI Audio	Yes
HDMI Audio De-embedding	Yes
3D	Yes
CEC	Yes
ARC	Yes
HDCP	Yes
HDR	Yes
XvYCC Color Space	Yes
POE	Yes
Technical Characteristics	HDBeasT
Resolution	3840 * 2160@60Hz
Transmission Distance	120 meter for 4K@60Hz with CAT6 cable
Clock Bandwidth	600MHz *3
Transmission Speed	18Gbps
Balancing Chip	Automatic equalization
Reclocking	Yes
ESD Protection	Yes
Hot Plug	Yes
Delay	Zero frame-delay
Compression	None
Sampling Rate	Bandwidth Range: 8~16bit
Sampling Ratio	RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
