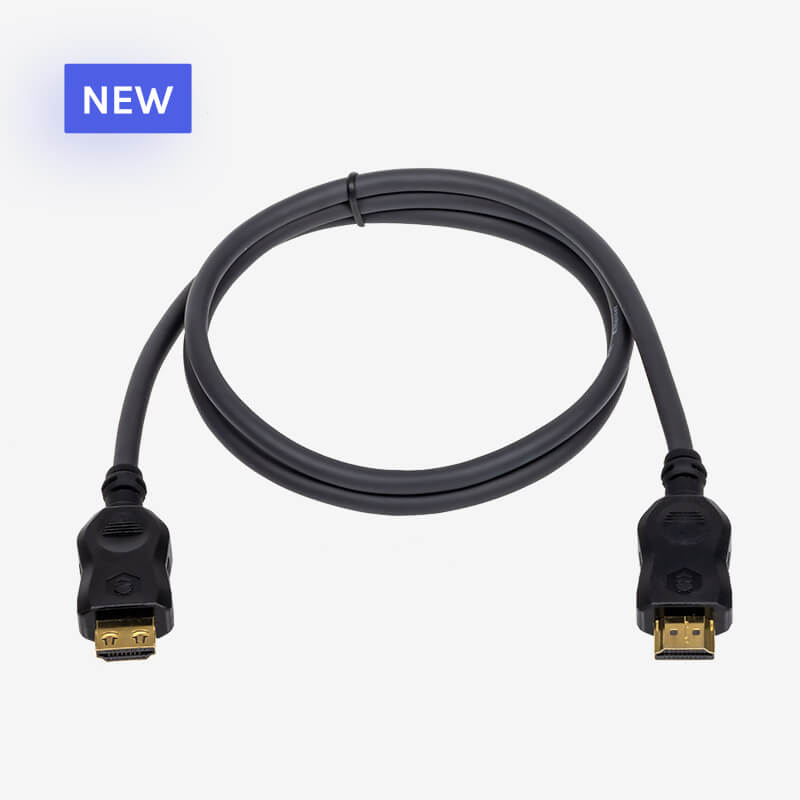

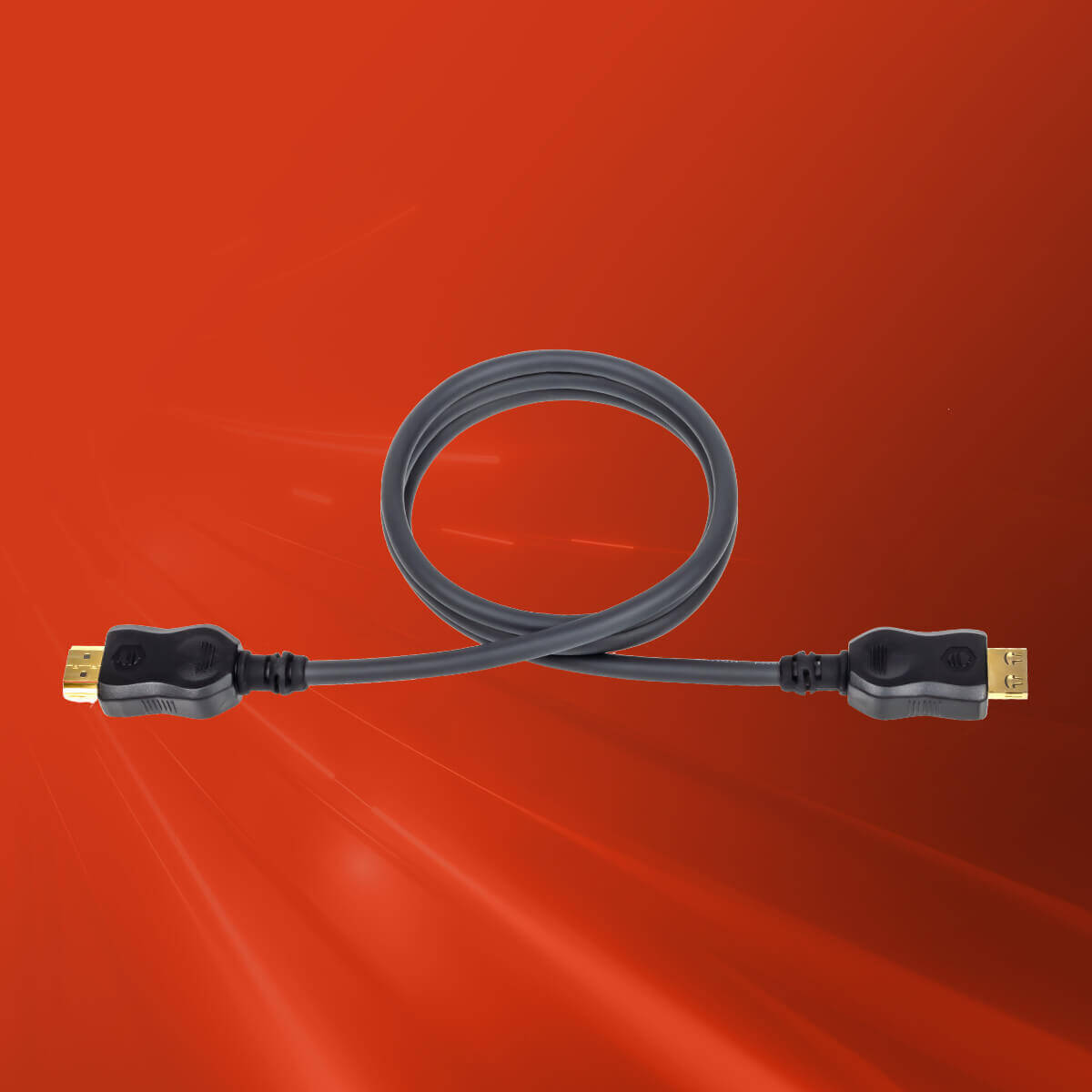

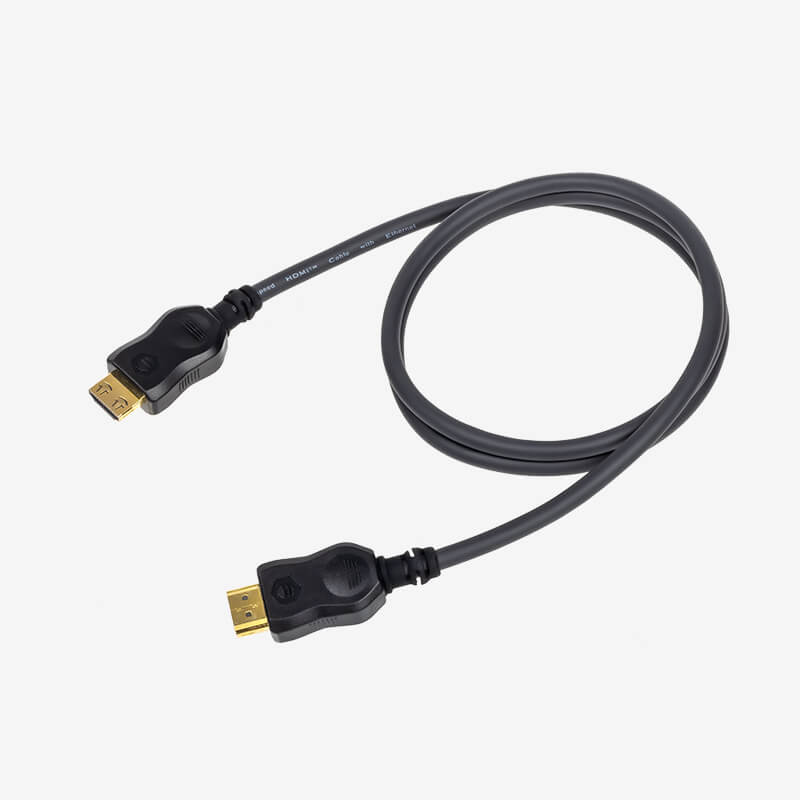

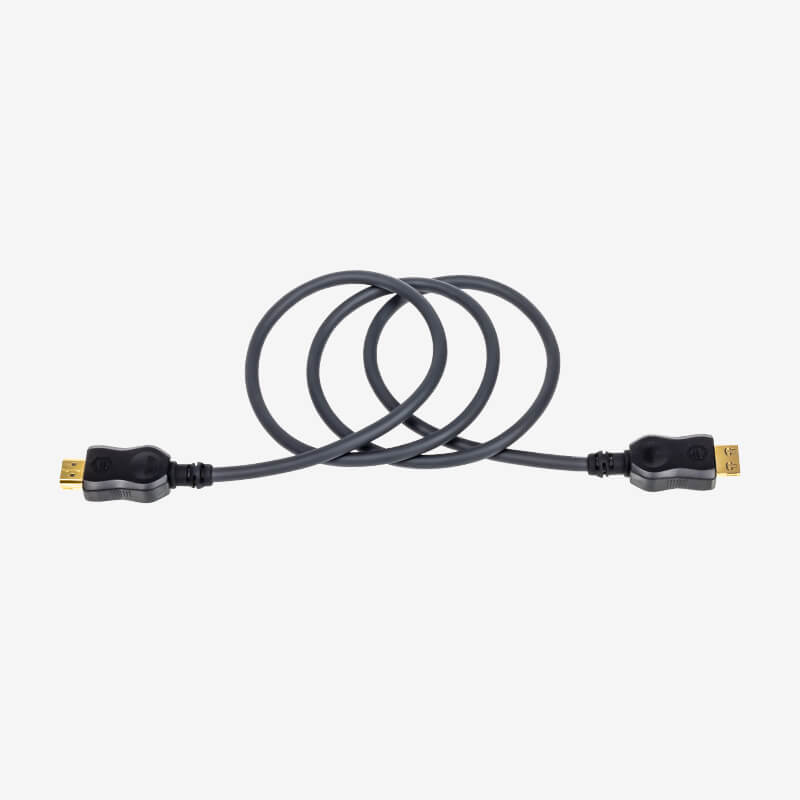

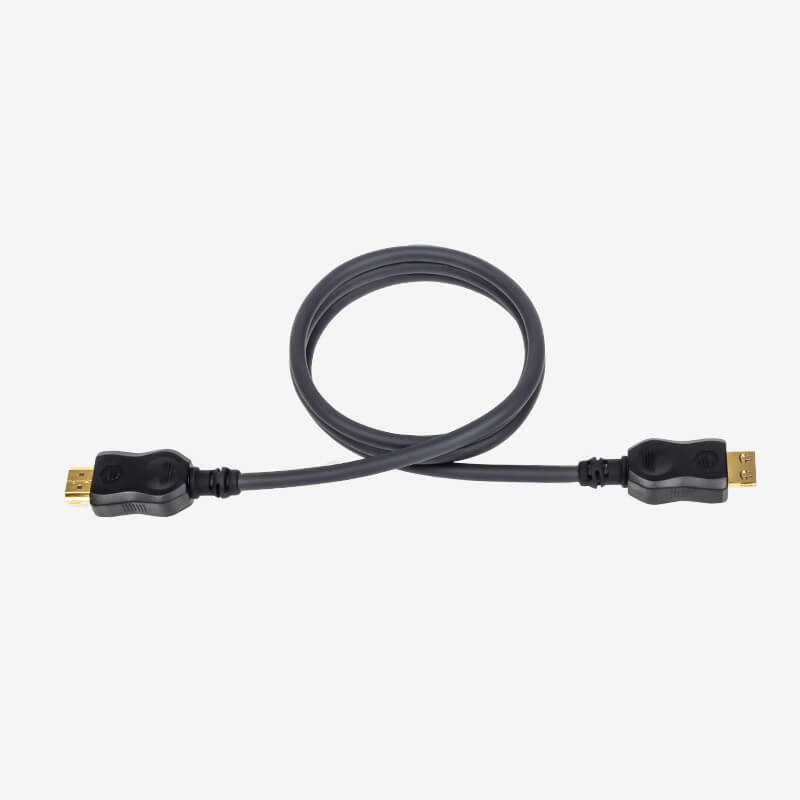

H20-FLEX-PRO Series
4K HDMI 2.0 Flex Cables
- 4K HDMI 2.0 compliant with up to 18Gbps transmission rate.

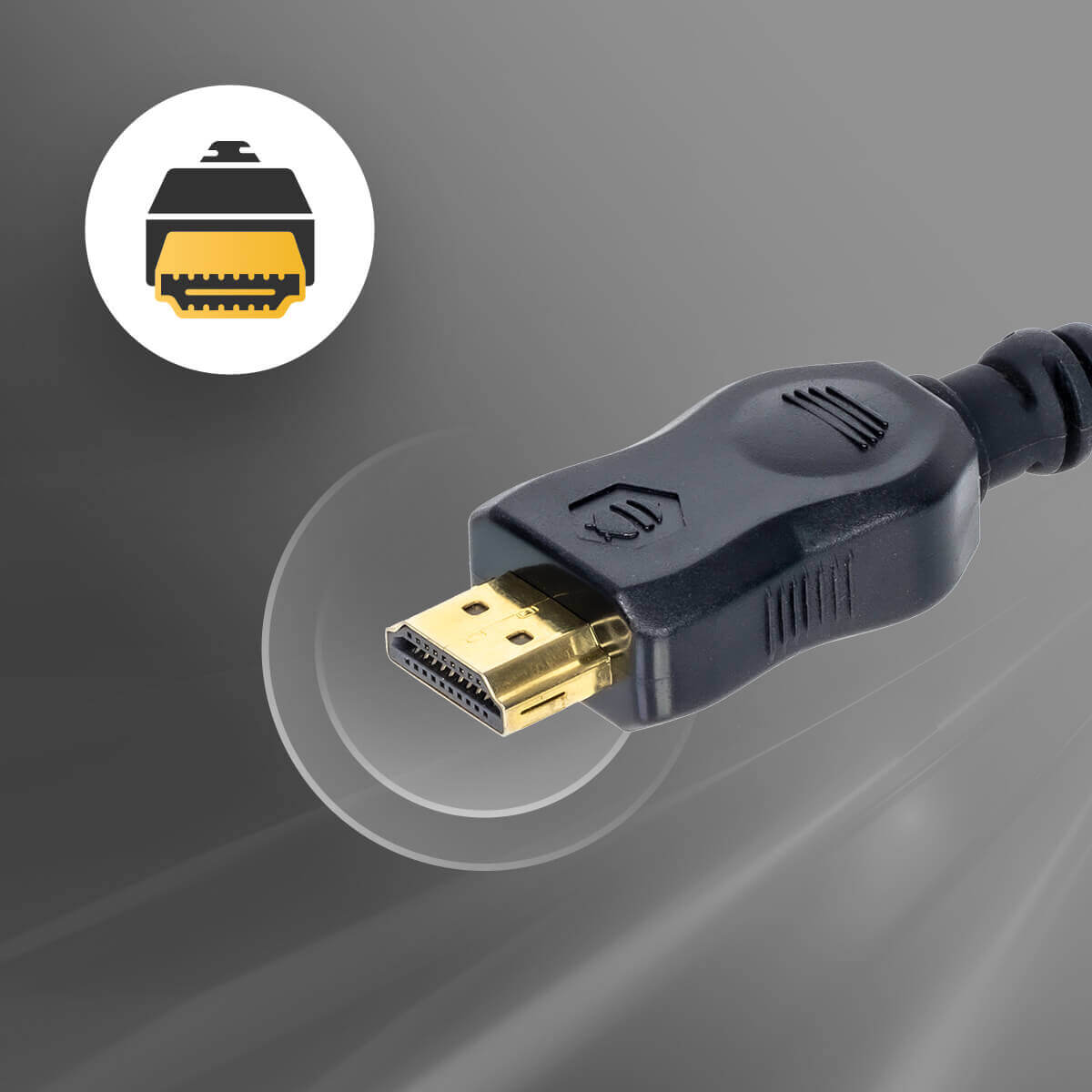

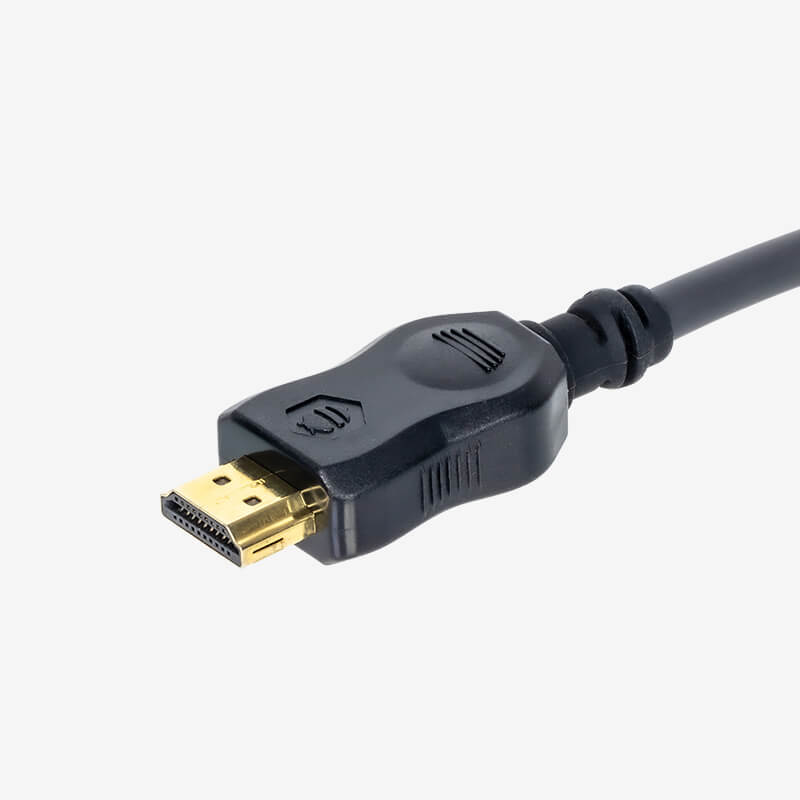

- Reinforced tinplate connectors
- Beetek plug-sure HDMI connectors Flow Silicone strain relief
- Gold-plated contacts
- HDR, CEC and ARC compliant
- HDMI cable available in 0.5, 1, 2, 3, and 5 meters.
- Now available in 8M and 10M
The H20-Flex-Proseries HDMI 2.0 cables are expertly engineered for precise and space-constrained setups, offering unparalleled adaptability and performance. Designed with a focus on flexibility for rack configurations, these cables feature a slender form factor and a supple outer jacket for easy installation in tight spaces. Despite their flexibility, performance is not compromised, thanks to robust 28AWG tinned copper wiring for reliable signal transmission and a reinforced internal tinplate for added durability.
Additionally, the innovative bee-inspired Flow Silicone strain relief ensures the cable can withstand repetitive bending, while the secure plug-sure HDMI connectors require 7kg (15lbs) of force to remove, preventing accidental disconnections. Perfect for applications demanding both flexibility and high performance.
Additionally, the innovative bee-inspired Flow Silicone strain relief ensures the cable can withstand repetitive bending, while the secure plug-sure HDMI connectors require 7kg (15lbs) of force to remove, preventing accidental disconnections. Perfect for applications demanding both flexibility and high performance.
| Name | Specification |
| Signal Type | HDMI 2.0 |
| Connector Type | HDMI Type A Male - HDMI Type A Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | 49.78*22*12mm |
| Connector Structure | Plug plate + Inner mold + Tinplate + Copper foil + Shell |
| Internal Mold | Transparent PE material |
| Copper foil | Double-sided conductive copper foil |
| Tinplate | Upper and lower assembled tinplate |
| Shell | PVC injection molded shell (UL, RoHS) |
| Connector Fastening Type | Plug sure type HDMI connector provided |
| SR | Liquid Silicone Rubber |
| Components | Conductor + Drain(Copper) + FEP wrap + Aluminum foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Gauge | 28AWG |
| Braid Material | Braided copper wire |
| Shielding Rate | 0.8 |
| Jacket Material | Flexible PVC |
| Cable Diameter | 5.7±0.20MM |
| Cable Color | Dark Gray |
| EDID | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Compatibility | Backward compatible with HDMI and DVI-SL |
| Supported Resolutions | 3840 x 2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Deep Color | Yes |
| Sampling Rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Compression | None |
| Electrical Test (Voltage) | 30V |
| Spark Test | AC-1500V/In the air |
| Dielectric Strength | AC-500V/1 sec MIN |
| Insulation Resistance | DC-500V 100MΩ.KM MIN.at 20℃ |
| Conductor Resistance | 30AWG-376Ω/KM MAX at 20℃; 28AWG-237Ω/KM MAX at 20℃ |
| Operating Temperature | -20℃~80℃ |
Key Features
Reinforced tinplate connectors
Gold-plated contacts
