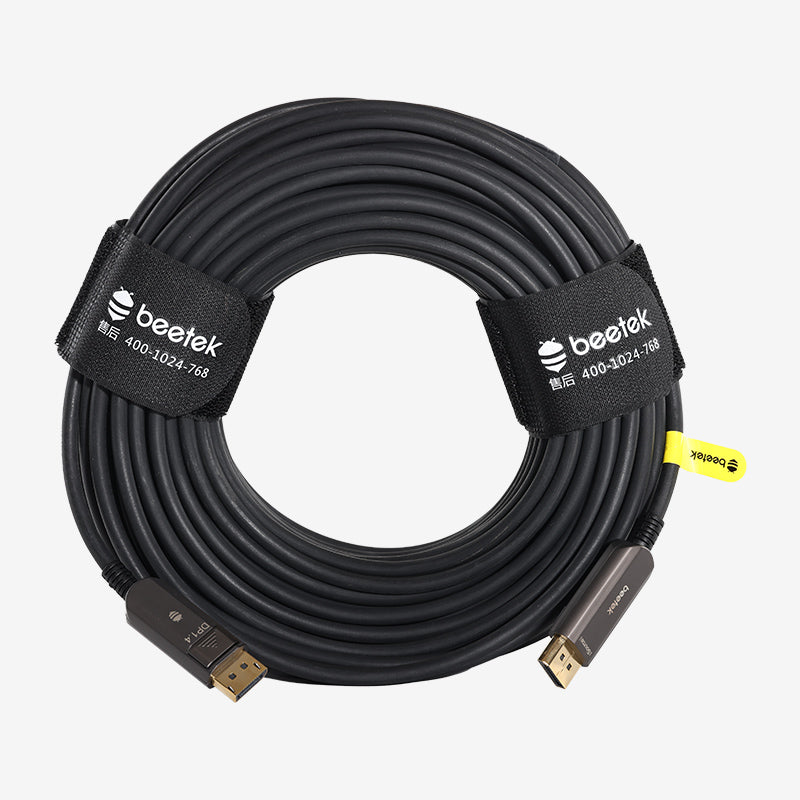

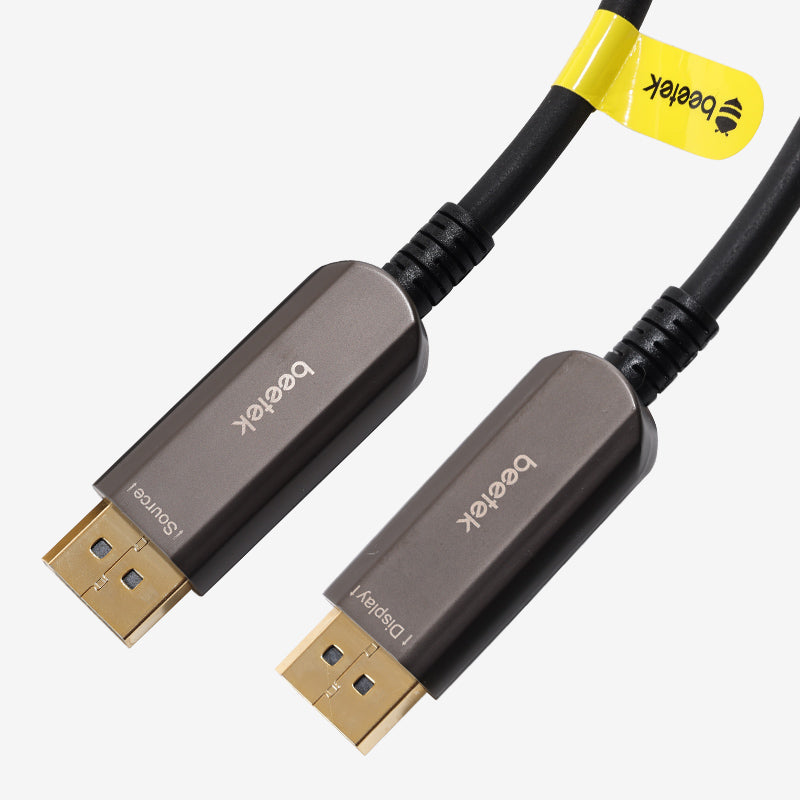

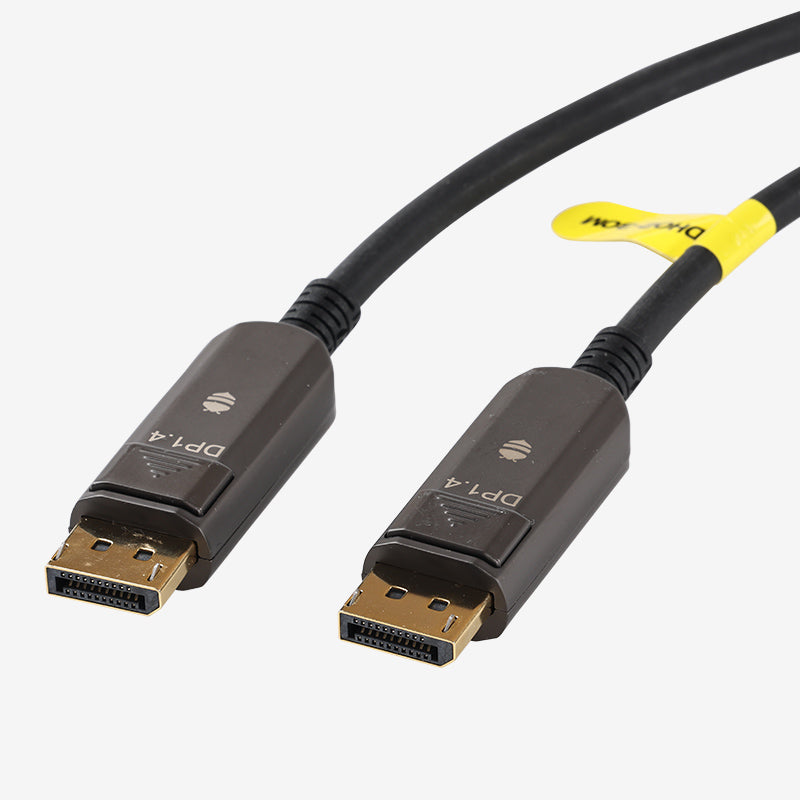

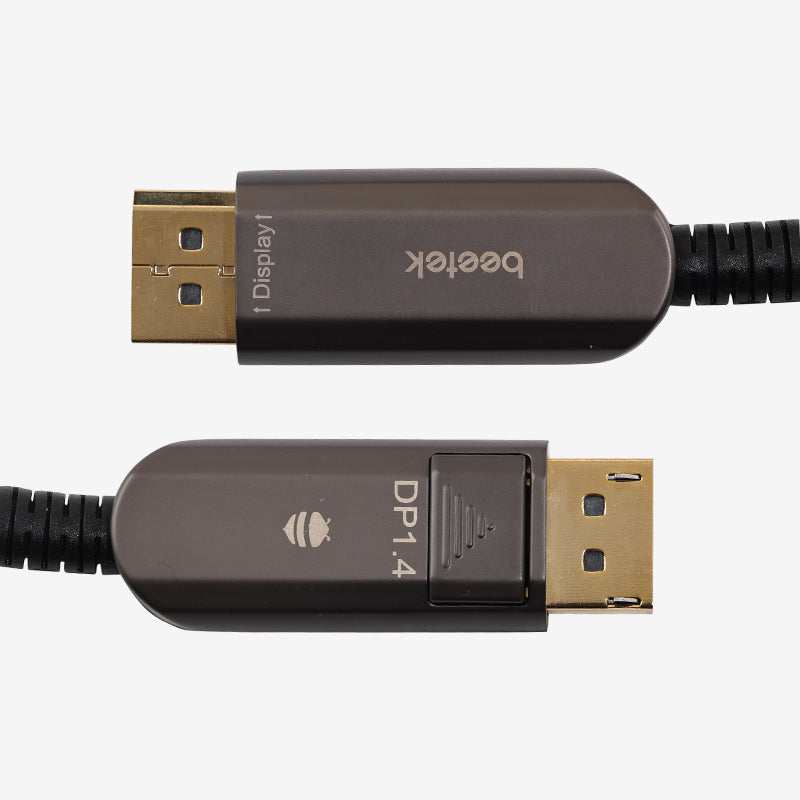

GDH02 SERIES
Armored DP 1.4 Active Optical Cable
- Supports resolutions upto 8K@60 at 32.4 Gbps.
- Plug and Play Technology
- Supports HDR Technology
- The cable available in various distance upto 100 metres.
- Add your company info label using the provided transparent heat-shrink tubes
Beetek Armored DP 1.4 Optical Hybrid Cable are designed for long distance signal transmission of DP Video and audio signals. The cable supports resolutions 8K@60 4:4:4 at 32.4 Gbps. The cable supports EDID, HDCP and CEC. The armored cable is more durable and suitable for harsh environments as well. The device combines optical fibre and copper technology and provides a hybrid solution for long distance Display port signal transmission. The long distance cables can be managed with Beetek unique winding cars.The cable is suitable for rental & staging, live events,corporate and surveillance application.
Name | Specification |
Product Name | DP1.4 TPU Armored Active Optical Cable |
Model | GDH02-xxM |
Brand | Beetek |
Signal Type | DP1.4 |
Input Connector Type | DP Male |
Output Connector Type | DP Male |
Connector Gold Plating | Gold-plated Copper Shell |
Connector Structure | Zinc Alloy mold |
In-wall Installation | Not supported |
Connector Dimensions | DP Male, 69.2 * 20 * 13mm |
Power from connector (TX) | Not supported |
Power from connector (RX) | Not supported |
Power | 250mW |
Plug-n-Play | Yes |
Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + armored tube + outer jacket |
Fiber Type | Multi-mode OM3 * 4 |
Fiber Wavelength | 850 - 1300nm |
Copper Wire Material | 8 multi-strand tinned copper wires |
Copper Wire Specification | 24AWG*1, 26AWG*1, 28AWG*3, 30AWG*2 |
Cable Diameter | 5.8mm |
Jacket Color | Black |
Jacket Material | Matt Frosted TPU |
Spiral Tube Diameter | 2.88mm ± 0.1mm |
Spiral Tube Color | Silver |
Spiral Tube Material | Stainless steel |
Packing Dimensions | Short-length 10 - 40M:240*230*75mm |
Medium-length 50 - 60M:290*280*75mm | |
Long-length 70 - 100M:340*330*75mm | |
EDID | Pass-through |
3D | Yes |
CEC | Yes |
ARC | Yes |
HDCP | HDCP 2.3 |
HDR | Yes |
AUX Channel | Yes |
High-speed Ethernet | Yes |
USB | USB 2.0/ USB 3.1 |
Audio Channels | 32 |
BT.2020 Color Space | Yes |
Technical Characteristics | Photoelectric Conversion Technology |
Optical Module Lifetime | 100,000 hours |
Resolution | 7680x4320 30Hz |
Clock Bandwidth | 810MHz * 4 |
Transmission Rate | 32.4Gbps |
Power Amplification | Yes |
Reclocking Chip | Support above 30 meters |
Pixel Reclocking | Yes |
ESD protection | Yes |
Hot Swap | Yes |
Delay | Zero frame delay |
Compression | None |
Sampling Rate | 8~16bit within the bandwidth range |
Sampling Ratio | RBG 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Anti-jamming | Yes |
Tensile Strength | ≤700N |
Compressive Strength | 2000N /10cm |
Minimum Bending Radius | Dynamic > 10D; Static > 20D (*D is the outer diameter of the cable) |
Operating Temperature | -30-80℃ |
Key Features
![](http://beetekav.com/cdn/shop/files/GDH02_F1_1200x.jpg?v=1657460616)

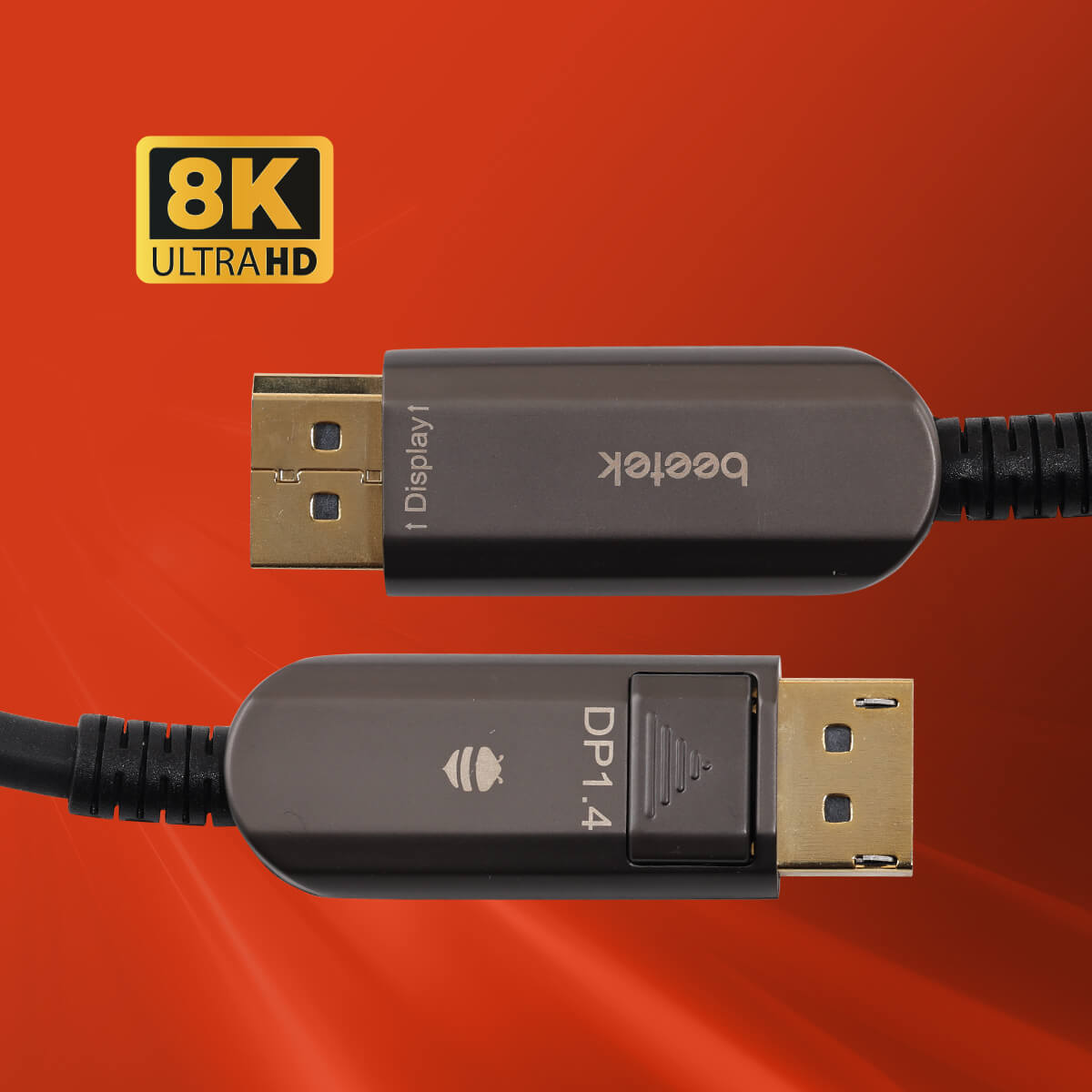

Supports resolutions upto 8K@60 at 32.4 Gbps.
![](http://beetekav.com/cdn/shop/files/GDH02_Features_1200x.jpg?v=1657460644)

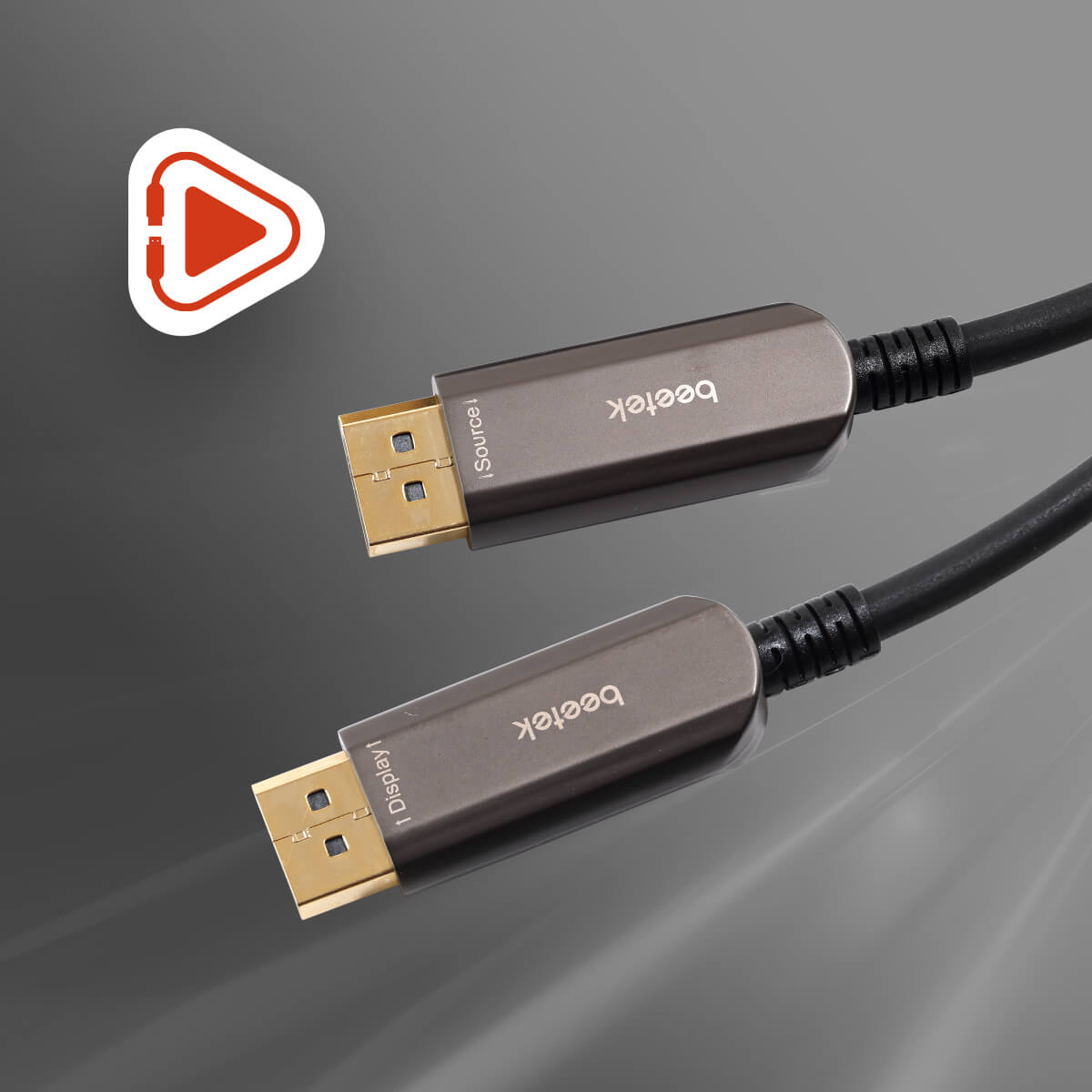

Plug and Play Technology
![](http://beetekav.com/cdn/shop/files/GDH02_F3_1200x.jpg?v=1657460659)

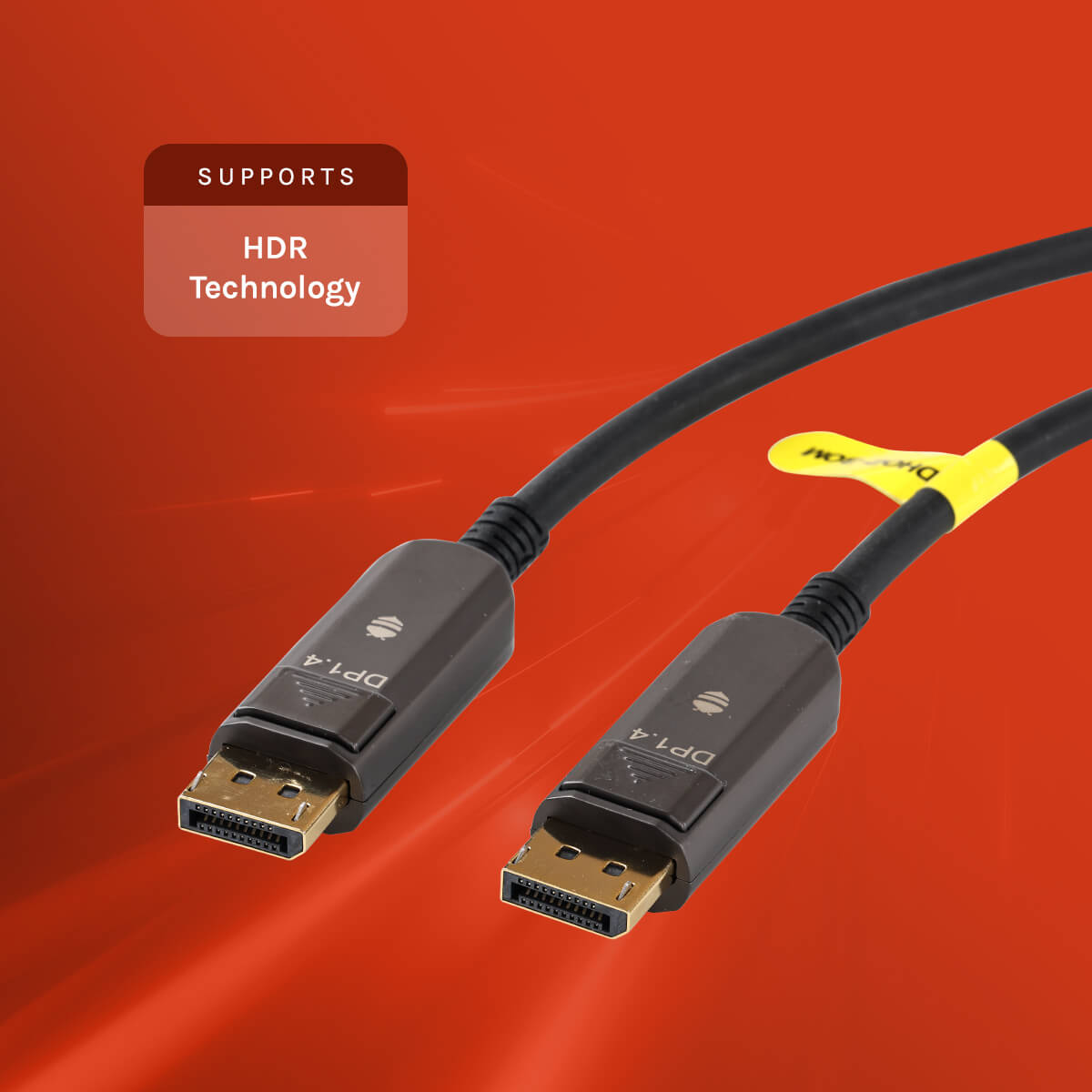

Supports HDR Technology
