H802
HDMI 2.0 E2 Special Line Series

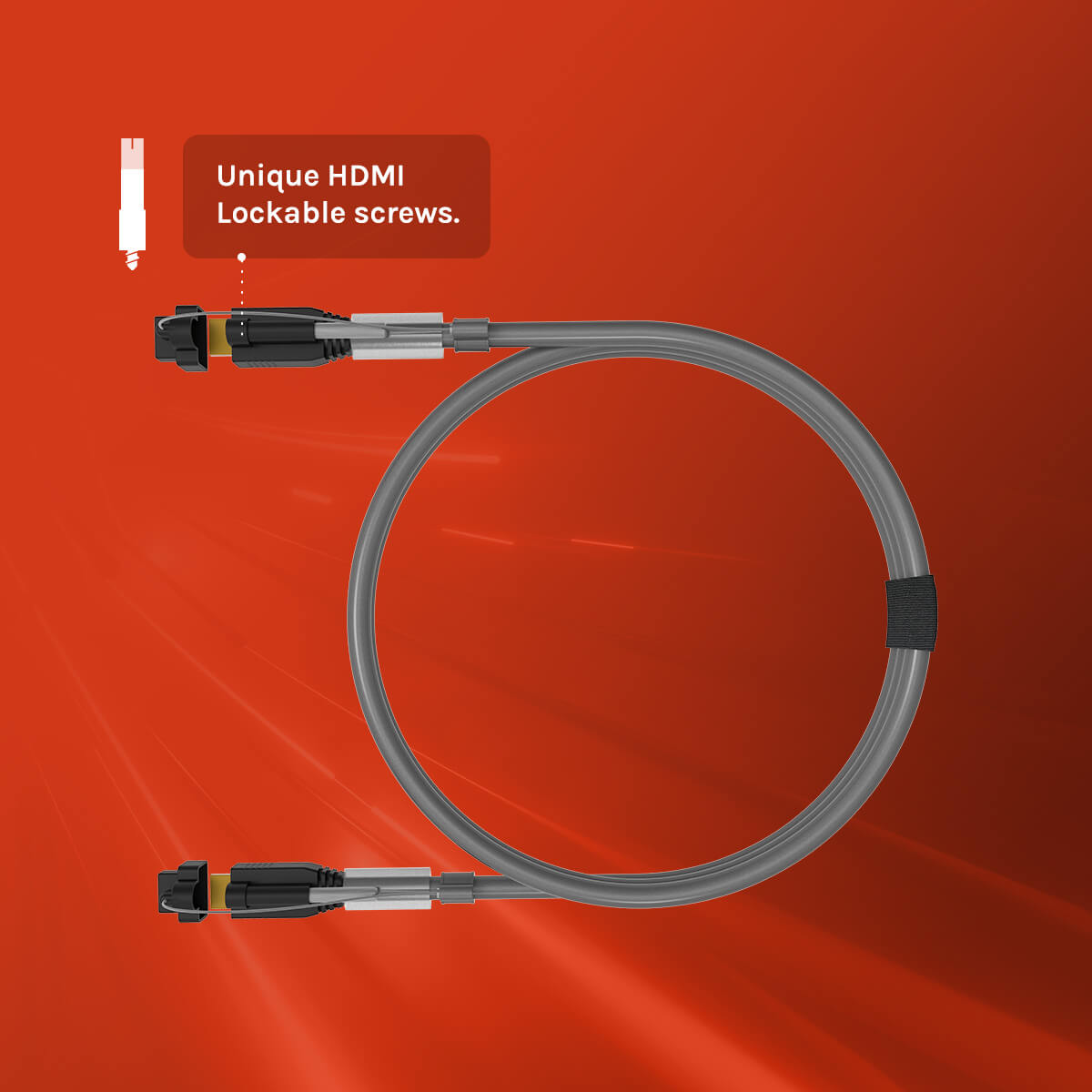

- Unique HDMI Lockable screws.

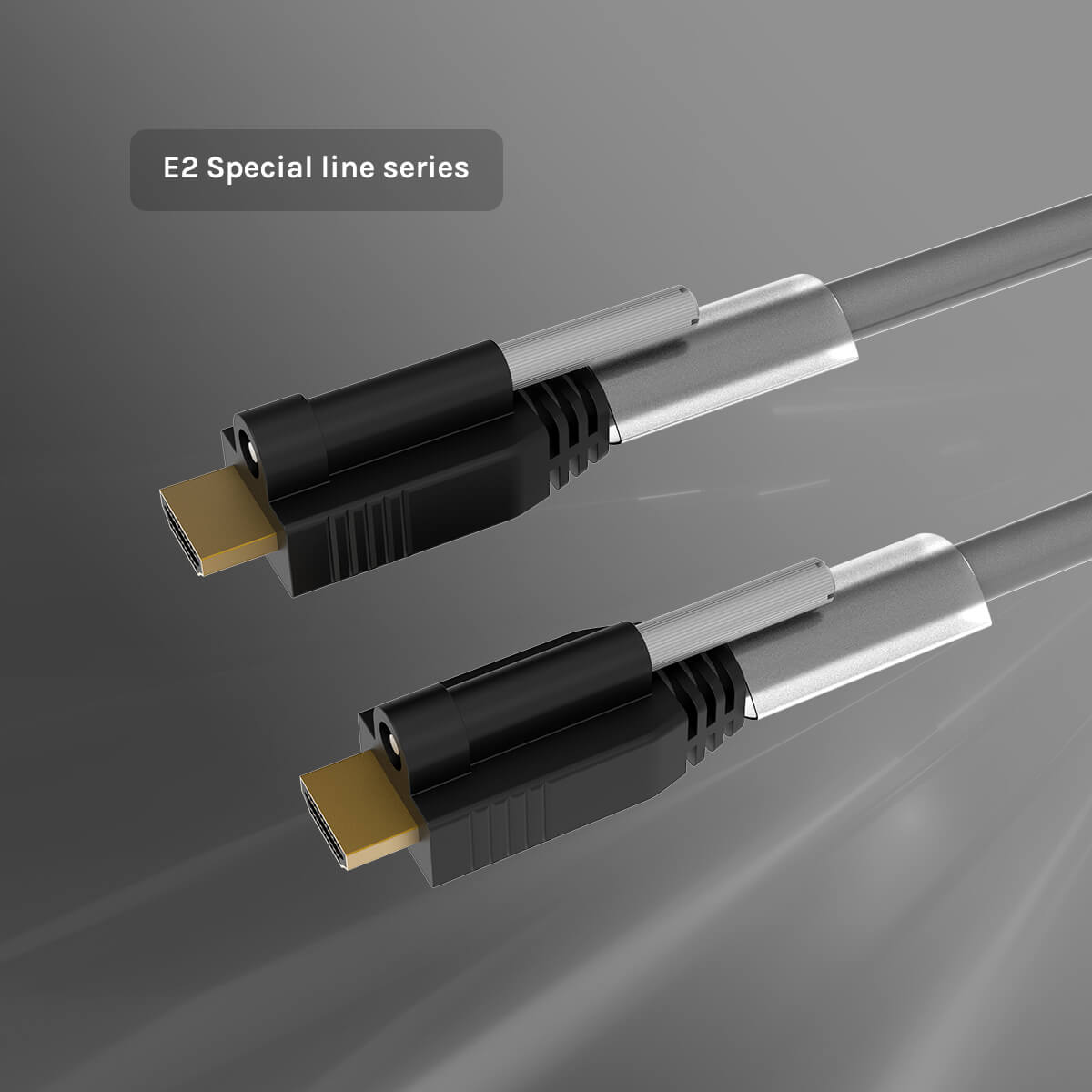

- E2 Special line series
- Supports resolutions up to 4K@60 4:4:4 at 18 Gbps transmission rate

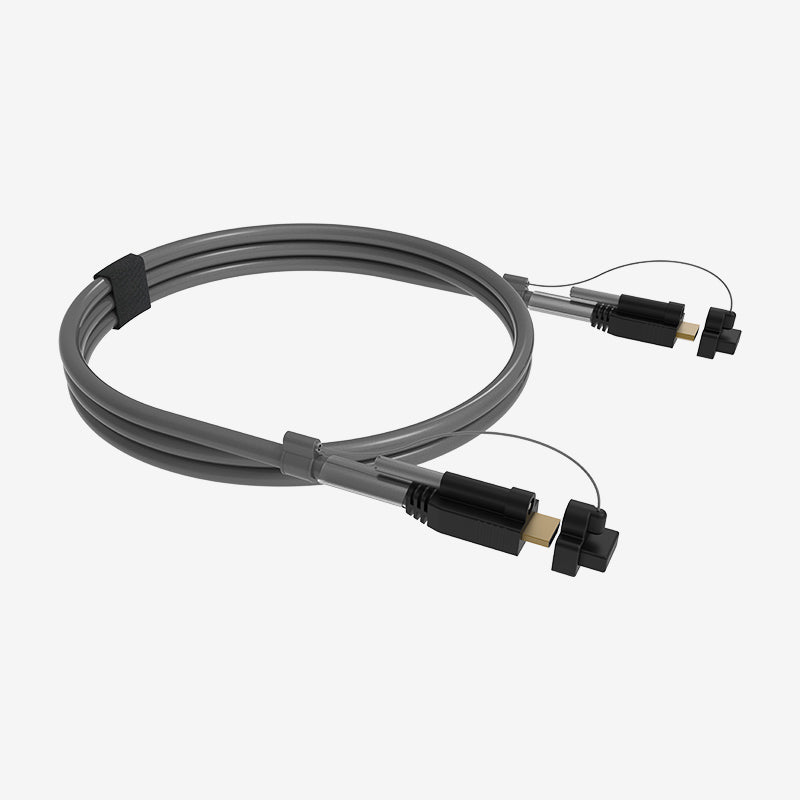

- The HDMI cable has 15 μm gold platted connector support 1000+ plug in and out and it has stainless steel knurling joint screw with unique detachable belt chain dust proof cap.

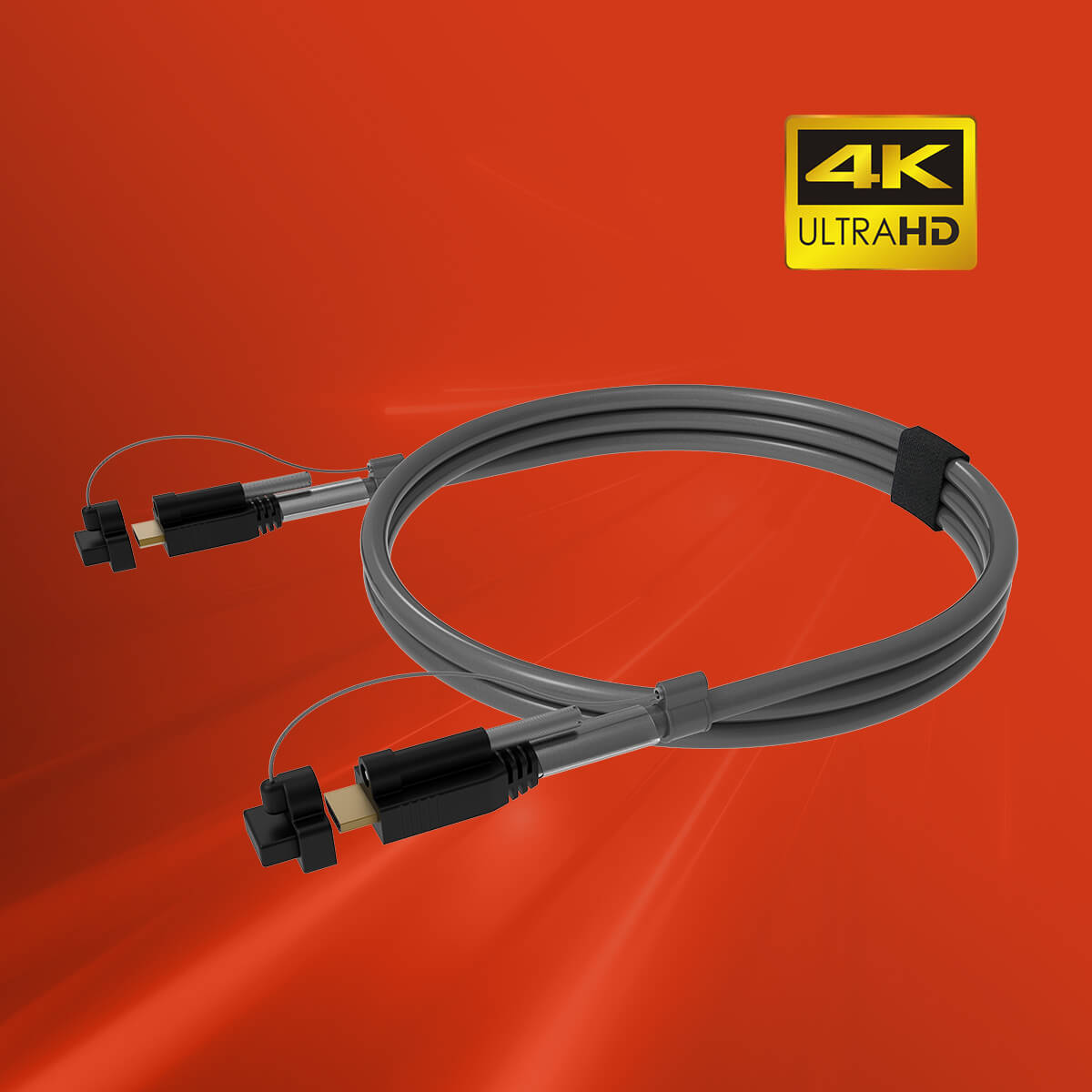

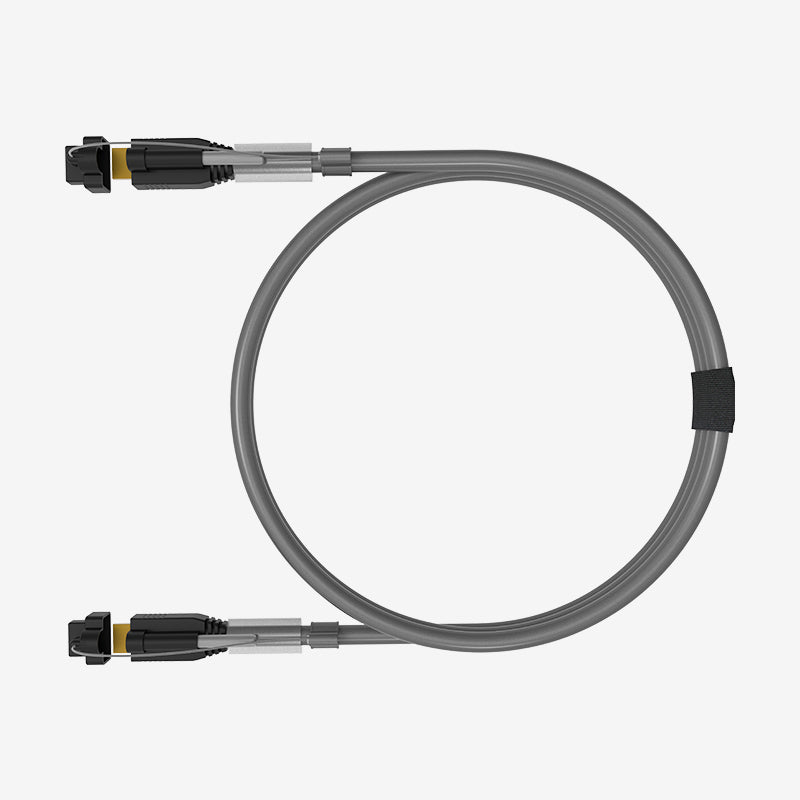

Beetek HDMI 2.0 E2 cables are specially designed for the rental & staging industry. It supports resolution upto 4K@60 at 18 Gpbs transmission rate. It has 5 Layers of interference shielding structure, more than 85% of the copper weaving rate. The device is manufactured with 99.995% tin-dipped oxygen free copper. The HDMI connector, shell and pins are all improved with an added level of stiffness. The product is designed specifically to support E2 product line.
| Name | Specification |
| Product Name | HDMI 2.0 Cable |
| Model | H802-xxM |
| Brand | Beetek |
| Signal Type | HDMI 2.0 |
| Input Connector Type | HDMI Type A Male - HDMI Type A Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | 54*20.8*20.6mm |
| Connector Structure | Plug plate + Inner mold + Tinplate + Copper foil+ Shell + Screw + Protective cap |
| Internal Mold | Transparent PE material |
| Copper Foil | Double-sided conductive copper foil |
| Tinplate | Upper and lower assembled tinplate |
| Shell | 45P PVC injection molded shell (UL, RoHS) |

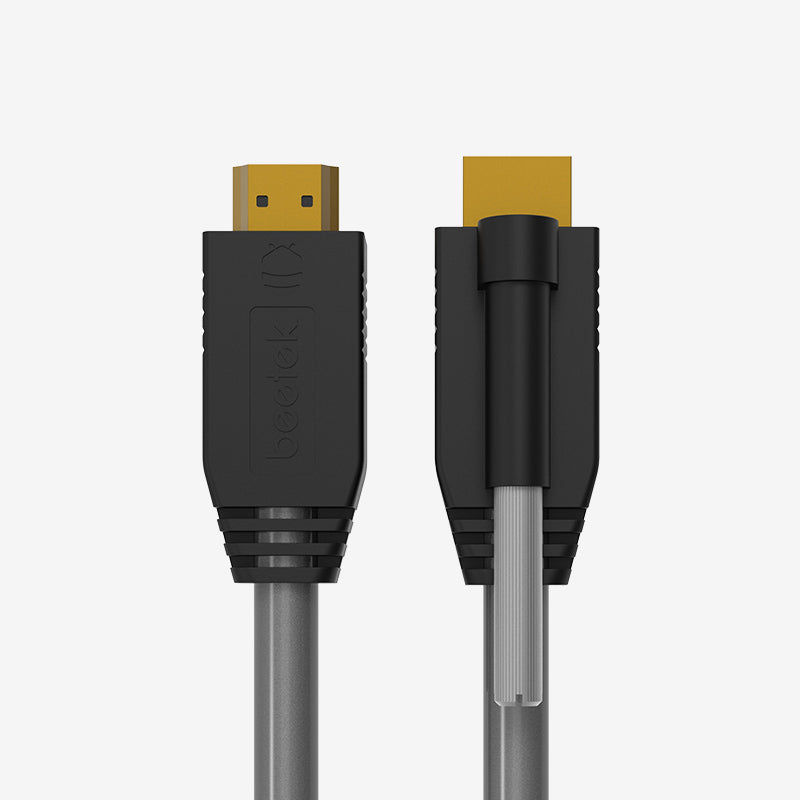

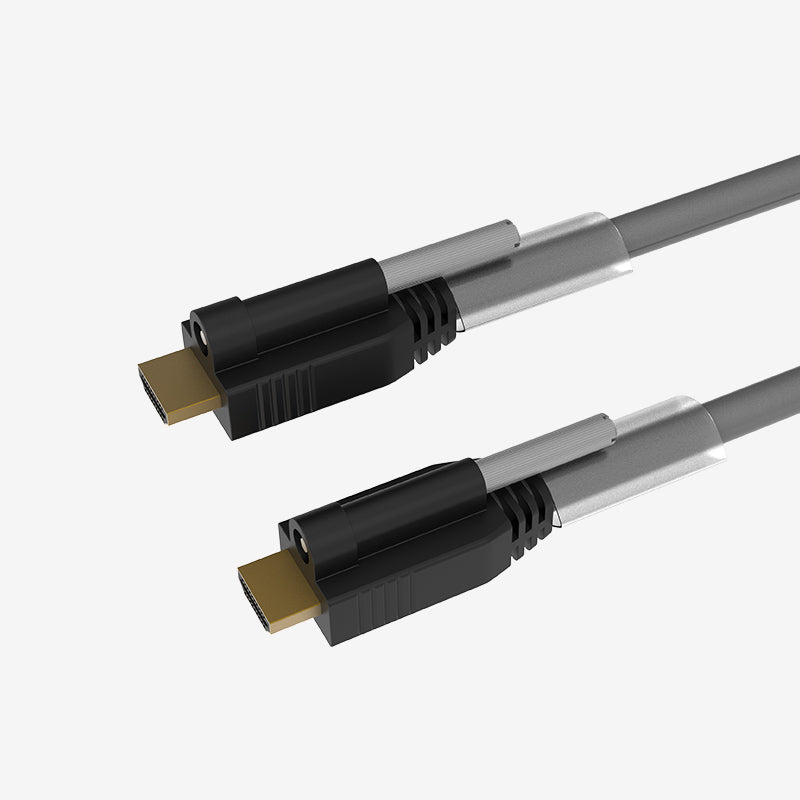

| Lockable Screw | Stainless Steel locking screw |

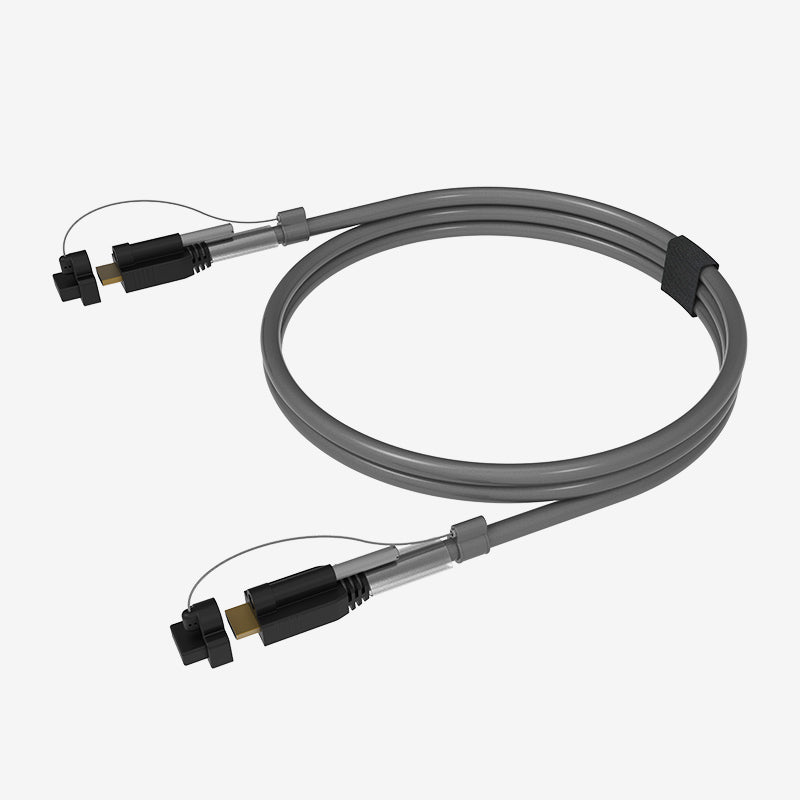

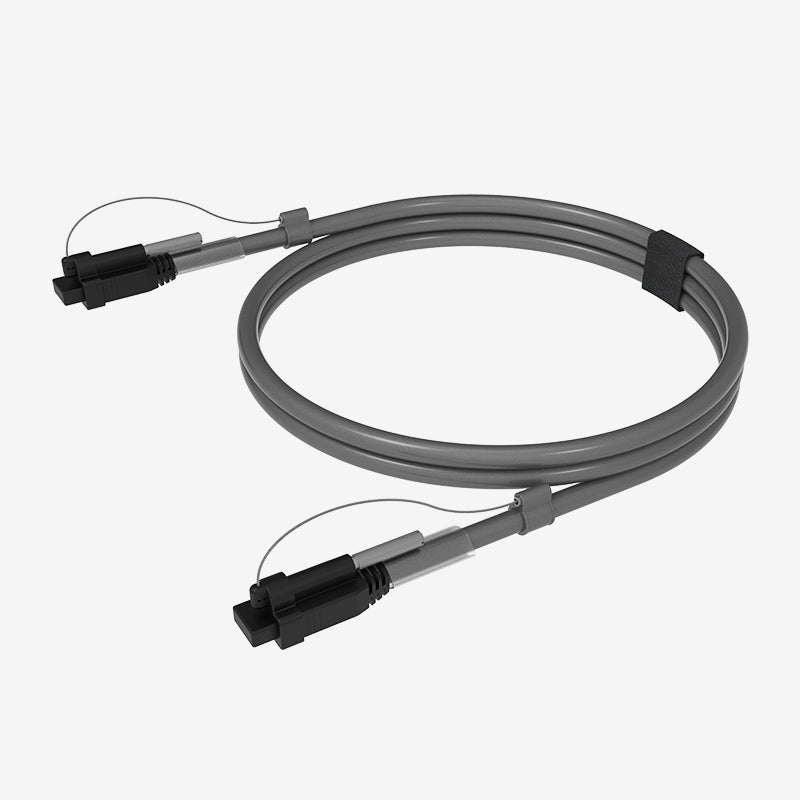

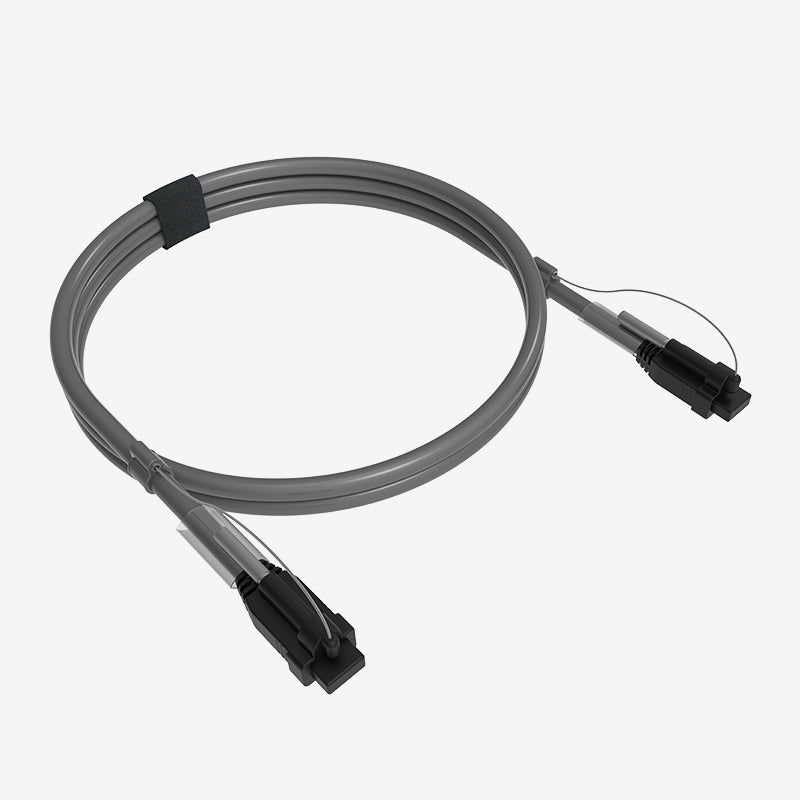

| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Diameter | 28AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | 90P PVC (UL, RoHS) |
| Cable Diameter | 8.5mm |
| Cable Color | Fluorescent gray |
| Cable Meter Marking | Waterproof Yellow Text |
| Velcro | P-shaped Velcro Strap: 20*200mm |
| Custom Label | Heat-shrink transparent tubing on both ends for custom labels |
| EDID | Yes |
| DDC channel | Yes |
| HDMI audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Compatibility | Backward Compatible with HDMI and DVI-SL |
| Supported Resolutions | 3840x2160@60Hz |
| Clock Bandwidth | 600MHz * 3 |
| Transmission Rate | 18Gbps |
| Plug and play | Yes |
| Delay | Zero |
| Deep Color | Yes |
| Color Sampling Rate | RGB 4:4:4 、YUV 4:4:4、YUV 4:2:2、YUV 4:2:0 |
| Compression | None |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤400N |
| Bending Angle | 120° |
| Operating Temperature | -20℃~80℃ |
Key Features
Unique HDMI Lockable screws
E2 Special line series
Supports resolutions upto 4K@60 4:4:4 at 18 Gbps transmission rate
