TH905

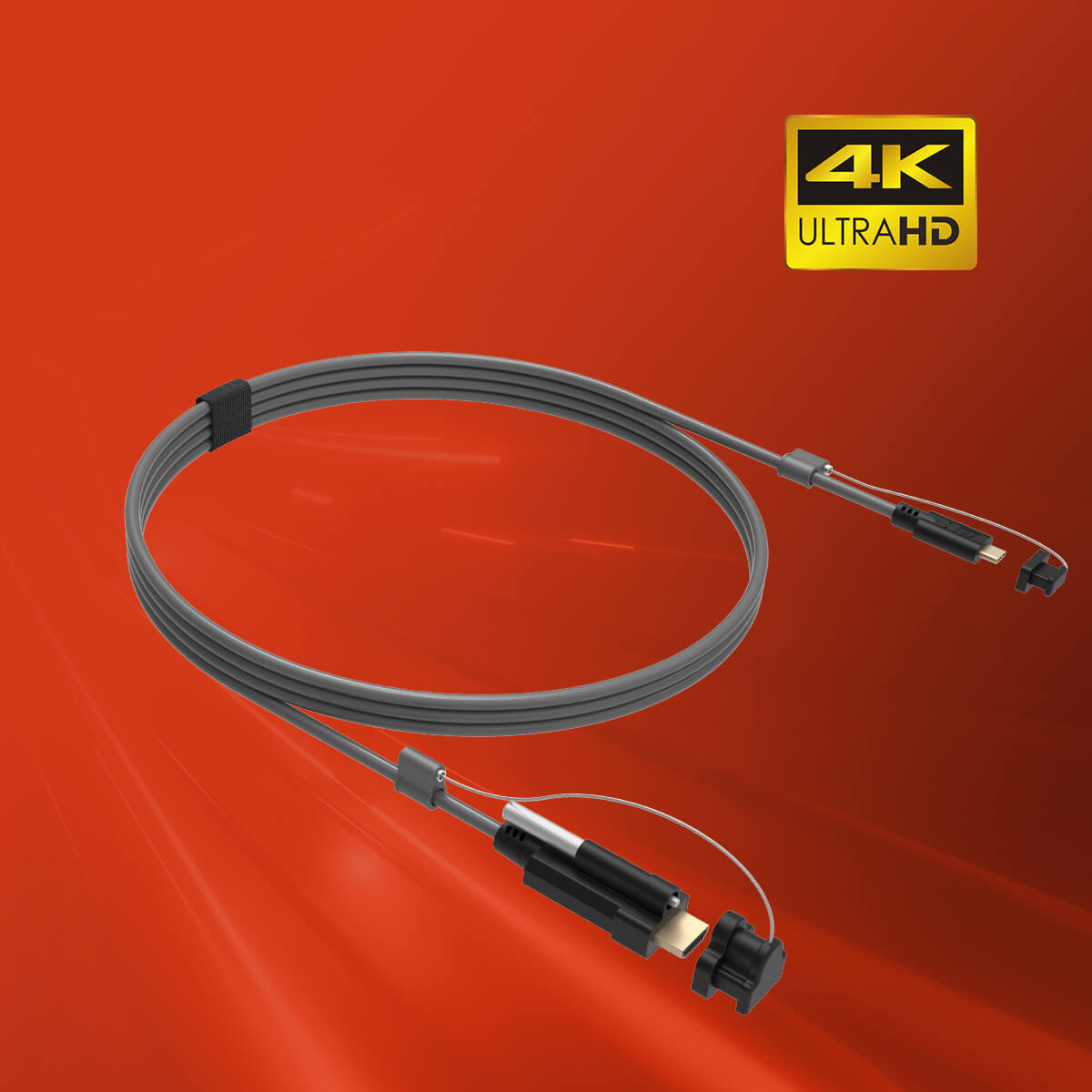

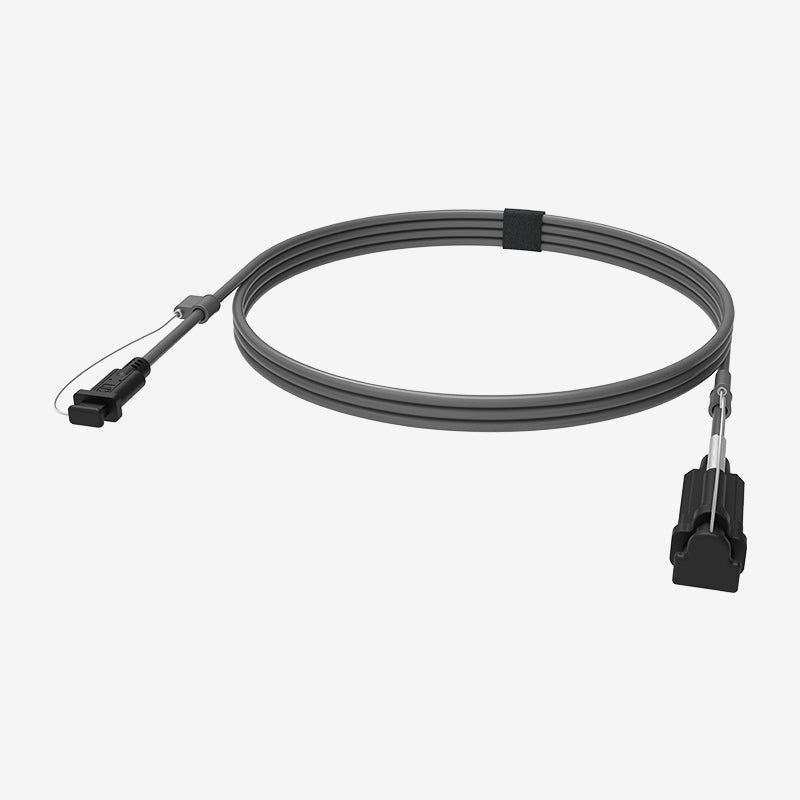

Type-C-HDMI 4K UHD Adapter Cable
- Supports 3840*2160@60HZ or 4096*2160@60HZ，RGB4:4:4；

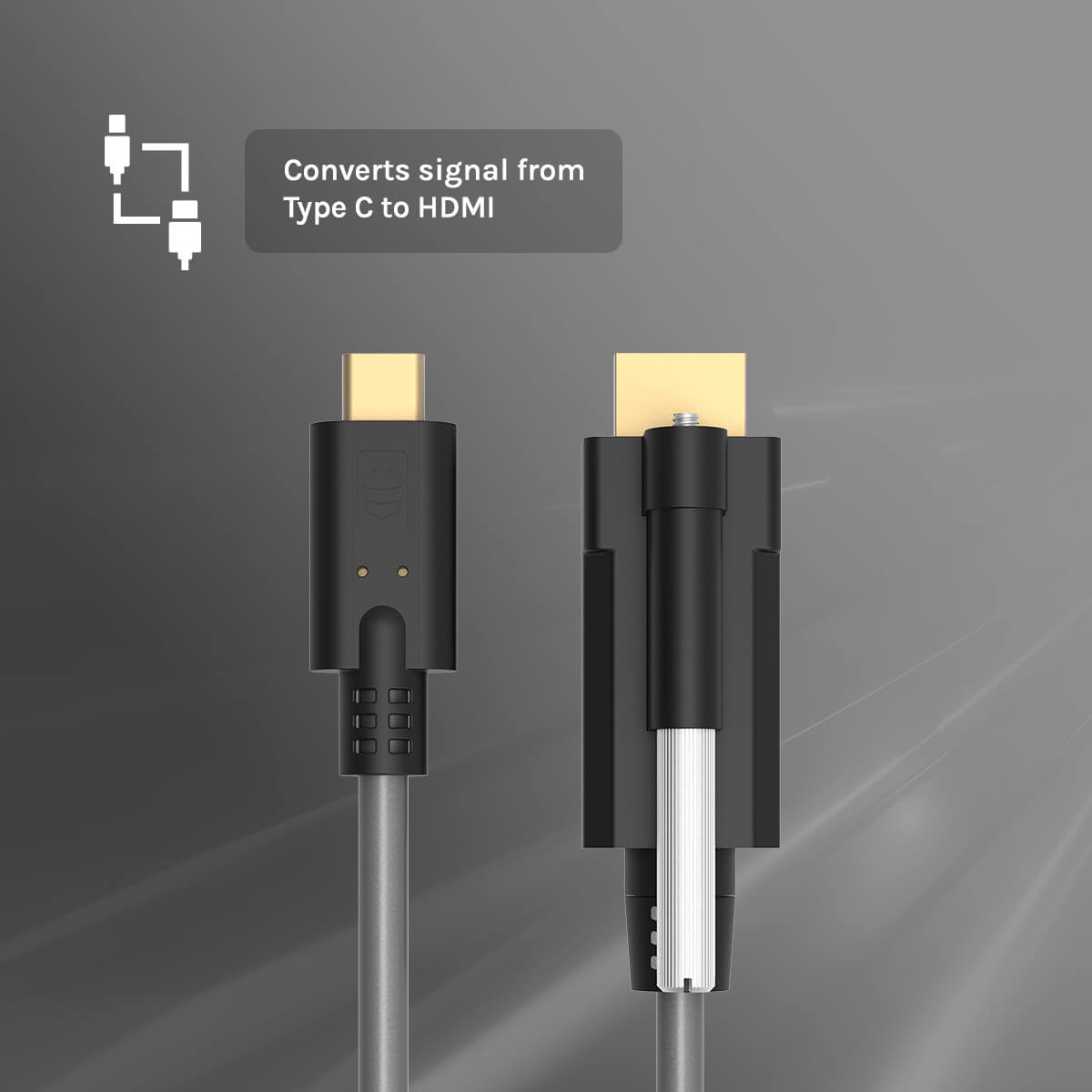

- Converts signal from Type C to HDMI; Supports EDID pass-through.; Supports CEC；Supports audio output；

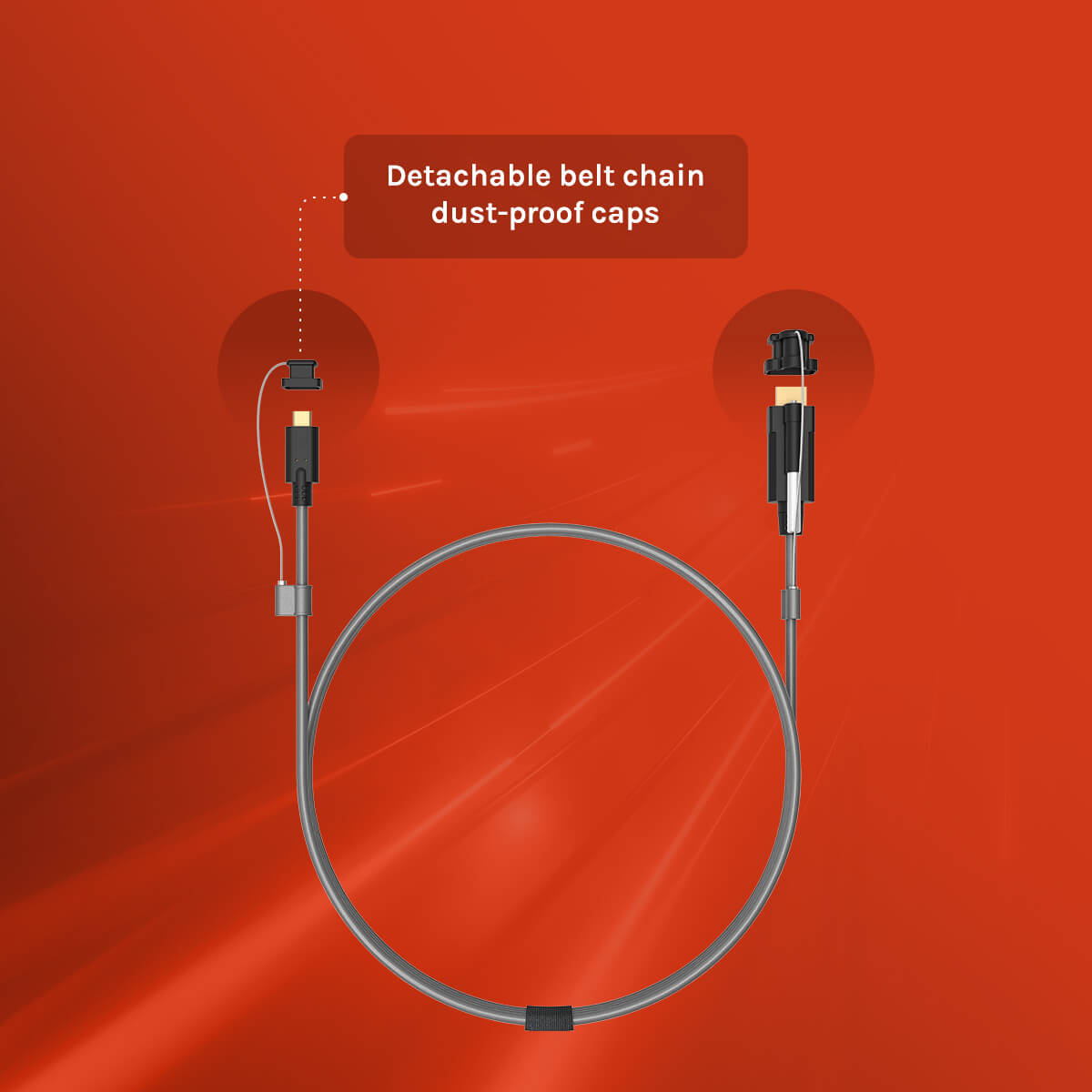

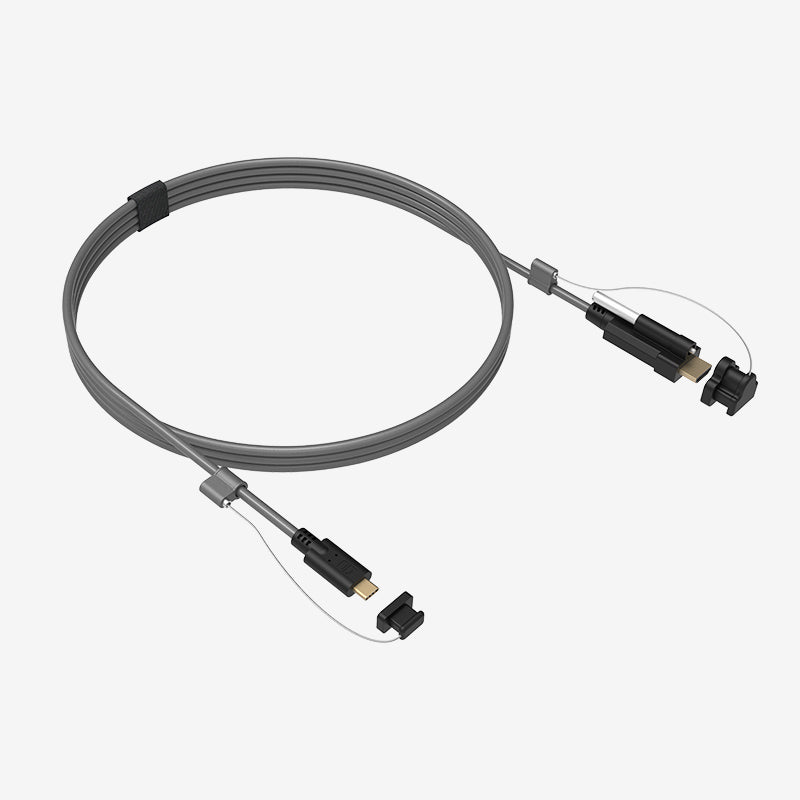

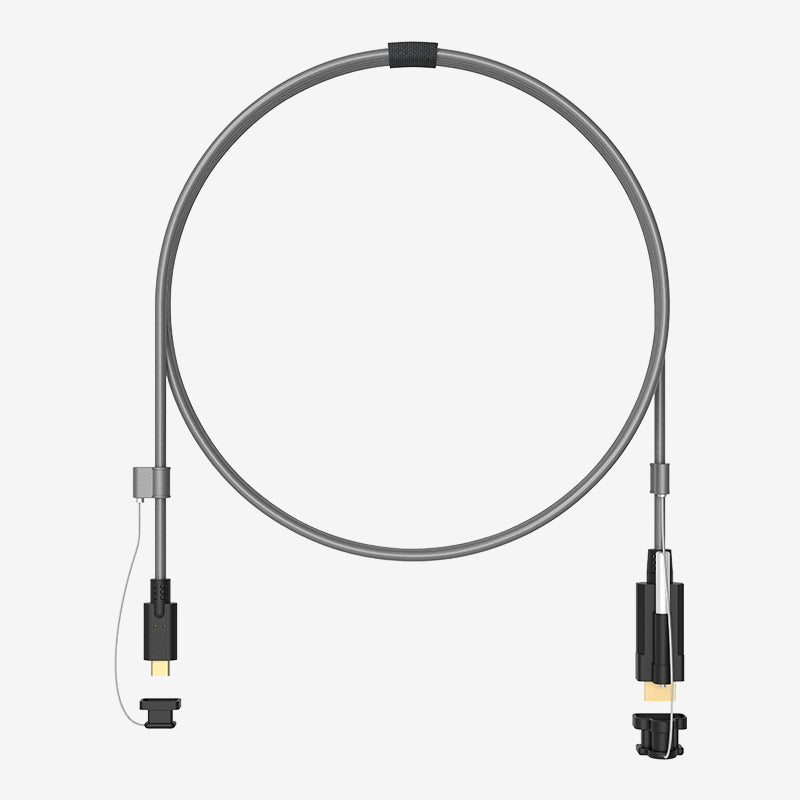

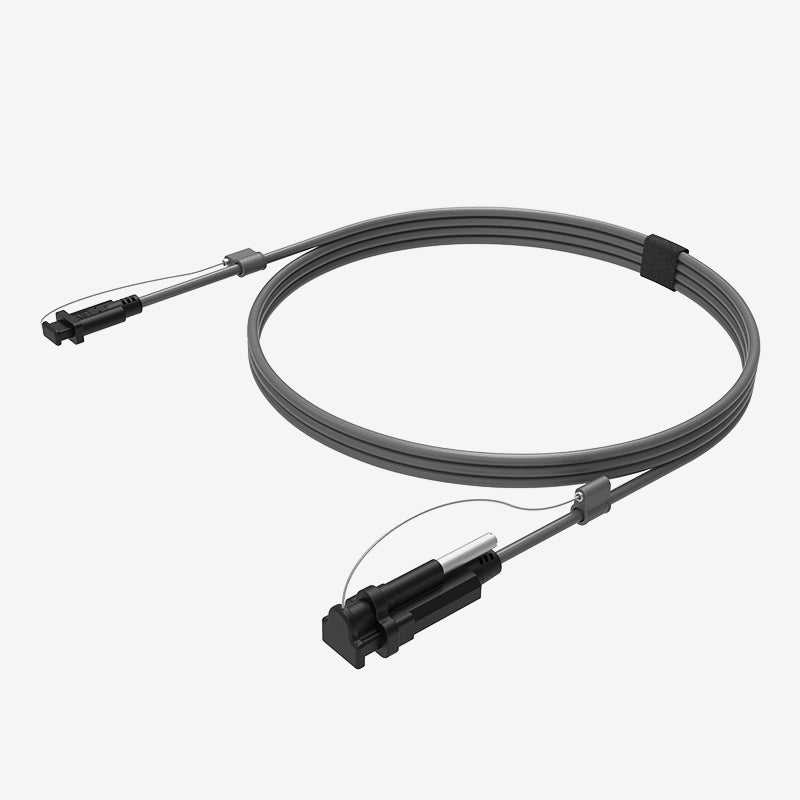

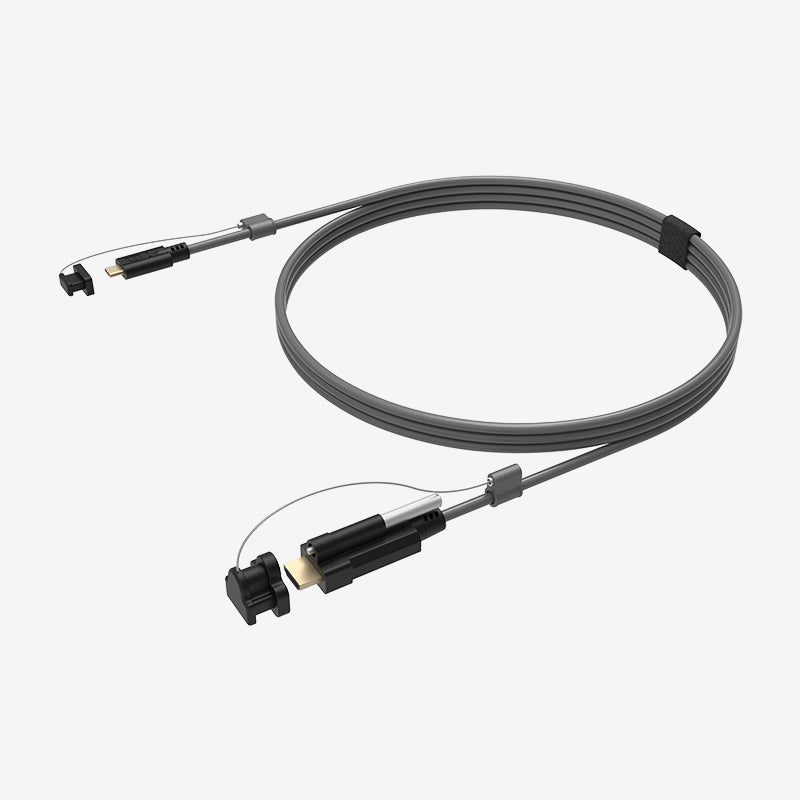

- Cable jacket is made of wear-resistant PVC composite. Both ends come with detachable belt chain dust-proof caps;

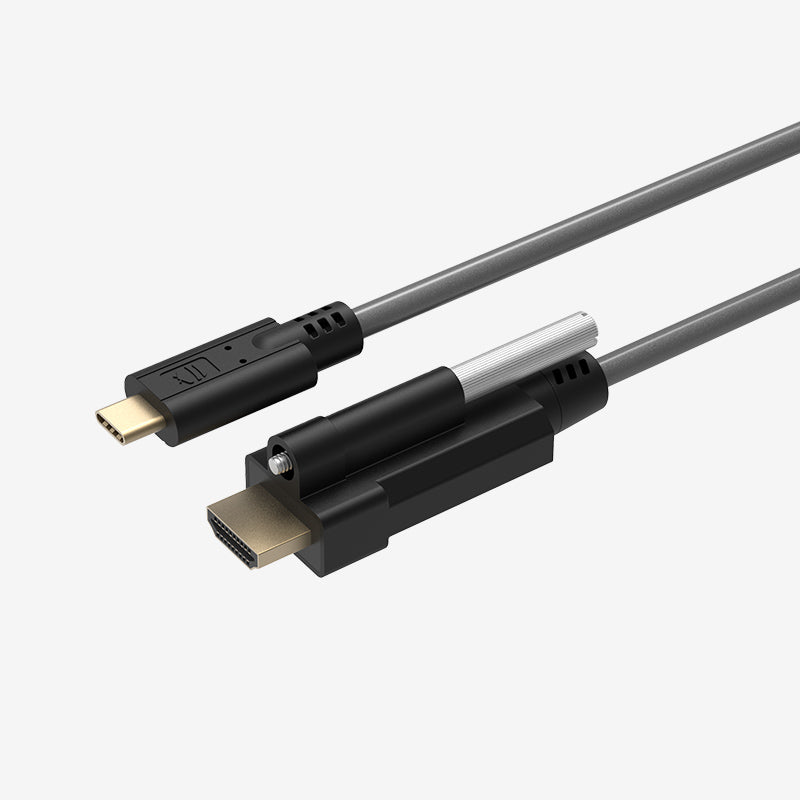

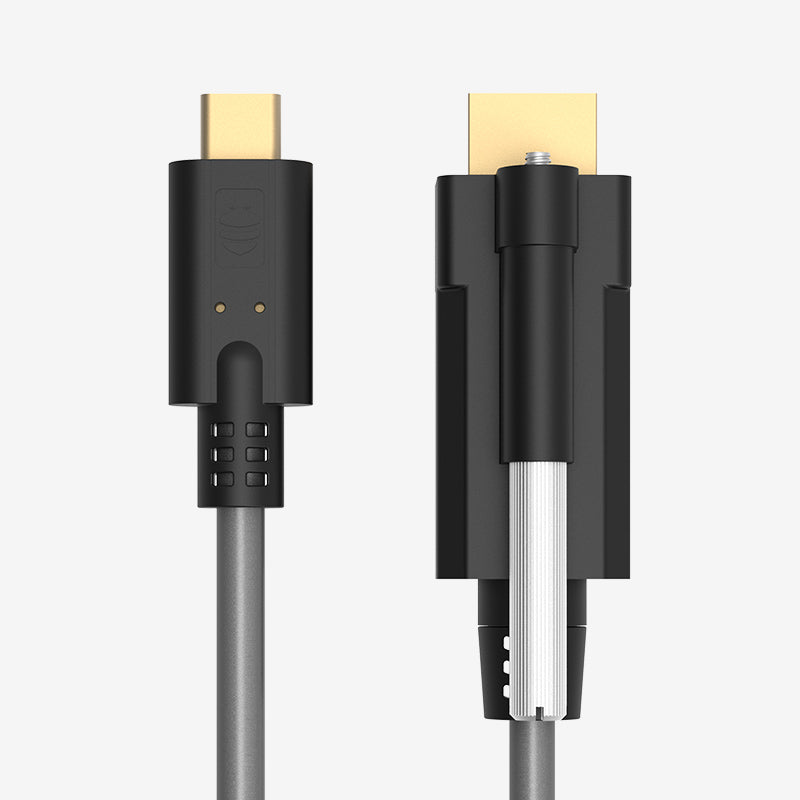

- HDMI connector is lockable with stainless steel knurling joint screw to make the connection system more stable.
Beetek Type C to HDMI adapter cable converts signal from Type C (Display port standards) to HDMI and supports resolution upto UHD. The adapter cable supports EDID pass through, CEC and support audio as well. The Type C Connector supports DP 1.2 a (ALTERNATE MODE) technology and zinc alloy HDMI-A connector with built-in active converting chip and 15kv anti-static chip. It has OD: 5.4mm±0.2mm; Conductor gauge: 30 AWG; Braided shield coverage rate: ≥85%；The length of the cable is 2.5 metres.The product is suitable for Rental, Live Events and corporate application.
| Name | Specification |
| Product Name | USB3.1 Type C - HDMI 2.0 Adapter Cable |
| Model | PH905-xxM |
| Brand | Beetek |
| Signal Type | USB 3.1, HDMI 2.0 |
| Conversion Method | Active |
| Input Connector Type | USB Type C Male |
| Output Connector Type | HDMI Type A Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | HDMI: 67.4*20.8*20.3mm; Type C: 42.2*14.8*8.9mm |
| Connector Structure (Type C) | Plug plate + Inner mold + Copper foil + Shell |
| Connector Structure (HDMI) | Active PCB board + SR outer mold + Shell + Screw + Protective cap |
| Internal Mold (Type C) | Transparent PE material |
| Copper Foil (Type C) | Double-sided conductive copper foil |
| SR Outer Mold (HDMI) | 45P black PVC injection mold |
| Shell | Type C: 45P black PVC injection molded shell (UL, RoHS); HDMI: Zinc alloy upper and lower assembled shell |
| Locking Connector (HDMI) | Stainless steel screw |
| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Diameter | 30AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | 90P PVC (UL, RoHS) |
| Cable Diameter | 5.4mm |
| Cable Color | Fluorescent gray |
| Cable Meter Marking | Waterproof Yellow Text |
| Velcro | P-shaped Velcro Strap: 20*200mm |
| EDID | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| ESD | Yes |
| Supported Resolutions | 3840 x 2160@60Hz |
| Clock Bandwidth | 600MHz * 3 |
| Transmission Rate | 18 Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Compression | None |
| Deep Color | Yes |
| Color Sampling Rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤200N |
| Bending Angle | 135° |
| Operating Temperature | -30℃~75℃ |
Key Features
Supports 3840*2160@60HZ or 4096*2160@60HZ，RGB4:4:4
Converts signal from Type C to HDMI; Supports EDID pass-through.; Supports CEC；Supports audio output
Cable jacket is made of wear-resistant PVC composite. Both ends come with detachable belt chain dust-proof caps
