W305-SF/UTP-24C6A

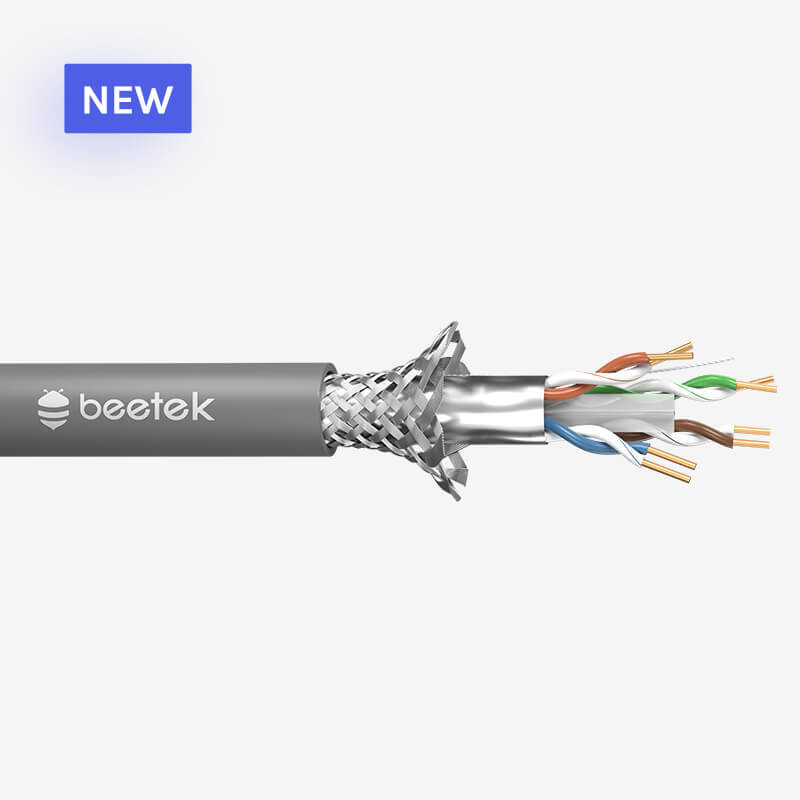

Shielded SF/UTP CAT6A Cable
- Transmission rate support upto 10 Gbps
- Cross-shaped spline structure for low cross talk, low attenuation, and enhanced transmission performance.
- Single-strand 8-core 24AWG oxygen-free copper
- PVC eco-friendly material jacket which is wear-resistant, tensile, waterproof and stain-resistant
- Cable de-twisting technique to make itself more firmer and the transmission more stable
- Able meter mark, it can be freely cut according to the required length, increasing the convenience of your deployments
Introducing the W305-SF/UTP-24C6A, a high-performance shielded CAT6A cable meticulously designed for fixed installations, delivering exceptional reliability and efficiency.Crafted from single-strand 8-core 24AWG oxygen-free copper wire, the cable body is encased in an eco-friendly PVC outer jacket for durability. The high-density PE insulation sheath enhances strength, ensuring a resilient and enduring solution. The incorporation of a cross-shaped spline structure minimizes crosstalk, reduces attenuation, and optimizes transmission performance.Employing an advanced cable de-twisting technique, the cable body achieves increased firmness, contributing to stable and consistent transmissions.
The presence of meter marks facilitates effortless customization, allowing for precise cutting tailored to your specific deployment needs. Moreover, it boasts compatibility with specific environments, supporting up to 10Gbps transmission rates.
The presence of meter marks facilitates effortless customization, allowing for precise cutting tailored to your specific deployment needs. Moreover, it boasts compatibility with specific environments, supporting up to 10Gbps transmission rates.
| Name | Specification |
| Cable Type | CAT6A SF/UTP |
| Environmental Information | RoHS 2.0, REACH Compliant |

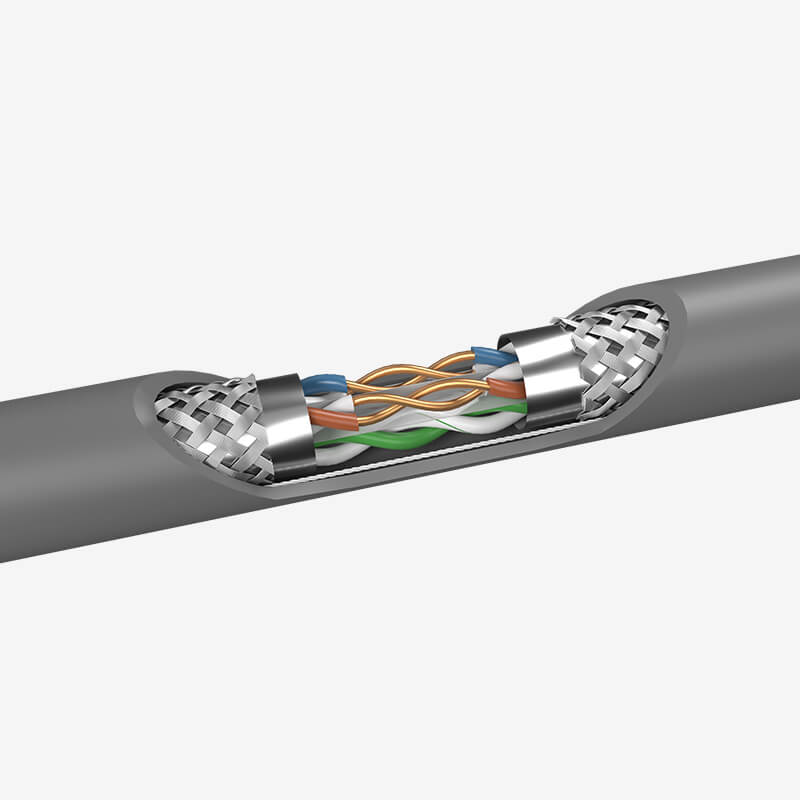

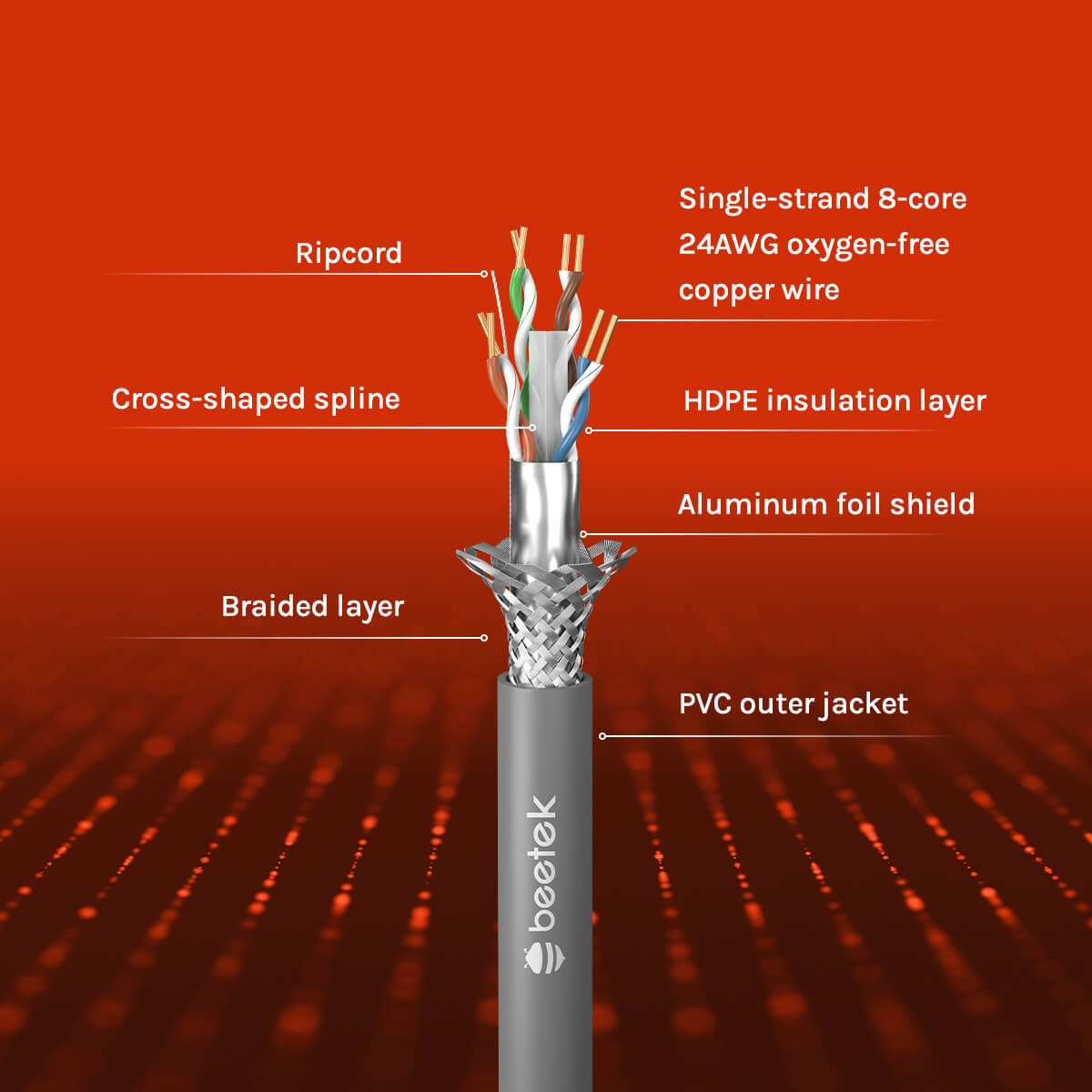

| Structure | Conductor + Insulation layer + Cross-shaped spline + shielding layer + Braid + Jacket |
| Conductor Gauge | 24AWG |
| Conductor Size | 0.5mm *8 |
| Conductor Material | OFC oxygen-free copper |
| Insulation Outer Diameter | 1.15±0.03mm |
| Insulation Material | PE |
| Insulation Color Code | 1P: Blue & White/Blue; 2P: Orange & White/Orange; 3P: Green & White/Green; 4P: Brown & White/Brown |
| Core Wire Direction | s |
| Core Wire Lay Length | <30mm |
| Cable Direction | s |
| Cable Lay Length | ≦120mm |
| Cable Technique | Cross-shaped spline and four pairs of core wires as a whole twisted counterclockwise |
| Braid Material | 80*0.12mm aluminum-magnesium wire |
| Shielding Rate | 100% |
| Jacket Material | PVC |
| Jacket Outer Diameter | 7.7±0.3mm |
| Cable Color | Dark gray |
| Transmission Rate | 10Gbps |
| Conductor Resistance | ≤15.0Ω/100M at 20℃ |
| Insulation Resistance | ＞5000MΩ at 20℃ |
| Impedance | 100Ω±15Ω |
| Dielectric Strength | 1000V DC/1min;No Breakdown |
| Delay Skew | 500MHz |
| Frequency | 250Mhz |
| Testing | PASS FLUKE |
| Insulation Elongation | ≥300% |
| Insulation Tensile | ≥16 Mpa |
| Jacket Elongation | ≥100% |
| Jacket Tensile | ≥12.5 Mpa |
| Maximum Relative Mutual Coupling Capacitance | 5.6 nF/100m |
| Maximum Capacitance Unbalance | 330pF/100m |
| Allowable Bending Radius | 15D (*D is cable outer diameter) |
| Operating Temperature | -30~80℃ |
| Operating Voltage | 30V |
| Length | 305M |
| Packing weight | 14.6kg |
