HDMI ESD

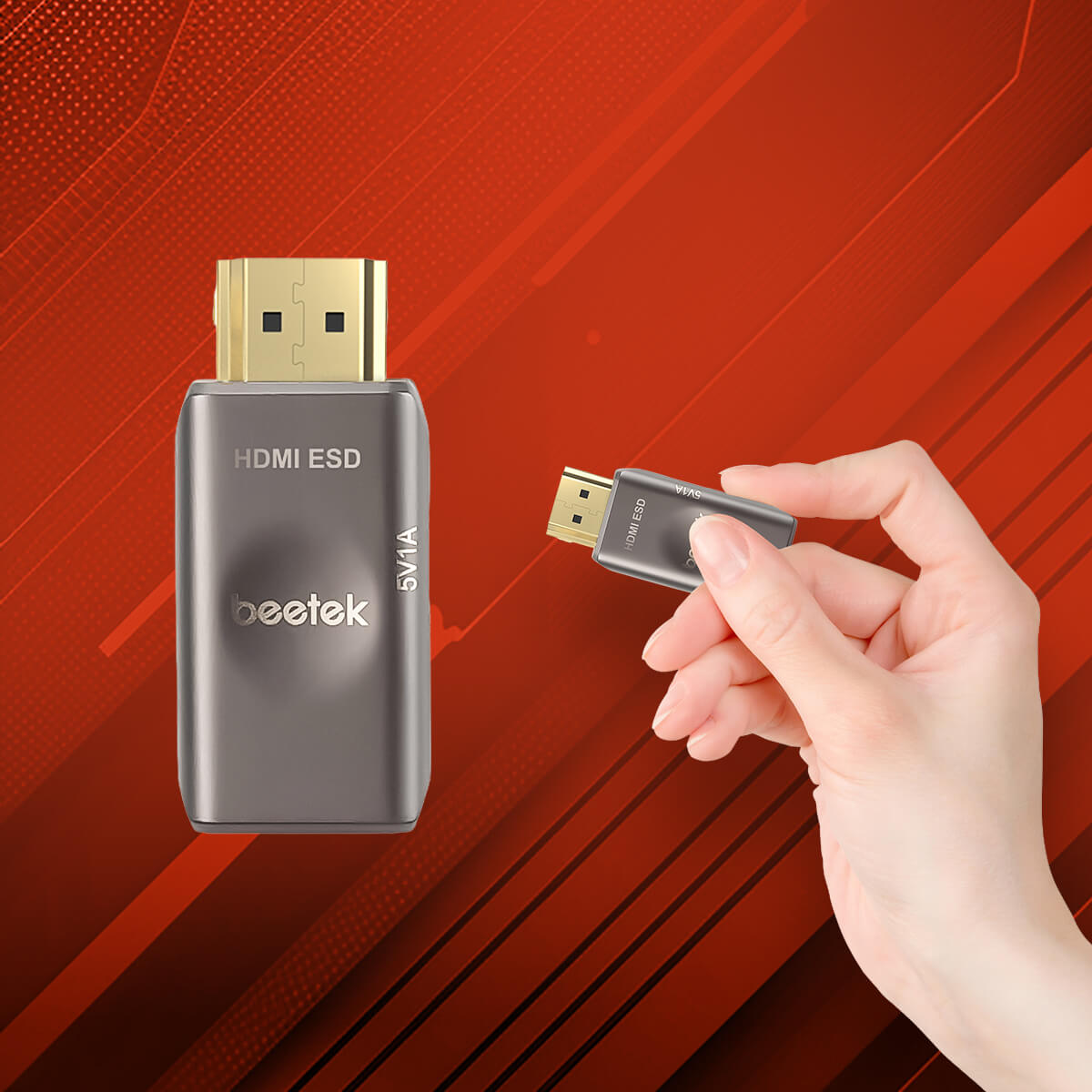

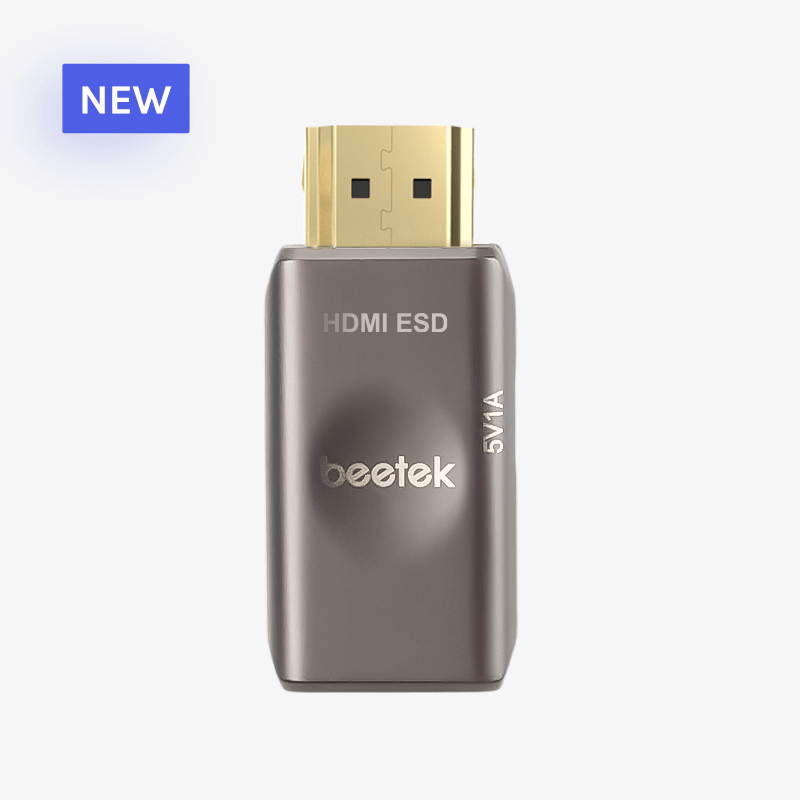

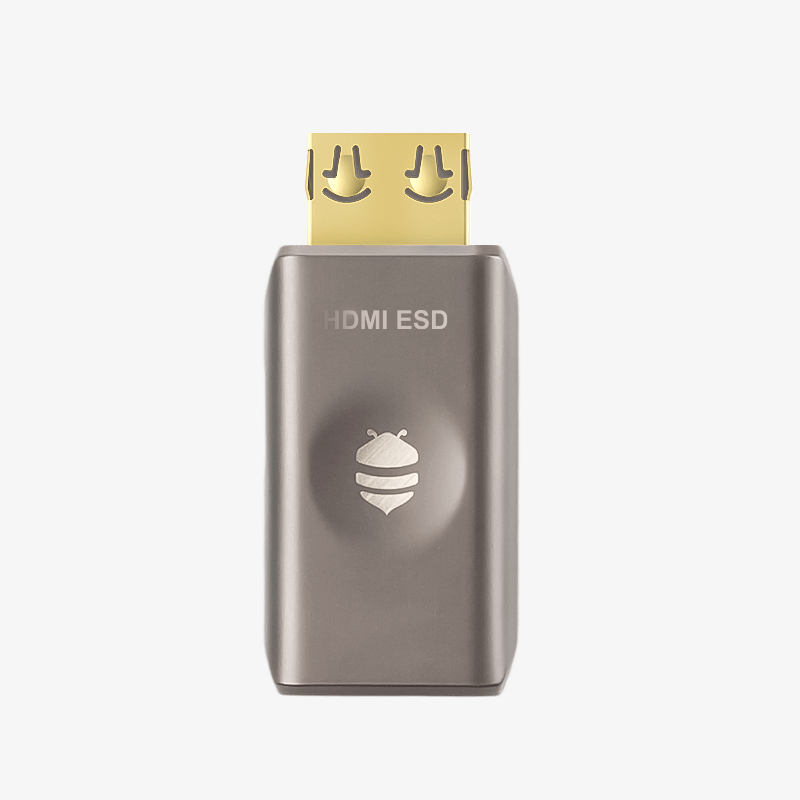

HDMI 2.0 Male-to-Female ESD Protector
- Designed specifically for mobile and repeated use scenarios.

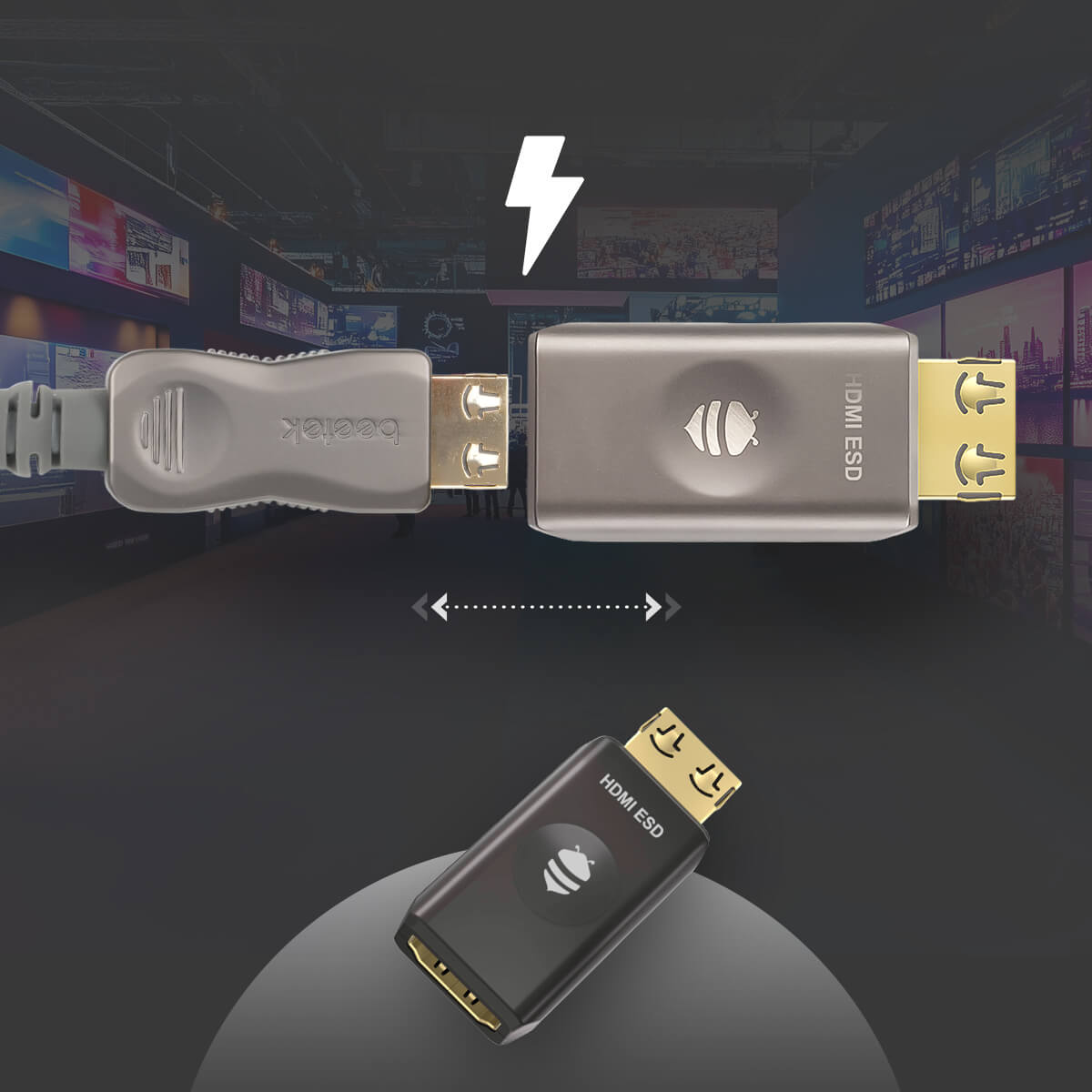

- ESD hot-plug connector protector for HDMI interfaces.
- ESD electrostatic protection supports 15 kV air discharge and 8 kV contact discharge.
- Complies with HDMI 2.0 standards, making it widely applicable to various video devices.

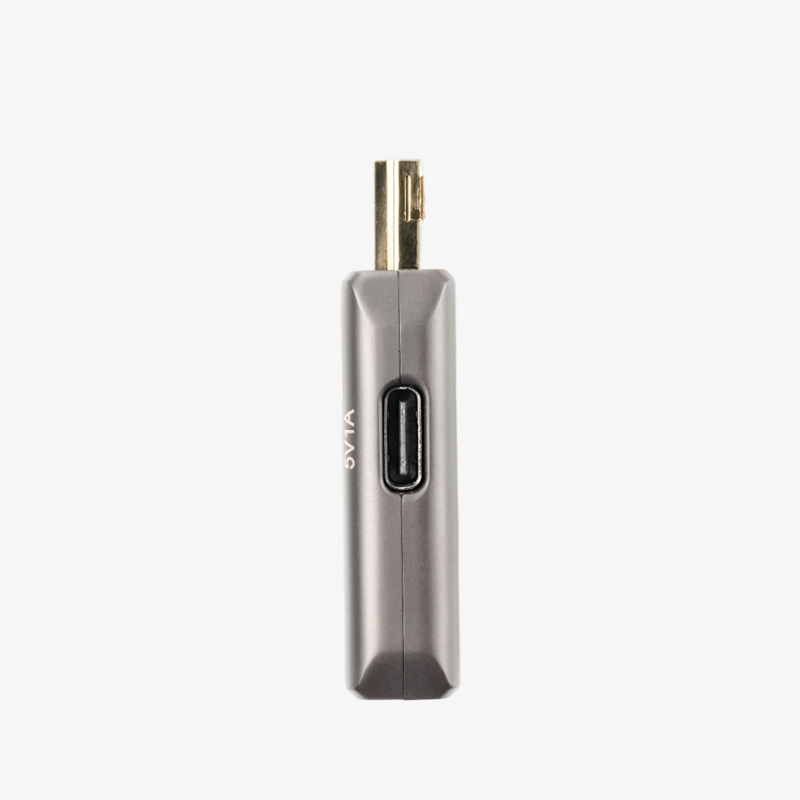

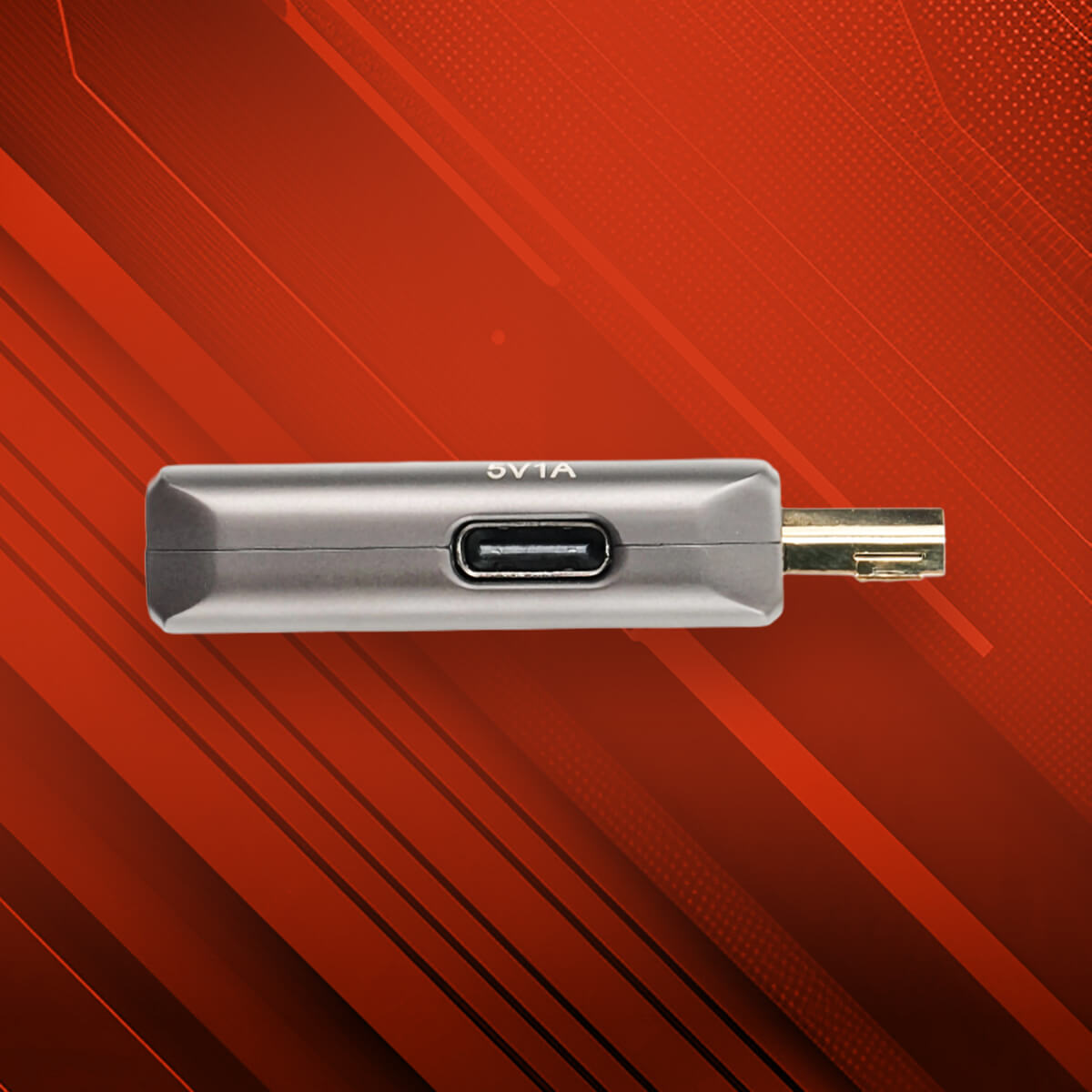

- Equipped with a Type-C 5V external power port providing more stable power support for the device.
- Zinc alloy housing with dimensions: 46mm*21mm*10mm.
| Name | Specification |
| Product Name | HDMI 2.0 Male-to-Female ESD Protector |

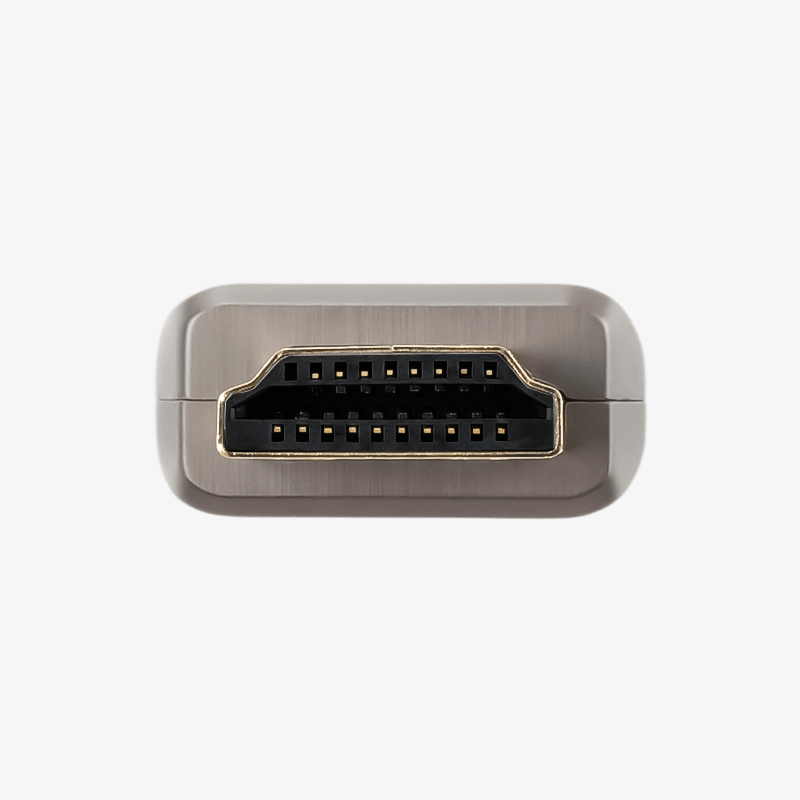

| Connector Type | HDMI Type A male, HDMI female |
| Signal Type | HDMI 2.0 |
| Housing Material | Zinc Alloy |
| Connector Size | 46mm*21mm*10mm |
| Environmental Info | RoHS 2.0 Compliant |
| Resolution | 3840*2160@60Hz |
| HDR | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| HDCP | Yes |
| EDID | Yes |
| VRR | Yes |
| BT.2020 Color Space | Yes |
| Plug and Play | Yes |
| ESD Protection | Yes |
| Hot Plug | Yes |
| Equalizer Chip | Yes |
| Transmission Rate | 18Gbps |
| Delay | Zero |
| Compression | None |
| Deep Color | Yes |
| Sampling Rate | Bandwidth Range: 8~12bit |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Key Features
Designed to act as a Port Saver for repeated use scenarios
Protects against Air and Contact ESD
Equipped with a Type-C 5V external power port providing more stable power support for the device.
