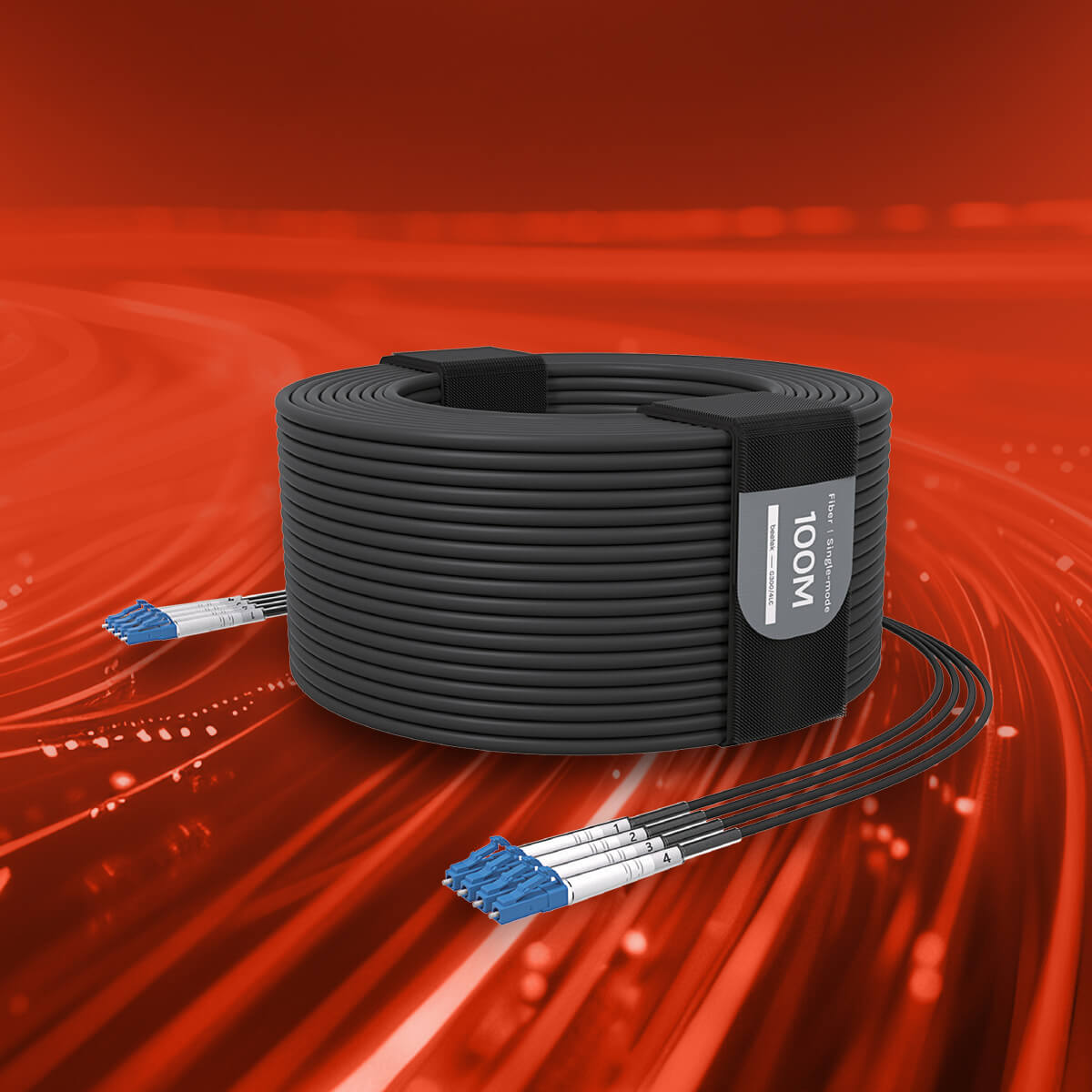

G300-xxUSM-4LC
TPU Single-mode Heavy-duty Armored Fiber Optic Cable, 4-core
- Adopts high-quality YOFC single-mode G657.A1 fiber core.
- The transmission rate is 10Gbps up to 2000 meters.
- The pliable yet rugged TPU outer sheath and built-in armored piping structure make the cable both durable and flexible at the same time.
- The interior uses DuPont Kevlar and metal braided reinforcement.

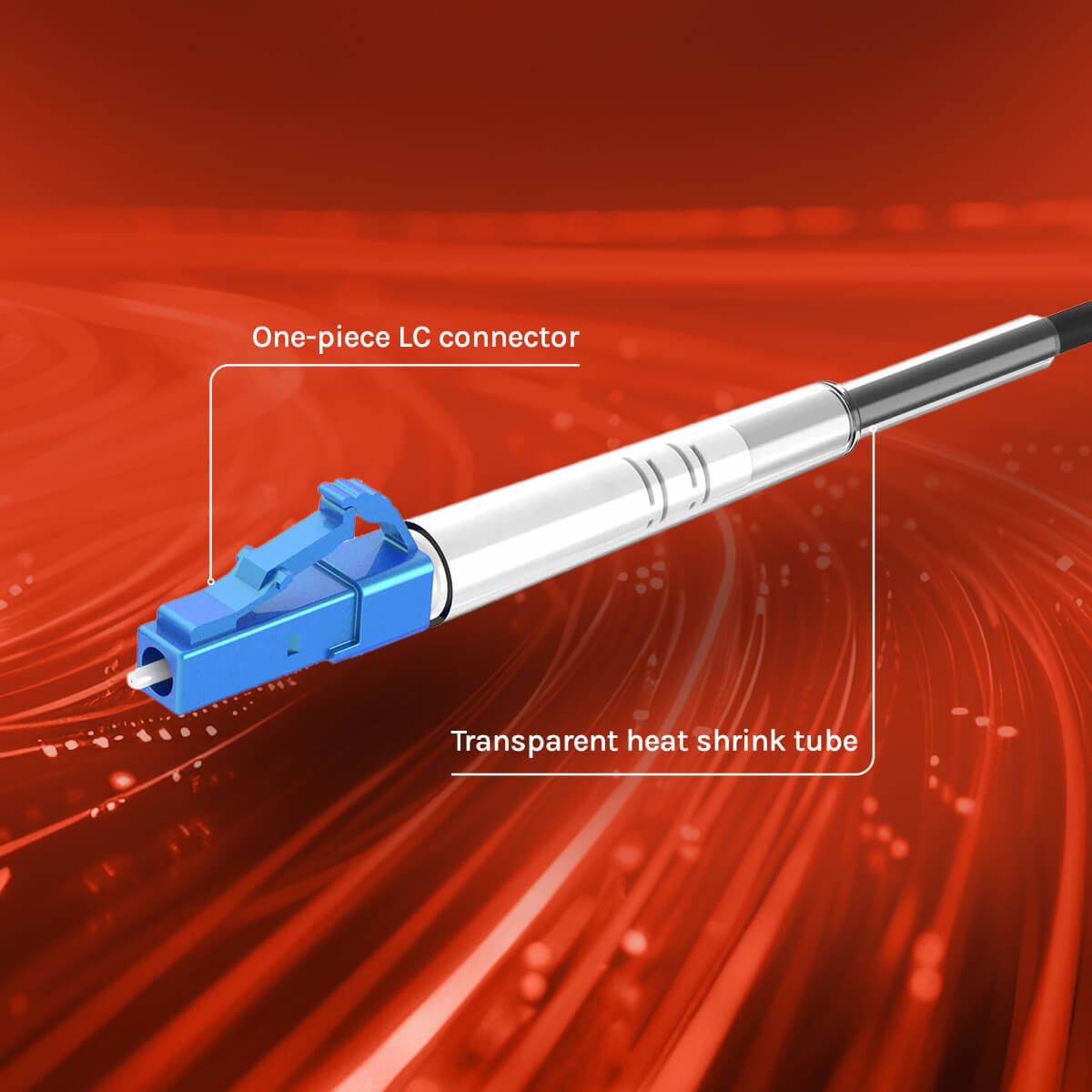

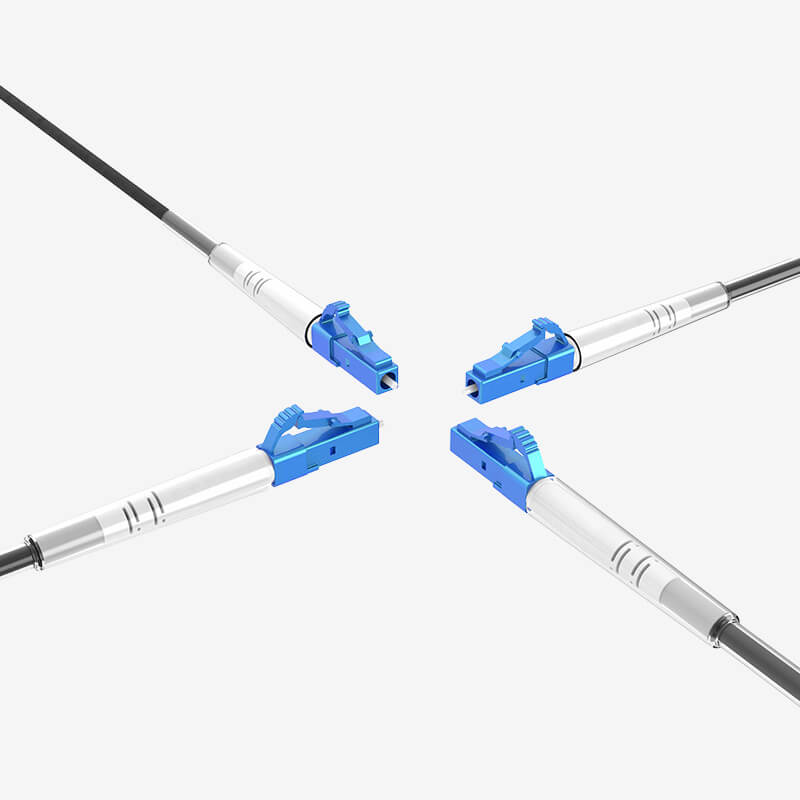

- LC connectors are integrated into the cable for strong and reliable connections.
- Maintains the characteristics of anti-freezing, wear resistance, tensile resistance and pressure resistance. Built to last in all conditions.
- Comes with captive LC dust caps and Beetek’ s patented protector connector.

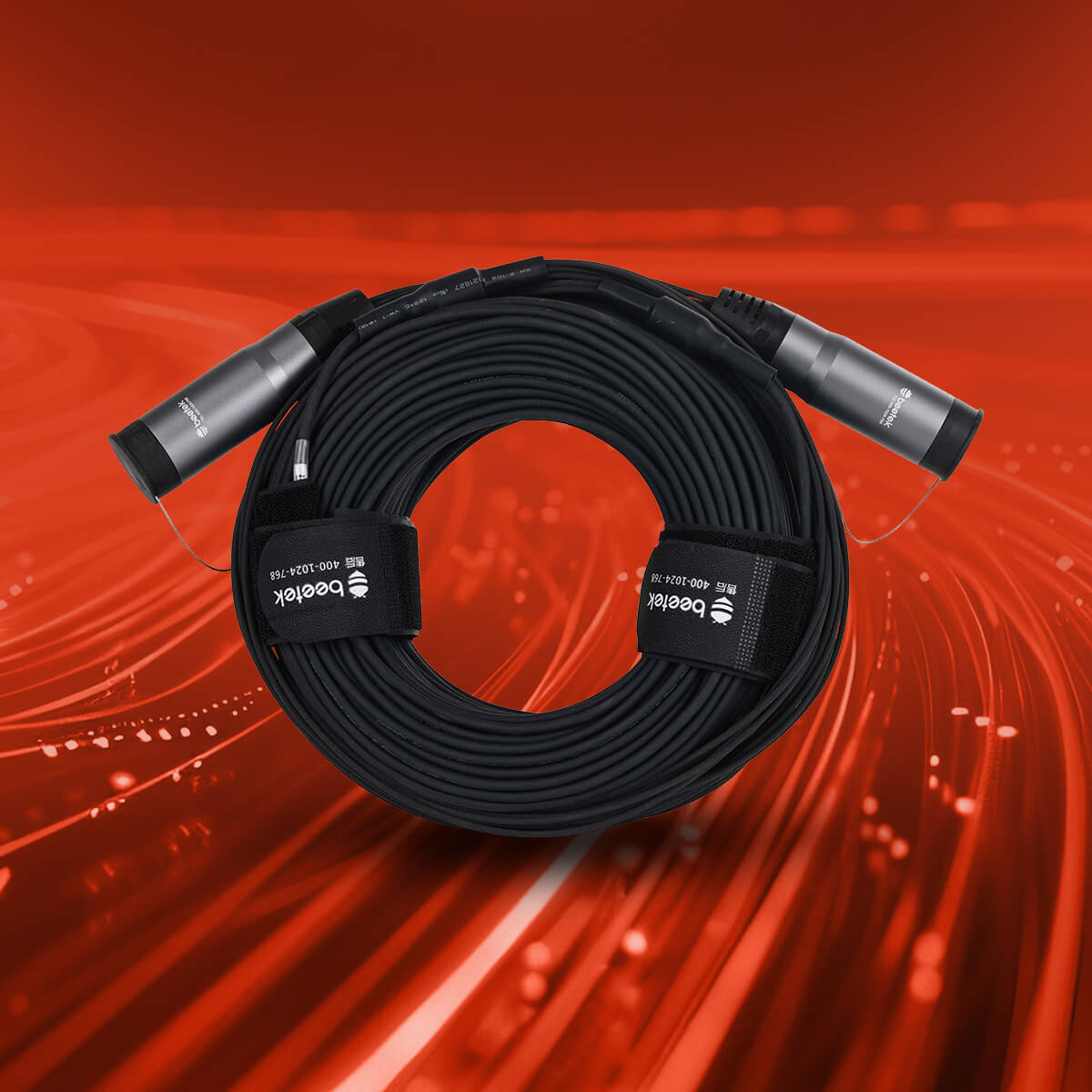

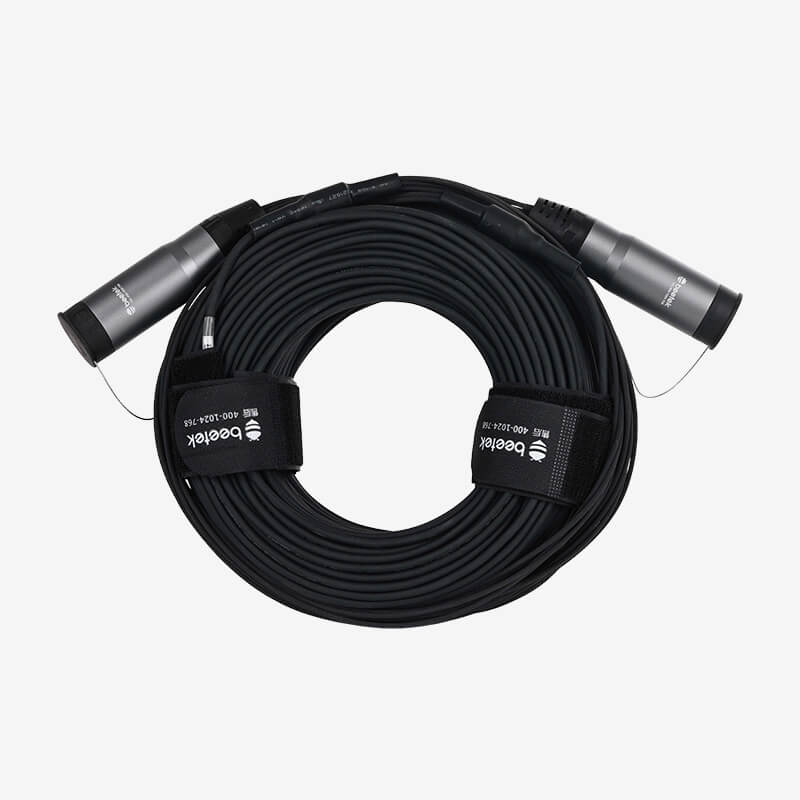

- Comes standard with Velcro straps for easy storage and deployment.
The G300-xxUSM-4LC is a four-core single-mode optical fiber cable, which is mainly used with audio and video optical fiber extenders. This four-core fiber with LC-type connectors can reach up to 2000 meters while maintaining a 10Gbps bandwidth. Different from generic optical fiber cables, Beetek designed their fiber using tough and wear-resistant TPU outer jacket, and the inside uses fiber core, core cladding, interior Kevlar reinforcement, Cladding, stainless steel armored tube, exterior Kevlar reinforcement, stainless steel braided shield structure. This structure ensures the whole cable has strong tensile and compressive strength. At the end points, the product is also equipped with integrated LC connectors, which are not easily broken like their generic counterparts. Plus, the cable comes with a captive dust cap and Beetek’s patented aluminum protector connector as standard to ensure repeated use in harsh environments.
| Name | Specification |
| Product Type | G300-xxUSM-4LC |
| Connector Type | LC |
| Connector Color | Dark blue |
| Fiber Type | Single-mode (9/125μm) |
| Fiber Wavelength | 1310nm~1550nm |
| Fiber Core Brand | YOFC |
| Number of cores | 4 |
| Branch Length | 1 meter |
| Reinforcement Structure | Dupont Kevlar |

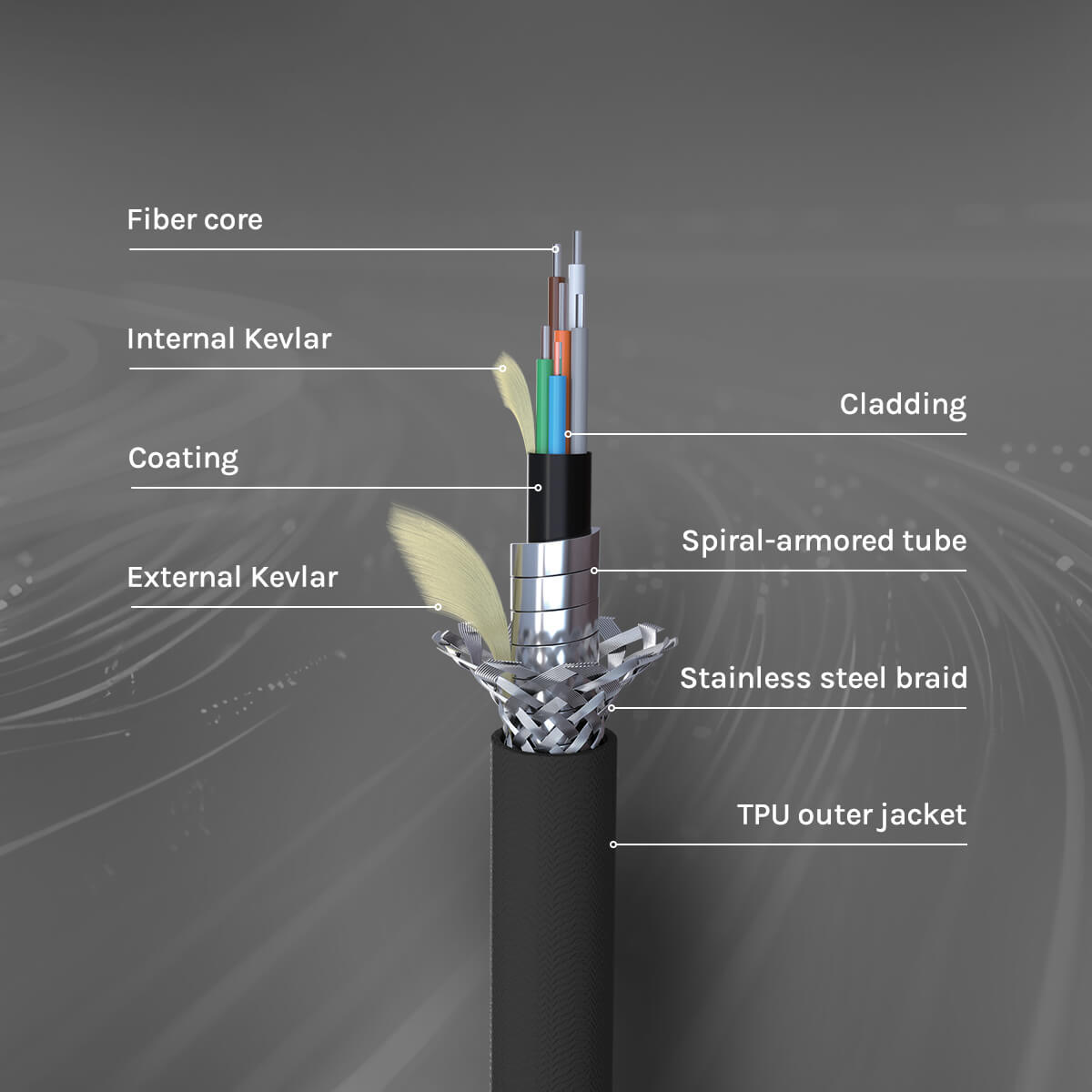

| Structural Layers | Fiber core + Cladding + Internal Kevlar + Coating + Spiral-armored tube + External Kevlar + Stainless steel braid + TPU outer jacket |
| Jacket Outer Diameter | 6.2mm±0.1mm |
| Jacket Material | Matt Frosted TPU |
| Jacket Color | Black |
| Spiral Tube Diameter | 3. 8mm±0. 2mm |
| Spiral Tube Material | 304 Stainless steel |
| Spiral Tube Color | Silver |
| Core Cladding Diameter | 0. 6mm±0. 05mm*4 |
| Core Cladding Material | LSZH |
| Core Cladding Color | Blue, Orange, Green, Brown |
| Core Diameter | 9.0μm±0.4μm |
| Cladding Diameter | 124.8μm±1.0μm |
| Cladding out of roundness | ≤1.0% |
| Core/cladding Concentricity Error | ≤1.5μm |
| Coating Diameter | 245±7μm |
| Coating layer out of roundness | ≤6.0% |
| Cladding/coating Concentricity Error | ≤12.0μm |
| Full Bandwidth | 850nm≥1500MHz·km；1300nm≥500MHz·km |
| Effective Bandwidth | 850nm≥2000MHz·km；1300nm≥500MHz·km |
| Attenuation Coefficient | 850nm≤3.5dB/km；1300nm≤1.5dB/km |
| Tensile (LC connector) | Long-term 50N; short-term 60N |
| Tensile (optical cable) | Long-term 300N; short-term 600N |
| Compressive Strength | Long-term 2000N/10cm; short-term 3000N/10cm |
| Linear Rolling | 300N/cm armor layer deformation<0.3mm additional attenuation<0.2dB |
| Minimum Bending Radius | Dynamic>20D; Static>10D (*D is the outer diameter of the cable) |
| Transmission Rate | 10Gbps within 2000 meters |
| Operating Temperature | -20°C~70°C |
| Available Lengths | 50M, 100M, 150M, 200M, 300M |
| Included Accessories | Protective cap BH03*2, Dust cap LCF01*8 |
Key Features
The transmission rate is 10Gbps up to 2000 meters.
The interior uses DuPont Kevlar and metal braided reinforcement.
Comes with captive LC dust caps and Beetek’s patented protector connector.
