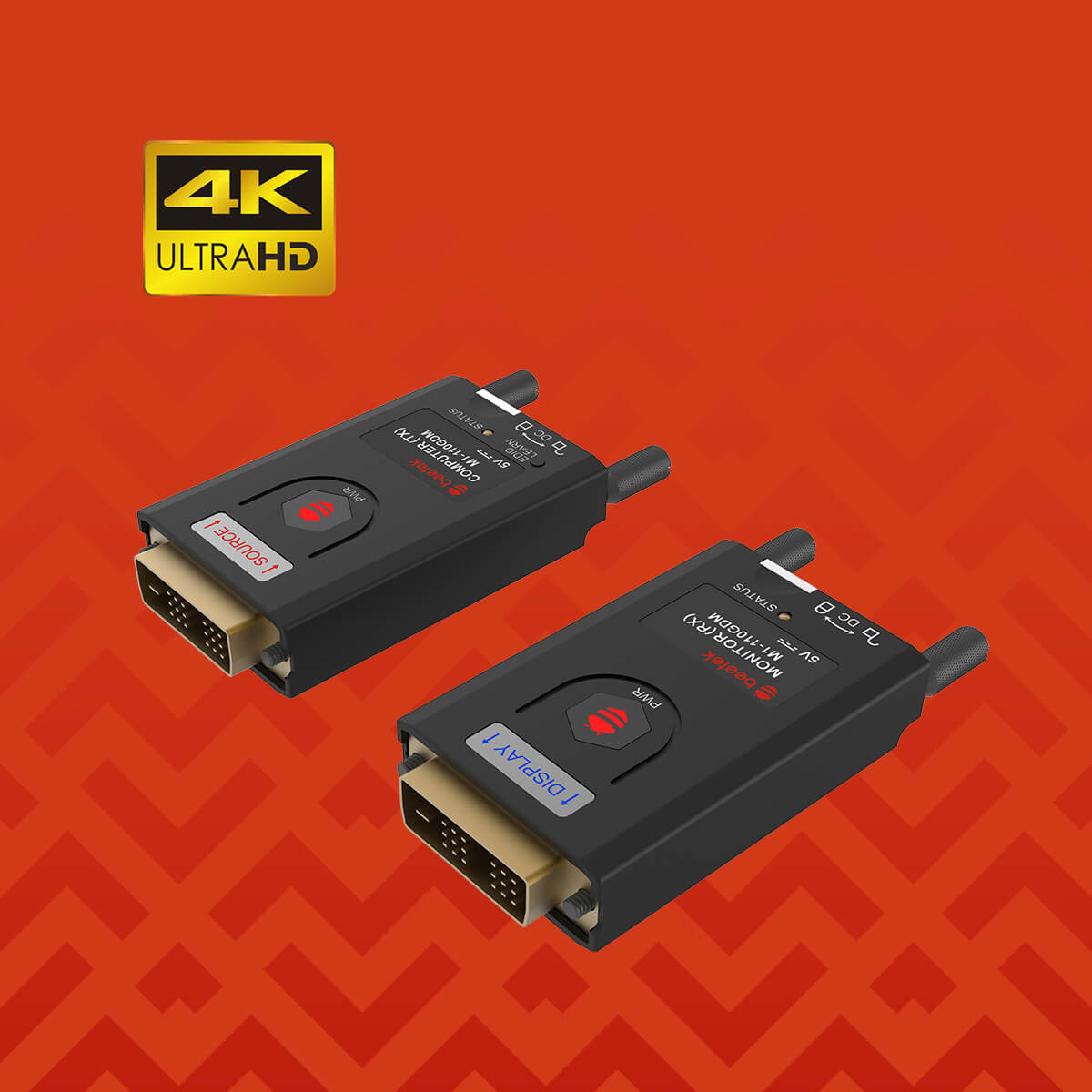

M1-110GDM
Single Core DVI Multi-mode fibre extender
- Support resolution upto 4k@30 at 10.2 Gbps.
- Support DVI/HDMI 1.4 and HDMI Audio

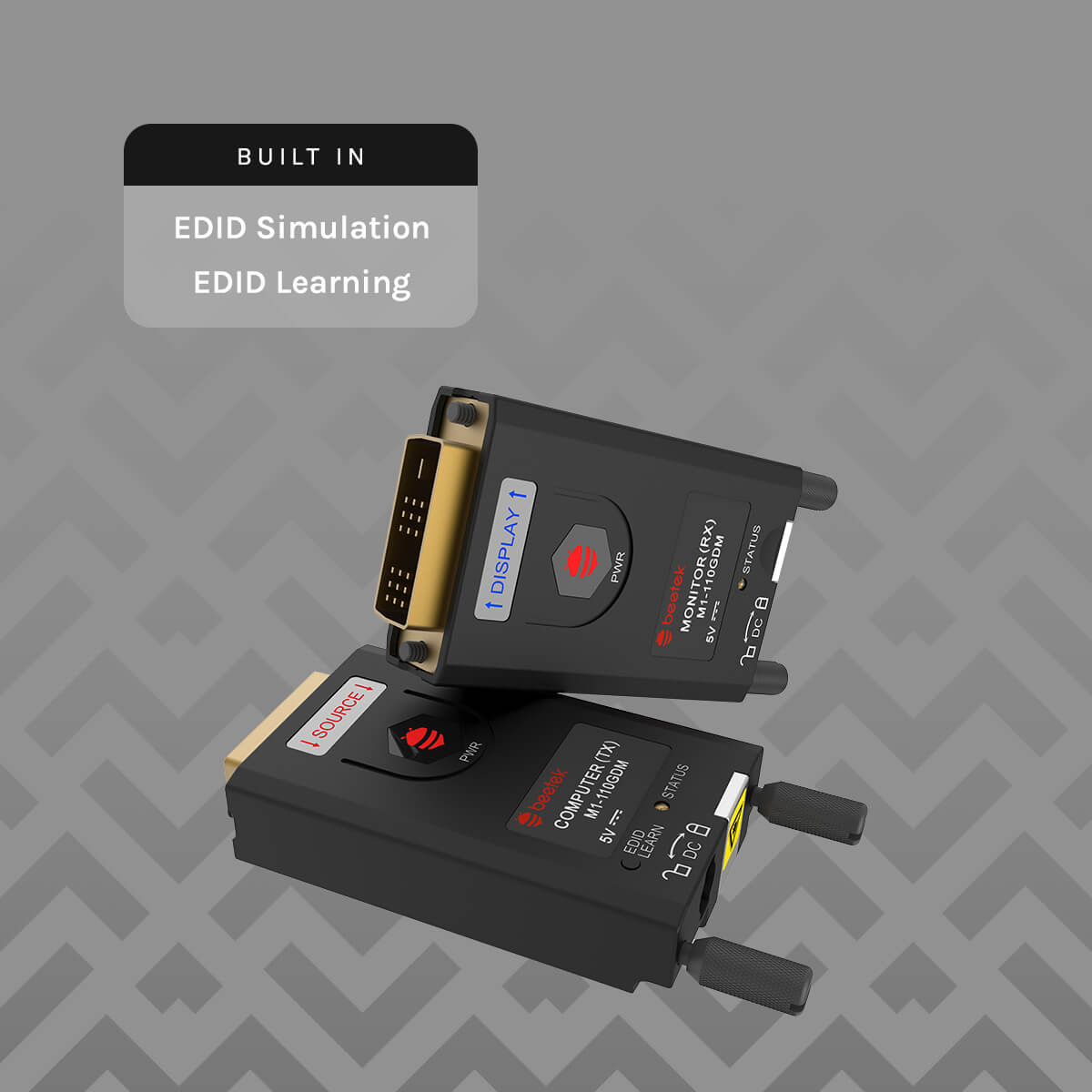

- Built in EDID Simulation and EDID Learning
- Single Fibre Technology and uses multi-mode with distances upto 500 metres

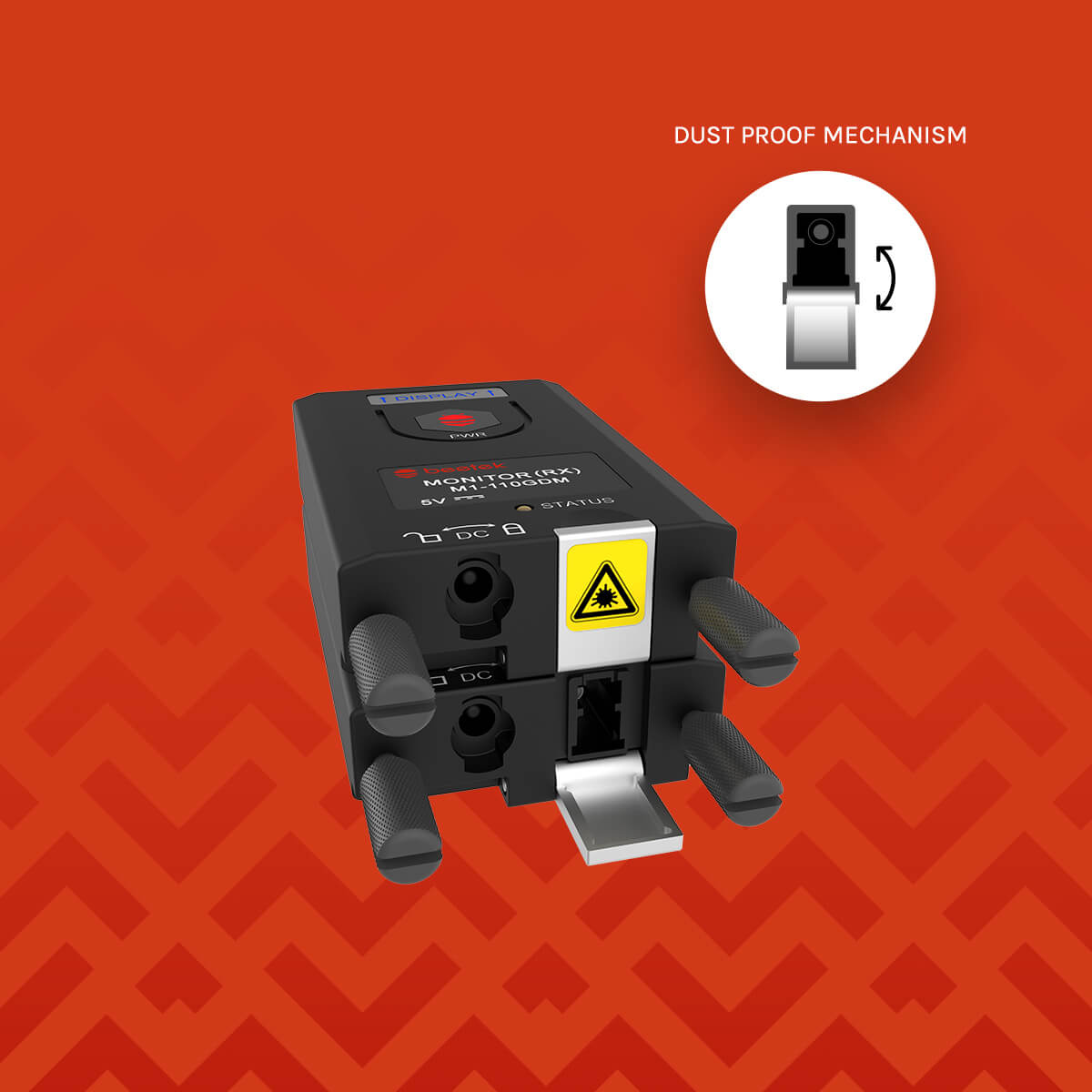

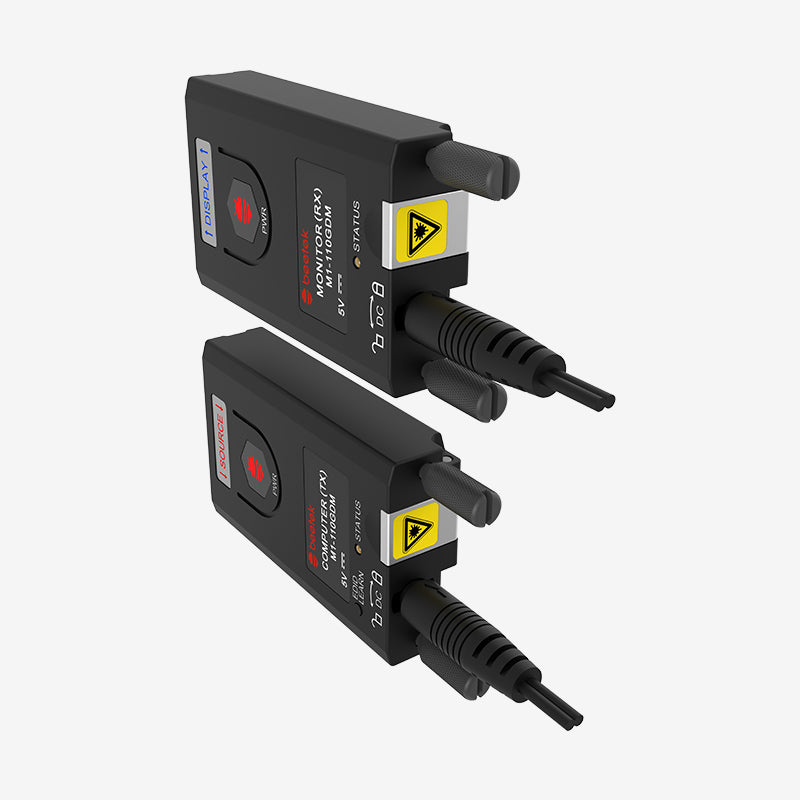

- Dust Proof Mechanism over Fibre Interface

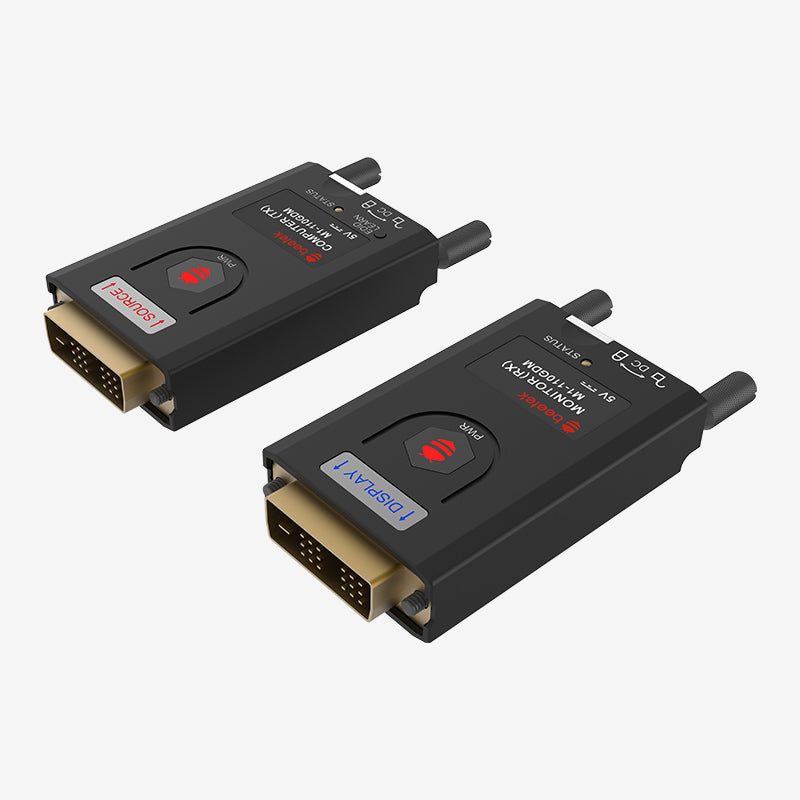

Beetek DVI Fibre Extender is designed particulary for the rental & staging industry considering various parameters. The device can support resolution upto 4K@30 4:4:4 at 10.2 Gbps transmission rate and it can support DVI/HDMI 1.4 and HDMI audio . It uses single core Multi-mode OM3 fibre technology and support distance upto 500 metres. The device supports 40 dB input balancing at the TX to compensate for the loss generated by cable from the source to the tx. Built in EDID simulation and EDID learning support.
The DVI Extender support accurate pixel time reconstruction and provides no delay and no compression during the transmission. The device is carefully designed with protective enclosure for fibre interface and it is dust proof. It has rear long screws to support portable installation, locking power supplies and improved electrostatic protection. The product is suitable for Rental and Live Events application.
The DVI Extender support accurate pixel time reconstruction and provides no delay and no compression during the transmission. The device is carefully designed with protective enclosure for fibre interface and it is dust proof. It has rear long screws to support portable installation, locking power supplies and improved electrostatic protection. The product is suitable for Rental and Live Events application.
| Name | Specification | |
| Product Name | One core multi-mode DVI fiber extender | |
| Model | M1-110GDM | |
| Brand | Beetek | |
| Signal | HDMI 1.4 | |
| Input Connector | TX: DVI 18＋1 Male RX: Single-core LC |
|
| Output Connector | TX: Single-core LC RX: DVI 18＋1 Male |
|

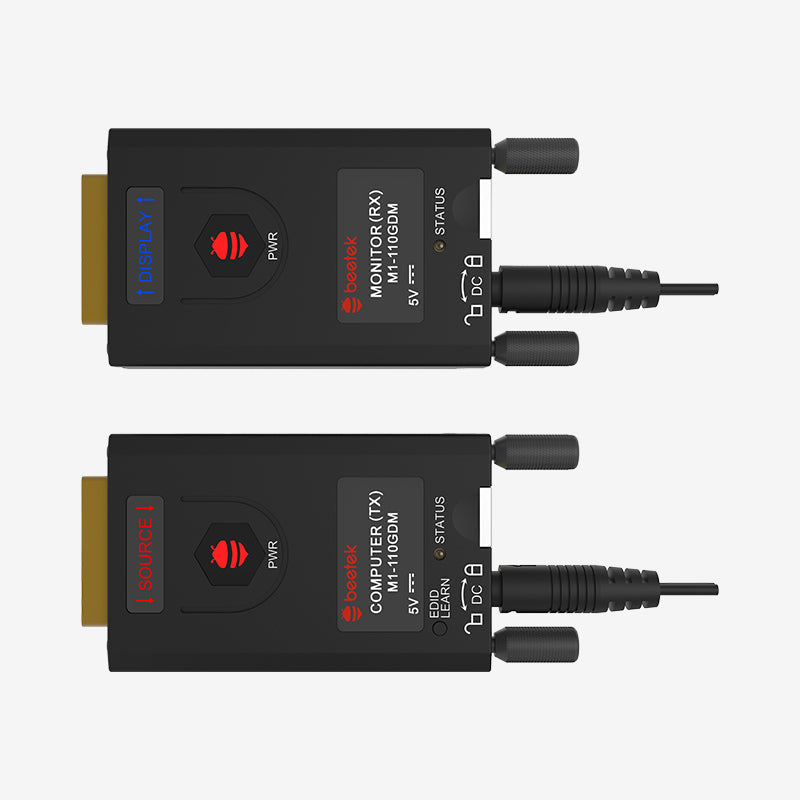

| Rear Long Screw | Yes | |
| Gold plate Connector | Casing: 3μ; Pin: 15μ | |
| Fiber Interface Dust Prevention | Yes | |
| Fiber Type | Multi-mode OM3 | |
| Indicator LED | TX: Power, EDID; RX: Power, Signal | |
| USB Power | Yes | |
| Power from connector (TX) | Yes | |
| Locking power connector | Yes | |
| Power Consumption | DC 5V 1.0A | |
| Ambient Temp | -20°C ~ 70°C | |
| Material | Zinc alloy mold | |
| Dimensions | TX/RX : 84 *39 *15mm | |
| Weight | TX: 91g；RX: 91g | |
| Package Dimensions | 212 *201 *62mm | |
| Packaging Weight | 0.51kg | |
| EDID Switch (TX) | Learn button | |
| EDID Modes | EDID Learning and Internal | |
| HDMI Audio | Yes | |
| 3D | Yes | |
| XvYCC Color Space | Yes | |
| Optical Module | 1 * 12G Multi-mode Optical Module | |
| Technical Characteristics | Circuit Multiplexing SerDes Technology | |
| Fiber module life | 100,000 hours | |
| Resolution | 3840x2160@30Hz | |
| Transmission Distance | 500M | |
| Clock Bandwidth | 340MHz * 3 | |
| Transmission Speed | 10.2Gbps | |
| Balancing Chip | Automatic equalization | |
| Reclocking | Yes | |
| ESD Protection | Yes | |
| Hot Plug | Yes | |
| Delay | Zero-frame | |
| Compression | None | |
| Sampling Rate | Bandwidth Range: 8~16bit | |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Key Features
Dust Proof Mechanism over Fibre Interface
Built in EDID Simulation and EDID Learning
Support resolution upto 4k@30 at 10.2 Gbps.
