W100

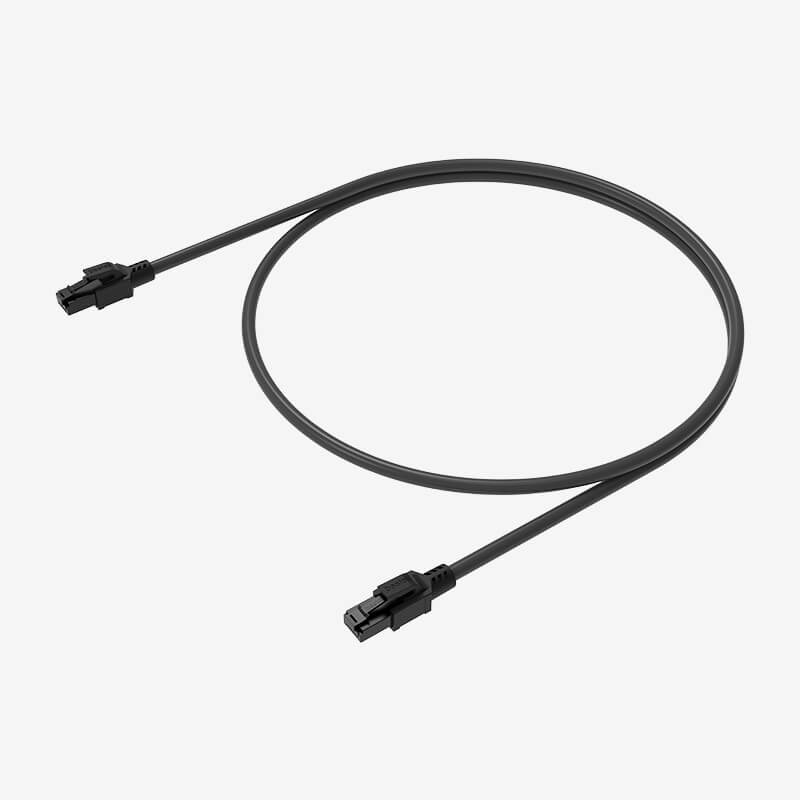

CAT6 UTP Network Cable
- 24AWG multi-strand oxygen-free copper wires
- Transmission rate of at least 1000Mbps
- Improved 100P dual-layer thick outer jacket with high flexibility

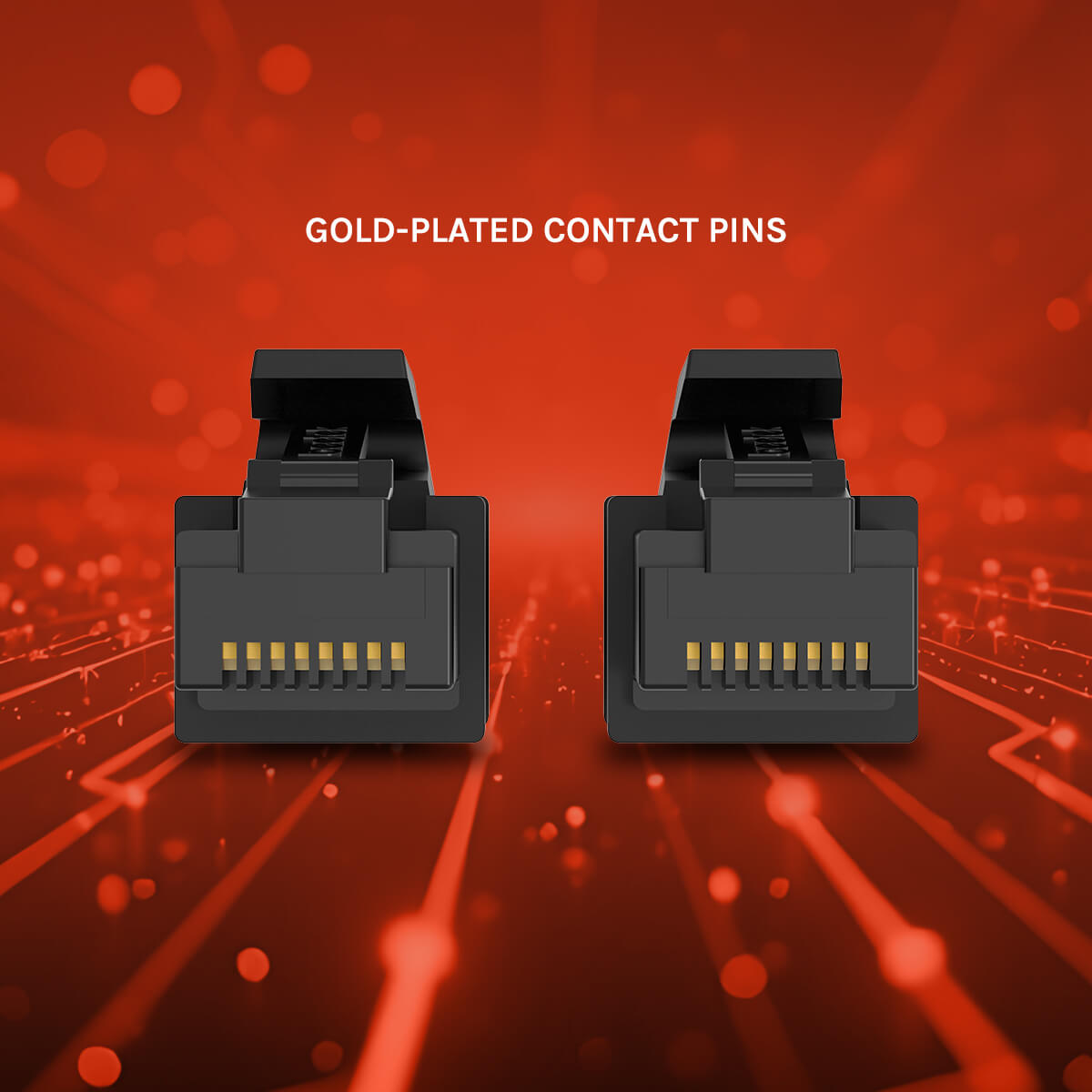

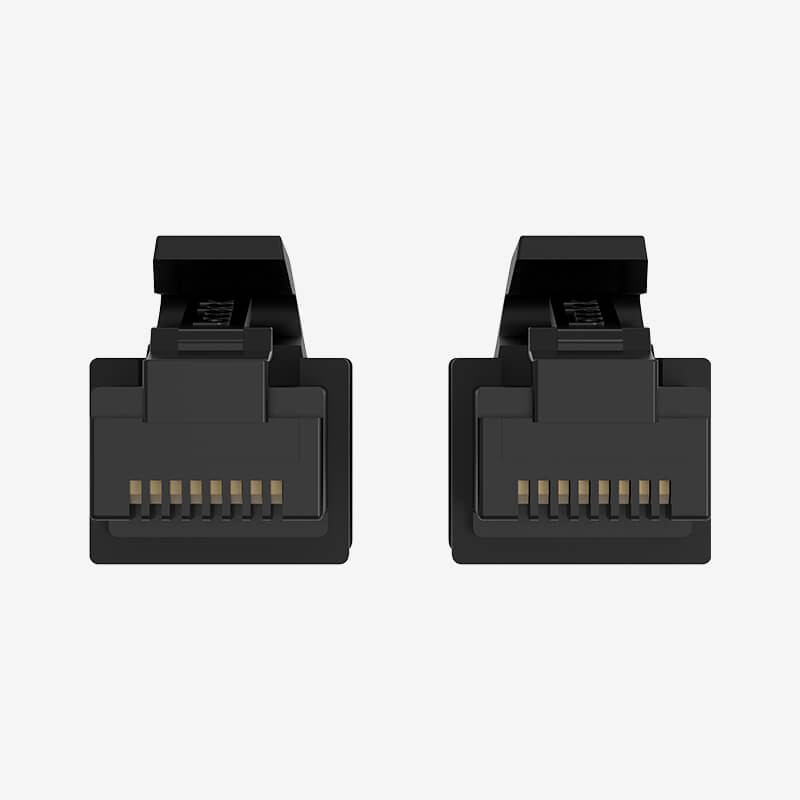

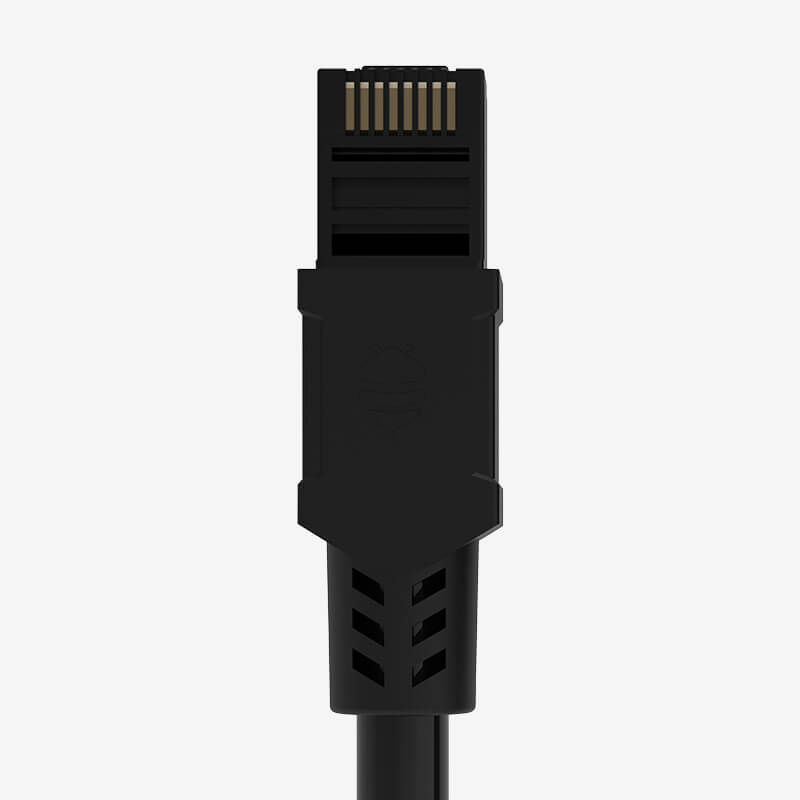

- Gold-plated contact pins: 1μm-50μm (1μm for short cable; 50μm for long cable)

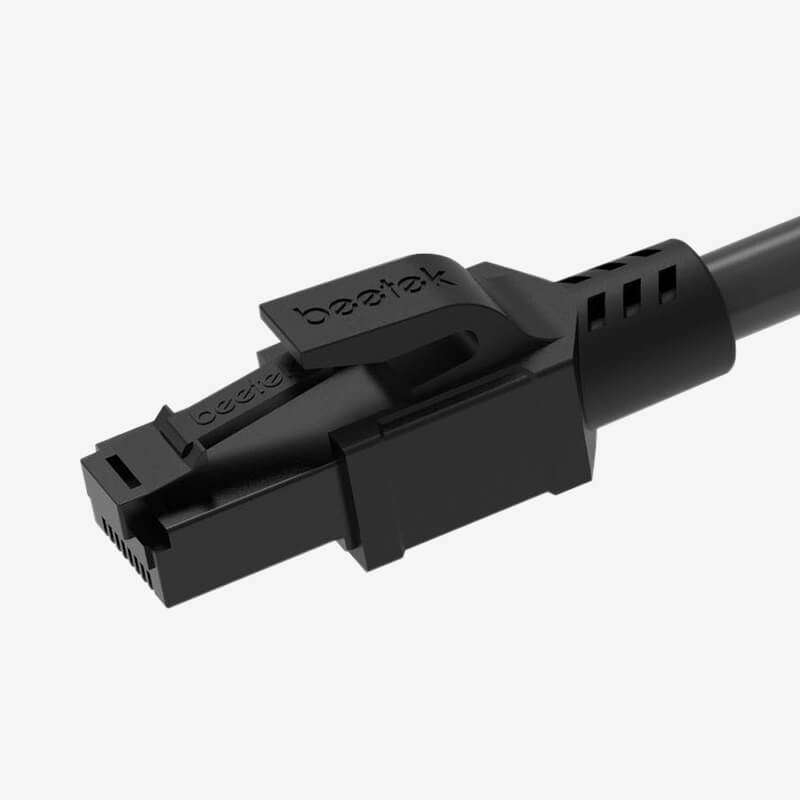

- Injection-molded boot supports repeated plugging and unplugging

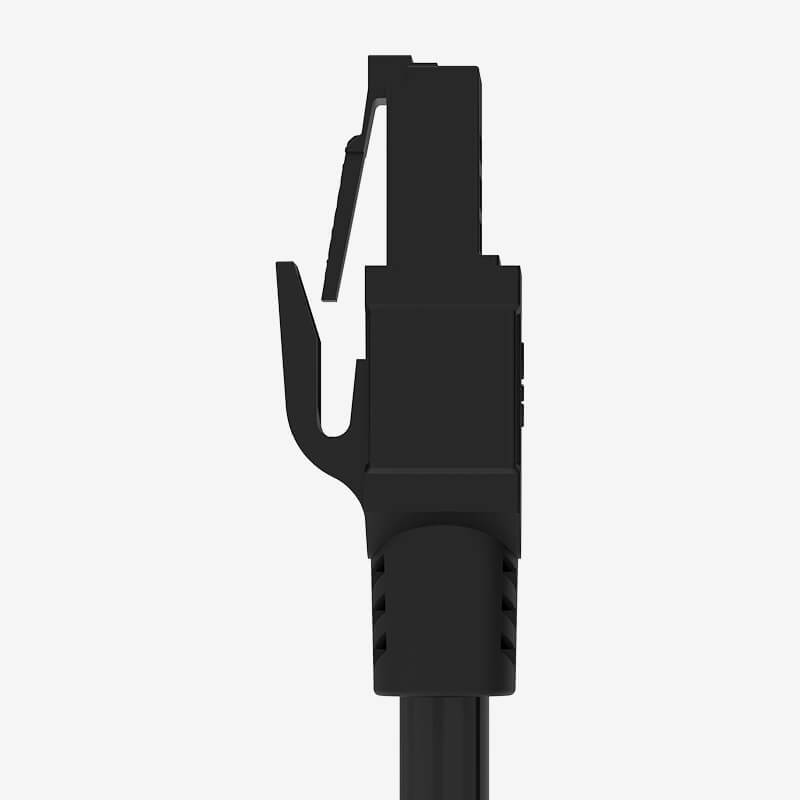

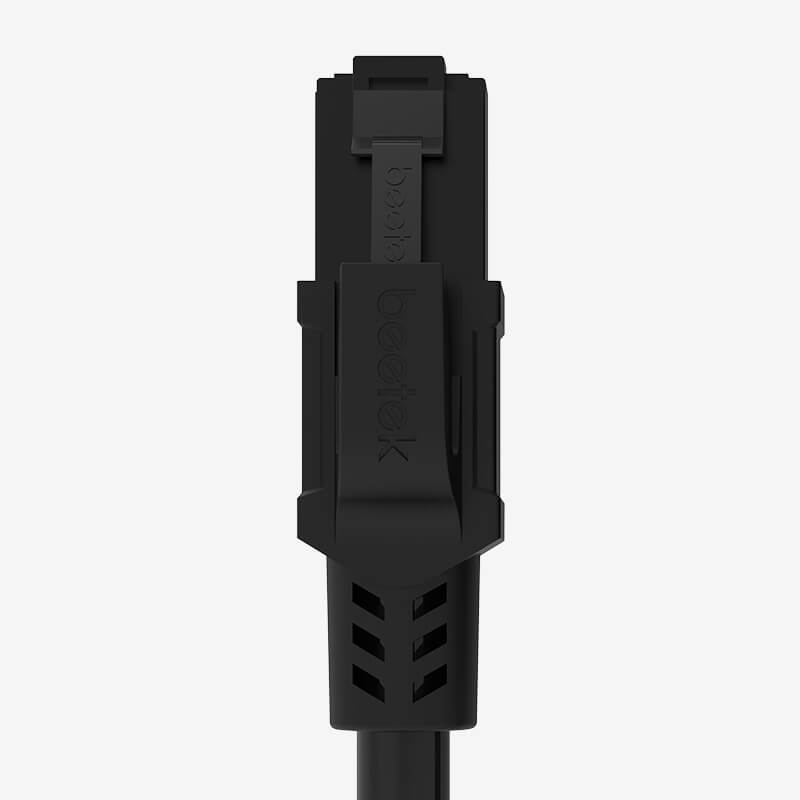

- Bend-not-break retaining latch design for unsurpassed service life
- Available in a variety of lengths from 0.8-100 meters
The W100 Series is a pre-terminated CAT6 UTP cable specifically designed for use in the rental and staging market. Short lengths can be used in between LED screens and the longer lengths are perfect for connecting LED sending and receiving cards. We improved the overall cable structure, resulting in even more pliability, ensuring the absolute best performance while making them a dream to work with. What didn’t change is our patented PVC strain-relief boots, our bend-not-break crystal head latches, or dual-layer PVC outer cable jackets. The W100 series strikes the perfect balance of durability and flexibility.
| Name | Specification |
| Model | W100-xxM |
| Connector Type | RJ45 UTP |
| Cable Type | CAT6 UTP |
| Environmental Information | RoHS 2.0 Compliant |
| Connector Size | 45.7*17.69*13.8mm |
| Connector Components | SR＋RJ45 plug＋Boot |
| RJ45 Connector | One-piece single-row modular plug (PA66) |
| Connector Color | Black |
| Gold Plate Thickness | 1μm—50μm |
| Latch Tab Material | PA66 |
| Boot | Injection molded boot |
| Structure | Conductor + Inner sheath + Outer jacket |
| Conductor Gauge | 24AWG |
| Conductor Size | 7/0.20±0.008mm *8 |
| Conductor Material | Multi-strand oxygen-free copper |
| Insulation Material | HDPE |
| Insulation Outer Diameter | 0.95-0.97MM |
| Insulation Average Thickness | 0.17mm |
| Insulation Minimum Thickness | 0.15mm |
| Insulation Color Code | 1P: Bule & White/Blue; 2P: Orange & White/Orange; 3P: Green & White/Green; 4P: Brown & White/Brown |
| Core Wire Direction | s |
| Core Wire Lay Length | <30mm |
| Cable Direction | s |
| Cable Lay Length | ≤120mm |
| Cable Meter Mark | Waterproof text |
| Conductor Resistance | 3 OHMS MAX |
| Insulation Resistance | 10M OHMS MIN, DC 300V 0.01sec. |
| Withstand Voltage | DC 300V 0.1sec. |
| Delay Difference | ≤45ns |
| Frequency | 250Mhz |
| Impedance | 100Ω±15 |
| Testing | PASS FLUKE |
| Insulation Elongation | ≥300% |
| Insulation Tensile | ≥16 Mpa |
| Jacket Outer Diameter | 6.6±0.2mm |
| Outer Jacket Material | Composite material |
| Jacket Elongation | ≥100% |
| Jacket Tensile | ≥12.5 Mpa |
| Operating Temperature | -20~60℃ |
| Operating Voltage | 30V |
Key Features
Gold-plated contact pins

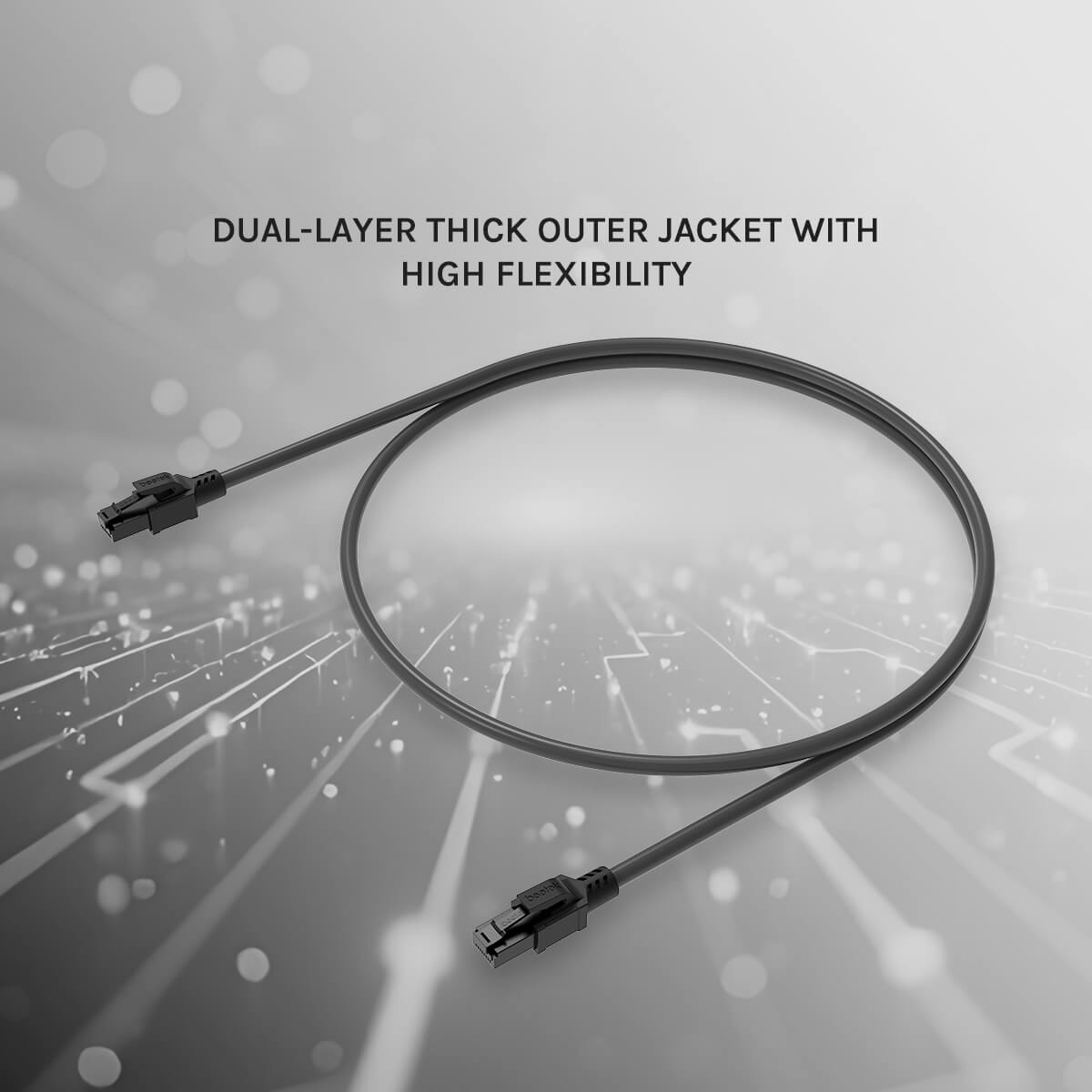

Improved 100P dual-layer thick outer jacket with high flexibility

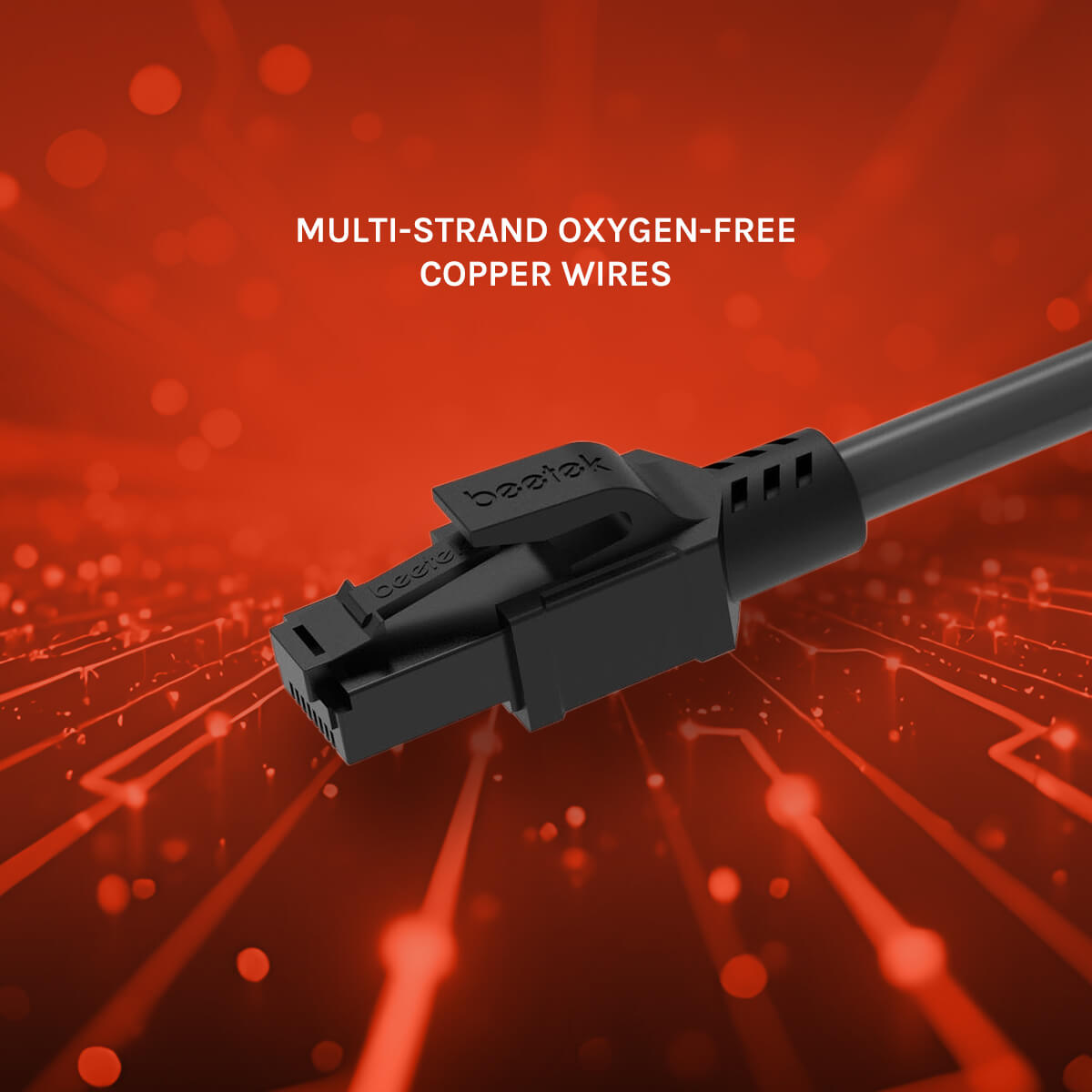

24AWG multi-strand oxygen-free copper wires
