TP-HDMI HD-200TR

Name: TP-HDMI HD-200TR
Brand: moodray
Availability: InStock

DVI and HDMI support HDBaseT CAT Extenders

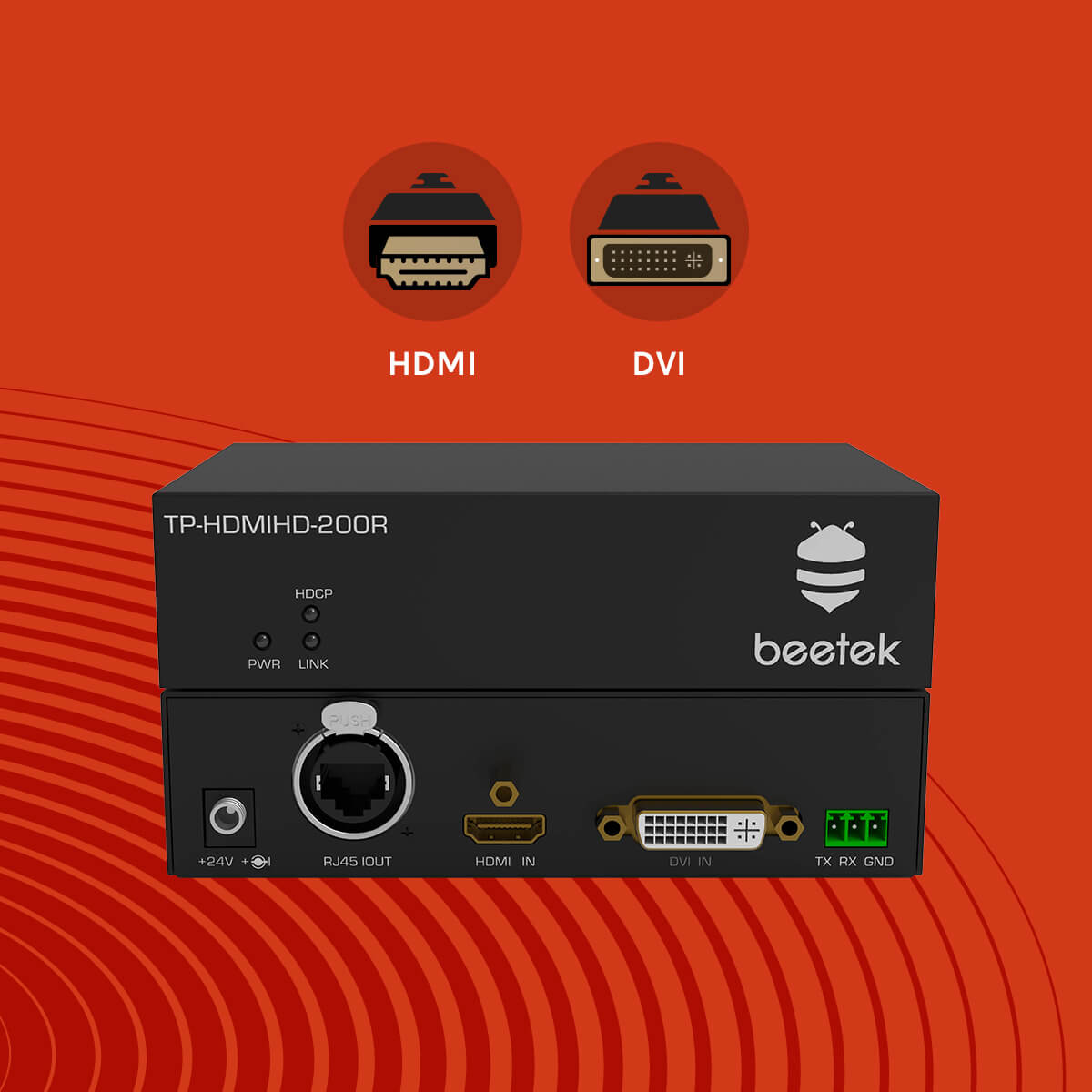

Support DVI and HDMI Input

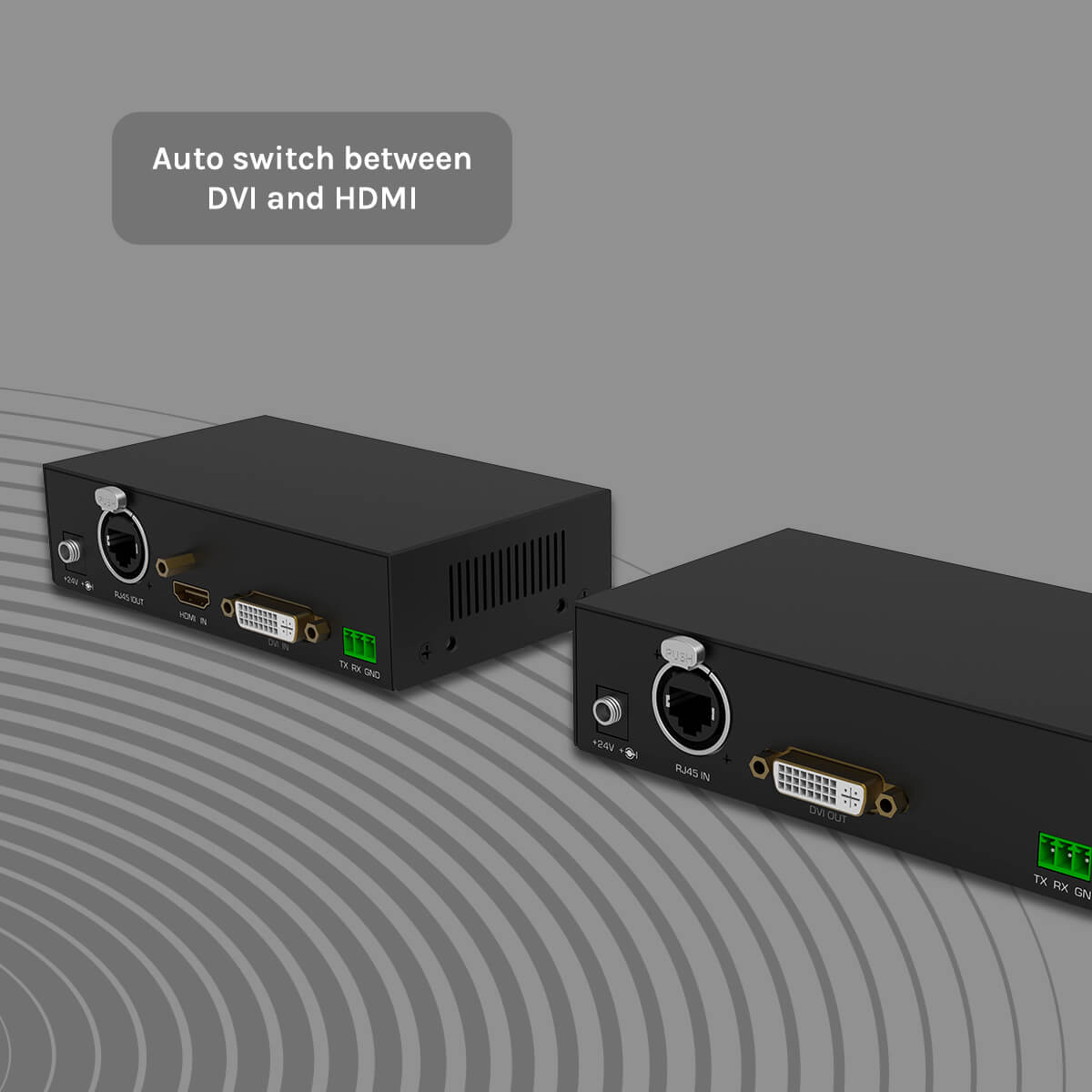

Auto switch between DVI and HDMI

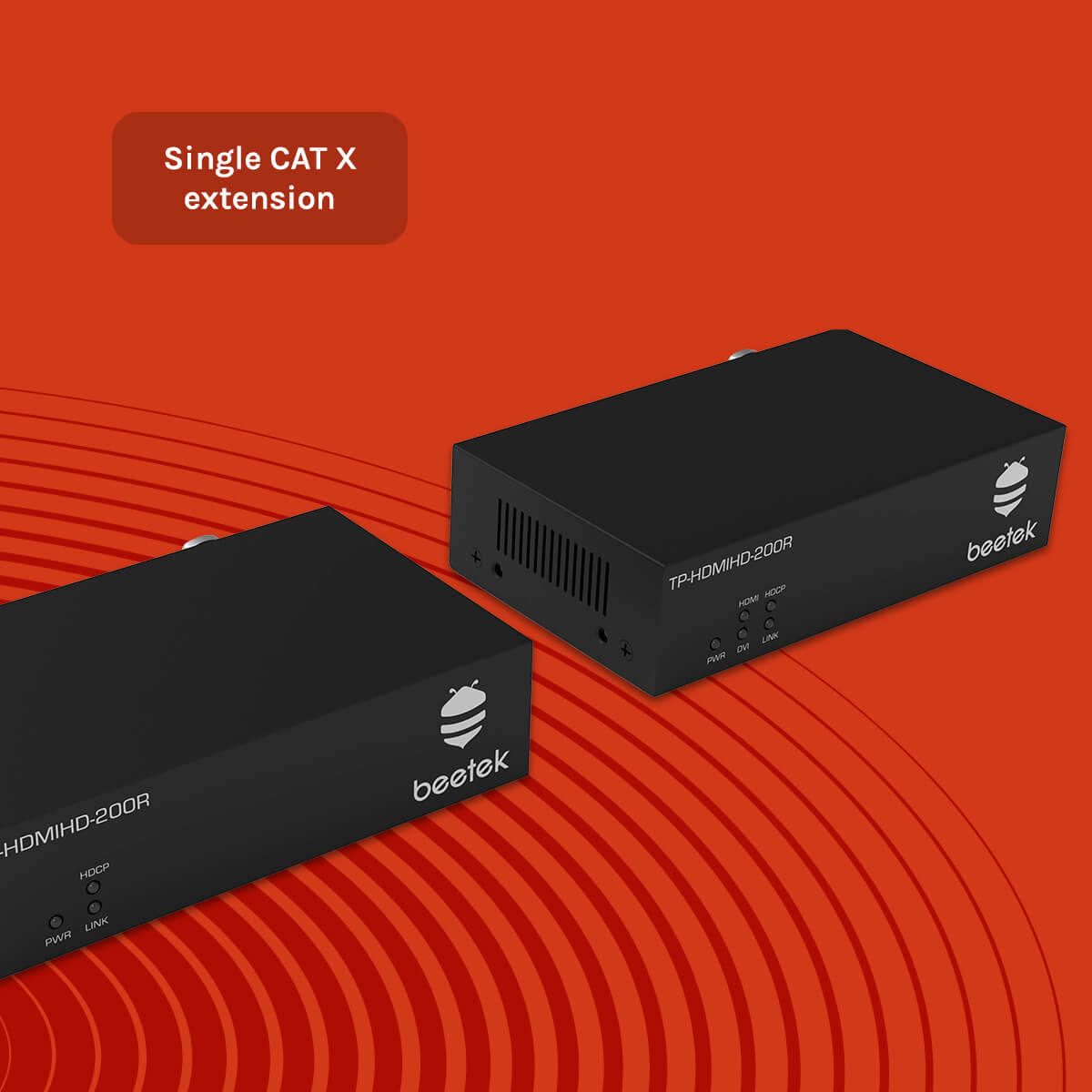

Single CAT X extension

Support resolution upto 1920*1080@60 hz

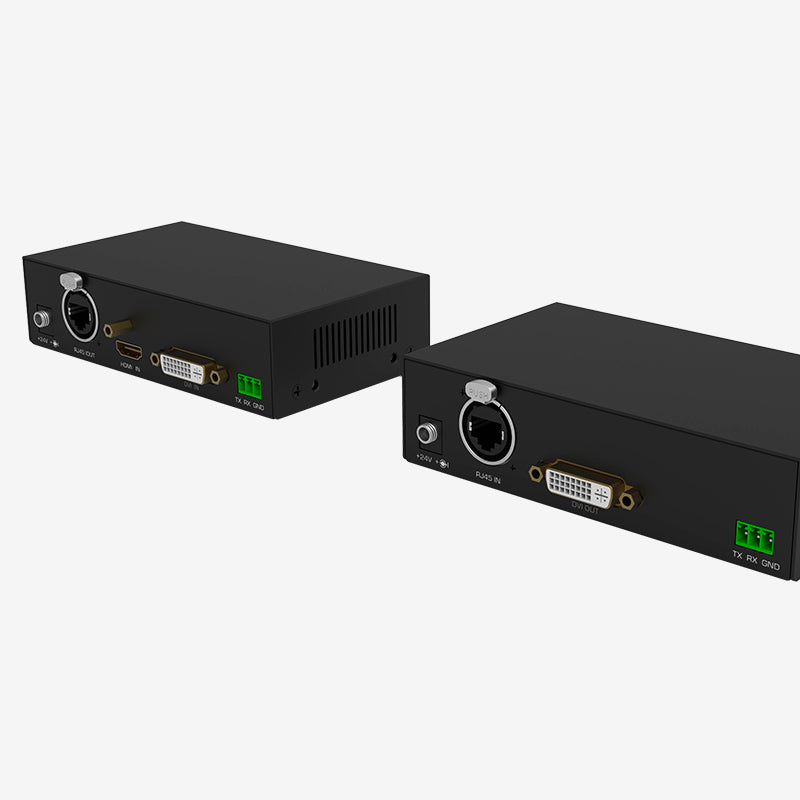

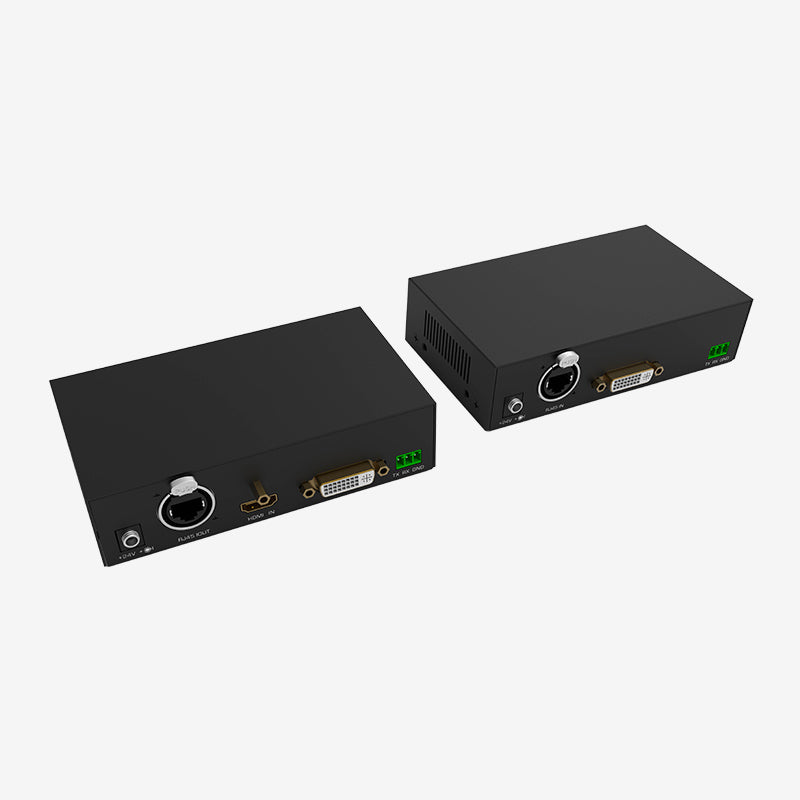

HDMI/DVI extension over Standard Neutrik RJ45 input / output interface. It supports one DVI, one HDMI signal input and input signal automatic identification The output supports DVI and supports EDID transmission. HDMI input lock, power lock. Support 24V single side power supply and POE power supply. Visible power status indicator, signal input status indicator, network connection status indicator, HDCP status indicator. Suitable for Rental and staging industry.

Name	Specification
Product Name	HDMI1.4 HDBeasT Extender
Model	TP-HDMIHD-200TR
Brand	Beetek
Signal	HDMI 1.4
Input Connector	TX : HDMI Type A Female, DVI-D (18+1) RX: NEUTRIK water-proof RJ45
Output Connector	TX: NEUTRIK water-proof RJ45 RX: DVI-D (18+1)
CAT Cable Type	CAT6 and above

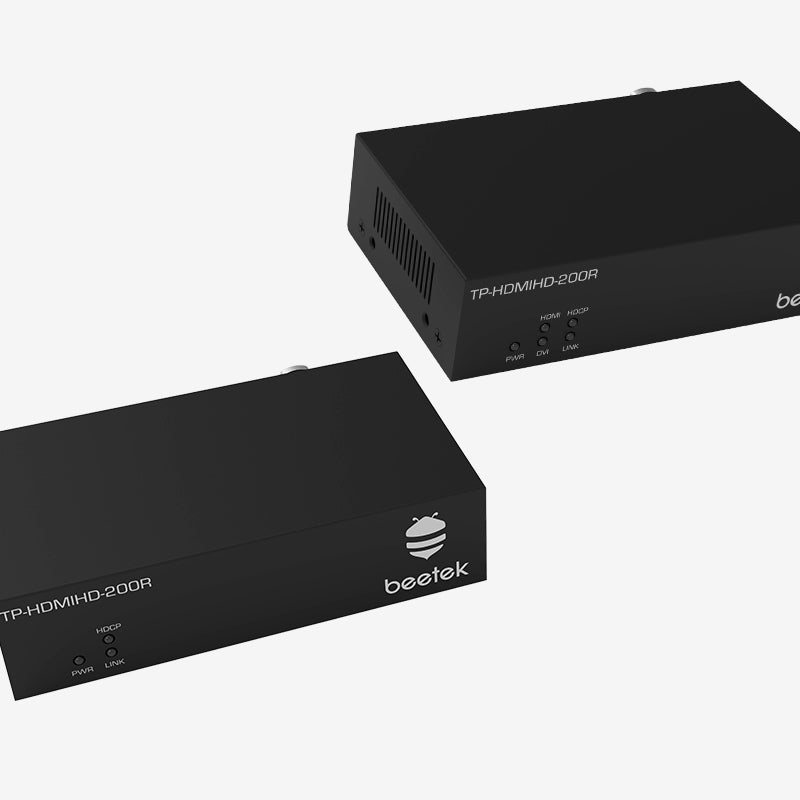

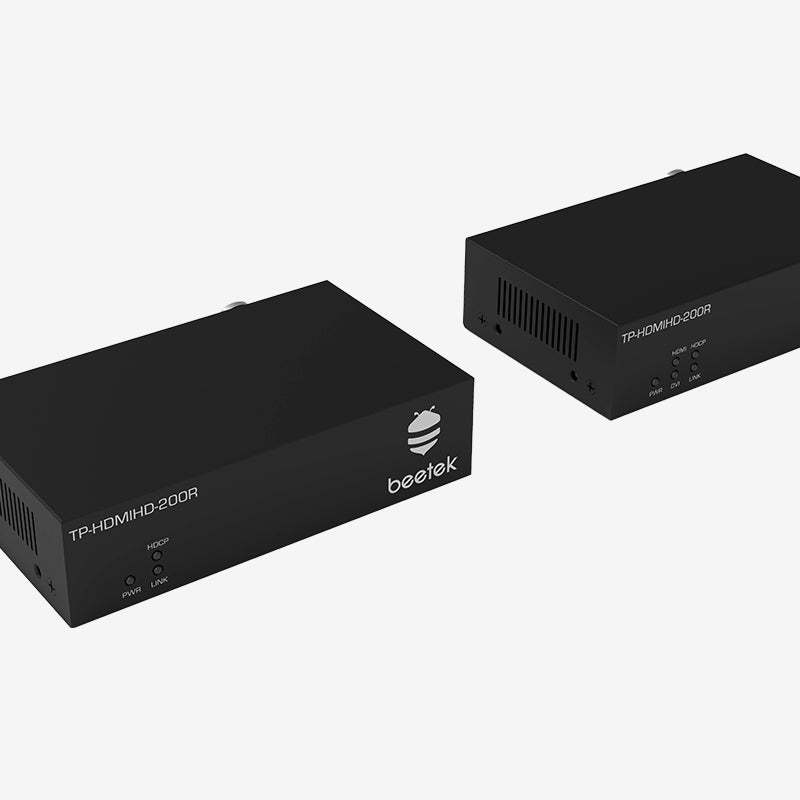

Indicator LED	Power, Signal, Connection status, HDCP
HDMI locking connector	Yes
Locking power connector	Yes
Power Consumption	DC 24V 2A
Working Temp	-20°C ~ 70°C
Material	Metal mold
Dimensions	1429137.5mm
Weight	TX: 381g; RX: 385g
Package Dimensions	33019089mm
Packaging Weight	1.1kg
EDID	Pass-through
DDC	Yes
RS232	Yes
HDMI Audio	Yes
3D	Yes
CEC	Yes
ARC	Yes
HDCP	Yes
HDR	Yes
XvYCC Color Space	Yes
POE	Yes
Technical Characteristics	HDBeasT
Resolution	1080 * 1920@60Hz
Transmission Distance	100M
Clock Bandwidth	340MHz *3
Transmission Speed	10.2Gbps
Balancing Chip	Automatic equalization
Reclocking	Yes
ESD Protection	Yes
Hot Plug	Yes
Delay	Zero frame-delay
Compression	None
Sampling Rate	Bandwidth Range: 8~16bit
Sampling Ratio	RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
Input Signal Identification	Input signal automatic recognition
Output Signal Identification	Prioritize the DVI signal; if the DVI signal is lost, automatically switch to the HDMI signal
