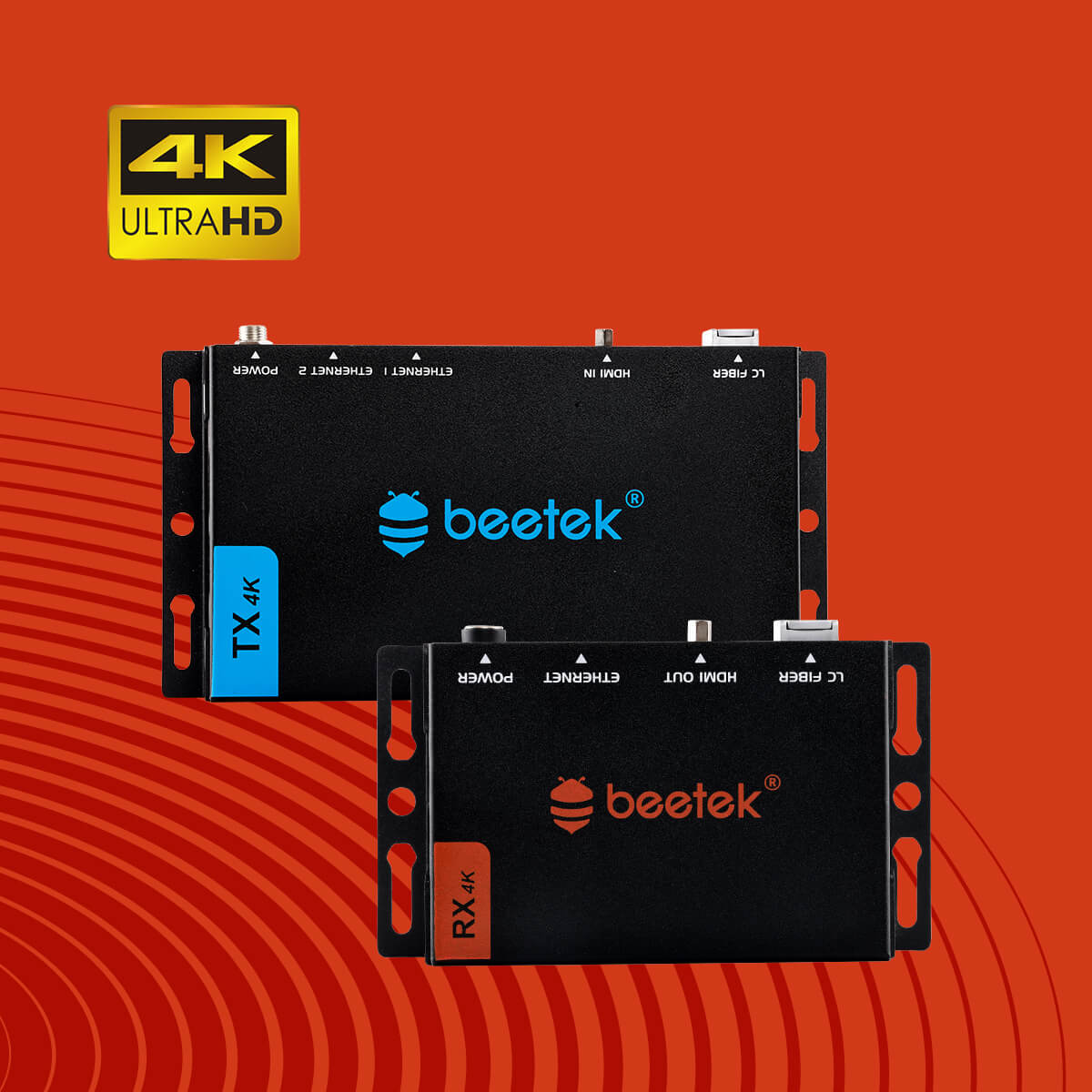

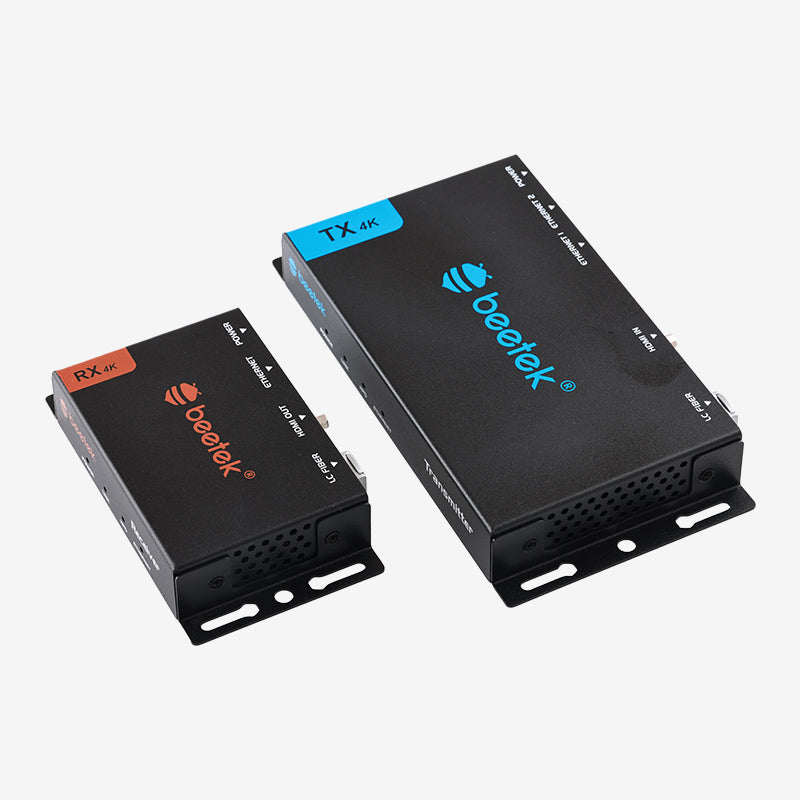

M1-HDMI1.4
HDMI 1.4 support Fibre Extenders
- Support resolution upto 4K@60 4:2:0

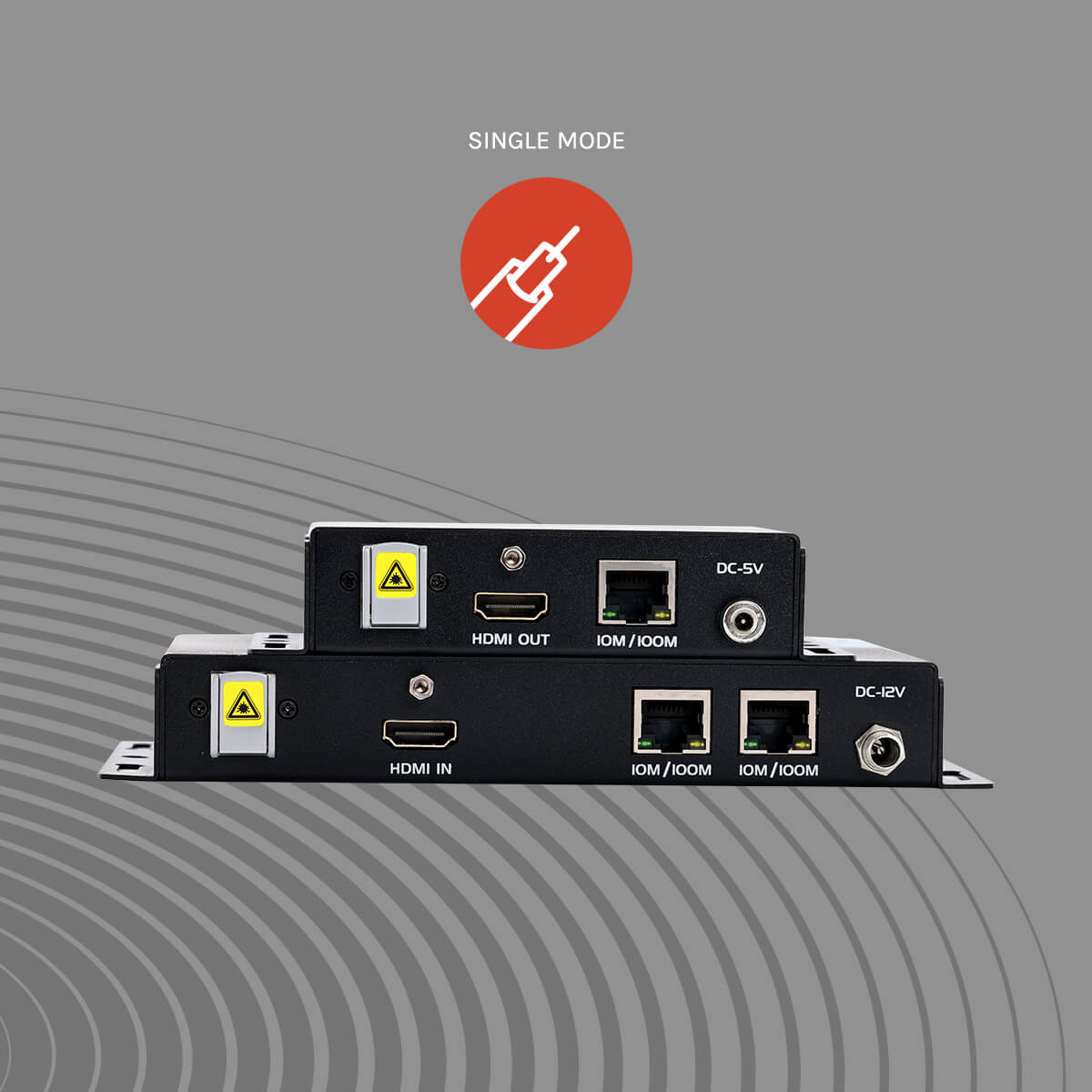

- Support Single Mode optical
- Support HDCP 2.2 and transparent EDID Pass through

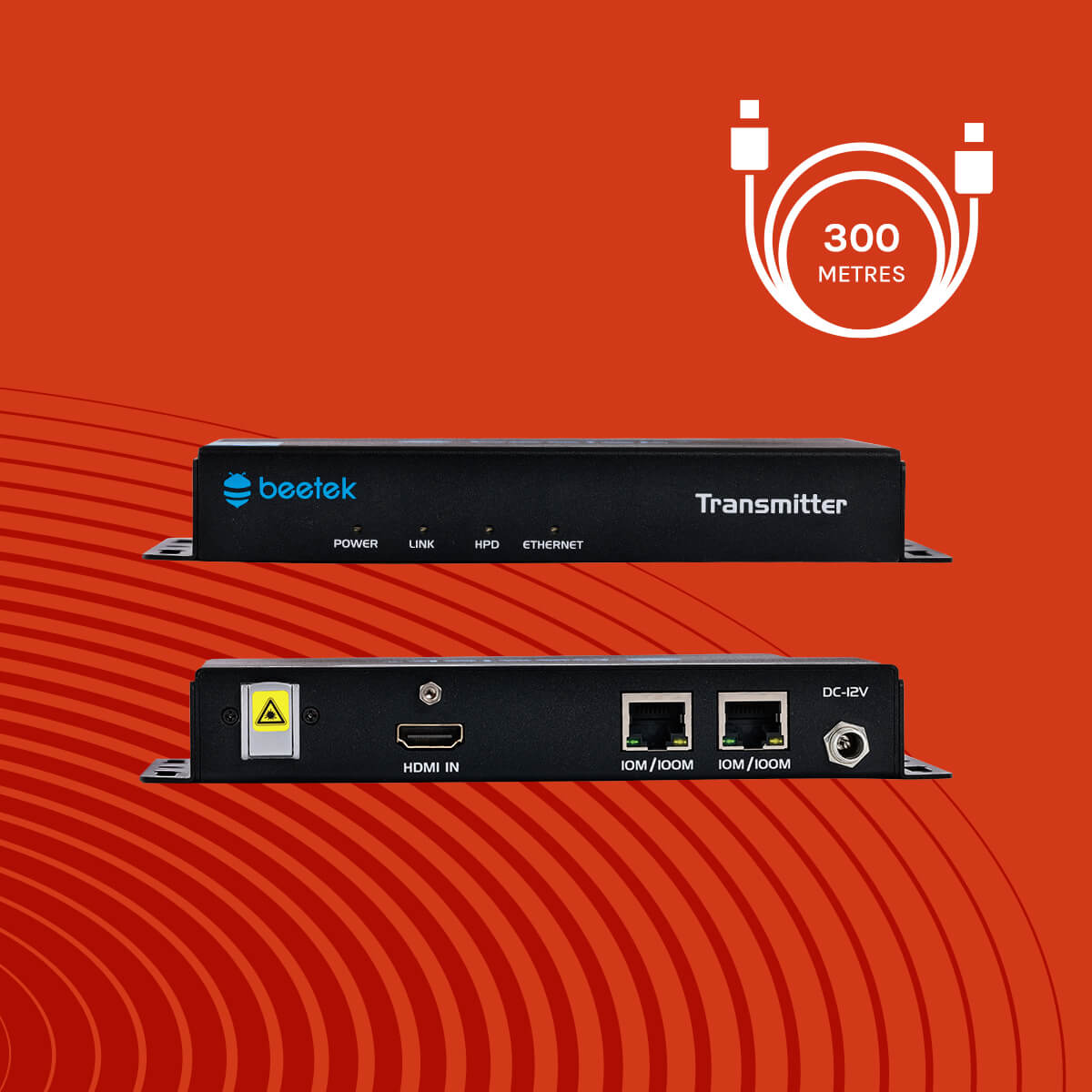

- Support distance upto 300 metres with single LC cable.
Beetek HDMI 1.4 Fibre Extenders with ethernet and Bi-directional RS232 and IR Passthrough support. Single mode single core LC and the transmission rate support upto 10.2 Gbps. The device support Audio ARC, 3D and high speed ethernet required for most of the residential application. The device supports improved electrostatic discharge protection fuction.The product is suitable for Rental, Live Events, Corporate, Residential and surveillance applications
| Name | Specification | |
| Product Name | One core single mode HDMI1.4 Fiber extender +RJ45 | |
| Model | M1-HDMI1.4 | |
| Brand | Beetek | |
| Signal | HDMI 1.4 | |

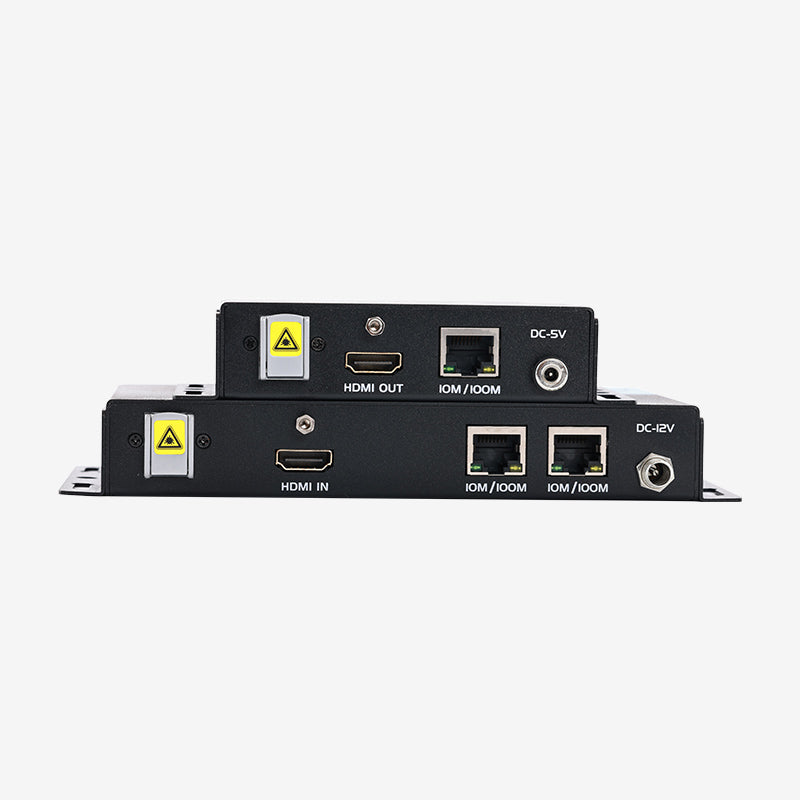

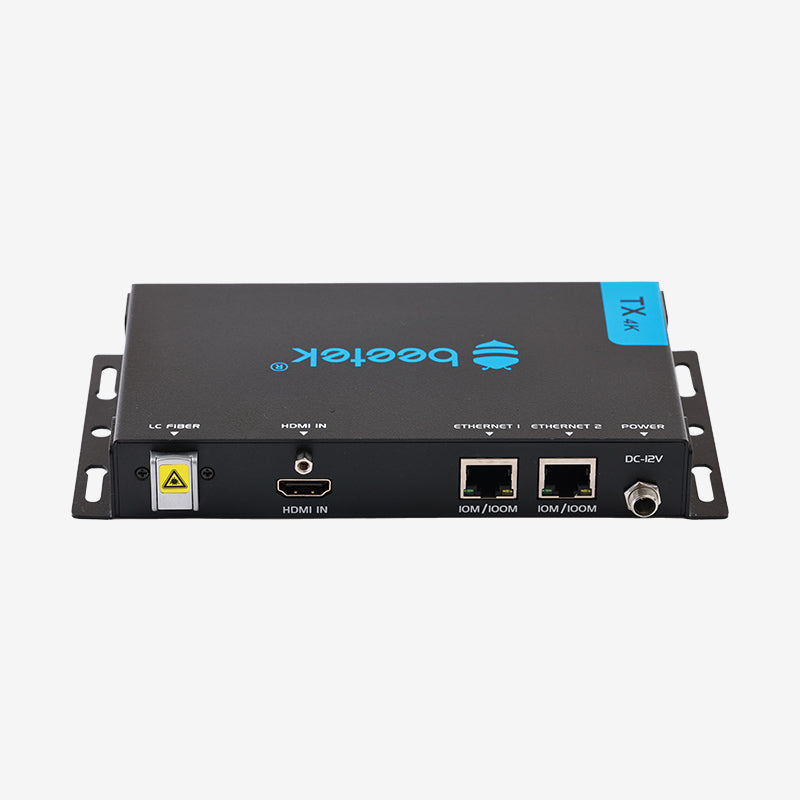

| Input Connector | TX ：HDMI Type A Female, RJ45 *2 ; RX：Single-core LC |
|

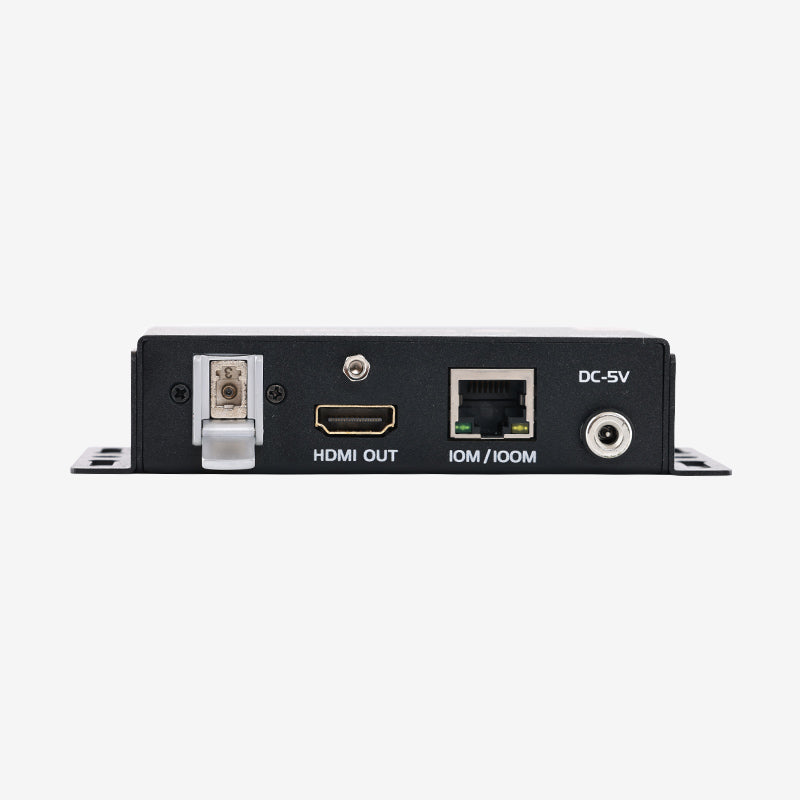

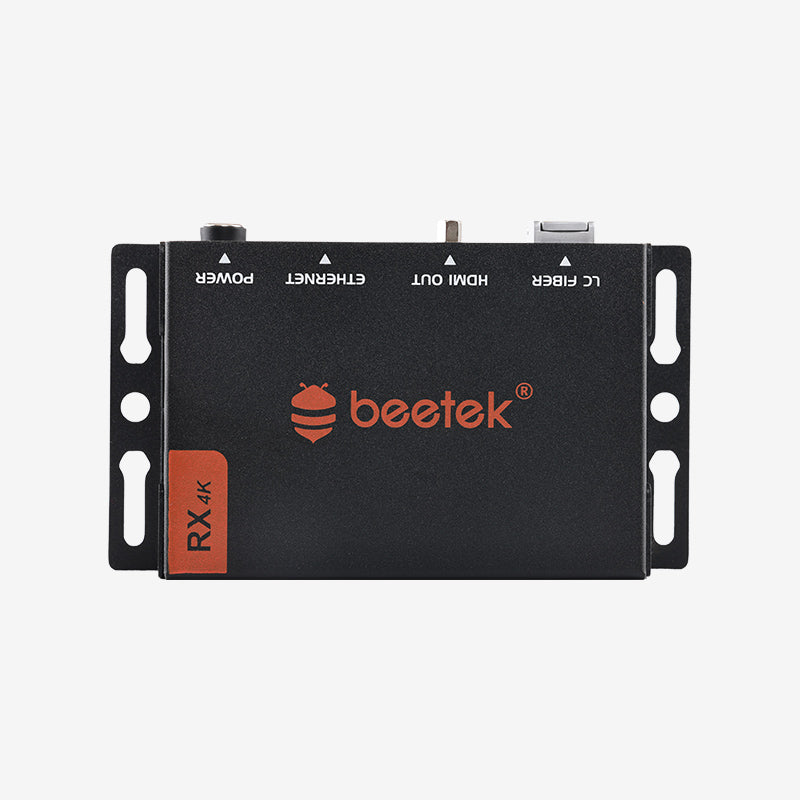

| Output Connector | TX ：Single-core LC; RX： HDMI Type A Female, RJ45 *2 |
|
| Locking HDMI Port | Yes | |
| Fiber Interface Dust Prevention | Yes | |
| Fiber Type | Single-mode G657.A1 | |

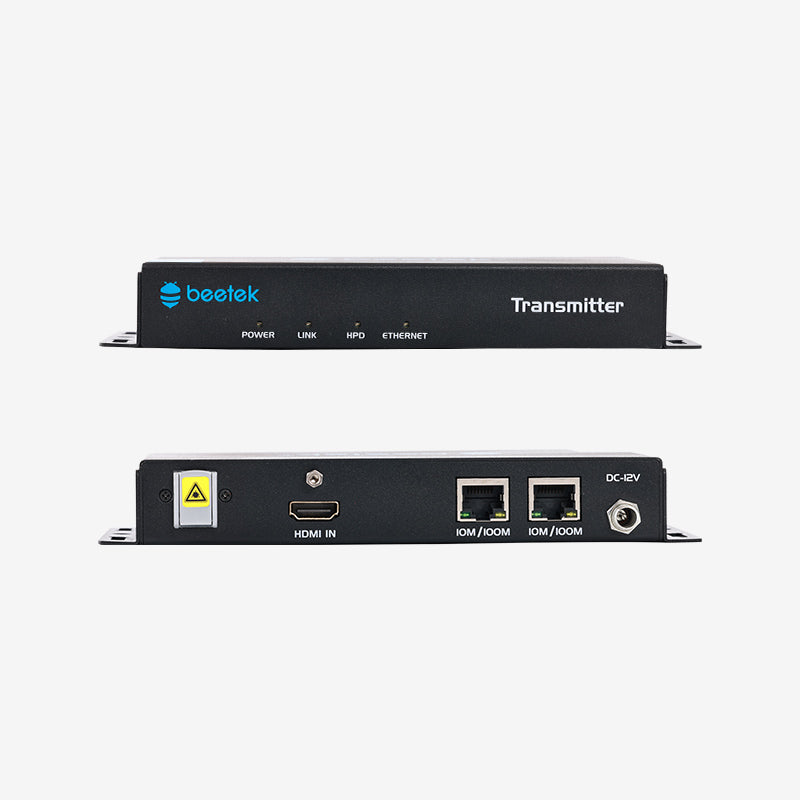

| Indicator LED | Signal, Power, Network port and Hot-plug 4 way indicator | |
| Locking power connector | Yes | |

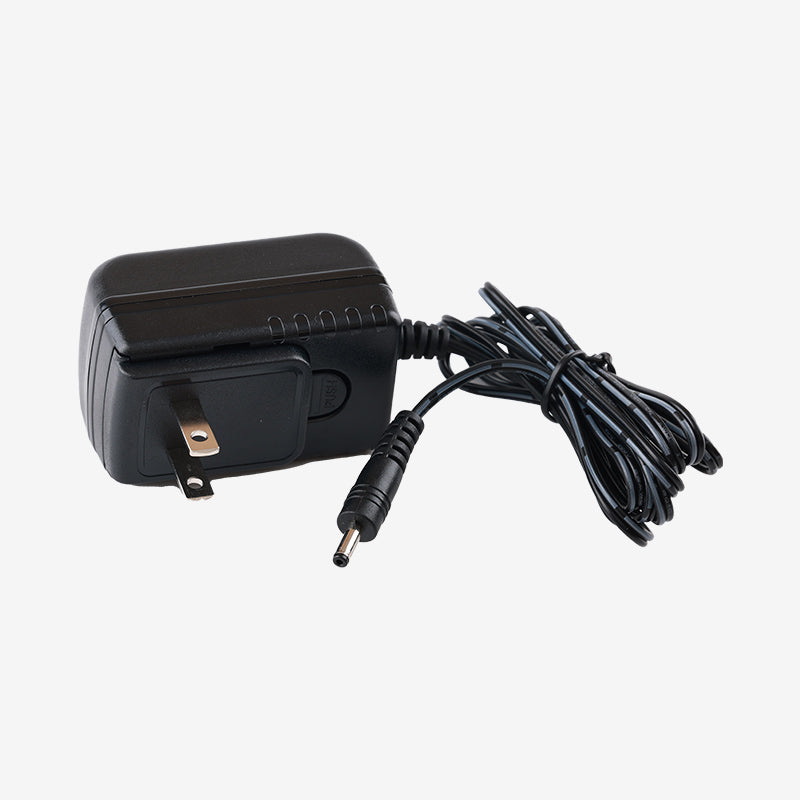

| Power Consumption | TX:DC 12V 2A RX:DC 5V | |
| Ambient Temp | -20°C ~ 70°C | |
| Material | Metal mold | |
| Dimensions | TX：185 *95 *26mm； RX：125 *70 *26mm | |
| Weight | TX : 0.53kg ; RX: 0.35kg | |
| Package Dimensions | 270 *157 *136mm | |
| Packaging Weight | 1.3kg | |
| DDC | Yes | |
| Ethernet | Supports bidirectional 100M Ethernet | |
| HDMI Audio | Yes | |
| 3D | Yes | |
| CEC | Yes | |
| ARC | Yes | |
| HDCP | Yes | |
| XvYCC Color Space | Yes | |
| Optical Module | 1*12G ，2*2.5G 3-channel single-mode optical module | |
| Technical Characteristics | Circuit Multiplexing SerDes Technology, 3-wave CWDM Technology | |
| Optical module life | 100,000 Hours | |
| Resolution | 3840x2160@30Hz | |
| Transmission Distance | Single-mode 300M | |
| Clock Bandwidth | 340MHz *3 | |
| Transmission Speed | 10.2Gbps | |
| Balancing Chip | Automatic equalization | |
| Reclocking | Yes | |
| ESD Protection | Yes | |
| Hot Plug | Yes | |
| Delay | Zero-frame | |
| Compression | None | |
| Sampling Rate | Bandwidth Range: 8~16bit | |
| Sampling Ratio | RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Key Features
Support resolution upto 4K@60 4:2:0
Support Single Mode optical
Support distance upto 300 metres with single LC cable.
