GDH05
HDMI 2.0 Silicone Armored Active Optical Cable
- HDMI 2.0 active optical cable available in lengths up to 100 meters.
- No power supply needed, just plug and play like an ordinary cable.
- Lossless video extension without compression or delay.
- 18Gbps transmission rate with maximum resolution of 3840x2160@60Hz.

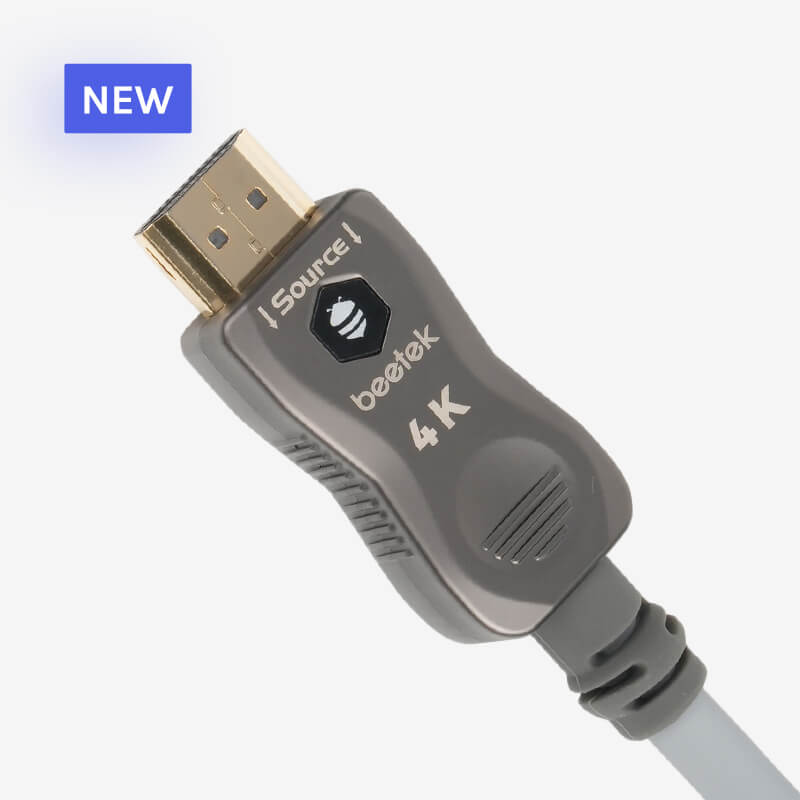

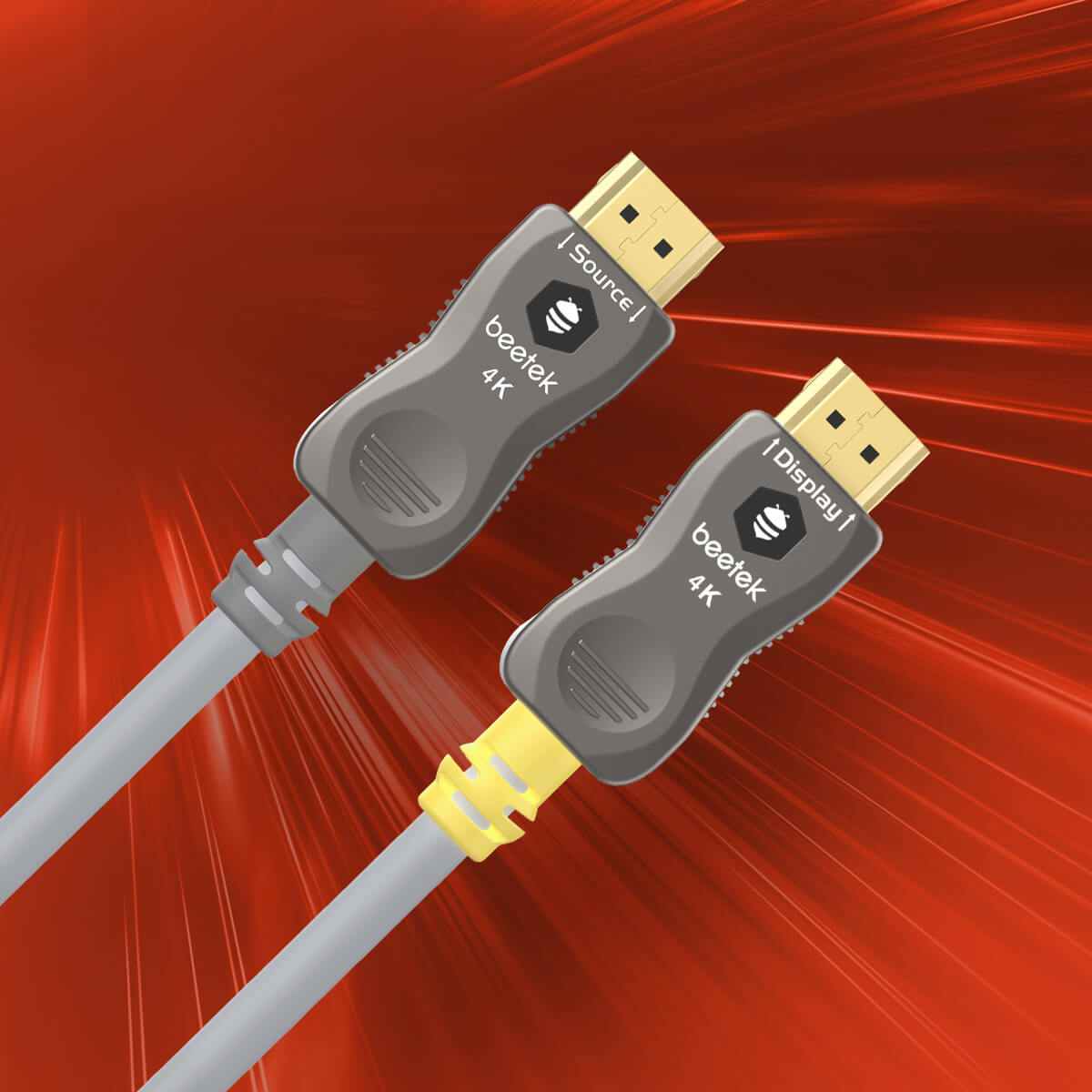

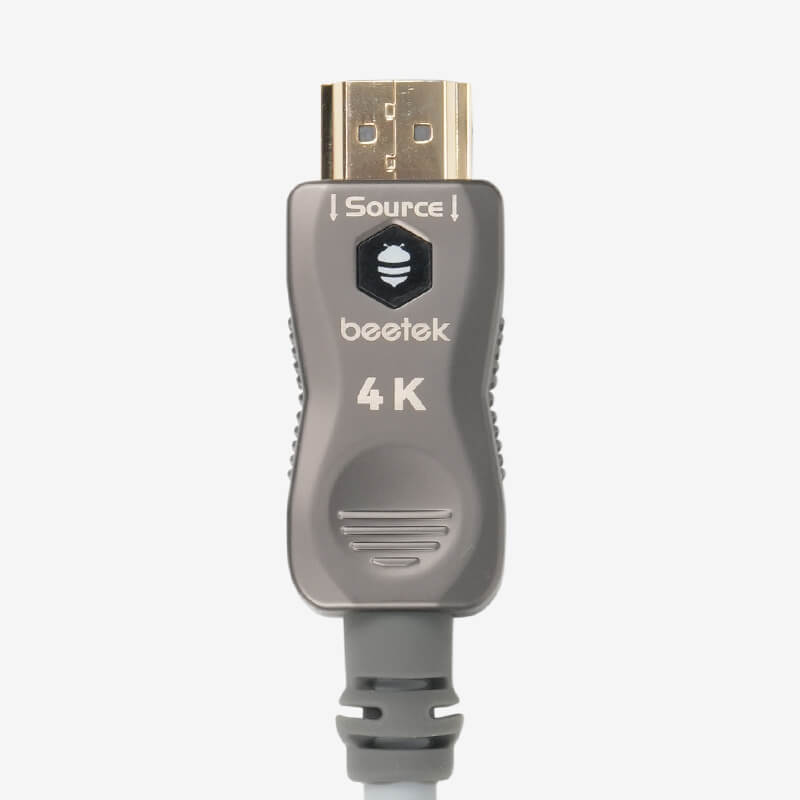

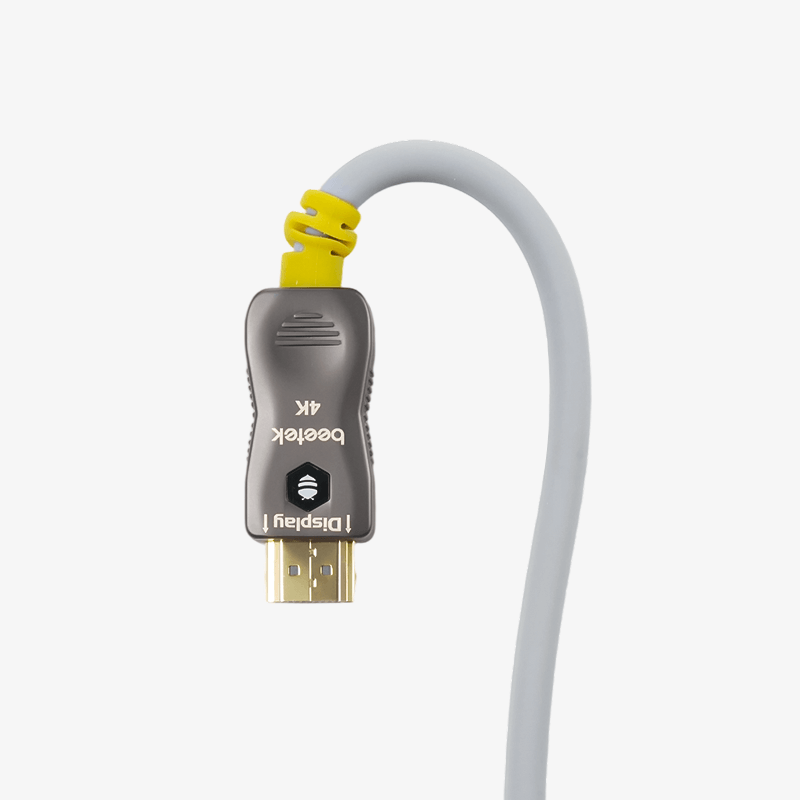

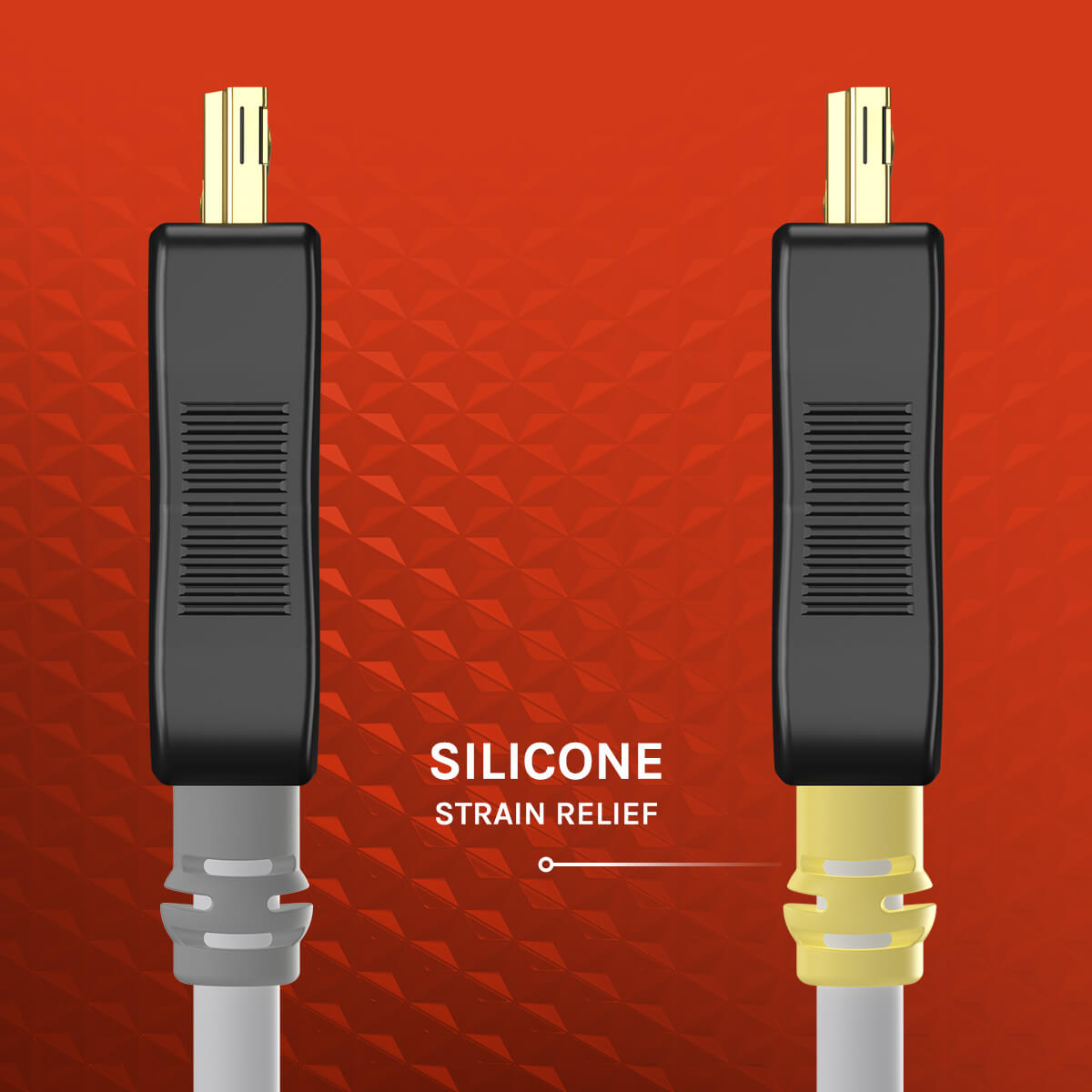

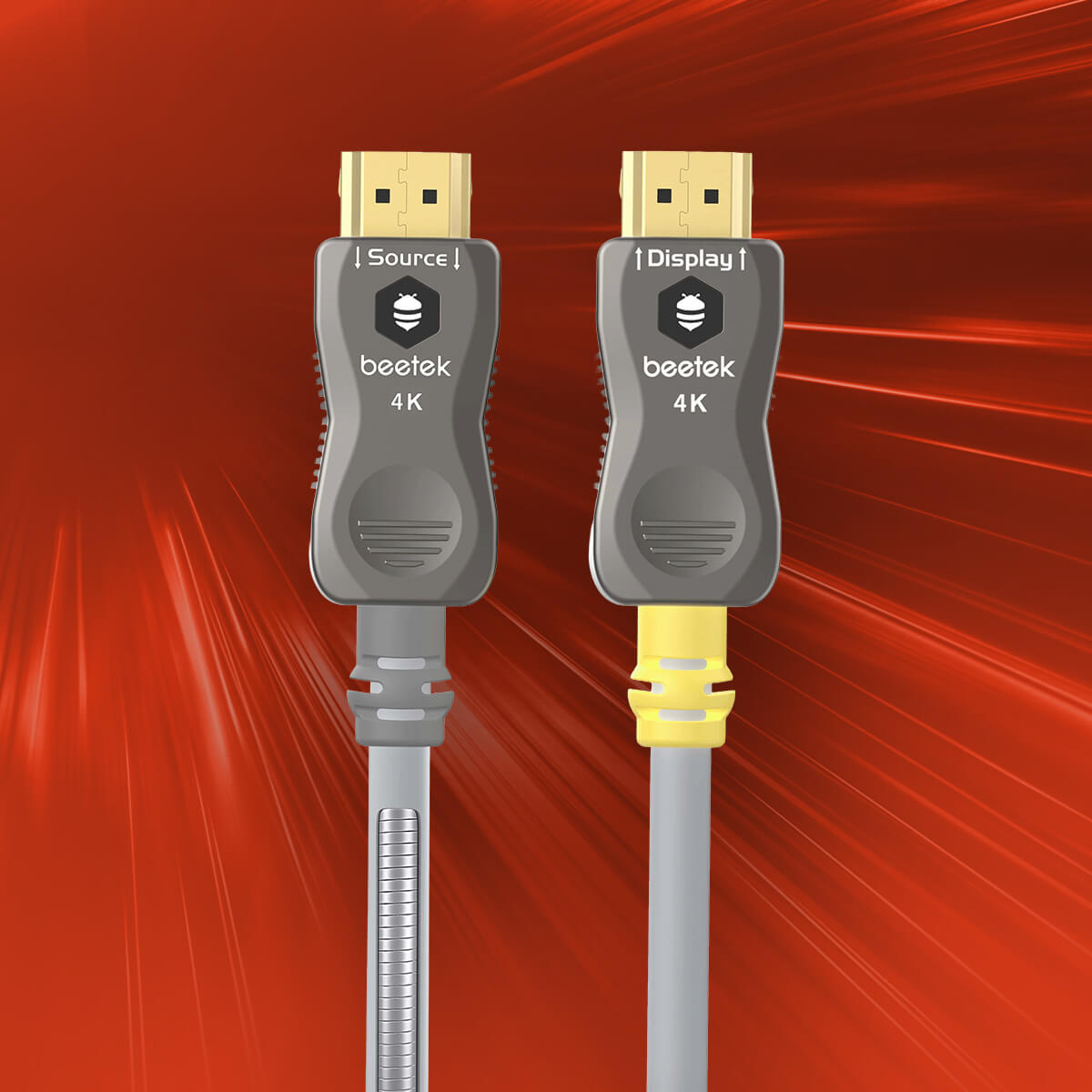

- Plug sure type HDMI connector provides a reliable connection.

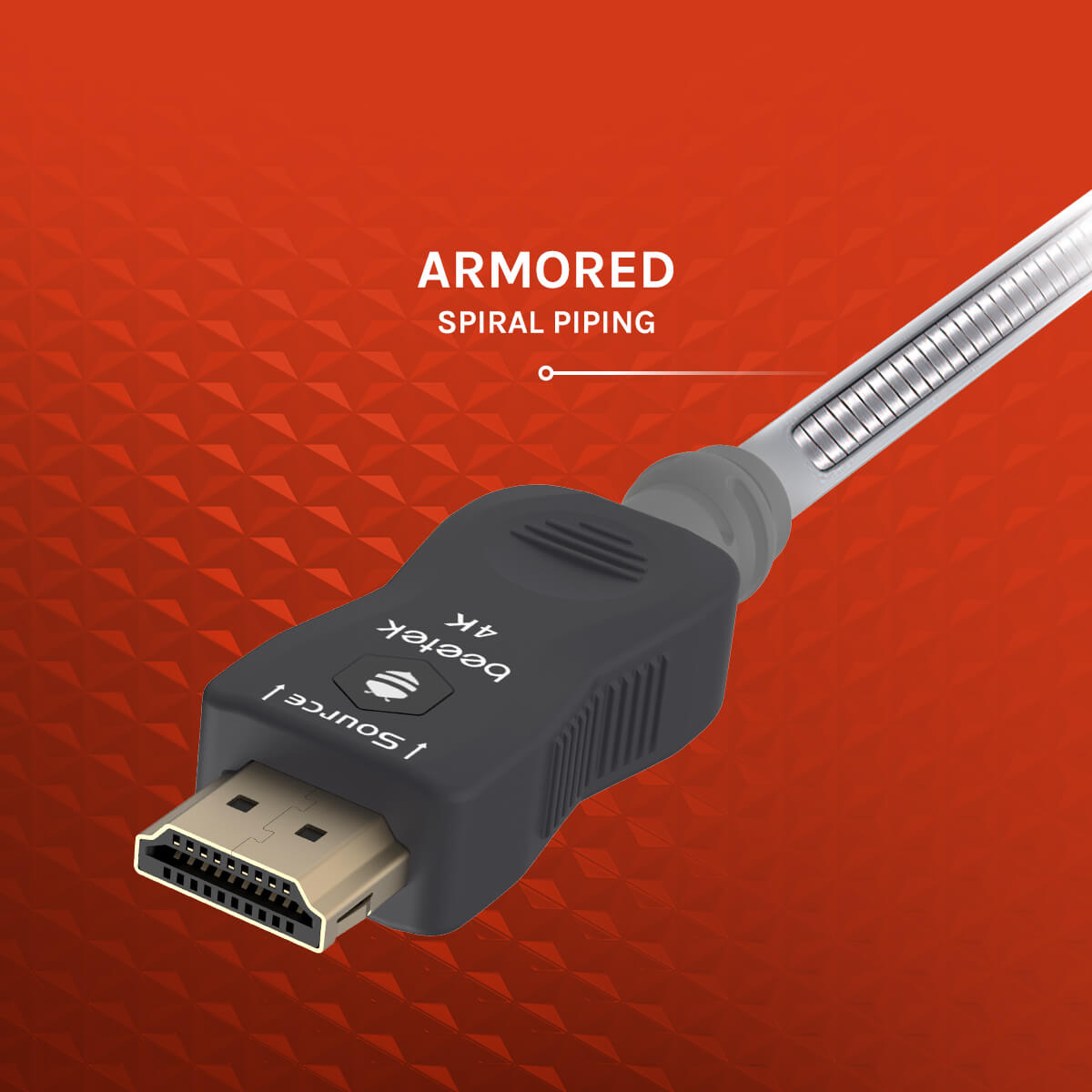

- The pliable yet rugged Flow Silicone outer sheath and built-in armored spiral piping make the cable both durable and flexible at the same time.
- Full-featured HDMI 2.0 interface supports HDR, HDCP, ARC, CEC and 3D.

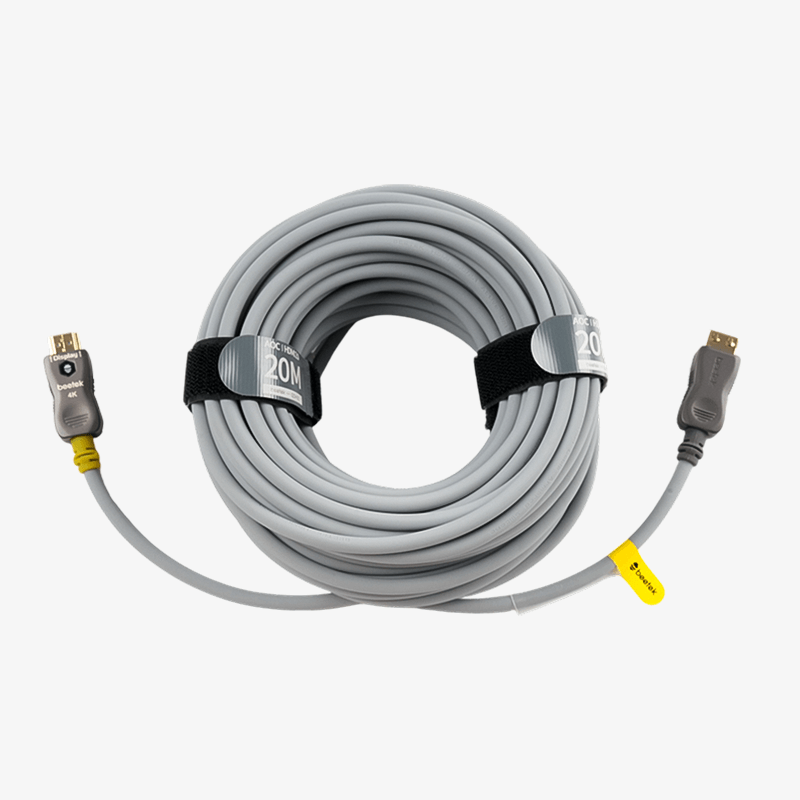

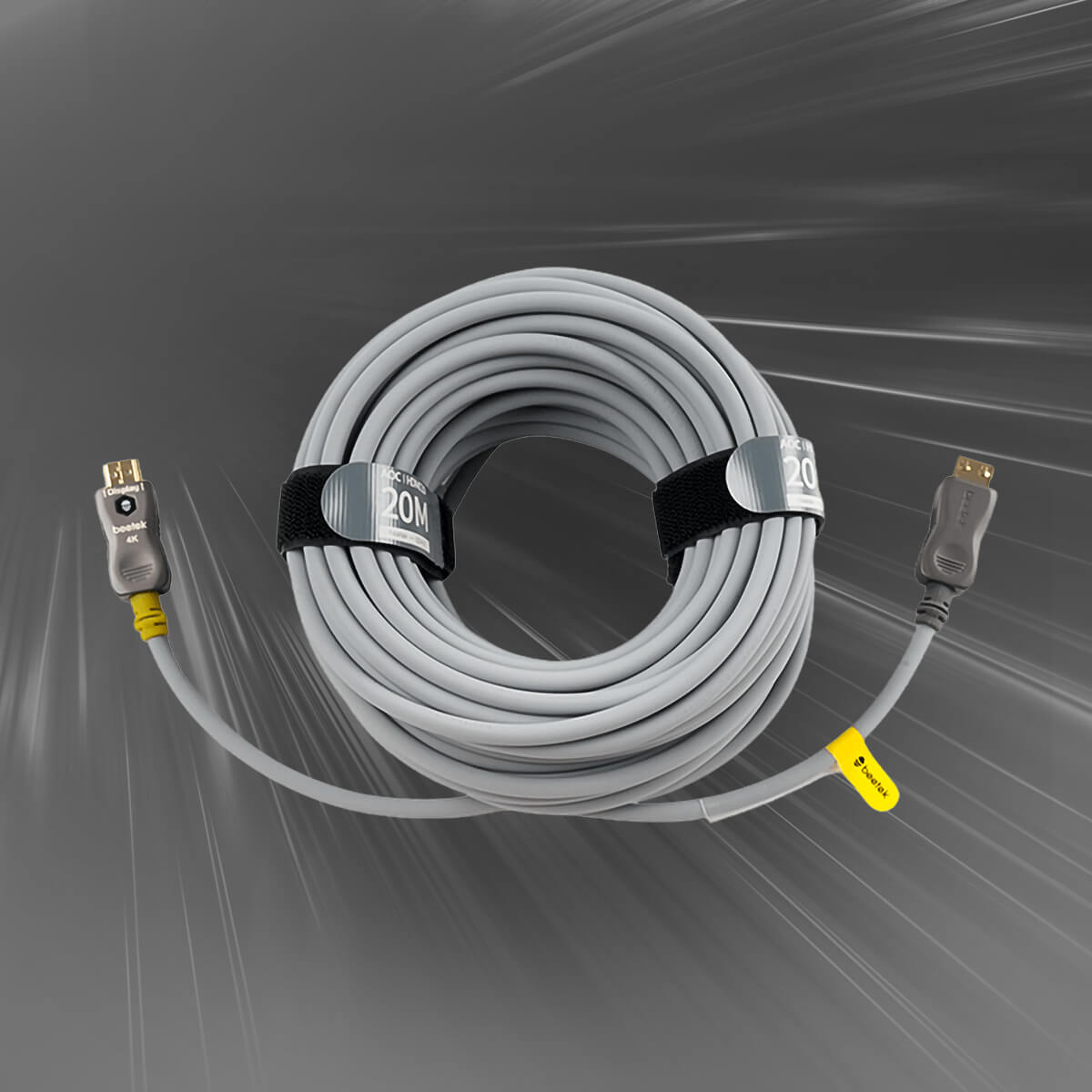

GDH05 is an HDMI 2.0 long-distance active optical cable, which does not require external power and is plug and play like ordinary HDMI cable. By combining optical fibers together with copper in the same cable, it can transmit a lossless HDMI 2.0 signal with maximum resolution of 3840x2160@60Hz 4:4:4 up to 100 meters. Beetek designed it using softer Flow Silicone sheathing and SR, and the inside has stainless steel spiral armor piping, which provide superior tensile strength and resistance to compression. There are different lengths up to 100 meters to choose from. Suitable for rental and staging, fixed installation, residential and other applications.
| Name | Specification |
| Product Name | HDMI 2.0 Silicone Armored Active Optical Cable |
| Model | GDH05-xxM |
| Brand | Beetek |
| Signal Type | HDMI 2.0 |
| Input Connector Type | HDMI Type A Male |
| Output Connector Type | HDMI Type A Male |
| Connector Fastening Type | Plug-sure type HDMI connector |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Power from connector (TX) | Yes |
| Cable power supply (RX) | Yes |
| Power | 250mW |
| Connector Dimensions | HDMI Type A Male, 54 * 19.8 * 11.9mm |
| Plug-n-Play | Yes |
| In-wall Installation | Not supported |
| Fiber Type | Multi-mode OM3-300 * 4 |
| Fiber Wavelength | 850 - 1300nm |
| Copper Wire Material | 7 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1, 26AWG*1, 30AWG*3, 32AWG*2 |
| Cable Structure | Optical fiber + inner jacket + Kevlar + tissue paper+ armored tube + PTFE + outer jacket |
| Cable Diameter | 6.5mm |
| Jacket Color | Gray |

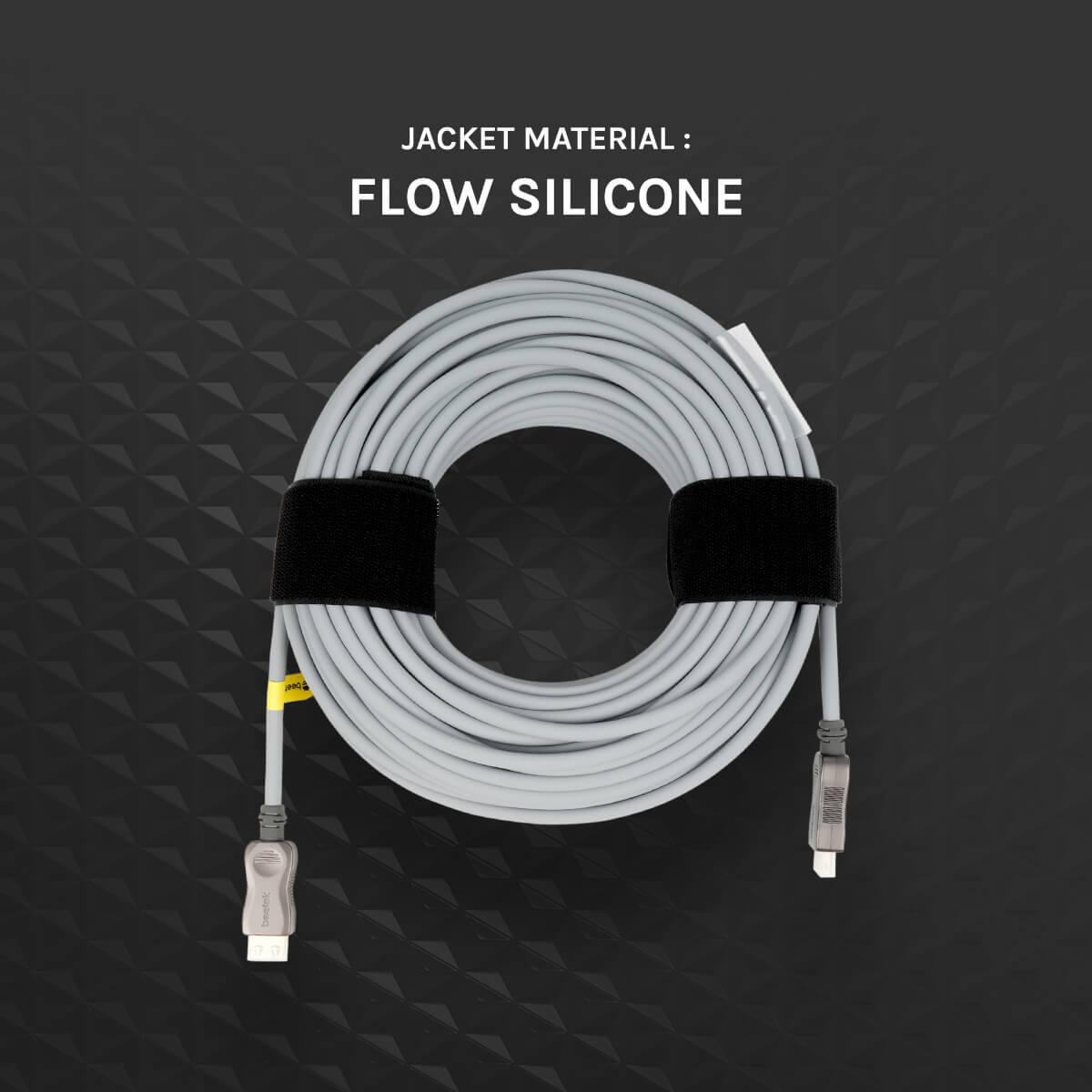

| Jacket Material | Flow Silicone |
| Spiral Tube Diameter | 4.5mm ± 0. 1mm |
| Spiral Tube Color | Silver |
| Spiral Tube Material | Stainless steel |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP 2.3 |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Optical Module | 4*10G Multi-mode optical module |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 3840x2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤700N |
| Compressive Strength | 2000N /10cm |
| Minimum Bending Radius | Dynamic > 10D; Static > 20D (*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |
Key Features
"Plug-sure" type HDMI connector provides a reliable connection.
HDMI 2.0 active optical cable available in lengths up to 100 meters.
The premium silicone jacket and built-in armored spiral piping make the cable both durable and flexible at the same time
