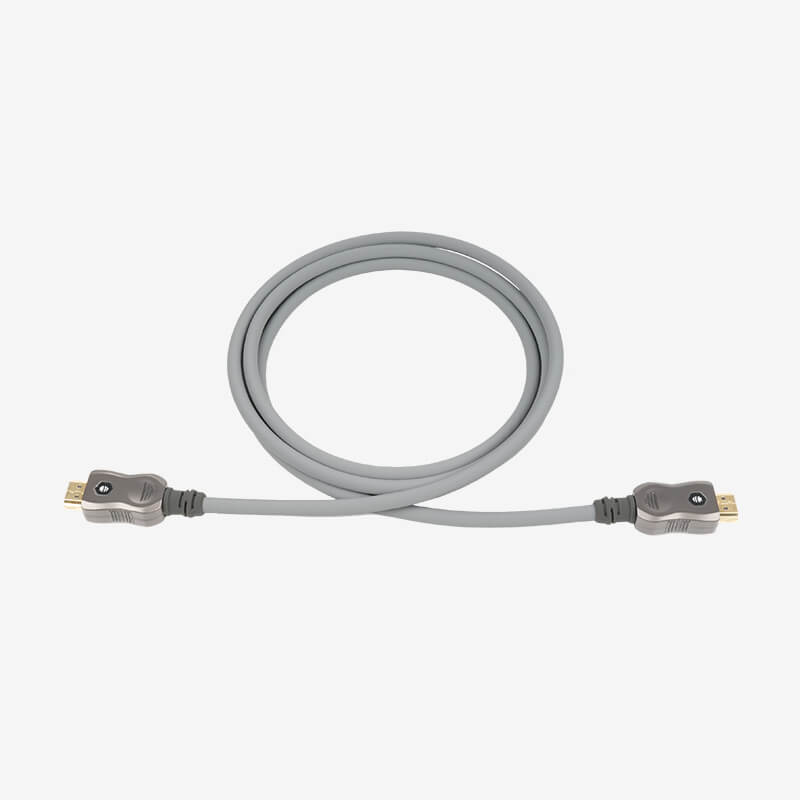

H20-FLEX-EXEC
4K Executive Series HDMI Cable
- An elegant HDMI Cable designed exclusively for Laptop connectivity in Meeting Rooms, Conference Rooms and Board Rooms

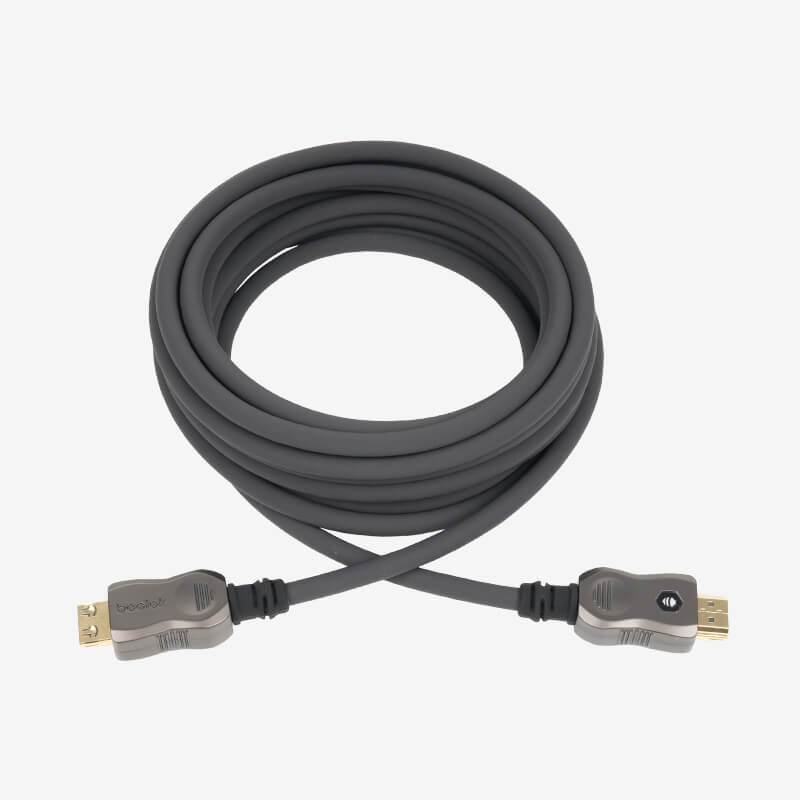

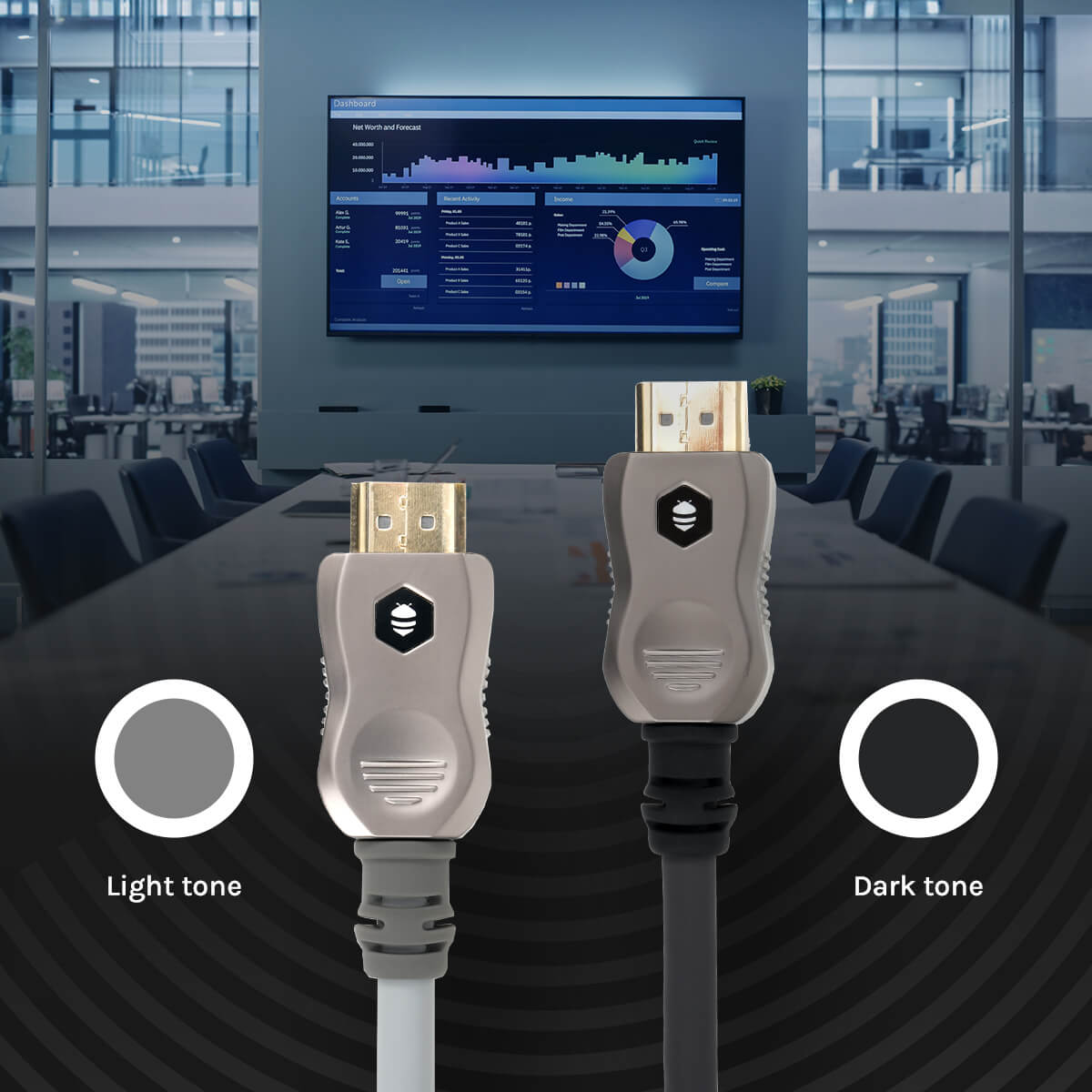

- Available in two colorways, to match boardroom theme.

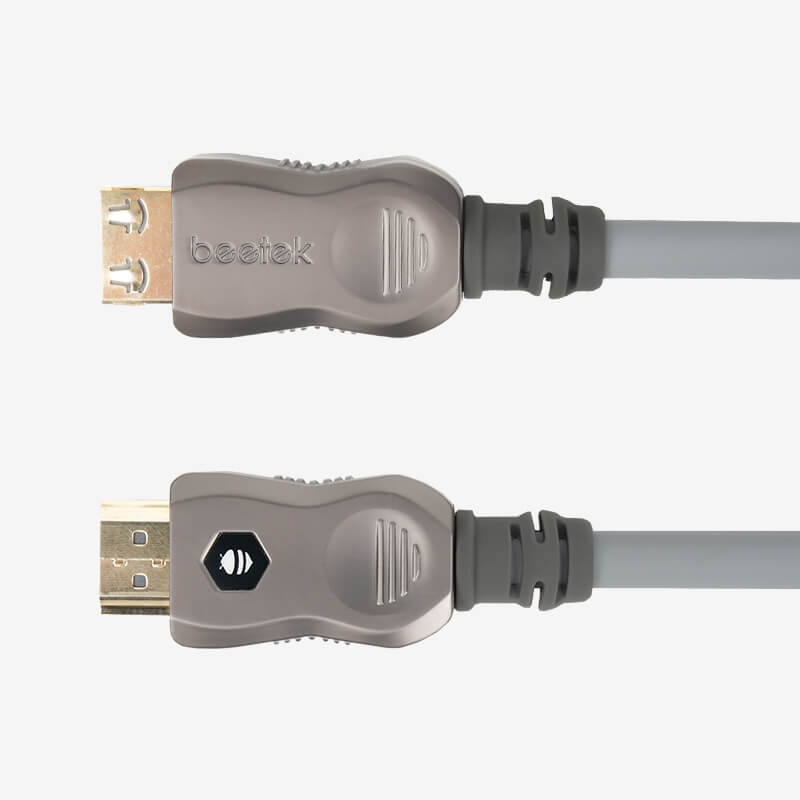

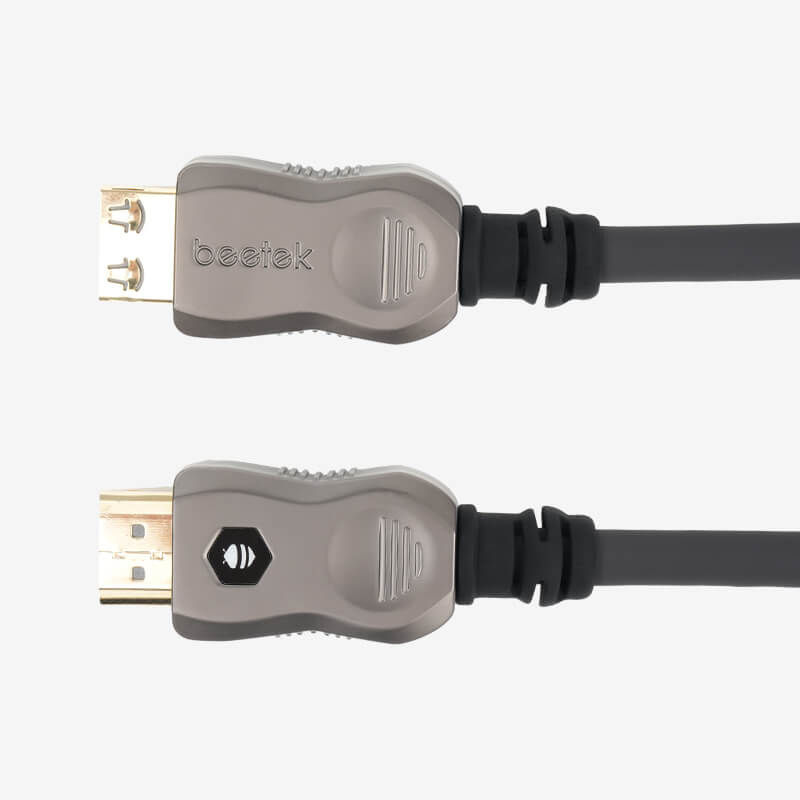

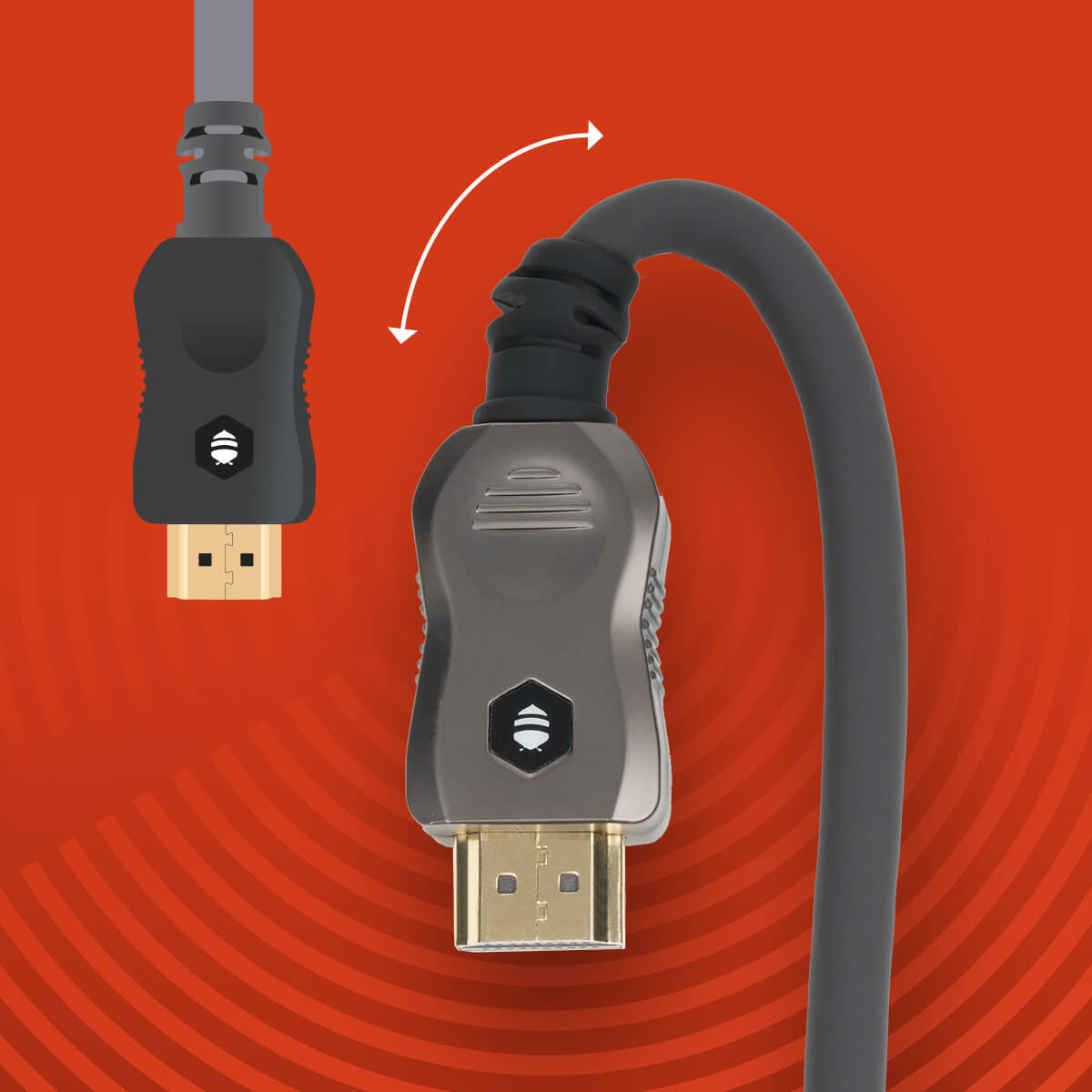

- Ergonomic connector head for easy plugging and unplugging.

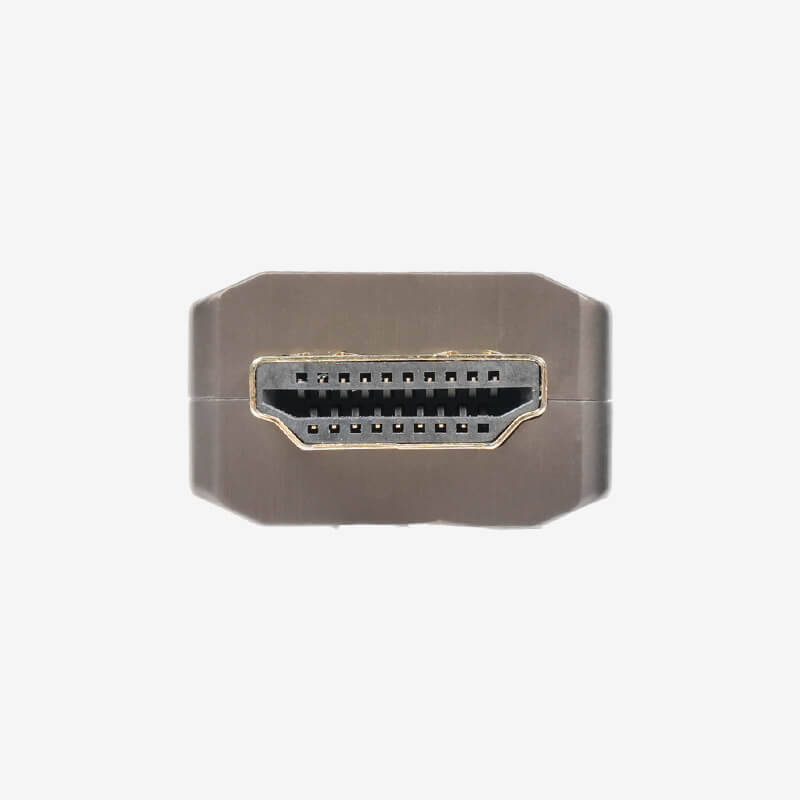

- The "plug-sure" type HDMI connectors provide reliable connections.
- Flexible silicone outer jacket and strain relief (SR) allow the cable to endure repetitive bending without compromising its integrity.

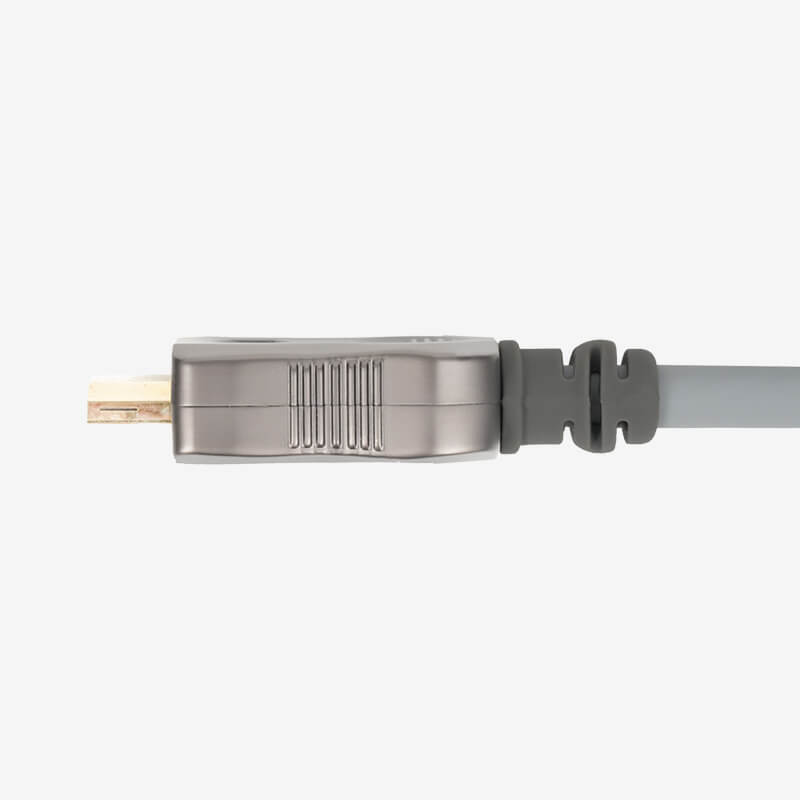

- A slender form factor facilitates seamless installation even in the most confined spaces.

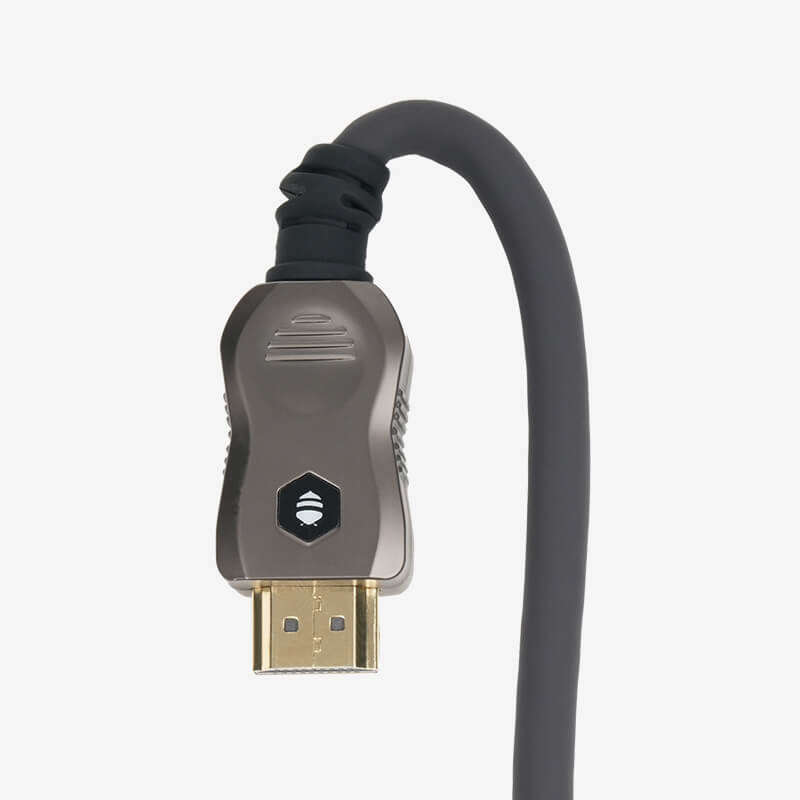

- 15μm gold-plated pins built to withstand more than 1,000 plug cycles.
- Available in 2m, 3m, and 5m lengths.
Introducing Beetek Executive HDMI cable, expertly-crafted for the refined demands of Meeting Rooms and Board Rooms. Equipped with gold-plated and ‘Plug-Sure’ connectors, it ensures a secure and steadfast connection with laptops, while delivering flawless performance. The ultra-premium flow silicone outer jacket is engineered to endure repeated flexing without compromising durability, offering a tangle-free and dust-resistant solution. The sleek design not only ensures superior connectivity but also enhances the professional aesthetic of any space. Elevate your boardroom experience with unmatched reliability and elegance.
| Name | Specification |
| Product Name | HDMI Male-HDMI Male Cable(for meeting) |
| Model | H20-FLEX-EXEC-xxMG/MB |
| Brand | Beetek |
| Signal Type | HDMI 2.0 |
| Connector Type | HDMI TypeA Male - HDMI TypeA Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | 15μm |
| Connector Size | 42*22*12mm |
| Connector Structure | Plug plate + Inner mold + Copper foil + Shell |
| Connector Fastening Type | Plug-sure type HDMI connector |
| Shell | Zinc alloy |
| Components | Conductor + Drain(Copper)+ PTFE tape + Aluminum foil + Mylar + Braid + Silicone jacket |
| Conductor Material | Tinned copper stranded |
| Conductor Gauge | 28AWG |
| Braid Material | Braided copper wire |
| Shield Coverage | 70% |
| Jacket Material | Silicone |
| Cable Diameter | 6.5±0.2mm |
| Cable Color | Medium Gray and Dark Gray |
| Strain Relief(SR) | Silicone |
| EDID | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Compatibility | Backward compatible with HDMI and DVI-SL |
| Supported Resolutions | 3840*2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Deep Color | Yes |
| Sampling Rate | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Compression | None |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤400N |
| Bending Angle | 90° |
| Operating Temperature | -20℃~80℃ |
| Optional Length | 0.5, 1, 2, 3, 5 meters |
| Bag Sze | 37*29cm |
| Carton Size | 46*33*26cm |
| Weight (per bag) | 0.5m/71g, 1m/104g, 2m/175g, 3m/246g, 5m/388g |
| Applications | Rental and Staging, Fixed installation and IT peripherals |
| Uninterrupted duration | 7 * 24 * 365 |
Key Features
Flexible silicone outer jacket and strain relief (SR) allow the cable to endure repetitive bending without compromising its integrity.
Available in two colorways, to match boardroom theme.
Available in 2m, 3m, and 5m lengths.
