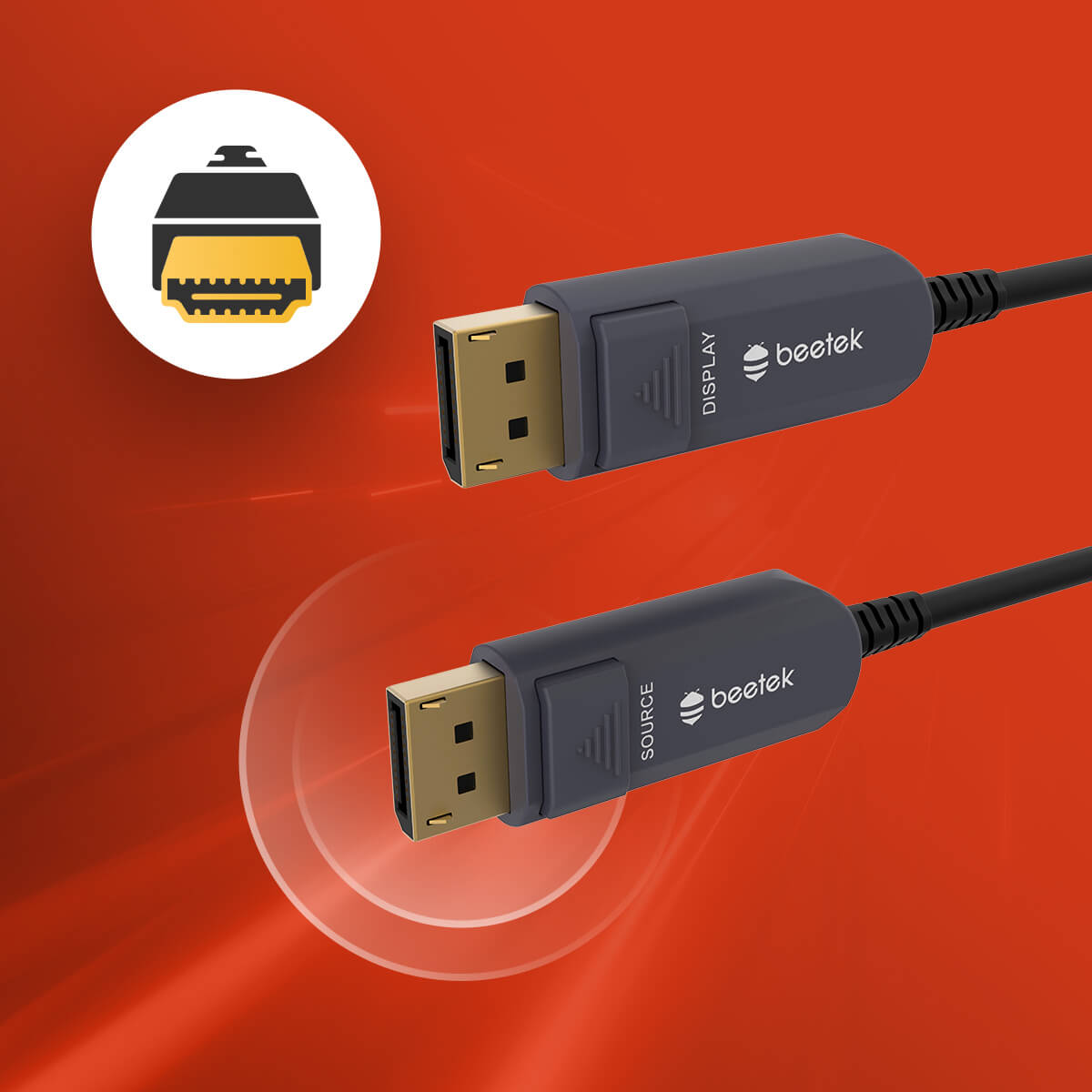

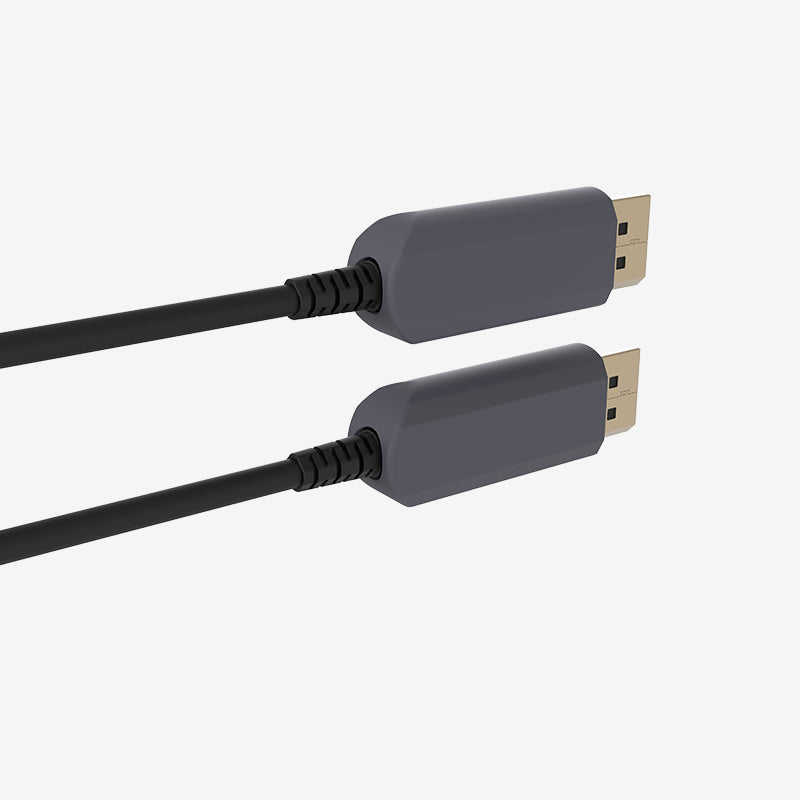

ADP8K SERIES
DisplayPort 1.4 High-speed Active Optical Cables
- Plug and Play without external Power supply

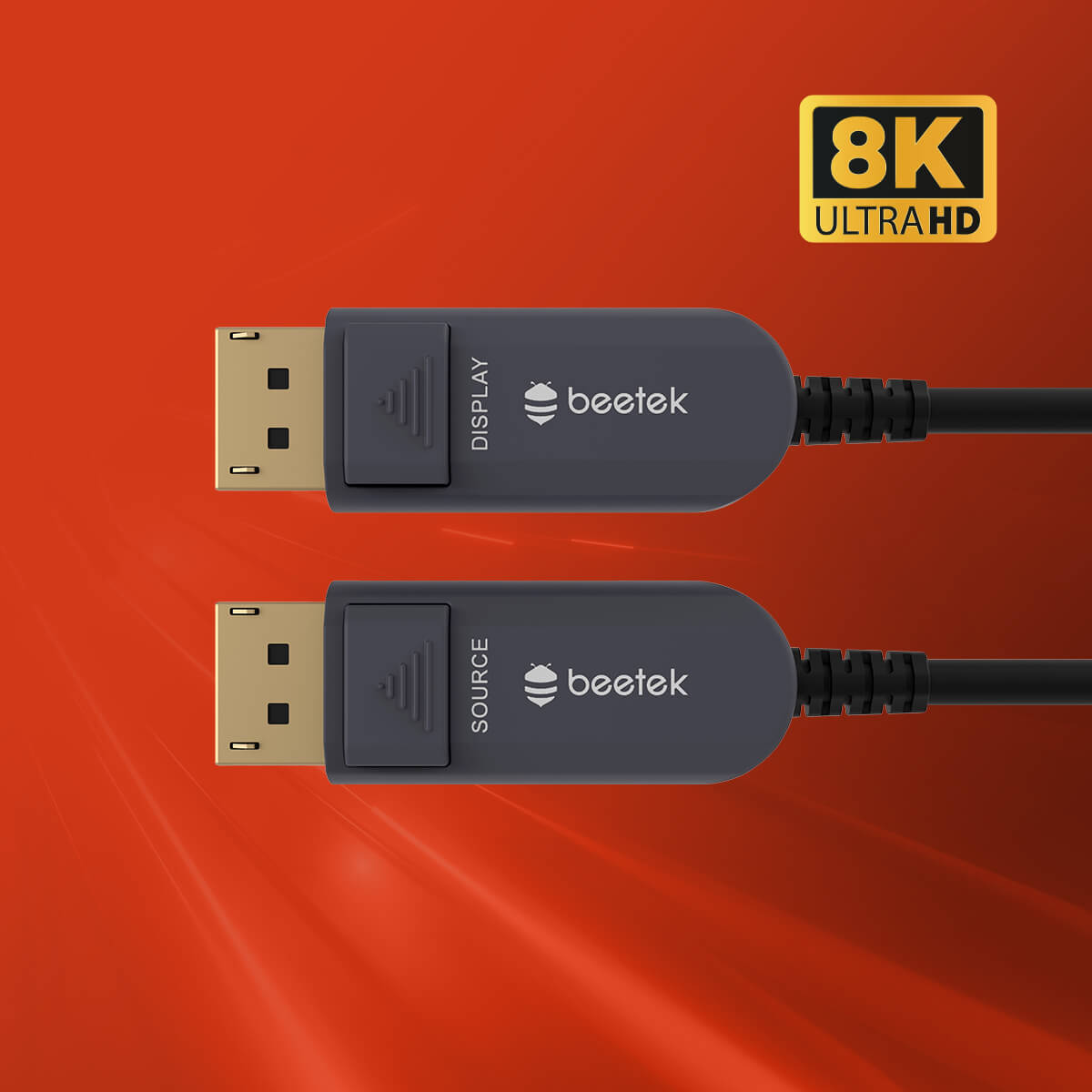

- Support resolution upto 8K@60 4:4:4 at 48Gbps transmission rate.

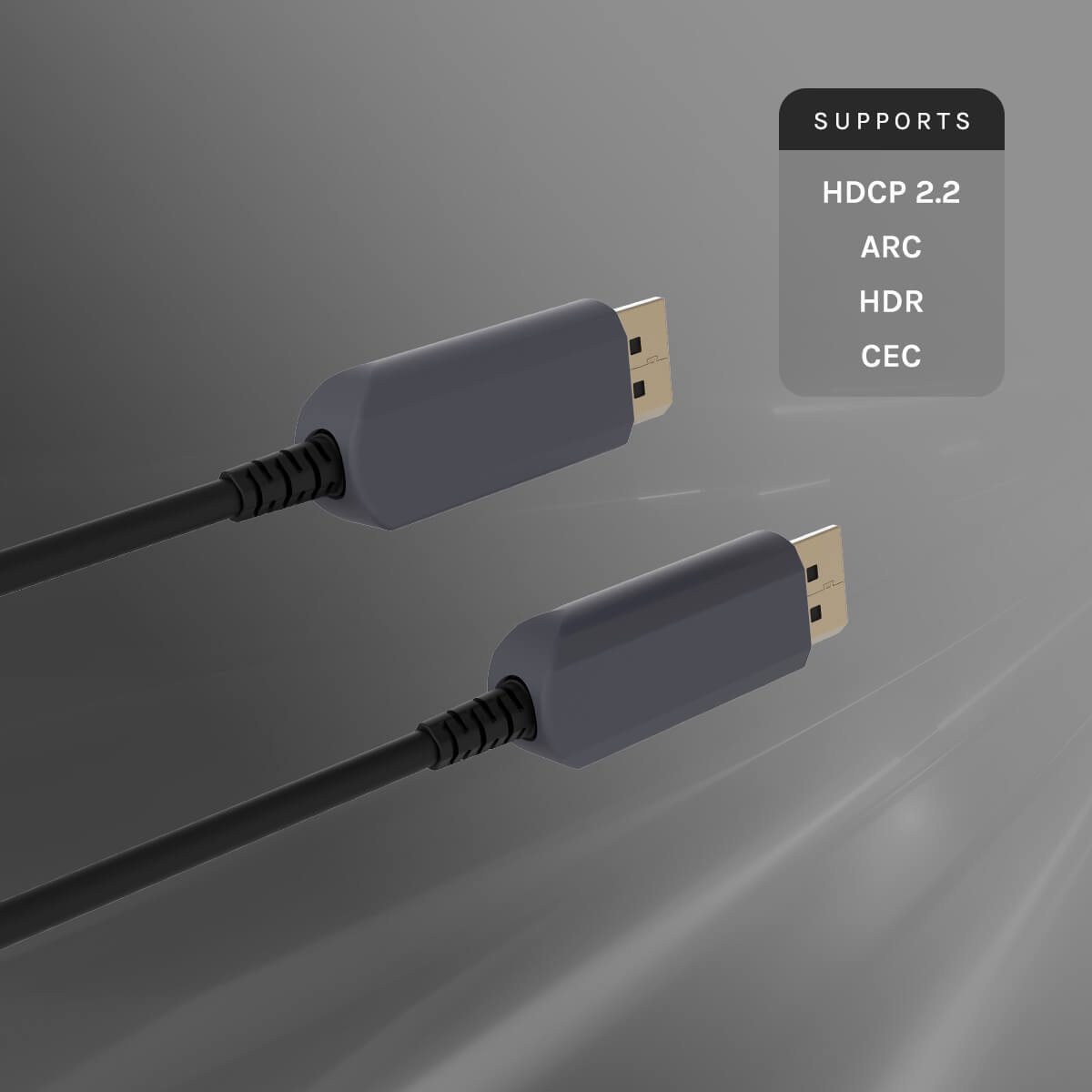

- Supports HDCP 2.2, ARC, HDR AND CEC
- Gold plating process of copper shell provides long-lasting and firm connection
- Supports upto 100 metres and the length can be customized
Beetek Photo electric Hybrid Non Threading cable supports Display Port signals at 8K@60 4:4:4 at 32.4 Gbps.The ADP 8K series products are designed for long distance DP signal transmission via fibre optic technology, OM3 fibre optic transmission with embedded optic engine technology achieves no delay and no compression. Transparent EDID passthrough from source to sink The product is suitable for Rental, Live Events, Residential and surveillance applications
| Name | Specification |
| Product Name | DP-DP 1.4 Active Optical Cable |
| Model | ADP8Kxx |
| Brand | Beetek |
| Signal Type | DP1.4 |
| Input Connector Type | DP male |
| Output Connector Type | DP male |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | DP male: 69.2*20*13mm |
| In-wall Installation | Not supported |
| Power from connector (TX) | Yes |
| Cable power supply (RX) | Yes |
| Power | 250mw |
| Plug-n-Play | Yes |
| Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + outer jacket |
| Fiber Type | Multi-mode OM3 * 4 |
| Fiber Wavelength | 850~1300nm |
| Copper Wire Material | 8 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1 、26WAG*2、28AWG*3、30AWG*2， |
| Cable Diameter | 4.8 mm |
| Jacket Material | 80P PVC |
| Jacket Color | Black |
| Packing Dimensions | Short-length 10 - 40M：240*230*75mm |
| Medium-length 50 - 60M：290*280*75mm | |
| Long-length 70 - 100M：340*330*75mm | |
| EDID | Pass-through |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP2.3 |
| HDR | Yes |
| AUX Channel | Yes |
| High-speed Ethernet | Yes |
| USB | USB 2.0/ USB 3.1 |
| Audio Channels | 32 |
| BT.2020 Color Space | Yes |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 7680×4320 30Hz |
| Clock Bandwidth | 810MHz*4 |
| Transmission Rate | 32.4Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N /10cm |
| Minimum Bending Radius | ≥10D (*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |
Key Features
Support resolution upto 8K@60 4:4:4 at 48Gbps transmission rate.
Supports HDCP 2.2, ARC, HDR AND CEC
Gold plating process of copper shell provides long-lasting and firm connection
