H802M
HDMI - DVI-M E2 Special Line Series
- Unique HDMI Lockable screws.
- E2 Special line series
- Supports resolutions upto 4K@60 4:4:4 at 18 Gbps transmission rate
- The HDMI cable has 15 μm gold platted connector support 1000+ plug in and out and it has stainless steel knurling joint screw with unique detachable belt chain dust proof cap.
- Add your company info label using the provided transparent heat-shrink tubes
Beetek HDMI 2.0 E2 cables are specially designed for the rental & staging industry. It supports resolution upto 4K@60 at 18 Gpbs transmission rate. It has 5 Layers of interference shielding structure, more than 85% of the copper weaving rate.. The device is manufactured with 99.995% tin-dipped oxygen free copper. The HDMI connector, shell and pins are all improved with an added level of stiffness. The product is designed specifically to support E2 product line.
| Name | Specification |
| Product Name | HDMI Type A - DVI Male Adapter Cable |
| Model | H802M-xxM |
| Brand | Beetek |
| Signal Type | HDMI 2.0 |
| Input Connector Type | HDMI Type A Male |
| Out Connector Type | DVI Male |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | HDMI: 54*20.8*20.6mm; DVI: 59.2*40*17mm |
| Connector Structure (HDMI) | Plug plate + Inner mold + Tinplate + Copper foil + Shell + Screw + Protective cap |
| Connector Structure (DVI) | Soldered plug + Inner mold + Copper foil + Tinplate + Shell + Screw + Protective cap |
| Internal Mold | Transparent PE material |
| Copper foil | Double-sided conductive copper foil |
| Tinplate | HDMI: Upper and lower assembled tinplate; DVI: Three-piece tinplate |
| Shell | 45P PVC injection molded shell (UL, RoHS) |
| Lockable Screw | Stainless Steel locking screw |
| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Diameter | 28AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | 90P PVC (UL, RoHS) |
| Cable Diameter | 8.5MM |
| Cable Color | Fluorescent gray |
| Cable Meter Marking | Waterproof Yellow Text |
| Velcro | P-shaped Velcro Strap: 20*200mm |
| EDID | Yes |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Compatibility | Backward compatible with HDMI and DVI-SL |
| Supported Resolutions | 3840x2160@60Hz / 1920x1080@120Hz |
| Clock Bandwidth | 600MHz * 3 |
| Transmission Rate | 18Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Deep Color | Yes |
| Sampling Rate | RBG 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Compression | None |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤400N |
| Bending Angle | 120° |
| Operating Temperature | -20℃~80℃ |
Key Features

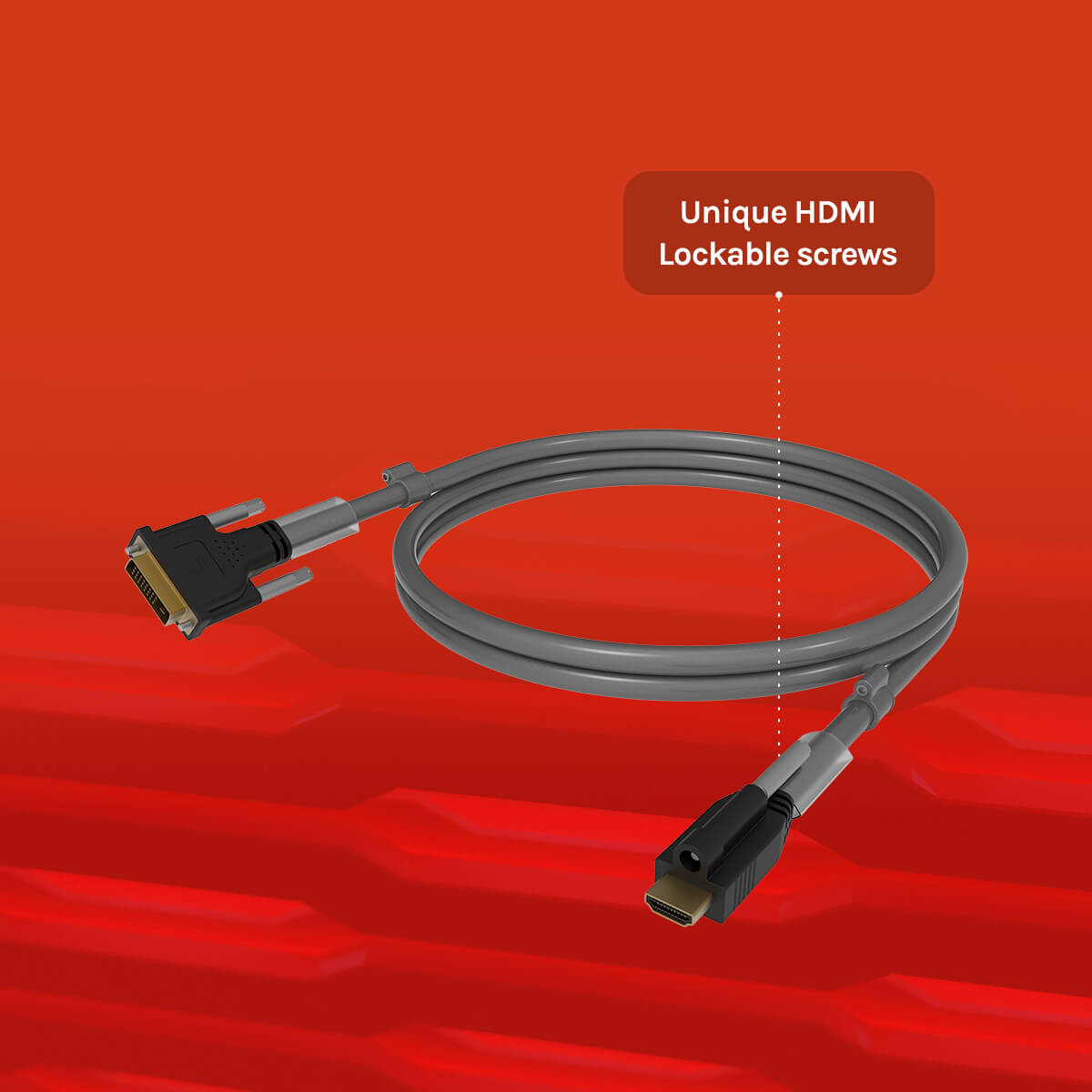

Unique HDMI Lockable screws.

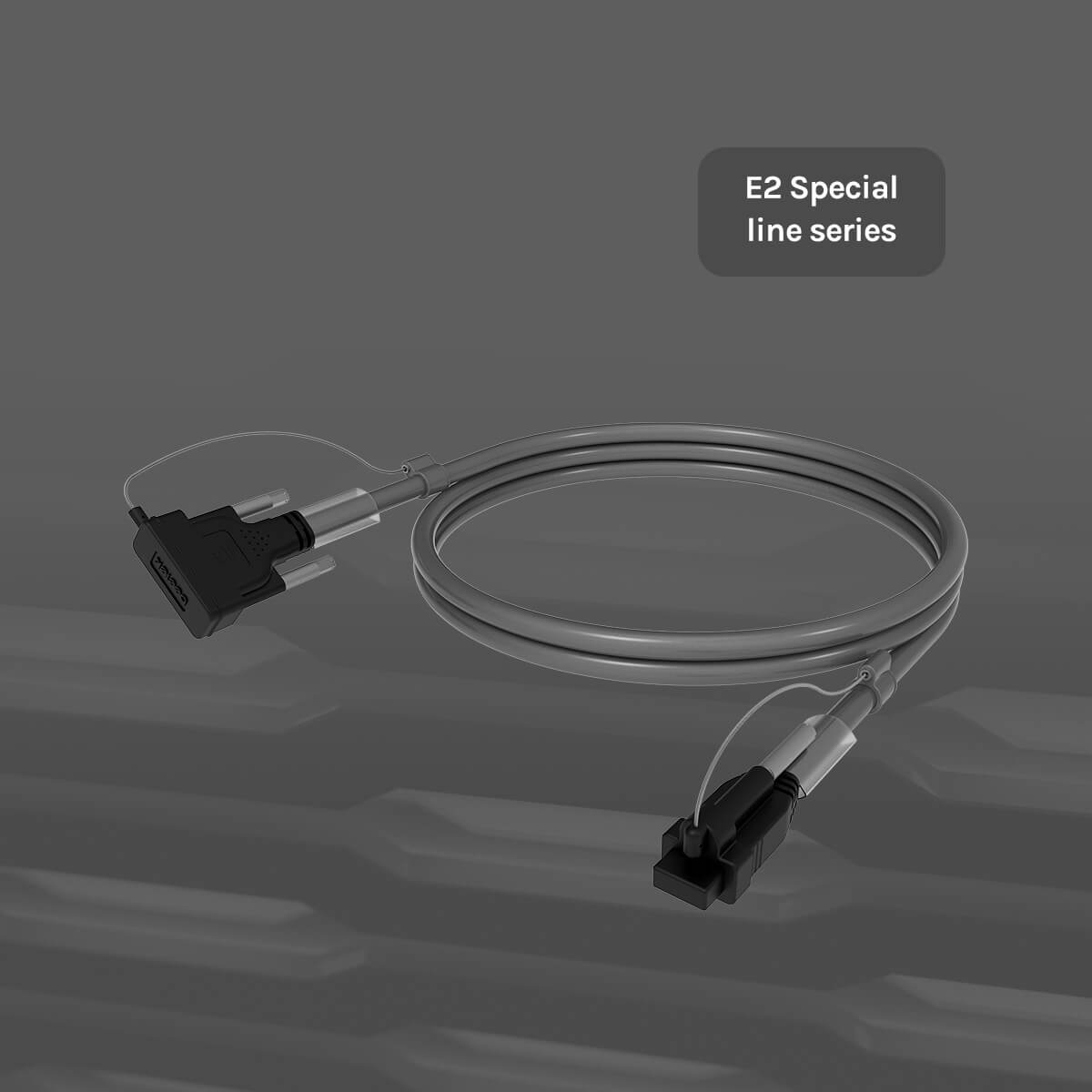

E2 Special line series

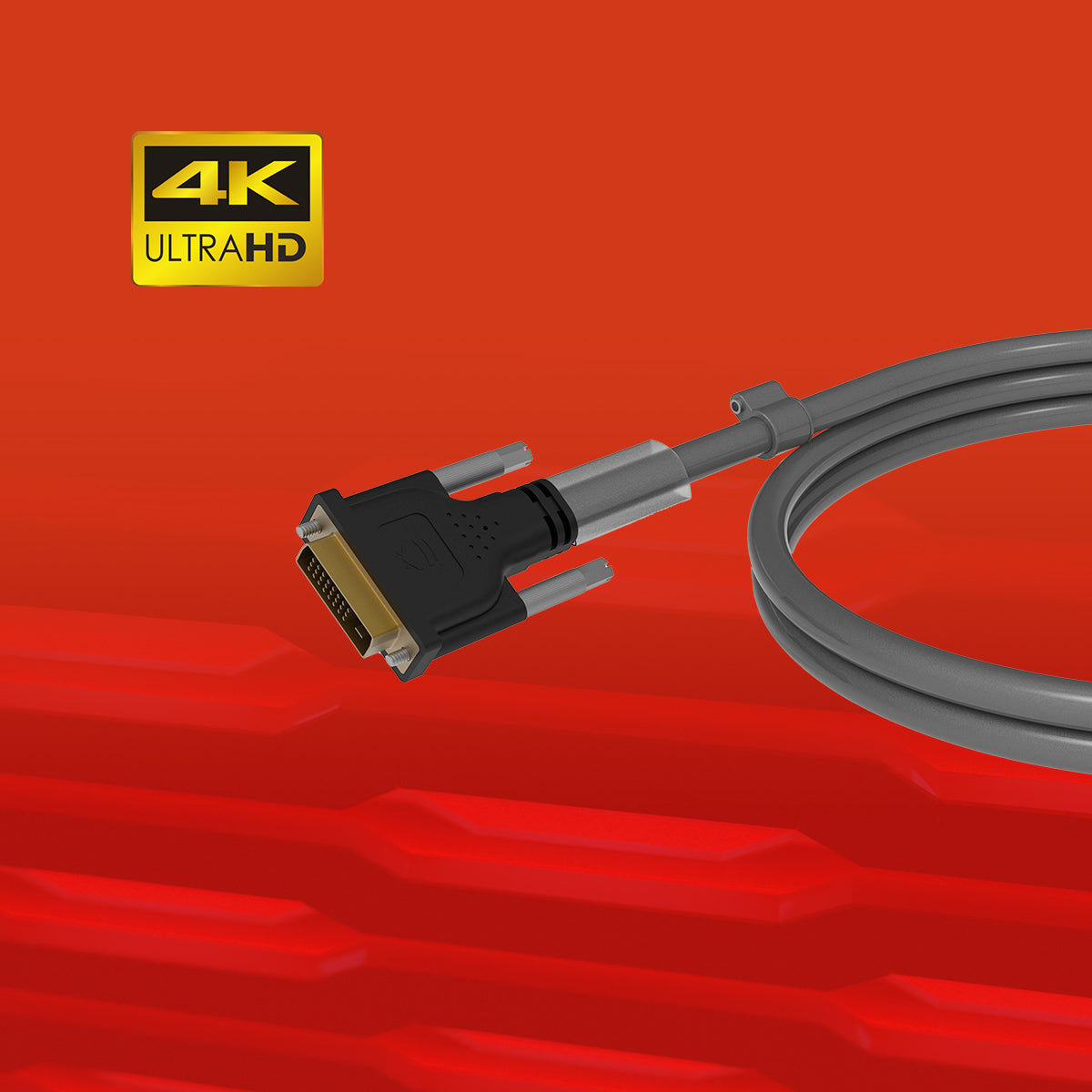

Supports resolutions upto 4K@60 4:4:4 at 18 Gbps transmission rate
