AUSBC

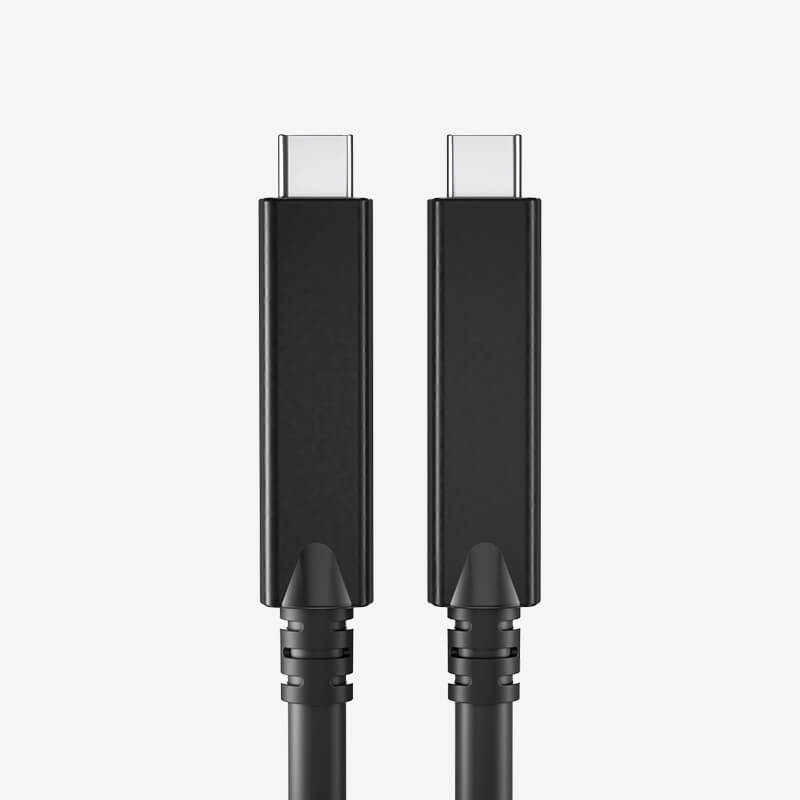

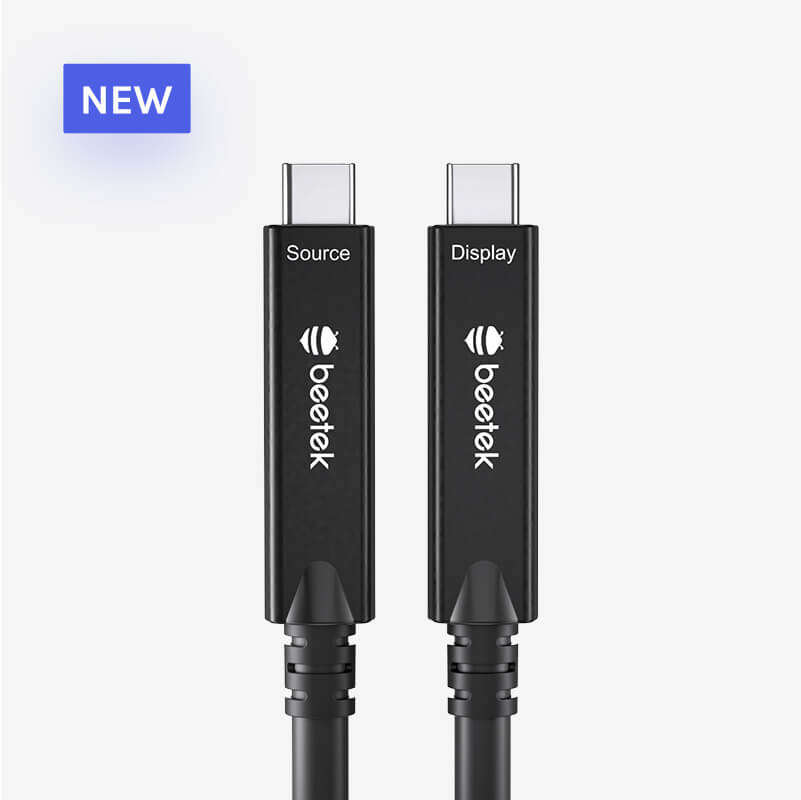

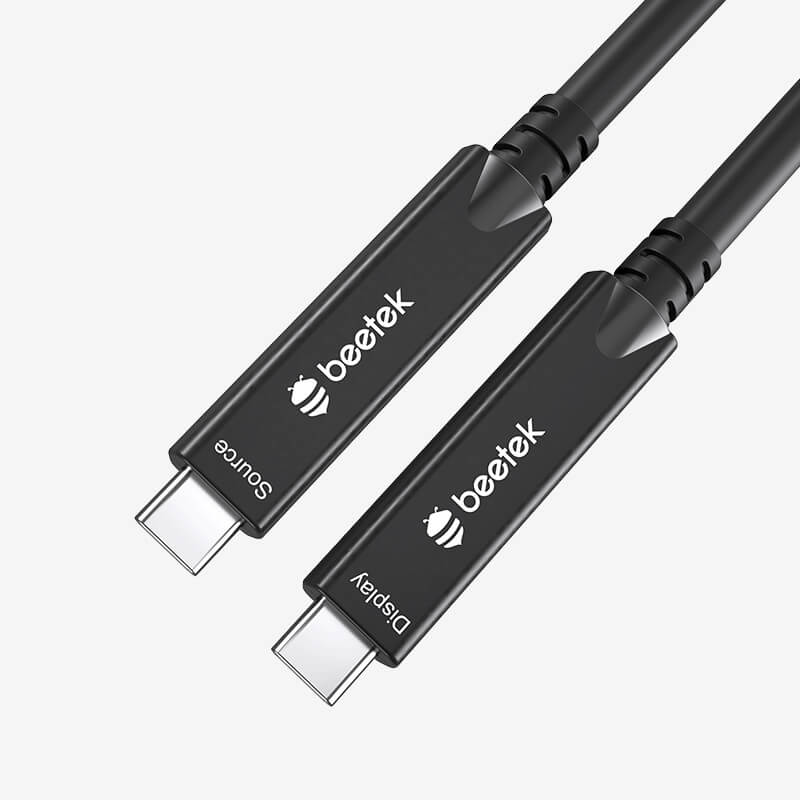

USB 3.2 Gen 2 Full-Featured Active Optical Cable
-
Active USB-C Cables supports Video, Audio, Data and Power Simultaneously:
- Unidirectional Display Port Audio and Video
- Bidirectional USB Data and Power
- Adaptive switching enables automatic selection between 4-lane DP 2.1 + USB 2.0 and 2-lane DP 1.4 + USB 3.2 (10 Gbps) modes.
- Supports DP Alt Mode 4K60Hz 4:4:4 / 8K30Hz 4:4:4 Video and Audio.
- Supports up to 20 Gbps bidirectional bandwidth (10 Gbps per direction) and is backward compatible with USB 2.0 and USB 1.1.
- Supports Power Delivery 60W up to 10M and 40W above 10 meters.
- 6.5 mm flexible cable design enables easy deployment and secure installations.
- Hybrid design with 5 optical Fibers + 12 copper conductors for stable transmission and high interference immunity.

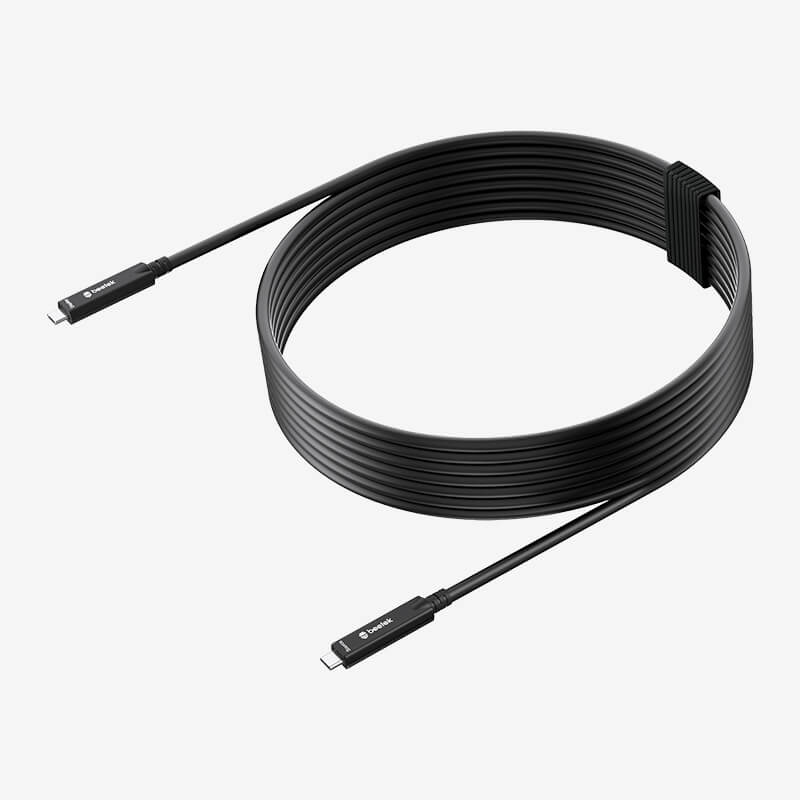

The Beetek AUSBC Series is a Hybrid Active Optical Cable USB-C Cable designed for reliable high-speed data, video, and power transmission up to 15 meters. This USB 20 Gbps fable features adaptive DP Alt Mode supports 2-Lane and 4-Lane video and USB Operations. It supports DisplayPort Alt Mode 8K video with USB 2.0 data rates up to 480 Mbps, and 4K video with USB 3.0 data rates up to 10 Gbps. Additionally Power Delivery 60W up to 10M and 40W above 10M enables powering the laptops and mobile devices. Utilizing the Hybrid Optical and Electrical Technology, the AUSBC series cables ensure stable signal transmission over long distances up to 15 Meters.
The AUSBC Series Cables, along with USB-C full-featured Wall Plate modules ideal for UC Conference system BYOD cable solutions. It is suitable for a wide range of professional AV applications including industrial, medical, data centre, gaming/e-sports applications.
The AUSBC Series Cables, along with USB-C full-featured Wall Plate modules ideal for UC Conference system BYOD cable solutions. It is suitable for a wide range of professional AV applications including industrial, medical, data centre, gaming/e-sports applications.
| Name | Specification |
| DisplayPort video | DisplayPort Alt Mode, DP 1.4 and DP 1.2 |
| Maximum data rate | 4-lane HDR3 (32.4 Gbps), 2-lane HBR3 (16.2 Gbps) |
| Resolution range | Up to 4096x2160 @60Hz 4:4:4 and 7680x4320 @60Hz 4:4:4 |
| Standards | Up to DisplayPort 1.4 and HDCP 2.3 |
| USB Specification | USB 3.2 Gen 2x2 (2 lanes x 10 Gbps), USB 2.0, USB 1.1 Compatible |
| Bandwidth | Up to 20 Gbps Bi-Directional |
| Hubs | USB 2.0 – 1 Hub, USB 3.0 – No Hub |
| Adaptive Mode | Yes, Auto Switching between DP Alt and DP Alternate Mode |
| Max. Power Delivery | 60W up to 10 Meter, 40W for above 10M |
| Max. Current | 5A |
| Power Supply | No External power supply needed |

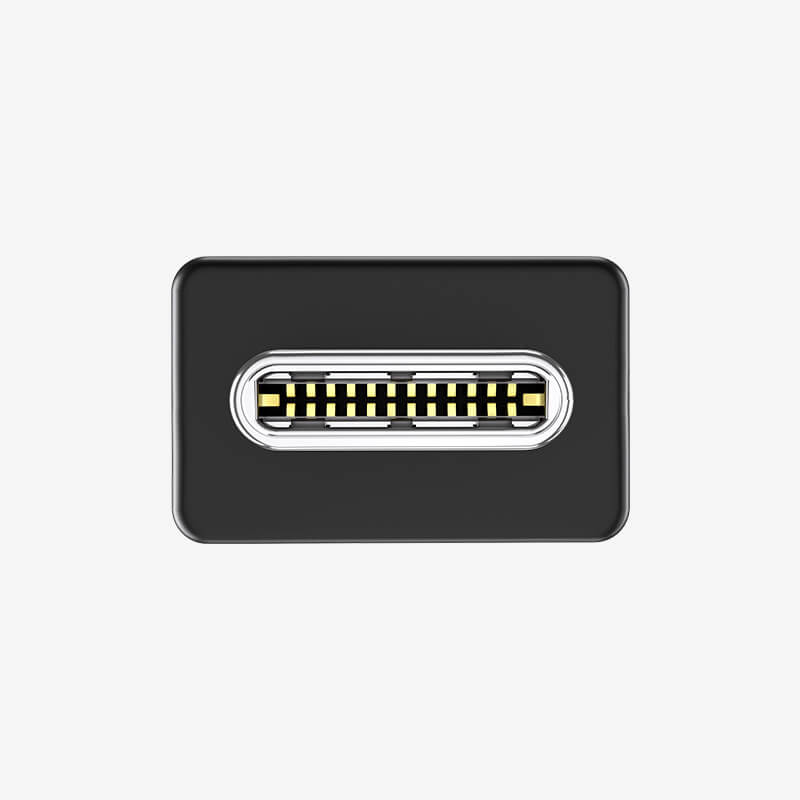

| Connectors | USB Type C Male to USB Type C Male |
| Contacts | Gold Plated |
| Shell | Nickel Plated Single Shell |
| Cable Structure | 5 optical Fibers + 12 Copper Wires |
| Connector Dimension | 54.4*12.4*7.8mm |
| Cable Diameter | 6.5 mm |
| AUSBC-10M | 10 Meter, 60W PD, 4K60Hz 4:4:4 / 8K60Hz 4:4:4, USB 3.2 / USB 2.0 |
| AUSBC-15M | 15 Meter, 40W PD, 4K60Hz 4:4:4 / 8K60Hz 4:4:4, USB 3.2 / USB 2.0 |
Key Features
Adaptive switching between DP 2.1 (8K) + USB 2.0 or DP 1.4 (4K) + USB 3.2.
No power supply needed, just plug and play like an ordinary cable.
High Flexibility and Bending ratio.
