Z03
TYPE-C - DVI Adaptor
- Supports resolution upto 4K@60 @ 4:4:4 at 18 Gbps

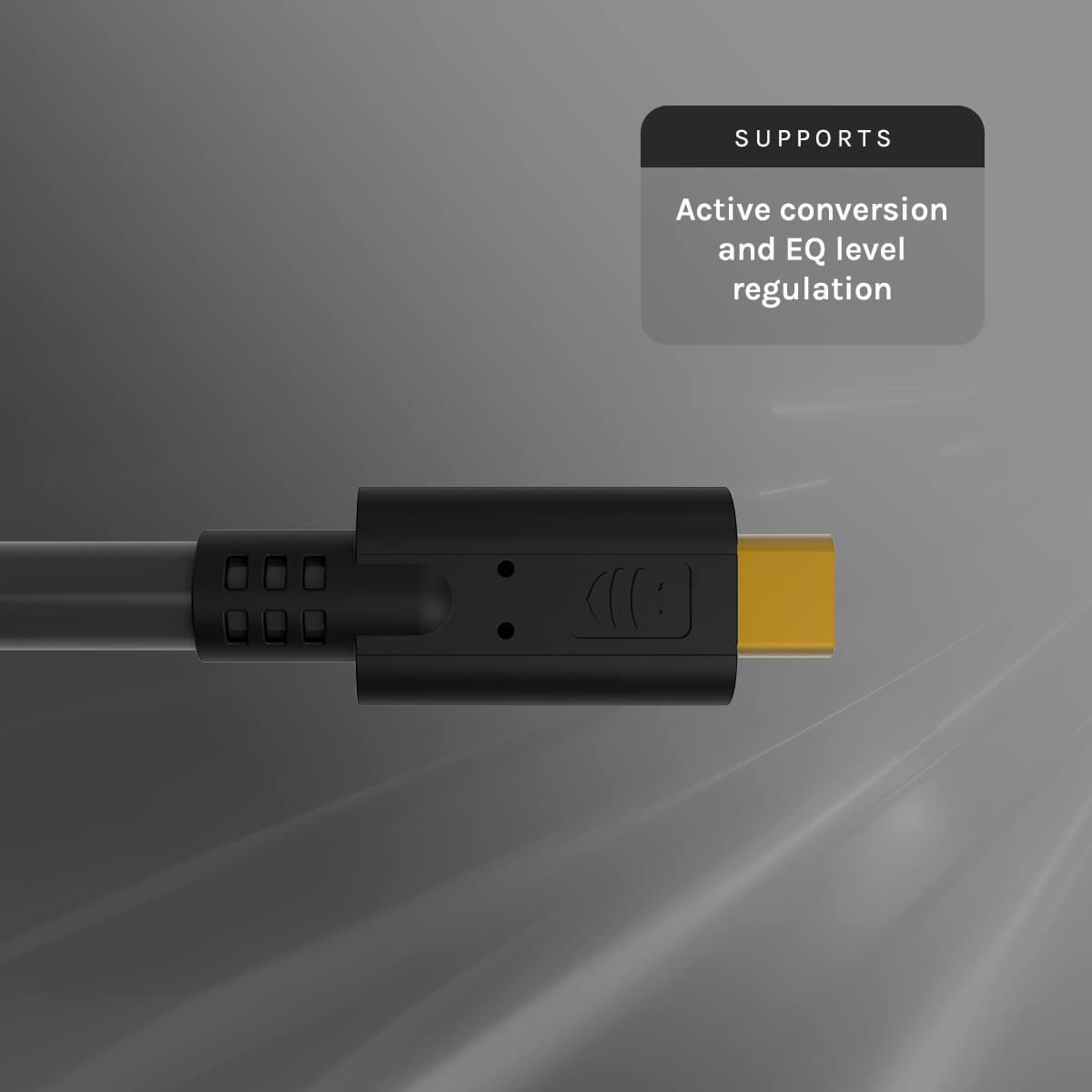

- Support Active conversion and EQ level regulation

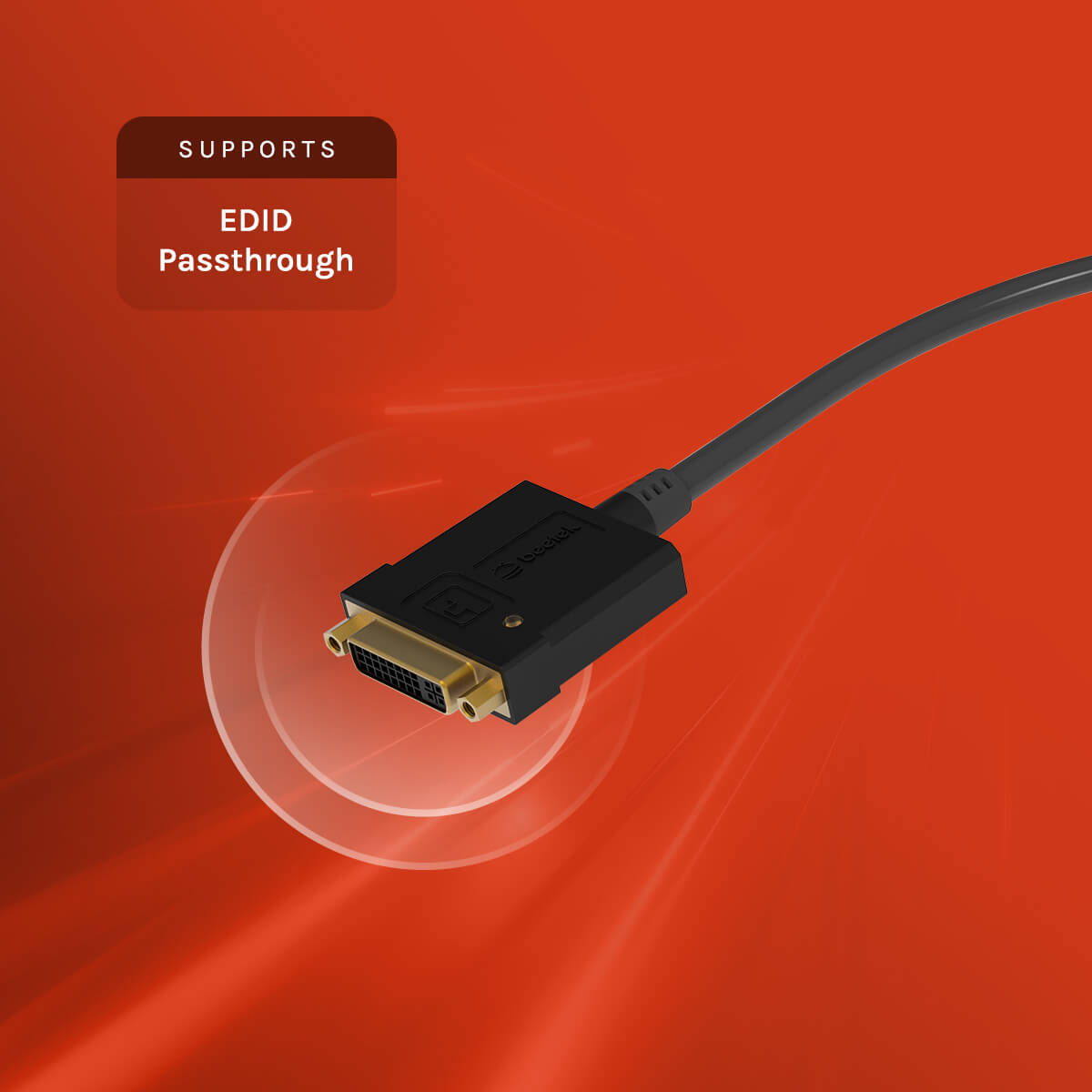

- Supports EDID Passthrough
- Supports DVI-HDMI adaptors

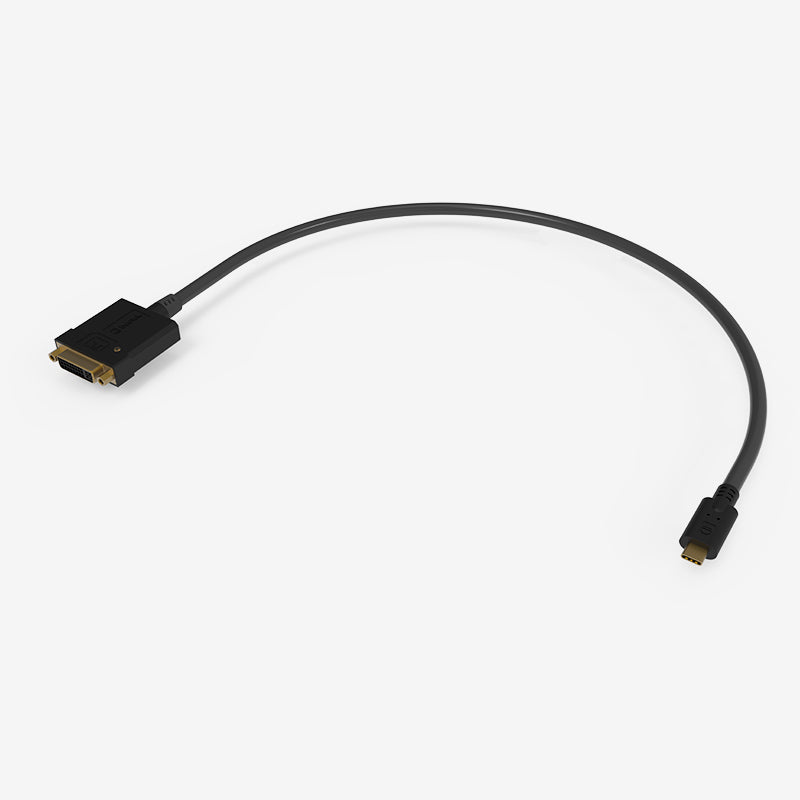

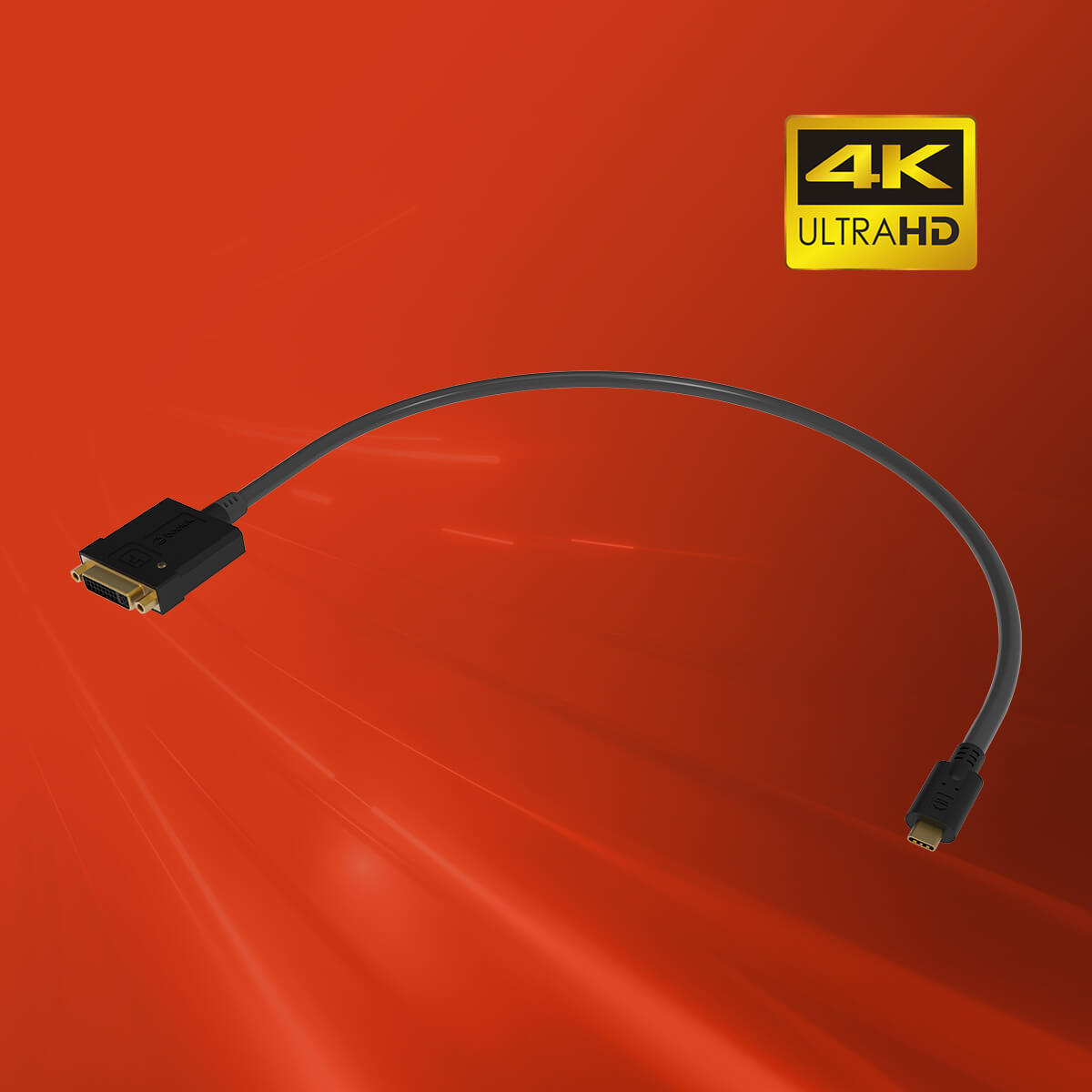

Beetek TYPE-C - DVI Adaptor can be used connect between TYPE-C source to DVI or HDMI Display. The adaptor provides transparent EDID Passthrough and can support resolution upto 4K@60 and 3D signals. It is designed with zinc alloy shell with line length of 250 mm and it is suitable for rental & staging industry for complex and harsh environments.
| Name | Specification |
| Product Name | USB Type C - DVI Female Adapter |
| Model | Z03 |
| Brand | Beetek |
| Signal Type | USB 3.1, DVI |
| Conversion Method | Active |
| Length | 25cm |

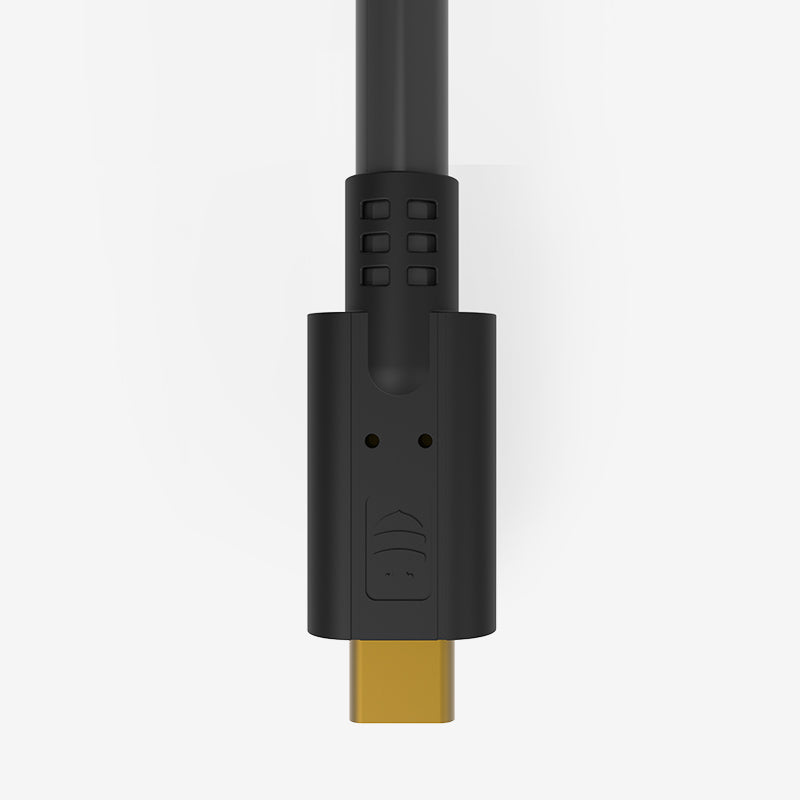

| Input Connector Type | USB Type C Male |
| Output Connector Type | DVI Female |
| Indicator LED | Signal indicator LED |
| Environmental Info | RoHS 2.0 Compliant |
| Connector Gold Plating | Shell: 3μm; Pins: 15μm |
| Connector Dimensions | USB Type C: 42.2*14.8 *8.9mm; DVI: 66.5*40*12.5mm |
| Connector Structure (USB Type C) | Plug plate + Inner mold + Copper foil + Shell |
| Connector Structure (DVI) | Active PCB + SR outer mold + Shell + screw socket |
| Internal Mold (USB Type C) | Transparent PE material |
| SR Outer Mold (DVI) | 45P black PVC injection mold |
| Copper Foil (USB Type C) | Double-sided conductive copper foil |
| Shell | USB Type C: 45P PVC injection molded shell (UL, RoHS); DVI: Zinc alloy mold sleeve shell |
| Screw Socket (DVI) | Standard DVI female |
| Protective Cap | Detachable cap with cord leash |
| Components | Conductor + Copper foil + Mylar + Braid + Jacket |
| Conductor Material | Stranded tinned copper |
| Conductor Diameter | 30AWG |
| Braid Material | 16*10 braided copper wire |
| Shielding Rate | 7 mesh 85% shielding rate |
| Jacket Material | 90P PVC (UL, RoHS) |
| Cable Diameter | 5.5mm |
| Cable Color | Fluorescent black |
| EDID | Yes |
| DDC channel | Yes |
| HDMI audio | Yes |
| 3D | Yes |
| HDCP | Yes |
| HDR | Yes |
| XvYCC Color Space | Yes |
| ESD | Yes |
| Supported Resolutions | 3840x2160@60Hz / 1920x1080@120Hz |
| Clock Bandwidth | 600MHz * 3 |
| Transmission Rate | 18Gbps |
| Plug and Play | Yes |
| Delay | Zero |
| Deep Color | Yes |
| Sampling Rate | RBG 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Compression | None |
| Electrical Test (Voltage) | Voltage: DC 300V |
| Impedance Test (Insulation) | Insulation resistance: ≥ 10MΩ |
| Impedance Test (Continuity) | On-resistance: ≤ 2Ω |
| Tensile Strength | ≤200N |
| Bending Angle | 135° |
| Operating Temperature | -30℃~75℃ |
Key Features
Supports resolution upto 4K@60 @ 4:4:4 at 18 Gbps
Support Active conversion and EQ level regulation
Supports EDID Passthrough
