AHH 4K SERIES
HDMI 2.0 4K High-speed Active Optical Cables
- Plug and Play without external Power supply
- Supports HDCP 2.2, ARC, HDR AND CEC
- Gold plating process of copper shell provides long-lasting and firm connection
- Supports upto 200 metres and the length can be customized
Beetek Photo electric Hybrid Non Threading cable supports HDMI 2.0 signals at 4K@60 4:4:4 at 18 Gbps. The AHH 4K series products are designed for long distance HDMI signal transmission via fibre optic technology, OM3 fibre optic transmission with embedded optic engine technology achieves no delay and no compression.
Transparent EDID passthrough from source to sink. The product is suitable for Rental, Live Events, Residential and surveillance applications
Transparent EDID passthrough from source to sink. The product is suitable for Rental, Live Events, Residential and surveillance applications
Name | Specification |
Product Name | HDMI 2.0 Active Optical Cable |
Model | AHHxx |
Brand | Beetek |
Signal Type | HDMI 2.0 |
Input Connector Type | HDMI Type A Male |
Output Connector Type | HDMI Type A Male |
Connector Gold Plating | Gold-plated Copper Shell |
Connector Structure | Zinc Alloy mold |
Connector Dimensions | HDMI Type A Male, 65.2 * 19.5 * 9mm |
In-wall Installation | Not supported |
Power from connector (TX) | Yes |
Cable power supply (RX) | Yes |
Power | 250mW |
Plug-n-Play | Yes |
Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + outer jacket |
Fiber Type | Multi-mode OM3 * 4 |
Fiber Wavelength | 850 - 1300nm |
Copper Wire Material | 7 multi-strand tinned copper wires |
Copper Wire Specification | 24AWG*1, 26AWG*1, 28AWG*3, 30AWG*2 |
Cable Diameter | 4.5mm |
Jacket Material | 80P PVC |
Jacket Color | Black |
Packing Dimensions | Short-length 10 - 40M:240*230*75mm |
Medium-length 50 - 60M:290*280*75mm | |
Long-length 70 - 100M:340*330*75mm | |
EDID | Pass-through |
DDC | Yes |
HDMI Audio | Yes |
3D | Yes |
CEC | Yes |
ARC | Yes |
HDCP | HDCP 2.3 |
HDR | Yes |
XvYCC Color Space | Yes |
Technical Characteristics | Photoelectric Conversion Technology |
Optical Module Lifetime | 100,000 hours |
Resolution | 3840x2160@60Hz |
Clock Bandwidth | 600MHz*3 |
Transmission Rate | 18Gbps |
Reclocking Chip | Support above 30 meters |
Pixel Reclocking | Yes |
ESD protection | Yes |
Hot Swap | Yes |
Delay | Zero frame delay |
Compression | None |
Sampling Rate | 8~16bit within the bandwidth range |
Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Anti-jamming | Yes |
Tensile Strength | ≤200N |
Compressive Strength | 1000N /10cm |
Minimum Bending Radius | Dynamic > 10D (*D is the outer diameter of the cable) |
Operating Temperature | -30-80℃ |
Key Features
![](http://beetekav.com/cdn/shop/files/AHH_F1_1200x.jpg?v=1656575816)

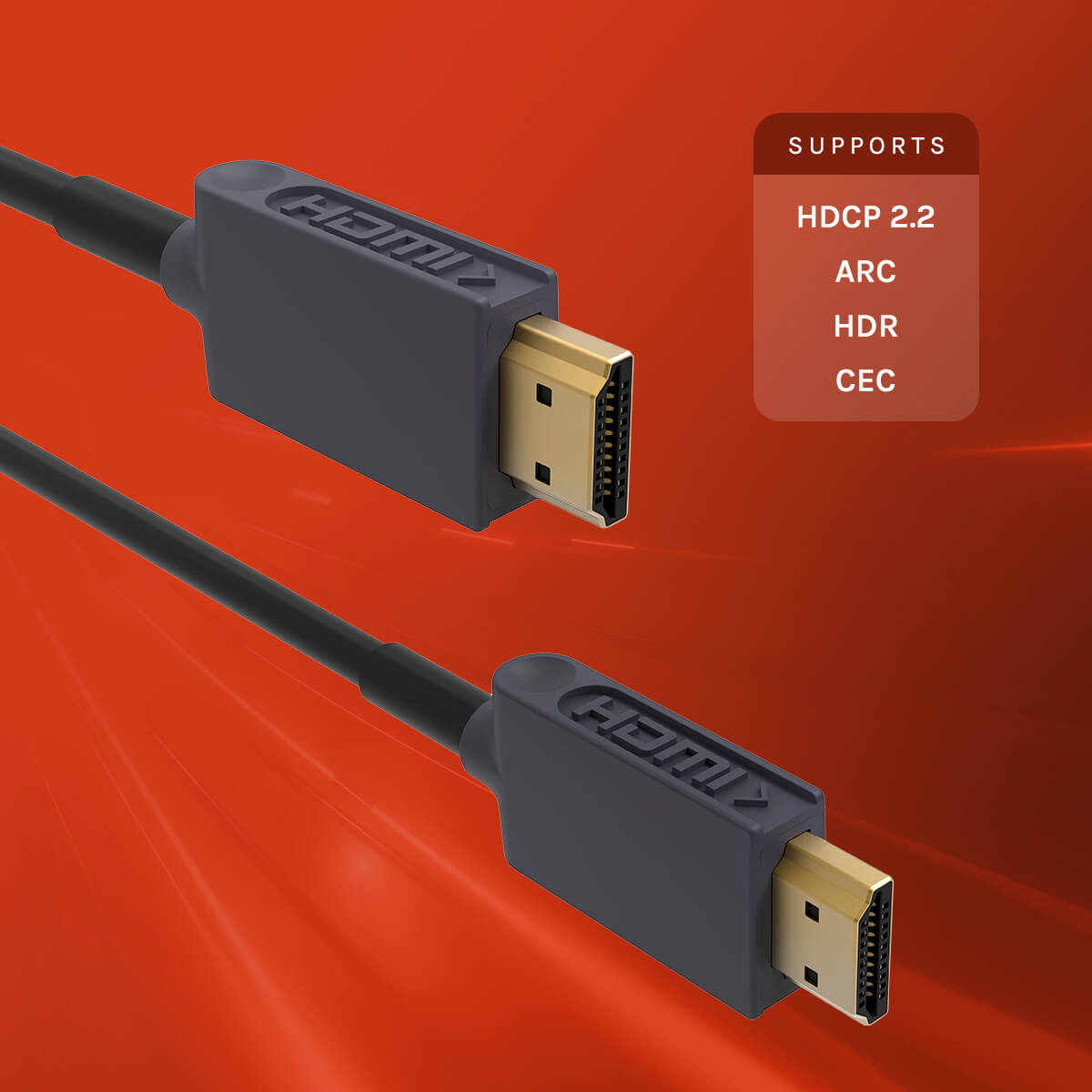

Supports HDCP 2.2, ARC, HDR AND CEC
![](http://beetekav.com/cdn/shop/files/AHH_F2_1200x.jpg?v=1656575835)

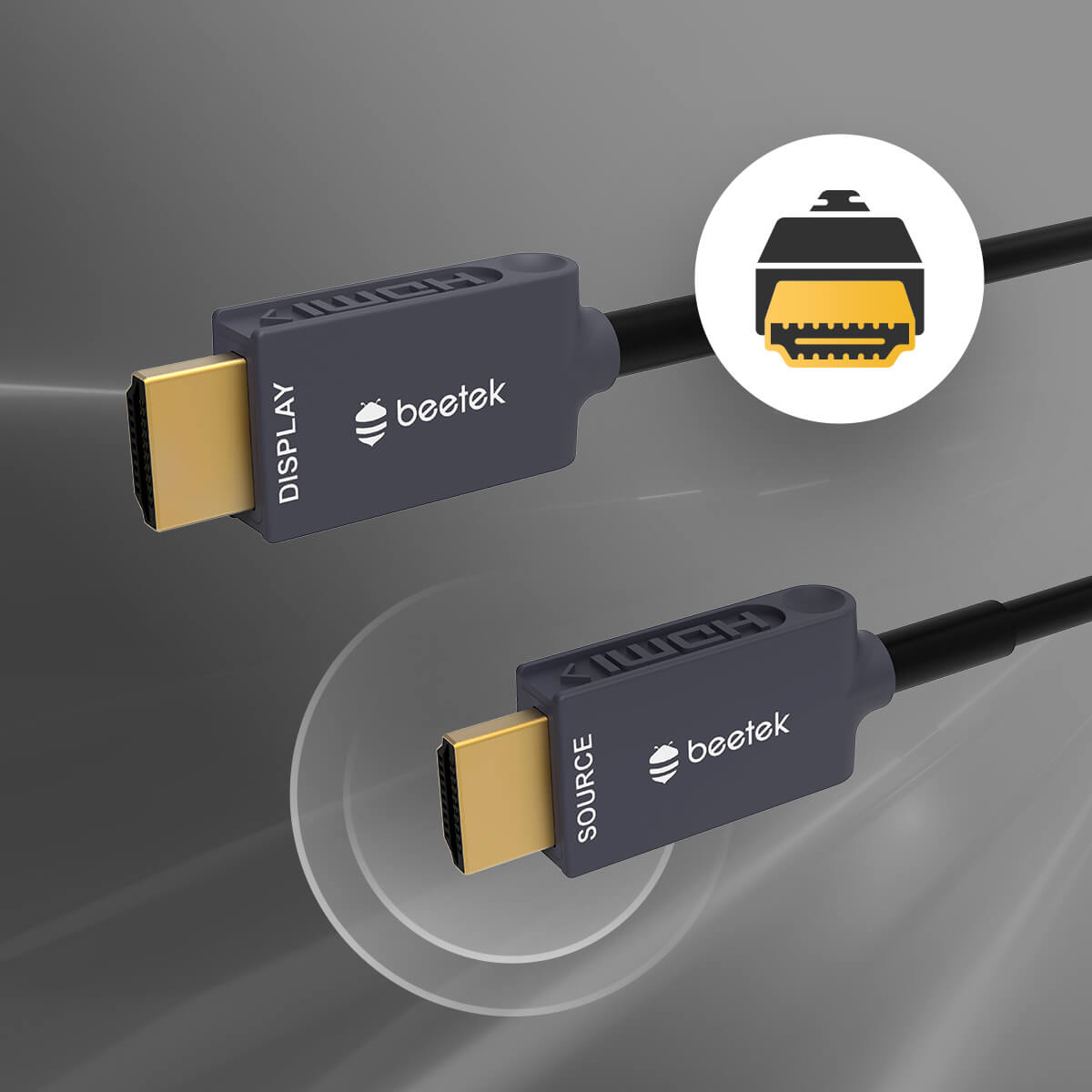

Gold plating process of copper shell provides long-lasting and firm connection
![](http://beetekav.com/cdn/shop/files/AHH_F3_1200x.jpg?v=1656575852)

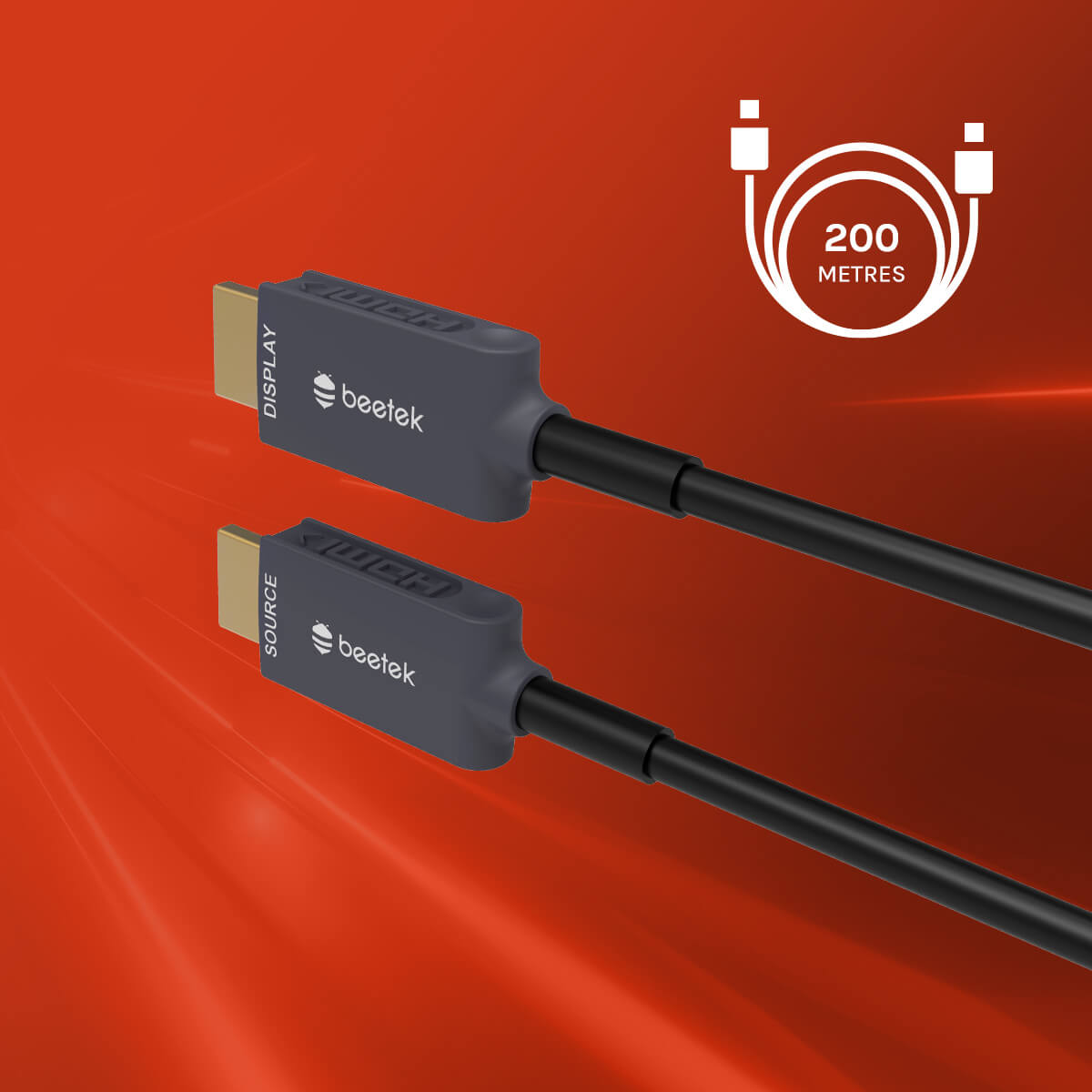

Supports upto 200 metres and the length can be customized
