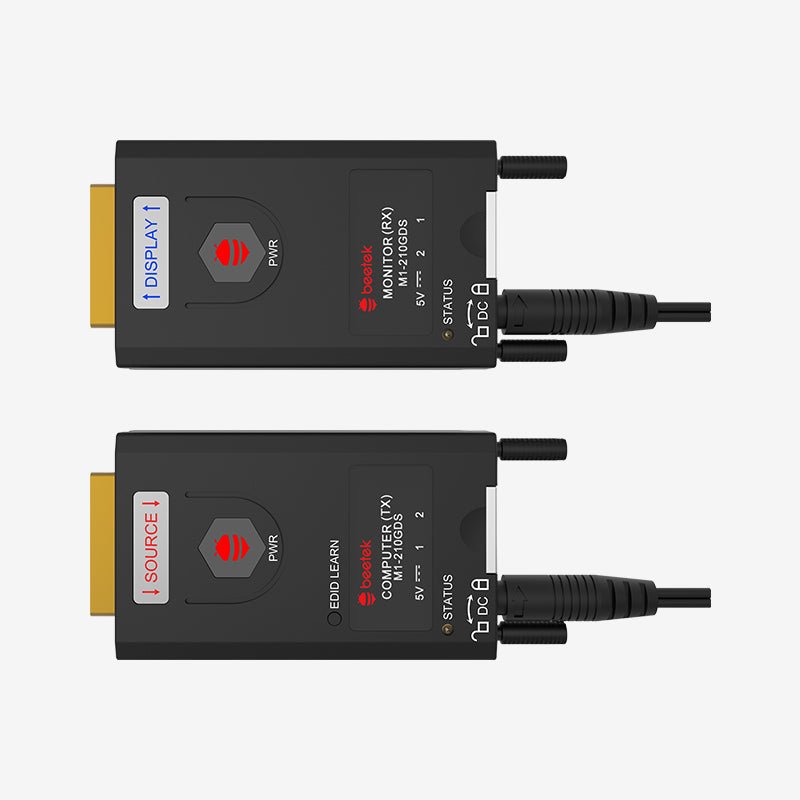

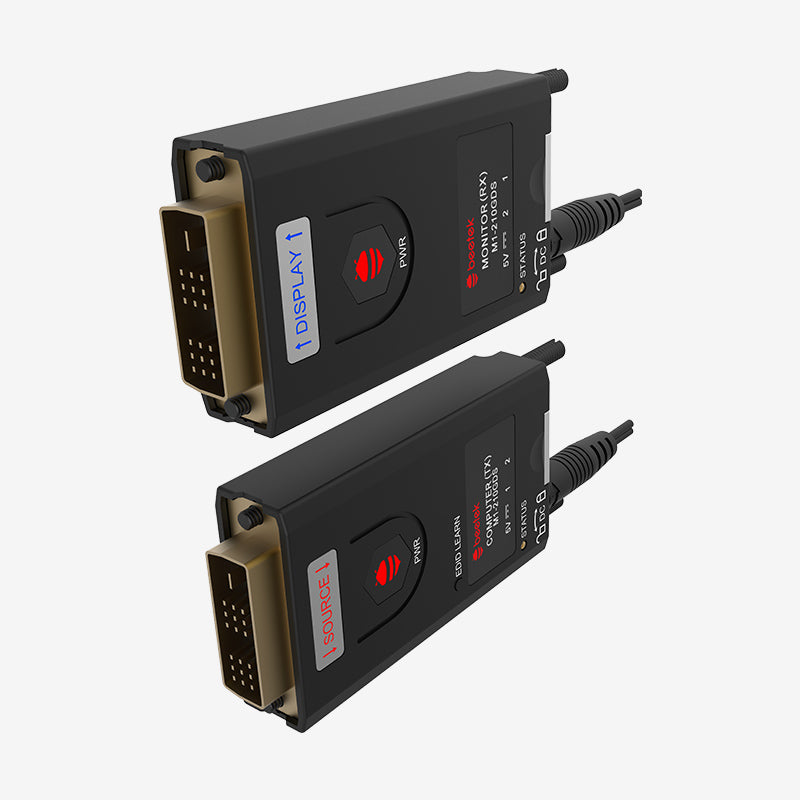

M1-210GDS
2 Core DVI Singlemode/ Multimode fibre extender

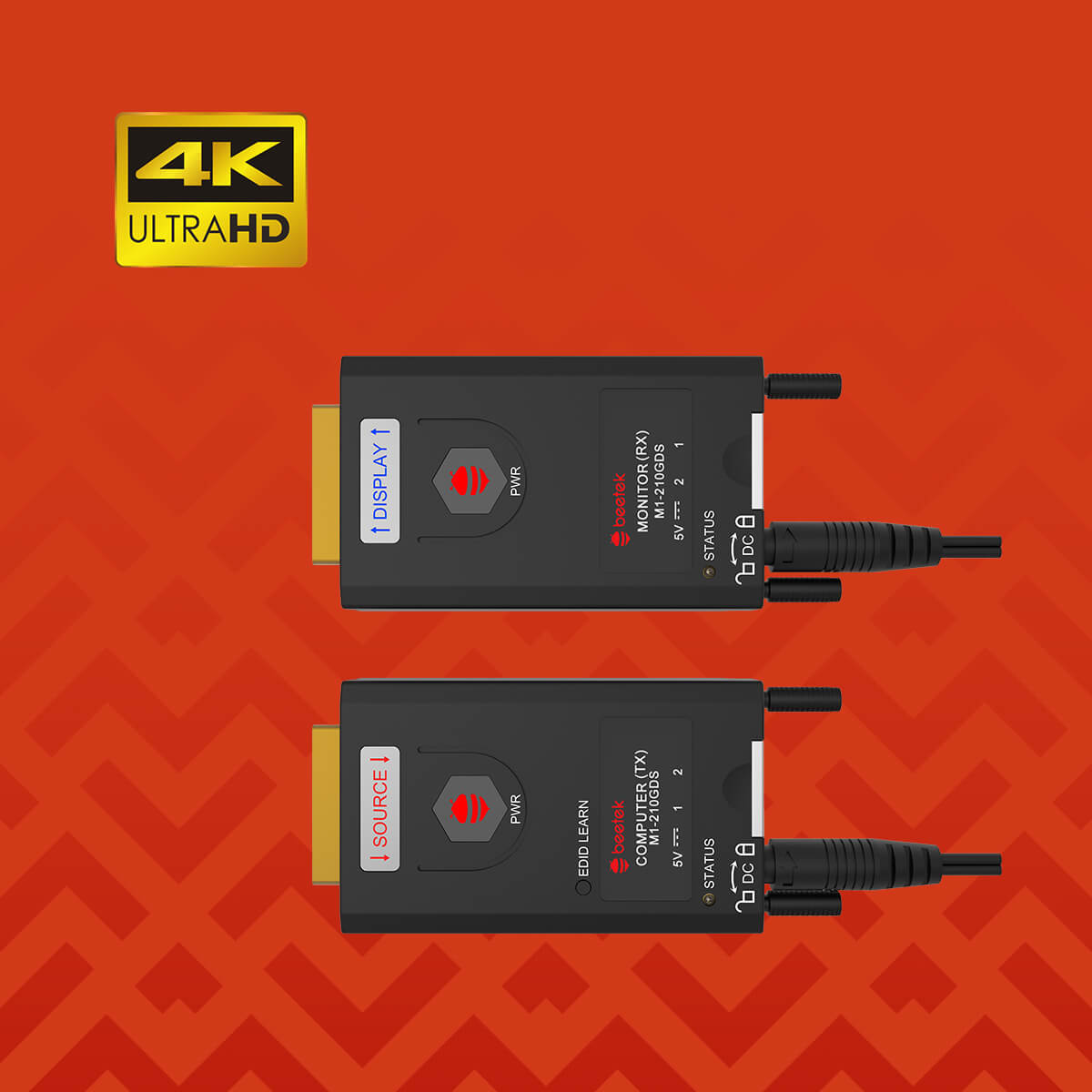

- Support resolution upto 1920x1200@60Hz at 10.3 Gbps.

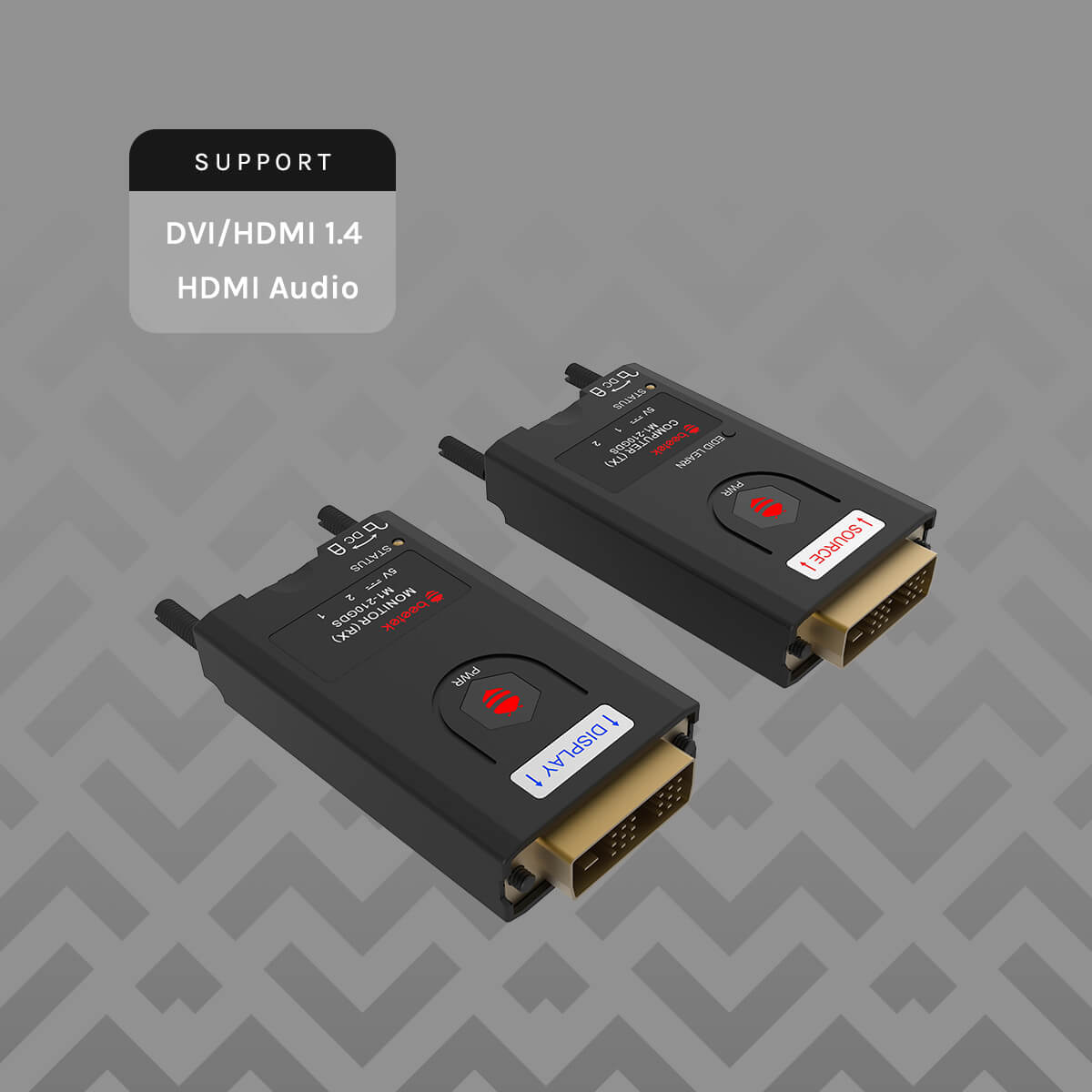

- Support DVI/HDMI 1.4 and HDMI Audio
- Built in EDID Simulation and EDID Learning

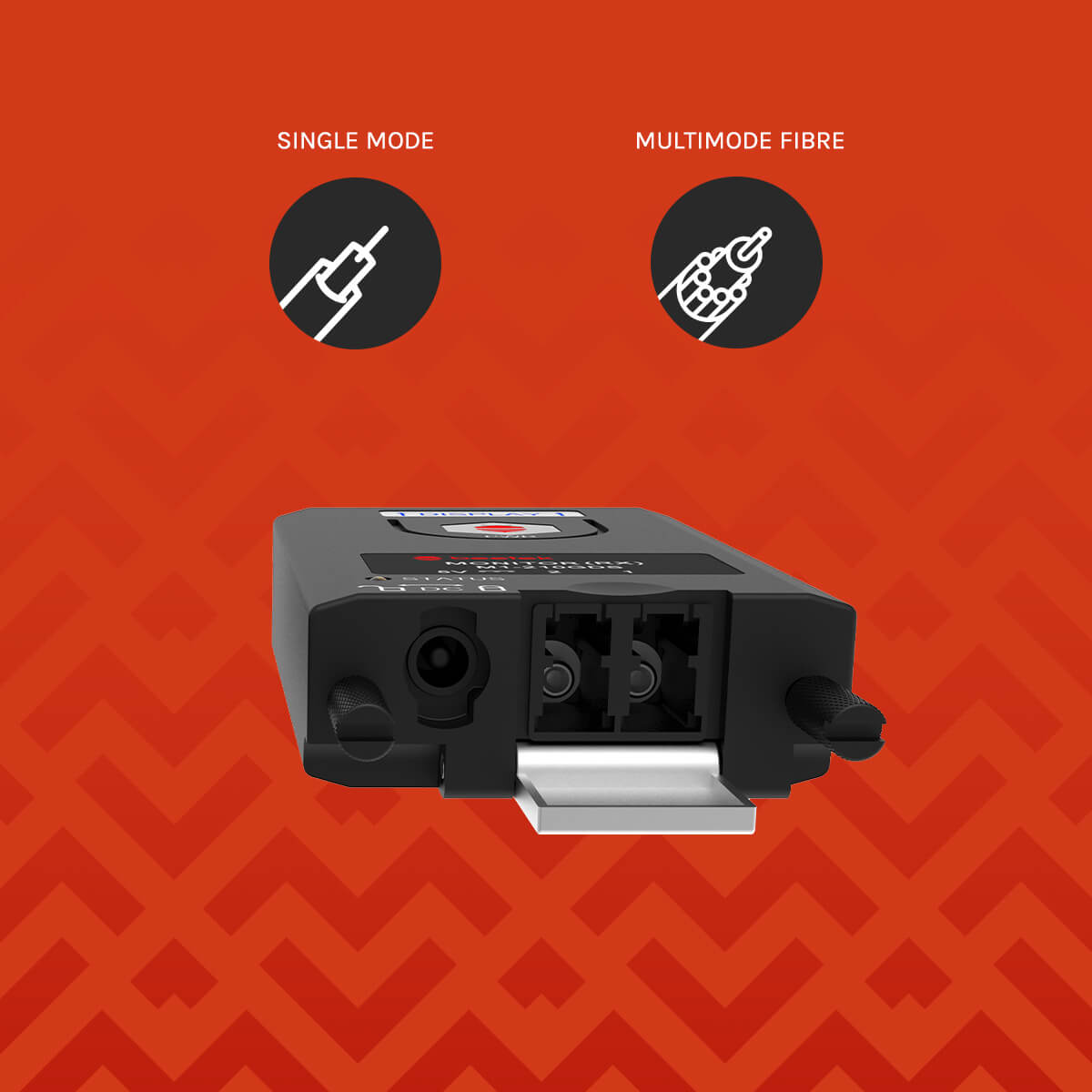

- Single Mode/Multimode Fibre Technology and uses two core with distance upto 2000M over single mode fibre and 500M over multi-mode

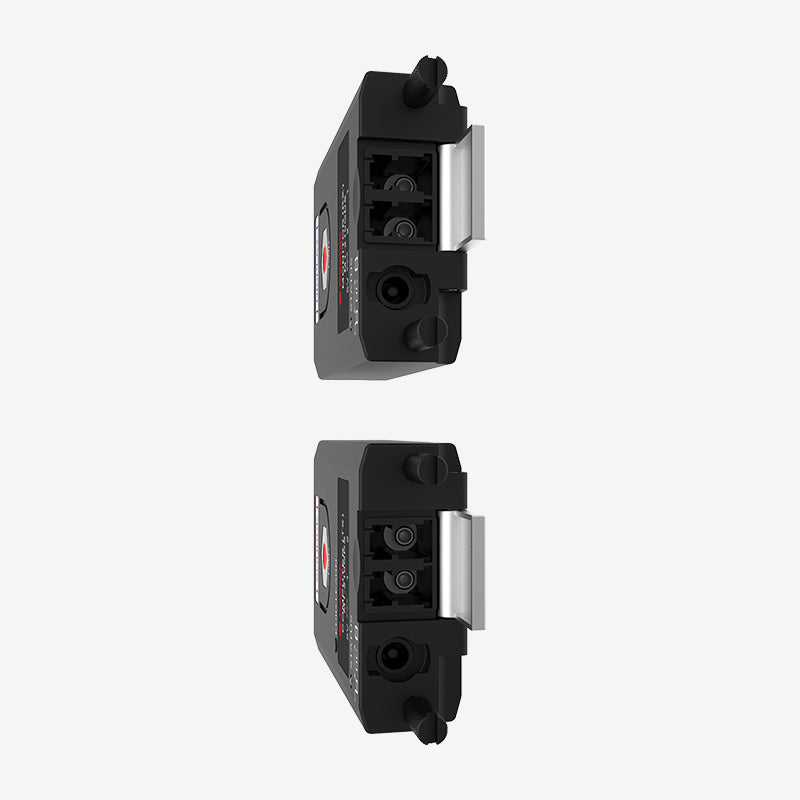

- Dust Proof Mechanism over Fibre Interface
Beetek DVI Fibre Extender is designed particulary for the rental & staging industry considering various parameters. The device can support resolution upto 1920x1200 transmission rate and it can support DVI/HDMI and HDMI audio. It uses two core multimode/Single Mode OM3 fibre technology and support distance upto 300 metres over multi mode and 2000 metres over single mode fibre cable.. Built in EDID simulation and EDID learning support.
The DVI Extender support accurate pixel time reconstruction and provides no delay and no compression during the transmission. The device is carefully designed with protective enclosure for fibre interface and it is dust proof. It has rear long screws to support portable installation, locking power supplies and improved electrostatic protection. The product is suitable for Rental and Live Events application.
The DVI Extender support accurate pixel time reconstruction and provides no delay and no compression during the transmission. The device is carefully designed with protective enclosure for fibre interface and it is dust proof. It has rear long screws to support portable installation, locking power supplies and improved electrostatic protection. The product is suitable for Rental and Live Events application.
| Name | Specification | |
| Product Name | 2-core Single-mode DVI Fiber Extender | |
| Model | M1-210GDS | |
| Brand | Beetek | |
| Signal | DVI SL | |
| Input Connector | TX: DVI 18＋1 Male RX: 2-core LC |
|
| Output Connector | TX: 2-core LC RX: DVI 18＋1 Male |
|
| Rear Long Screw | Yes | |
| Gold plate Connector | Casing: 3μ; Pin: 15μ | |
| Fiber Interface Dust Prevention | Yes | |
| Fiber Type | Single-modeG657.A1 | |
| Indicator LED | TX: Power, EDID; RX: Power, Signal | |
| USB Power | Yes | |
| Power from connector (TX) | Yes | |
| Locking power connector | Yes | |
| Power Consumption | DC 5V 1.0A | |
| Ambient Temp | -20°C ~ 70°C | |
| Material | Zinc alloy mold | |
| Dimensions | TX/RX : 84 *39 *15mm | |
| Weight | TX: 98g；RX: 97g | |
| PackageDimensions | 212 *201 *62mm | |
| Packaging Weight | 0.51kg | |
| EDID Switch (TX) | Learn button | |
| EDID Modes | EDID Learning and Internal | |
| HDMI Audio | Yes | |
| 3D | Yes | |
| XvYCC Color Space | Yes | |
| Optical Module | 4 * 2.5G Single-mode Optical Module | |
| Technical Characteristics | Two-channel two-wave using CWDM Technology | |
| Fiber module life | 100,000 hours | |
| Resolution | 1920*1200@60Hz | |
| Transmission Distance | Single-mode: 2000M; Multi-mode OM3: 500M | |
| Clock Bandwidth | 165MHz * 3 | |
| Transmission Speed | 4.95Gbps | |
| Balancing Chip | Automatic equalization | |
| Reclocking | Yes | |
| ESD Protection | Yes | |
| Hot Plug | Yes | |
| Delay | Zero-frame | |
| Compression | None | |
| Sampling Rate | Bandwidth Range: 8bit | |
| Sampling Ratio | RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
Key Features
Support resolution upto 1920x1200 60Hz.
Support DVI/HDMI and HDMI Audio
Single Mode/Multimode Fibre Technology
