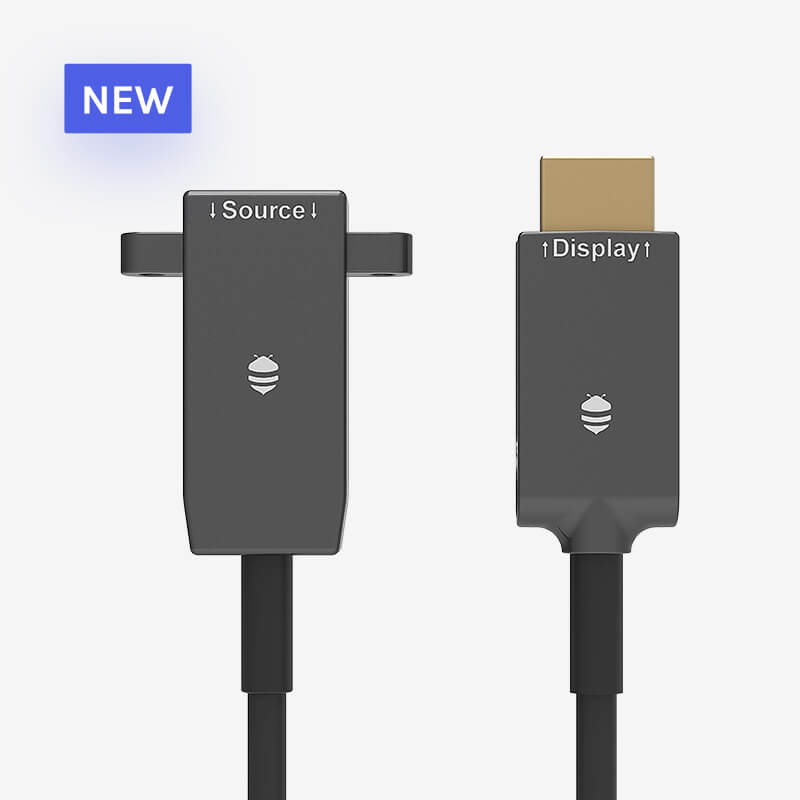

AHF-H20-xxM

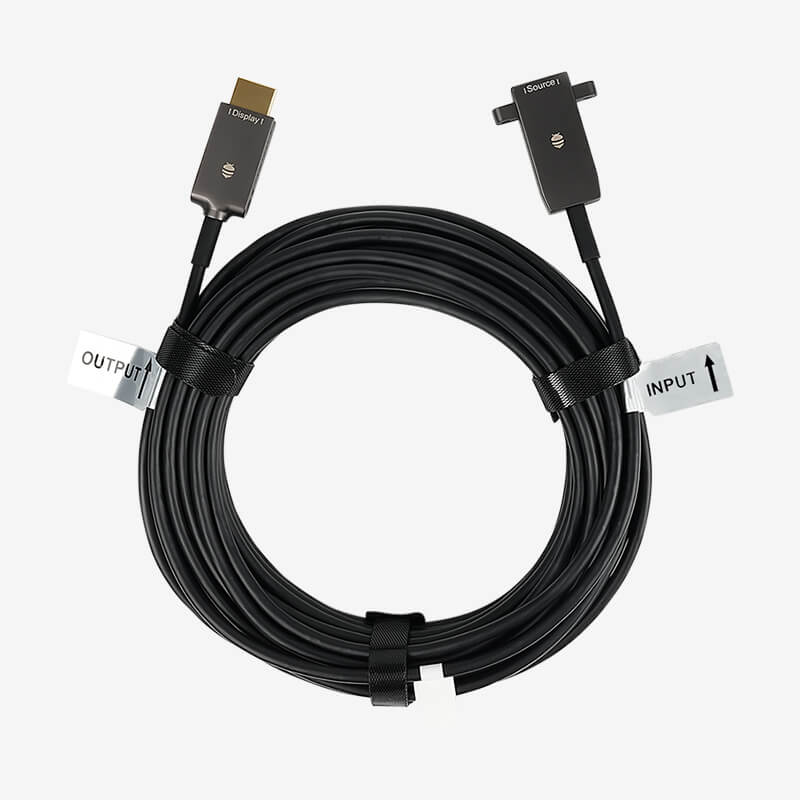

HDMI 2.0 Active Optical Cable, Female to Male

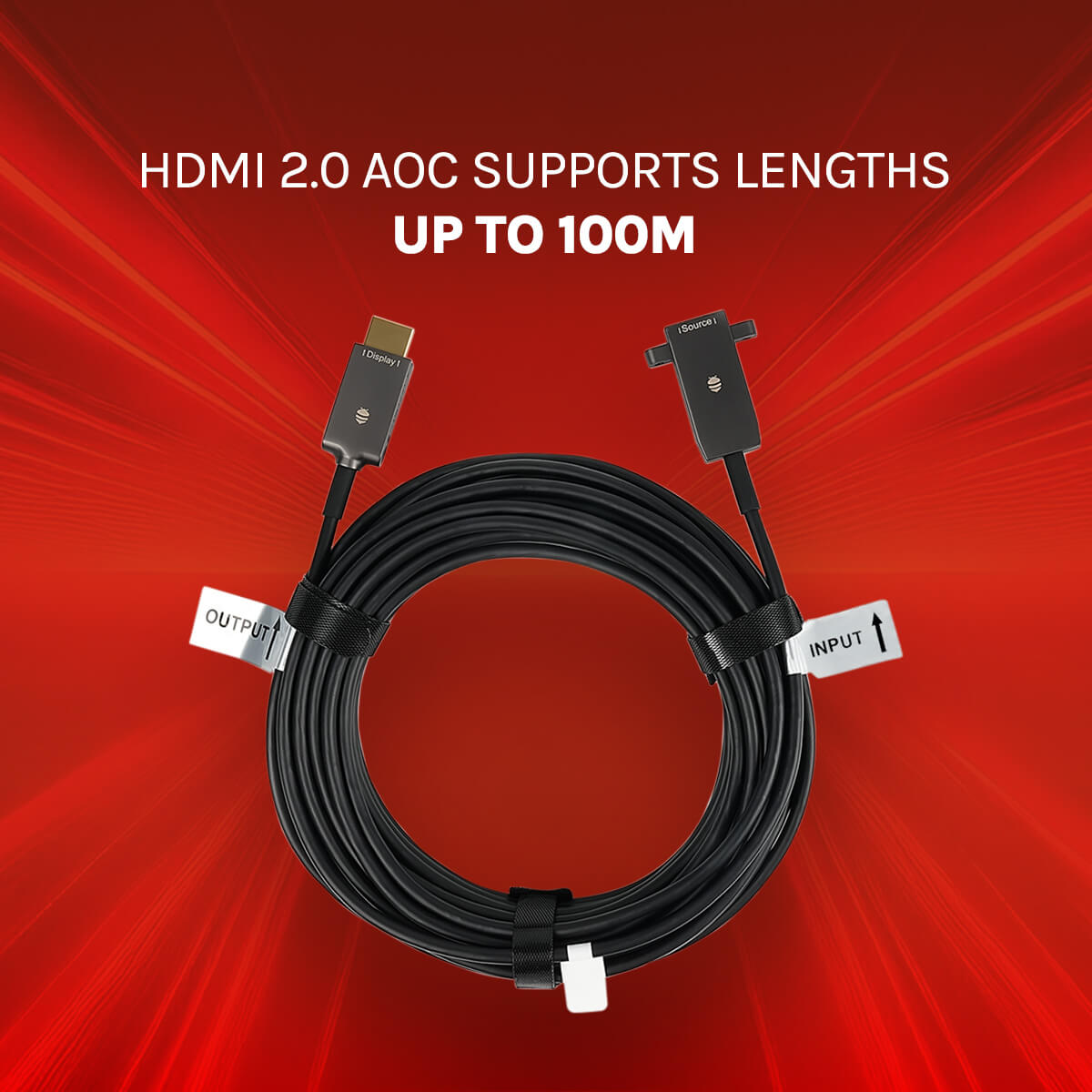

- Transmits HDMI 2.0 signal distances up to 100 Meters (330 meters).
- It delivers a transmission rate of 18Gbps and 3-Chennal 600 MHz Bandwidth.
- Supports video resolution up to 4096x2160 at 60Hz 4:4:4, 16-Bit max depth Color.

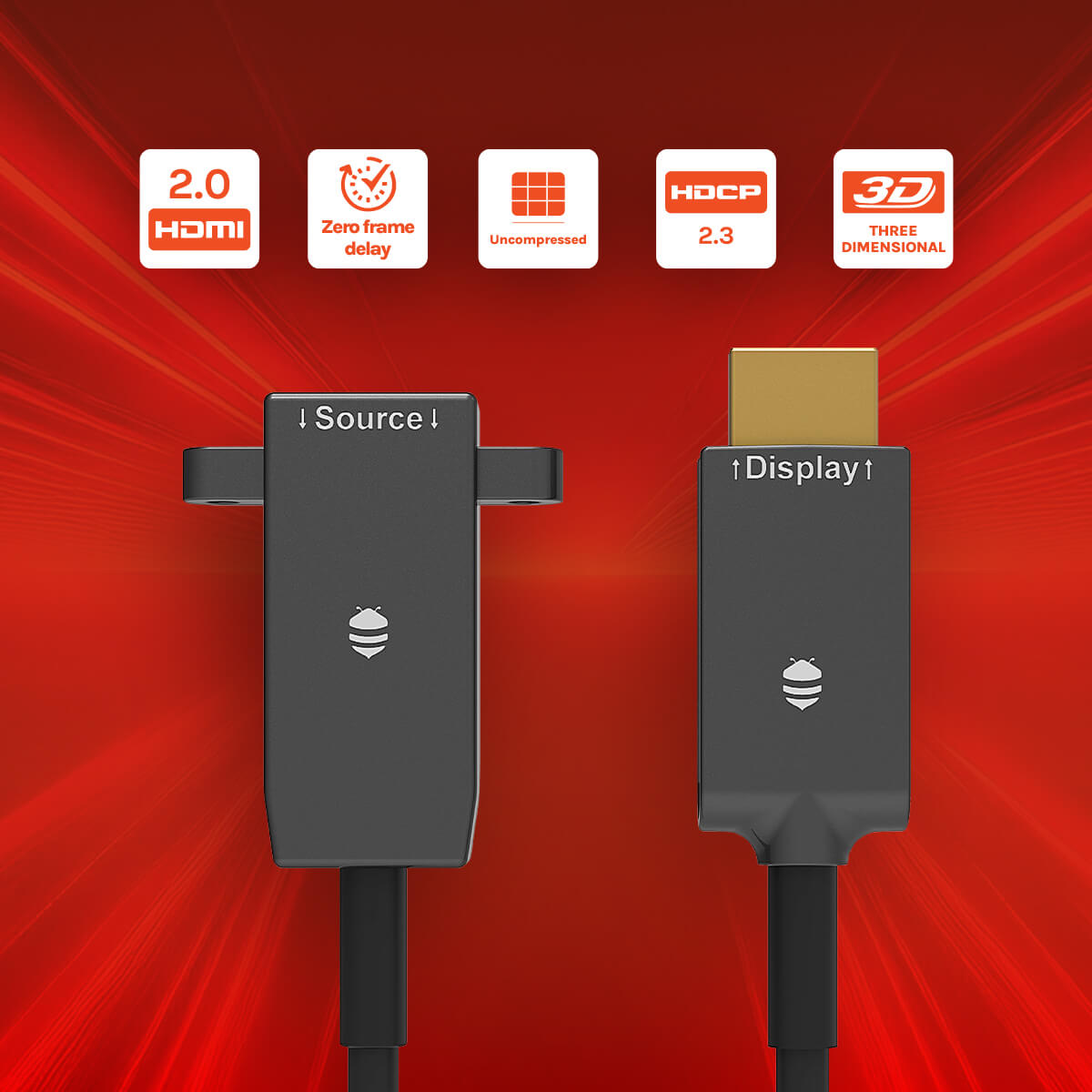

- Supports HDCP 2.3, HDR 10, ARC, CEC.

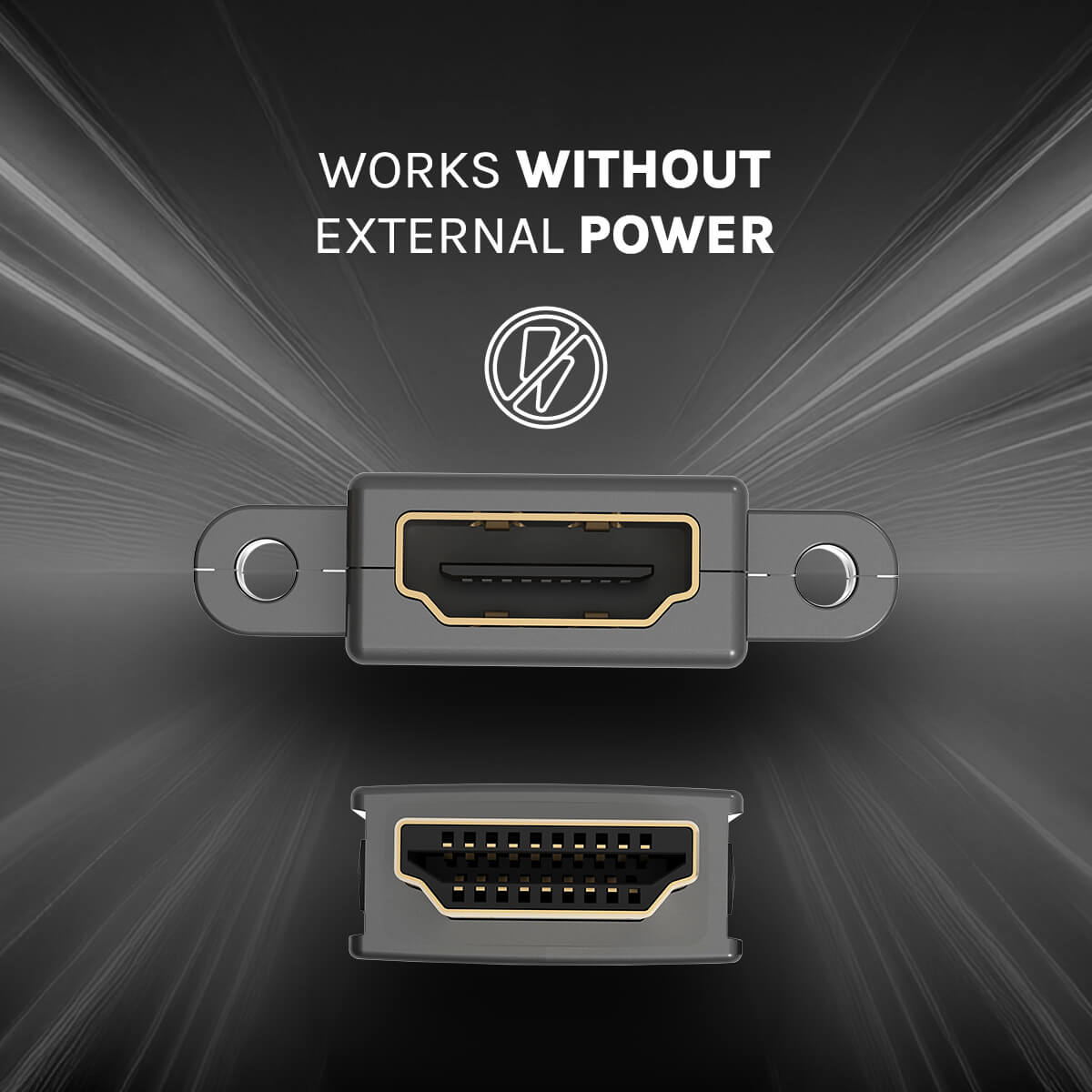

- It operates with a passive HDMI 2.0 cable on the source side and doesn't need an additional power source.
- Lossless, Uncompressed and Zero-Delay signal transmission, restores original signal.
- Made with multi-mode OM3 Fiber and 7 Core multi strand copper wire.
- Constructed with PVC material sheath, Zinc alloy Housing Head and Gold-Plated copper shell connectors.
- Suitable for Meeting spaces, Auditoriums, Classrooms solutions and other applications.
- Designed with ESD Protection and Anti-Jamming technology.
Experience ultra-reliable long-distance HDMI transmission with the AHF-H20 Active Optical Cable. Designed to deliver lossless and uncompressed HDMI 2.0 signals over distances of up to 100 meters, this cable supports signal up to 4K UHD/DCI video and audio without any delay or external power supply. With a high-speed transmission rate of 18Gbps, it supports resolutions up to 4096x2160 @ 60Hz, making it perfect for high-performance displays and any sink devices.
Beetek’s patented chipset technology ensures zero signal loss, even over long-distance Active Optical Cable (AOC) transmissions. It guarantees flawless transmission of EDID and HDCP information without degradation, making it an ideal solution for challenging installations—such as under-table cable runs—where traditional HDMI couplers or EDID Management devices are typically required. This tested and proven solution is perfect for all types of Pro AV applications, offering unmatched reliability and performance.
| Name | Specification |
| Signal capabilities | |
| Resolution | 4096x2160@60Hz, 3840x2160@60Hz |
| Frame Rates | 24,25,30,50 or 60 FPS |
| Chroma Sub-sampling | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Color Bit Depth | 8-Bit to 16-Bit Maximum |
| Signal Type | HDMI 2.0, HDMI 1.4, USB-HDMI |
| Maximum Video Data Rate | 18 Gbps (6 Gbps per color) |
| Video input – source side | |

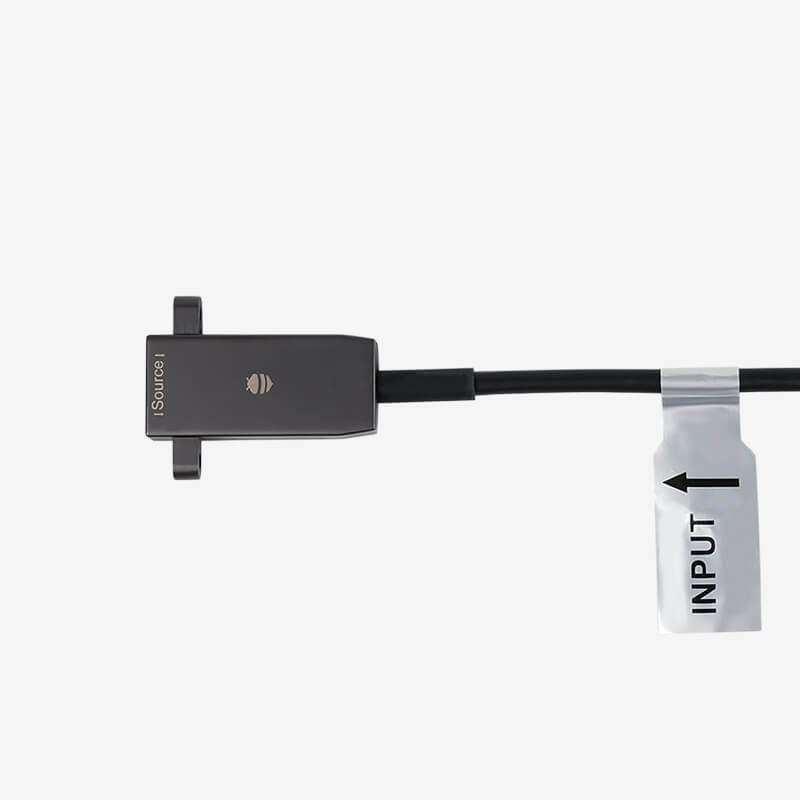

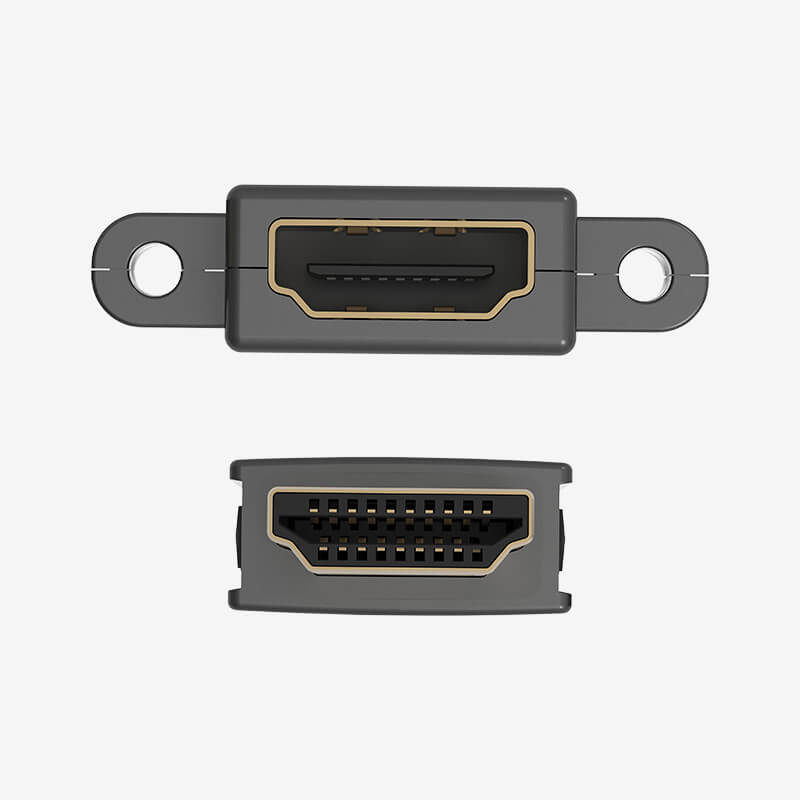

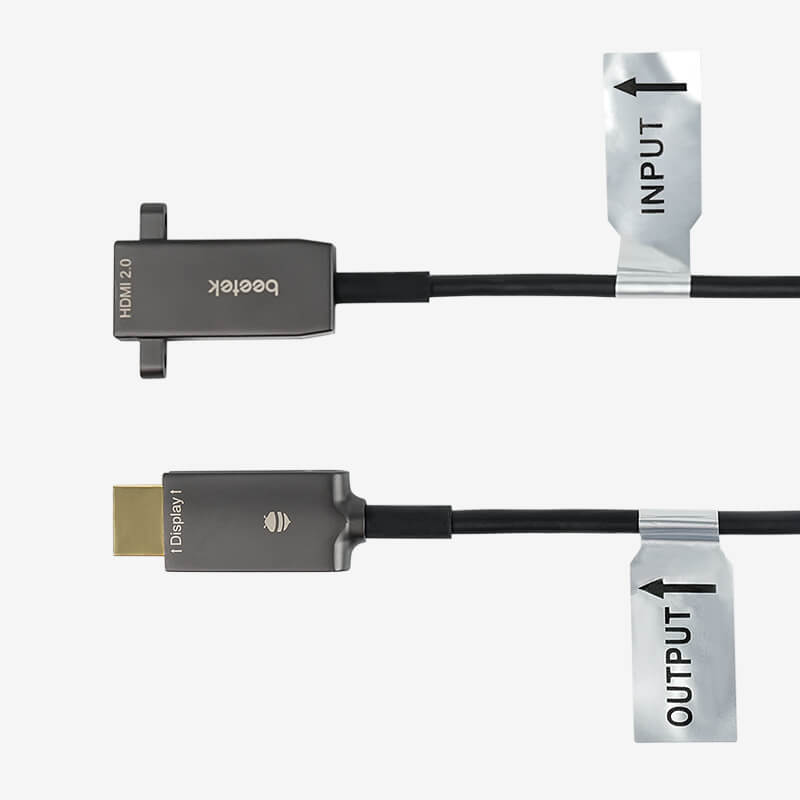

| Connector | HDMI Female type A |
| Connector Dimension | 61.45*36*10.1mm |
| Connector Structure | Solid Zinc Alloy Mold |
| Connector Gold Plating | 5um Gold Plated Shell, 50um Gold Plated connector |

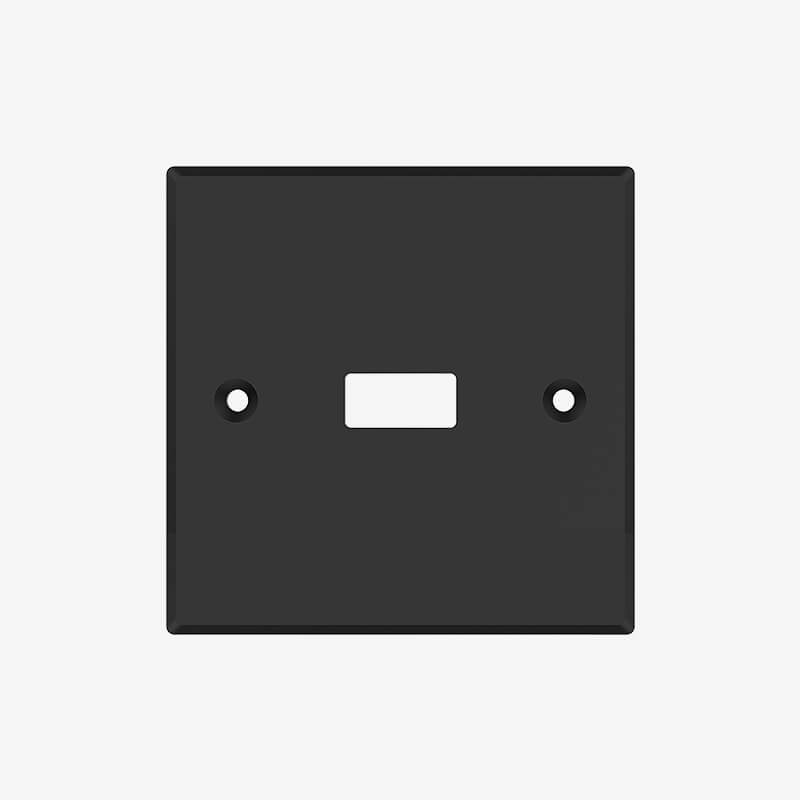

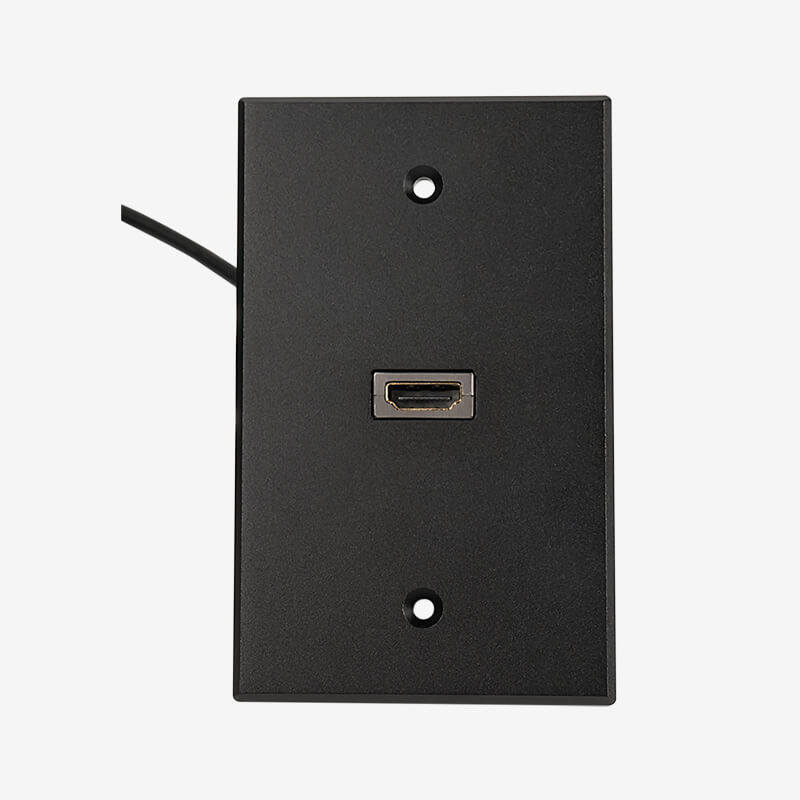

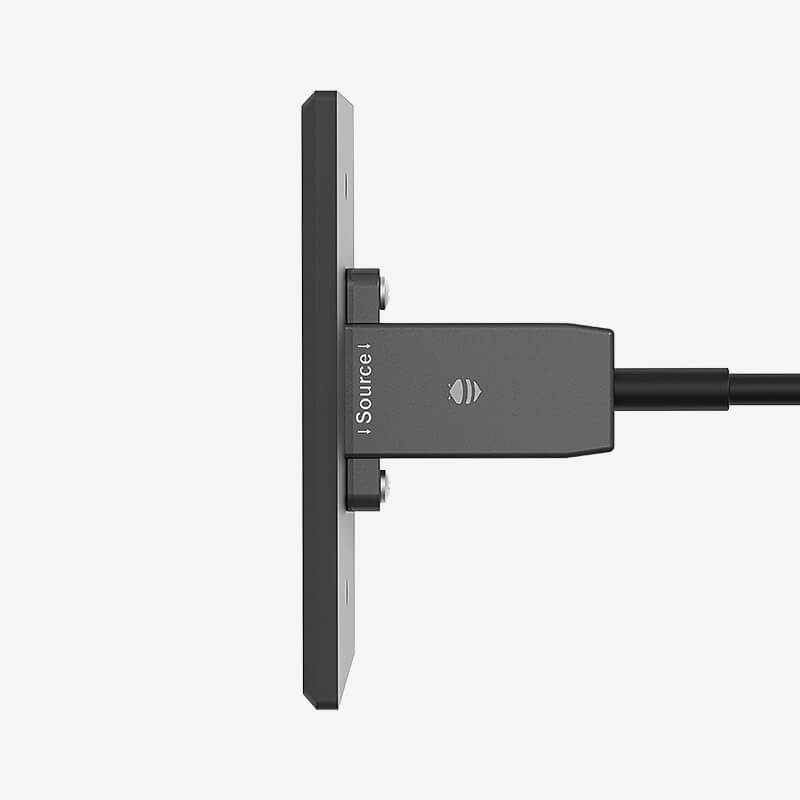

| Mounting Option | Wall Plate lock Screw Hole and Wall Plate Included |
| Interconnection cable | |
| Cable jacket material | 80p pvc |
| Jacket color | Black |
| Cable diameter | 5.0 mm |
| Fiber type | Multi-mode om3-300 * 4 |
| Fiber wavelength | 850~1300nm |
| Copper wire material | 7 multi-strand tinned copper wires |
| Copper wire specification | 24awg*1, 26awg*1, 28awg*3, 30awg*2 |
| Technical characteristic | Photoelectric conversion technology |
| Cable structure | Optical fiber + inner jacket + kevlar + copper wire + aluminum foil +outer jacket |
| Optical module lifetime | 100,000 hours |
| Video - output side | |
| Connector | Hdmi male type a |
| Connector dimension | 65.2*19.5*9mm |
| Connector structure | Solid zinc alloy mold |
| Connector gold plating | 5μm gold plated shell, 50μm gold plated connector |
| Power from receiver (tx) | Yes |
| Video specifications | |
| Edid | Pass-through |
| Hdcp | Hdcp 2.3 |
| Hdr | Hdr10+ |
| Cec | Yes |
| Arc | Yes |
| 3d | Yes |
| Ddc | Yes |
| Color space | Xvycc |
| Clock bandwidth | 600mhz*3 |
| Pixel re-clocking chip | Yes |
| Compression | uncompressed |
| Delay | Zero-delay |
| Other specifications | |
| ESD Protection | Yes |
| Anti-Jamming | Yes |
| Hot Swappable | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N/10CM |
| Minimum Bend Radius | Dynamic > 10D |
| Operating Temperature | -30-80°C |
