ADD 4K SERIES

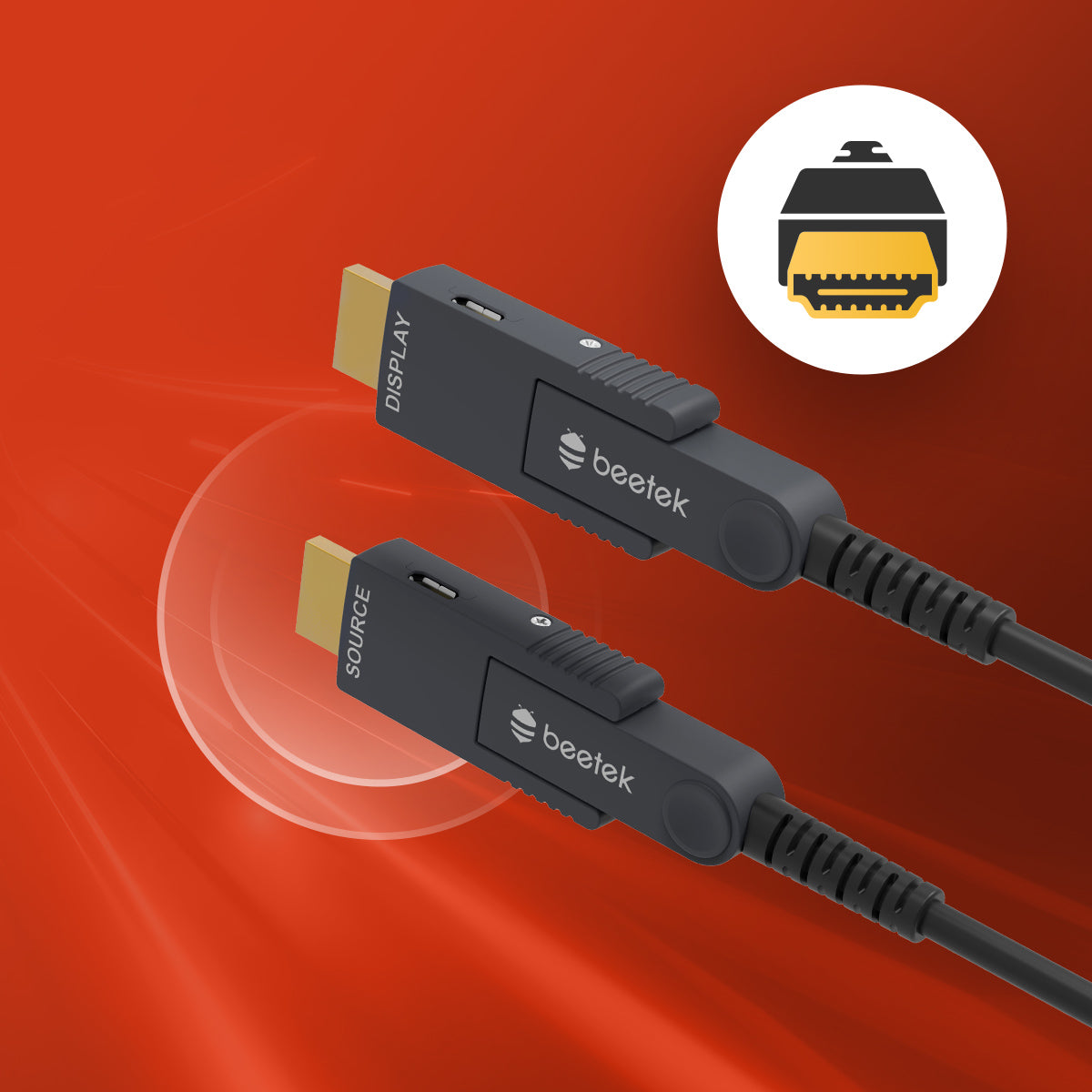

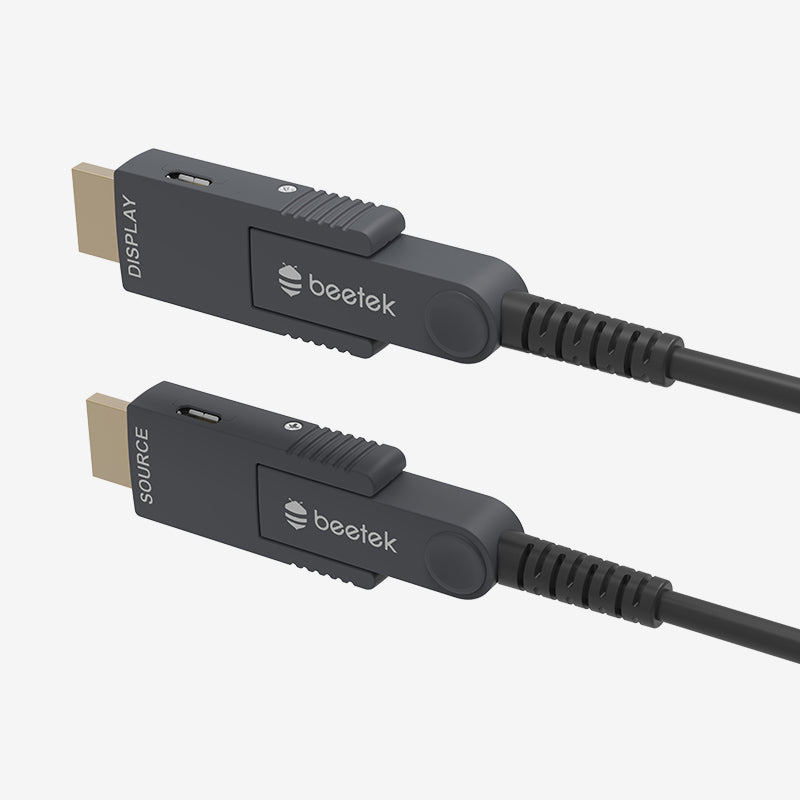

HDMI 2.0 4K High-speed Active Optical Cables (Dual-end Detachable)
- Plug and Play without external Power supply

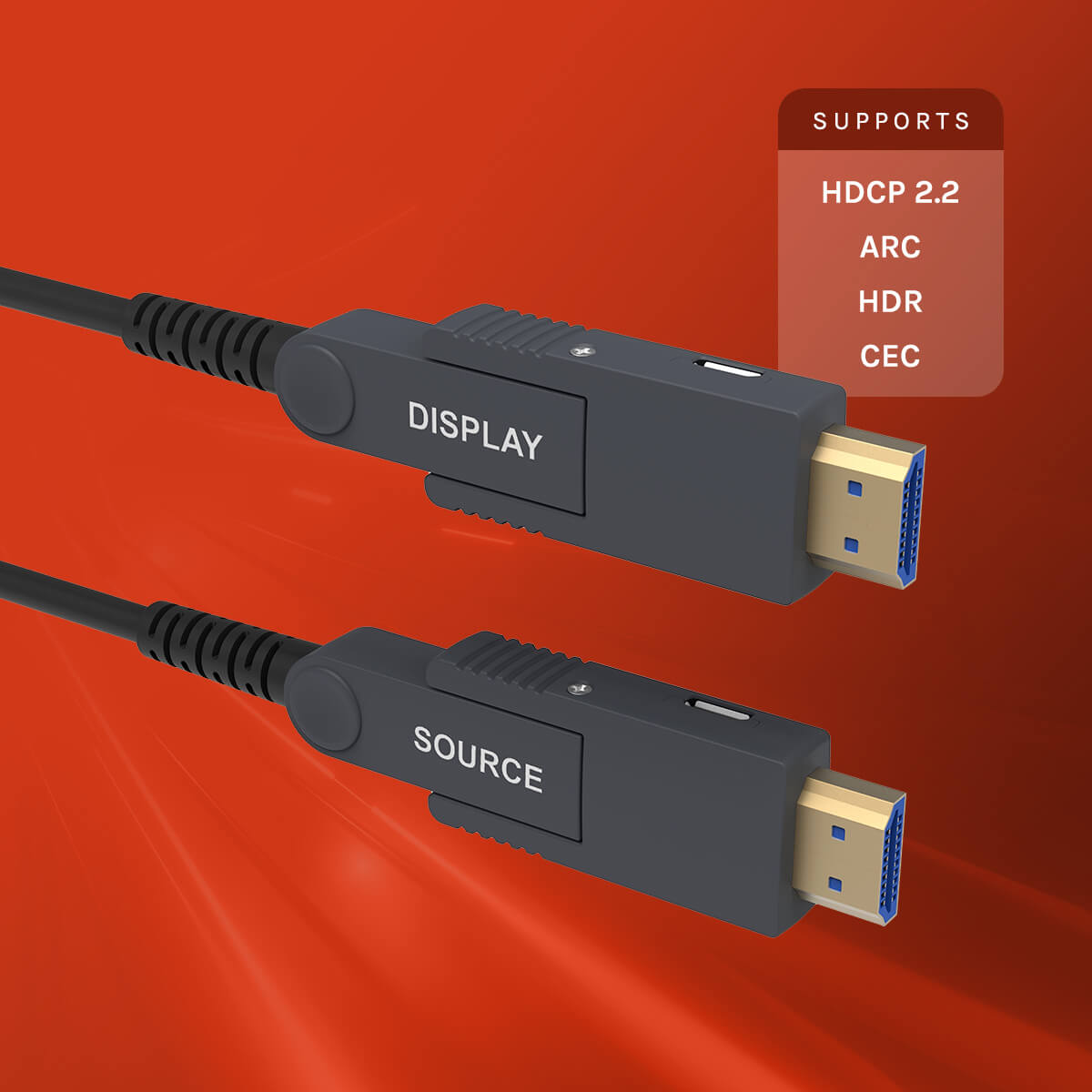

- Supports HDCP 2.2, ARC, HDR AND CEC

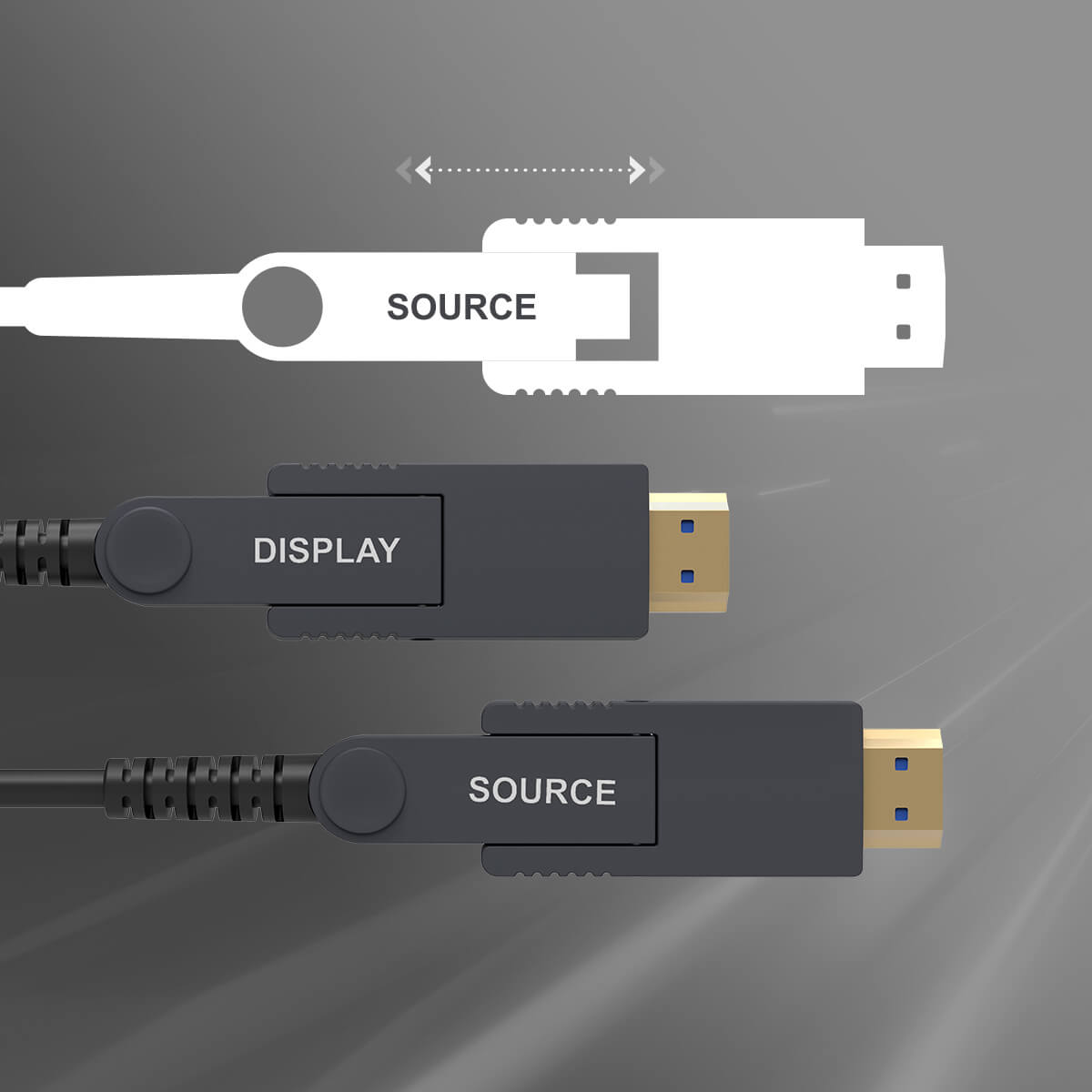

- Removable HDMI Interface for easy wiring at both ends
- Gold plating process of copper shell provides long-lasting and firm connection
- Supports upto 100 metres and the length can be customized
Beetek Photo electric Hybrid Non Threading cable supports HDMI 2.0 signals at 4K@60 4:4:4 at 18 Gbps. The ADD 4K series products are designed for long distance HDMI signal transmission via fibre optic technology, OM3 fibre optic transmission with embedded optic engine technology achieves no delay and no compression.
The cable has a removable HDMI Connector on both end for easy wiring and provides the flexibility to choose between HDMI or DVI Connector. The cable can be configured has HDMI-HDMI, HDMI-DVI, DVI-HDMI, DVI-DVI based on the application. Transparent EDID passthrough from source to sink. The product is suitable for Rental, Live Events, Residential and surveillance applications
The cable has a removable HDMI Connector on both end for easy wiring and provides the flexibility to choose between HDMI or DVI Connector. The cable can be configured has HDMI-HDMI, HDMI-DVI, DVI-HDMI, DVI-DVI based on the application. Transparent EDID passthrough from source to sink. The product is suitable for Rental, Live Events, Residential and surveillance applications
| Name | Specification |
| Product Name | HDMI 2.0 Active Optical Cable (Dual-end Detachable) |
| Model | ADDxx-CC |
| Brand | Beetek |
| Signal Type | HDMI 2.0 |
| Input Connector Type | HDMI Type A Male |
| Output Connector Type | HDMI Type A Male |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | HDMI Type A Male: 97 * 20.5 * 11mm; Detachable connector: 68.2 * 14 * 11mm |
| In-wall Installation | Yes |
| Combination Forms | HDMI-HDMI, HDMI-DVI, DVI-DVI, DVI-HDMI |
| Power from connector (TX) | Yes |
| Cable power supply (RX) | Yes |
| Power | 250mW |
| Plug-n-Play | Yes |
| Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + outer jacket |
| Fiber Type | Multi-mode OM3 * 4 |
| Fiber Wavelength | 850 - 1300nm |
| Copper Wire Material | 7 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1, 26AWG*1, 28AWG*3, 30AWG*2 |
| Cable Diameter | 4.5mm |
| Jacket Material | 80P PVC |
| Jacket Color | Black |
| Packing Dimensions | Short-length 10 - 40M：240*230*75mm |
| Medium-length 50 - 60M：290*280*75mm | |
| Long-length 70 - 100M：340*330*75mm | |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP 2.3 |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 3840x2160@60Hz |
| Clock Bandwidth | 600MHz*3 |
| Transmission Rate | 18Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N /10cm |
| Minimum Bending Radius | Dynamic > 10D (*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |
Key Features
Supports HDCP 2.2, ARC, HDR AND CEC
Removable HDMI Interface for easy wiring at both ends
Gold plating process of copper shell provides long-lasting and firm connection
