DA 240
2X4 Distribution Amplifier
- 2x4 Distribution Amplifier
- Supports resolution upto 4k@30

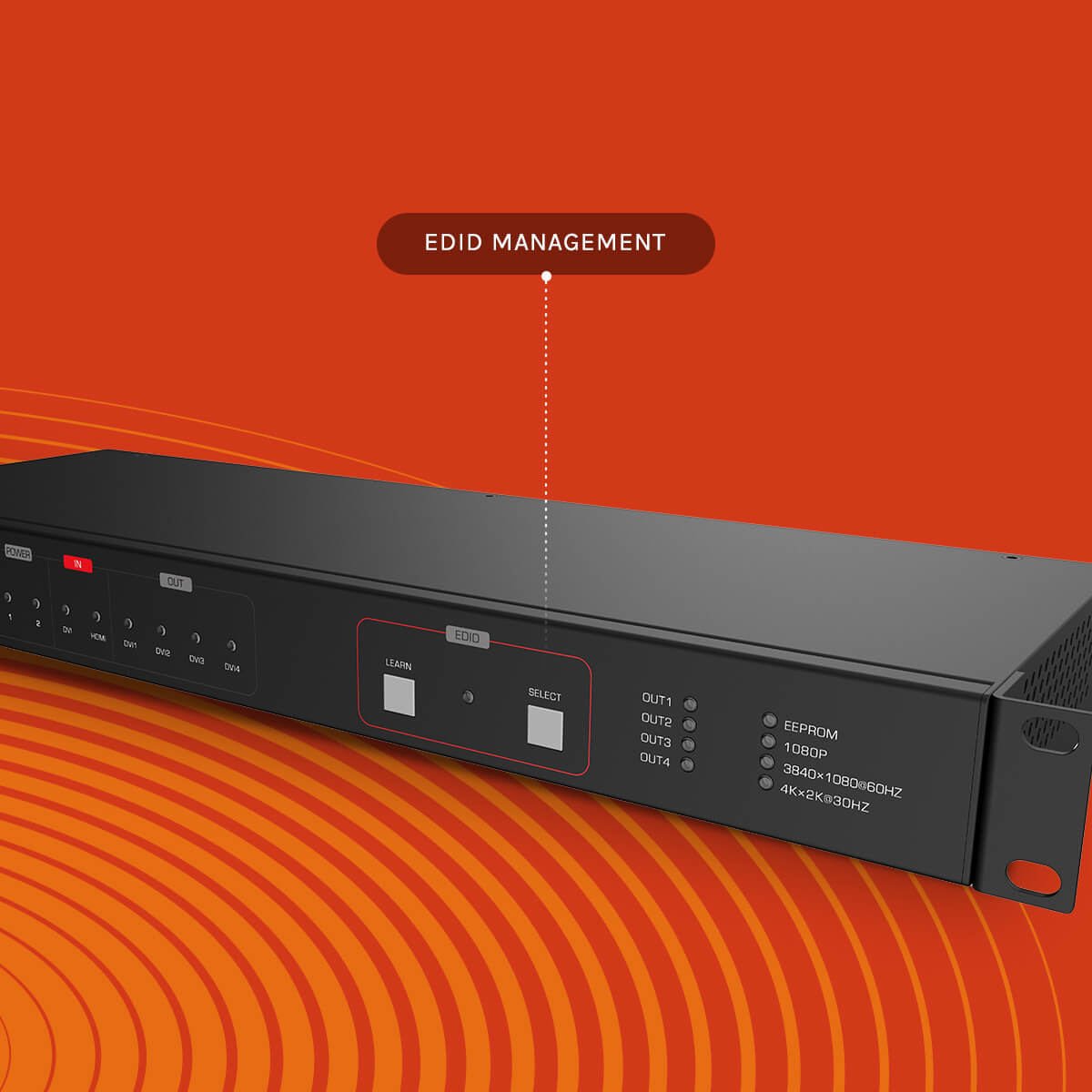

- Built in EDID Management with Dual Mode Output
- Signal Sensing and detection of signal status

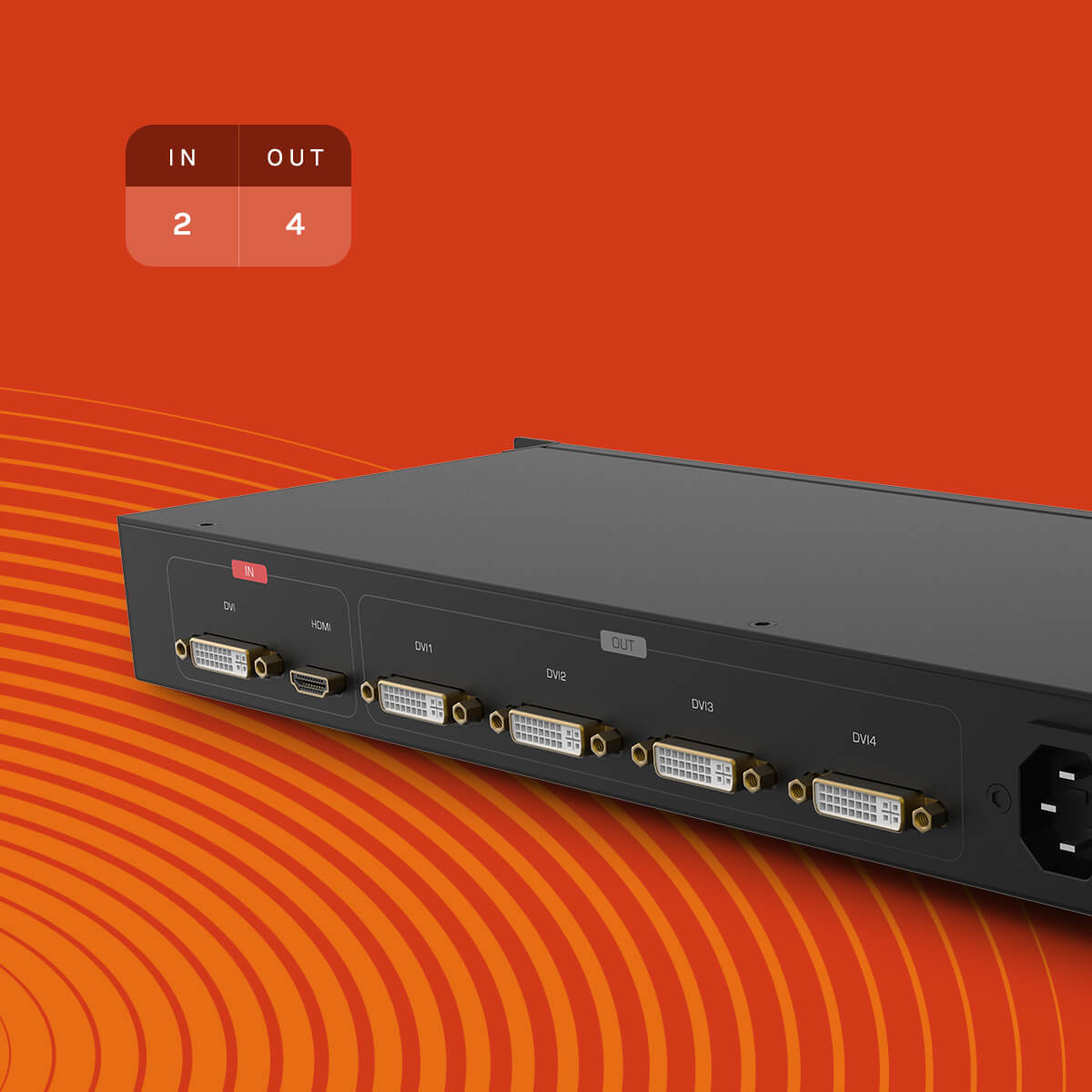

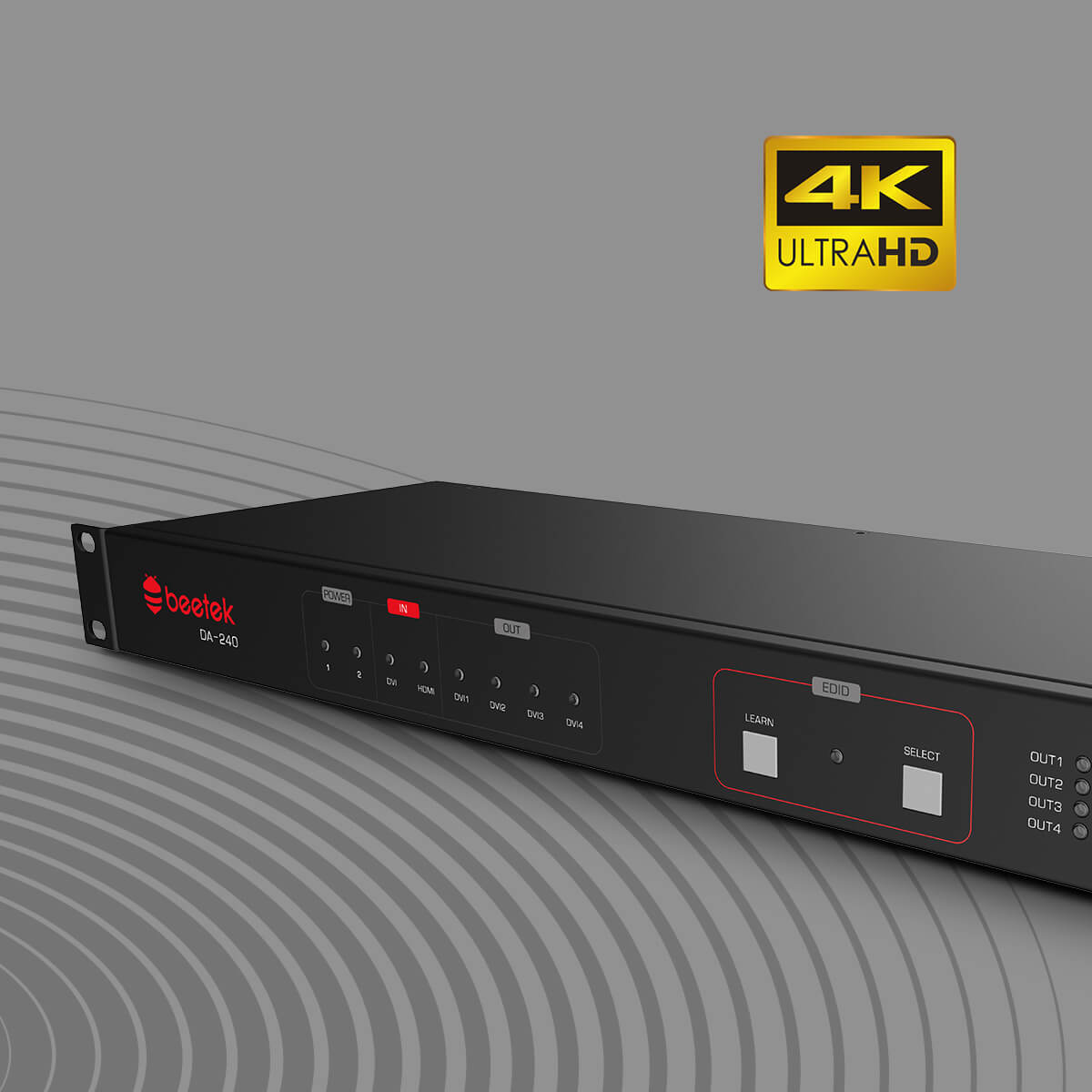

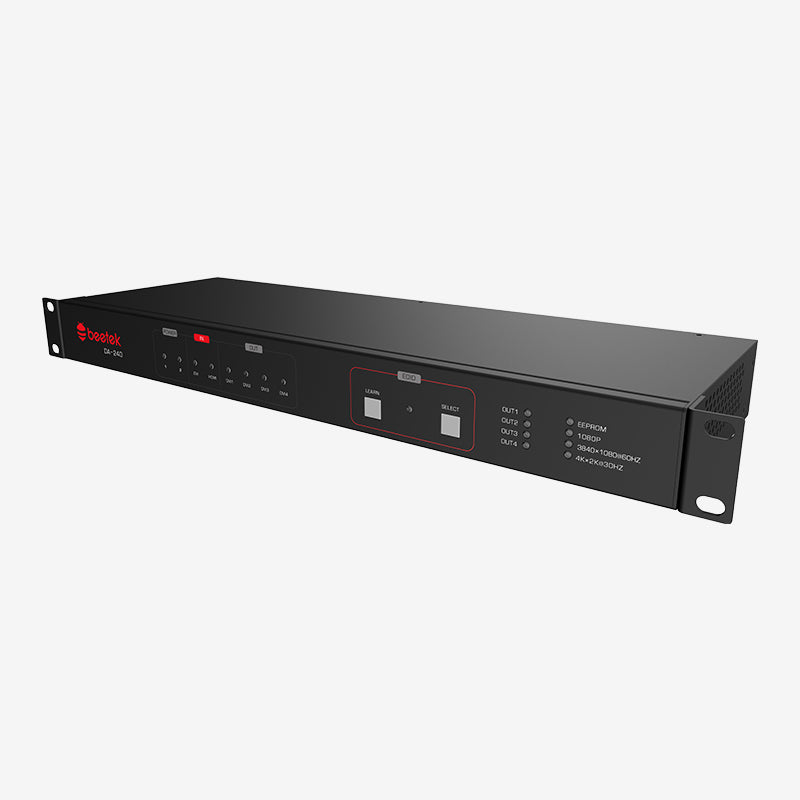

Beetek Distribution Amplifier with 2 HDMI Inputs and 4 hdmi Outputs. The device is compatible with HDMI and DVI Inputs. The device has EDID Management and supports EDID learning and storing. Internal EDID can be selected via front panel. It has redundant power supplies and front panel supports LED indication for active signal status.The product is suitable for Rental, Live Events and surveillance applications
- Data Rate: 10.2 Gbps
- Supported Resolution:4K@30 4:4:4, 4@60 4:2:0
- Supported Frame Rate:24,30,50 and 60 fps
- Supported Color Sampling: 4:4:4, 4:2:2, 4:2:0
- Color Bit Depth: 8, 10, 12 bit
- Signal Type: HDMI 1.4
- Max Resolution * Frame Rate * Color sampling support bandwidth upto 10.2 Gpbs
- Product Dimension - L X W X H
- Input: HDMI, Output: HDMI"
Key Features
2x4 Distribution Amplifier
Supports resolution upto 4k@30
Built in EDID Management with Dual Mode Output
