ADP8K-C SERIES

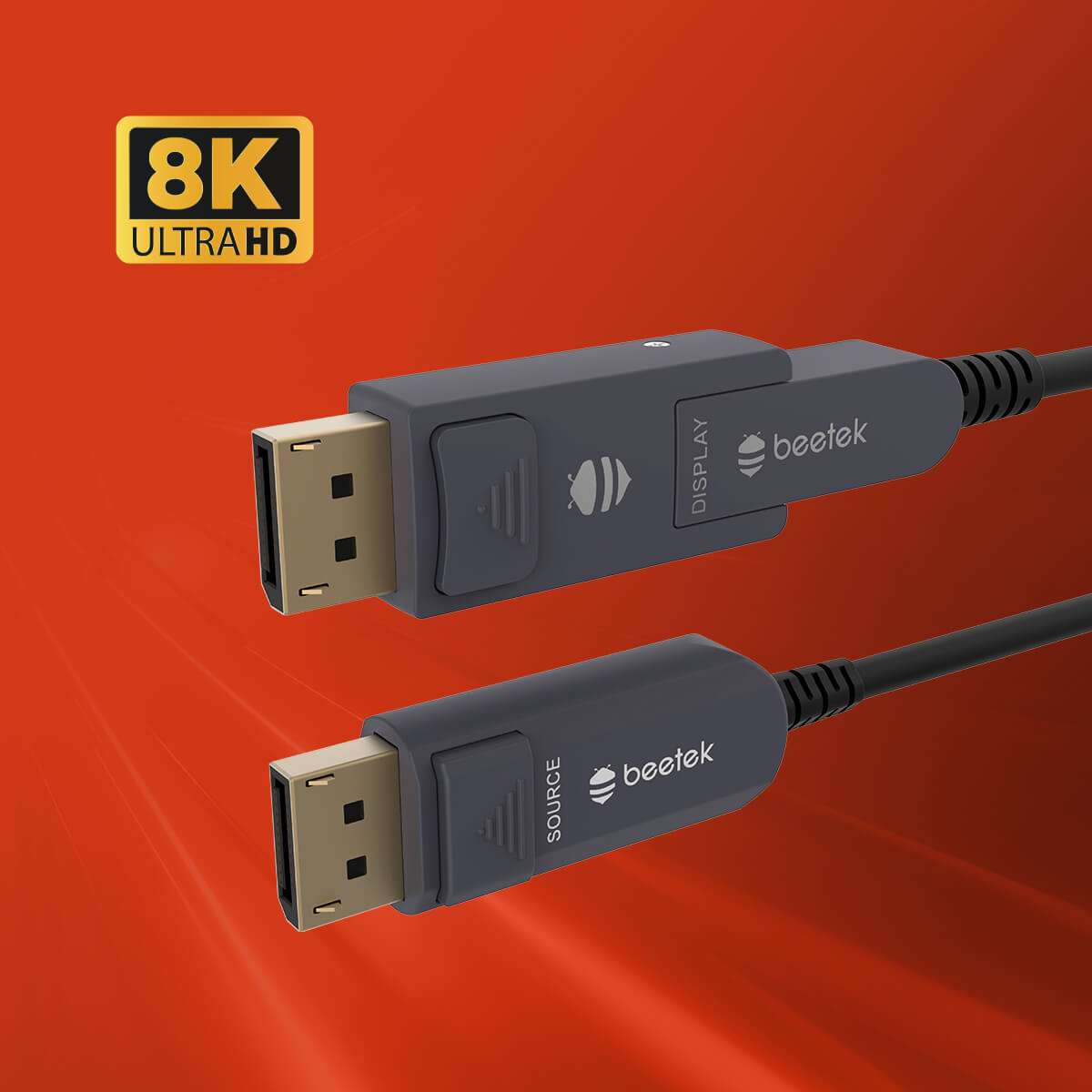

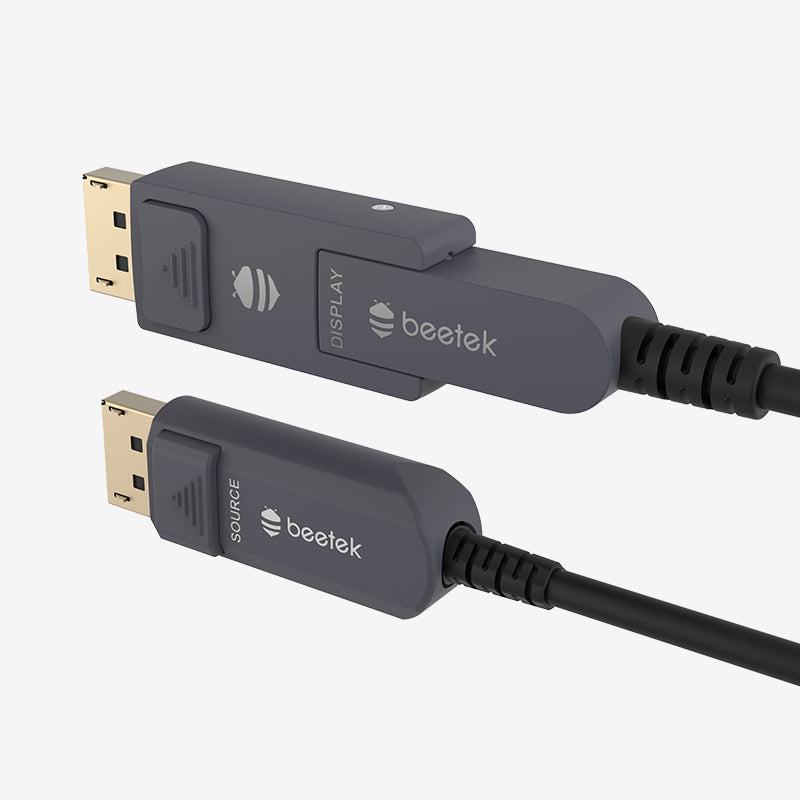

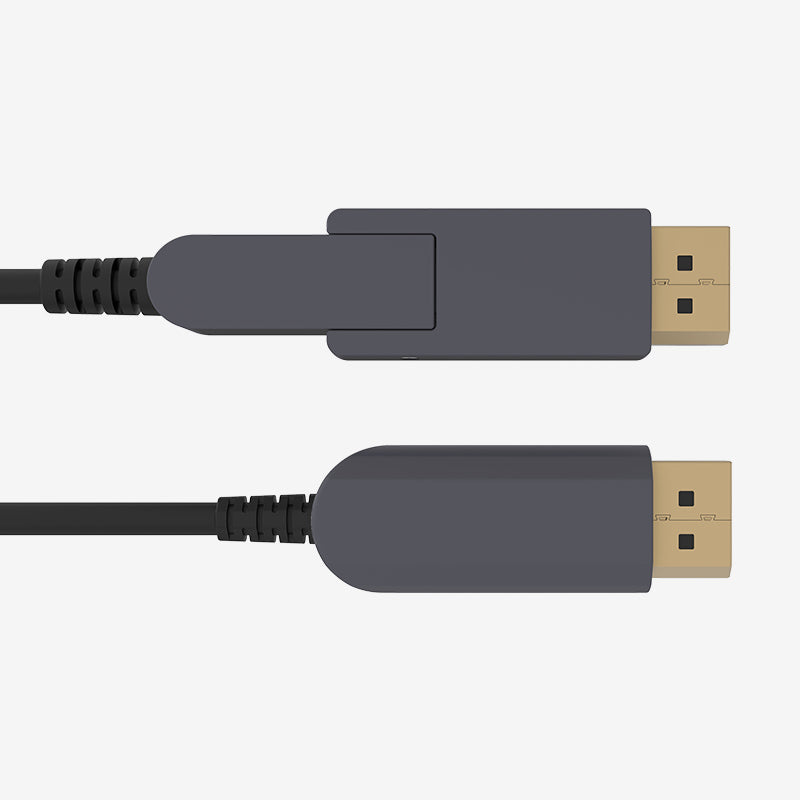

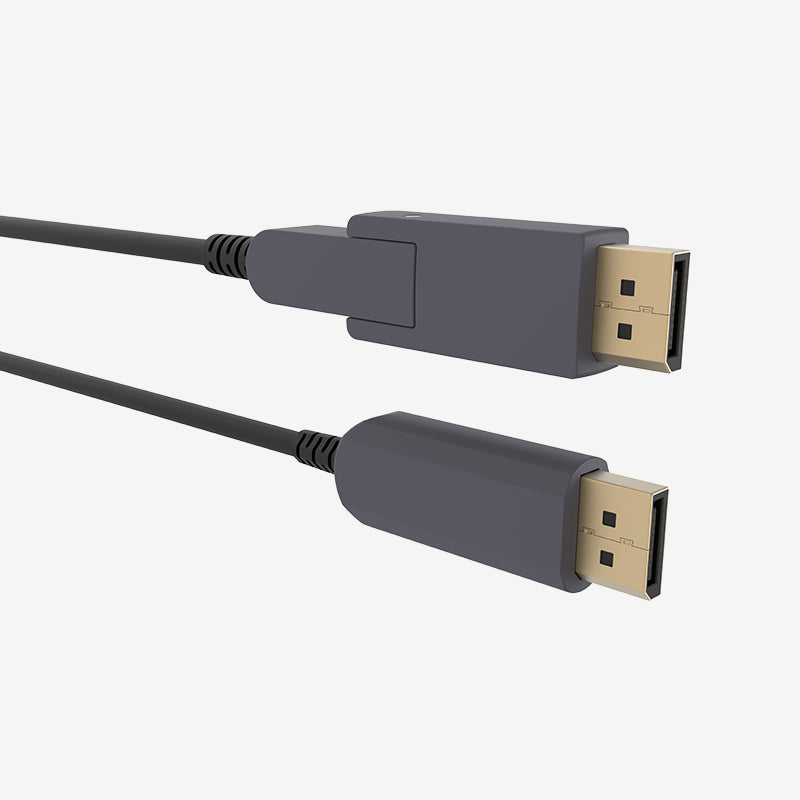

DisplayPort 1.4 High-speed Active Optical Cables (Single-end Detachable)
- Plug and Play without external Power supply
- Supports resolutions up to 8K@60 4:4:4 when using DisplayPort - MiniDP. If DisplayPort adapter is used, supports up to 8K@30 4:4:4
- Supports HDCP 2.2, ARC, HDR AND CEC

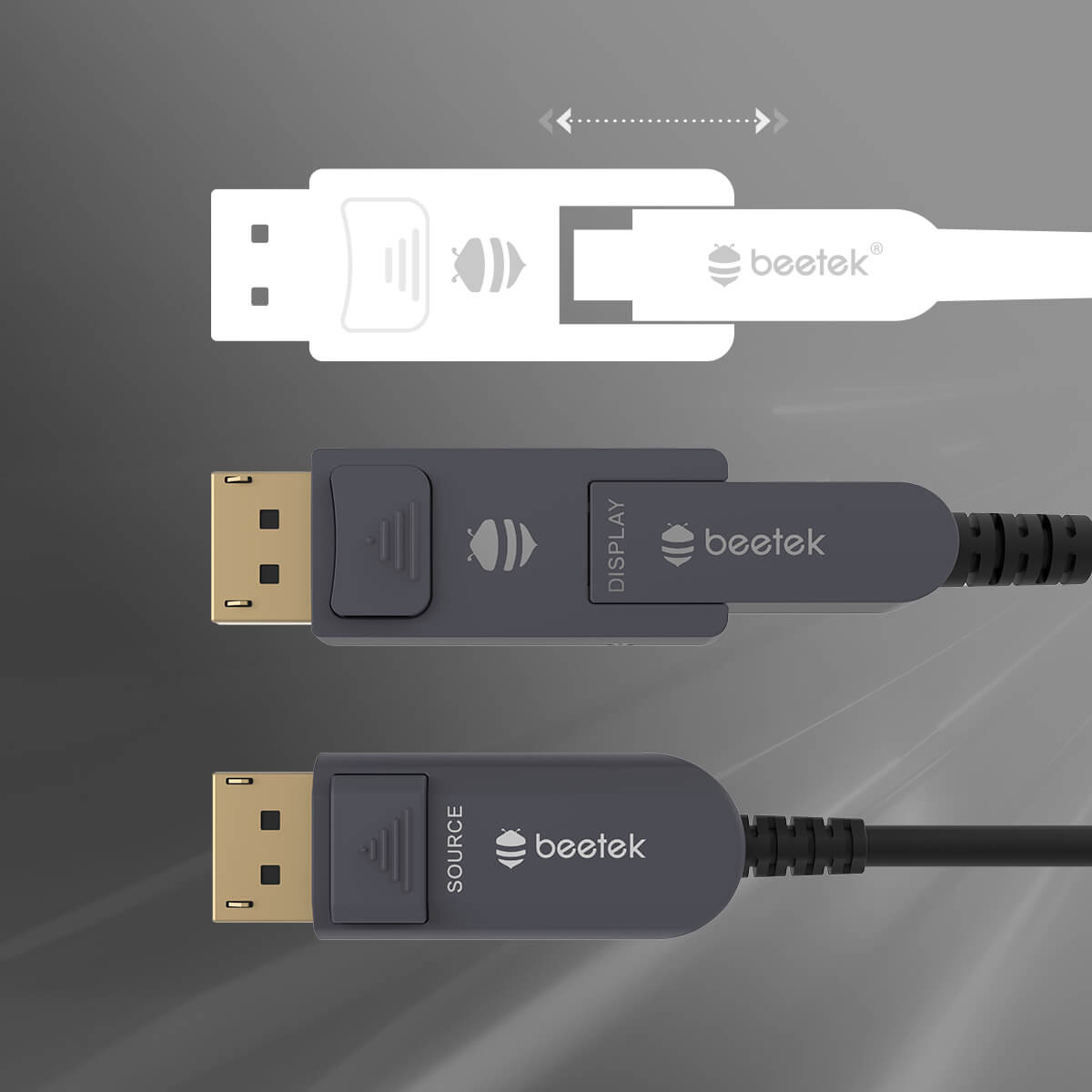

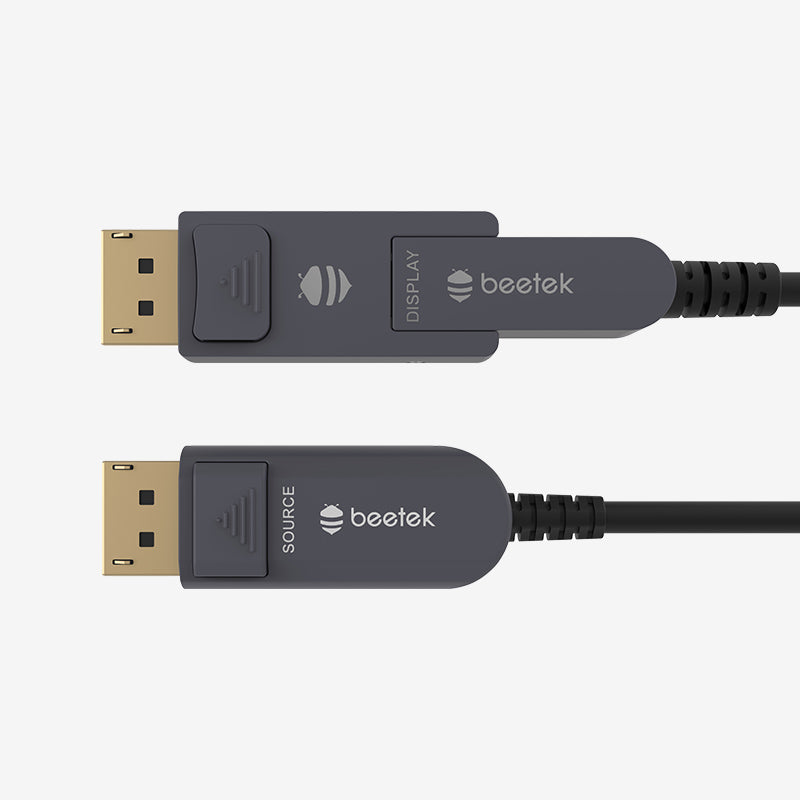

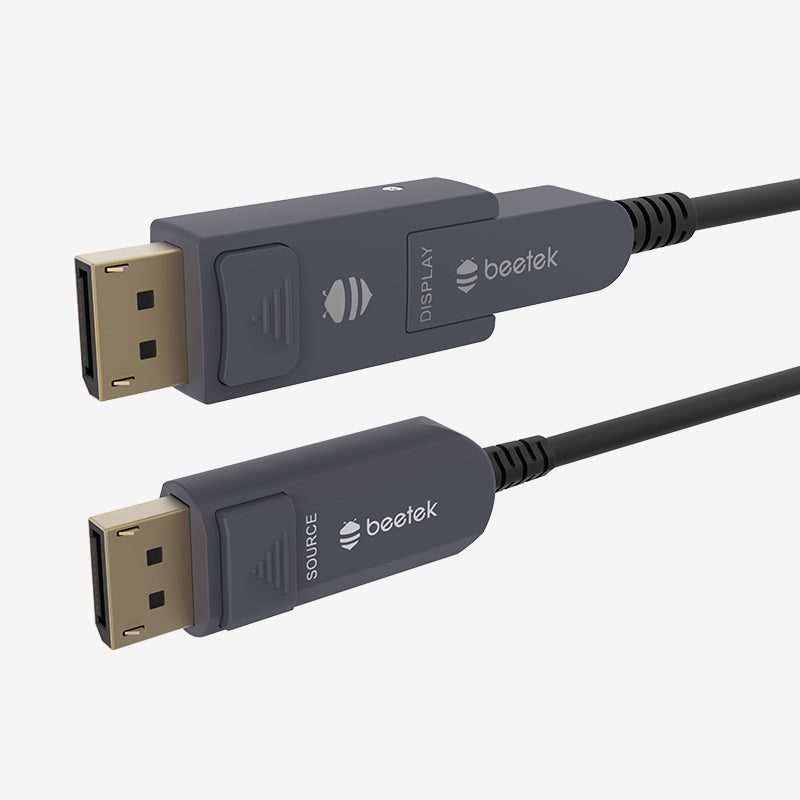

- Removable DP Interface for easy wiring at one end

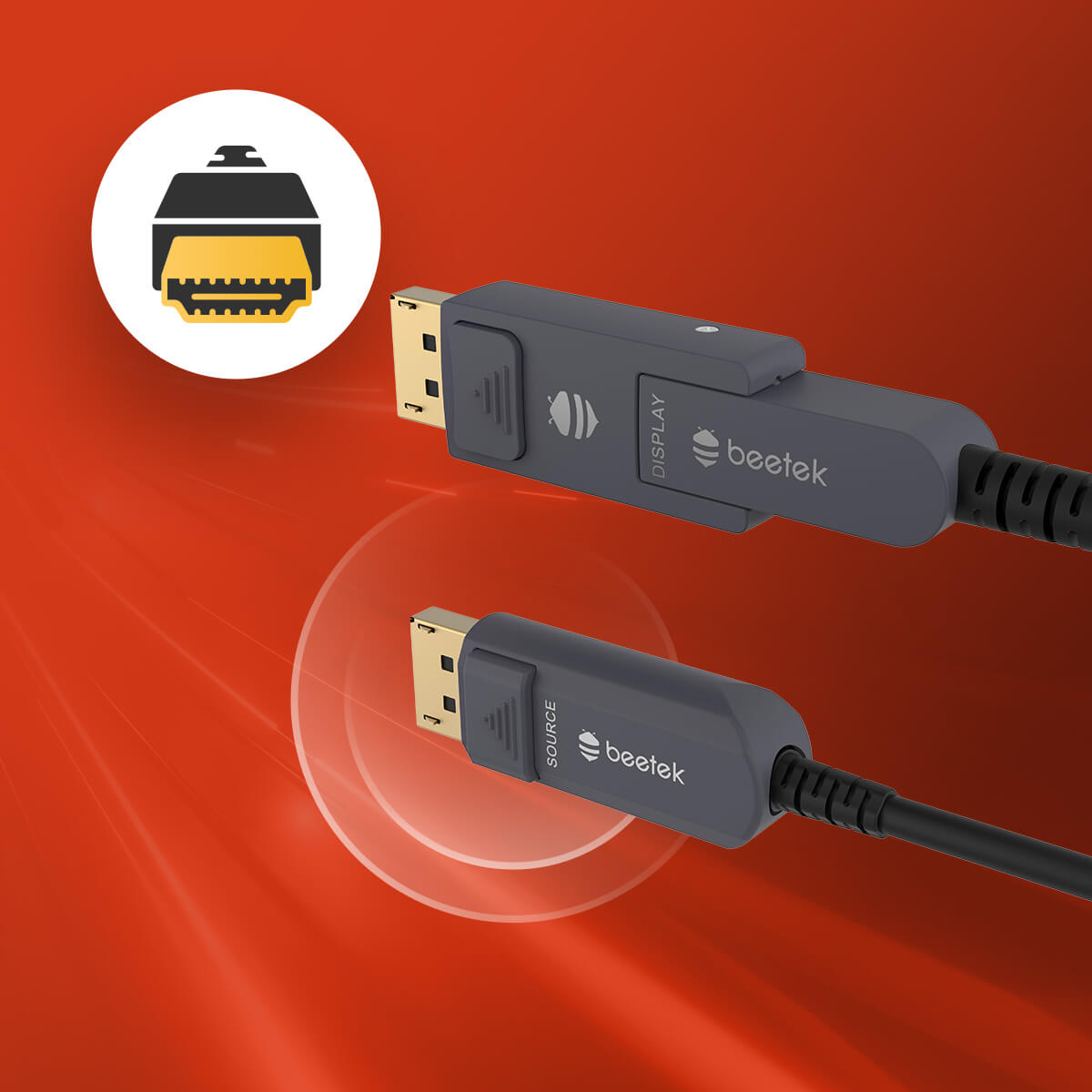

- Gold plating process of copper shell provides long-lasting and firm connection
- Supports upto 100 metres and the length can be customized
Beetek Photo electric Hybrid Single End Threading cable supports Display Port signals 8K@60 4:4:4 32.4 Gbps. The ADP 8K series products are designed for long distance DP signal transmission via fibre optic technology, OM3 fibre optic transmission with embedded optic engine technology achieves no delay and no compression. The cable has a removable DP Connector on one end for easy wiring and Transparent EDID passthrough from source to sink and the cable be configured by changing the connector to DP-DP or DP=Mini DP . The product is suitable for Rental, Live Events, Residential and surveillance applications
| Name | Specification |
| Product Name | DP1.4 Active Optical Cable (Single-end Detachable) |
| Model | ADP8Kxx-C |
| Brand | Beetek |
| Signal Type | DP1.4 |
| Input Connector Type | DP Male |
| Output Connector Type | DP Male |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | DP Male - Tx: 69.2 * 20 * 13mm; Rx: 92.7 * 20 * 13.3mm; Detachable connector: 61 * 13.9 * 12mm |
| In-wall Installation | Yes |
| Combination Forms | DP-DP, DP-miniDP |
| Power from connector (TX) | Yes |
| Cable power supply (RX) | Yes |
| Power | 250mW |
| Plug-n-Play | Yes |
| Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + outer jacket |
| Fiber Type | Multi-mode OM3 * 4 |
| Fiber Wavelength | 850 - 1300nm |
| Copper Wire Material | 8 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1, 26AWG*1, 28AWG*3, 30AWG*2 |
| Cable Diameter | 4.8mm |
| Jacket Color | Black |
| Jacket Material | 80P PVC |
| Packing Dimensions | Short-length 10 - 40M：240*230*75mm |
| Medium-length 50 - 60M：290*280*75mm | |
| Long-length 70 - 100M：340*330*75mm | |
| EDID | Pass-through |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP 2.3 |
| HDR | Yes |
| AUX Channel | Yes |
| High-speed Ethernet | Yes |
| USB | USB 2.0/ USB 3.1 |
| Audio Channels | 32 |
| BT.2020 Color Space | Yes |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 7680x4320 30Hz |
| Clock Bandwidth | 810MHz * 4 |
| Transmission Rate | 32.4Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N /10cm |
| Minimum Bending Radius | Dynamic > 10D (*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |
Key Features
Support resolution upto 8K@60 4:4:4 at 48Gbps transmission rate.
Removable DP Interface for easy wiring at one end
Gold plating process of copper shell provides long-lasting and firm connection
