AHH 8K SERIES

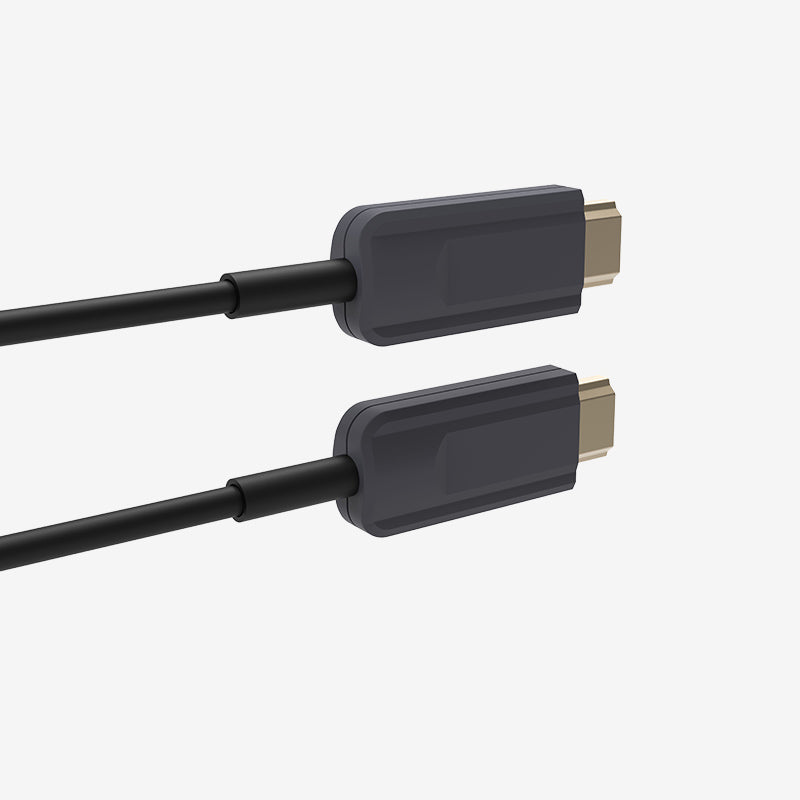

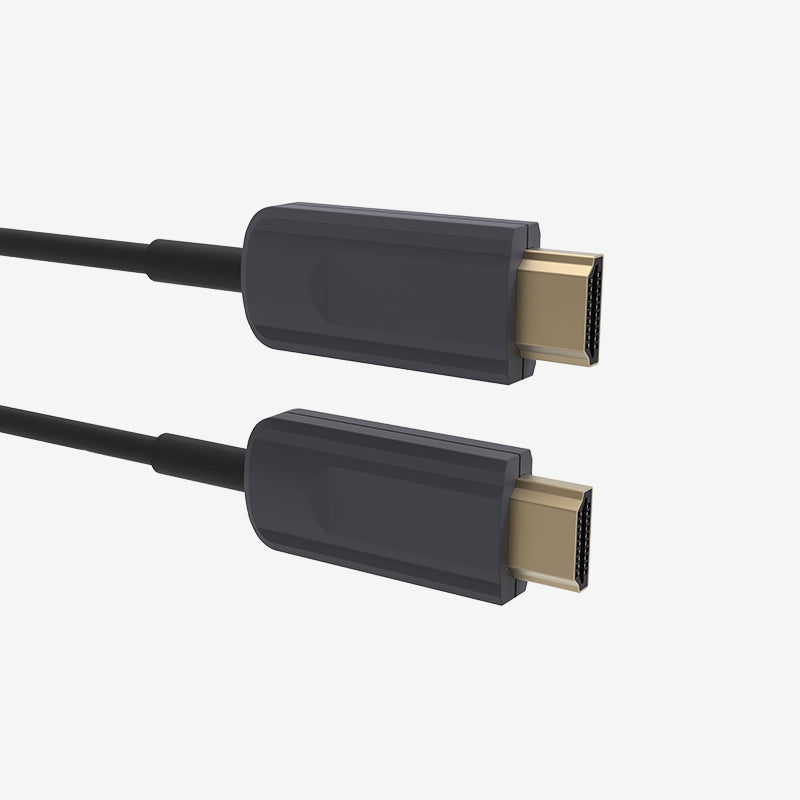

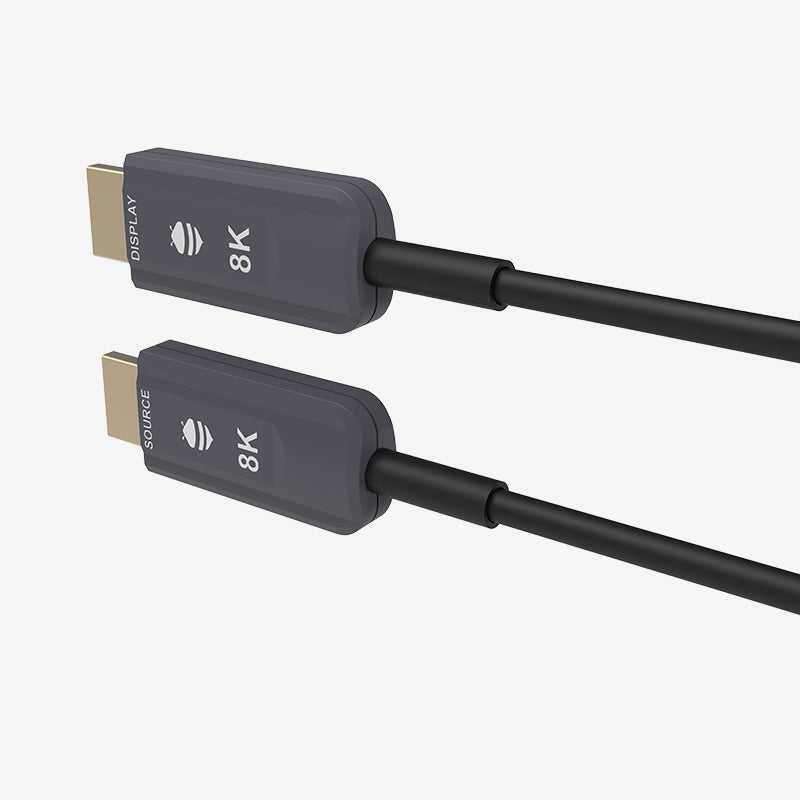

8K HDMI 2.1 High-speed Active Optical Cables
- Plug and Play without external Power supply

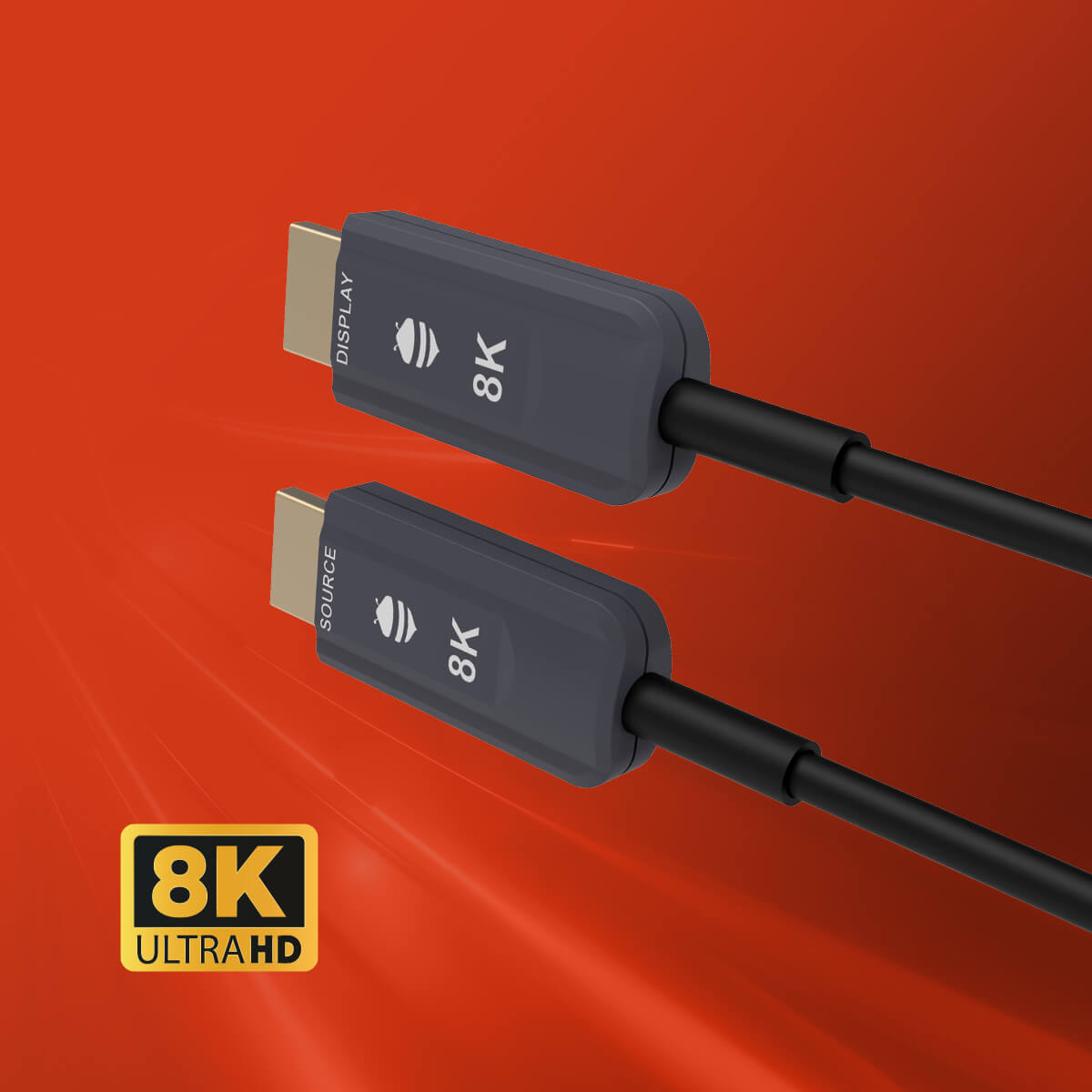

- Supports resolution upto 8K @ 60 4:4:4 at 48Gbps transmission rate.

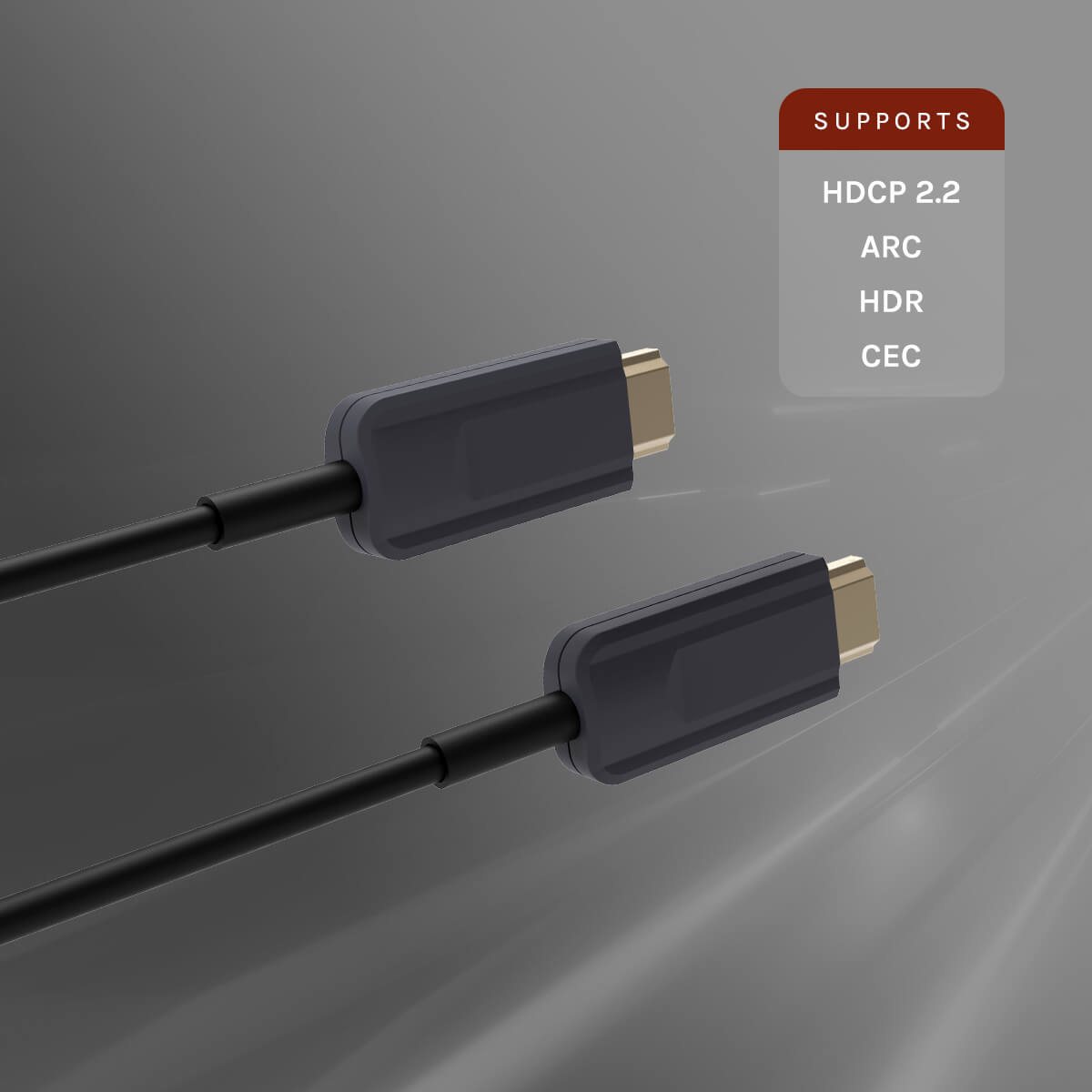

- Supports HDCP 2.2, ARC, HDR AND CEC

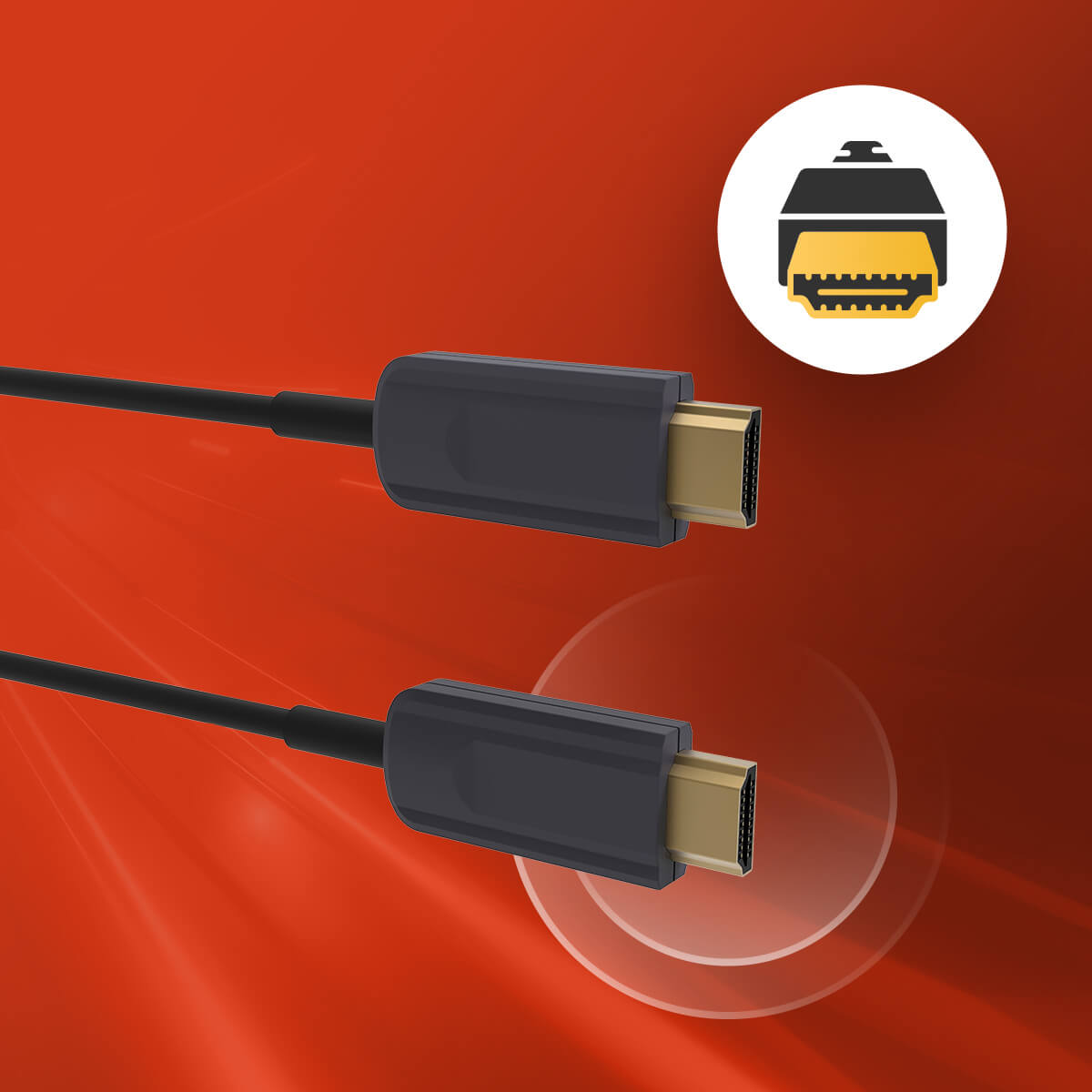

- Gold plating process of copper shell provides long-lasting and firm connection
- Supports upto 100 metres and the length can be customized
Beetek Photo electric Hybrid Non Threading cable supports HDMI 2.1 signals 8K@60 4:4:4 48 Gbps. The AHH 8K series products are designed for long distance HDMI signal transmission via fibre optic technology, OM3 fibre optic transmission with embedded optic engine technology achieves no delay and no compression. The cable has a removable HDMI Connector on both end for easy wiring and provides the flexibility to choose between HDMI or DVI Connector. The cable can be configured has HDMI-HDMI, HDMI-DVI, DVI-HDMI, DVI-DVI based on the application. Transparent EDID passthrough from source to sink. The product is suitable for Rental, Live Events, Residential and surveillance applications
| Name | Specification |
| Product Name | HDMI 2.1 Active Optical Cable |
| Model | AHH8Kxx |
| Brand | Beetek |
| Signal Type | HDMI2.1 |
| Input Connector Type | HDMI Type A Male |
| Output Connector Type | HDMI Type A Male |
| Connector Gold Plating | Gold-plated Copper Shell |
| Connector Structure | Zinc Alloy mold |
| Connector Dimensions | HDMI Type A Male: 70.5*20*10.5 mm |
| In-wall Installation | Not supported |
| Power from connector (TX) | Yes |
| Cable power supply (RX) | Yes |
| Power | 250mw |
| Plug-n-Play | Yes |
| Cable Structure | Optical fiber + inner jacket + Kevlar + copper wire + aluminum foil + outer jacket |
| Fiber Type | Multi-mode OM3 * 4 |
| Fiber Wavelength | 850~1300nm |
| Copper Wire Material | 7 multi-strand tinned copper wires |
| Copper Wire Specification | 24AWG*1 、26WAG*1、28AWG*3、30AWG*2， |
| Cable Diameter | 4.5 mm |
| Jacket Material | 80P PVC |
| Jacket Color | Black |
| Packing Dimensions | Short-length 10 - 40M：240*230*75mm |
| Medium-length 50 - 60M：290*280*75mm | |
| Long-length 70 - 100M：340*330*75mm | |
| EDID | Pass-through |
| DDC | Yes |
| HDMI Audio | Yes |
| 3D | Yes |
| CEC | Yes |
| ARC | Yes |
| HDCP | HDCP 2.3 |
| HDR | Yes |
| XvYCC Color Space | Yes |
| Technical Characteristics | Photoelectric Conversion Technology |
| Optical Module Lifetime | 100,000 hours |
| Resolution | 7680×4320 30Hz |
| Clock Bandwidth | 1600MHz*3 |
| Transmission Rate | 48Gbps |
| Reclocking Chip | Support above 30 meters |
| Pixel Reclocking | Yes |
| ESD protection | Yes |
| Hot Swap | Yes |
| Delay | Zero frame delay |
| Compression | None |
| Sampling Rate | 8~16 bit within the bandwidth range |
| Sampling Ratio | RGB 4:4:4 , YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 |
| Anti-jamming | Yes |
| Tensile Strength | ≤200N |
| Compressive Strength | 1000N /10cm |
| Minimum Bending Radius | ≥10D (*D is the outer diameter of the cable) |
| Operating Temperature | -30-80℃ |
Key Features
Supports resolution upto 8K @ 60 4:4:4 at 48Gbps transmission rate.
Supports HDCP 2.2, ARC, HDR AND CEC
Supports upto 100 metres and the length can be customized
